Product Technical Document Model Name Document NO. H-DAB-A-E-10001 KX-NCP 500 / KX-NCP 1000 Title KX-NCP 500 -1000 MPR V 2. 05 Product Specifications Total Page : 10 Rev. 1. 0 November 13, 2009 Note : - Specifications are subject to change without notice. © 2009 Panasonic Communications CO. , LTD. Communication Network Company Issued by Approved by Checked by Prepared by Copy to M. Tashiro H. Fukuda O. Todokawa K. Ryu T. Nakamura R. Nonaka November 13, 2009 November 10, 2009 Panasonic sales company PSNA / PSNE / PCCUK / PCCSW / PRDCM 1
Revision (Product Specifications) Revision 1 -0 Page All Explanation Official Release as Product Specifications. 2 Prepared by T. Nakamura R. Nonaka November 10, 2009
Purpose of NCP version 2. 05 Purpose NCP Express provides competitive price for SOHO : 12 DPT and 4 SLT or less. Price for more than 12 DPT and 4 SLT is kept by new activation key. NCP Express is successor of KX-TDA 15 with CA functionality as “IP enabled PBX”. 128 IP-PT NCP 500 V 2. 01 supported 40 IP-PTs only. NCP 1000 V 2. 01 supported 64 IP-PTs only. Dealer could sell NCP newly, if user needs 30 -40 IP-PTs only at first. User needs expandability for future without buying PBX again. => NCP version 2. 05 supports 128 IP-PTs for both NCP 500 and NCP 1000. (Move up from version 4) 3
NCP Express Pricing and Activation Key Price BRI 2 / DHLC 4 Pre-Install DLC 16 Price DLC 8 Price NCP 500 NE/GR/UK DLC 8 Price DLC 16 Price New Activation key KX-NCS 3990 DLC 8 Price NCP Express 4 DPT+ 4 DXDP 12 DPT 20 DPT+ 4 DXDP 28 DPT+ 4 DXDP 36 DPT+ 4 DXDP 4 DPT Capacity BRI 2 + 4 SLT Activation Key
Software Version 2. 05 Specifications V 2. 05 Official Software Release after FT : 12 End Hardware NCP Large NCP 1000 NE/GR/UK MPR Software V 2. 01 or before Digital PT Max. 36 DPT + 4 DXDP V 2. 05 or later SLT Max. 36 Total 40 NCP Standard V 2. 01 or before NCP 500 NE/GR/UK V 2. 05 or later NCP e. Xpress V 2. 05 or later NCP 500 XNE with Activation Key NCP e. Xpress NCP 500 XNE V 2. 01 or before * V 2. 05 or later IP-PT Max. 64 Max. 128 Max. 40 Max. 20 DPT + 4 DXDP Max. 20 Total 24 Max. 4 DPT + 4 DXDP on DHLC 4 Max. 12 DPT including DXDP ** Max. 128 Max. 40 Max. 4 on DHLC 4 * Official software for NCP 500 Express is version 2. 05 or later. Even if old software is used, DPT/SLT capacity is limited. ** Limitation is not applied to DECT CS, VM, DSS Console and Analog PT. 5 Max. 128 Max. 40 Max. 128

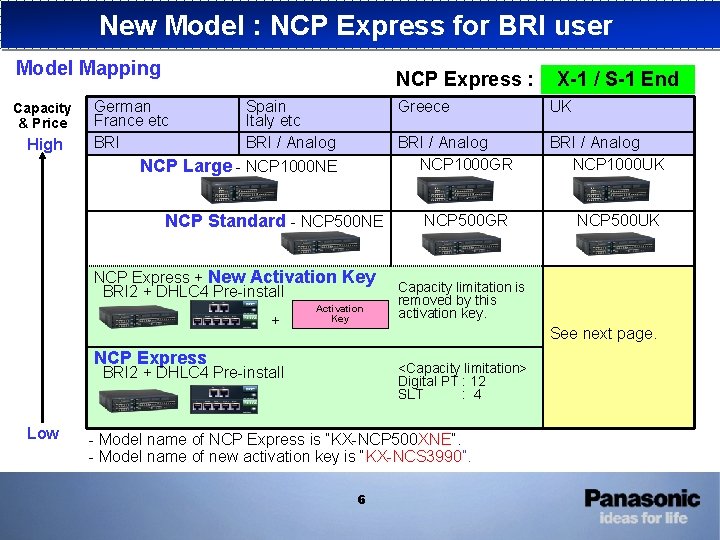

New Model : NCP Express for BRI user Model Mapping Capacity & Price High NCP Express : German France etc BRI Spain Italy etc BRI / Analog NCP Large - NCP 1000 NE NCP Standard - NCP 500 NE NCP Express + New Activation Key BRI 2 + DHLC 4 Pre-install + Activation Key NCP Express Low Greece UK BRI / Analog NCP 1000 GR BRI / Analog NCP 1000 UK NCP 500 GR NCP 500 UK Capacity limitation is removed by this activation key. See next page. <Capacity limitation> Digital PT : 12 SLT : 4 BRI 2 + DHLC 4 Pre-install - Model name of NCP Express is “KX-NCP 500 XNE”. - Model name of new activation key is “KX-NCS 3990”. 6 X-1 / S-1 End
NCP Express Series Model Name and Specification 3 modes are under study as well as KX-NCP 500 XNE Built-in AC Cable Model Name Status DHLC 4 + BRI 2 Europe KX-NCP 500 XNE Planned DHLC 4 + Vo. IP DSP 4 Europe KX-NCP 500 VNE Planned DHLC 4 + BRI 2 UK KX-NCP 500 XUK Pending DHLC 4 + Vo. IP DSP 4 UK KX-NCP 500 VUK Pending Main target of Vo. IP models is SIP trunk user. 7
Supplemental Installation Manual “README-1 st. PDF” (one page data ) is added to CD for NCP 500 Express production as “Supplemental IM”. Installation Manual file itself is NOT revised. Installation Manual file is revised with NCP version 4. 8
PCMC Specification “Reserved 1” is for “C# SDK”. “Reserved -2" is displayed for the new activation key "extension capacity expansion" for all NCP models. Dealer can know model name by "model name label" for on site programming. Dealer can manage model name by "profile“ for remote programming. Correct activation key name is displayed from version 4. 9
