Product Specifications NEW complete stainless steel cabinet front

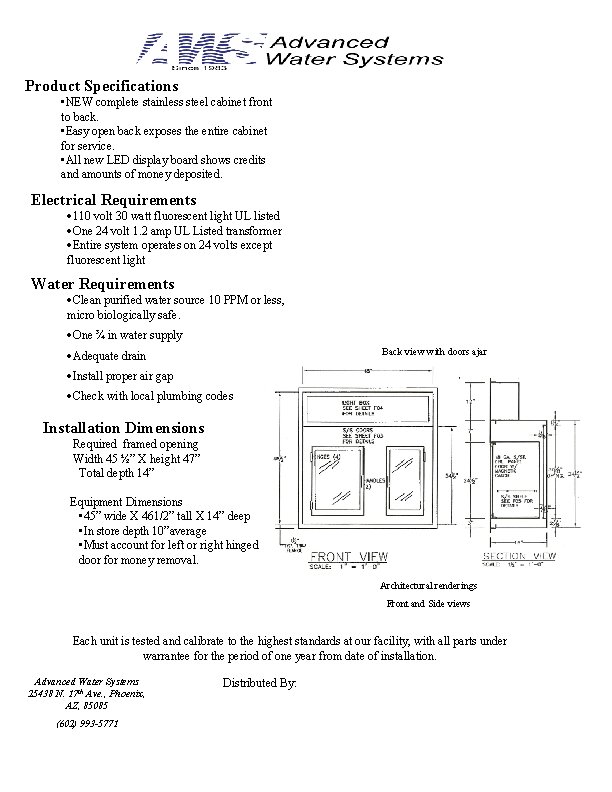

Product Specifications • NEW complete stainless steel cabinet front to back. • Easy open back exposes the entire cabinet for service. • All new LED display board shows credits and amounts of money deposited. Electrical Requirements · 110 volt 30 watt fluorescent light UL listed ·One 24 volt 1. 2 amp UL Listed transformer ·Entire system operates on 24 volts except fluorescent light Water Requirements ·Clean purified water source 10 PPM or less, micro biologically safe. ·One ¾ in water supply Back view with doors ajar ·Adequate drain ·Install proper air gap ·Check with local plumbing codes Installation Dimensions Required framed opening Width 45 ½” X height 47” Total depth 14” Equipment Dimensions • 45” wide X 461/2” tall X 14” deep • In store depth 10”average • Must account for left or right hinged door for money removal. Architectural renderings Front and Side views Each unit is tested and calibrate to the highest standards at our facility, with all parts under warrantee for the period of one year from date of installation. Advanced Water Systems 25438 N. 17 th Ave. , Phoenix, AZ, 85085 (602) 993 -5771 Distributed By:

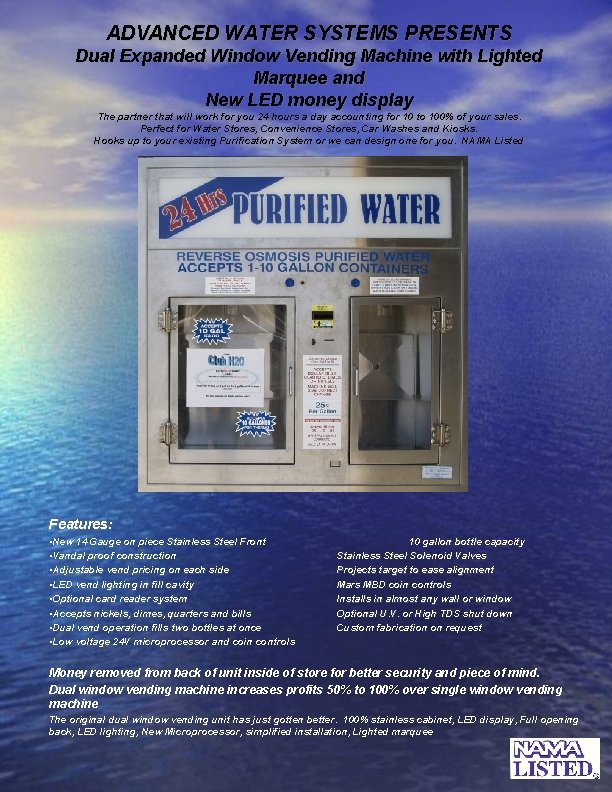

ADVANCED WATER SYSTEMS PRESENTS Dual Expanded Window Vending Machine with Lighted Marquee and New LED money display The partner that will work for you 24 hours a day accounting for 10 to 100% of your sales. Perfect for Water Stores, Convenience Stores, Car Washes and Kiosks. Hooks up to your existing Purification System or we can design one for you. NAMA Listed Features: • New 14 Gauge on piece Stainless Steel Front • Vandal proof construction • Adjustable vend pricing on each side • LED vend lighting in fill cavity • Optional card reader system • Accepts nickels, dimes, quarters and bills • Dual vend operation fills two bottles at once • Low voltage 24 V microprocessor and coin controls 10 gallon bottle capacity Stainless Steel Solenoid Valves Projects target to ease alignment Mars MBD coin controls Installs in almost any wall or window Optional U. V. or High TDS shut down Custom fabrication on request Money removed from back of unit inside of store for better security and piece of mind. Dual window vending machine increases profits 50% to 100% over single window vending machine The original dual window vending unit has just gotten better. 100% stainless cabinet, LED display, Full opening back, LED lighting, New Microprocessor, simplified installation, Lighted marquee
