Product specification and domain ontologies Optique Big Data Summit III June 2016 Anders Gjerver anders. gjerver@aibel. com

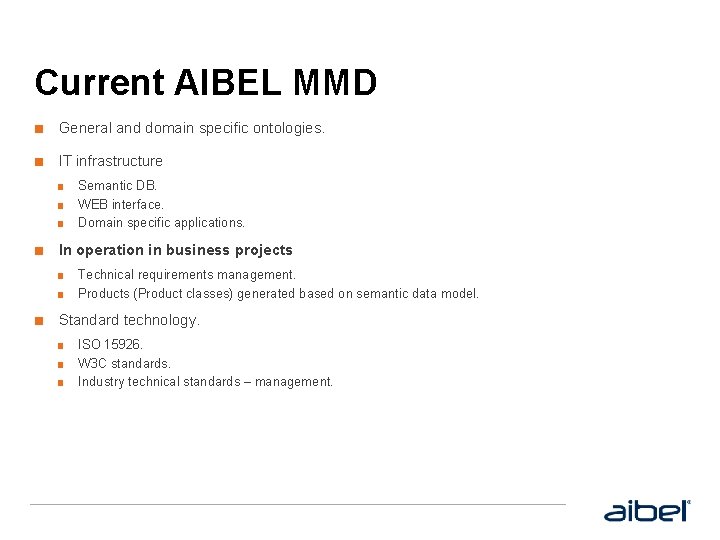

Current AIBEL MMD ■ General and domain specific ontologies. ■ IT infrastructure ■ ■ ■ Semantic DB. WEB interface. Domain specific applications. ■ In operation in business projects ■ ■ Technical requirements management. Products (Product classes) generated based on semantic data model. ■ Standard technology. ■ ■ ■ ISO 15926. W 3 C standards. Industry technical standards – management.
Product Life Cycle Management Apply semantics and ■ One asset ■ Multiple phases ■ Multiple participants F-BOM Functional BOM E-BOM Engineering BOM Operational BOM enable industrial intelligence M-BOM Manufacturing BOM Maintenance Construction BOM Modification As-Built BOM Decommissioning
Domain Ontologies ISO 15926 Generic Domain classification as specialisation of the generic Domain specific Industry standard compliant object
MMD example Material Domain
Classified plant individual Global classification Multiple domains has. Flanged. End some Valve Pump has. Flanged. End only ASME B 16. 5 Raised Face Flange Face NPS 6 CL 300 NORSOK 41 Heating medium Pressure Transmitter ASTM A 182 Grade F 51 Compliant Object has. Valve. Bonnet only Stainless steel Type 22 Cr Duplex Weld procedure
Requirements management ■ Classes of Industrial Objects in the ontology. ■ Interpretation of industry standards and other documents ■ Version control of requirements ■ Objects valid in multiple revisions of requirement documents. Global requirements management

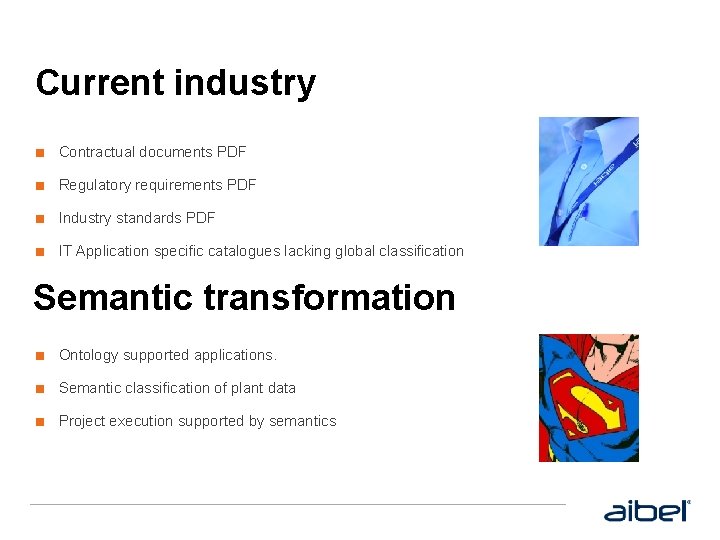

Current industry ■ Contractual documents PDF ■ Regulatory requirements PDF ■ Industry standards PDF ■ IT Application specific catalogues lacking global classification Semantic transformation ■ Ontology supported applications. ■ Semantic classification of plant data ■ Project execution supported by semantics
ASTM A 182 Grade F 51 Compliant Object Collaborative vision NORSOK 41 Heating medium Global shared ontology ASME B 16. 5 Raised Face Flange Face NPS 6 CL 300 Company ontology Applications Master Data Register data Stainless steel Type 22 Cr Duplex
