Product Portability Optimizing Your Investment in Dimensions CM

Product Portability “Optimizing Your Investment in Dimensions CM” Presented by Lovell & Mercier, Inc.

Trademarks & Copyrights • Serena, Dimensions and Serena Dimensions are registered trademarks of Serena Software, Inc. The Serena logo is a trademark of Serena Software, Inc. All other products or company names are used for identification purposes only, and may be trademarks of their respective owners. • Lovell & Mercier recognizes Serena Software, Inc. Trademarks and Copyrights. Any use of a Serena Software Inc. Trademark or Copyright in this presentation that is not acknowledged is unintentional and will be corrected as soon as it is brought to our attention. 2

Agenda • Introductions – Attendees – Lovell & Mercier – Emagine IT • • Background Product Portability Demonstration Questions 3

Lovell & Mercier • Dimensions CM Support – Professional Services • • New Installation/Upgrade Conversion/Migration Process Automation Consulting – Custom Development • New Interfaces • Triggers • Custom Dimensions CM Training – Administration – Developers – End Users 4

Emagine IT is an information technology consulting Services Company that specializes in delivering technology solutions to meet the needs of government and commercial clients. Their mission is to understand meet the needs of both clients and consultants by delivering quality, valueadded solutions. Their solutions are designed and managed to not only reduce costs, but to improve business processes, accelerate response time, improve services to end users, and give clients a competitive edge, now and into the future. As business systems integrators, they align clients’ business processes and information systems to enable them to access the right information at the right time, empowering them to achieve their desired business results and create enterprise value. Emagine IT’s approach reduces costs and increases productivity by creating collaborative business environments. Their solutions are a carefully selected combination of people, tools, and processes focused on the specific needs of their customers. Emagine IT is working with Lovell & Mercier to make the Product Portability functionality available to Dimensions CM users. Contact Lucas Aimes from Emagine IT for more information regading Dimensions CM Product Portability. 5

Background • State of Ohio, Department of Job and Family Services (ODJFS) – Expressed need for Product Portability • Dimensions Interface developed jointly by L&M and ODJFS – Roger Mercier (L&M) – Bobby Mittra (ODJFS) • DMPMCLI Function Library developed jointly by L&M and (ODJFS) – Roger Mercier (L&M) – Bobby Mittra (ODJFS) • Special Thanks – Phil Davis (ODJFS) – Anita Moss (ODJFS) 6

Product Portability • The ability to develop a Dimensions CM Product Control Plan in a Dimensions CM Base Database and migrate that Product Control Plan, in its entirety, to an another EXISTING Dimensions CM Base Database. 7

“Out-of-the-box” Capabilities in Dimensions CM • Copy Product – Cannot cross Base Databases – Not all information copied • EXPM – Exports complete Control Plan – Can ONLY be used to create a NEW Base Database • DMDBA …. . /IMPORT=<EXPM File> – Cannot be used to create a new product in an existing Base Database • DMPMCLI – Using “native” DMPMCLI would require hundreds of thousands of lines of code – Extremely unmanageable for even medium sized products 8

Classical Quality Assumptions • Faster means you have to sacrifice better, cheaper, or both • Better means you have to sacrifice faster, cheaper, or both • Cheaper means you have to sacrifice faster, cheaper, or both 9

Facts Regarding Product Portability • It is FASTER – Development time – Implementation into a test environment – Implementation into the production environment • AND, it is BETTER – What was developed in the development environment IS what is tested in the test environment – What was tested in the test environment IS what is implemented into the production environment • AND, it is CHEAPER – Development time – Implementation into a test environment – Implementation into the production environment 10

Tools Required • • Microsoft Visual Basic (VB 6. 0 Pro) Dimensions CM DMPMCLI Dimensions CM DMCLI Access to Dimensions CM Published Views AND Dimensions CM Tables (Read Only) • L&M Function Library *** 11

Skills Required • Intimate familiarity with the Dimensions CM Administration functions • Intimate familiarity with the Dimensions CM Database structure • Intimate familiarity with the Dimensions CM DMCLI • Intimate familiarity with the Dimensions CM DMPMCLI *** • Intimate familiarity with Visual Basic • Intimate familiarity with Sql. Plus 12

Technical Details • Must have access to both the Source Base Database and Target Base Database AT THE SAME TIME • Must have READ ONLY access to both the Source Base Database and Target Base Database tables and Published Views • Must have Dimensions CM Admin rights on both the Source Base Database and Target Base Database 13

Considerations • Order of execution is MOST important • Verification is VERY important • MOST IMPORTANTLY – NO ORACLE TABLE UPDATES – DMPMCLI – DMCLI 14

Objects Ported • • • • • Product Roles Lifecycle Images Lifecycle Transitions Valid Set Values Design Part Types Baseline Templates Baseline Template Rules Release Template Rules Request Type Options Request Templates Request CM Rules Request Attributes Request Priming Request Valid Set Relationships • • • • • Request Attribute Rules Request Block Attributes Item Type Options Item Libraries Item CM Rules Item Attributes Item Valid Set Relationships Item Attribute Rules Item Block Attributes Relationships Design Parts Projects Streams User Accounts Role Assignments Privilege Assignments e. Mail Subscriptions 15

Details 16

PRODUCT • Product Name – Cannot exist in target Base Database – Will be deleted in Target Base Database • Product Description – Uses Source Product description • Product Manager – Defaults to Tool Manager • Based On – Defaults to $GENERIC • Copy Structure – Default FALSE 17

ROLES • Role Name – Cannot exist in Target Base Database • Role Description – From Role in Source Base Database 18

LIFECYCLES • If Lifecycles exist in the Target Base Database they WILL BE USED, AS IS • If Lifecycles do not exist in the Target Base Database they WILL BE CREATED • Lifecycles in the Target Base Database WILL NOT BE MODIFIED 19

LIFECYCLE IMAGES • If Lifecycle existed in the Target Base Database it’s images will not be modified • If Lifecycle did not exist in the Target Base Database all revisions of it’s images in the Source Base Database will be ported to the lifecycle in the Target Base Database 20

LIFECYCLE TRANSITIONS • If Lifecycle existed in the Target Base Database it’s transitions will not be modified • If Lifecycle did not exist in the Target Base Database all of it’s transitions in the Source Base Database will be ported to the lifecycle in the Target Base Database 21

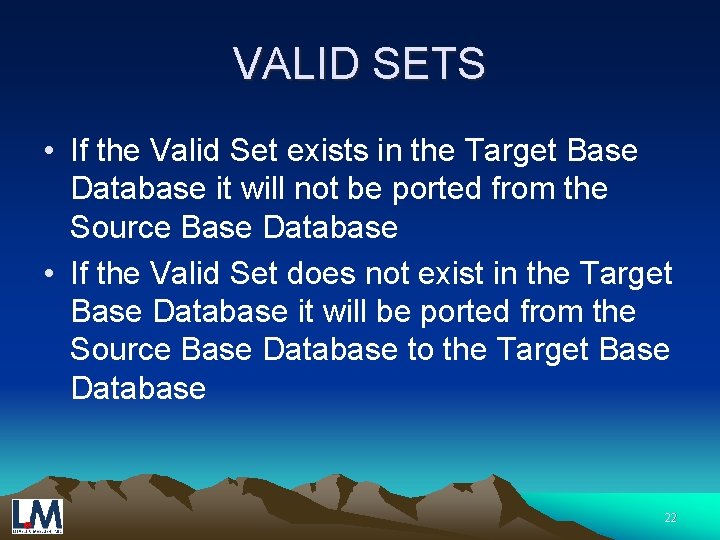

VALID SETS • If the Valid Set exists in the Target Base Database it will not be ported from the Source Base Database • If the Valid Set does not exist in the Target Base Database it will be ported from the Source Base Database to the Target Base Database 22

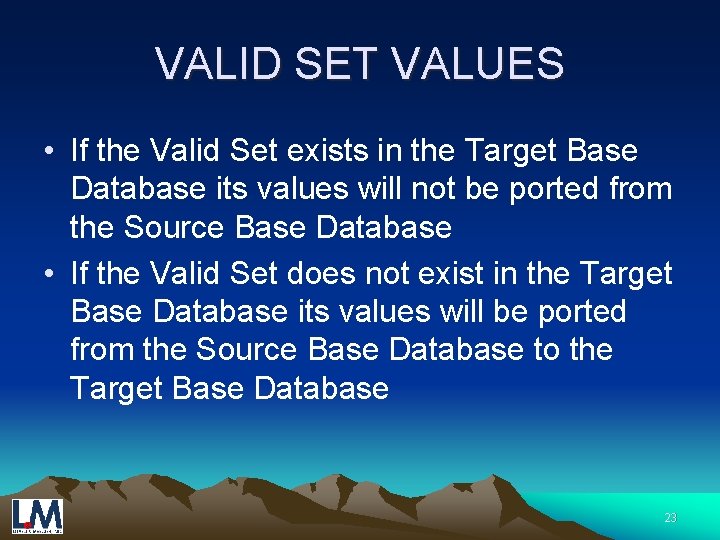

VALID SET VALUES • If the Valid Set exists in the Target Base Database its values will not be ported from the Source Base Database • If the Valid Set does not exist in the Target Base Database its values will be ported from the Source Base Database to the Target Base Database 23

DESIGN PART TYPES • If the Design Part Type exists in the Target Base Database it will not be ported from the Source Base Database • If the Design Part Type does not exist in the Target Base Database it will be ported from the Source Base Database to the Target Base Database 24

BASELINE TYPES • If the Baseline Type exists in the Target Base Database it will not be ported from the Source Base Database • If the Baseline Type does not exist in the Target Base Database it will be ported from the Source Base Database to the Target Base Database 25

BASELINE TEMPLATES • If the Baseline Template exists in the Target Base Database it will not be ported from the Source Base Database • If the Baseline Template does not exist in the Target Base Database it will be ported from the Source Base Database to the Target Base Database 26

BASELINE TEMPLATE RULES • If the Baseline Template exists in the Target Base Database its Template Rules will not be ported from the Source Base Database • If the Baseline Template does not exist in the Target Base Database its Template Rules will be ported from the Source Base Database to the Target Base Database 27

RELEASE TEMPLATES • If the Release Template exists in the Target Base Database it will not be ported from the Source Base Database • If the Release Template does not exist in the Target Base Database it will be ported from the Source Base Database to the Target Base Database 28

RELEASE TEMPLATE RULES • If the Release Template exists in the Target Base Database its Template Rules will not be ported from the Source Base Database • If the Release Template does not exist in the Target Base Database its Template Rules will be ported from the Source Base Database to the Target Base Database 29

REQUEST TYPES • If the Request Type exists in the Target Base Database it will not be ported from the Source Base Database • If the Request Type does not exist in the Target Base Database it will be ported from the Source Base Database to the Target Base Database 30

REQUEST TYPES • If the Request Type exists in the Target Base Database it will not be ported from the Source Base Database • If the Request Type does not exist in the Target Base Database it will be ported from the Source Base Database to the Target Base Database 31

REQUEST TYPE OPTIONS • If the Request Type exists in the Target Base Database the Request Type Options will not be ported from the Source Base Database • If they are to be ported, LOOK IN THE OBJ_TYPES table, TEMPALATE 2 column to determine the options that are relevant 32

REQUEST TEMPLATES • If the Request Type exists in the Target Base Database its Request Templates will not be ported from the Source Base Database • If the Request Type does not exist in the Target Base Database its Request Templates (all revisions) will be ported from the Source Base Database to the Target Base Database 33

REQUEST CM RULES • If the Request Type exists in the Target Base Database its CM Rules will not be ported from the Source Base Database • If the Request Type does not exist in the Target Base Database its CM Rules will be ported from the Source Base Database to the Target Base Database 34

REQUEST ATTRIBUTES • If the Request Type exists in the Target Base Database its Attributes will not be ported from the Source Base Database • If the Request Type does not exist in the Target Base Database its Attributes will be ported from the Source Base Database to the Target Base Database 35

REQUEST PRIMING RULES • If the Request Type exists in the Target Base Database its Priming Rules will not be ported from the Source Base Database • If the Request Type does not exist in the Target Base Database its Priming Rules will be ported from the Source Base Database to the Target Base Database 36

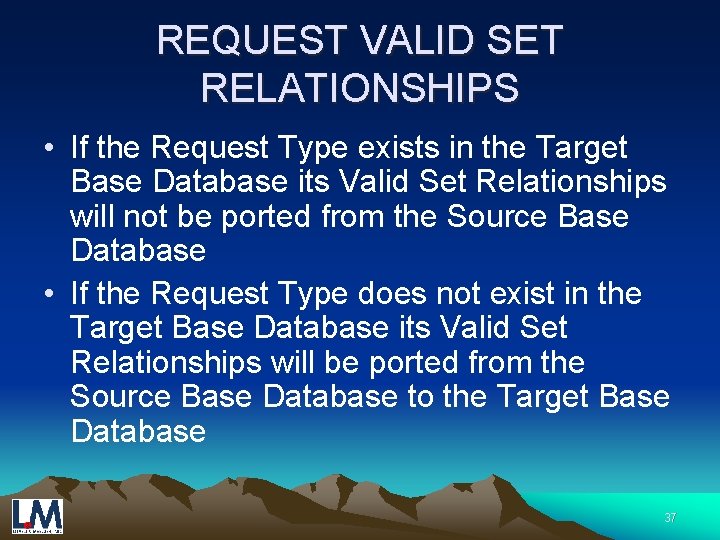

REQUEST VALID SET RELATIONSHIPS • If the Request Type exists in the Target Base Database its Valid Set Relationships will not be ported from the Source Base Database • If the Request Type does not exist in the Target Base Database its Valid Set Relationships will be ported from the Source Base Database to the Target Base Database 37

REQUEST ATTRIBUTE RULES • If the Request Type exists in the Target Base Database its Attribute Rules will not be ported from the Source Base Database • If the Request Type does not exist in the Target Base Database its Attribute Rules will be ported from the Source Base Database to the Target Base Database 38

REQUEST BLOCK ATTRIBUTES • If the Request Type exists in the Target Base Database its Block Attributes will not be ported from the Source Base Database • If the Request Type does not exist in the Target Base Database its Block Attributes will be ported from the Source Base Database to the Target Base Database 39

ITEM TYPES • If the Item Type exists in the Target Base Database it will not be ported from the Source Base Database • If the Item Type does not exist in the Target Base Database it will be ported from the Source Base Database to the Target Base Database 40

ITEM TYPE OPTIONS • If the Item Type exists in the Target Base Database the Item Type Options will not be ported from the Source Base Database • If they are to be ported, LOOK IN THE OBJ_TYPES table, TEMPALATE 2 column to determine the options that are relevant 41

ITEM TYPE LIBRARIES • If the Item Type exists in the Target Base Database its associated Item Library definition will not be ported from the Source Base Database • If the Item Type does not exist in the Target Base Database its associated Item Library definition will be ported from the Source Base Database to the Target Base Database 42

ITEM TEMPLATES • Item Templates are not ported at this time 43

ITEM CM RULES • If the Item Type exists in the Target Base Database its CM Rules will not be ported from the Source Base Database • If the Item Type does not exist in the Target Base Database its CM Rules will be ported from the Source Base Database to the Target Base Database 44

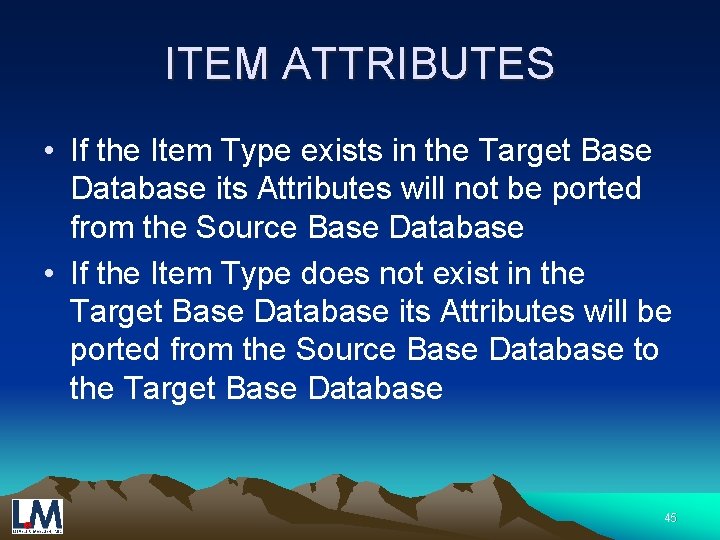

ITEM ATTRIBUTES • If the Item Type exists in the Target Base Database its Attributes will not be ported from the Source Base Database • If the Item Type does not exist in the Target Base Database its Attributes will be ported from the Source Base Database to the Target Base Database 45

ITEM VALID SET RELATIONSHIPS • If the Item Type exists in the Target Base Database its Valid Set Relationships will not be ported from the Source Base Database • If the Item Type does not exist in the Target Base Database its Valid Set Relationships will be ported from the Source Base Database to the Target Base Database 46

ITEM ATTRIBUTE RULES • If the Item Type exists in the Target Base Database its Attribute Rules will not be ported from the Source Base Database • If the Item Type does not exist in the Target Base Database its Attribute Rules will be ported from the Source Base Database to the Target Base Database 47

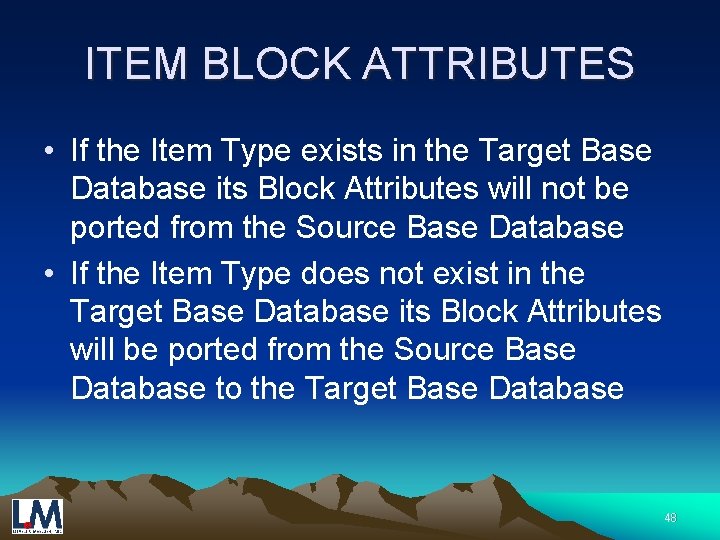

ITEM BLOCK ATTRIBUTES • If the Item Type exists in the Target Base Database its Block Attributes will not be ported from the Source Base Database • If the Item Type does not exist in the Target Base Database its Block Attributes will be ported from the Source Base Database to the Target Base Database 48

RELATIONSHIPS • All Relationships are ported from the Source Base Database to the Target Base Database • Dimensions CM will resolve any attempt to create duplicate relationships. 49

RELATIONSHIPS • All Design Parts in the Source Product will be ported to the new Product in the Target Base Database 50

PROJECTS • All Projects in the Source Product will be ported to the new Product in the Target Base Database, along with their entire directory structure. • Actual Items in the Source Base Database Projects will not be ported. 51

STREAMS • All Streams in the Source Product will be ported to the new Product in the Target Base Database, along with their entire directory structure. • Actual Items in the Source Base Database Streams will not be ported. 52

USER ACCOUNTS • User Accounts that exist in the Source Base Database that DO NOT exist in the Target Base Database will be ported to the Target Base Database 53

ROLE ASSIGNMENTS • Role Assignments that exist in the Source Base Database that DO NOT exist in the Target Base Database will be ported to the Target Base Database 54

PRIVILEGE ASSIGNMENTS • Privilege Assignments that exist in the Source Base Database that DO NOT exist in the Target Base Database will be ported to the Target Base Database 55

EMAIL SUBSCRIPTIONS • Email Subscriptions that exist in the Source Base Database that DO NOT exist in the Target Base Database will be ported to the Target Base Database 56

Demonstration 57

Source Product • Base Database – DEMO_SRCDB • Two Products – $GENERIC – DEMO_PROD • Product – DEMO_PROD – 7 Request Types – 7 Item Types – Etc. 58

Target Product • Base Database – DEMO_TGTDB – One Product ($GENERIC) – No Request Types – No Item Types – etc, . 59

Demonstration • Verify DEMO_SRCDB • Verify DEMO_TGTDB • Run Product. Portability – Select DEMO_PROD as source product – Source code is GENERATED (No Coding) • Approximately 15 seconds – Product is ported • Approximately 2 minutes • Verified by RPCP DEMO_PROD in both Base Databases 60

L&M Function Library 61

Comparisons • Native DMPMCLI – Lines of code needed to be developed to port a typical product – >700, 000 lines of code – Level of Java Scripting experience needed – VERY experienced • L&M Function Library – Lines of code needed to be developed to port a typical product – <1, 500 lines of code – Level of Java Scripting experience needed – mimimal 62

Answers For Your Questions 63

Lovell & Mercier, Inc. PO Box 1296 Warrenton, VA 20188 www. lovellmercier. com 540 -347 -7274 64
