Product Overview Agenda Intro Product Overview Enhancements Product

Product Overview

Agenda Intro Product Overview Enhancements Product Highlights Configuration Pricing Summary

Product Overview Speed (Color/B&W) 55/55 PPM 65/65 PPM 65/75 PPM 600 x 600 DPI 2, 400 x 600 DPI (B&W Copying) 1, 200 x 1200 DPI PS 3 Std. /Max. Paper Capacity (C&CT) C: 2, 260/4, 760 CT: 3, 500/6, 000 Min. /Max. Paper Size ST-R – 12” x 18” Drawers 13”x 19” or 12”x 47” Bypass 225, 000 250, 000 275, 000 29. 5 K @ 6% 77. 4 K @ 6% Resolution Max. MCV Toner Yield (Color/B&W)

Enhancements Based on highly successful e-STUDIO 6550 C models with some key enhancements – 320 GB Self-Encrypting HDD with Automatic Data Invalidation FIP 140 -2 Security Certification (Running Change ETA June ‘ 14) – EPEAT Registered e-STUDIO 6560 C/CT & e-STUDIO 6570 C/CT Models only – Color Accents RADF trim and front cross-beam nameplate color changed – Front Panel Sleep Button Changed to universal symbol – Audible Beep when Device Requires Attention Toner, Paper, Service Required, etc.

Product Highlights Performance – Fast Warm-up 180 Seconds from Off & 70 Seconds from Low-Power mode – Fast First Copy Out Time 6. 5 Seconds – Full Color (5. 3/4. 6 Seconds Monochrome) – Print Around Moves to next job in queue – Limitless Job Reservation Allows users to queue-up multiple copy print jobs or

Product Highlights Leading Edge Technology – 5 th Generation e-BRIDGE Single-Board Design Built on Linux – Enables 3 rd-Party integration and support for Vendor solutions – Universal Driver with Plug-ins One driver serves entire e-BRIDGE line-up – Gigabit Ethernet (1, 000 Mbit) Transfers large files at fastest rate possible – Mobile Device Printing & Scanning

Product Highlights Image Quality – High-Resolution 600 x 600 DPI 8 -bit color (Image Smoothing & Photo mode) 1, 200 x 1, 200 DPI 2 -bit color (Post. Script 3) 2, 400 x 600 DPI Mono 1 -bit w/Smoothing for Text/Text Photo – Accurate Color MFP accepts ICC Profiles – Auto Calibration System periodically checks to ensure color remains consistent throughout long runs – efi Fiery Controller option Satisfies environments needing Fiery workflow tools

Product Highlights Safe & Secure – 320 GB Self-Encrypting Drive (SED) with Automatic Data Invalidation (ADI) – FIPS 140 -2 SED* Federal Information Processing Standard (FIPS) Publication 140 -2 – Data Overwrite – Std. Exceeds current standards – Optional IPSec Encrypts transmitted data *Running Change, due June 2014

Product Highlights Broad Paper Handling – Tandem & 4 -Drawer Design Tandem for mostly Letter-size jobs 4 -Drawer for diversity of size or type – Heavy Paper Support 17 lb. Bond – 140 lb. Index through the Drawers (110 lb. Bypass) 140 lb. Duplex support – 13” x 19” via Bypass & 12” x 18” through the Drawers – Banner Printing 12” x 47” & Aqua. Ace support

Product Highlights Advanced Finishing – 50 -Sheet Stapler Finisher (MJ 1103) 3, 250 – Total Capacity – 50 -Sheet with Saddlestitch (MJ 1104) 3, 250 – Total Capacity 15 -sheet booklets (60 pages) Avalanche Stacking Tray

Product Highlights User Friendly – Large 10. 4” Full Color Tilting Touch Screen Panel Section 508 Compliant, Easy to read & use Learn Once Operate Many (Same U/I across line) – Context Sensitive Help Button Excerpts right from manual – Paper Volume Indicators Graphic display of drawer paper status

Product Highlights Convenience – Scan-to, Print-from USB No PC required to print or scan – Scan Preview See what’s scanned before you commit – One-Touch Templates (12, 000+) Streamline repetitive copy or scanning tasks – Notifications Feature Automate meter reads, service calls & supplies Sends email or fax to pre-configured destinations

Product Highlights Reliability – Maximum Monthly Volumes of 225 K/250 K/275 K Made to handle the volumes of the busiest offices – Toner Yields of 77. 4 K (black) & 29. 5 K (color) @ 6% – Service Module Design Means PMs can be done in a fraction of the time of conventional MFPs

Product Highlights Environmentally Responsible – EPEAT Registered Electronic Product Environmental Assessment Tool – Product conforms to environmental best practices – Ro. HS Compliant Reduction of Hazardous Substances – Like all Toshiba products (no lead, chromium etc. ) – Energy Star Tier II

Configuration

Pricing MODEL ACCESSORIES e-STUDIO 5560 CT e-STUDIO 6560 CT e-STUDIO 6570 CT e. STUDIO 5560 CT e. STUDIO 6560 CT e. STUDIO 6570 CT KA 6550 MP 2501 MJ 1103 Paper Handling & Finishing MJ 1104 KN 1103 MJ 6102 GD 1260 F GD 1270 NXF GN 1060 Connectivity & Security GN 3010 GA 1310 EX GC 1230 GP 1080 GS 1010 Open Platform GB 1450 Options GB 1540 GB 1440 GB 1280 V 8 GB 1550 NODE * Tier 1 Software GB 1560 NODE * DESCRIPTION 55 PPM COLOR 55 PPM BK 4 -Drawer 55 PPM COLOR 55 PPM BK Tandem LCF 65 PPM COLOR 65 PPM BK 4 -Drawer 65 PPM COLOR 65 PPM BK Tandem LCF 65 PPM COLOR 75 PPM BK 4 -Drawer 65 PPM COLOR 75 PPM BK Tandem LCF Side Exit Tray 2500 Sheet Large Capacity Feeder 50 Sheet Stapling Finisher Saddle Stitch Finisher Rail Hole Punch Unit for MJ 1103 & MJ 1104 2 ND Line Fax (for 110 V Fax Boards) Fax Board (110 Volts) Wireless 80211 G Wireless Antenna EFI Fiery Controller for e-STUDIO 6570 c Series 512 MB Module Memory Module for GA 1211/GA 1310 IPsec Enabler Meta Scan Enabler for e-CONNECT OP Connector for Microsoft Exchange OP Connector for Google Docs OP Connector for Microsoft Share. Point Advance Scanning (Re-Rite Software) MSRP $27, 656 $33, 956 $36, 056 $58 $1, 783 $3, 201 $4, 897 $84 $811 $651 $1, 076 $629 $147 $7, 560 $415 $799 $524 $495 $140 $495 $2, 999 e-BRIDGE Replicator e. X (Node License) $49 e-BRIDGE Job Point e. X (Node License) $49 GB 1590 NODE * e-BRIDGE Job Separator e. X (Node License) $49 GB 1610 NODE * e-BRIDGE Job Build e. X (Node License) $49 *Please note these are licensed by user and the cost is per each user.

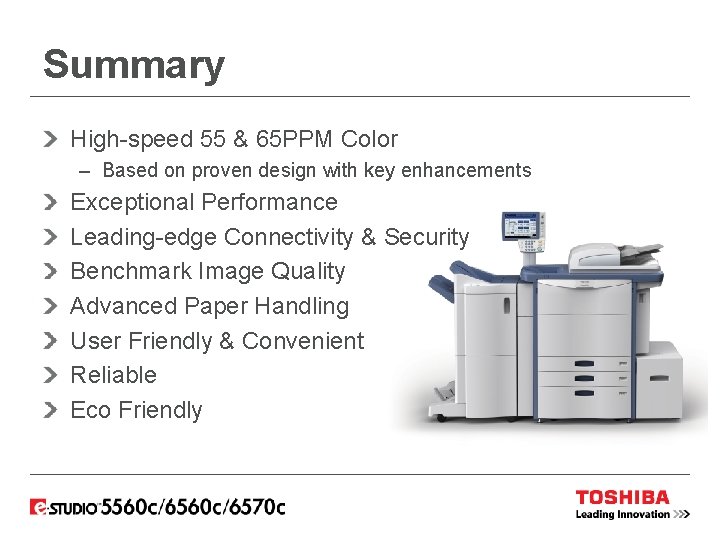

Summary High-speed 55 & 65 PPM Color – Based on proven design with key enhancements Exceptional Performance Leading-edge Connectivity & Security Benchmark Image Quality Advanced Paper Handling User Friendly & Convenient Reliable Eco Friendly

Thank You
