Product novelties Intraoral DC and new DG PlusArt

Product novelties: Intraoral DC and new DG Plus/Art Plus C IMAGING ACCORDING FOR ALL YOUR DAILY NEEDSTO YOUR NEEDS Iberum et es et englisch

Intraoral DC FONA XDC FEATURES Excellent image quality Stable positioning DC output for reduced radiation Fits everywhere Compatible with films, PSP, digital sensors High standards of reliability Seite 2 FONA XDC, Art Plus C and DG Plus, updated on: 02. 03. 2013 Y, version: 1

Intraoral DC FONA XDC – TUBE HEAD Technical Features Anode Voltage: 60 k. V or 70 k. V selectable Focal Spot: 0, 4 mm Exposure Time: 0. 01 to 2. 5 sec (R 21 scale) User and patients benefits Precision and reproducibility of exposure parameters XFF focus for exact sharpness Optimized exposure times, adapted to every practice and diagnostics Seite 3 FONA XDC, Art Plus C and DG Plus, updated on: 02. 03. 2013 Y, version: 1

Intraoral DC FONA XDC – OPTIONAL COLLIMATOR Seite 4 Squared Collimator Available Optizmized Contrast Dose Reduction Sizes 3 x 4 and 2 x 3 Collimator extension from 20 to 30 cm Increase sharpness FONA XDC, Art Plus C and DG Plus, updated on: 02. 03. 2013 Y, version: 1

Intraoral DC FONA XDC – CONTROL PANEL k. Vselection Exposure time modulation Patient Size Maxillary teeth Bitewings/ocllusal Mandibular teeth Selection of detector Seite 5 FONA XDC, Art Plus C and DG Plus, updated on: 02. 03. 2013 Y, version: 1

Intraoral DC FONA XDC – CONFIGURATION Wall Mounted Seite 6 30 cm extension arm 60 cm extension arm 80 cm extension arm 100 cm extension arm Mobile Version Remote Timer FONA XDC, Art Plus C and DG Plus, updated on: 02. 03. 2013 Y, version: 1

Intraoral DC FONA XDC – WRAP UP Features Advantages Benefits High frequency Stable X-ray signal, output voltage not affected by input line voltage fluctuations Less radiation to the patient and the operator Uniform image contrast, and sharp image Stable positioning No risk of arm movement Certainty of obtaining a good image Rectangular collimator Adapted to any working practice Less radiation to the patient X-ray protection and safety Compact Timer Requires a minimum footprint on a wall Easy and discreet installation Integration in any dental practice Display of emitted dose to the patient Information on the dose emited to the patient (expressed in m. Gy) Clear understanding and notification of the dose emitted Perfect integration with film, PSP and digital sensors Adapt the unit to each receptor by a simple click Efficient workflow, image quality whatever the receptor used Program selection through an intuitive interface Pre-set exposure settings for each type of tooth, directly accessible from a single selection Settings perfectly adapted for each exposure. Excellent image quality Seite 7 FONA XDC, Art Plus C and DG Plus, updated on: 02. 03. 2013 Y, version: 1

FONA XPan DG Plus FONA Xpan DG Plus and FONA Art Plus C Seite 8 FONA XDC, Art Plus C and DG Plus, updated on: 02. 03. 2013 Y, version: 1

FONA XPan DG Plus FONA Xpan DG Plus and FONA Art Plus C New XPan DG Plus cover designed aligned with XPan DG. New Cephalostat New upper cover New sensor housing New rotating carriage Seite 10 New collimation system FONA XDC, Art Plus C and DG Plus, updated on: 02. 03. 2013 Y, version: 1

FONA XPan DG Plus FONA Xpan DG Plus and FONA Art Plus C Particular: New Sensor Attachment with 4 magnets Vertical release mechanism Safety lock push button 4 Magnets to prevent sensor from falling Seite 11 FONA XDC, Art Plus C and DG Plus, updated on: 02. 03. 2013 Y, version: 1

FONA XPan DG Plus Control Panel k. V Modulation m. A Modulation Error Light X-ray radiation Light for Aligment RETURN Arm Movement Test Mode Program Selection Seite 12 Patient build Horizontal carriage displacement Back FONA XDC, Art Plus C and DG Plus, updated on: 02. 03. 2013 Y, version: 1

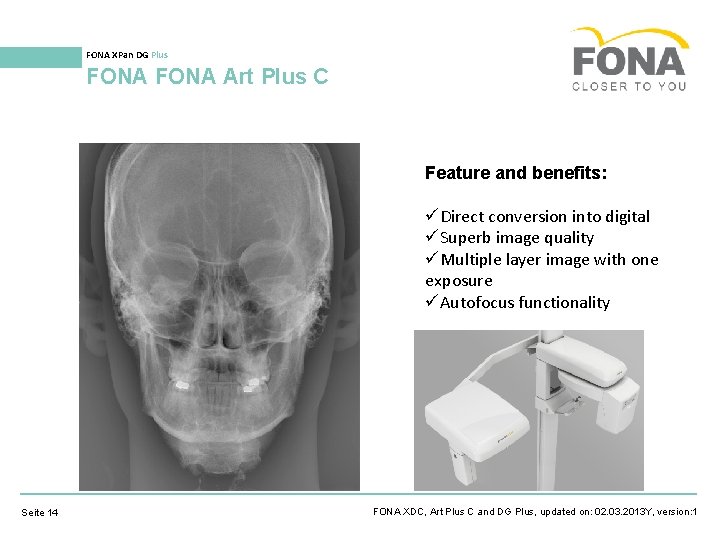

FONA XPan DG Plus FONA Art Plus C Feature and benefits: Direct conversion into digital Superb image quality Multiple layer image with one exposure Autofocus functionality Seite 14 FONA XDC, Art Plus C and DG Plus, updated on: 02. 03. 2013 Y, version: 1

FONA Art Plus C Seite 15 FONA XDC, Art Plus C and DG Plus, updated on: 02. 03. 2013 Y, version: 1

FONA Art Plus C Seite 16 FONA XDC, Art Plus C and DG Plus, updated on: 02. 03. 2013 Y, version: 1

FONA XPan DG Plus FONA Art Plus C Our response to out of focus images: Multilayer image Image 1 – Blurred image because of bad patient positioning. Patient was positioned too forward. Seite 17 Image 2 – Image in focus without the necessity of a second exposure. FONA XDC, Art Plus C and DG Plus, updated on: 02. 03. 2013 Y, version: 1

FONA Art Plus C Multilayer image up to 300 individual images per second for multiple layers Seite 18 FONA XDC, Art Plus C and DG Plus, updated on: 02. 03. 2013 Y, version: 1

FONA Art Plus C Area that conventional CCD/CMOS pans take: Seite 19 FONA XDC, Art Plus C and DG Plus, updated on: 02. 03. 2013 Y, version: 1

FONA Art Plus C With Multi-focal layering you capture up to 3 cm of depth Seite 20 FONA XDC, Art Plus C and DG Plus, updated on: 02. 03. 2013 Y, version: 1

FONA Art Plus C Seite 21 FONA XDC, Art Plus C and DG Plus, updated on: 02. 03. 2013 Y, version: 1

FONA Art Plus C Blurring corrected without retaking the x-ray Seite 22 FONA XDC, Art Plus C and DG Plus, updated on: 02. 03. 2013 Y, version: 1

FONA Art Plus C FONA ART Plus The best sensor technology today Seite 23 FONA XDC, Art Plus C and DG Plus, updated on: 02. 03. 2013 Y, version: 1
