Product Management ABB Robotics October 2014 IRC 5

Product Management, ABB Robotics, October 2014 IRC 5 C second generation Overview © ABB Group 30 October 2021 | Slide 1

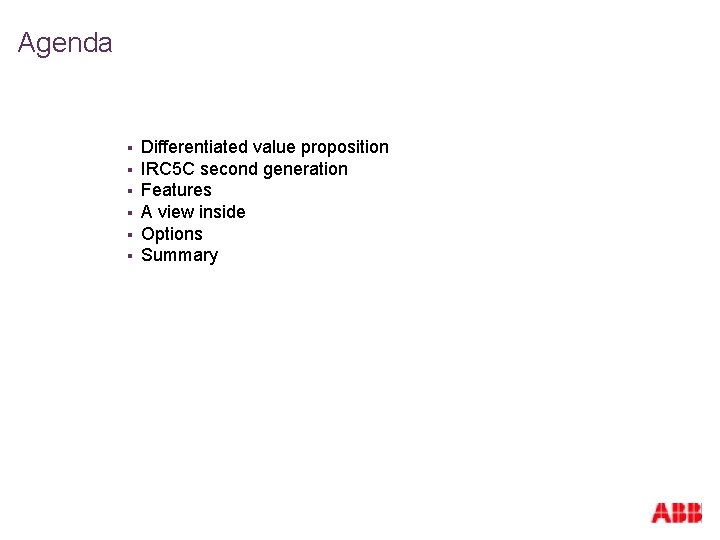

Agenda § § § Differentiated value proposition IRC 5 C second generation Features A view inside Options Summary

Differentiated value proposition Compact controller Renowned for its outstanding performance and quality, the IRC 5 C from ABB is now up to 25% smaller § § © ABB Group 30 October 2021 | Slide 3 Compact and easy to integrate § Saves space § One phase 220/230 V § Built-in 16 inputs & 16 outputs A fully fledged member of IRC 5 family § All the benefits of the #1 robot controller § No need to re-train § Many common spare parts

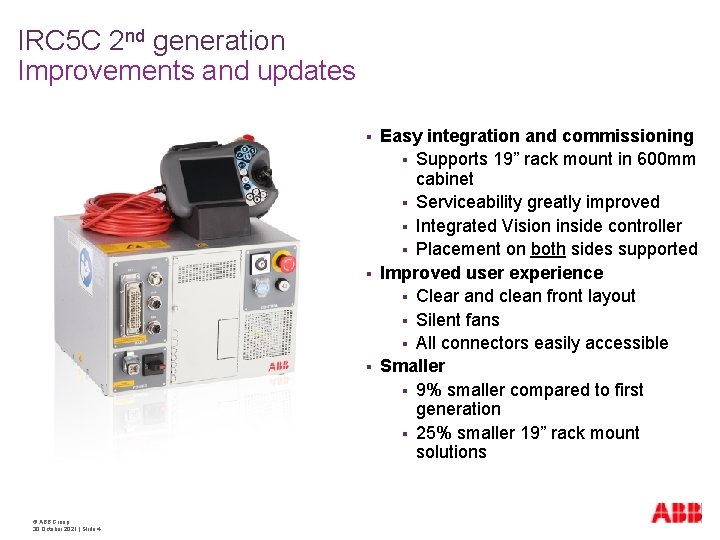

IRC 5 C 2 nd generation Improvements and updates § § § © ABB Group 30 October 2021 | Slide 4 Easy integration and commissioning § Supports 19” rack mount in 600 mm cabinet § Serviceability greatly improved § Integrated Vision inside controller § Placement on both sides supported Improved user experience § Clear and clean front layout § Silent fans § All connectors easily accessible Smaller § 9% smaller compared to first generation § 25% smaller 19” rack mount solutions

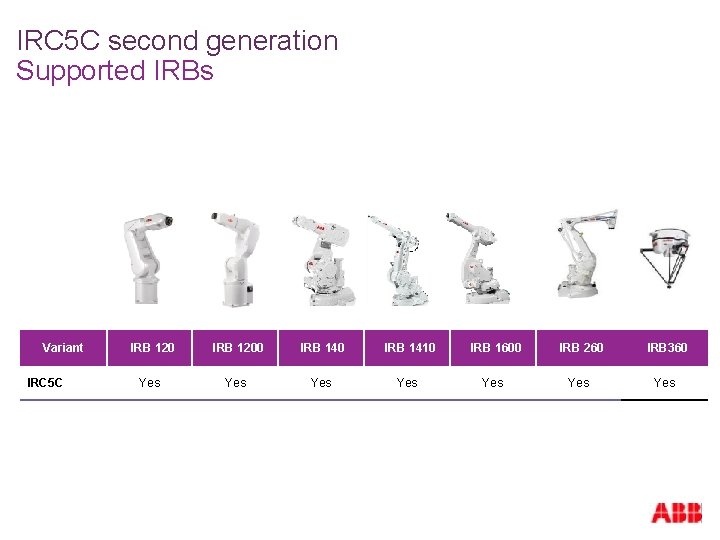

IRC 5 C second generation Supported IRBs Variant IRC 5 C IRB 1200 IRB 1410 IRB 1600 IRB 260 IRB 360 Yes Yes

Features Front panels and connectors Cable panel Power panel © ABB Group 30 October 2021 | Slide 6 Control panel

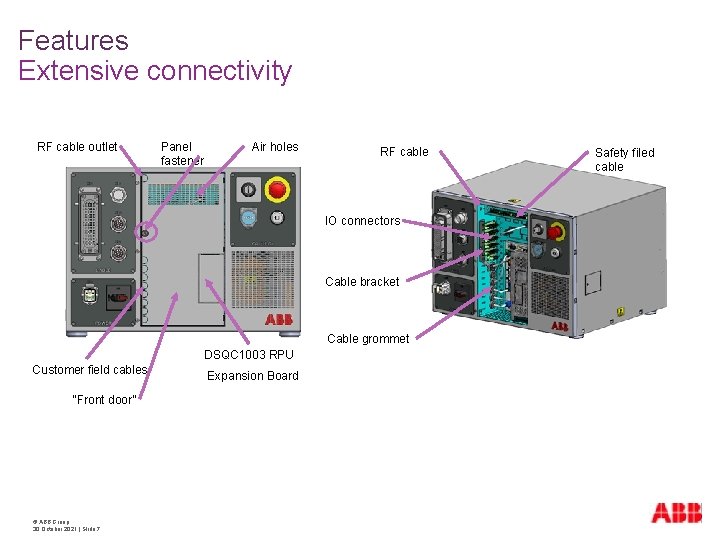

Features Extensive connectivity RF cable outlet Panel fastener Air holes RF cable IO connectors Cable bracket Cable grommet DSQC 1003 RPU Customer field cables “Front door” © ABB Group 30 October 2021 | Slide 7 Expansion Board Safety filed cable

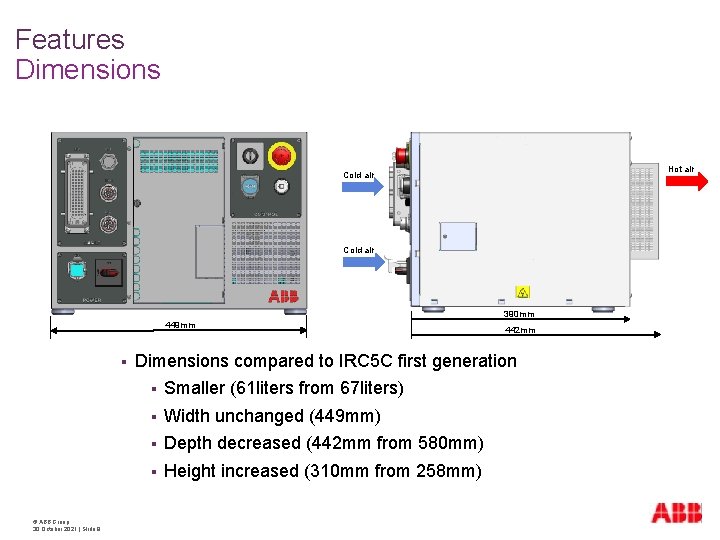

Features Dimensions Hot air Cold air 390 mm 449 mm § © ABB Group 30 October 2021 | Slide 8 442 mm Dimensions compared to IRC 5 C first generation § Smaller (61 liters from 67 liters) § Width unchanged (449 mm) § Depth decreased (442 mm from 580 mm) § Height increased (310 mm from 258 mm)

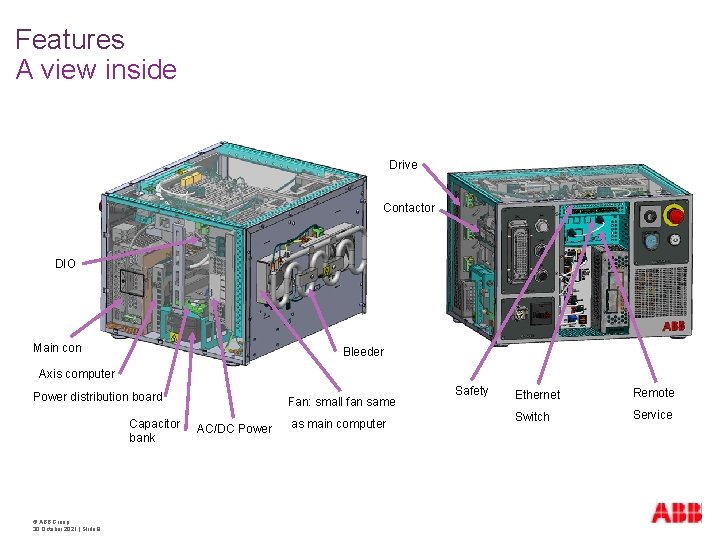

Features A view inside Drive Contactor DIO Main computer Bleeder Axis computer Power distribution board Capacitor bank © ABB Group 30 October 2021 | Slide 9 Fan: small fan same AC/DC Power as main computer Safety Ethernet Remote Switch Service

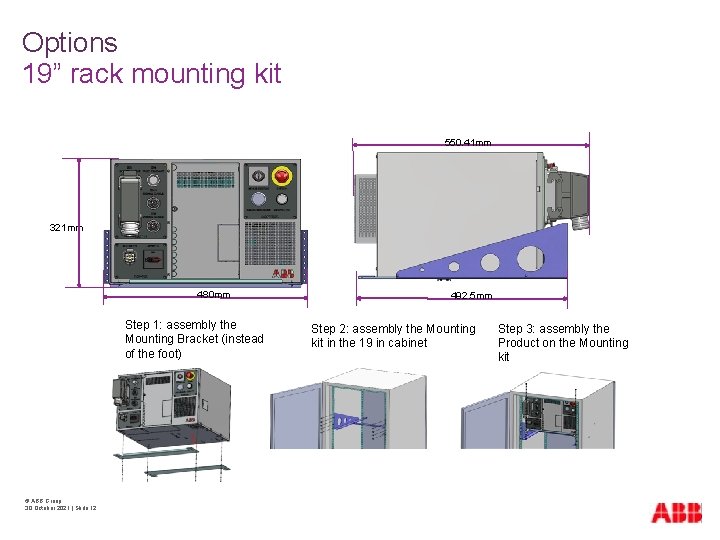

Options 19” rack mounting kit 550. 41 mm 321 mm 480 mm Step 1: assembly the Mounting Bracket (instead of the foot) © ABB Group 30 October 2021 | Slide 12 492. 5 mm Step 2: assembly the Mounting kit in the 19 in cabinet Step 3: assembly the Product on the Mounting kit

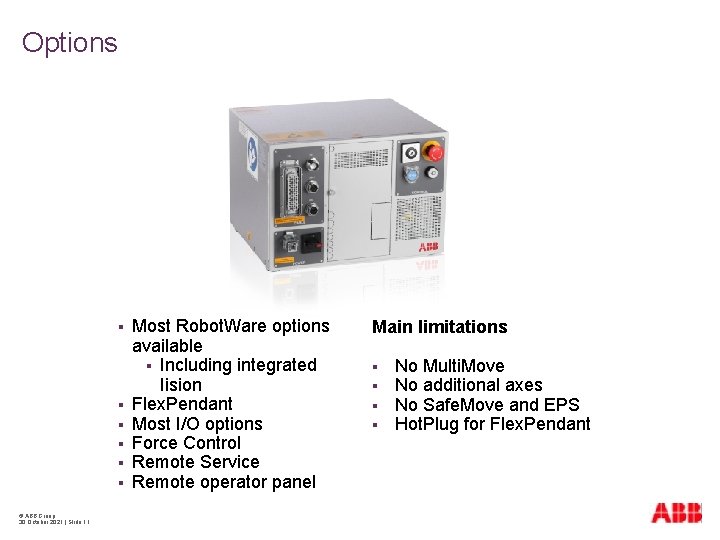

Options § § § © ABB Group 30 October 2021 | Slide 11 Most Robot. Ware options available § Including integrated Iision Flex. Pendant Most I/O options Force Control Remote Service Remote operator panel Main limitations § § No Multi. Move No additional axes No Safe. Move and EPS Hot. Plug for Flex. Pendant

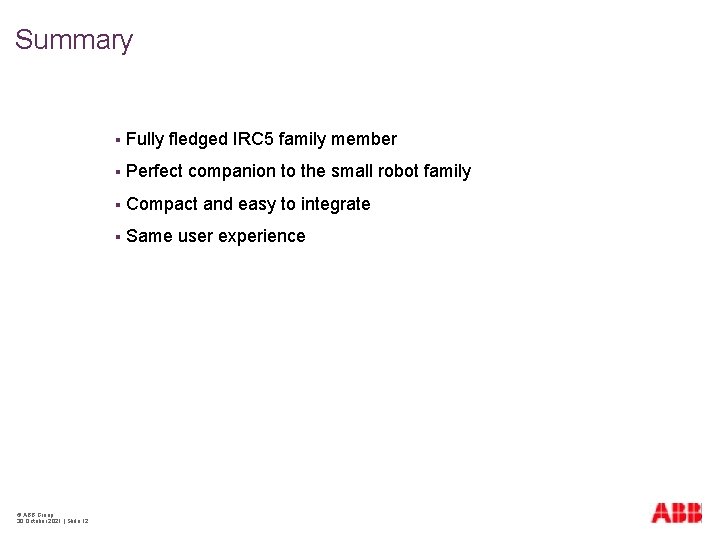

Summary © ABB Group 30 October 2021 | Slide 12 § Fully fledged IRC 5 family member § Perfect companion to the small robot family § Compact and easy to integrate § Same user experience
