Product architecture design Model making Designing an electronic

Product architecture design & Model making Designing an electronic device for business and production Aaltonaut minor program Teppo Vienamo 5. 10. 2018

Program 13: 15 Presentations 13: 45 Product architecture 14: 00 Planning workshop • Drawing product layout 15: 00 Break 15: 15 Design sketch and Mockup workshop 16: 30 Presenting models 16: 45 Visitors reflection and conversation 17: 00 Weekend

Course Task • Design underwater sensor product family • Temperature, aceleration, sound • Outcome: • Production ready mechanical part design, • Demonstration device for electronics and program • Each team has different production quantity • 50 - 10 00 25. 9. 2020 3

Presentations Ideation workshop uncovert items 3 minute presentation Comments and questions

Product architecture

Product architecture • • • Components Casing Controls and displays Cables Attachments Draw picture of the structure • Projections • Cross-sections • 1: 1 Scale

Attacment? Sealing? Stress relief Teppo and David will spend 12 minutes with each team. Screw Task: Structure Drawing PCB Planning workshop 25. 9. 2020 7

Break 25. 9. 2020 8

Drawing 25. 9. 2020 9

? mm 3 -6 projections Screw Attachment ring Draw picture of the product ? mm

Models and prototypes

Polystyrene ”Foam” extruded - 600 mm wide bar ”Styrox” expanded • 1000*1200 sheet • Possible to get large pieces Clueing wood glue Surface treatment by water soluble paint Solvents melt PS Free forms

Polyurethane block Materials made for model making and tooling Wide selection • • Soft hand machinability qualities heat-resistant machineable tough

Make 1: 1 model • • Proto Punkkeri Each will make one Clean the place Back to Puuhamaa at 16: 30 25. 9. 2020 14

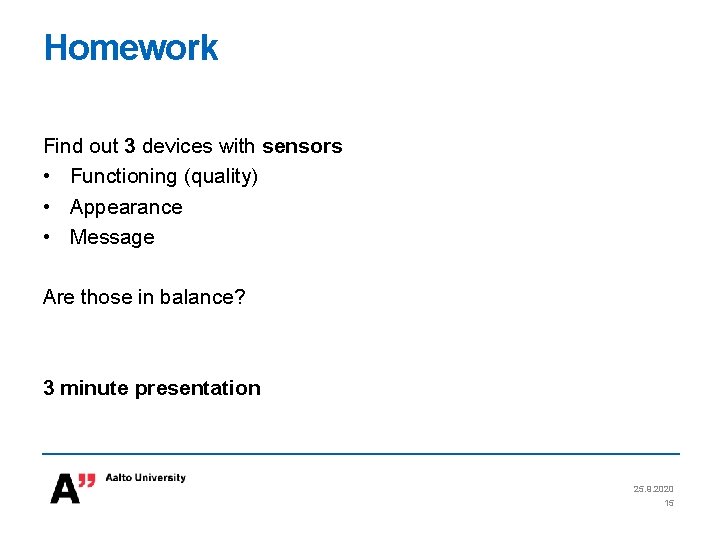

Homework Find out 3 devices with sensors • Functioning (quality) • Appearance • Message Are those in balance? 3 minute presentation 25. 9. 2020 15

Next week Presentations Branding 25. 9. 2020 16
