Processor PrivilegeLevels How the x 86 processor accomplishes

Processor Privilege-Levels How the x 86 processor accomplishes transitions among its four distinct privilege-levels

Rationale • The usefulness of protected-mode derives from its ability to enforce restrictions upon software’s freedom to take certain actions • Four distinct privilege-levels are supported • Organizing concept is “concentric rings” • Innermost ring has greatest privileges, and privileges diminish as rings move outward

Four Privilege Rings Ring 3 Least-trusted level Ring 2 Ring 1 Ring 0 Most-trusted level

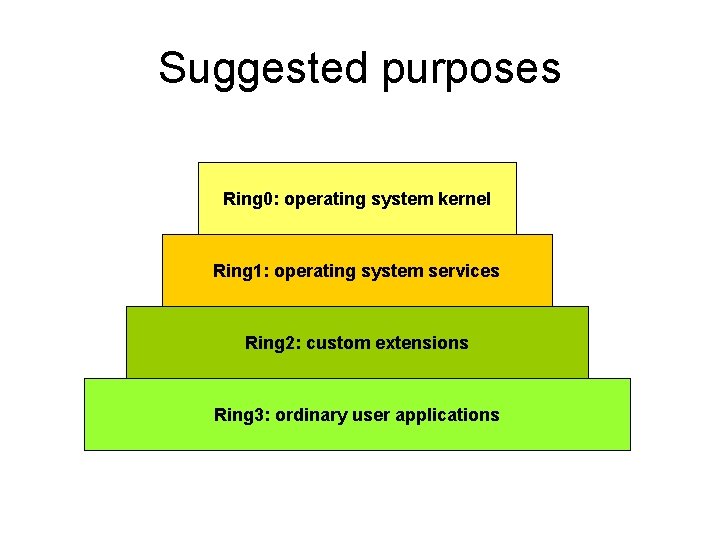

Suggested purposes Ring 0: operating system kernel Ring 1: operating system services Ring 2: custom extensions Ring 3: ordinary user applications

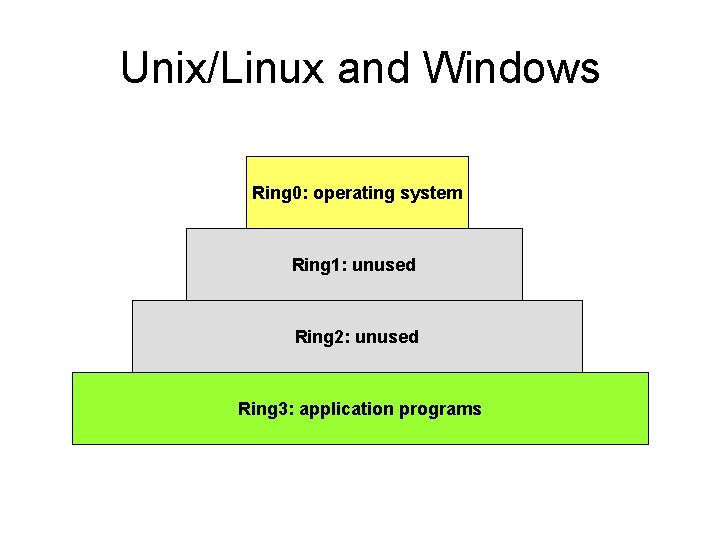

Unix/Linux and Windows Ring 0: operating system Ring 1: unused Ring 2: unused Ring 3: application programs

Legal Ring-Transitions • A transition from an outer ring to an inner ring is made possible by using a special control-structure (known as a ‘call gate’) • The ‘gate’ is defined via a data-structure located in a ‘system’ memory-segment normally not accessible for modifications • A transition from an inner ring to an outer ring is not nearly so strictly controlled

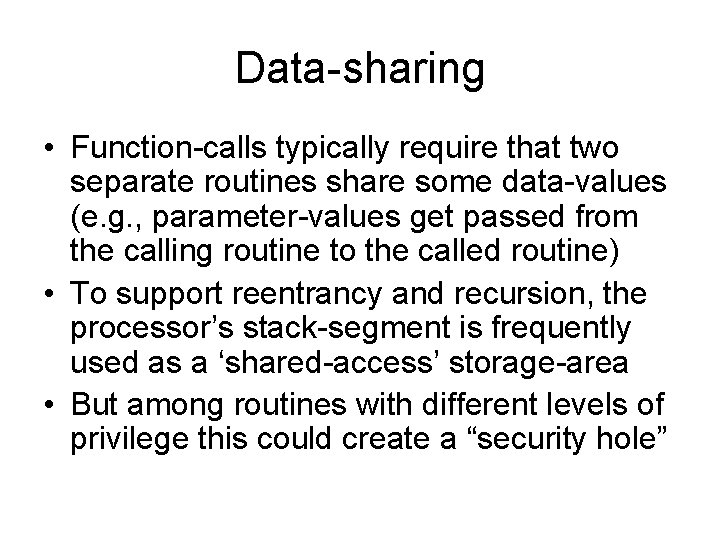

Data-sharing • Function-calls typically require that two separate routines share some data-values (e. g. , parameter-values get passed from the calling routine to the called routine) • To support reentrancy and recursion, the processor’s stack-segment is frequently used as a ‘shared-access’ storage-area • But among routines with different levels of privilege this could create a “security hole”

An example senario • Say a procedure that executes in ring 3 calls a procedure that executes in ring 2 • The ring 2 procedure uses a portion of its stack-area to create ‘automatic’ variables that it uses for temporary workspace • Upon return, the ring 3 procedure would be able to examine whatever values are left behind in this ring 2 workspace

Data Isolation • To guard against unintentional sharing of privileged information, different stacks are provided at each distinct privilege-level • Accordingly, any transition from one ring to another must necessarily be accompanied by an mandatory ‘stack-switch’ operation • The CPU provides for automatic switching of stacks and copying of parameter-values

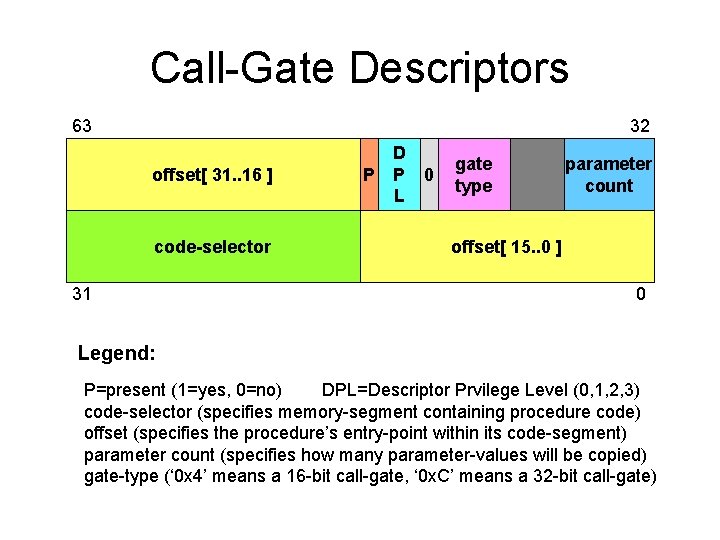

Call-Gate Descriptors 63 32 offset[ 31. . 16 ] code-selector 31 D P P L 0 gate type parameter count offset[ 15. . 0 ] 0 Legend: P=present (1=yes, 0=no) DPL=Descriptor Prvilege Level (0, 1, 2, 3) code-selector (specifies memory-segment containing procedure code) offset (specifies the procedure’s entry-point within its code-segment) parameter count (specifies how many parameter-values will be copied) gate-type (‘ 0 x 4’ means a 16 -bit call-gate, ‘ 0 x. C’ means a 32 -bit call-gate)

An Interprivilege Call • When a lesser privileged routine wants to invoke a more privileged routine, it does so by using a ‘far call’ machine-instruction (also known as a “long call” in the GNU assembler’s terminology) 0 x 9 A (ignored) opcode offset-field callgate-selector segment-field • In ‘as’ assembly language: lcall $callgate-selector, $0

What does the CPU do? • When CPU fetches a far-call instruction, it will use that instruction’s ‘selector’ value to look up a descriptor in the GDT (or in the current LDT) • If it’s a ‘call-gate’ descriptor, and if access is allowed (i. e. , if CPL DPL), then the CPU will perform a complex sequence of actions which will accomplish the requested ‘ring-transition’ • CPL (Current Privilege Level) is based on least significant 2 -bits in register CS (also in SS)

Sequence of CPU’s actions - pushes the current SS: SP register-values onto a new stack-segment - copies the specified number of parameters from the old stack onto the new stack - pushes the updated CS: IP register-values onto the new stack - loads new values into registers CS: IP (from the callgate-descriptor) and into SS: SP

The missing info? • Where do the new values for SS: SP come from? (They’re not found in the call-gate) • They’re from a special system-segment, known as the TSS (Task State Segment) • The CPU locates its TSS by referring to the value in register TR (Task Register)

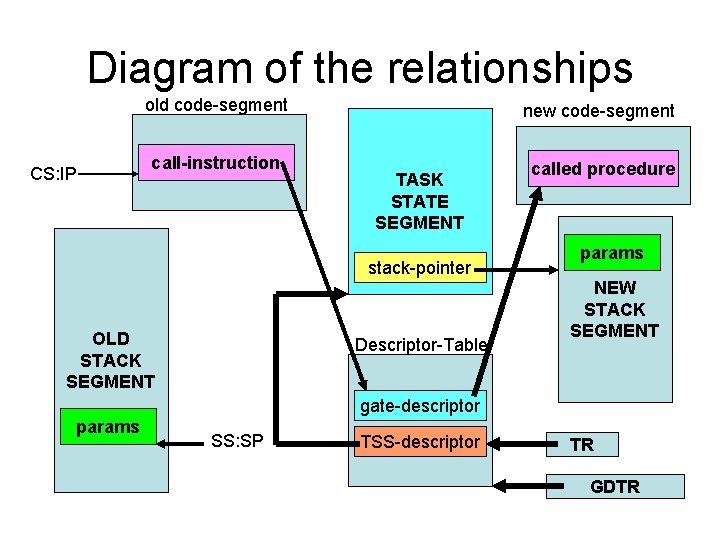

Diagram of the relationships old code-segment CS: IP call-instruction new code-segment TASK STATE SEGMENT stack-pointer OLD STACK SEGMENT Descriptor-Table called procedure params NEW STACK SEGMENT gate-descriptor params SS: SP TSS-descriptor TR GDTR

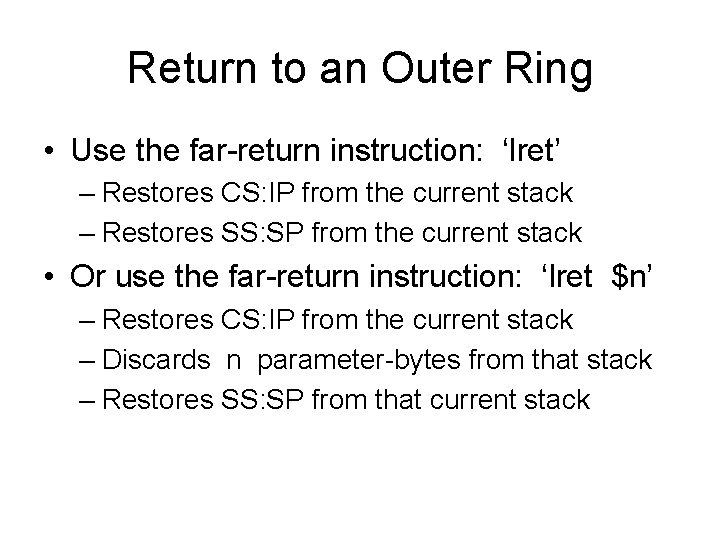

Return to an Outer Ring • Use the far-return instruction: ‘lret’ – Restores CS: IP from the current stack – Restores SS: SP from the current stack • Or use the far-return instruction: ‘lret $n’ – Restores CS: IP from the current stack – Discards n parameter-bytes from that stack – Restores SS: SP from that current stack

Demo-program: ‘tryring 1. s’ • We have created a short program to show this ring-transition mechanism works • It enters protected-mode (at ring 0) • It ‘returns’ to a procedure in ring 1 • Procedure shows a confirmation-message • The ring 1 procedure then ‘calls’ to ring 0 • The ring 0 procedure exits protected-mode

Data-structures needed • Global Descriptor Table needs to contain the protected-mode segment-descriptors and also the ‘call-gate’ descriptor – Code-segments for Ring 0 and Ring 1 – Stack-segments for Ring 0 and Ring 1 – Data-segment (for Ring 1 to write to VRAM) – Task-State Segment (for the ring 0 SS: SP) – Call-Gate Descriptor (for the ‘lcall’ to ring 0)

In-class Exercise #1 • Modify the ‘tryring 1. s’ demo so that it uses a 32 -bit call-gate and a 32 -bit TSS for 80286 (16 -bits) 0 TSS for 80386 (32 -bits) 0 2 SP 0 4 4 SS 0 8 6 8 SP 1 12 SS 1 16 10 SP 2 20 12 SS 2 24 … ESP 0 SS 0 ESP 1 SS 1 ESP 2 … SS 2

System Segment-Descriptors S-bit is zero Base[ 31. . 24 ] reserved =0 D Limit P P 0 [19. . 16] L Base[ 15. . 0 ] type Base[ 23. . 16 ] Limit[ 15. . 0 ] Type-codes for system-segments: 0 = reserved 1 = 16 -bit TSS (available) 2 = LDT 3 = 16 -bit TSS (busy) 8 = reserved 9 = 32 -bit TSS (available) A = reserved B = 32 -bit TSS (busy)
