Process Selection and Facility Layout Learning Objectives Explain

Process Selection and Facility Layout

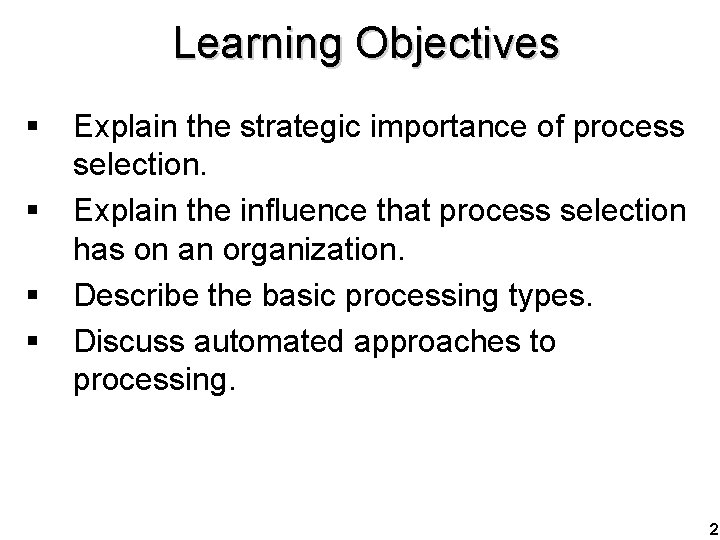

Learning Objectives § § Explain the strategic importance of process selection. Explain the influence that process selection has on an organization. Describe the basic processing types. Discuss automated approaches to processing. 2

Learning Objectives § § List some reasons for redesign of layouts. Describe the basic layout types. List the main advantages and disadvantages of product layouts and process layouts. Solve simple line-balancing problems. 3

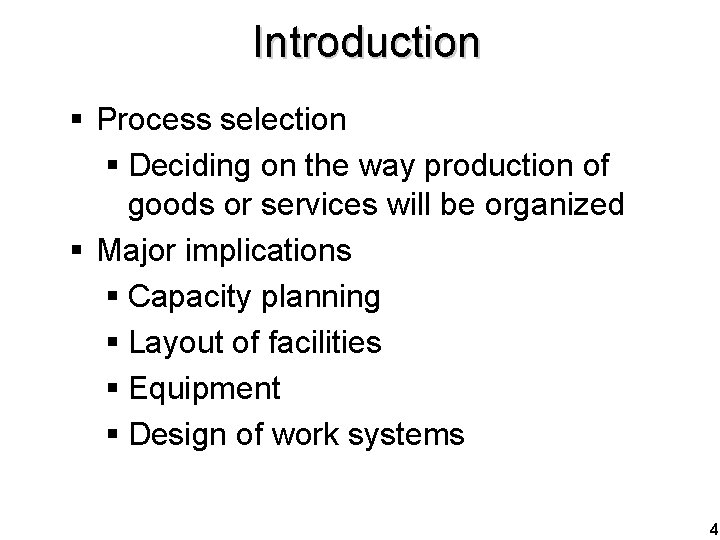

Introduction § Process selection § Deciding on the way production of goods or services will be organized § Major implications § Capacity planning § Layout of facilities § Equipment § Design of work systems 4

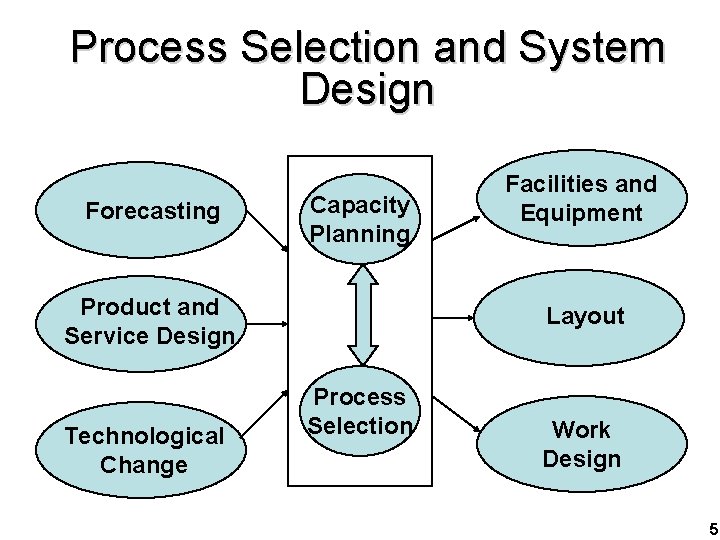

Process Selection and System Design Forecasting Capacity Planning Product and Service Design Technological Change Facilities and Equipment Layout Process Selection Work Design 5

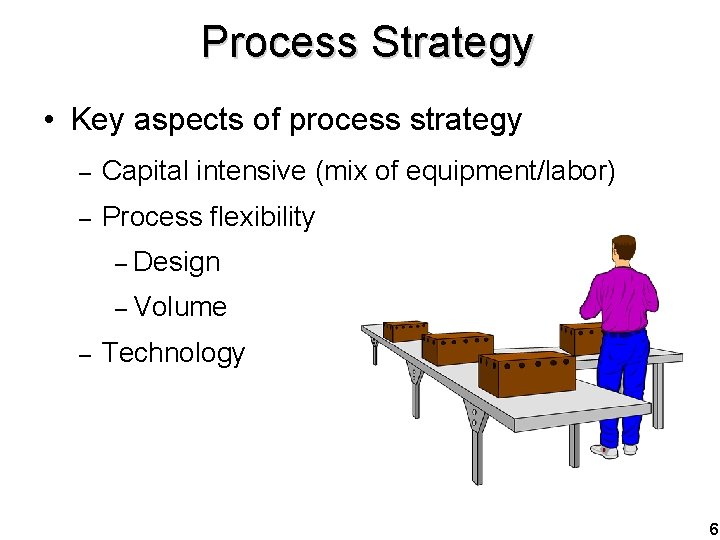

Process Strategy • Key aspects of process strategy – Capital intensive (mix of equipment/labor) – Process flexibility – Design – Volume – Technology 6

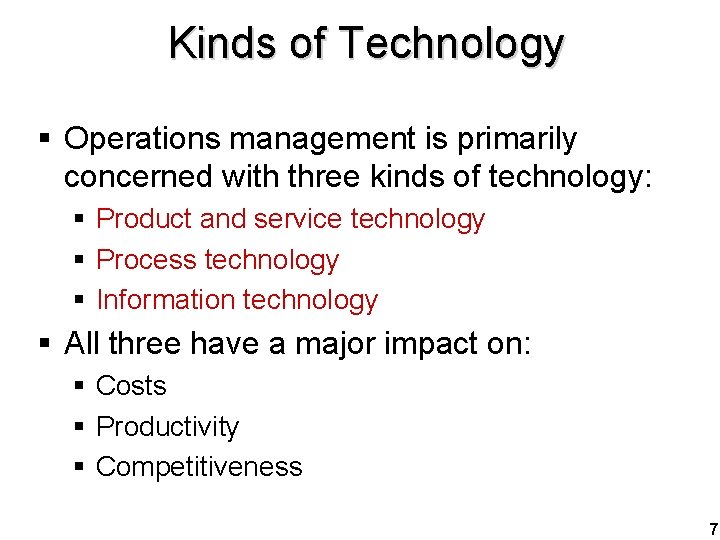

Kinds of Technology § Operations management is primarily concerned with three kinds of technology: § Product and service technology § Process technology § Information technology § All three have a major impact on: § Costs § Productivity § Competitiveness 7

Technology Competitive Advantage § Innovations in § Products and services § Cell phones § PDAs § Wireless computing § Processing technology § Increasing productivity § Increasing quality § Lowering costs 8

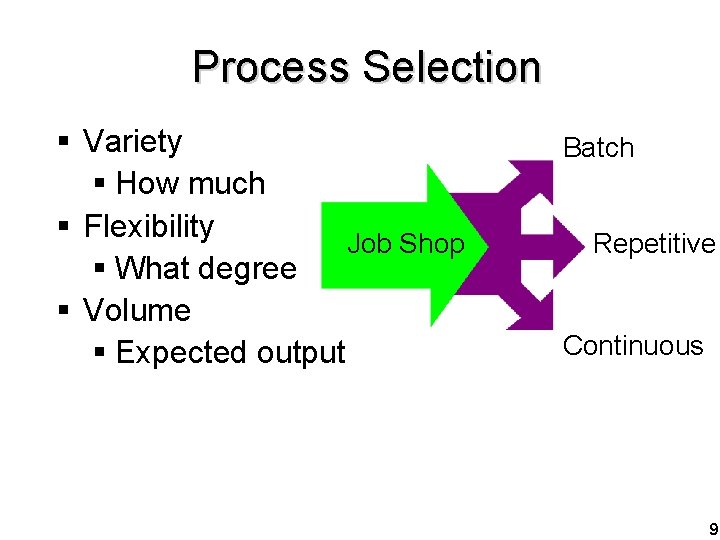

Process Selection § Variety § How much § Flexibility Job Shop § What degree § Volume § Expected output Batch Repetitive Continuous 9

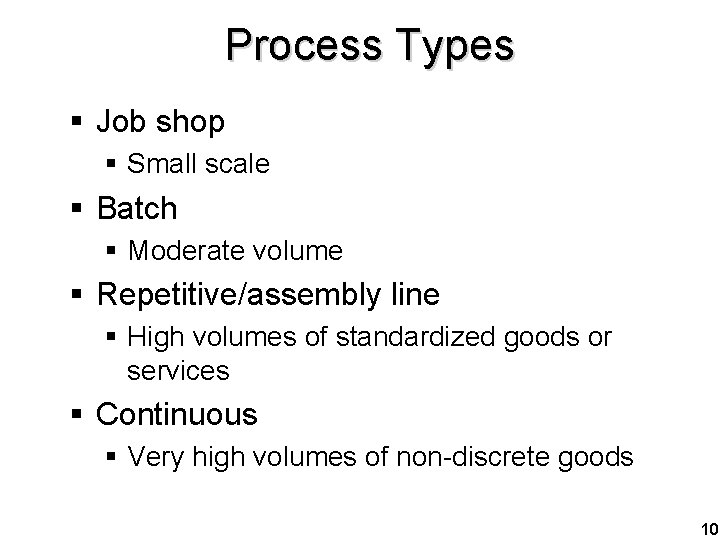

Process Types § Job shop § Small scale § Batch § Moderate volume § Repetitive/assembly line § High volumes of standardized goods or services § Continuous § Very high volumes of non-discrete goods 10

Product and Service Processes High Volume Process Type Low Volume Job Shop Appliance repair Emergency room Ineffective Commercial baking Batch Classroom Lecture Automotive assembly Repetitive Automatic carwash Continuous (flow) Ineffective Steel Production Water purification 11

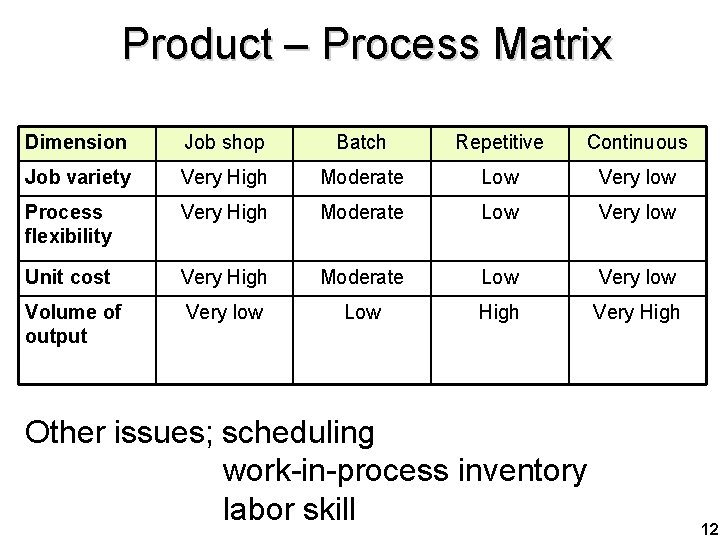

Product – Process Matrix Dimension Job shop Batch Repetitive Continuous Job variety Very High Moderate Low Very low Process flexibility Very High Moderate Low Very low Unit cost Very High Moderate Low Very low Volume of output Very low Low High Very High Other issues; scheduling work-in-process inventory labor skill 12

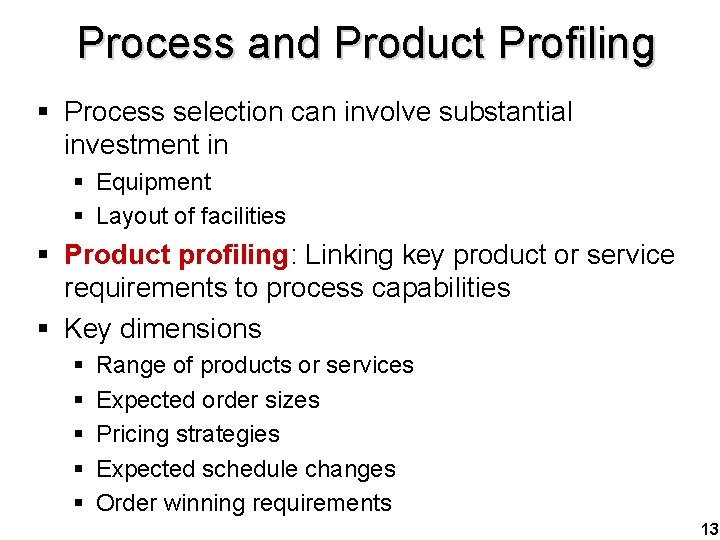

Process and Product Profiling § Process selection can involve substantial investment in § Equipment § Layout of facilities § Product profiling: Linking key product or service requirements to process capabilities § Key dimensions § § § Range of products or services Expected order sizes Pricing strategies Expected schedule changes Order winning requirements 13

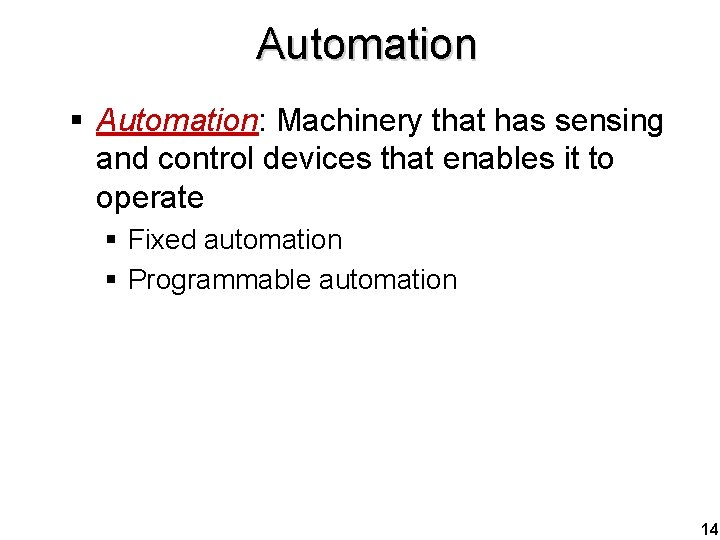

Automation § Automation: Machinery that has sensing and control devices that enables it to operate § Fixed automation § Programmable automation 14

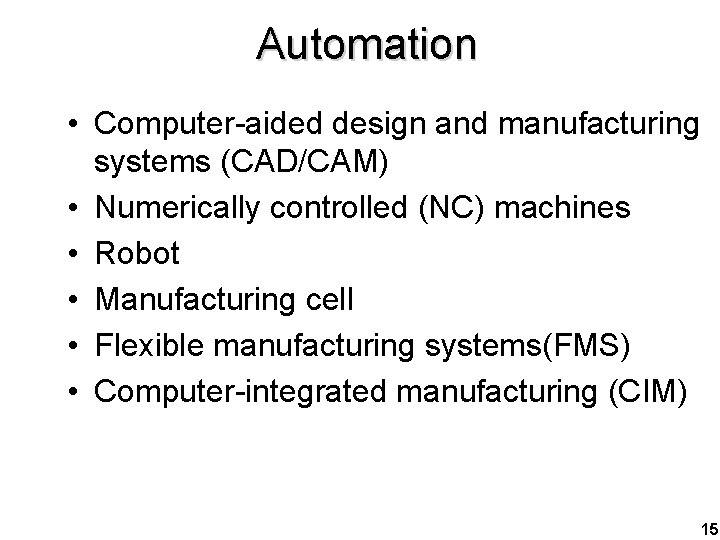

Automation • Computer-aided design and manufacturing systems (CAD/CAM) • Numerically controlled (NC) machines • Robot • Manufacturing cell • Flexible manufacturing systems(FMS) • Computer-integrated manufacturing (CIM) 15

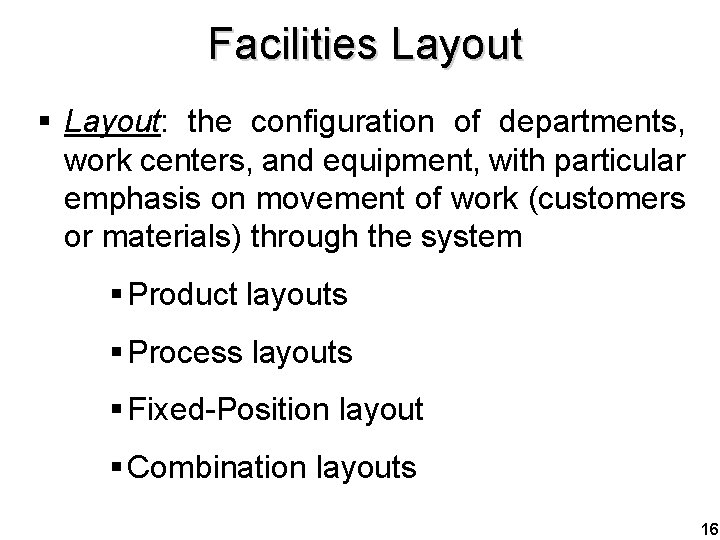

Facilities Layout § Layout: the configuration of departments, work centers, and equipment, with particular emphasis on movement of work (customers or materials) through the system § Product layouts § Process layouts § Fixed-Position layout § Combination layouts 16

Objective of Layout Design 1. 2. 3. 4. Facilitate attainment of product quality Use workers and space efficiently Avoid bottlenecks Minimize unnecessary material handling costs 5. Eliminate unnecessary movement of workers or materials 6. Minimize production time or customer service time 7. Design for safety 17

Importance of Layout Decisions § Requires substantial investments of money and effort § Involves long-term commitments § Has significant impact on cost and efficiency of short-term operations 18

The Need for Layout Design Inefficient operations For Example: High Cost Bottlenecks Changes in the design of products or services Accidents The introduction of new products or services Safety hazards 19

The Need for Layout Design (Cont’d) Changes in environmental or other legal requirements Changes in volume of output or mix of products Morale problems Changes in methods and equipment 20

Basic Layout Types § Product layouts § Process layouts § Fixed-Position layout § Combination layouts 21

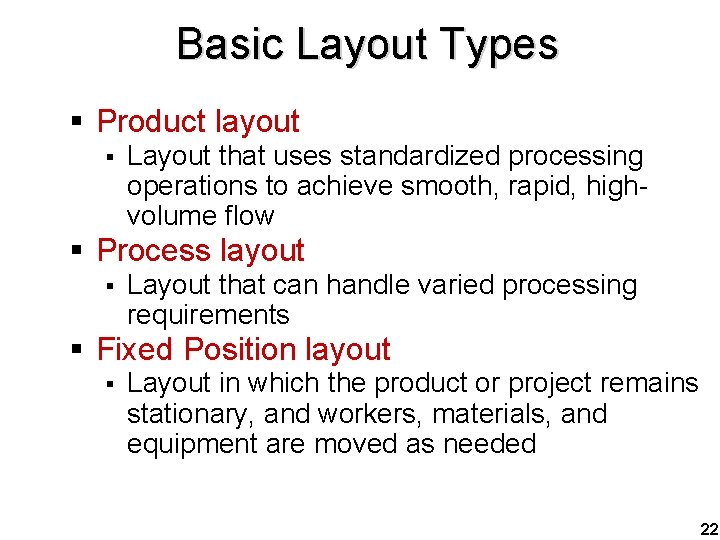

Basic Layout Types § Product layout § Layout that uses standardized processing operations to achieve smooth, rapid, highvolume flow § Process layout § Layout that can handle varied processing requirements § Fixed Position layout § Layout in which the product or project remains stationary, and workers, materials, and equipment are moved as needed 22

Product Layout Used for Repetitive or Continuous Process Raw materials or customer Material and/or labor Station 1 Material and/or labor Station 2 Material and/or labor Station 3 Station 4 Finished item Material and/or labor 23

Advantages of Product Layout § § § § High rate of output Low unit cost Labor specialization Low material handling cost High utilization of labor and equipment Established routing and scheduling Routine accounting, purchasing and inventory control 24

Disadvantages of Product Layout § Creates dull, repetitive jobs § Poorly skilled workers may not maintain equipment or quality of output § Fairly inflexible to changes in volume § Highly susceptible to shutdowns § Needs preventive maintenance § Individual incentive plans are impractical 25

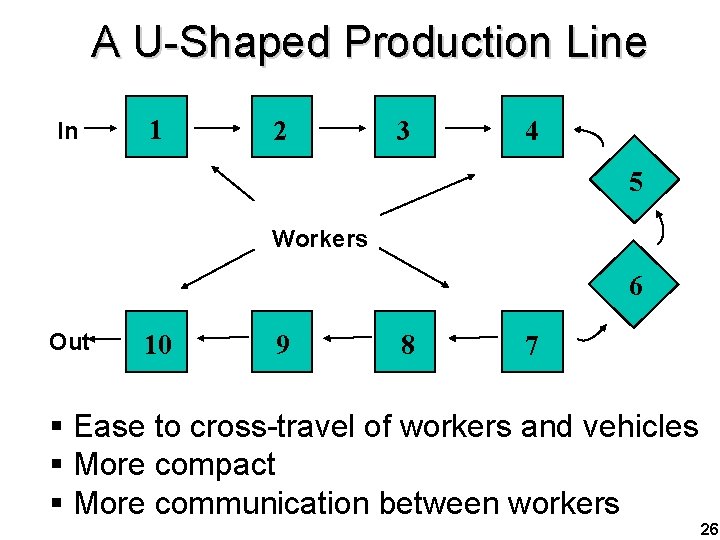

A U-Shaped Production Line In 1 2 3 4 5 Workers 6 Out 10 9 8 7 § Ease to cross-travel of workers and vehicles § More compact § More communication between workers 26

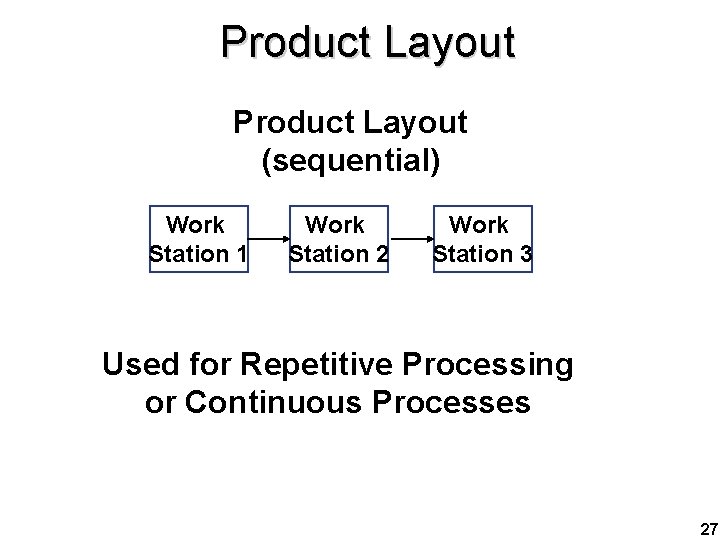

Product Layout (sequential) Work Station 1 Work Station 2 Work Station 3 Used for Repetitive Processing or Continuous Processes 27

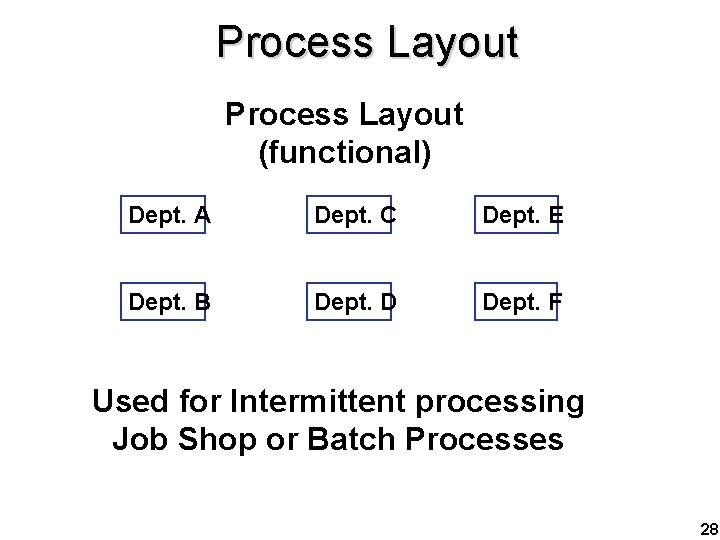

Process Layout (functional) Dept. A Dept. C Dept. E Dept. B Dept. D Dept. F Used for Intermittent processing Job Shop or Batch Processes 28

Advantages of Process Layouts § Can handle a variety of processing requirements § Not particularly vulnerable to equipment failures § Equipment used is less costly § Possible to use individual incentive plans 29

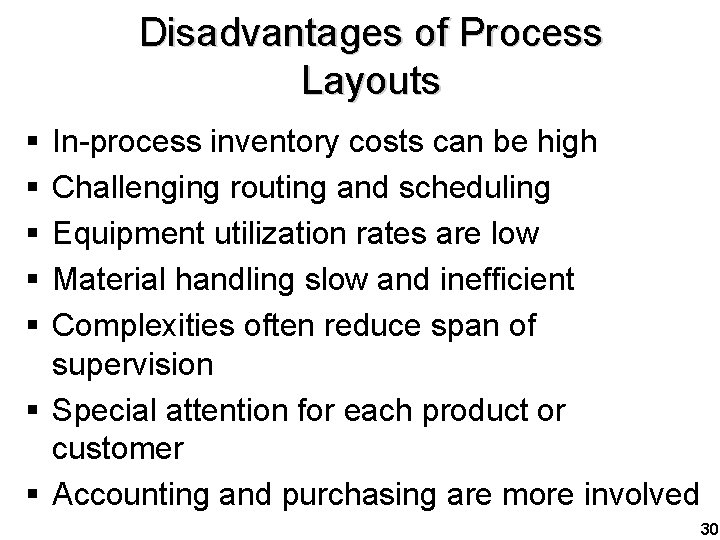

Disadvantages of Process Layouts § § § In-process inventory costs can be high Challenging routing and scheduling Equipment utilization rates are low Material handling slow and inefficient Complexities often reduce span of supervision § Special attention for each product or customer § Accounting and purchasing are more involved 30

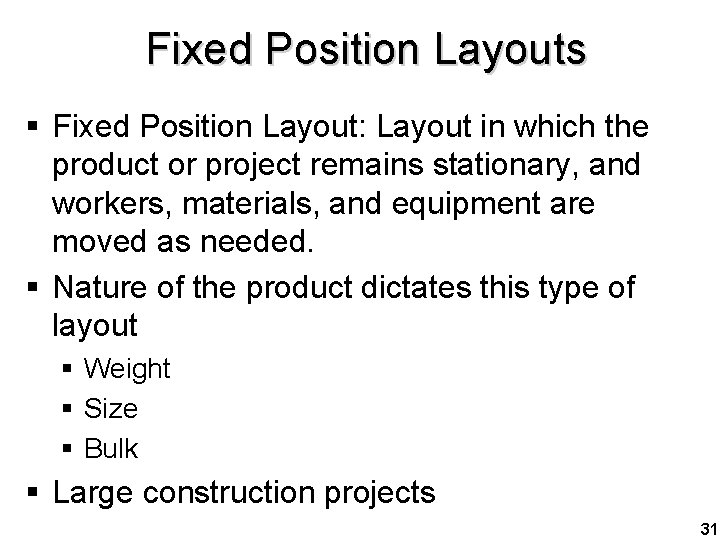

Fixed Position Layouts § Fixed Position Layout: Layout in which the product or project remains stationary, and workers, materials, and equipment are moved as needed. § Nature of the product dictates this type of layout § Weight § Size § Bulk § Large construction projects 31

Cellular Layouts § Cellular Production § Layout in which machines are grouped into a cell that can process items that have similar processing requirements § Group Technology § The grouping into part families of items with similar design or manufacturing characteristics 32

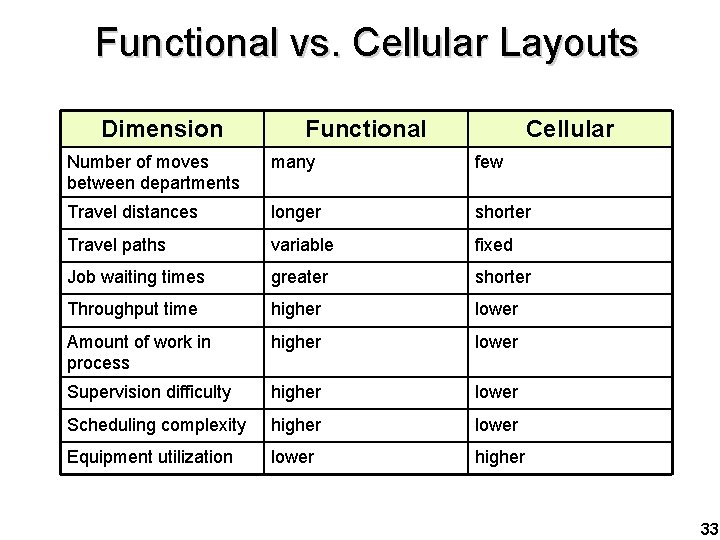

Functional vs. Cellular Layouts Dimension Functional Cellular Number of moves between departments many few Travel distances longer shorter Travel paths variable fixed Job waiting times greater shorter Throughput time higher lower Amount of work in process higher lower Supervision difficulty higher lower Scheduling complexity higher lower Equipment utilization lower higher 33

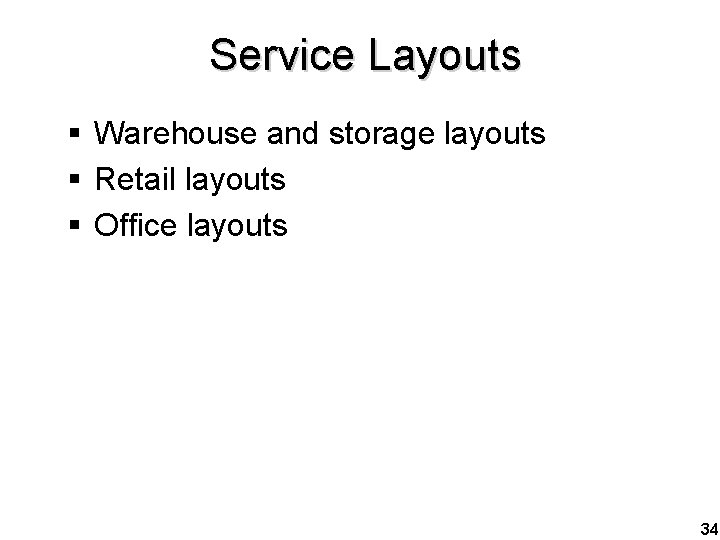

Service Layouts § Warehouse and storage layouts § Retail layouts § Office layouts 34

Design Product Layouts: Line Balancing is the process of assigning tasks to workstations in such a way that the workstations have approximately equal time requirements. 35

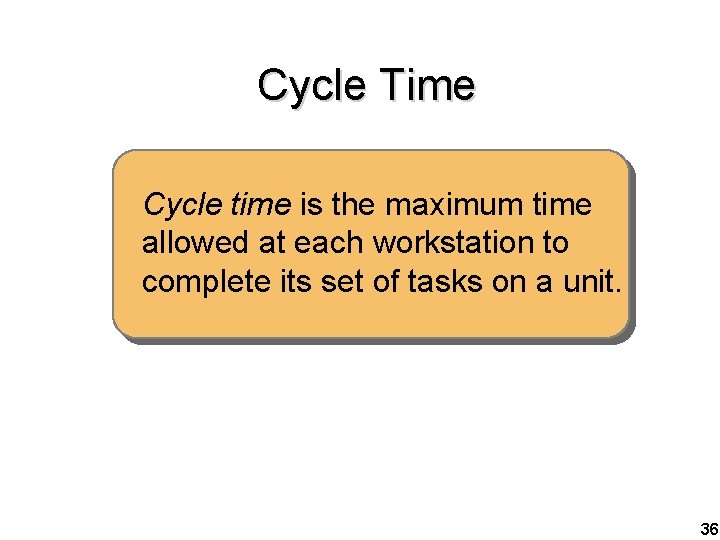

Cycle Time Cycle time is the maximum time allowed at each workstation to complete its set of tasks on a unit. 36

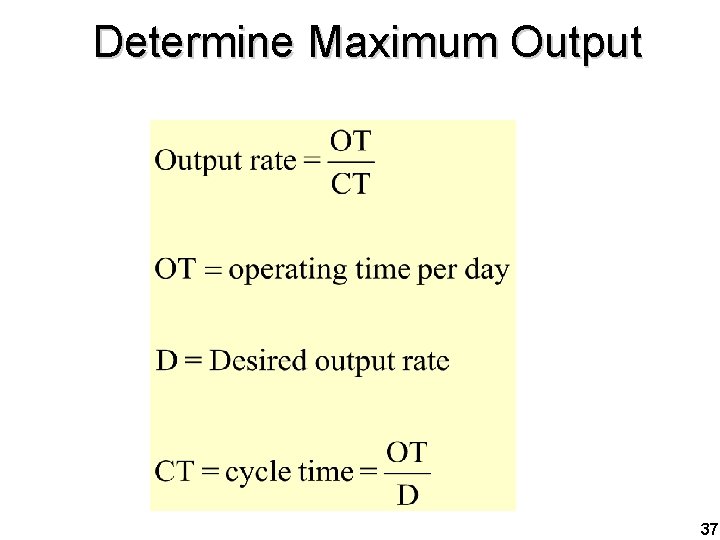

Determine Maximum Output 37

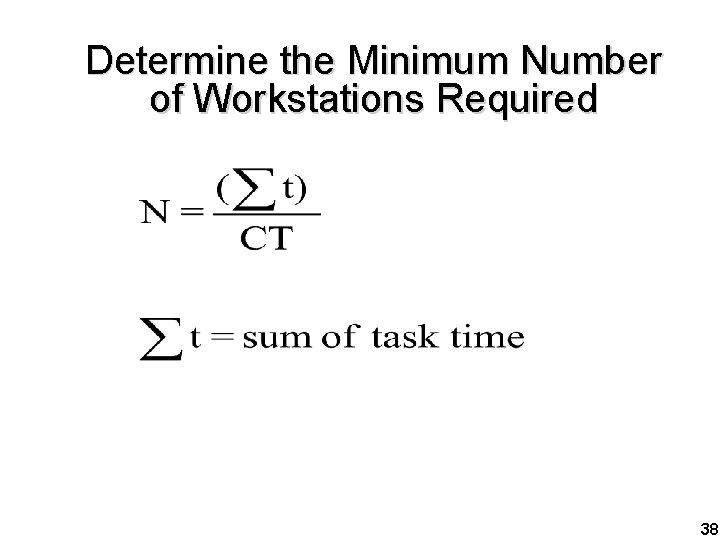

Determine the Minimum Number of Workstations Required 38

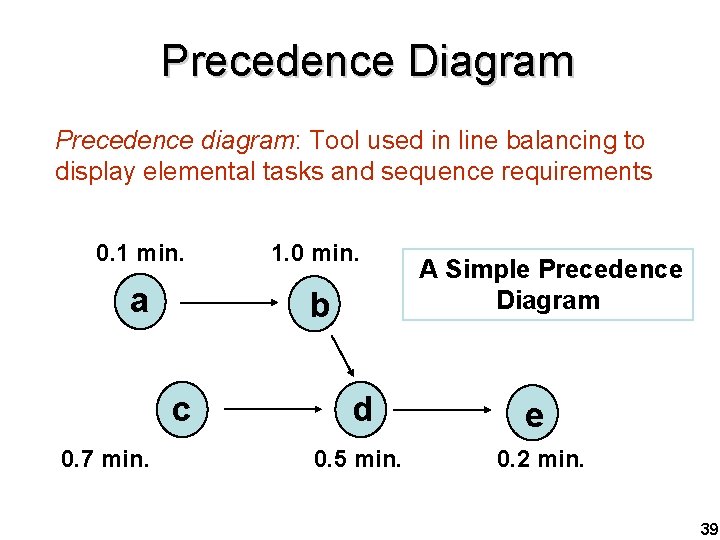

Precedence Diagram Precedence diagram: Tool used in line balancing to display elemental tasks and sequence requirements 0. 1 min. 1. 0 min. a b c 0. 7 min. d 0. 5 min. A Simple Precedence Diagram e 0. 2 min. 39

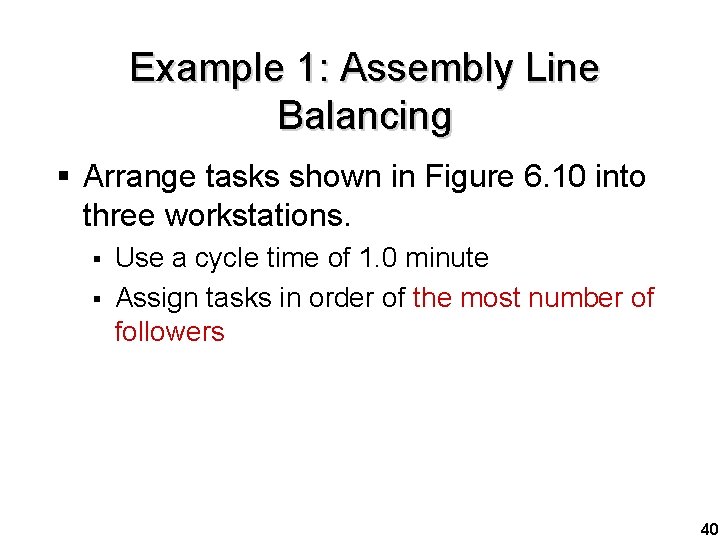

Example 1: Assembly Line Balancing § Arrange tasks shown in Figure 6. 10 into three workstations. § § Use a cycle time of 1. 0 minute Assign tasks in order of the most number of followers 40

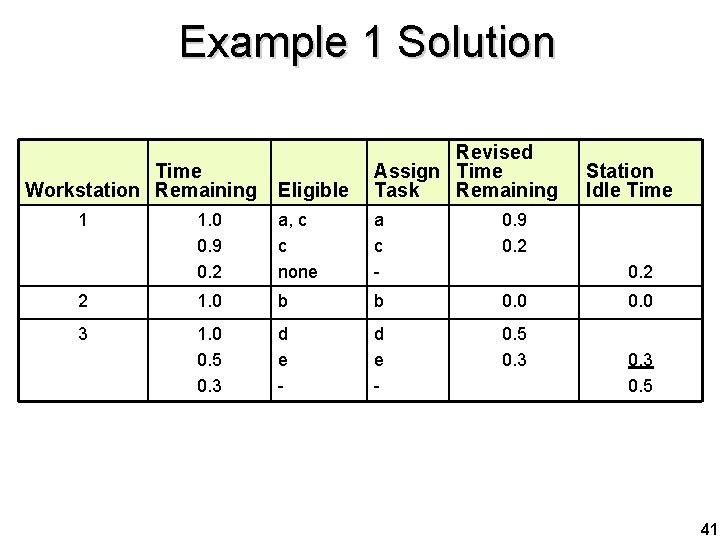

Example 1 Solution Eligible Revised Assign Time Task Remaining 1. 0 0. 9 0. 2 a, c c none a c - 0. 9 0. 2 2 1. 0 b b 0. 0 3 1. 0 0. 5 0. 3 d e - 0. 5 0. 3 Time Workstation Remaining 1 Station Idle Time 0. 2 0. 0 0. 3 0. 5 41

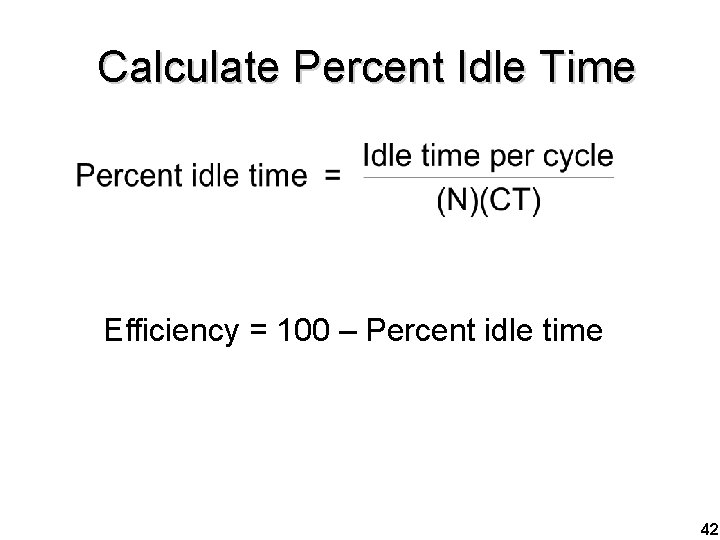

Calculate Percent Idle Time Efficiency = 100 – Percent idle time 42

Line Balancing Rules Some Heuristic (intuitive) Rules: § Assign tasks in order of most following tasks. § Count the number of tasks that follow § Assign tasks in order of greatest positional weight. § Positional weight is the sum of each task’s time and the times of all following tasks. 43

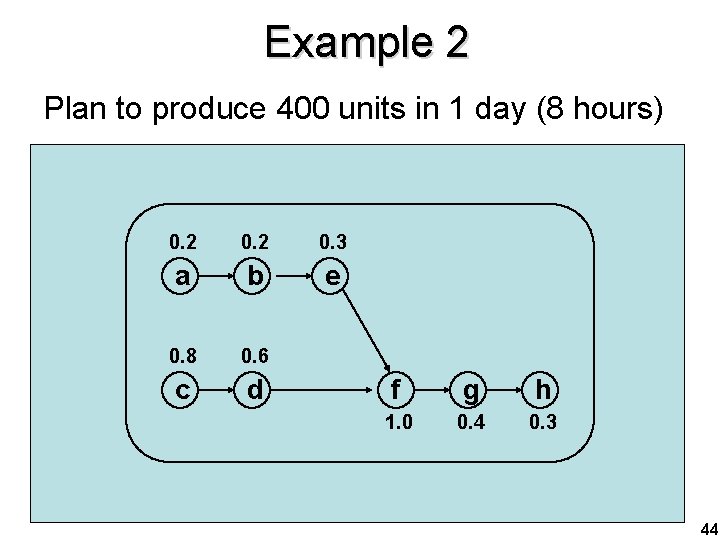

Example 2 Plan to produce 400 units in 1 day (8 hours) Task 0. 2 a a b c d 0. 8 e c f g h Immediate follower 0. 3 b 0. 2 e eb d f 0. 6 fd f g 1. 0 h end Task time (min) 0. 2 0. 8 0. 6 0. 3 g h 1. 0 0. 4 0. 3 44

Solution to Example 2 Station 1 a b Station 2 Station 3 e f c Station 4 g h d 45

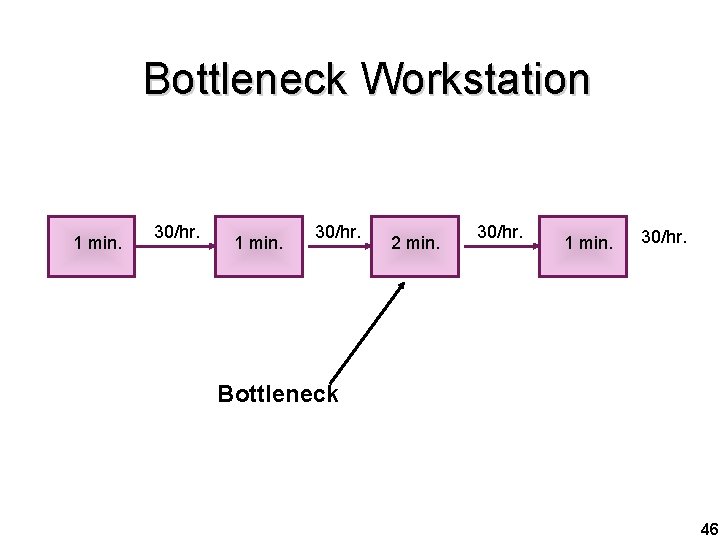

Bottleneck Workstation 1 min. 30/hr. 2 min. 30/hr. 1 min. 30/hr. Bottleneck 46

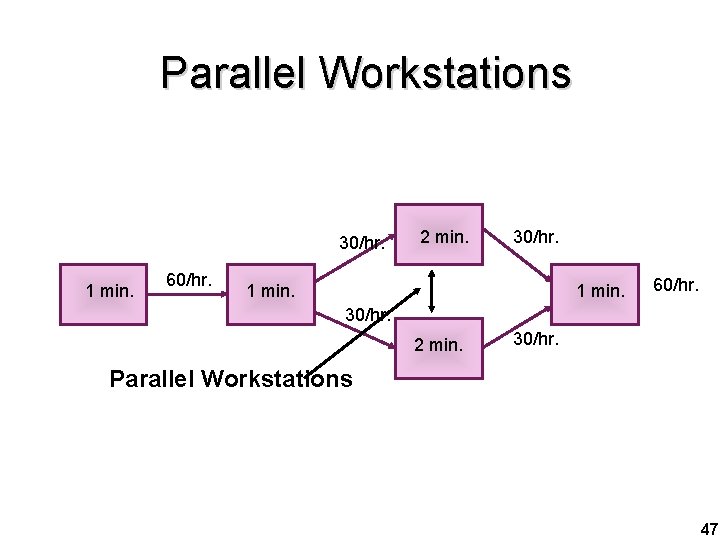

Parallel Workstations 30/hr. 1 min. 60/hr. 2 min. 30/hr. 1 min. 60/hr. 30/hr. 2 min. 30/hr. Parallel Workstations 47

Copier Example Performance Task Must Follow Time Task Listed Task (minutes) Below A 10 — B 11 A C 5 B D 4 B E 12 A F 3 C, D G 7 F H 11 E I 3 G, H Total time 66 This means that tasks B and E cannot be done until task A has been completed 48

Copier Example Performance Task Must Follow Time Task Listed Task (minutes) Below A 10 — B 11 A C 5 B D 4 B E 12 A F 3 C, D G 7 F 10 H 11 E A I 3 G, H Total time 66 5 11 B 12 E C 4 D 3 7 F G 3 11 I H Figure 9. 13 49

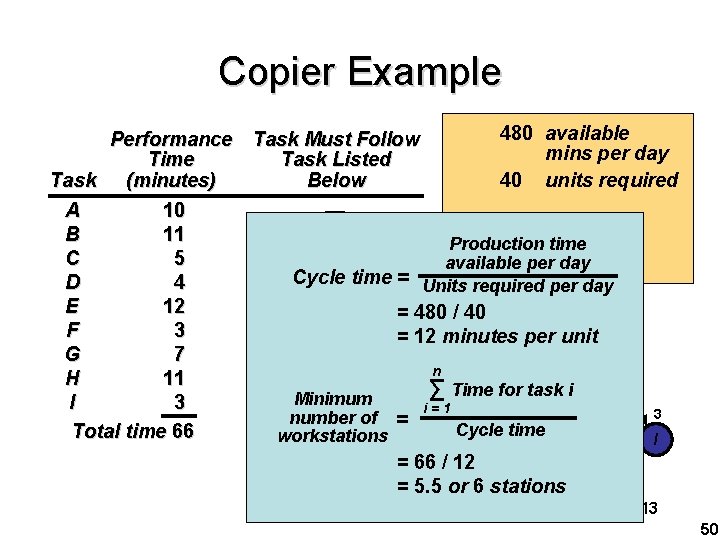

Copier Example 480 available Performance Task Must Follow mins per day Time Task Listed 40 units required Task (minutes) Below A 10 — B 11 A Production time C 5 B available per day Cycle D 4 B time = Units required per day E 12 A = 480 / 40 5 F 3 C, D = 12 minutes per unit C G 7 F 10 11 3 7 n H 11 E for task. Fi A ∑ Time B G Minimum I 3 G, H 4 i=1 3 number of = Cycle Dtime Total time 66 workstations I 12 11 = 66 / 12 E H = 5. 5 or 6 stations Figure 9. 13 50

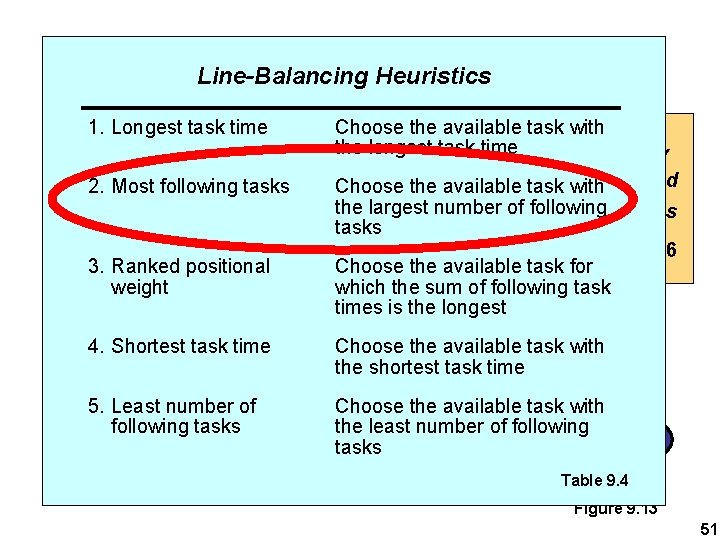

Copier Example Line-Balancing Heuristics 1. Longest task time Choose the available with 480 task available Performance Task Must Follow the longest task time mins per day Time Task Listed 40 task units Task 2. Most (minutes) following tasks Below Choose the available withrequired of following A 10 —the largest number Cycle time = 12 mins B 11 Atasks Minimum = 5. 5 or 6 C 3. Ranked 5 positional BChoose the available workstations task for D Bwhich the sum of following task weight 4 E 12 Atimes is the longest 5 F 3 C, D the available C task with G 4. Shortest 7 task time FChoose 10 11 3 7 the shortest task time H 11 E A B G F I 5. Least number 3 G, H 4 task with of Choose the available 3 the least number of. Dfollowing Totalfollowing time 66 tasks I 12 11 tasks E H Table 9. 4 Figure 9. 13 51

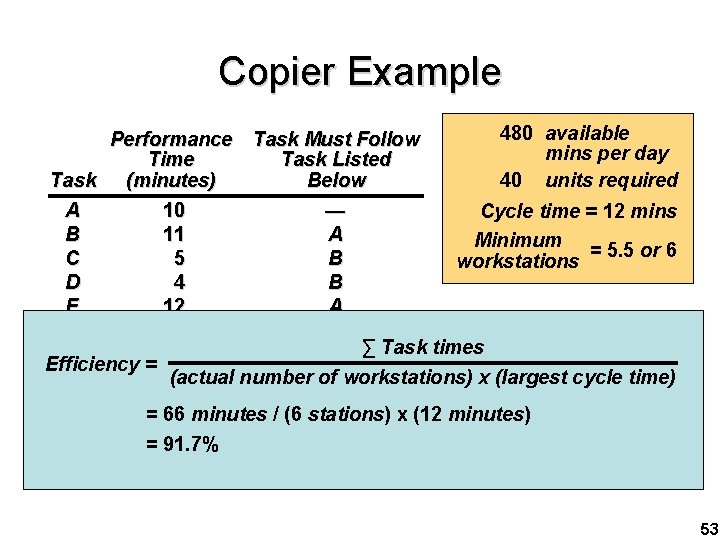

Copier Example 480 available Performance Task Must Follow mins per day Time Task Listed 40 units required Task (minutes) Below A 10 — Cycle time = 12 mins B 11 A Minimum Station 5 = 5. 5 or 6 C 52 B workstations D 4 C B 11 3 7 E 10 12 A F A 3 C, D B F G 4 3 G 7 F D E Station 4 H 11 I I 3 G, H 12 11 Station 6 Stationtime 66 Total E H 1 Station 3 Station 5 Figure 9. 14 52

Copier Example 480 available Performance Task Must Follow mins per day Time Task Listed 40 units required Task (minutes) Below A 10 — Cycle time = 12 mins B 11 A Minimum = 5. 5 or 6 C 5 B workstations D 4 B E 12 A F 3 C, D ∑ Task times G 7 F Efficiency = (actual number of. E workstations) x (largest cycle time) H 11 I 3 G, H = 66 minutes / (6 stations) x (12 minutes) Total time 66 = 91. 7% 53

Example 1 Performance Task Must Follow Time Task Listed Task (minutes) Below 1 0. 20 2 0. 40 3 0. 70 1 4 0. 10 1, 2 5 0. 30 2 6 0. 11 3 7 0. 32 3 8 0. 60 3, 4 9 0. 27 6, 7, 8 10 0. 38 5, 8 11 0. 50 9, 10 12 0. 12 11 Total time 4 min. Balance by 1 Longest task time method 2 RPW method 54

Example 2 Performance Task Must Follow Time Task Listed Task (minutes) Below 1 0. 5 2 0. 3 1 3 0. 8 1 4 0. 2 2 5 0. 1 2 6 0. 6 3 7 0. 4 4, 5 8 0. 5 3, 5 9 0. 3 7, 8 10 0. 6 6, 9 Total time 4. 3 min. Balance by 1 Longest task time method 2 RPW method 55

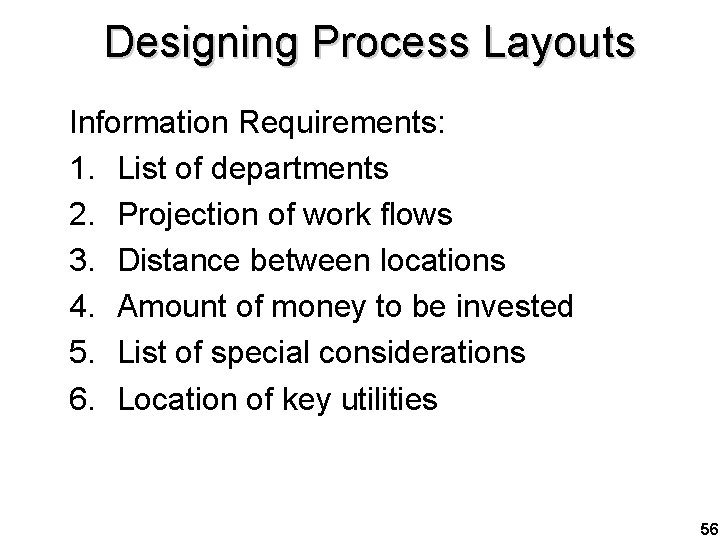

Designing Process Layouts Information Requirements: 1. List of departments 2. Projection of work flows 3. Distance between locations 4. Amount of money to be invested 5. List of special considerations 6. Location of key utilities 56

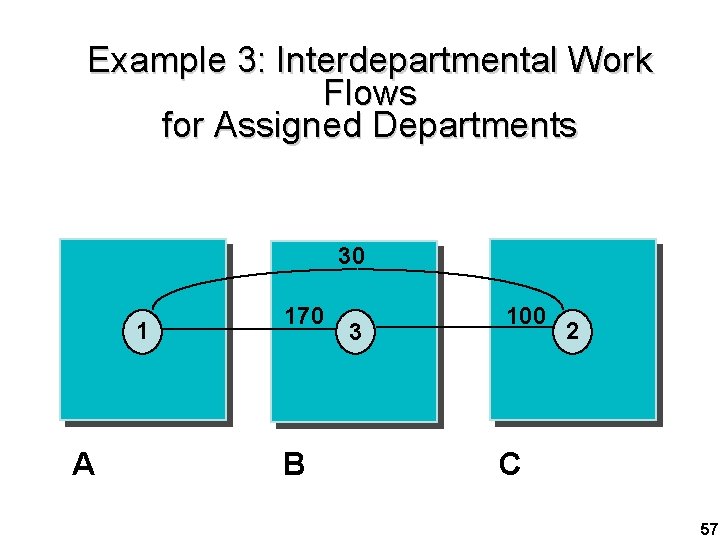

Example 3: Interdepartmental Work Flows for Assigned Departments 30 1 A 170 B 3 100 2 C 57

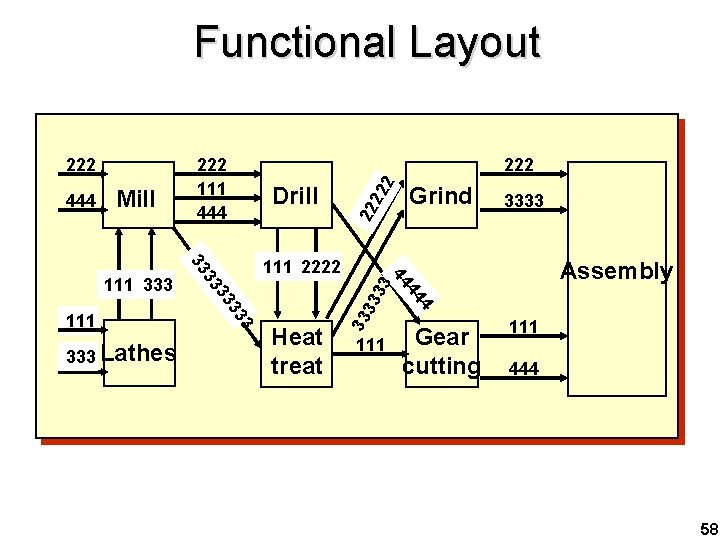

Functional Layout 22 2 3 4 44 Heat treat Grind 3333 Assembly 44 3 3 33 333 Lathes 33 11112222 3 33 111 333 Drill 22 Mill 222 33 3 444 222 111 444 111 Gear cutting 33 222 111 444 58

1111 Lathe Mill Drill 2222 Mill 3333 Lathe Mill 4444 Drill Mill Heat treat Gear -1111 cut Heat treat Grind - 2222 Heat treat Grind - 3333 Drill Gear - 4444 cut Assembly Cellular Manufacturing Layout 59

Linear Programming § Used to obtain optimal solutions to problems that involve restrictions or limitations, such as: § § Materials Budgets Labor Machine time 60

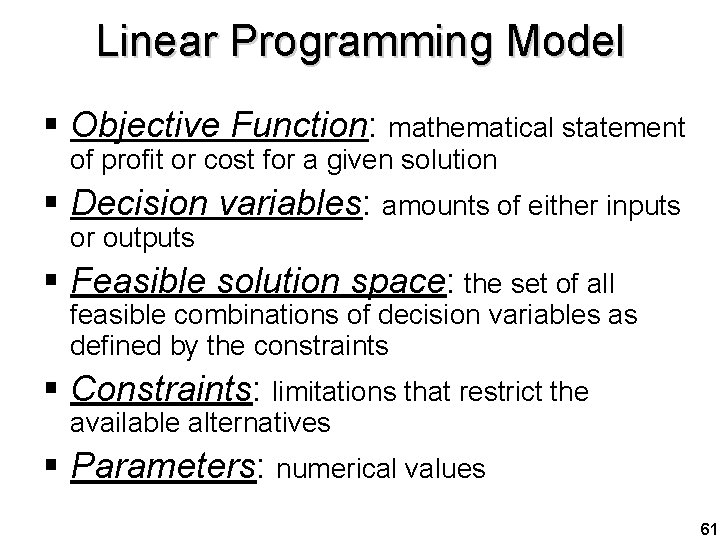

Linear Programming Model § Objective Function: mathematical statement of profit or cost for a given solution § Decision variables: amounts of either inputs or outputs § Feasible solution space: the set of all feasible combinations of decision variables as defined by the constraints § Constraints: limitations that restrict the available alternatives § Parameters: numerical values 61

Graphical Linear Programming Graphical method for finding optimal solutions to two-variable problems 1. Set up objective function and constraints in mathematical format 2. Plot the constraints 3. Identify the feasible solution space 4. Plot the objective function 5. Determine the optimum solution 62

Linear Programming Example § Objective - profit Maximize Z=60 X 1 + 50 X 2 § Subject to Assembly 4 X 1 + 10 X 2 <= 100 hours Inspection 2 X 1 + 1 X 2 <= 22 hours Storage 3 X 1 + 3 X 2 <= 39 cubic feet X 1, X 2 >= 0 63

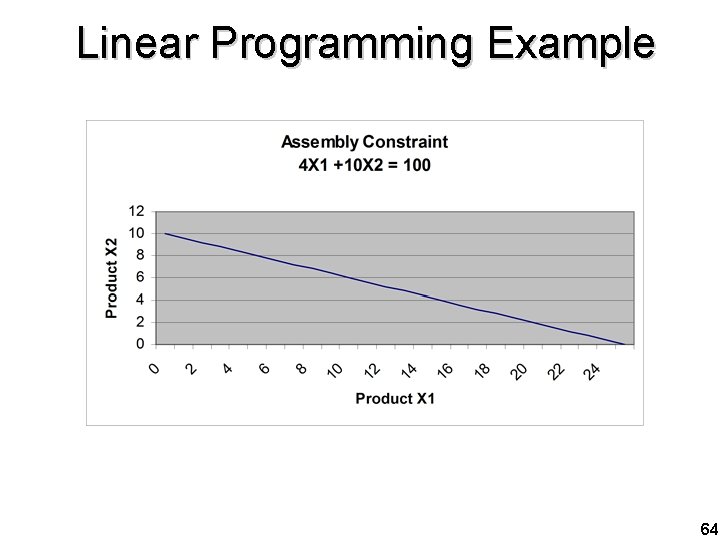

Linear Programming Example 64

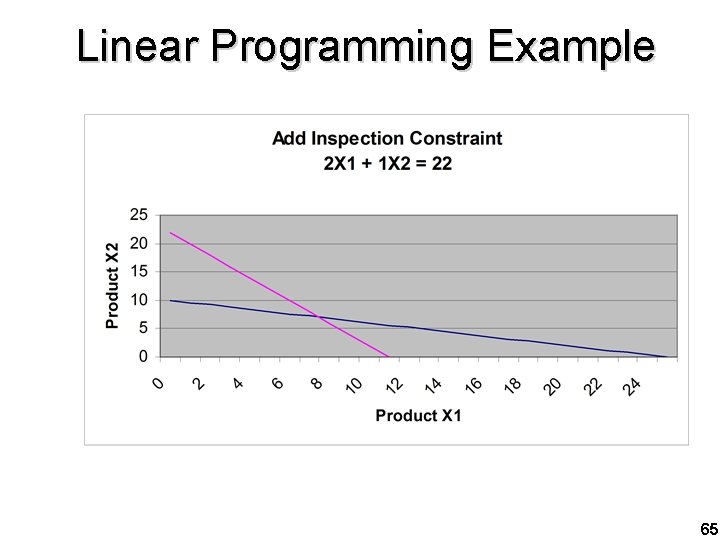

Linear Programming Example 65

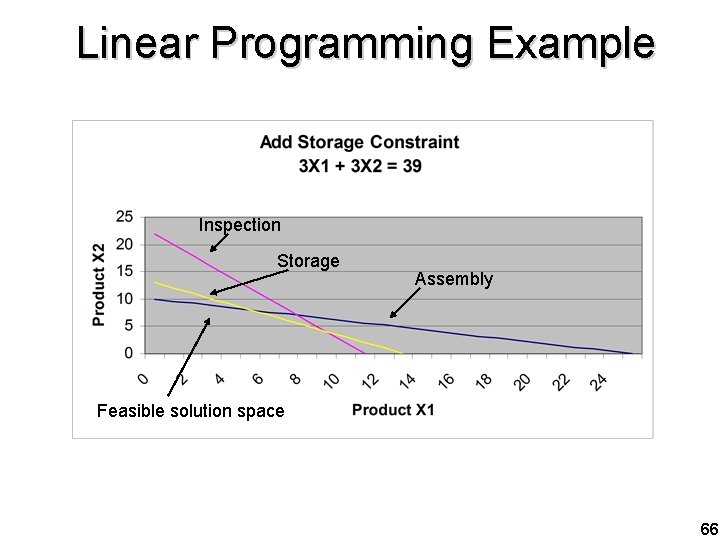

Linear Programming Example Inspection Storage Assembly Feasible solution space 66

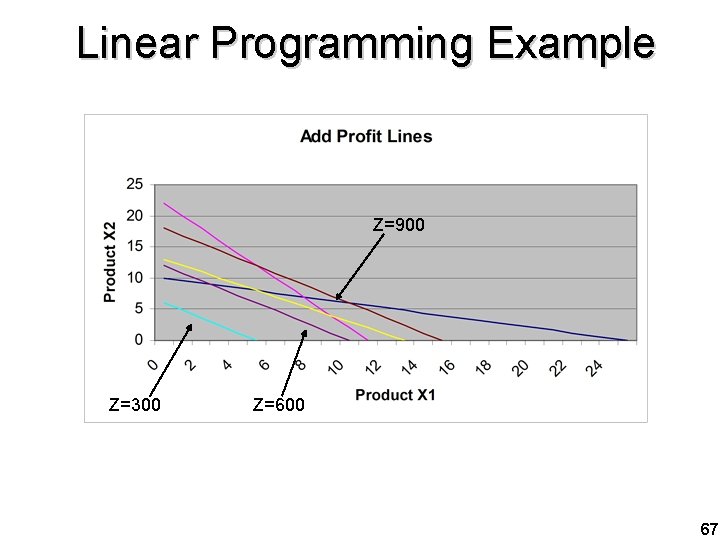

Linear Programming Example Z=900 Z=300 Z=600 67

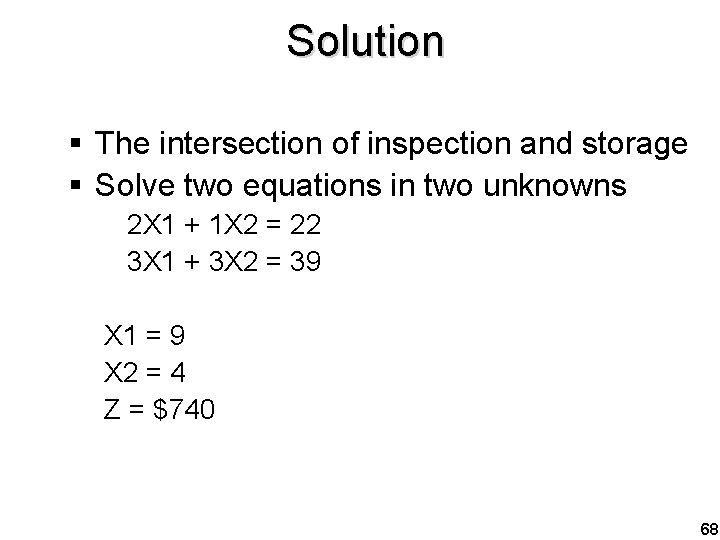

Solution § The intersection of inspection and storage § Solve two equations in two unknowns 2 X 1 + 1 X 2 = 22 3 X 1 + 3 X 2 = 39 X 1 = 9 X 2 = 4 Z = $740 68

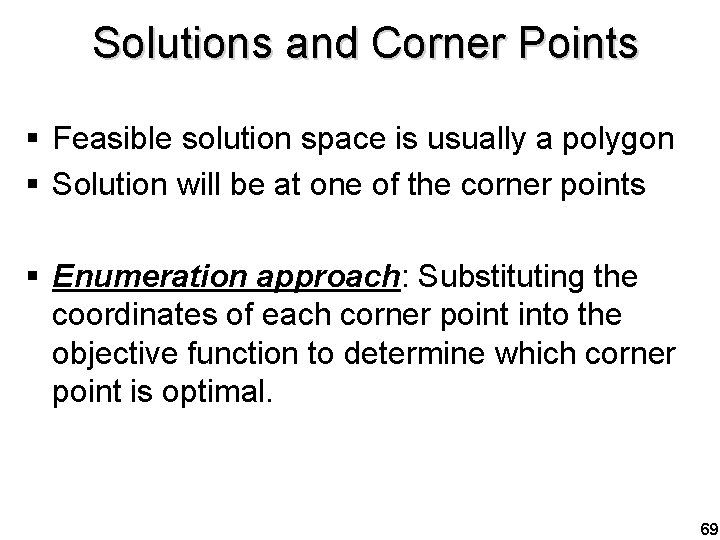

Solutions and Corner Points § Feasible solution space is usually a polygon § Solution will be at one of the corner points § Enumeration approach: Substituting the coordinates of each corner point into the objective function to determine which corner point is optimal. 69

Simplex Method § Simplex: a linear-programming algorithm that can solve problems having more than two decision variables 70

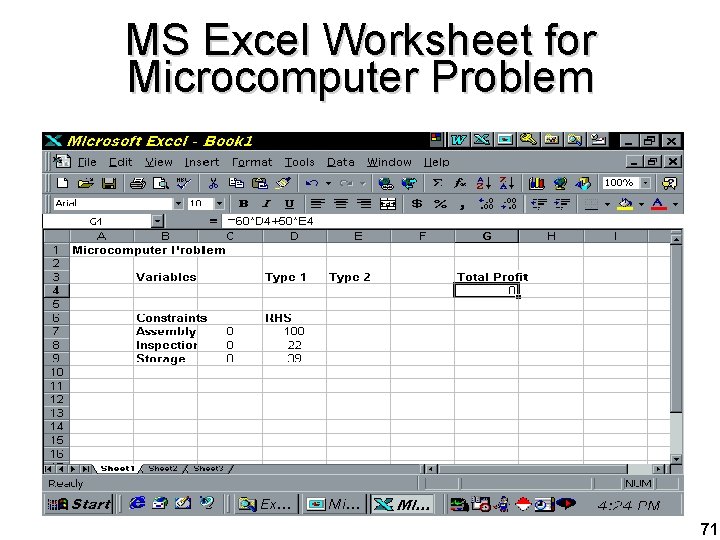

MS Excel Worksheet for Microcomputer Problem 71

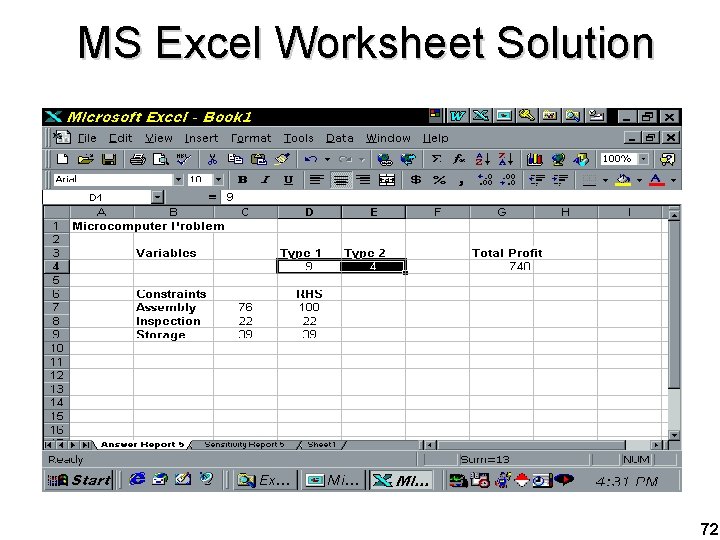

MS Excel Worksheet Solution 72
