Process Fluid Mechanics Text S Middleman An introduction

Process Fluid Mechanics

강의계획 • Text S. Middleman, An introduction to fluid dynamics, 1998. 이동현상의 응용과 해법, 2005. • Lecture notes: http: //microrheology. snu. ac. kr • Evaluation 시험#1(4/8)/시험#2(5/13) /시험#3(6/10) 기타: 과제물, 출석 (20%/grade↓) 휴강: 4/6, 4/8, 4/22 과제 1: 자기소개서(2 P)

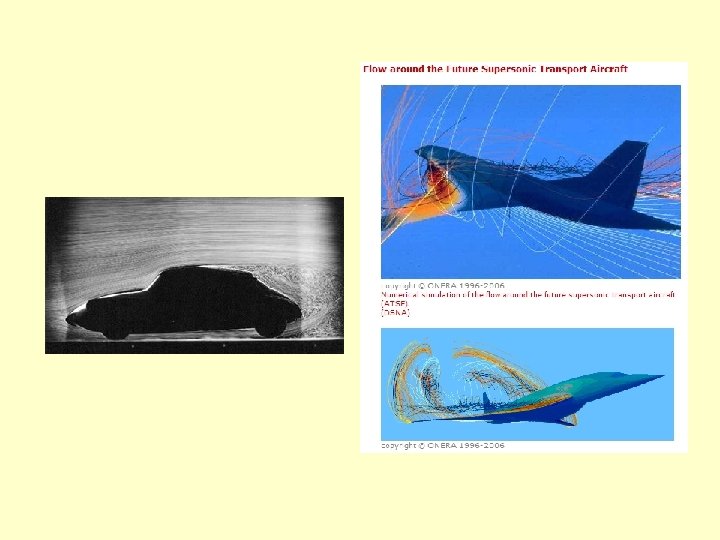

What is fluid mechanics? • A branch of applied physics that is concerned with the motion of fluids and the forces associated with that motion • A branch of mechanics or physics that seeks to describe or explain the nature of physical phenomena that involve the flow of liquids or gases • Scope of fluid mechanics

Why process fluid mechanics? • Why chemical engineering? – Chemical engineering is what chemical engineers do. • Why transport phenomena? – Fluid mechanics (momentum transfer) – Heat transfer – Mass transfer

Why process fluid mechanics? • • • Fundamentals Industrial Modeling Design Engineering sense Insight for solving the physical problems

Why process fluid mechanics? • IT – – – Chemical vapor deposition (CVD) Hard disk drive Display (LCD) Battery Others • BT – Artificial organs – Blood flow, microcirculation, stenosis – Microfluidics, biomedical flow device, DNA chip

Why process fluid mechanics? • Cosmetics • Food – Ice cream, chocolate • Industrial – Extruder • Fundamentals – Pipe flow, particulate flow – Contraction flow – Flow around an obstacle Emphasis is on the problems associated with the process industries.

Chemical vapor deposition (CVD)

Hard disk drive

Hard disk drive

LCD panel Spin Slit/Spin

Optical films

Glass투입 투명전극 유전층(하) 보조전극 상 Glass투입 Sputtering Coat Cleaning PR Coating Dry Expose Develop Etch/Strip Fire 판 하 세정 Dispense P. 검사 Coat Dry Repair Dry Fire Data 전극 Glass투입 Coating Coat Cleaning Dry Dry Fire Expose Fire DFR Lami. 유전층 Rib 판 Develop Expose Fire Develop P. 검사 Repair Seal 세정 하지막 Glass투입 유전층(상) Sandblast Strip Fire 형광체 Coat(R) Dry(B) Dry(R) Expose Develop Fire Coat(G) Dry(G) Expose Develop Coat(B) 보호막 Mg. O Depo.

Extrusion Coating feed slot downstream die lip h upstream die lip coating bead traveling web h: film thickness

Color filter w/ satellites w/o satellites

Battery press the film packaging

MLCC Powder Fabrication Slurry Fabrication Drying Casting Sheet+Film Head Printing Film Slurry Stacking Laminating/ Cutting Bake out/Firing Squeegee speed Tumbling Termination dipping Termination Firing Angle Clearance Stacking Bar Squeegee pressure Lamination Plating Sorting/ Inspection 삼성전기 Lamination Bar

Toner

particle and stress distributions

Cause of death(USA) Cardiovascular Disease 49. 9% Etc. 10. 4% Accidents 7. 1% Cancer 32. 4% American Heart Association 2003 Most diabetics have hyperviscosity. Extra-corporeal life supporter RBC deformation and hemolysis

Diabetes Association • Most diabetics have hyperviscosity by one or other mechanism. (Dintenfass L, 1989) • The Complication of diabetics ( Diabetic Retinopathy, Nephropathy, Nervous Diease ) Diabetic Retinopathy Heathy retinal capillaries Diabetic retinal capillaries

Blood flow simulation Himeno, Blood flow simulation toward actual application in hospital, 2003

RBC dynamics

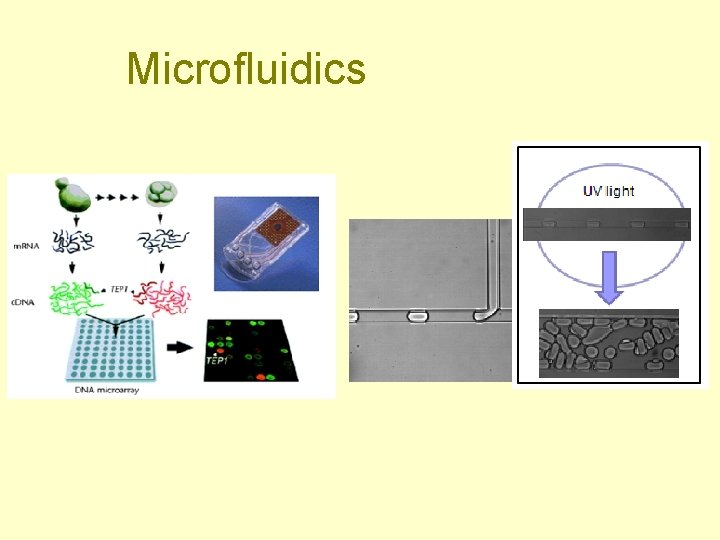

Microfluidics

Cosmetics

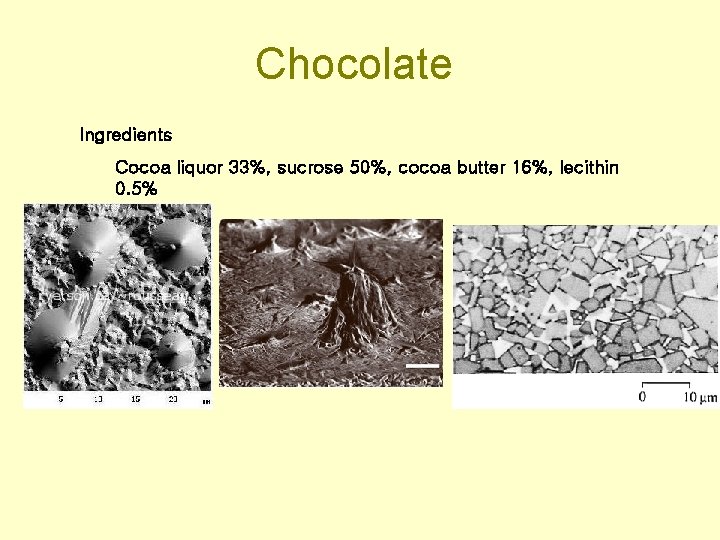

Chocolate Ingredients Cocoa liquor 33%, sucrose 50%, cocoa butter 16%, lecithin 0. 5%

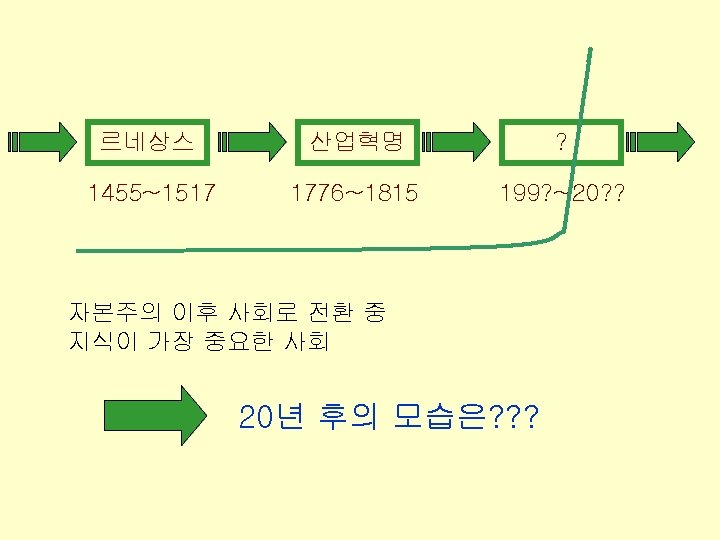

세계화 경쟁과기회 지식사회 Made in China Service in India

Young chemical engineers… • • • Knowledge – problem solving Passion Creativity Dream/vision Leadership

• • 공정유체역학 전환의 시대 Paradigm shift Passion/ dream
