Process Description Split a full pallet into several

Process Description: Split a full pallet into several pallets Hanns-Georg Rybak 2017 -02

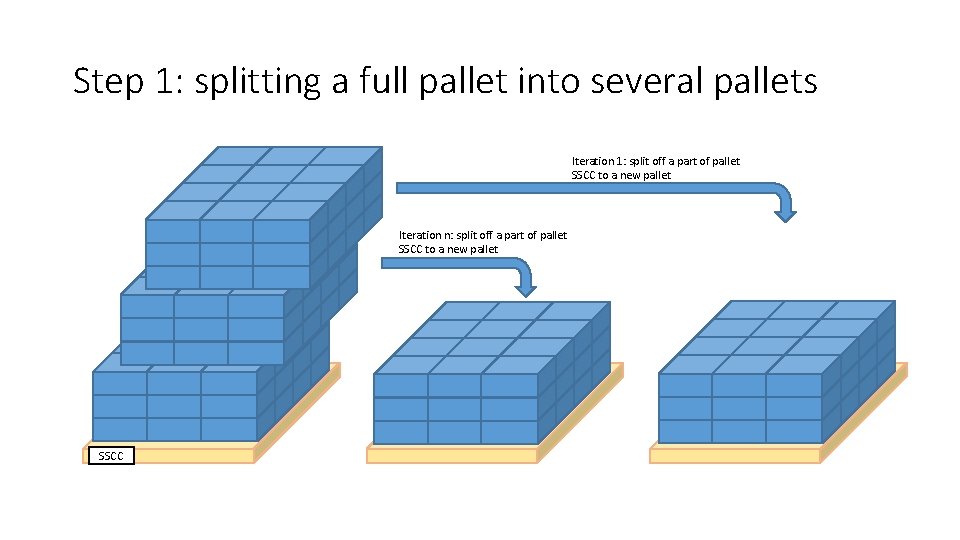

Step 1: splitting a full pallet into several pallets Iteration 1: split off a part of pallet SSCC to a new pallet Iteration n: split off a part of pallet SSCC to a new pallet SSCC

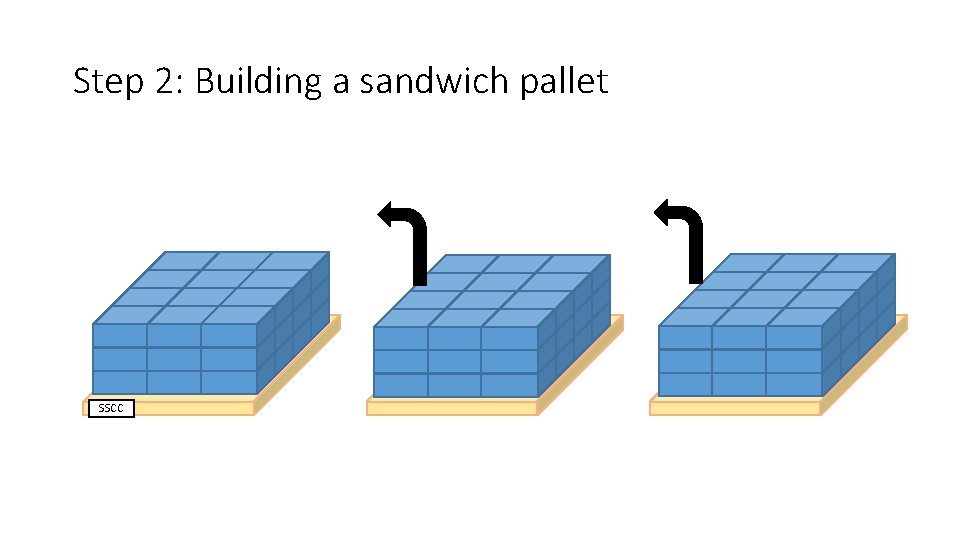

Step 2: Building a sandwich pallet SSCC

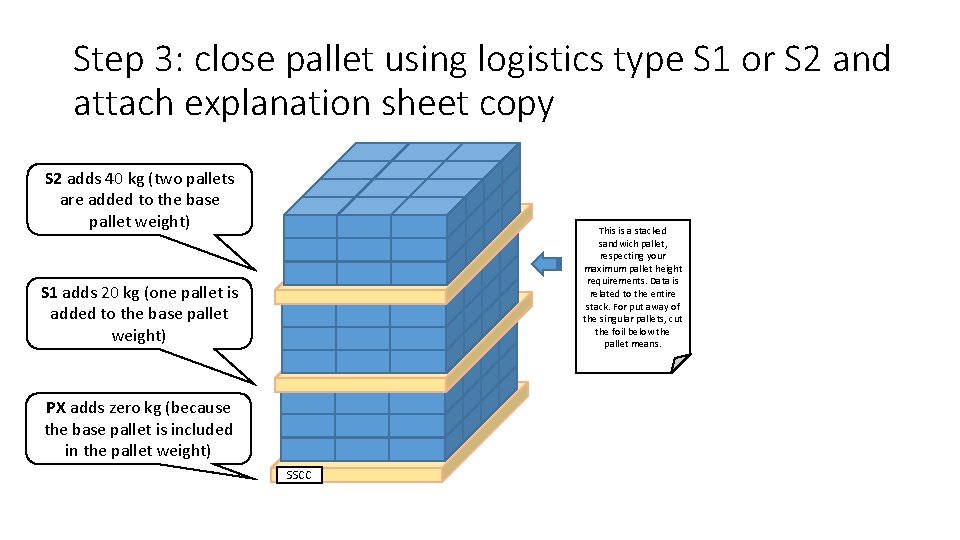

Step 3: close pallet using logistics type S 1 or S 2 and attach explanation sheet copy S 2 adds 40 kg (two pallets are added to the base pallet weight) This is a stacked sandwich pallet, respecting your maximum pallet height requirements. Data is related to the entire stack. For put away of the singular pallets, cut the foil below the pallet means. S 1 adds 20 kg (one pallet is added to the base pallet weight) PX adds zero kg (because the base pallet is included in the pallet weight) SSCC

Step 1: splitting a full pallet into several pallets Iteration 1: split off a part of pallet SSCC to a new pallet SSCC

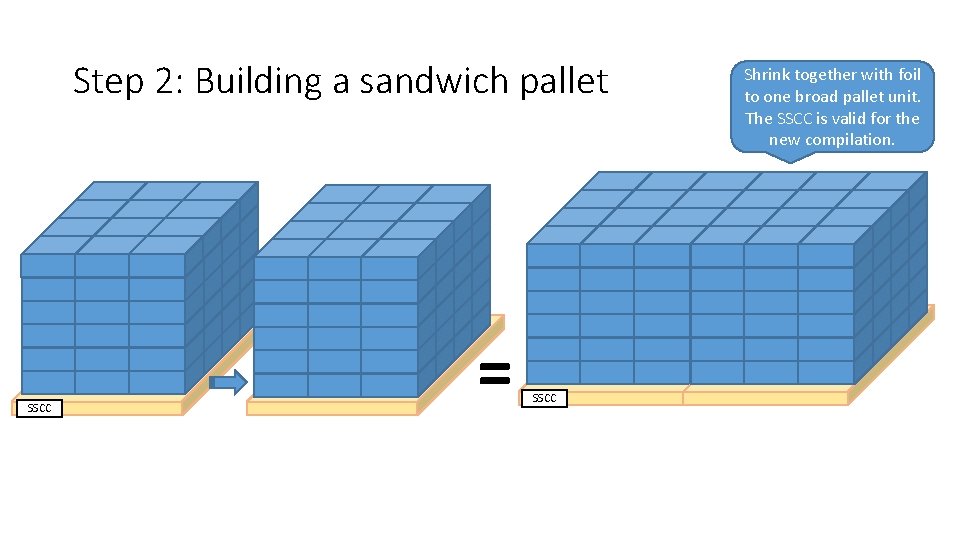

Step 2: Building a sandwich pallet SSCC = SSCC Shrink together with foil to one broad pallet unit. The SSCC is valid for the new compilation.

Step 3: close pallet using logistics type S 1 or S 2 and attach explanation sheet copy (similarly: S 3 and S 4 for disposable pallets) S 2 adds 40 kg (two pallets are added to the base pallet weight) This is a stacked sandwich pallet, respecting your maximum pallet height requirements. Data is related to the entire stack. For put away of the singular pallets, cut the foil below the pallet means. S 1 adds 20 kg (one pallet is added to the base pallet weight) PX adds zero kg (because the base pallet is included in the pallet weight) SSCC

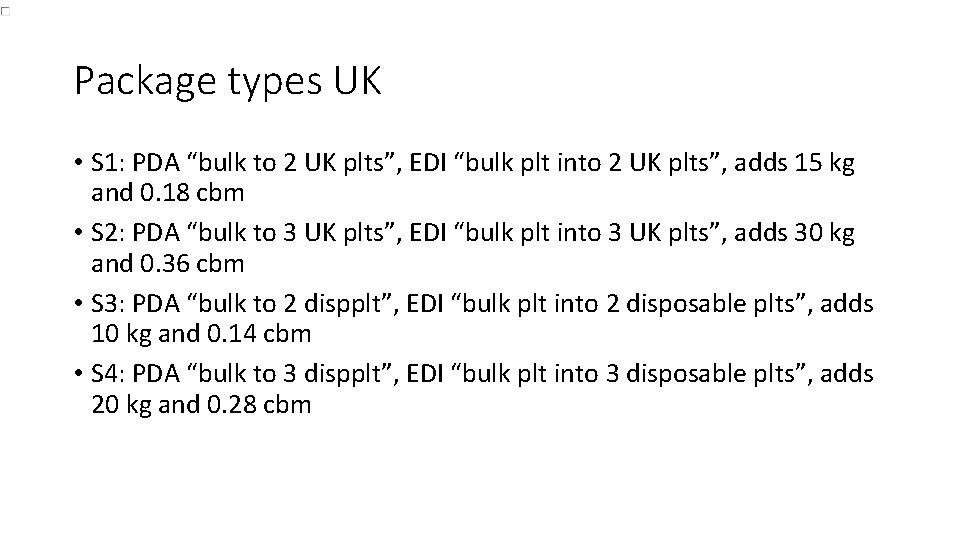

Package types UK • S 1: PDA “bulk to 2 UK plts”, EDI “bulk plt into 2 UK plts”, adds 15 kg and 0. 18 cbm • S 2: PDA “bulk to 3 UK plts”, EDI “bulk plt into 3 UK plts”, adds 30 kg and 0. 36 cbm • S 3: PDA “bulk to 2 dispplt”, EDI “bulk plt into 2 disposable plts”, adds 10 kg and 0. 14 cbm • S 4: PDA “bulk to 3 dispplt”, EDI “bulk plt into 3 disposable plts”, adds 20 kg and 0. 28 cbm

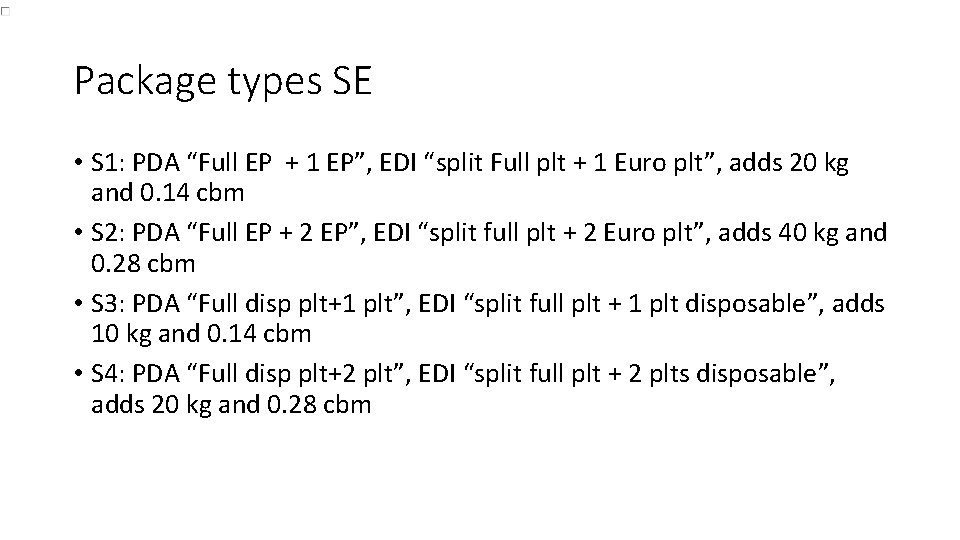

Package types SE • S 1: PDA “Full EP + 1 EP”, EDI “split Full plt + 1 Euro plt”, adds 20 kg and 0. 14 cbm • S 2: PDA “Full EP + 2 EP”, EDI “split full plt + 2 Euro plt”, adds 40 kg and 0. 28 cbm • S 3: PDA “Full disp plt+1 plt”, EDI “split full plt + 1 plt disposable”, adds 10 kg and 0. 14 cbm • S 4: PDA “Full disp plt+2 plt”, EDI “split full plt + 2 plts disposable”, adds 20 kg and 0. 28 cbm
