Process Control and Safeguarding Human Factory Human Factory

Process Control and Safeguarding Human Factory

Human Factory § Neurological System § Digestive System § Cardiovascular System § Respiration System § Reproduction System

Main Objective The main objective of the Human Factory is to survive !!! § § Food Water Air Reproduction

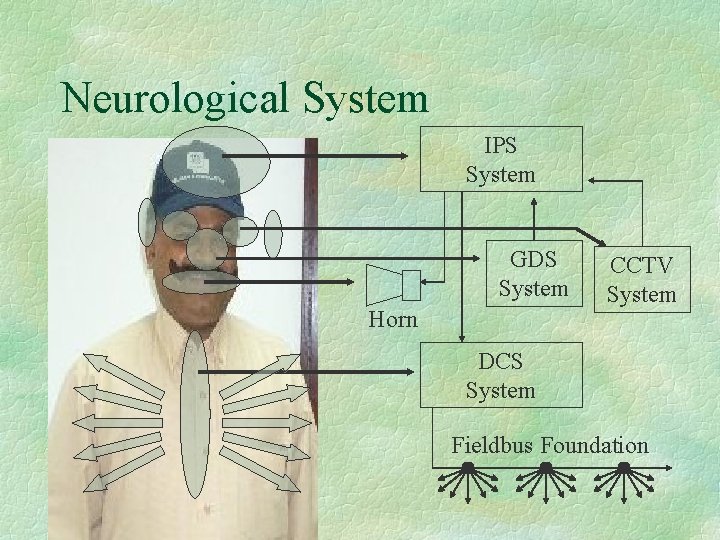

Neurological System IPS System GDS System Horn CCTV System DCS System Fieldbus Foundation

Digestive System Blood Nose To/From Lungs PD Air Filter Pre-heater Density Mouth QC Feed + Air Mixer Pre-heater Liver Nutrients Exchanger Saliva TC PC Pharynx LC LP Separator FC Blood HSS QC LC QS LC PS Blood Gall Bile storage Stomach MP Separator QC Thin Intestines LC 1. stage Reactor Stom. solvents storage 2. stage Reactor PC QC To Eustach‘s Tube HP Separator LC Thick Intestines Water Separator LC Wastes / Vent To kidneys

Digestive System Blood Air Filter Feed + Air Liver Nutrients Exchanger Nose Pharynx LP Separator Pre-heater Saliva To Eustach‘s Tube Pre-heater Mouth Mixer To/From Lungs LZA Blood QZA Stomach Blood Gall Bile storage MP Separator Thin Intestines 1. stage Reactor Stom. solvents storage 2. stage Reactor PZA Thick Intestines Protection LZA HP Separator Water Separator Wastes / Vent To kidneys

Digestive System (cont‘d) Blood + H 2 O From Intestines Drained Blood Water Separator LC Urea Storage PC Kidneys FC Water Washer TC Blood Urea Bladder Urine Storage Tank LC FC Drain

Digestive System (cont‘d) Blood + H 2 O From Intestines Drained Blood Urea Storage Water Separator Kidneys Water Washer Blood Urea Bladder Urine Storage Tank LZA Drain

Cardiovascular and Respiration Systems O 2 FCQ HSS X PC From/To Pharynx Blower VSDC Lungs O 2 / CO 2 Exchanger CO 2 QC Deoxidised blood from various organs Hart VSDC FCQ Oxidised blood to various organs QC

Cardiovascular and Respiration Systems PZA From/To Pharynx VSDC Blower Lungs O 2 / CO 2 Exchanger Deoxidised blood from various organs Hart VSDC 1 oo 2 FZA Oxidised blood to various organs QZA

Reproduction System LC QC Hormons Storage Reprod. Cells Generator Blood Generation Control Quality LC FCQ Intermed. Storage QC Density GS QC Metering Station Loading Arm QC Sensitivity Blood Pump Control Reactor RI Blood QC

Reproduction System Hormons Storage LZA Intermed. Storage Reprod. Cells Generator Blood GZA Metering Station Loading Arm Blood Reactor Blood QA

Summary § Complicated process control § Limited redundancy provided § MTBF between 60 and 70 years § Low level of process safeguarding § In total almost 7 bil. Human Factories world -wide § What is the solution ? ? ?

No solution exist !!! Take care of yourself, ‘cause nobody else will do it for you. Your chance may never come back.
