PROCESS CONFIGURATIONS MAX IN TIBCO BUSINESSWORKS limit activation
PROCESS CONFIGURATIONS MAX IN TIBCO BUSINESSWORKS limit activation limit
MAX JOBS maximum number of process instances that can concurrently be loaded into memory
ACTIVATION LIMIT once a process instance is loaded, it must remain in memory until it completes
FLOW LIMIT maximum number of concurrently running process instance to start before suspending the process starter
Flow Limit Demystified SYSTEM flow limit to your rescue
Flow Limit Demystified SYSTEM FLOW_CONTROLLE D flow limit =1
FLOW_CONTROLLED state WHEN? When a process engine reaches the Flow Limit, it is placed in this state The process engine can continue executing existing process instances, but new process instances are not allowed. WHAT?
Leaving FLOW_CONTROLLED state A process engine leaves this state when the number of process instances completed is approximately half of the value specified for the Flow Limit
Specifics : HTTP Receiver “When Flow Limit is set on a process containing this starter, the maximum number of incoming requests is limited to F L O W L I M I T - 1 ”
Recommended Usage “Use min. Processors and max. Processors to control the flow of incoming HTTP requests instead of using the Flow Limit property”
Max Jobs Demystified Max Jobs = 5 DISK MEMORY
Max Jobs Demystified “If you have sufficient system resources and do not expect incoming events to exceed the limits of your system, specify Max Jobs as 0 which allows the engine to create an unbounded number of process instances and eliminates the overhead of paging”
Activation Limit Demystified “It is useful if you wish to specify sequential processing of incoming events or if you want to enforce limited concurrent execution of process instances”
Effects of configurations Max Jobs Use Activation Limit Flow Limit Unlimited number of process instances can be created and can be concurrently loaded into the memory Use of Activation limit is ignored when Max Jobs is 0

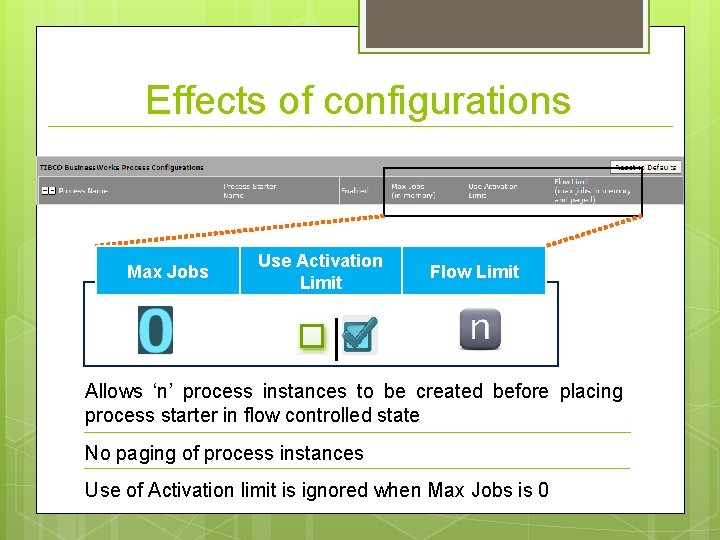

Effects of configurations Max Jobs Use Activation Limit Flow Limit Allows ‘n’ process instances to be created before placing process starter in flow controlled state No paging of process instances Use of Activation limit is ignored when Max Jobs is 0
Effects of configurations Max Jobs Use Activation Limit Flow Limit Allows ‘n’ process instances to be created before placing process starter in flow controlled state One process instance is loaded into memory at a time and kept there until it completes its execution This guarantees incoming events are processed in the order in which they occur
Effects of configurations Max Jobs Use Activation Limit Flow Limit There is no limit on the number of process instances that can be created One process instance is loaded into memory at a time and kept there until it completes its execution This guarantees incoming events are processed in the order in which they occur
Effects of configurations Max Jobs Use Activation Limit Flow Limit Allows ‘n’ process instances to be created before placing process starter in flow controlled state One process instance is loaded into memory at a time Incoming events can be processed in any order as process instances are not kept in memory until they complete execution
Effects of configurations Max Jobs Use Activation Limit Flow Limit There is no limit on the number of process instances that can be created ‘m’ process instances can be loaded into memory at a time and processed concurrently Ensures limited amount of concurrent processing. Useful when you have limited resources like database connections. Set ‘m’ to a small number, use activation limit. Each loaded process uses a resource until it completes. Once it completes, a new process is loaded and would use the same resource
Effects of configurations Max Jobs Use Activation Limit Flow Limit Allows ‘n’ process instances to be created before placing process starter in flow controlled state ‘m’ process instances can be loaded into memory at a time and processed concurrently Ensures limited amount of concurrent processing. Useful when you have limited resources like database connections. Set ‘m’ to a small number, use activation limit. Each loaded process uses a resource until it completes. Once it completes, a new process is loaded and would use the same resource
Effects of configurations Max Jobs Use Activation Limit Flow Limit There is no limit on the number of process instances that can be created ‘m’ process instances can be loaded into memory at a time and processed concurrently After ‘m’ process instances are created, new process instances are paged to disk. There is no guarantee of the order in which the process instances are executed
Effects of configurations Max Jobs Use Activation Limit Flow Limit Allows ‘n’ process instances to be created before placing process starter in flow controlled state ‘m’ process instances can be loaded into memory at a time and processed concurrently After ‘m’ process instances are created, new process instances are paged to disk. There is no guarantee of the order in which the process instances are executed
