Process Capacity Chapter 6 To Accompany Krajewski Ritzman
- Slides: 47
Process Capacity Chapter 6 To Accompany Krajewski & Ritzman Operations Management: Strategy and Analysis, Seventh Edition © 2004 Prentice Hall, Inc. All rights reserved.
Redesigning a Process Through Capacity Change Define scope 2 Identify opportunity 1 Document process 3 Implement changes 6 Evaluate performance 4 Redesign Process (Capacity change) 5 Figure 6. 1 To Accompany Krajewski & Ritzman Operations Management: Strategy and Analysis, Seventh Edition © 2004 Prentice Hall, Inc. All rights reserved.
Utilization Average output rate Utilization = x 100% Maximum capacity To Accompany Krajewski & Ritzman Operations Management: Strategy and Analysis, Seventh Edition © 2004 Prentice Hall, Inc. All rights reserved.
Capacity Bottlenecks Inputs 1 2 3 200/hr 50/hr 200/hr To customers (a) Operation 2 a bottleneck Figure 6. 2 To Accompany Krajewski & Ritzman Operations Management: Strategy and Analysis, Seventh Edition © 2004 Prentice Hall, Inc. All rights reserved.
Capacity Bottlenecks Inputs 1 2 3 200/hr To customers (b) All operations bottlenecks Figure 6. 2 To Accompany Krajewski & Ritzman Operations Management: Strategy and Analysis, Seventh Edition © 2004 Prentice Hall, Inc. All rights reserved.
Theory of Constraints 1. Identify the system bottleneck(s) 2. Exploit the bottleneck(s) 3. Subordinate all other decisions to Step 2 4. Elevate the bottleneck(s) 5. Do not let inertia set in To Accompany Krajewski & Ritzman Operations Management: Strategy and Analysis, Seventh Edition © 2004 Prentice Hall, Inc. All rights reserved.
Average unit cost (dollars per patient) Economies and Diseconomies of Scale 250 -bed hospital Economies of scale 500 -bed hospital 750 -bed hospital Diseconomies of scale Output rate (patients per week) Figure 6. 3 To Accompany Krajewski & Ritzman Operations Management: Strategy and Analysis, Seventh Edition © 2004 Prentice Hall, Inc. All rights reserved.
Capacity Cushions Capacity Cushion = 100% - Utilization Rate (%) To Accompany Krajewski & Ritzman Operations Management: Strategy and Analysis, Seventh Edition © 2004 Prentice Hall, Inc. All rights reserved.

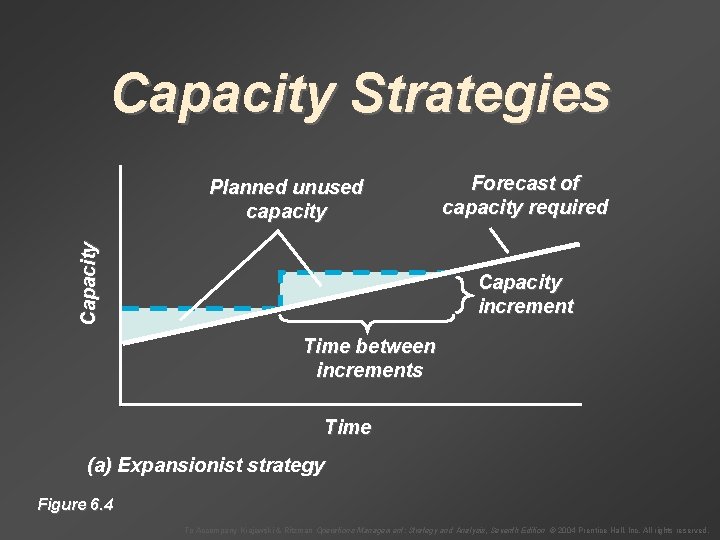

Capacity Strategies Capacity Planned unused capacity Forecast of capacity required Capacity increment Time between increments Time (a) Expansionist strategy Figure 6. 4 To Accompany Krajewski & Ritzman Operations Management: Strategy and Analysis, Seventh Edition © 2004 Prentice Hall, Inc. All rights reserved.
Capacity Strategies Capacity Planned use of short-term options Forecast of capacity required Capacity increment Time between increments Time (b) Wait-and-see strategy Figure 6. 4 To Accompany Krajewski & Ritzman Operations Management: Strategy and Analysis, Seventh Edition © 2004 Prentice Hall, Inc. All rights reserved.
Linking Process Capacity and Other Decisions • • • Competitive Priorities Quality Process Design • Aggregate Planning To Accompany Krajewski & Ritzman Operations Management: Strategy and Analysis, Seventh Edition © 2004 Prentice Hall, Inc. All rights reserved.
Estimating Capacity Requirements A process serves 50 customers per day, utilization is about 90%, and demand is expected to double in five years. Management wants to increase the capacity cushion to 20%. M= 50 50[1. 0 –. 20)] = 62. 5 customers per day In 5 years if demand doubles, M = 2 x 62. 5 or 125 customers per day Example 6. 1 To Accompany Krajewski & Ritzman Operations Management: Strategy and Analysis, Seventh Edition © 2004 Prentice Hall, Inc. All rights reserved.
Estimating Capacity Requirements Capacity requirement = Processing hours required for year’s demand Hours available from a single capacity unit per year, after deducting desired cushion M= D p N C = = Dp N[1 – (C/100)] demand forecast for the year processing time total number of hours per year during which the process operates desired capacity cushion To Accompany Krajewski & Ritzman Operations Management: Strategy and Analysis, Seventh Edition © 2004 Prentice Hall, Inc. All rights reserved.
Capacity Decisions To Accompany Krajewski & Ritzman Operations Management: Strategy and Analysis, Seventh Edition © 2004 Prentice Hall, Inc. All rights reserved.
Capacity Decisions Estimate Capacity Requirements Item Client X Client Y Annual demand forecast (copies) 2000. 00 Standard processing time (hour/copy) 0. 50 Average lot size (copies per report) 20. 00 Standard setup time (hours) 0. 25 6000. 00 0. 70 30. 00 0. 40 Example 6. 2 To Accompany Krajewski & Ritzman Operations Management: Strategy and Analysis, Seventh Edition © 2004 Prentice Hall, Inc. All rights reserved.
Capacity Decisions Estimate Capacity Requirements Item Client X Client Y Annual demand forecast (copies) 2000. 00 Standard processing time (hour/copy) 0. 50 Average lot size (copies per report) 20. 00 Standard setup time (hours) 0. 25 6000. 00 0. 70 30. 00 0. 40 M= [Dp + (D/Q)s]product 1 +. . . + [Dp + (D/Q)s]product n N[1 – (C/100)] Example 6. 2 To Accompany Krajewski & Ritzman Operations Management: Strategy and Analysis, Seventh Edition © 2004 Prentice Hall, Inc. All rights reserved.
Capacity Decisions Estimate Capacity Requirements Item Client X Client Y Annual demand forecast (copies) 2000. 00 Standard processing time (hour/copy) 0. 50 Average lot size (copies per report) 20. 00 Standard setup time (hours) 0. 25 6000. 00 0. 70 30. 00 0. 40 M= [2000(0. 5) + (2000/20)(0. 25)]client X + [6000(0. 7) + (6000/30)(0. 4)]client Y (250 days/year)(1 shift/day)(8 hours/shift)(1. 0 – 15/100) Example 6. 2 To Accompany Krajewski & Ritzman Operations Management: Strategy and Analysis, Seventh Edition © 2004 Prentice Hall, Inc. All rights reserved.
Capacity Decisions Estimate Capacity Requirements Item Client X Client Y Annual demand forecast (copies) 2000. 00 Standard processing time (hour/copy) 0. 50 Average lot size (copies per report) 20. 00 Standard setup time (hours) 0. 25 6000. 00 0. 70 30. 00 0. 40 M= [2000(0. 5) + (2000/20)(0. 25)]client X + [6000(0. 7) + (6000/30)(0. 4)]client Y (250 days/year)(1 shift/day)(8 hours/shift)(1. 0 – 15/100) Example 6. 2 To Accompany Krajewski & Ritzman Operations Management: Strategy and Analysis, Seventh Edition © 2004 Prentice Hall, Inc. All rights reserved.
Capacity Decisions Estimate Capacity Requirements Item Client X Client Y Annual demand forecast (copies) 2000. 00 Standard processing time (hour/copy) 0. 50 Average lot size (copies per report) 20. 00 Standard setup time (hours) 0. 25 6000. 00 0. 70 30. 00 0. 40 5305 M= = 3. 12 4 machines 1700 Example 6. 2 To Accompany Krajewski & Ritzman Operations Management: Strategy and Analysis, Seventh Edition © 2004 Prentice Hall, Inc. All rights reserved.
Capacity Decisions Evaluate Alternatives Expand capacity to meet expected demand through Year 5 Year Demand Cash Flow Example 6. 3 To Accompany Krajewski & Ritzman Operations Management: Strategy and Analysis, Seventh Edition © 2004 Prentice Hall, Inc. All rights reserved.
Capacity Decisions Evaluate Alternatives Expand capacity to meet expected demand through Year 5 Year 1 Demand Cash Flow 90, 000 (90, 000 – 80, 000)2 = $20, 000 Example 6. 3 To Accompany Krajewski & Ritzman Operations Management: Strategy and Analysis, Seventh Edition © 2004 Prentice Hall, Inc. All rights reserved.
Capacity Decisions Evaluate Alternatives Expand capacity to meet expected demand through Year 5 Year Demand Cash Flow 1 2 3 4 5 90, 000 100, 000 110, 000 120, 000 130, 000 (90, 000 – 80, 000)2 = $20, 000 (100, 000 – 80, 000)2 = $40, 000 (110, 000 – 80, 000)2 = $60, 000 (120, 000 – 80, 000)2 = $80, 000 (130, 000 – 80, 000)2 = $100, 000 Example 6. 3 To Accompany Krajewski & Ritzman Operations Management: Strategy and Analysis, Seventh Edition © 2004 Prentice Hall, Inc. All rights reserved.
Capacity Decisions Simulation Figure 6. 5 To Accompany Krajewski & Ritzman Operations Management: Strategy and Analysis, Seventh Edition © 2004 Prentice Hall, Inc. All rights reserved.
Capacity Decisions Simulation Figure 6. 6(a) To Accompany Krajewski & Ritzman Operations Management: Strategy and Analysis, Seventh Edition © 2004 Prentice Hall, Inc. All rights reserved.
Capacity Decisions Simulation Figure 6. 6(b) To Accompany Krajewski & Ritzman Operations Management: Strategy and Analysis, Seventh Edition © 2004 Prentice Hall, Inc. All rights reserved.

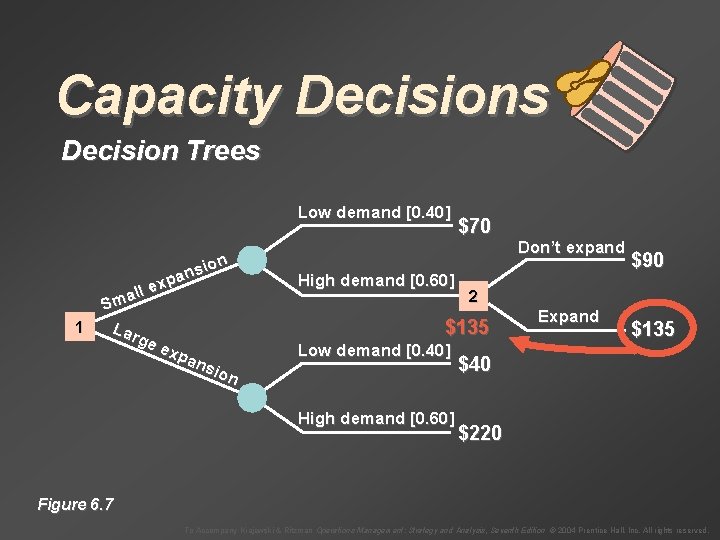

Capacity Decisions Decision Trees Low demand ion s n pa x e all Sm 1 Lar ge exp ans ion Don’t expand High demand 2 Expand Low demand High demand Figure 6. 7 To Accompany Krajewski & Ritzman Operations Management: Strategy and Analysis, Seventh Edition © 2004 Prentice Hall, Inc. All rights reserved.
Capacity Decisions Decision Trees Low demand [0. 40] ion s n pa x e all Sm 1 Lar ge exp ans ion High demand [0. 60] $70 Don’t expand 2 Expand Low demand [0. 40] High demand [0. 60] $90 $135 $40 $220 Figure 6. 7 To Accompany Krajewski & Ritzman Operations Management: Strategy and Analysis, Seventh Edition © 2004 Prentice Hall, Inc. All rights reserved.
Capacity Decisions Decision Trees Low demand [0. 40] ion s n pa x e all Sm 1 Lar ge exp ans ion High demand [0. 60] $70 Don’t expand 2 Expand Low demand [0. 40] High demand [0. 60] $90 $135 $40 $220 Figure 6. 7 To Accompany Krajewski & Ritzman Operations Management: Strategy and Analysis, Seventh Edition © 2004 Prentice Hall, Inc. All rights reserved.
Capacity Decisions Decision Trees Low demand [0. 40] ion s n pa x e all Sm 1 Lar ge exp ans ion High demand [0. 60] $70 High demand [0. 60] $90 2 $135 Low demand [0. 40] Don’t expand Expand $135 $40 $220 Figure 6. 7 To Accompany Krajewski & Ritzman Operations Management: Strategy and Analysis, Seventh Edition © 2004 Prentice Hall, Inc. All rights reserved.
Capacity Decisions Decision Trees Low demand [0. 40] ion s n pa x e all Sm 1 Lar ge exp ans ion High demand [0. 60] $70 High demand [0. 60] $90 2 $135 Low demand [0. 40] Don’t expand Expand $135 $40 $220 Figure 6. 7 To Accompany Krajewski & Ritzman Operations Management: Strategy and Analysis, Seventh Edition © 2004 Prentice Hall, Inc. All rights reserved.
Expected Payoff = Event * Event Probability Capacity Decisions Decision Trees Low demand [0. 40] ion s n pa x e all Sm 1 Lar ge exp ans ion High demand [0. 60] $70 High demand [0. 60] $90 2 $135 Low demand [0. 40] Don’t expand Expand $135 $40 $220 Figure 6. 7 To Accompany Krajewski & Ritzman Operations Management: Strategy and Analysis, Seventh Edition © 2004 Prentice Hall, Inc. All rights reserved.
Expected Payoff = Event * Event Probability Capacity Decisions Small/Low = $70 (0. 40) Decision Trees Low demand [0. 40] ion s n pa x e all Sm 1 Lar ge exp ans ion High demand [0. 60] $70 High demand [0. 60] $90 2 $135 Low demand [0. 40] Don’t expand Expand $135 $40 $220 Figure 6. 7 To Accompany Krajewski & Ritzman Operations Management: Strategy and Analysis, Seventh Edition © 2004 Prentice Hall, Inc. All rights reserved.
Expected Payoff = Event * Event Probability Capacity Decisions Small/Low = $70 (0. 40) = $28 Decision Trees Low demand [0. 40] ion s n pa x e all Sm 1 Lar ge exp ans ion High demand [0. 60] $70 High demand [0. 60] $90 2 $135 Low demand [0. 40] Don’t expand Expand $135 $40 $220 Figure 6. 7 To Accompany Krajewski & Ritzman Operations Management: Strategy and Analysis, Seventh Edition © 2004 Prentice Hall, Inc. All rights reserved.

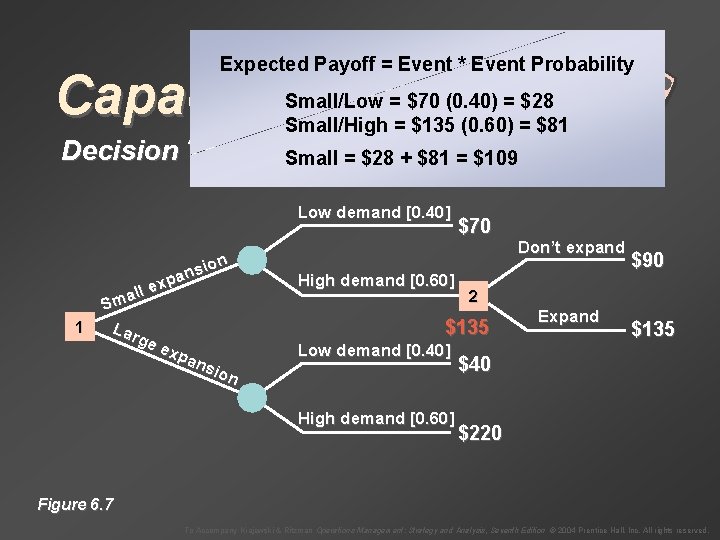

Expected Payoff = Event * Event Probability Capacity Decisions Decision Trees Small/Low = $70 (0. 40) = $28 Small/High = $135 (0. 60) Low demand [0. 40] ion s n pa x e all Sm 1 Lar ge exp ans ion High demand [0. 60] $70 High demand [0. 60] $90 2 $135 Low demand [0. 40] Don’t expand Expand $135 $40 $220 Figure 6. 7 To Accompany Krajewski & Ritzman Operations Management: Strategy and Analysis, Seventh Edition © 2004 Prentice Hall, Inc. All rights reserved.
Expected Payoff = Event * Event Probability Capacity Decisions Decision Trees Small/Low = $70 (0. 40) = $28 Small/High = $135 (0. 60) = $81 Low demand [0. 40] ion s n pa x e all Sm 1 Lar ge exp ans ion High demand [0. 60] $70 High demand [0. 60] $90 2 $135 Low demand [0. 40] Don’t expand Expand $135 $40 $220 Figure 6. 7 To Accompany Krajewski & Ritzman Operations Management: Strategy and Analysis, Seventh Edition © 2004 Prentice Hall, Inc. All rights reserved.

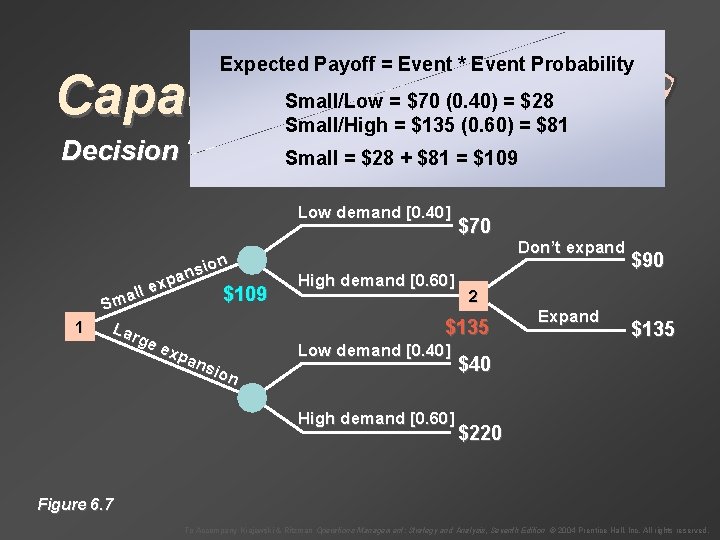

Expected Payoff = Event * Event Probability Capacity Decisions Decision Trees Small/Low = $70 (0. 40) = $28 Small/High = $135 (0. 60) = $81 Small = $28 + $81 = $109 Low demand [0. 40] ion s n pa x e all Sm 1 Lar ge exp ans ion High demand [0. 60] $70 High demand [0. 60] $90 2 $135 Low demand [0. 40] Don’t expand Expand $135 $40 $220 Figure 6. 7 To Accompany Krajewski & Ritzman Operations Management: Strategy and Analysis, Seventh Edition © 2004 Prentice Hall, Inc. All rights reserved.
Expected Payoff = Event * Event Probability Capacity Decisions Decision Trees Small/Low = $70 (0. 40) = $28 Small/High = $135 (0. 60) = $81 Small = $28 + $81 = $109 Low demand [0. 40] ion s n pa x e $109 all Sm 1 Lar ge exp ans ion High demand [0. 60] $70 High demand [0. 60] $90 2 $135 Low demand [0. 40] Don’t expand Expand $135 $40 $220 Figure 6. 7 To Accompany Krajewski & Ritzman Operations Management: Strategy and Analysis, Seventh Edition © 2004 Prentice Hall, Inc. All rights reserved.
Expected Payoff = Event * Event Probability Capacity Decisions Decision Trees Small/Low = $70 (0. 40) = $28 Small/High = $135 (0. 60) = $81 Small = $28 + $81 = $109 Low demand [0. 40] ion s n pa x e $109 all Sm 1 Lar ge exp ans ion High demand [0. 60] $70 High demand [0. 60] $90 2 $135 Low demand [0. 40] Don’t expand Expand $135 $40 $220 Figure 6. 7 To Accompany Krajewski & Ritzman Operations Management: Strategy and Analysis, Seventh Edition © 2004 Prentice Hall, Inc. All rights reserved.

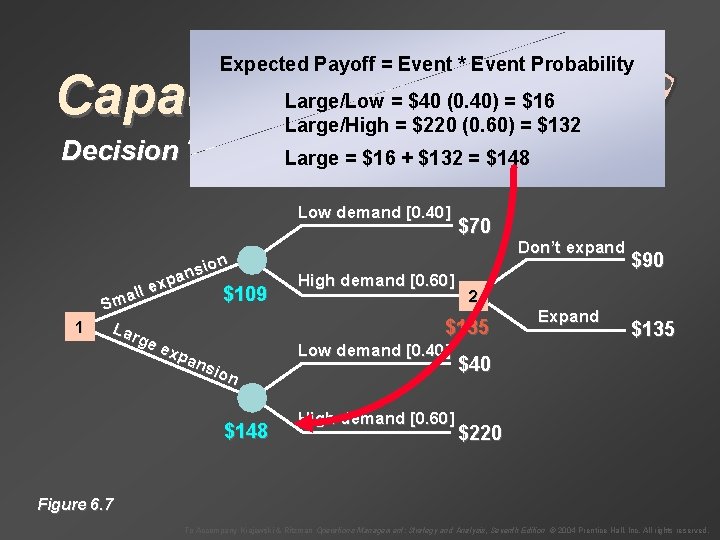

Expected Payoff = Event * Event Probability Capacity Decisions Decision Trees Large/Low = $40 (0. 40) = $16 Large/High = $220 (0. 60) = $132 Large = $16 + $132 = $148 Low demand [0. 40] ion s n pa x e $109 all Sm 1 Lar ge exp ans ion High demand [0. 60] $70 High demand [0. 60] $90 2 $135 Low demand [0. 40] Don’t expand Expand $135 $40 $220 Figure 6. 7 To Accompany Krajewski & Ritzman Operations Management: Strategy and Analysis, Seventh Edition © 2004 Prentice Hall, Inc. All rights reserved.
Expected Payoff = Event * Event Probability Capacity Decisions Decision Trees Large/Low = $40 (0. 40) = $16 Large/High = $220 (0. 60) = $132 Large = $16 + $132 = $148 Low demand [0. 40] ion s n pa x e $109 all Sm 1 Lar ge exp ans ion $148 High demand [0. 60] $70 High demand [0. 60] $90 2 $135 Low demand [0. 40] Don’t expand Expand $135 $40 $220 Figure 6. 7 To Accompany Krajewski & Ritzman Operations Management: Strategy and Analysis, Seventh Edition © 2004 Prentice Hall, Inc. All rights reserved.
Capacity Decisions Decision Trees Low demand [0. 40] ion s n pa x e $109 all Sm 1 Lar ge exp ans ion $148 High demand [0. 60] $70 High demand [0. 60] $90 2 $135 Low demand [0. 40] Don’t expand Expand $135 $40 $220 Figure 6. 7 To Accompany Krajewski & Ritzman Operations Management: Strategy and Analysis, Seventh Edition © 2004 Prentice Hall, Inc. All rights reserved.
Capacity Decisions Decision Trees Low demand [0. 40] ion s n pa x e $109 all Sm 1 Lar ge exp ans ion $148 High demand [0. 60] $70 High demand [0. 60] $90 2 $135 Low demand [0. 40] Don’t expand Expand $135 $40 $220 Figure 6. 7 To Accompany Krajewski & Ritzman Operations Management: Strategy and Analysis, Seventh Edition © 2004 Prentice Hall, Inc. All rights reserved.
Capacity Decisions Decision Trees Low demand [0. 40] ion s n pa x e $109 all Sm 1 $148 Lar ge exp ans ion $148 High demand [0. 60] $70 High demand [0. 60] $90 2 $135 Low demand [0. 40] Don’t expand Expand $135 $40 $220 Figure 6. 7 To Accompany Krajewski & Ritzman Operations Management: Strategy and Analysis, Seventh Edition © 2004 Prentice Hall, Inc. All rights reserved.
Capacity Decisions Decision Trees Low demand [0. 40] ion s n pa x e $109 all Sm 1 $148 Lar ge exp ans ion $148 High demand [0. 60] $70 High demand [0. 60] $90 2 $135 Low demand [0. 40] Don’t expand Expand $135 $40 $220 Figure 6. 7 To Accompany Krajewski & Ritzman Operations Management: Strategy and Analysis, Seventh Edition © 2004 Prentice Hall, Inc. All rights reserved.
Capacity Decisions Solved Problem 1 Figure 6. 8(a) To Accompany Krajewski & Ritzman Operations Management: Strategy and Analysis, Seventh Edition © 2004 Prentice Hall, Inc. All rights reserved.
Capacity Decisions Solved Problem 1 Figure 6. 8(b) To Accompany Krajewski & Ritzman Operations Management: Strategy and Analysis, Seventh Edition © 2004 Prentice Hall, Inc. All rights reserved.

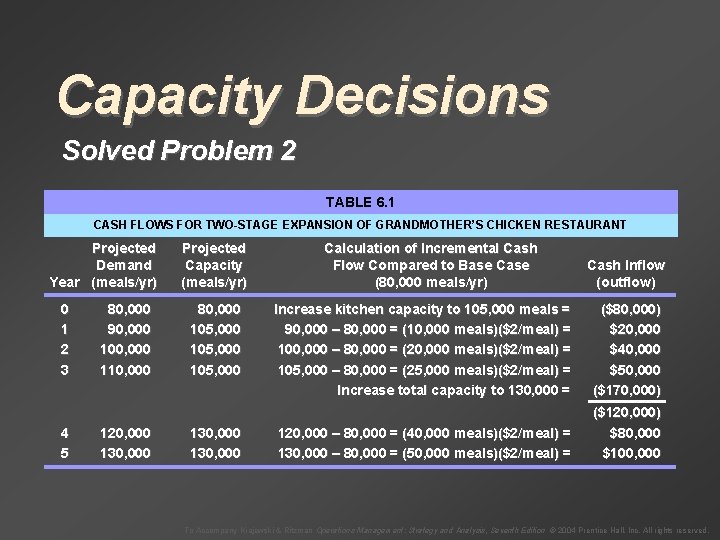

Capacity Decisions Solved Problem 2 TABLE 6. 1 CASH FLOWS FOR TWO-STAGE EXPANSION OF GRANDMOTHER’S CHICKEN RESTAURANT Projected Demand Year (meals/yr) 0 1 2 3 4 5 80, 000 90, 000 100, 000 110, 000 120, 000 130, 000 Projected Capacity (meals/yr) 80, 000 105, 000 130, 000 Calculation of Incremental Cash Flow Compared to Base Case (80, 000 meals/yr) Cash Inflow (outflow) Increase kitchen capacity to 105, 000 meals = 90, 000 – 80, 000 = (10, 000 meals)($2/meal) = 100, 000 – 80, 000 = (20, 000 meals)($2/meal) = 105, 000 – 80, 000 = (25, 000 meals)($2/meal) = Increase total capacity to 130, 000 = ($80, 000) $20, 000 $40, 000 $50, 000 ($170, 000) 120, 000 – 80, 000 = (40, 000 meals)($2/meal) = 130, 000 – 80, 000 = (50, 000 meals)($2/meal) = ($120, 000) $80, 000 $100, 000 To Accompany Krajewski & Ritzman Operations Management: Strategy and Analysis, Seventh Edition © 2004 Prentice Hall, Inc. All rights reserved.
