Process Analyzer Sampling with Astute System IFPAC 2008 – Baltimore January 29 , 2008
EIF FILTRES French compagny specialized since 30 years in filtration equipments and sampling treatments. IFPAC 2008 – Baltimore January 3030 , 2008 January 29 , 2008
Our philosophy: Ø Leave the contaminants in process Ø Separate as fast as possible the contaminants from the sample Ø Reduce the treated volumes Ø Reduce and make easier the maintenance IFPAC 2008 – Baltimore January 30 , 2008 January 29 , 2008
For that, we have developed : Ø Cross flow filtration with blow back systems Ø Liq/liq coalescing filter with jet fuel separator Ø Gas treament column Ø L Type housings Ø Modular and smart systems IFPAC 2008 – Baltimore January 29 , 2008
CROSS FLOW FILTRATION / BLOW BACK SYSTEMS IFPAC 2008 – Baltimore January 29 , 2008
Process Analyser High flow rate High contaminant amount Process Pipe IFPAC 2008 – Baltimore January 29 , 2008
Traditional solution Process Analyser High flow Filter 1 filter 2 Large Coalescor Process Pipe IFPAC 2008 – Baltimore January 29 , 2008
Alternative way Process Analyser Low flow rate Small contaminant amount Fast loop Cross flow filter Fine filtration Small Coalescor Low drain flow Process Pipe IFPAC 2008 – Baltimore January 29 , 2008
Cross flow filters IFPAC 2008 – Baltimore January 29 , 2008
CROSS FLOW FILTERS TAN - TAN GM with different kind of elements LIF – LIF GM – LIF - Mini with Sintered St/St element IFPAC 2008 – Baltimore January 29 , 2008
MINI – CROSS FLOW FILTER Ø Low dead volume Ø Low flow fast loop IFPAC 2008 – Baltimore January 29 , 2008
Sizing reduction IFPAC 2008 – Baltimore January 29 , 2008
BLOW BACK SYSTEM IFPAC 2008 – Baltimore January 29 , 2008
Liquid / Liquid coalescor Coalescing Element Hydrophobic membrane IFPAC 2008 – Baltimore January 29 , 2008
NESSI Ø Global industry initiative, formed June 2000 to drive permanent change in how process Analytical is done ØCPAC sponsorised ( Center of Process Analytical Industrial) Ø Modular, miniature & smart sample system technilogy Ø SP 76 standard Ø Micro analytical devices Intra. Flow™ IFPAC 2008 – Baltimore January 29 , 2008
This New technology Reduce the System Design Time Cut the Fabrication Expenses Improve the Analyzer Reliability Advance the Process Maintenance Easier Intra. Flow™ IFPAC 2008 – Baltimore January 29 , 2008
EIF Filtres Parker representative for French analytical market Intra. Flow™ IFPAC 2008 – Baltimore January 29 , 2008
Parker Intra. Flow™ Patent Pending Intra. Flow™ IFPAC 2008 – Baltimore January 29 , 2008

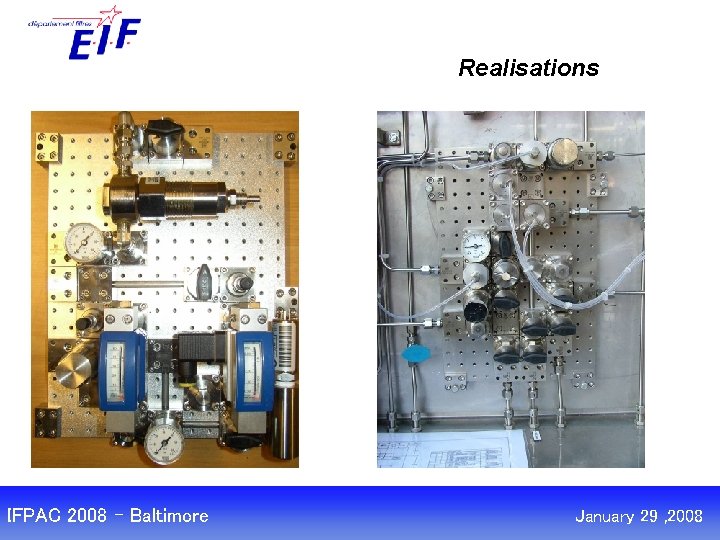

Realisations IFPAC 2008 – Baltimore January 29 , 2008
Realisations IFPAC 2008 – Baltimore January 29 , 2008
COALESCING FILTER BLOW BACK SYSTEM SEPARATOR FILTER EIF TOPWORK COMPONENTS ISA/ANSI S 76. 00. 02 Compliant SPECIFIC ADAPTATOR FOR ROTAMETER GAS EJECTOR
Petrochemical application IFPAC 2008 – Baltimore January 29 , 2008
Typical gazoline sampling in front of Chromatograph IFPAC 2008 – Baltimore January 29 , 2008
IFPAC 2008 – Baltimore January 29 , 2008
Specifications : Ø Fluid : gazoline Ø Filtration needed Ø liquid-liquid coalescing needed IFPAC 2008 – Baltimore January 29 , 2008
New design in beginning of 2006 Ø Cross flow filtration with blow back system Ø modular Intraflow assy Ø liquid-liquid coalescing with separator Ø Pneumatic control ( specific for the test) IFPAC 2008 – Baltimore January 29 , 2008
Gazoline sampling for sulphur analyzer IFPAC 2008 – Baltimore January 29 , 2008
Cross flow filtration To analyzer via Intra flow Blow back system DECLIF HP MINI (low dead volume) Fast loop Cross flow filter 2 S 2 LIF GM MINI 2 microns (low dead volume) IFPAC 2008 – Baltimore January 29 , 2008 TM
Gazoline treatment Coalescing Séparator IFPAC 2008 – Baltimore housing January 29 , 2008 TM
first installations comments Ø Flow sheet needed Ø Free space needed around components with maintenance ( filters for example …) Ø How to install , vertically or horizontally Ø Drain and vent take into consideration IFPAC 2008 – Baltimore January 29 , 2008
The Answer !! IFPAC 2008 – Baltimore January 29 , 2008
3 D Solution IFPAC 2008 – Baltimore January 29 , 2008
The solution = 3 D Patent Application Pending IFPAC 2008 – Baltimore January 29 , 2008
Video
The sampling evolution IFPAC 2008 – Baltimore January 29 , 2008

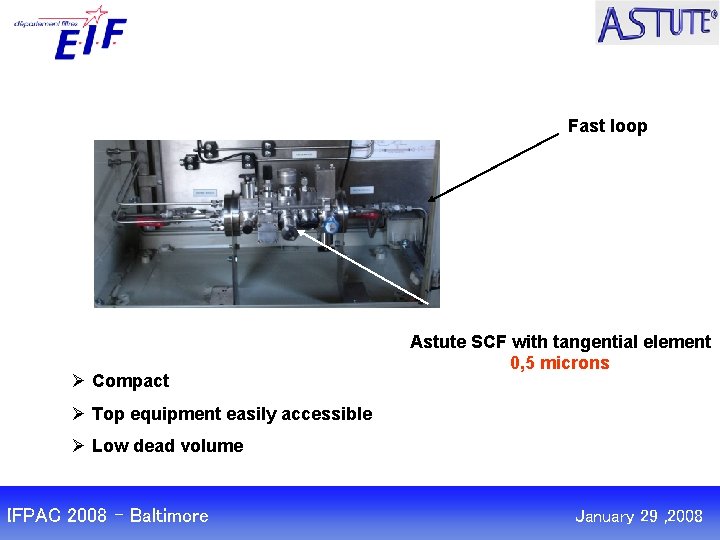

Fast loop Ø Compact Astute SCF with tangential element 0, 5 microns Ø Top equipment easily accessible Ø Low dead volume IFPAC 2008 – Baltimore January 29 , 2008 TM

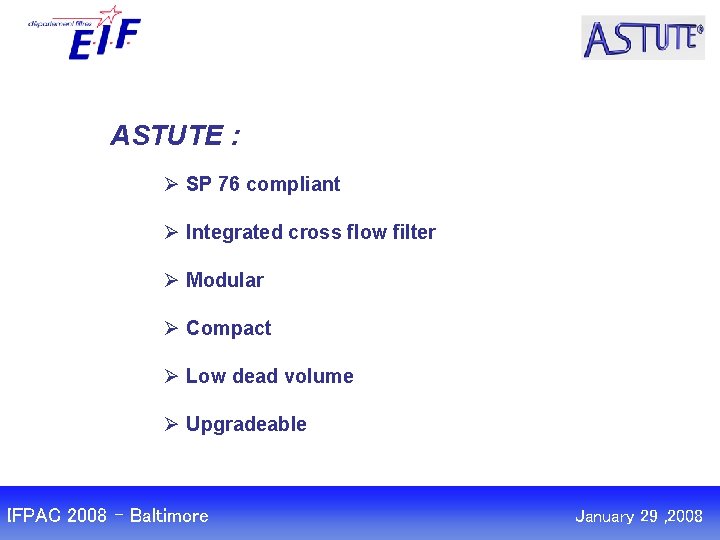

ASTUTE : Ø SP 76 compliant Ø Integrated cross flow filter Ø Modular Ø Compact Ø Low dead volume Ø Upgradeable IFPAC 2008 – Baltimore January 29 , 2008
ASTUTE : Ø Top equipment easily accessible Ø Vertical and horizontal position installation possible Ø On the fast loop or in derivation Ø All the different paths on the same module( sample, standard, drain, vent. . ) IFPAC 2008 – Baltimore January 29 , 2008
For the sampling: Ø Reduce or eliminate the sampling line Ø Decrease the response time Ø Reduce the product and drain volumes Ø Temperature control and heating easier Ø Reduce the sample contamination risk IFPAC 2008 – Baltimore January 29 , 2008

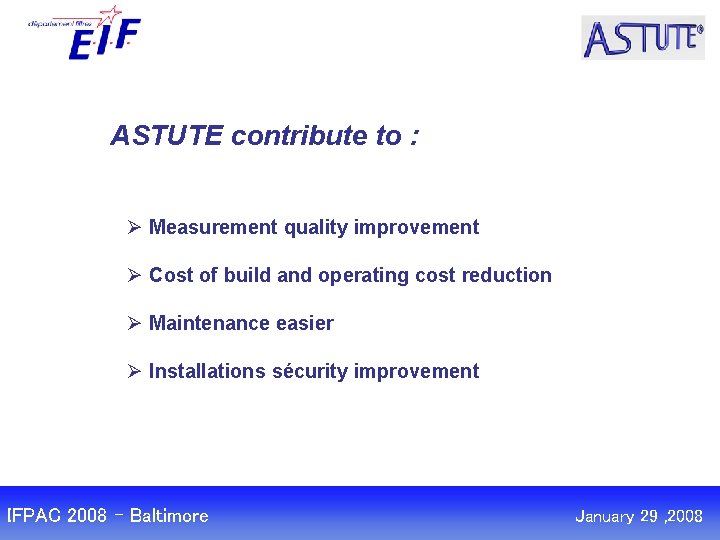

ASTUTE contribute to : Ø Measurement quality improvement Ø Cost of build and operating cost reduction Ø Maintenance easier Ø Installations sécurity improvement IFPAC 2008 – Baltimore January 29 , 2008
APPLICATIONS IFPAC 2008 – Baltimore January 29 , 2008
Flow meter Moisture sensor Pressure regulator IFPAC 2008 – Baltimore filter January 29 , 2008
DIRECT CONNECTION ON PROCESS CCIMS System ISOLATING VALVES CCIMS CLAMPS PROCESS PIPE IFPAC 2008 – Baltimore January 29 , 2008 TM
Ø Direct connection on process Ø Very short response time Ø Easy maintenance clamp connection Ø Low contamination level Ø Sampling reduction cost Ø No drain IFPAC 2008 – Baltimore January 29 , 2008
Thank you for your attention ! And welcome to our Booth 402 IFPAC 2008 – Baltimore January 29 , 2008
