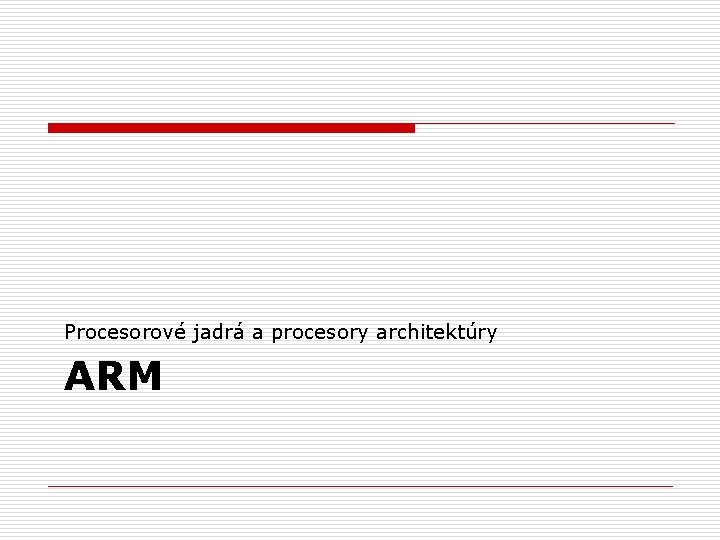

Procesorové jadrá a procesory architektúry ARM
ARM o The ARM is a 32 -bit reduced instruction set computer (RISC) instruction set architecture (ISA) developed by ARM Holdings. o It was known as the Advanced RISC Machine.
Licencable architecture o Companies that are currently or formerly ARM licensees include o Alcatel, Apple Inc. , Atmel, Broadcom, Cirrus Logic, Digital Equipment Corporation, Freescale, Intel (through DEC), LG, Marvell Technology Group, NEC, NVIDIA, NXP (previously Philips), Oki, Qualcomm, Samsung, Sharp, ST Microelectronics, Symbios Logic, Texas Instruments, VLSI Technology, Yamaha and Zii. LABS
ARM 7 applications
ARM 9 applications
ARM 11 applications

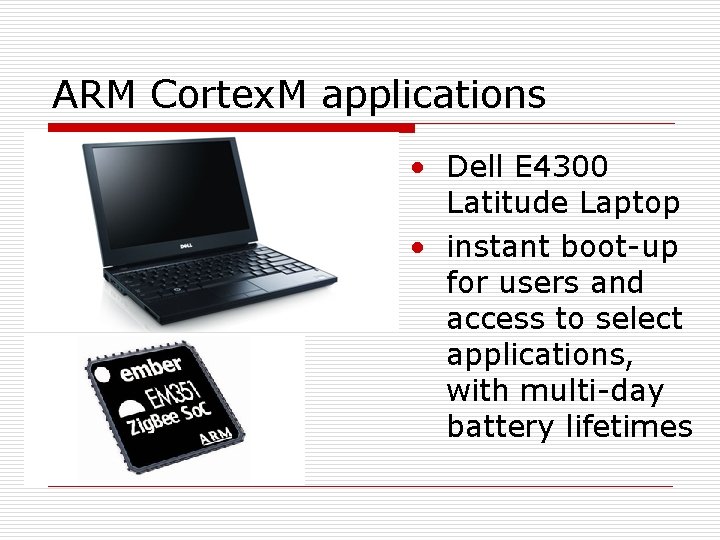

ARM Cortex. M applications • Dell E 4300 Latitude Laptop • instant boot-up for users and access to select applications, with multi-day battery lifetimes
ARM Cortex. A applications
ARM Cortex. R
Architectures overview

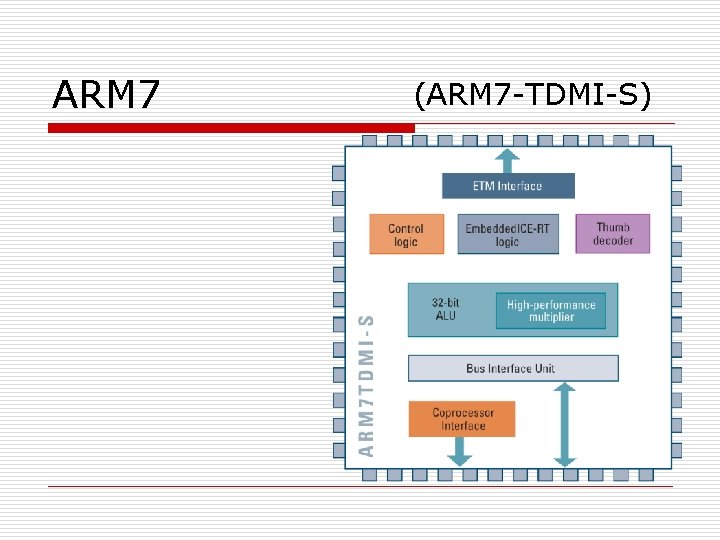

ARM 7 (ARM 7 -TDMI-S)
ARM 7 TDMI-S NXP LPC 2148
LPC 2148 development board

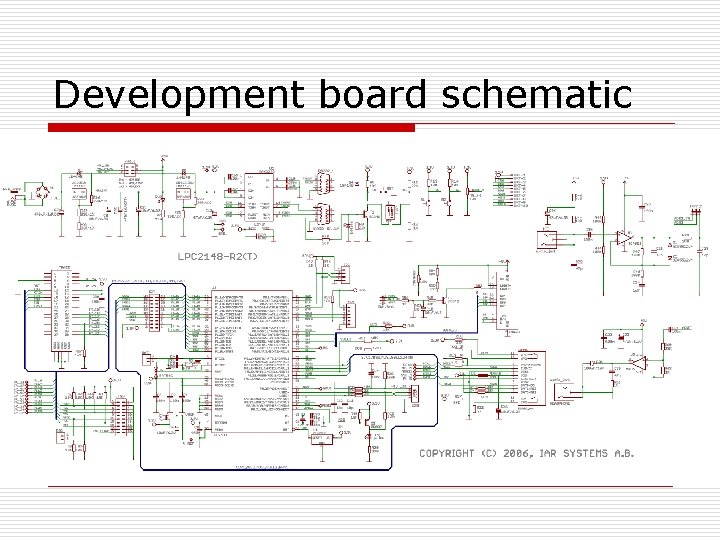

Development board schematic
ARM Cortex. R

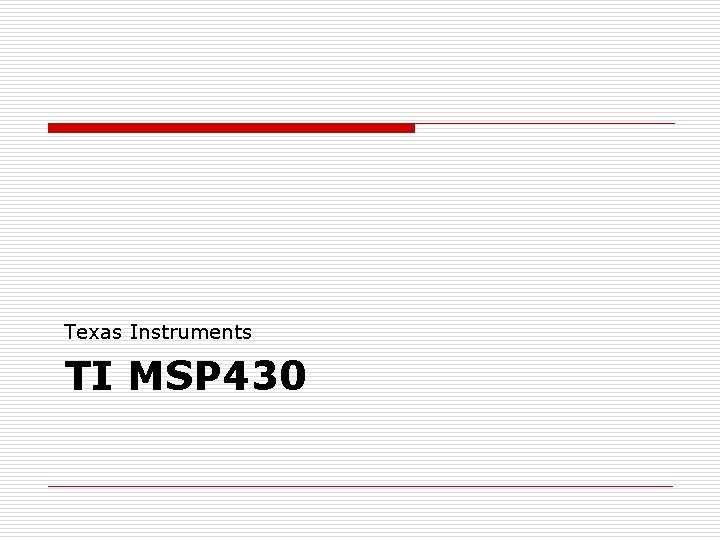

Texas Instruments TI MSP 430

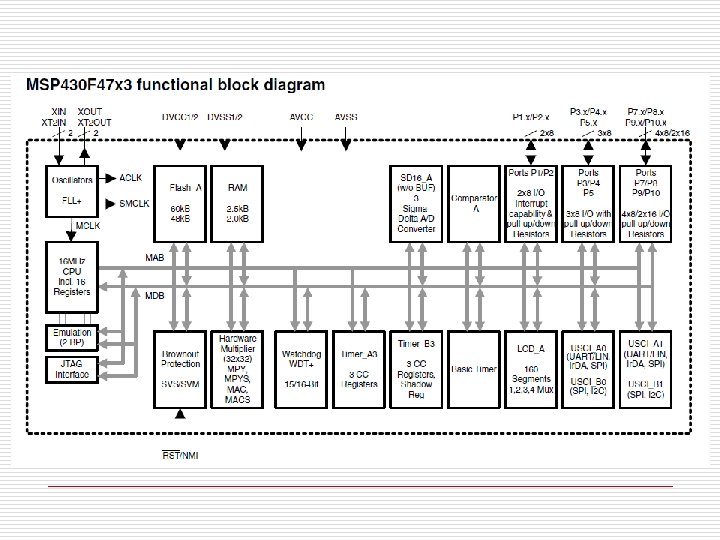

MSP 430 Mixed-signal microcontroller family 16 -bit CPU Low cost, low power consumption Metering, wireless radio frequency engineering (RF), battery-powered applications o MSP 430 x 1 xx - MSP 430 x 5 xx Series o o
MSP 430 Architecture o Von Neumann architecture o 16 x 16 bit registers (including PC, SP, SR, constant generator) o Simple instruction set o 20 bit address extension

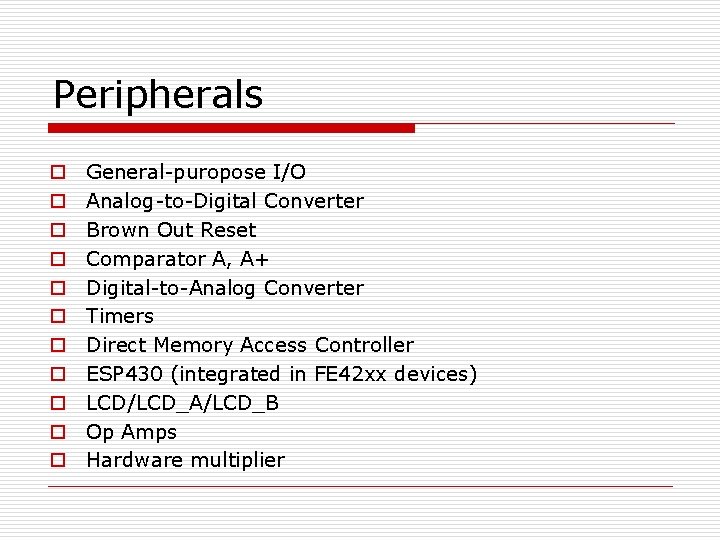

Peripherals o o o General-puropose I/O Analog-to-Digital Converter Brown Out Reset Comparator A, A+ Digital-to-Analog Converter Timers Direct Memory Access Controller ESP 430 (integrated in FE 42 xx devices) LCD/LCD_A/LCD_B Op Amps Hardware multiplier
Programmable hardware in microcomputer systems
Programmable hardware o o o o Various sizes, technologies Customized hardware architectures Effective computing Customizable systems Backward compatibility insurance Reconfigurable systems Fault recovery / remote repair

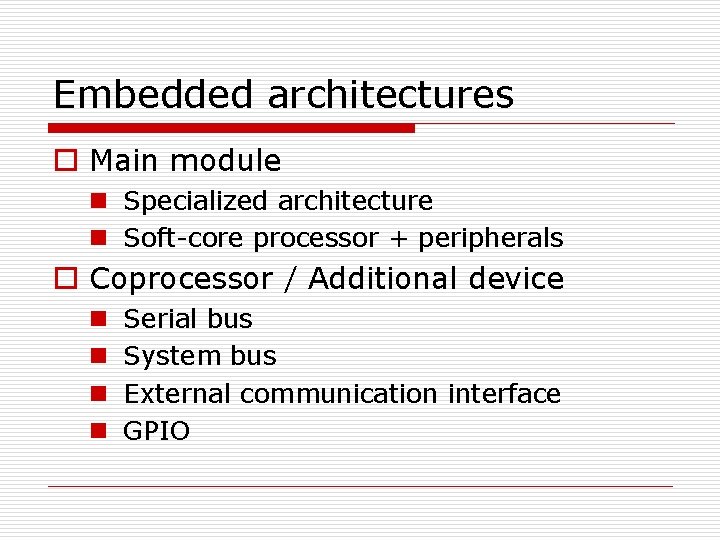

Embedded architectures o Main module n Specialized architecture n Soft-core processor + peripherals o Coprocessor / Additional device n n Serial bus System bus External communication interface GPIO

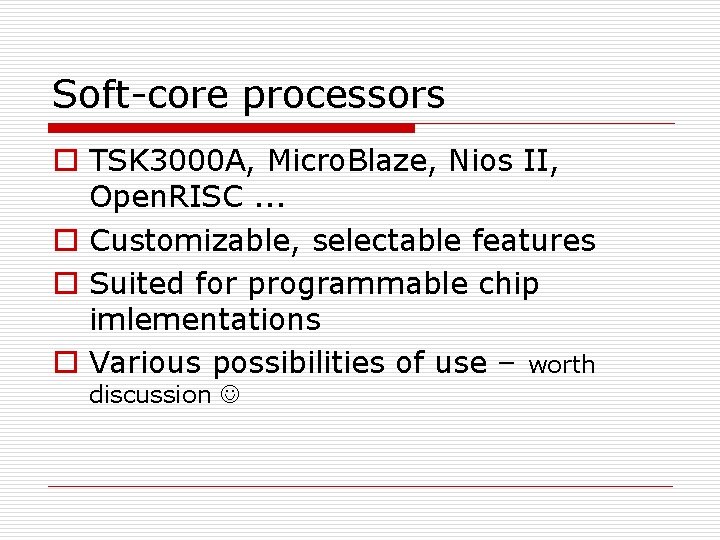

Soft-core processors o TSK 3000 A, Micro. Blaze, Nios II, Open. RISC. . . o Customizable, selectable features o Suited for programmable chip imlementations o Various possibilities of use – worth discussion
