Procedure Writing Basics Mr Richard Crisler Spring2006 References

Procedure Writing Basics Mr. Richard Crisler Spring-2006

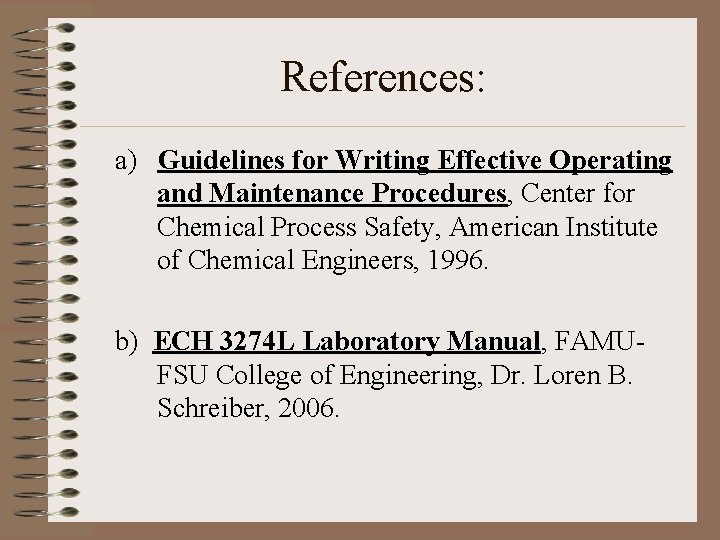

References: a) Guidelines for Writing Effective Operating and Maintenance Procedures, Center for Chemical Process Safety, American Institute of Chemical Engineers, 1996. b) ECH 3274 L Laboratory Manual, FAMUFSU College of Engineering, Dr. Loren B. Schreiber, 2006.

Why is it important for you to write effective procedures? ü ü ü ü Helps to reduce accidents: protect students and equipment Promotes safe, efficient operation and maintenance Helps to ensure that experimental objectives have been met Helps to improve data quality (accuracy, precision) Forces students to think about their experiment in greater detail Helps students understand equipment purpose and function Helps to prevent gross experimental errors Promotes the idea that procedures are vital components of your laboratory experience

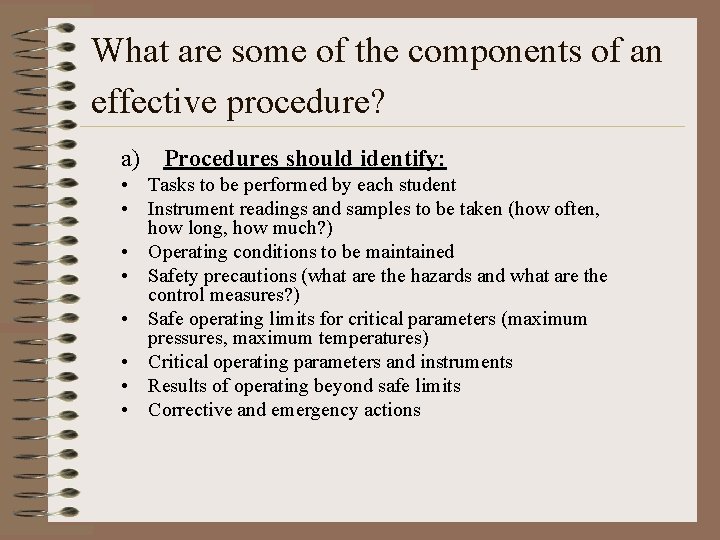

What are some of the components of an effective procedure? a) Procedures should identify: • Tasks to be performed by each student • Instrument readings and samples to be taken (how often, how long, how much? ) • Operating conditions to be maintained • Safety precautions (what are the hazards and what are the control measures? ) • Safe operating limits for critical parameters (maximum pressures, maximum temperatures) • Critical operating parameters and instruments • Results of operating beyond safe limits • Corrective and emergency actions

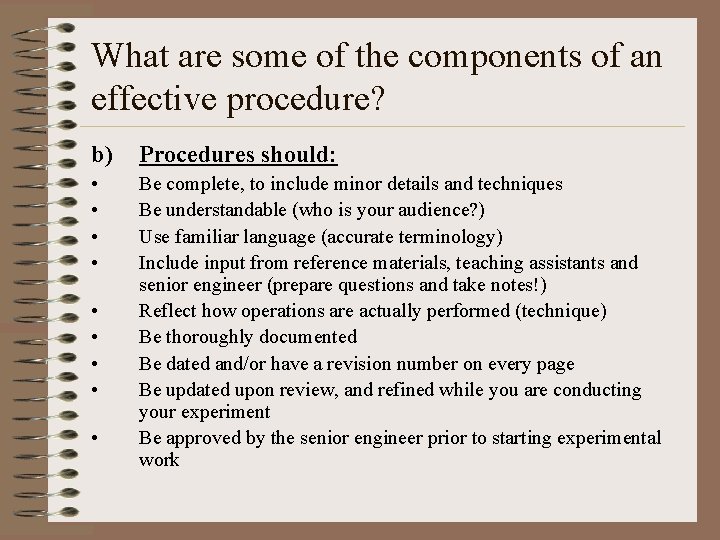

What are some of the components of an effective procedure? b) Procedures should: • • Be complete, to include minor details and techniques Be understandable (who is your audience? ) Use familiar language (accurate terminology) Include input from reference materials, teaching assistants and senior engineer (prepare questions and take notes!) Reflect how operations are actually performed (technique) Be thoroughly documented Be dated and/or have a revision number on every page Be updated upon review, and refined while you are conducting your experiment Be approved by the senior engineer prior to starting experimental work • • •

What are some of the components of an effective procedure? c) Users should: • Be informed of all changes • Be familiar with critical operating procedures (the team leader may not be present throughout the experiment)

Example-1 (Inadequate Module) 4) Feed Pump Calibration: Determine the feed pump setting, which will deliver 3. 5 mol/min of feed to the distillation column. 4. 1) Set stroke rate controller to 42. 5% 4. 2) Collect feed in a 500 m. L HDPE container 4. 3) Use a stopwatch to record the collection time 4. 4) Weigh container and calculate flow rate delivered 4. 5) Adjust stroke rate setting as needed and return to step 4. 2

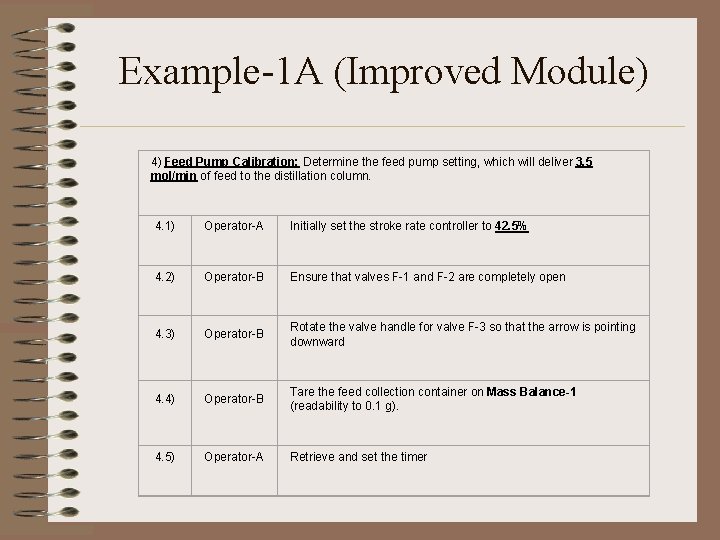

Example-1 A (Improved Module) 4) Feed Pump Calibration: Determine the feed pump setting, which will deliver 3. 5 mol/min of feed to the distillation column. 4. 1) Operator-A Initially set the stroke rate controller to 42. 5% 4. 2) Operator-B Ensure that valves F-1 and F-2 are completely open 4. 3) Operator-B Rotate the valve handle for valve F-3 so that the arrow is pointing downward 4. 4) Operator-B Tare the feed collection container on Mass Balance-1 (readability to 0. 1 g). 4. 5) Operator-A Retrieve and set the timer

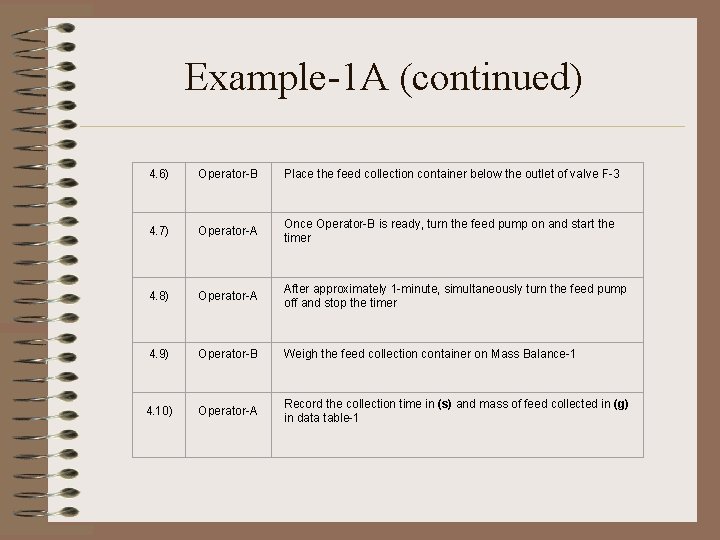

Example-1 A (continued) 4. 6) Operator-B Place the feed collection container below the outlet of valve F-3 4. 7) Operator-A Once Operator-B is ready, turn the feed pump on and start the timer 4. 8) Operator-A After approximately 1 -minute, simultaneously turn the feed pump off and stop the timer 4. 9) Operator-B Weigh the feed collection container on Mass Balance-1 4. 10) Operator-A Record the collection time in (s) and mass of feed collected in (g) in data table-1

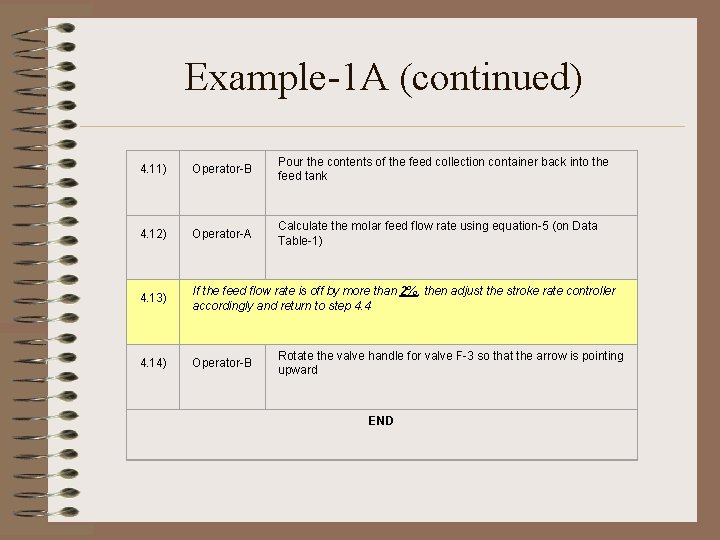

Example-1 A (continued) 4. 11) Operator-B Pour the contents of the feed collection container back into the feed tank 4. 12) Operator-A Calculate the molar feed flow rate using equation-5 (on Data Table-1) 4. 13) If the feed flow rate is off by more than 2%, then adjust the stroke rate controller accordingly and return to step 4. 4 4. 14) Operator-B Rotate the valve handle for valve F-3 so that the arrow is pointing upward END

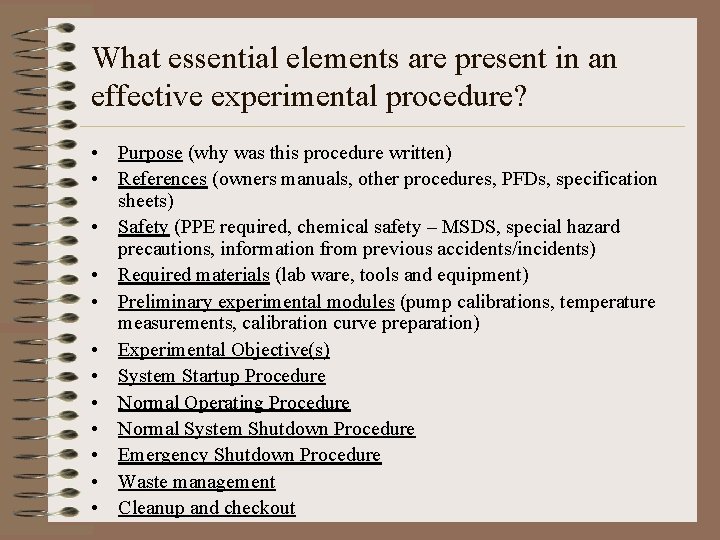

What essential elements are present in an effective experimental procedure? • Purpose (why was this procedure written) • References (owners manuals, other procedures, PFDs, specification sheets) • Safety (PPE required, chemical safety – MSDS, special hazard precautions, information from previous accidents/incidents) • Required materials (lab ware, tools and equipment) • Preliminary experimental modules (pump calibrations, temperature measurements, calibration curve preparation) • Experimental Objective(s) • System Startup Procedure • Normal Operating Procedure • Normal System Shutdown Procedure • Emergency Shutdown Procedure • Waste management • Cleanup and checkout

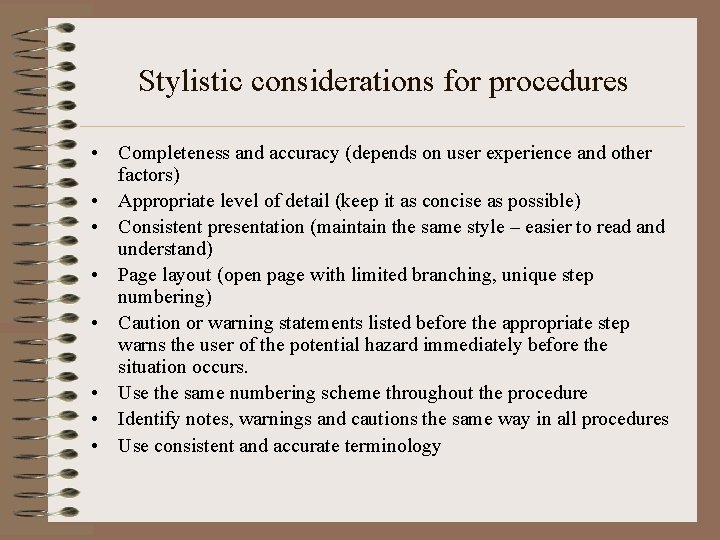

Stylistic considerations for procedures • Completeness and accuracy (depends on user experience and other factors) • Appropriate level of detail (keep it as concise as possible) • Consistent presentation (maintain the same style – easier to read and understand) • Page layout (open page with limited branching, unique step numbering) • Caution or warning statements listed before the appropriate step warns the user of the potential hazard immediately before the situation occurs. • Use the same numbering scheme throughout the procedure • Identify notes, warnings and cautions the same way in all procedures • Use consistent and accurate terminology

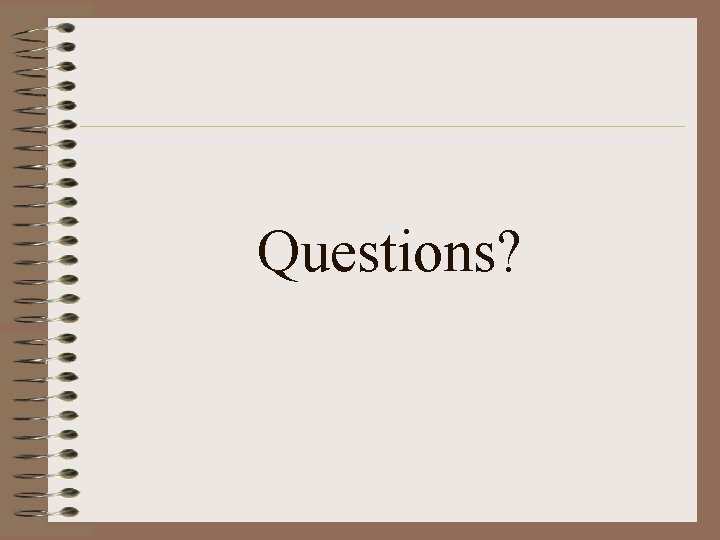

Questions?
