Problem Solving using Logic Gate Simulator ContentObjective Learn
Problem Solving using Logic Gate Simulator Content-Objective: Learn how to use digital logic gates to control robot movement. Language-Objective: Use logic gate simulator to create a digital logic gate control for robot movement.

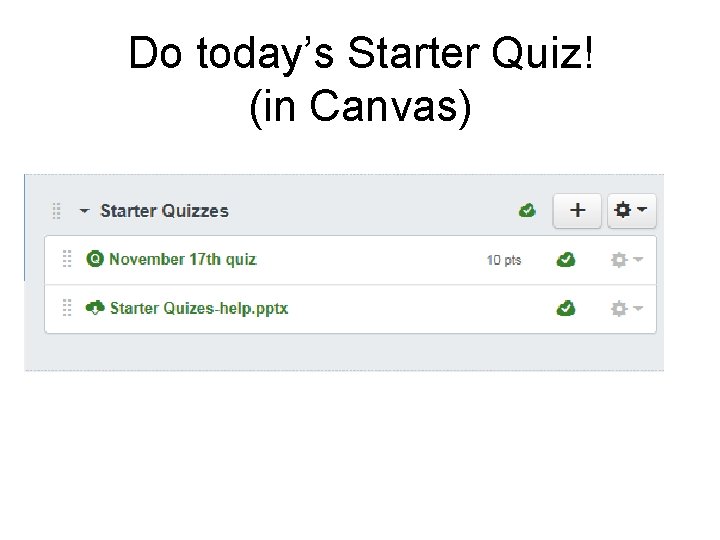

Do today’s Starter Quiz! (in Canvas)
Problem Solving using Logic Gate Simulator UTAH ROBOTICS 1 STANDARD 4 s UTAH ELECTRONICS 2 STANDARD 3 INSTRUCTIONS 1. Log into Lab Computers 2. Click on “Start”, “All Programs” and locate “Logic Gate Simulator” program 3. Objective: Create a digital logic gate solution to the problem listed on the lab sheet. (Thousands of solutions are possible) 4. Report your findings in the Canvas Class Discussion “Objective 4: Digital Logic Gates”
1. Using parts from a Power Play kit build and

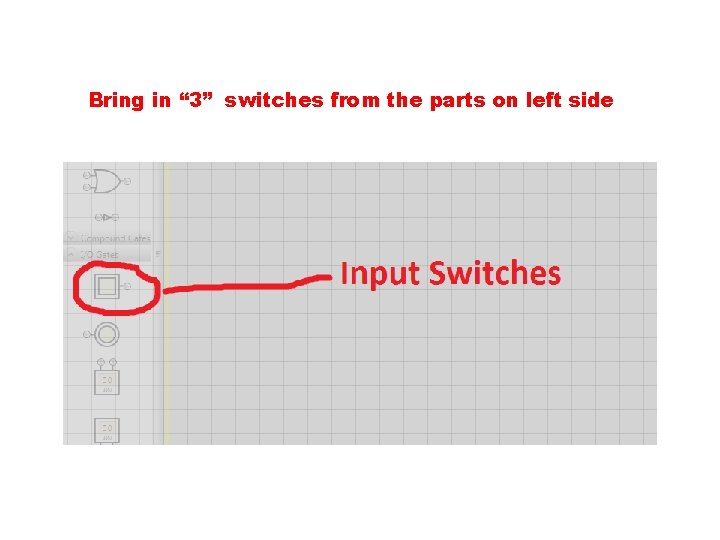

Bring in “ 3” switches from the parts on left side
Bring in 2 output Bulbs 1. Using parts from a Power Play kit build and

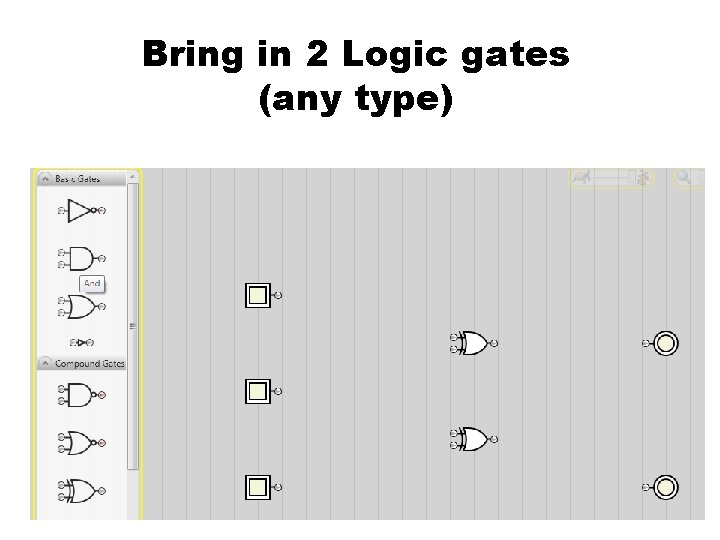

Bring in 2 Logic gates (any type) 1. Using parts from a Power Play kit build and
Parts are wired together by clicking mouse from connection point to connection point 1. Using parts from a Power Play kit build and
Top switch is connected to both gates 1. Using parts from a Power Play kit build and

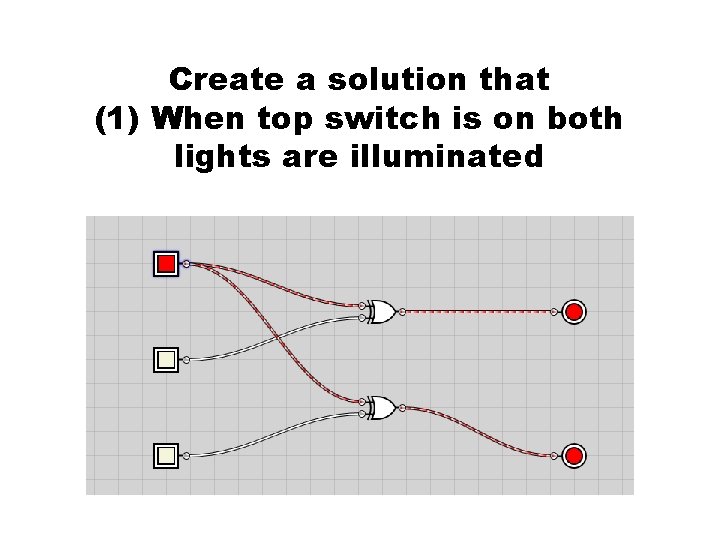

Create a solution that (1) When top switch is on both lights are illuminated 1. Using parts from a Power Play kit build and

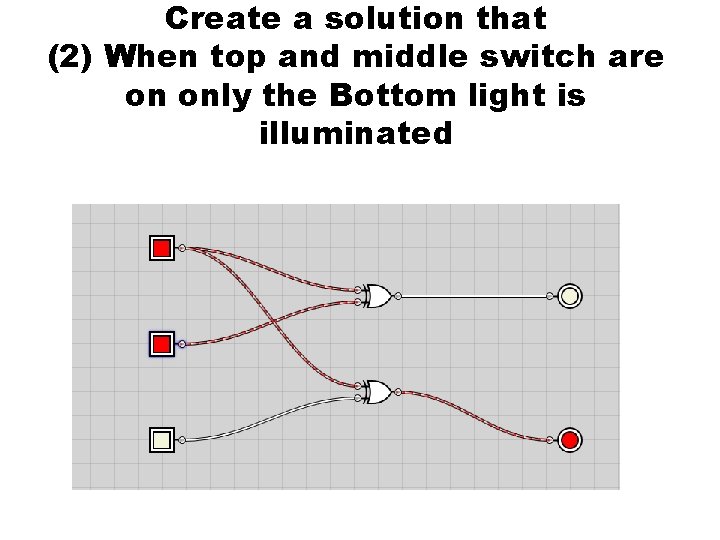

Create a solution that (2) When top and middle switch are on only the Bottom light is illuminated 1. Using parts from a Power Play kit build and

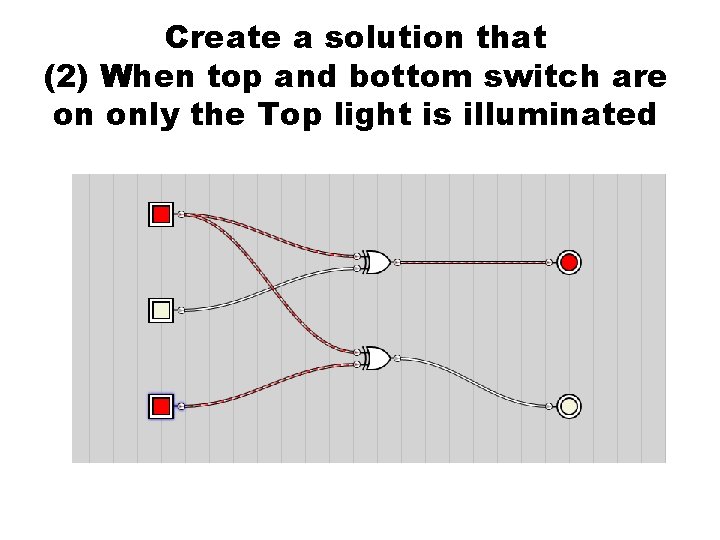

Create a solution that (2) When top and bottom switch are on only the Top light is illuminated 1. Using parts from a Power Play kit build and
Log into Canvas and report findings in “Objective 5: Problem Solving using Digital Logic Gates” Discussion
