Problem Solving Strategies Partitioning Divide the problem into

Problem Solving Strategies • Partitioning – Divide the problem into disjoint parts – Compute each part separately • Divide and Conquer – – Divide Phase: Recursively create sub-problems of the same type Base case Reached: Execute an algorithm Conquer phase: Merge the results as the recursion unwinds Traditional Example: Merge Sort • Where is the work? – Partitioning: Creating disjoint parts of the problem – Divide and Conquer: Merging the separate results – Traditional Example: Quick Sort

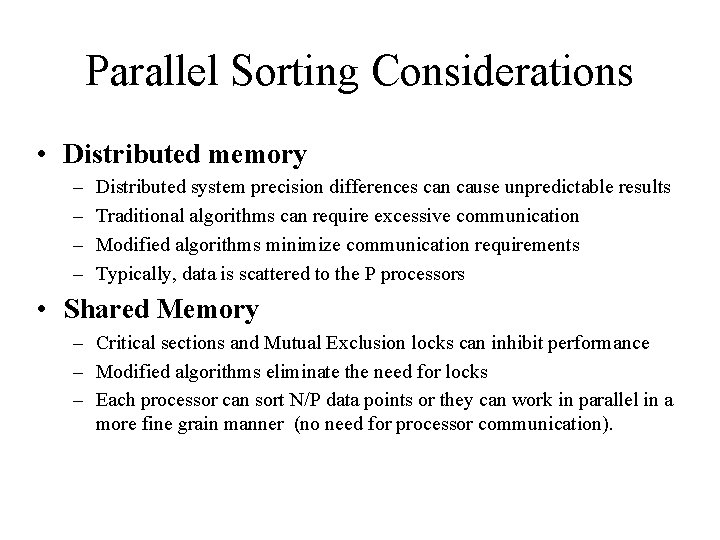

Parallel Sorting Considerations • Distributed memory – – Distributed system precision differences can cause unpredictable results Traditional algorithms can require excessive communication Modified algorithms minimize communication requirements Typically, data is scattered to the P processors • Shared Memory – Critical sections and Mutual Exclusion locks can inhibit performance – Modified algorithms eliminate the need for locks – Each processor can sort N/P data points or they can work in parallel in a more fine grain manner (no need for processor communication).

Two Related Sorts Bubble Sort void bubble(char[] *x, int N) { int sorted=0, i, size=N-1; char* temp; while (!sorted) { sorted=1; for (i=0; i<size; i++) { if (strcmp(x[i], x[i+1]>0) { strcpy(temp, x[i]); strcpy(x[i], x[i+1]); strcpy(x[i+1], temp); sorted = 0; } } size--; } } 1. 2. Odd-Even Sort void odd. Even(char[] *x, int N) { int even=0, sorted=0, i, size=N-1; char *temp; while(!sorted) { sorted=1; for(i=even; i<size; i+=2) { if(strcmp(x[i], x[i+1]>0) { strcpy(temp, x[i]); strcpy(x[i], x[i+1]); strcpy(x[i+1], temp); sorted = 0; } } even = 1 – even; } } Sequential version: Odd-Even has no advantages Parallel version: Processors can work independently without data conflicts

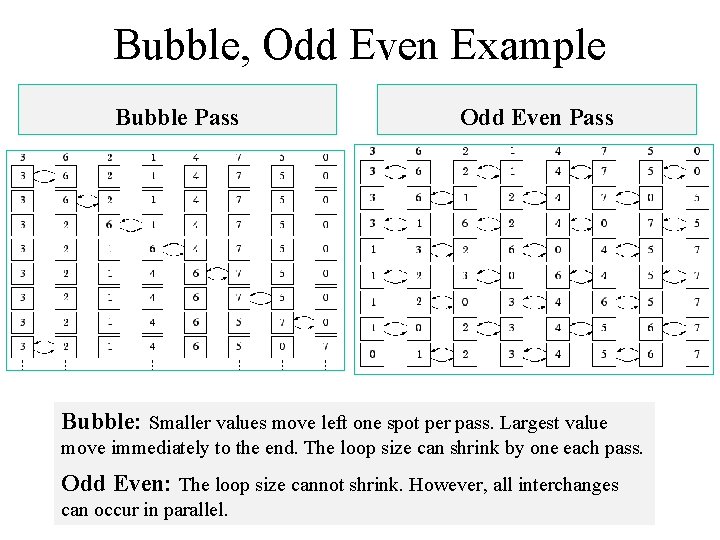

Bubble, Odd Even Example Bubble Pass Odd Even Pass Bubble: Smaller values move left one spot per pass. Largest value move immediately to the end. The loop size can shrink by one each pass. Odd Even: The loop size cannot shrink. However, all interchanges can occur in parallel.

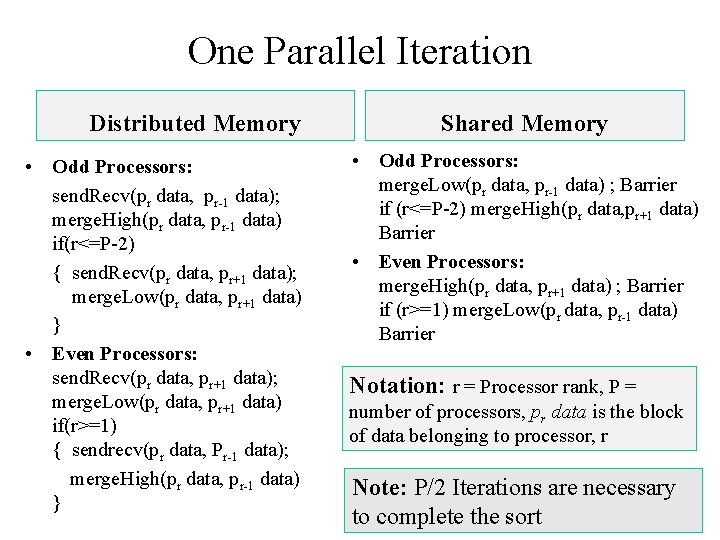

One Parallel Iteration Distributed Memory • Odd Processors: send. Recv(pr data, pr-1 data); merge. High(pr data, pr-1 data) if(r<=P-2) { send. Recv(pr data, pr+1 data); merge. Low(pr data, pr+1 data) } • Even Processors: send. Recv(pr data, pr+1 data); merge. Low(pr data, pr+1 data) if(r>=1) { sendrecv(pr data, Pr-1 data); merge. High(pr data, pr-1 data) } Shared Memory • Odd Processors: merge. Low(pr data, pr-1 data) ; Barrier if (r<=P-2) merge. High(pr data, pr+1 data) Barrier • Even Processors: merge. High(pr data, pr+1 data) ; Barrier if (r>=1) merge. Low(pr data, pr-1 data) Barrier Notation: r = Processor rank, P = number of processors, pr data is the block of data belonging to processor, r Note: P/2 Iterations are necessary to complete the sort

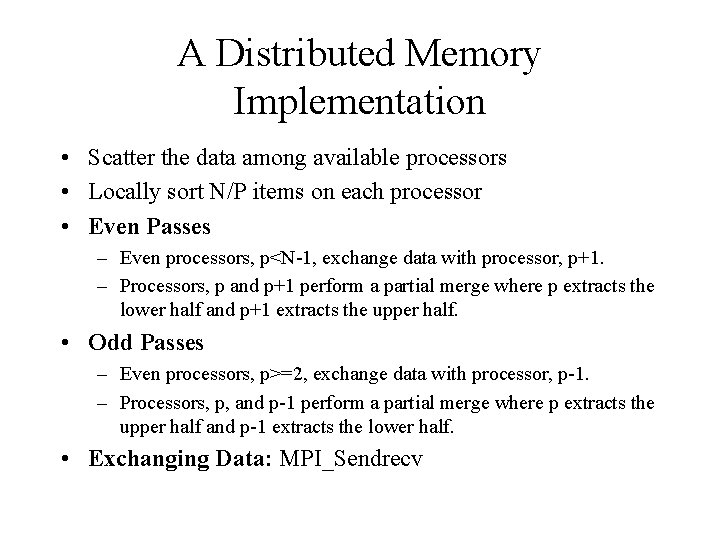

A Distributed Memory Implementation • Scatter the data among available processors • Locally sort N/P items on each processor • Even Passes – Even processors, p<N-1, exchange data with processor, p+1. – Processors, p and p+1 perform a partial merge where p extracts the lower half and p+1 extracts the upper half. • Odd Passes – Even processors, p>=2, exchange data with processor, p-1. – Processors, p, and p-1 perform a partial merge where p extracts the upper half and p-1 extracts the lower half. • Exchanging Data: MPI_Sendrecv

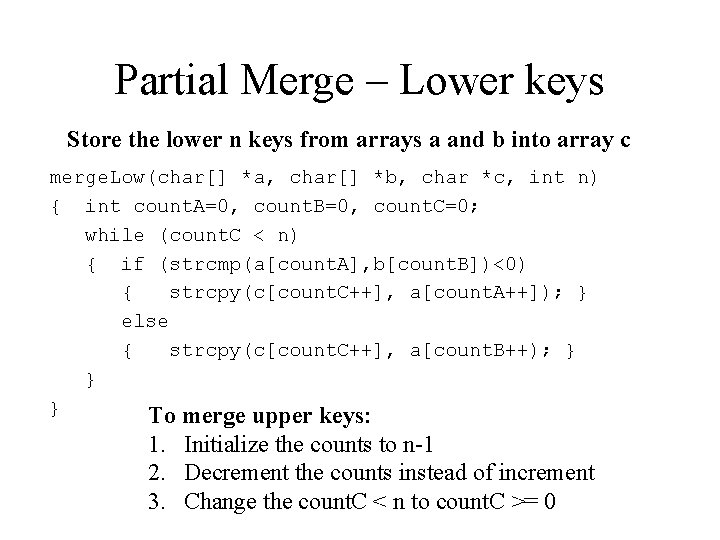

Partial Merge – Lower keys Store the lower n keys from arrays a and b into array c merge. Low(char[] *a, char[] *b, char *c, int n) { int count. A=0, count. B=0, count. C=0; while (count. C < n) { if (strcmp(a[count. A], b[count. B])<0) { strcpy(c[count. C++], a[count. A++]); } else { strcpy(c[count. C++], a[count. B++); } } } To merge upper keys: 1. Initialize the counts to n-1 2. Decrement the counts instead of increment 3. Change the count. C < n to count. C >= 0

Bitonic Sequence [3, 5, 8, 9, 10, 12, 14, 20] [95, 90, 60, 40, 35, 23, 18, 0] [3, 5, 8, 9 Increasing and then decreasing where the end can wrap around

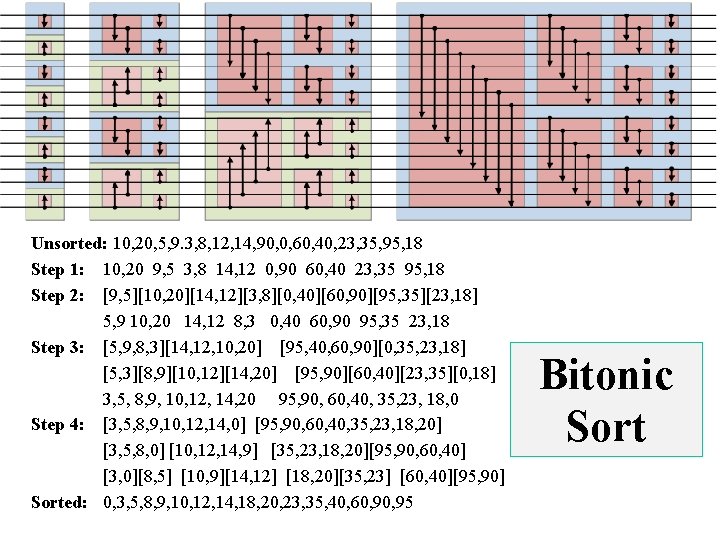

Unsorted: 10, 20, 5, 9. 3, 8, 12, 14, 90, 0, 60, 40, 23, 35, 95, 18 Step 1: 10, 20 9, 5 3, 8 14, 12 0, 90 60, 40 23, 35 95, 18 Step 2: [9, 5][10, 20][14, 12][3, 8][0, 40][60, 90][95, 35][23, 18] 5, 9 10, 20 14, 12 8, 3 0, 40 60, 90 95, 35 23, 18 Step 3: [5, 9, 8, 3][14, 12, 10, 20] [95, 40, 60, 90][0, 35, 23, 18] [5, 3][8, 9][10, 12][14, 20] [95, 90][60, 40][23, 35][0, 18] 3, 5, 8, 9, 10, 12, 14, 20 95, 90, 60, 40, 35, 23, 18, 0 Step 4: [3, 5, 8, 9, 10, 12, 14, 0] [95, 90, 60, 40, 35, 23, 18, 20] [3, 5, 8, 0] [10, 12, 14, 9] [35, 23, 18, 20][95, 90, 60, 40] [3, 0][8, 5] [10, 9][14, 12] [18, 20][35, 23] [60, 40][95, 90] Sorted: 0, 3, 5, 8, 9, 10, 12, 14, 18, 20, 23, 35, 40, 60, 95 Bitonic Sort

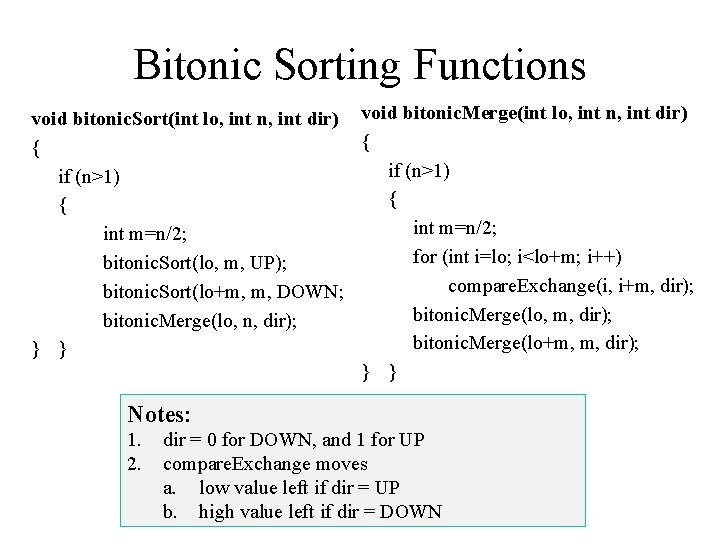

Bitonic Sorting Functions void bitonic. Sort(int lo, int n, int dir) void bitonic. Merge(int lo, int n, int dir) { { if (n>1) { { int m=n/2; for (int i=lo; i<lo+m; i++) bitonic. Sort(lo, m, UP); compare. Exchange(i, i+m, dir); bitonic. Sort(lo+m, m, DOWN; bitonic. Merge(lo, m, dir); bitonic. Merge(lo, n, dir); bitonic. Merge(lo+m, m, dir); } } Notes: 1. 2. dir = 0 for DOWN, and 1 for UP compare. Exchange moves a. low value left if dir = UP b. high value left if dir = DOWN

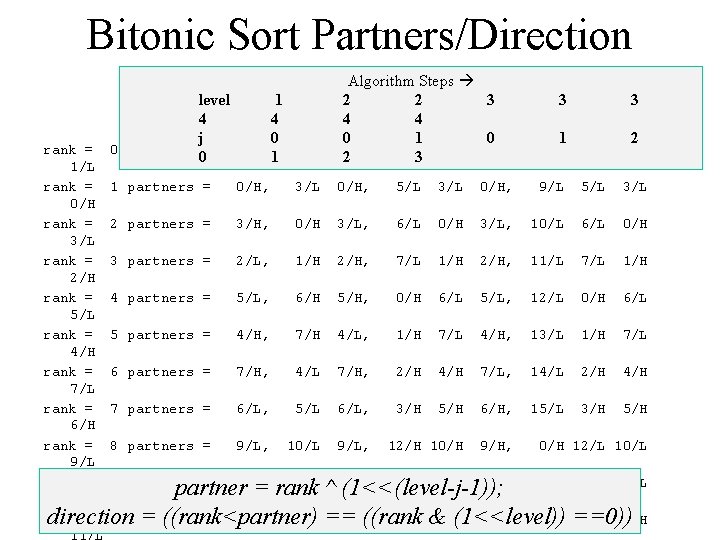

Bitonic Sort Partners/Direction level 1 4 4 j 0 0 partners = 1/L, 2/L 0 1 rank = 1/L rank = 1 0/H rank = 2 3/L rank = 3 2/H rank = 4 5/L rank = 5 4/H rank = 6 7/L rank = 7 6/H rank = 8 9/L rank = 9 8/H rank = 10 Algorithm Steps 2 2 3 4 4 0 1/L, 4/L 2/L 1/L, 2 3 3 1 3 2 8/L 4/L 2/L partners = 0/H, 3/L 0/H, 5/L 3/L 0/H, 9/L 5/L 3/L partners = 3/H, 0/H 3/L, 6/L 0/H 3/L, 10/L 6/L 0/H partners = 2/L, 1/H 2/H, 7/L 1/H 2/H, 11/L 7/L 1/H partners = 5/L, 6/H 5/H, 0/H 6/L 5/L, 12/L 0/H 6/L partners = 4/H, 7/H 4/L, 1/H 7/L 4/H, 13/L 1/H 7/L partners = 7/H, 4/L 7/H, 2/H 4/H 7/L, 14/L 2/H 4/H partners = 6/L, 5/L 6/L, 3/H 5/H 6/H, 15/L 3/H 5/H partners = 9/L, 10/L 9/L, 12/H 10/H 9/H, 0/H 12/L 10/L 11/L 8/H, 13/H 11/H 8/L, partner 8/H, = rank ^ (1<<(level-j-1)); 1/H 13/L 11/L = 11/H, 8/H == 11/L, 14/H & 8/L 11/H, 2/H 14/L directionpartners = ((rank<partner) ((rank (1<<level)) ==0))8/H partners =

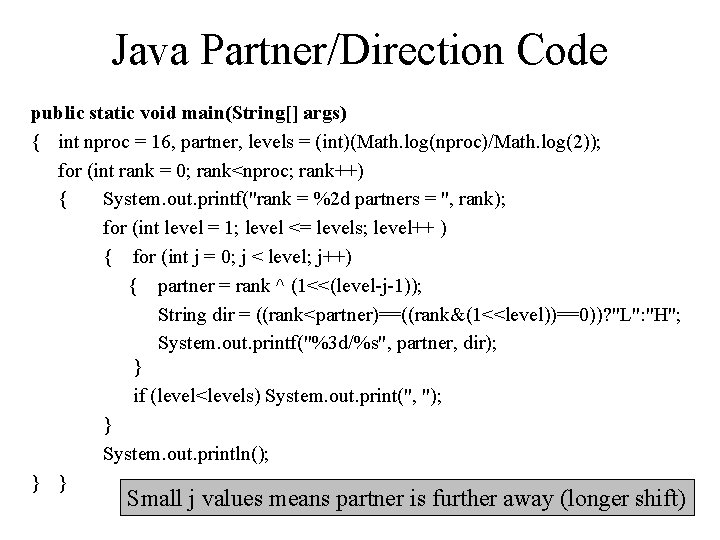

Java Partner/Direction Code public static void main(String[] args) { int nproc = 16, partner, levels = (int)(Math. log(nproc)/Math. log(2)); for (int rank = 0; rank<nproc; rank++) { System. out. printf("rank = %2 d partners = ", rank); for (int level = 1; level <= levels; level++ ) { for (int j = 0; j < level; j++) { partner = rank ^ (1<<(level-j-1)); String dir = ((rank<partner)==((rank&(1<<level))==0))? "L": "H"; System. out. printf("%3 d/%s", partner, dir); } if (level<levels) System. out. print(", "); } System. out. println(); } } Small j values means partner is further away (longer shift)

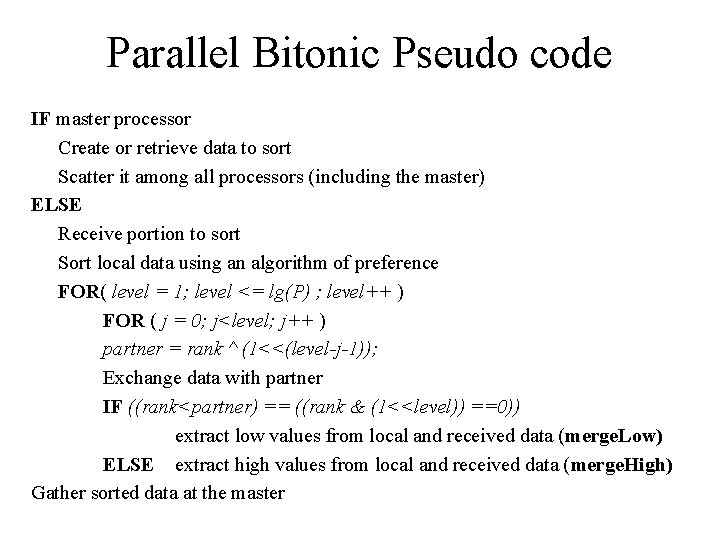

Parallel Bitonic Pseudo code IF master processor Create or retrieve data to sort Scatter it among all processors (including the master) ELSE Receive portion to sort Sort local data using an algorithm of preference FOR( level = 1; level <= lg(P) ; level++ ) FOR ( j = 0; j<level; j++ ) partner = rank ^ (1<<(level-j-1)); Exchange data with partner IF ((rank<partner) == ((rank & (1<<level)) ==0)) extract low values from local and received data (merge. Low) ELSE extract high values from local and received data (merge. High) Gather sorted data at the master

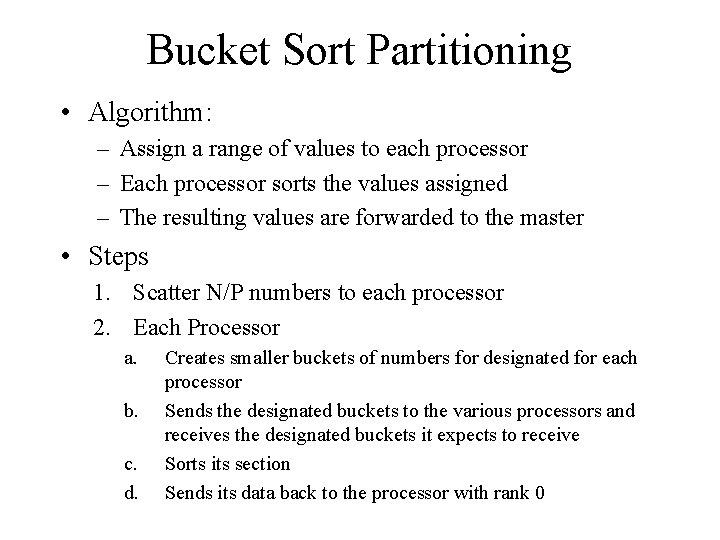

Bucket Sort Partitioning • Algorithm: – Assign a range of values to each processor – Each processor sorts the values assigned – The resulting values are forwarded to the master • Steps 1. Scatter N/P numbers to each processor 2. Each Processor a. b. c. d. Creates smaller buckets of numbers for designated for each processor Sends the designated buckets to the various processors and receives the designated buckets it expects to receive Sorts its section Sends its data back to the processor with rank 0

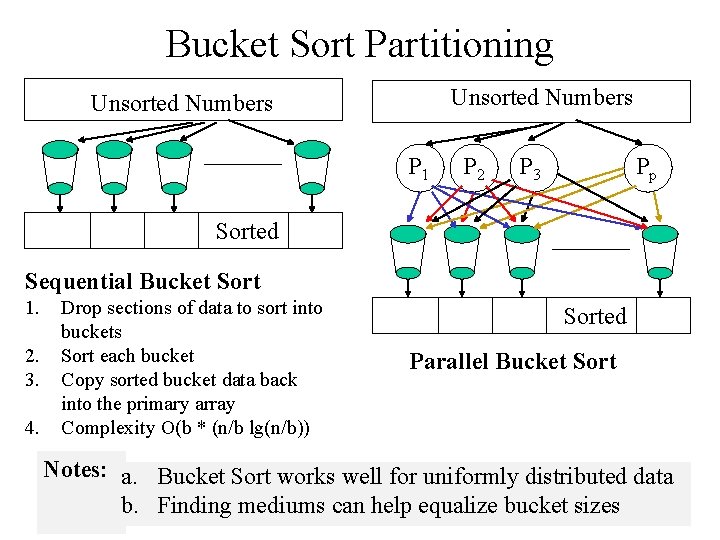

Bucket Sort Partitioning Unsorted Numbers P 1 P 2 P 3 Pp Sorted Sequential Bucket Sort 1. 2. 3. 4. Drop sections of data to sort into buckets Sort each bucket Copy sorted bucket data back into the primary array Complexity O(b * (n/b lg(n/b)) Sorted Parallel Bucket Sort Notes: a. Bucket Sort works well for uniformly distributed data b. Finding mediums can help equalize bucket sizes

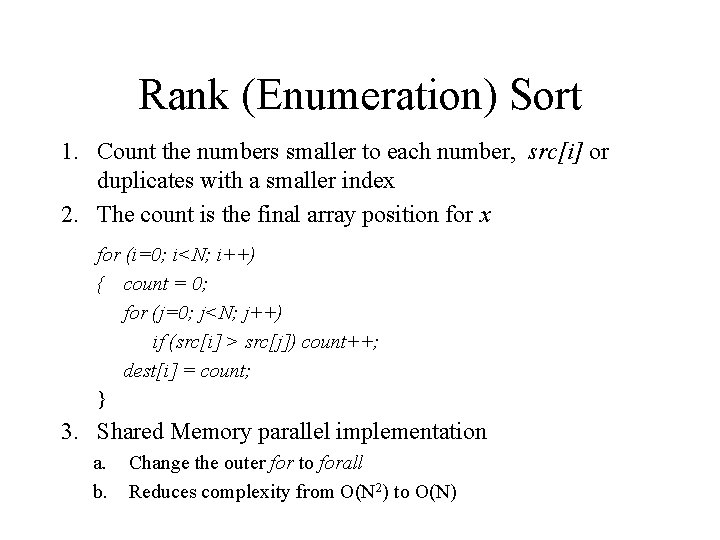

Rank (Enumeration) Sort 1. Count the numbers smaller to each number, src[i] or duplicates with a smaller index 2. The count is the final array position for x for (i=0; i<N; i++) { count = 0; for (j=0; j<N; j++) if (src[i] > src[j]) count++; dest[i] = count; } 3. Shared Memory parallel implementation a. b. Change the outer for to forall Reduces complexity from O(N 2) to O(N)

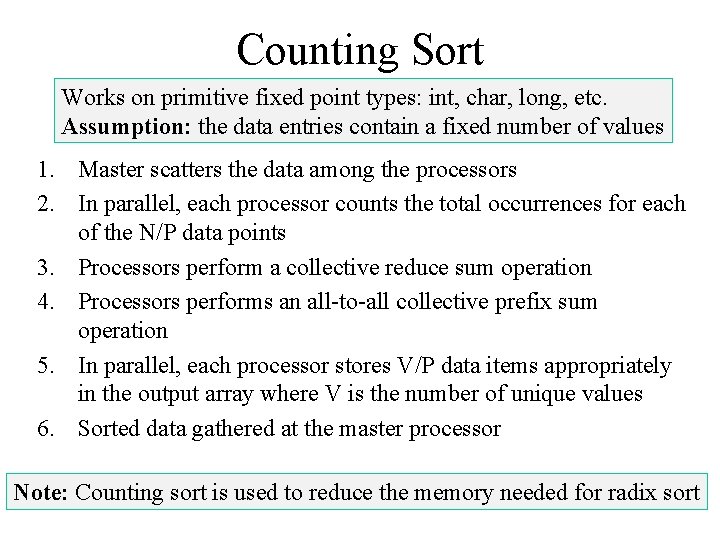

Counting Sort Works on primitive fixed point types: int, char, long, etc. Assumption: the data entries contain a fixed number of values 1. Master scatters the data among the processors 2. In parallel, each processor counts the total occurrences for each of the N/P data points 3. Processors perform a collective reduce sum operation 4. Processors performs an all-to-all collective prefix sum operation 5. In parallel, each processor stores V/P data items appropriately in the output array where V is the number of unique values 6. Sorted data gathered at the master processor Note: Counting sort is used to reduce the memory needed for radix sort

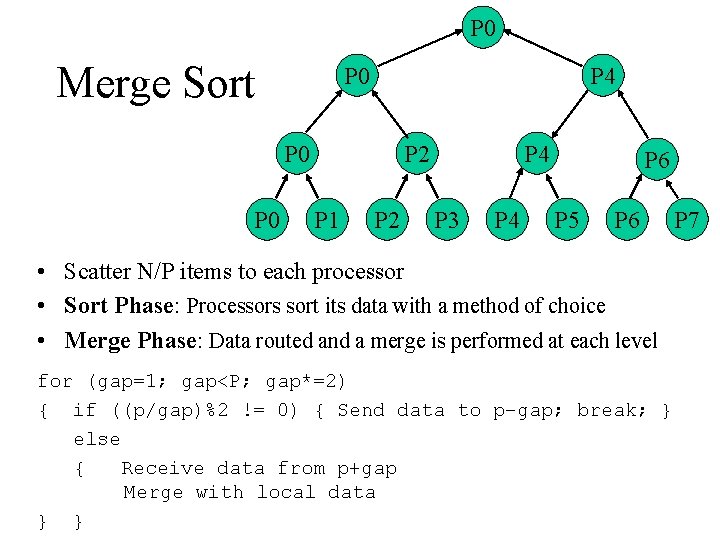

P 0 Merge Sort P 0 P 4 P 0 P 2 P 1 P 2 P 4 P 3 P 4 P 6 P 5 P 6 • Scatter N/P items to each processor • Sort Phase: Processors sort its data with a method of choice • Merge Phase: Data routed and a merge is performed at each level for (gap=1; gap<P; gap*=2) { if ((p/gap)%2 != 0) { Send data to p–gap; break; } else { Receive data from p+gap Merge with local data } } P 7

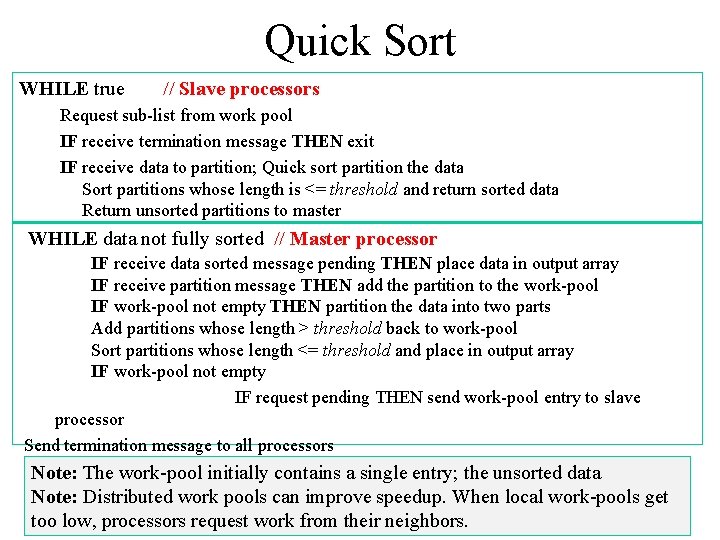

Quick Sort WHILE true // Slave processors Request sub-list from work pool IF receive termination message THEN exit IF receive data to partition; Quick sort partition the data Sort partitions whose length is <= threshold and return sorted data Return unsorted partitions to master WHILE data not fully sorted // Master processor IF receive data sorted message pending THEN place data in output array IF receive partition message THEN add the partition to the work-pool IF work-pool not empty THEN partition the data into two parts Add partitions whose length > threshold back to work-pool Sort partitions whose length <= threshold and place in output array IF work-pool not empty IF request pending THEN send work-pool entry to slave processor Send termination message to all processors Note: The work-pool initially contains a single entry; the unsorted data Note: Distributed work pools can improve speedup. When local work-pools get too low, processors request work from their neighbors.
