Probe analysis and data preprocessing 1 Affymetrix Probe
Probe analysis and data preprocessing 1. Affymetrix Probe level analysis 1) Normalization Constant, Loess, Rank invariant, Quantile normalization 2) Expression measure MAS 4. 0, LI-Wong (d. Chip), MAS 5. 0, RMA 3) Background adjustment PM-MM, PM only, RMA, GC-RMA 2. Statistical analysis of c. DNA array 1) Image analysis 2) Normalization 3) Assess expression level (A case study with Bayesian hierarchical model) 4) Experimental design Source of variations; Calibration and replicate; Choice of reference sample; Design of two-color array 3. Preprocessing 1) Data transformation 2) Filtering (in all platforms) 3) Missing value imputation (in all platforms) 1
From experiment to down-stream analysis 2
Statistical Issues in Microarray Analysis Experimental design Image analysis Preprocessing (Normalization, filtering, MV imputation) Data visualization Regulatory network Identify differentially expressed genes Clustering Pathway analysis Classification Integrative analysis & meta-analysis 3
Data Preprocessing Preliminary analyses extract and summarize information from the microarray experiments. • These steps are irrelevant to biological discovery • But are for preparation of meaningful down-stream analyses for targeted biological purposes. (i. e. DE gene detection, classification, pathway analysis…) From scanned images Þ Image analysis (extract intensity values from the images) Þ Probe analysis (generate data matrix of expression profile) Þ Preprocessing (data transformation, gene filtering and missing value imputation) 4
1. Affymetrix probe level analysis 5
Overview of the technology Hybridization from Affymetrix Inc 6.
Array Design 25 -mer unique oligo mismatch in the middle nuclieotide multiple probes (11~16) for each gene from Affymetrix Inc 7.
Array Probe Level Analysis Background adjustment Normalization Summarization Normalization Background adjustment Summarization § Give an expression measure for each probe set on each array (how to pool information of 16 probes? ) § The result will greatly affect subsequent analysis (e. g. clustering and classification). If not modeled properly, => “Garbage in, garbage out” We will leave the discussion of “backgound adjustment” to the last because there’re more new exciting & technical advances. 8
1. 1 Normalization The need for normalization: Intensities of array 2 is intrinsically larger than array 1. (about two fold) 9
1. 1. Normalization Reason: 1. Different labeling efficiency. 2. Different hybridization time or hybridization condition. 3. Different scanning sensitivity. 4. …. . Normalization is needed in any microarray platform. (including Affy & c. DNA) 10

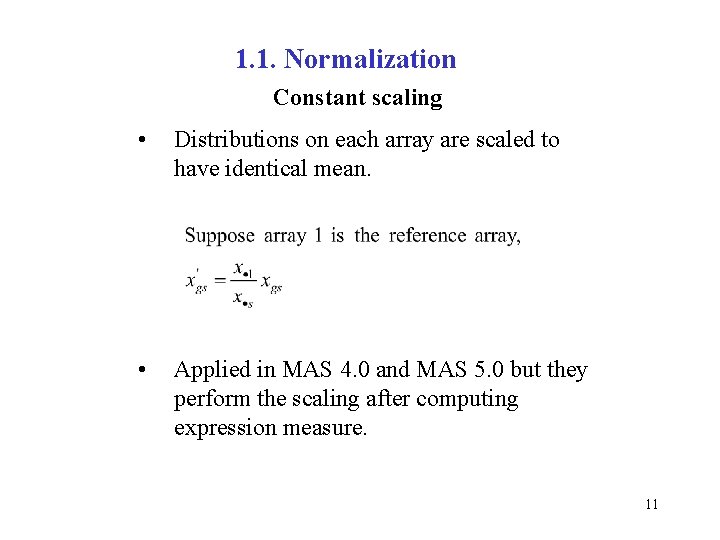

1. 1. Normalization Constant scaling • Distributions on each array are scaled to have identical mean. • Applied in MAS 4. 0 and MAS 5. 0 but they perform the scaling after computing expression measure. 11
1. 1. Normalization Constant scaling: Underlying reasoning 12
1. 1 Normalization M-A plot M=0 M A 13
1. 1 Normalization M-A plot shows the need for non-linear normalization. The normalization factor is a function of the expression level. 14

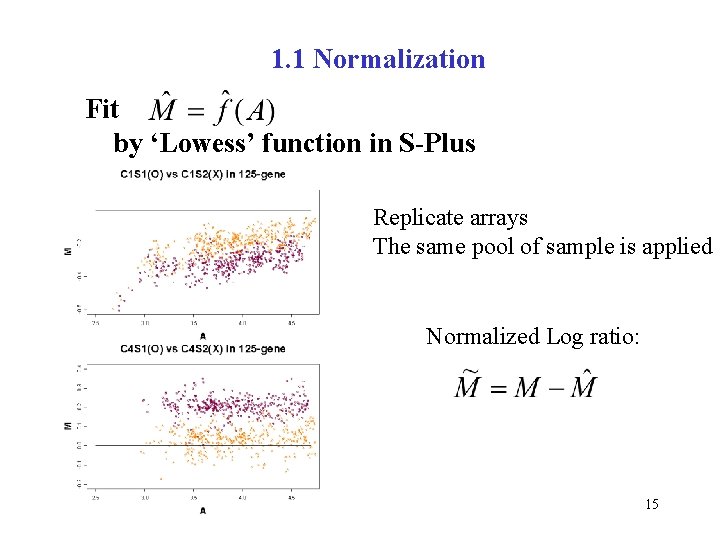

1. 1 Normalization Fit by ‘Lowess’ function in S-Plus Replicate arrays The same pool of sample is applied Normalized Log ratio: 15

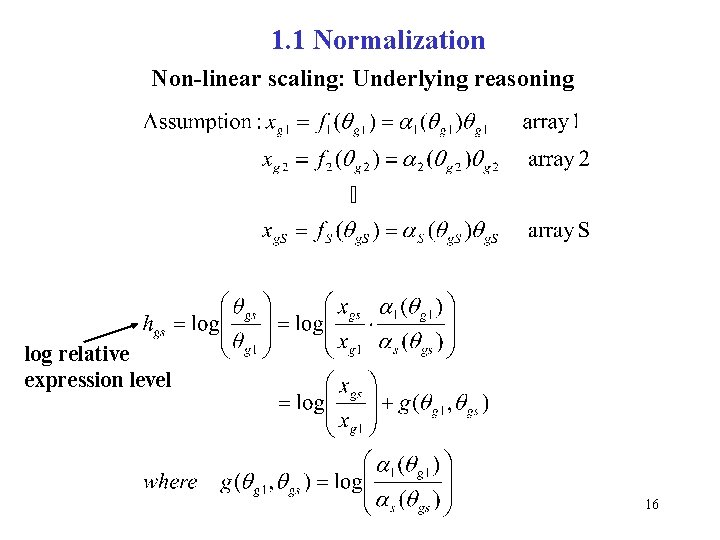

1. 1 Normalization Non-linear scaling: Underlying reasoning log relative expression level 16
1. 1 Normalization Non-linear scaling: Underlying reasoning (cont’d) Suppose we know the green genes are non-differentially expressed genes, The problem is: we usually don’t know which genes are constantly expressed!! 17
1. 1. Normalization Loess (Yang et al. , 2002) • Using all genes to fit a non-linear normalization curve at the M-A plot scale. (believe that most genes are constantly expressed) • Perform normalization between arrays pairwisely. • Has been extended to perform normalization globally without selecting a baseline array but then is timeconsuming. 18
1. 1. Normalization • Invariant set (d. Chip) Select a baseline array (default is the one with median average intensity). • For each “treatment” array, identify a set of genes that have ranks conserved between the baseline and treatment array. This set of rank-invariant genes are considered non-differentially expressed genes. • Each array is normalized against the baseline array by fitting a non-linear normalization curve of invariant-gene set. Tseng et al. , 2001 19
1. 1. Normalization Invariant set (d. Chip) Advantage: More robust than fitting with all genes as in loess. Especially when expression distribution in the arrays are very different. Disadvantage: The selection of baseline array is important. 20
1. 1. Normalization Quantile normalization (RMA) (Irizarry 2003) 1. Given n array of length p, form X of dimension p×n where each array is a col 21 umn. 2. Sort each column of X to give Xsort. 3. Take the means across rows of Xsort and assign this mean to each element in the row to get X sort. 4. Get Xnormalized by rearranging each column of X sort to have the same ordering as original X. X Xsort Xnormalized 237 283 237 198 217. 5 306 341 397 329 283 306 338 399 401 198 341 335 338 399 217. 5 329 335 401 397 399 306 338 21
1. 1. Normalization Bolstad, B. M. , Irizarry RA, Astrand, M, and Speed, TP (2003), A Comparison of Normalization Methods for High Density Oligonucleotide Array Data Based on Bias and Variance Bioinformatics. 19(2): 185 -193 A careful comparison of different normalization methods and concluded that quantile normalization generally performs the best. 22
1. 2. Summarize Expression Index There’re multiple probes for one gene (11 PM and 11 MM) in U 133. How do we summarize the 24 intensity values to a meaningful expression intensity for the target gene? 23
1. 2. Summarize Expression Index v MAS 4. 0 For each probe set, (I: # of arrays, J: # of probes) PMij-MMij= i + ij, i=1, …, I, j=1, …, J i estimated by average difference 1. Negative expression 2. Noisy for low expressed genes 3. Not account for probe affinity 24
1. 2. Summarize Expression Index v d. Chip (DNA chips) For each probe set, (I: # of arrays, J: # of probes) PMij= j + i j + ij MMij= j + i j + ij PMij - MMij= i j + ij, i=1, …, I, j=1, …, J j = J, ij ~ N(0, 2) 1. Account for probe affinity effect, j. 2. Outlier detection through multi-chip analysis 3. Recommended for more than 10 arrays Li and Wong (PNAS, 2001) Multiplicative model: PMij - MMij= i j + ij (better) Additive model: PMij - MMij= i + j + ij 25
1. 2. Summarize Expression Index v MAS 5. 0 For each probe set, (I: # of arrays, J: # of probes) log(PMij-CTij)=log( i)+ ij, i=1, …, I, j=1, …, J CTij=MMij if MMij<PMij if MMij PMij less than PMij i estimated by a robust average (Tukey biweight). 1. No more negative expression 2. Taking log adjusts for dependence of variance on the mean. 26
1. 2. Summarize Expression Index v RMA (Robust Multi-array Analysis) For each probe set, (I: # of arrays, J: # of probes) log(T(PMij))= i + j + ij, i=1, …, I, j=1, …, J T is the transformation for background correction and normalization ij ~ N(0, 2) 1. Log-scale additive model 2. Suggest not to use MM 3. Fit the linear model robustly (median polish) Irizarry et al. (NAR, 2003) 27
R 2=0. 85 20 g R 2=0. 95 20 g 1. 25 g R 2=0. 97 Affymetrix Latin square data 20 g 1. 25 g from Irizarry et al. (NAR, 2003) 28
Affymetrix Latin square data from Irizarry et al. (NAR, 2003) 29
1. 3. Background Adjustment v Direct subtraction: PM-MM MAS 4. 0, d. Chip, MAS 5. 0 Assume the following deterministic model: PM=O+N+S (O: optical noise, N: non-specifi binding) MM=O+N => PM-MM=S>0 Is it true? 30

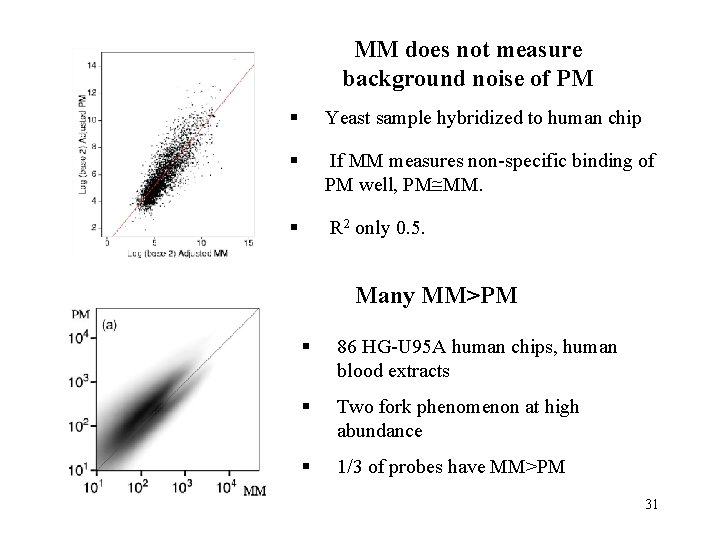

MM does not measure background noise of PM § Yeast sample hybridized to human chip § If MM measures non-specific binding of PM well, PM MM. § R 2 only 0. 5. Many MM>PM § 86 HG-U 95 A human chips, human blood extracts § Two fork phenomenon at high abundance § 1/3 of probes have MM>PM 31
1. 3. Background Adjustment Reasons MM should not be used: 1. MM contain non-specific binding information but also include signal information and noise 2. The non-specific binding mechanism not wellstudied. 3. MM is costly (take up half space of the array) v Ignore MM d. Chip has an option for PM-only model In general, PM-only is preferred for both d. Chip or RMA methods. 32

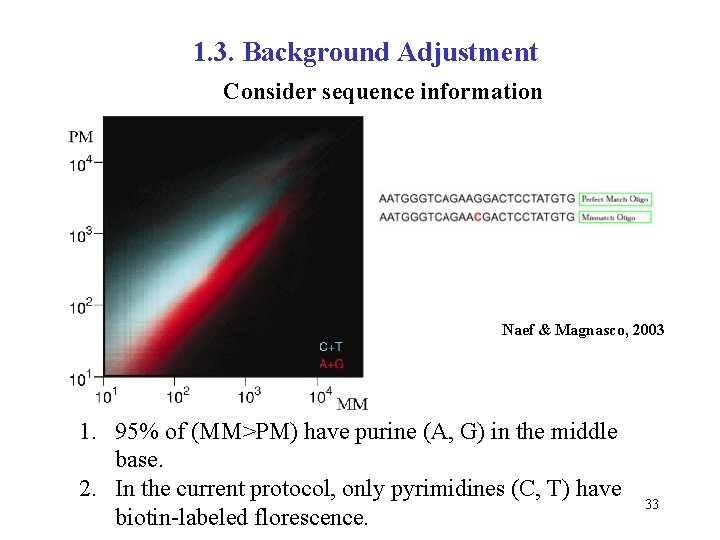

1. 3. Background Adjustment Consider sequence information Naef & Magnasco, 2003 1. 95% of (MM>PM) have purine (A, G) in the middle base. 2. In the current protocol, only pyrimidines (C, T) have biotin-labeled florescence. 33
1. 3. Background Adjustment Fit a simple linear model: 1. C > G T > A 2. Boundary effect Naef & Magnasco, 2003 34
1. 3. Background Adjustment Some chemical explanation of the result: See next page PM C G T A MM G C A T labeling Yes (+) No (-) Yes (+) No(-) Labeling impedes binding Yes (-) No Hydrogen bonds 3 (+) 2 2 Sequence specific brightness High average Low 35

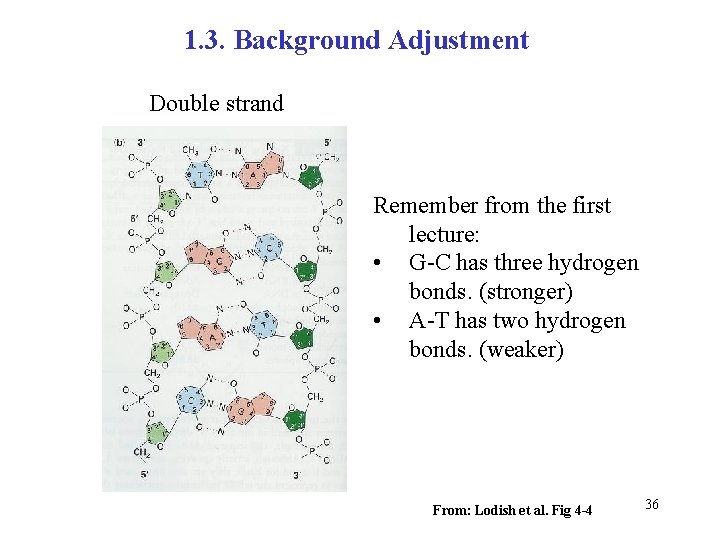

1. 3. Background Adjustment Double strand Remember from the first lecture: • G-C has three hydrogen bonds. (stronger) • A-T has two hydrogen bonds. (weaker) From: Lodish et al. Fig 4 -4 36
1. 3. Background Adjustment v GC-RMA O: optical noise, log-normal dist. N: non-specific binding Wu et al. , 2004 JASA h: a smooth (almost linear) function. : the sequence information weight computed form the simple linear model. 37

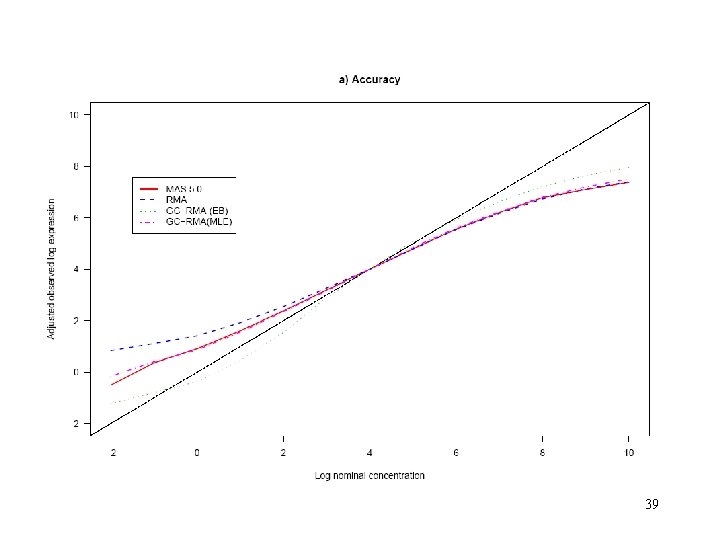

Criterion to compare diff. methods • Accuracy – In well-controlled experiment with spike-in genes (such as Latin Square data), accuracy of estimated log-fold changes compared to the underlying true log-fold changes are concerned. (only available in data with spike-in genes) • Precision – In data with replicates, the reproducibility (SD) of the same gene in replicates is concerned. (available in data with replicates) 38
39
40
GC-RMA 41
Fee GUI Flexibility to programming and mining MAS 4. 0 Commercial Yes No Average Difference Manufacturer default d. Chip Free Yes Some extra tools Li-Wong model Biologists MAS 5. 0 Commercial Yes No Robust average of log difference Manufacturer default RMAExpress Free Yes No RMA Biologists Bioconductor Free Some Best All of above Statistician, programmer Array. Assist Yes No RMA, GC-RMA Biologists Commercial Audience 42
Probe level analysis in Bioconductor (affy package) Background Methods none rma/rma 2 mas Normalization PM correction Summarization Methods quantiles loess contrasts constant invariantset qspline mas pmonly subtractmm avgdiff liwong mas medianpolish playerout 43

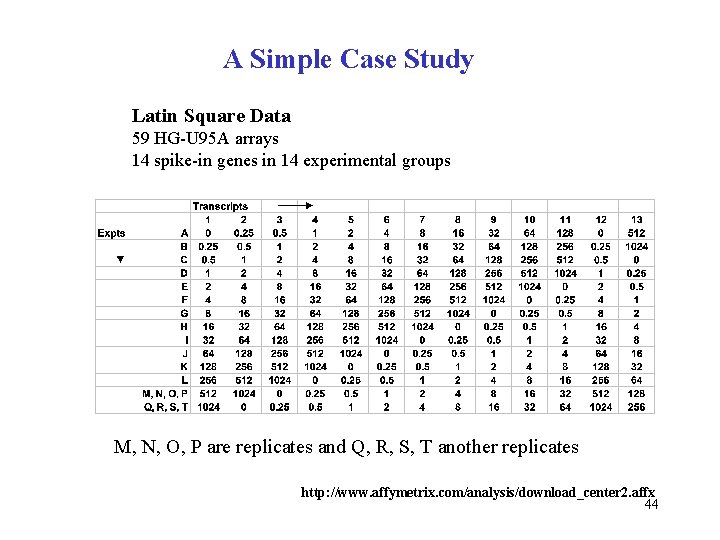

A Simple Case Study Latin Square Data 59 HG-U 95 A arrays 14 spike-in genes in 14 experimental groups M, N, O, P are replicates and Q, R, S, T another replicates http: //www. affymetrix. com/analysis/download_center 2. affx 44
A Simple Case Study § Take the following two replicate groups. § § M 1521 m 99 hpp_av 06. CEL 1521 q 99 hpp_av 06. CEL Q N 1521 n 99 hpp_av 06. CEL 1521 r 99 hpp_av 06. CEL R O 1521 o 99 hpp_av 06. CEL 1521 s 99 hpp_av 06. CEL S P 1521 p 99 hpp_av 06. CEL 1521 t 99 hpp_av 06. CEL T Use Bioconducotr to perform a simple evaluation of different probe analysis algorithms. Note: This is only a simple demonstration. The evaluation result in this presentation is not conclusive. 45
A Simple Case Study Average log intensities vs SD log intensities. (M, N, O, P) MAS 5. 0 d. Chip (PM/MM) d. Chip (PM only) RMA GC-RMA (PM only) GC-RMA (PM/MM) 46
A Simple Case Study Average log intensities vs SD log intensities. (Q, R, S, T) MAS 5. 0 d. Chip (PM/MM) d. Chip (PM only) RMA GC-RMA (PM only) GC-RMA (PM/MM) 47

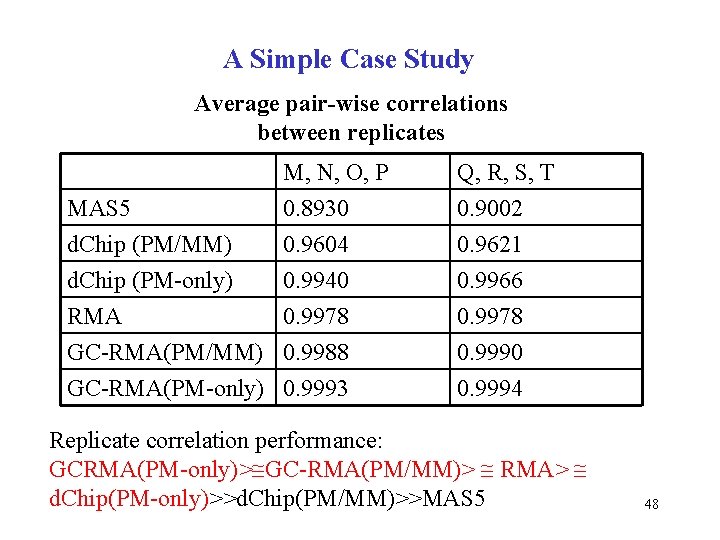

A Simple Case Study Average pair-wise correlations between replicates MAS 5 d. Chip (PM/MM) d. Chip (PM-only) M, N, O, P 0. 8930 0. 9604 0. 9940 RMA 0. 9978 GC-RMA(PM/MM) 0. 9988 GC-RMA(PM-only) 0. 9993 Q, R, S, T 0. 9002 0. 9621 0. 9966 0. 9978 0. 9990 0. 9994 Replicate correlation performance: GCRMA(PM-only)> GC-RMA(PM/MM)> RMA> d. Chip(PM-only)>>d. Chip(PM/MM)>>MAS 5 48

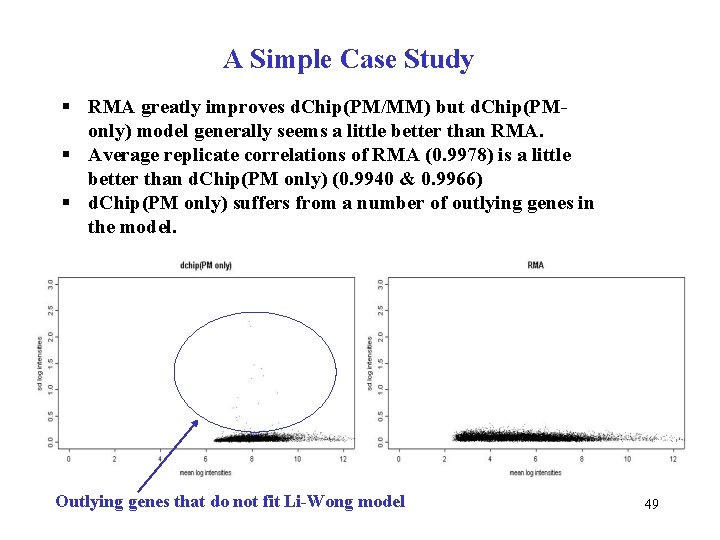

A Simple Case Study § RMA greatly improves d. Chip(PM/MM) but d. Chip(PMonly) model generally seems a little better than RMA. § Average replicate correlations of RMA (0. 9978) is a little better than d. Chip(PM only) (0. 9940 & 0. 9966) § d. Chip(PM only) suffers from a number of outlying genes in the model. Outlying genes that do not fit Li-Wong model 49
Conclusion: 1. Technological advances have been made to have smaller probe size and better sequence selection algorithms to reduce # of probes in a probe set. This will enable more biologically meaningful genes on a slide and reduce the cost. 2. Recent analysis advances have been focused on understanding and modelling hybridization mechanisms. This will allow a better use of MM probes or eventually suggest to remove MMs from the array. 3. The probe analysis is relatively settled in the field. In the second lab session next Friday, we will introduce d. Chip and RMAexpress for Affymetrix probe analysis. 50
2. c. DNA probe level analysis 51

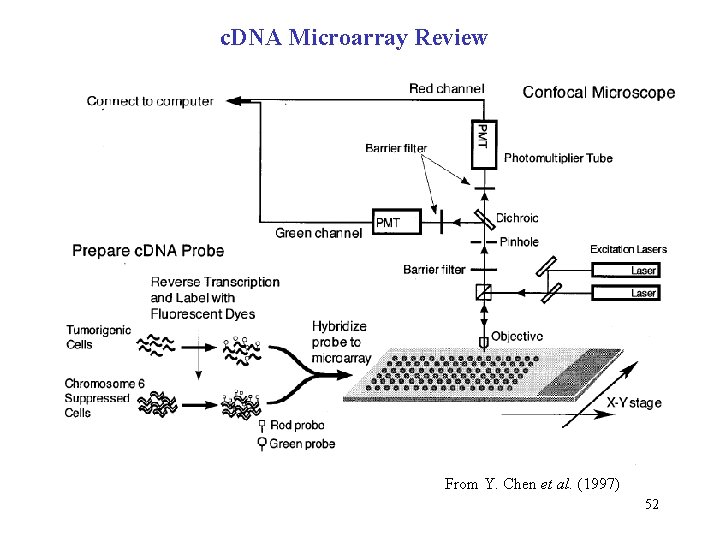

c. DNA Microarray Review From Y. Chen et al. (1997) 52
c. DNA Microarray Review Probe (array) printing 1. 48 grids in a 12 x 4 pattern. 2. Each grid has 12 x 16 features. 3. Total 9216 features. 4. Each pin prints 3 grids. 53

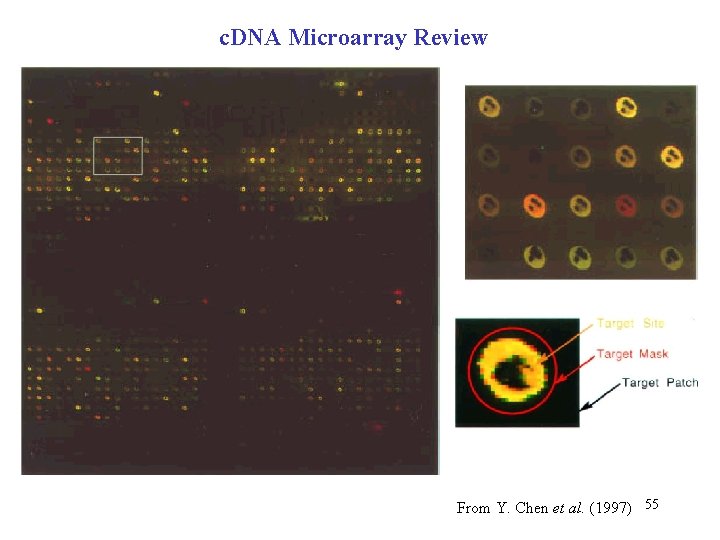

c. DNA Microarray Review Probe design and printing 54
c. DNA Microarray Review From Y. Chen et al. (1997) 55
c. DNA Microarray Review Comparison of c. DNA array and Gene. Chip c. DNA Gene. Chip Probe preparation Probes are c. DNA fragments, usually amplified by PCR and spotted by robot. Probes are short oligos synthesized using a photolithographic approach. colors Two-color (measures relative intensity) One-color (measures absolute intensity) Gene representation One probe per gene 11 -16 probe pairs per gene Probe length Long, varying lengths (hundreds to 1 K bp) 25 -mers Density Maximum of ~15000 probes. 38500 genes * 11 probes = 423500 probes 56
Advantage and disadvantage of c. DNA array and Gene. Chip c. DNA microarray Affymetrix Gene. Chip The data can be noisy and with variable quality Specific and sensitive. Result very reproducible. Cross(non-specific) hybridization can often happen. Hybridization more specific. May need a RNA amplification procedure. Can use small amount of RNA. More difficulty in image analysis. Image analysis and intensity extraction is easier. Need to search the database for gene annotation. More widely used. Better quality of gene annotation. Cheap. (both initial cost and per slide cost) Expensive (~$400 per array+labeling and hybridization) Can be custom made for special species. Only several popular species are available Do not need to know the exact DNA sequence. Need the DNA sequence for probe selection. 57
2. 1. Image Analysis § Identify spot area : 1. Each spot contains around 100 pixels. 2. Spot image may not be uniformly and roundly distributed. 3. Some software (like Scan. Alyze or Ima. Gene) have algorithms to “help” placing the grids and identify spot and background area locally. 4. Still semi-automatic: a very time-consuming job. § Extract intensities (data reduction) : 1. Aim to extract the minimum most informative statistics for further analysis. Usually use the median signal minus the median background. 2. Some spot quality indexes (e. g. Stdev or CV) will 58 be computed.
Scan. Alyze 2. 1. Image Analysis 59
2. 1. Image Analysis 1. Input the number of rows and columns in each sector; input the approximate location and distances between spots. 2. May need to tilt the grids 3. Some local adjustments may be needed. 4. Once the spot grids are close enough to the real spot physical location, computer image algorithms will help to find the optimal spot area (spherical or irregular shapes) and background area. May take 10~30 minutes for an array. Usually the biologists will do it. 60
2. 1. Image Analysis 61 http: //www. techfak. uni-bielefeld. de/ags/ai/projects/microarray/
2. 1. Image Analysis Result file from image analysis Summarized intensities for further analysis: 62 median(spot intensities)-median(background intensities)
2. 2. Normalization • Affymetrix – Normalization done across arrays – After normalization, the expression data matrix shows absolute expression intensities. • c. DNA – Normalization between two colors in an array. – After normalization, the expression data matrix shows comparative expression intensities (logratios). 63

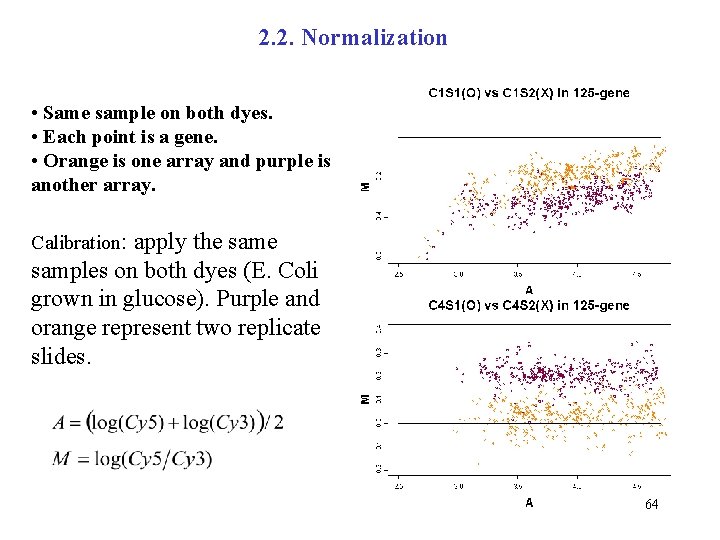

2. 2. Normalization • Same sample on both dyes. • Each point is a gene. • Orange is one array and purple is another array. Calibration: apply the same samples on both dyes (E. Coli grown in glucose). Purple and orange represent two replicate slides. 64
Normalization: 2. 2. Normalization General idea: § Dye effect : Cy 5 is usually more bleached than Cy 3. § Slide effect § The normalization factor is slide dependent. § Usually need to assume that most genes are not differentially expressed or up- and down-regulated genes roughly cancel out the expression effect. 65
2. 2. Normalization: Current popular methods: § House-keeping genes : Select a set of non-differentially expressed genes according to experiences. Then use these genes to normalize. § Constant normalization factor : § Use mean or median of each dye to normalize. § ANOVA model (Churchill’s group) § Average-intensity-dependent normalization: § § Robust nonlinear regression(Lowess) applied on whole genome. (Speed’s group) Select invariant genes computationally (rank-invariant method). Then apply Lowess. (Wong’s group) 66

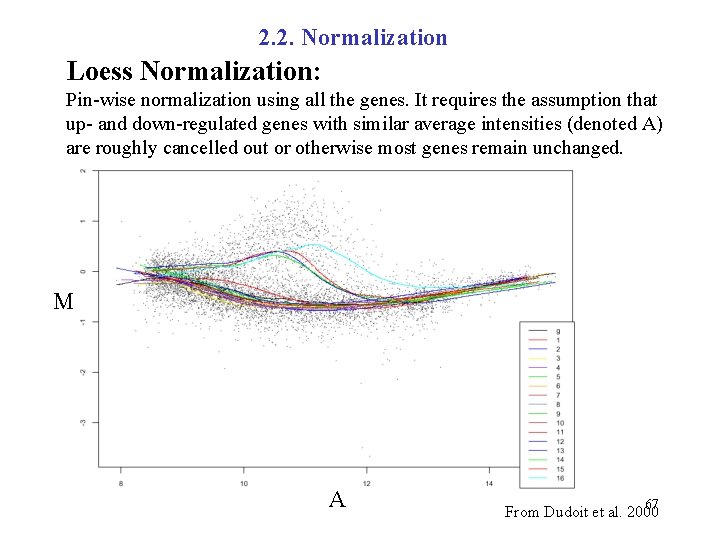

2. 2. Normalization Loess Normalization: Pin-wise normalization using all the genes. It requires the assumption that up- and down-regulated genes with similar average intensities (denoted A) are roughly cancelled out or otherwise most genes remain unchanged. M A 67 From Dudoit et al. 2000

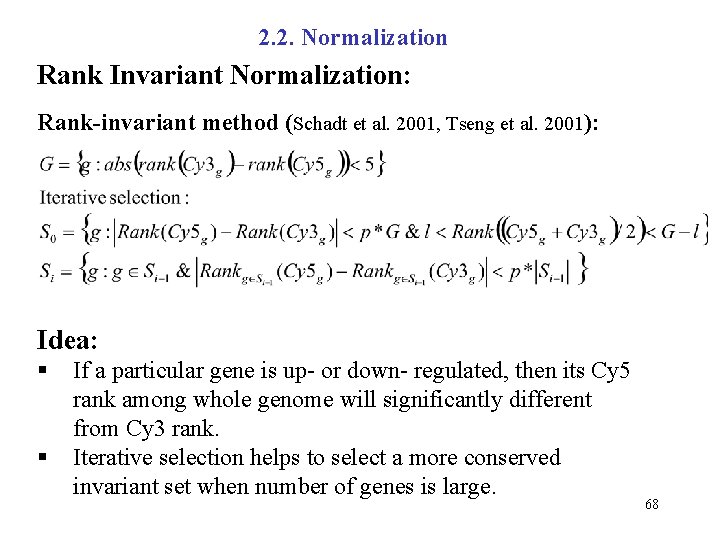

2. 2. Normalization Rank Invariant Normalization: Rank-invariant method (Schadt et al. 2001, Tseng et al. 2001): Idea: § § If a particular gene is up- or down- regulated, then its Cy 5 rank among whole genome will significantly different from Cy 3 rank. Iterative selection helps to select a more conserved invariant set when number of genes is large. 68
2. 2. Normalization Rank Invariant Normalization: Data: E. Coli. Chip, ~4000 genes, from Liao lab. Blue points are invariant genes selected by rank-invariant method. Red 69 curves are estimated by Lowess and extrapolation.
Data Truncation • In c. DNA microarry, the intensity value is between 0~216=65536. • Measurement of low intensity genes are not stable. • Extremely highly expressed genes can saturate. • For example, we can truncate genes with intensity smaller than 200 or larger than 65000. 70
2. 3. Assess Expression Level Approaches to assess expression level: Single slide: 1. Normal model (Chen et al. 1997) 2. Gamma model with empirical Bayes approach (Newton et al. 2001) With replicate slides: § Traditional t-test. § ANOVA model (Kerr et al. 2000) § Permutation t-test (Dudoit et al. 2000) Hierarchical structure: § Linear hierarchical model (Tseng et al. 2001) 71

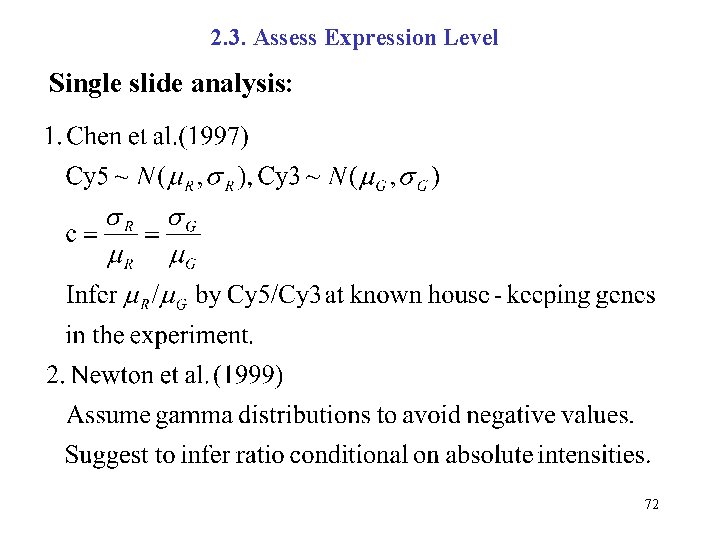

2. 3. Assess Expression Level Single slide analysis: 72

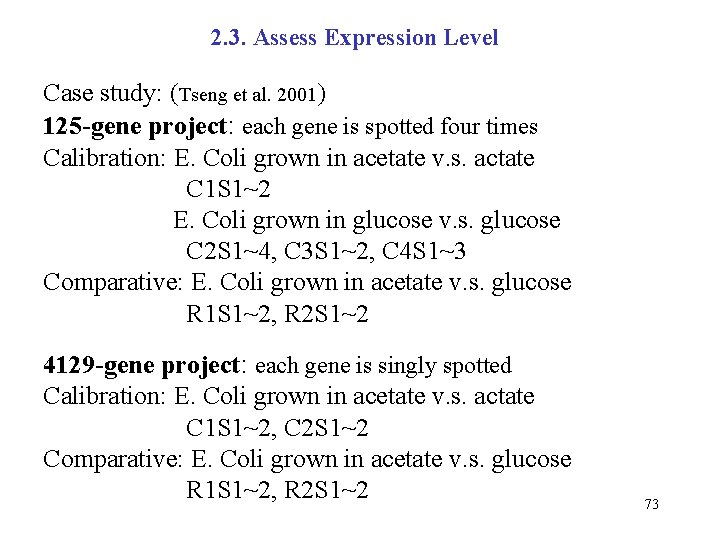

2. 3. Assess Expression Level Case study: (Tseng et al. 2001) 125 -gene project: each gene is spotted four times Calibration: E. Coli grown in acetate v. s. actate C 1 S 1~2 E. Coli grown in glucose v. s. glucose C 2 S 1~4, C 3 S 1~2, C 4 S 1~3 Comparative: E. Coli grown in acetate v. s. glucose R 1 S 1~2, R 2 S 1~2 4129 -gene project: each gene is singly spotted Calibration: E. Coli grown in acetate v. s. actate C 1 S 1~2, C 2 S 1~2 Comparative: E. Coli grown in acetate v. s. glucose R 1 S 1~2, R 2 S 1~2 73
2. 3. Assess Expression Level Hierarchical structure in experiment design Reversed transcription & labeling Hybridize onto different slides 74
2. 3. Assess Expression Level 75
2. 3. Assess Expression Level Basics of Bayesian Analysis Meaning how much we can say about given the data 76
2. 3. Assess Expression Level Baysian Hierarchical Model 77
2. 3. Assess Expression Level 78
2. 3. Assess Expression Level How to specify the prior? Empirical Bayes: 79
2. 3. Assess Expression Level Another version of EB: 80
2. 3. Assess Expression Level Getting prior distribution: (when we have calibration experiments) Calibration (normal vs normal) ((0. 75, 0. 67), (0. 45, 0. 51)) Comparative (cancer vs normal) 81
2. 3. Assess Expression Level MCMC for hierarchical model: 1. Compute 2. 3. 4. 5. 82
2. 3. Assess Expression Level 95% probability interval of the posterior distribution of the underlying expression level. 83

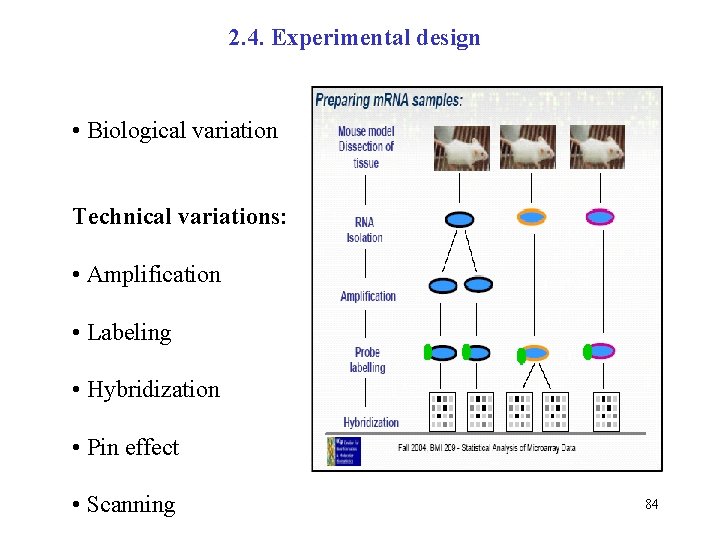

2. 4. Experimental design • Biological variation Technical variations: • Amplification • Labeling • Hybridization • Pin effect • Scanning 84
2. 4. 1 Calibration and replicate (i) Calibration: § Use the sample on both dyes for hybridization. § Calibration experiments help to validate experiment quality and gene-specific variability. Comparative: Tumor vs Ref Calibration: Ref vs Ref 85
2. 4. 2. Calibration and replicate (ii) Replicates: (replicate spots, slides) § Multiple-spotting helps to identify local contaminated spots but will reduce number of genes in the study. § Multi-stage strategy: Use single-spotting to include as many genes as possible for pilot study. Identify a subset of interesting genes and then use multiple-spotting. § Replicate spots and slides help to verify reproducibility on the spot and slide level. 86
2. 4. 2. Calibration and replicate Biological replicate 87 From Yang, UCSF
2. 4. 2. Calibration and replicate Technical replicate 88 From Yang, UCSF
2. 4. 2. Calibration and replicate (iii) Reverse labelling: Sample A Sample B Advantage: • Cancel out linear normalization scaling and simplifies the analysis. However, the linear assumption is often not true. • Help to cancel out gene-label interactions if it exists. 89
2. 4. 3. Choice of reference sample Different choices of reference sample: a) Normal patient or time 0 sample in time course study b) Pool all samples or all normal samples c) Embryonic cells d) Commercial kit Ideally we want all genes expressed at a constant moderate level in reference sample. 90
2. 4. 4. Design issue From Yang, UCSF 91
Design issues: 2. 4. 4. Design issue (a) Reference design (b) Loop design (c) Balance design Reference sample is redundantly measured many times. 92

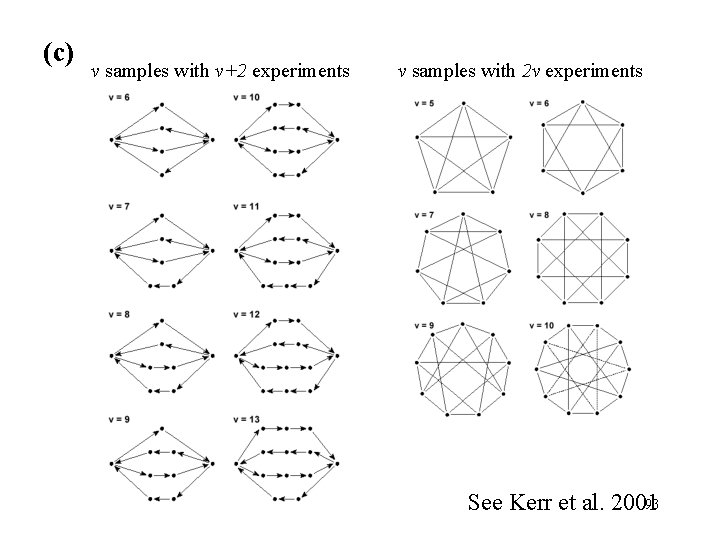

(c) v samples with v+2 experiments v samples with 2 v experiments 93 See Kerr et al. 2001
Conclusion of c. DNA array 1. Affymetrix Gene. Chip is more preferred if available. 2. Unlike Gene. Chip, c. DNA array data is usually more noisy and careful quality control (replicates and calibration) is important. But occasionally custom arrays are needed for some specific research. 3. Analysis of c. DNA microarray is also applicable to other two-color technology such as array CGH and similar two-color oligo arrays. 4. Conservative “Reference design” is usually more robust although it’s not statistically most efficient. 94
3. Data preprocessing 95
3. 1. Data Truncation and Transformation 1. Logarithmic transformation (most commonly used) -- tend to get an approximately normal distribution -- should avoid negative or 0 intensity before transformation 2. Square root transformation -- a variance-stabilizing transformation under Poisson model. 3. Box-Cox transformation family 4. Affine transformation 5. Generalized-log transformation Details see chapter 6. 1 in Lee’s book; Log 10 or Log 2 transformation is the most common practice. 96

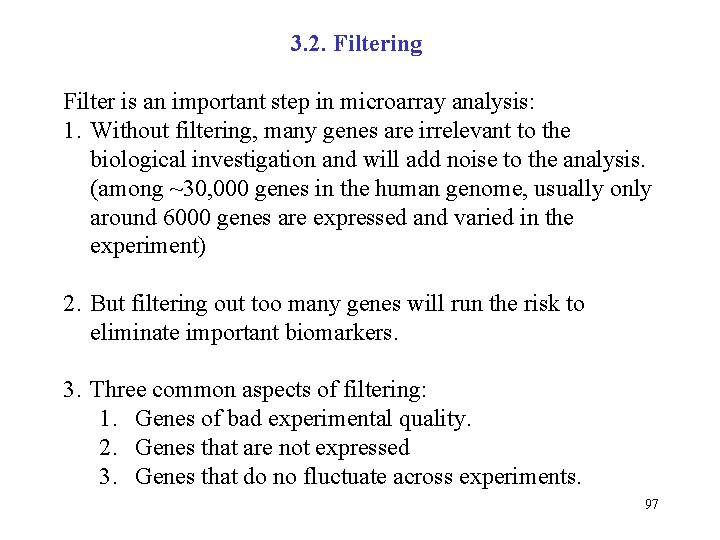

3. 2. Filtering Filter is an important step in microarray analysis: 1. Without filtering, many genes are irrelevant to the biological investigation and will add noise to the analysis. (among ~30, 000 genes in the human genome, usually only around 6000 genes are expressed and varied in the experiment) 2. But filtering out too many genes will run the risk to eliminate important biomarkers. 3. Three common aspects of filtering: 1. Genes of bad experimental quality. 2. Genes that are not expressed 3. Genes that do no fluctuate across experiments. 97
3. 2. Filtering Filter out genes with bad quality in c. DNA array: Outputs from imaging analysis usually have a quality index or flag to identify genes with bad quality image. Three common sources of bad quality probes: 1. Problematic probes: probes with non-uniform intensities. 2. Low-intensity probes: genes with low intensities are known to have bad reproducibility and hard to verify by RT-PCR. Normally genes with intensities less than 100 or 200 are filtered. 3. Saturated probes: genes with intensities reaching scanner limit (saturation) should also be filtered. For Affymetrix and other platforms, each probe (set) also has a detection p-value, quality flag or present/absent call. 98
3. 2. Filtering by quality index: different array platform and image analysis have different format low intensity 99
3. 2. Filtering by quality index: Array 1 Array 2 Array S Array 1 Array 2 Gene 1 342. 061 267. 247 NA Gene 2 72. 2798 54. 2583 49. 4225 Gene 3 69. 6987 73. 8338 58. 7938 Gene 4 163. 73 197. 419 196. 236 Gene 5 136. 412 140. 536 146. 344 Gene 6 131. 405 96. 128 93. 5549 Array S : : Gene G-2 763. 445 936. 445 768. 63 Gene G-1 NA 34. 7477 30. 3535 12. 5406 13. 648 15. 9003 Gene G NA: not applicable Missing values due to bad quality, low or 100
3. 2. Filtering Filter genes with low information content: 1. Small standard deviation (stdev) 2. Small coefficient of variation (CV: stdev/mean) 125 stdev=6. 45 CV=0. 29 25 130 115 120 stdev=6. 45 CV=0. 053 30 15 20 Note: CV is more reasonable for original intensities. But for log-transformed intensities, stdev is enough 101 Why?
Gene filtering 3. 2. Filtering A simple gene filtering routine (I usually use) before downstream analyses: 1. Take log (base 2) transformation. 2. Delete genes with more than 20% missing values among all samples. 3. Delete genes with average expression level less than, say α=7 (27=128). For Affymetrix and most other platforms, intensities less than 100 -200 are simply noises. 4. Delete genes with standard deviation smaller than, say β=0. 4 (20. 4=1. 32, i. e. 32% fold change). 5. Might adjust β so that the number of remaining genes are computationally manageable in downstream analysis. (e. g. around ~5000 genes) 102

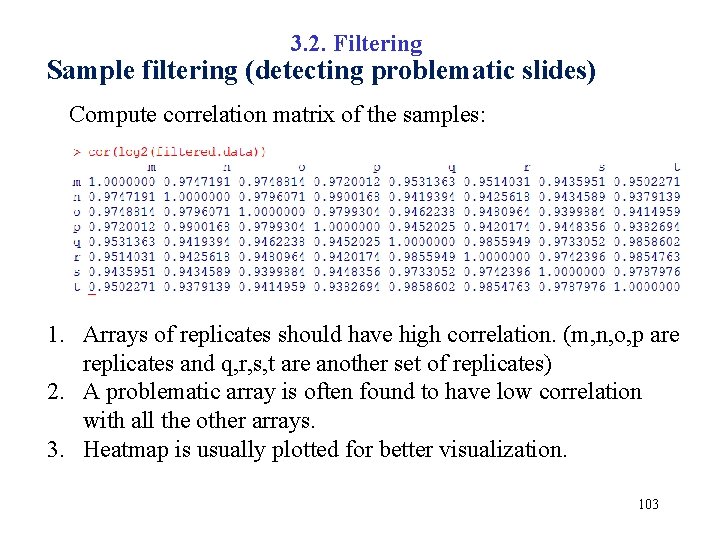

3. 2. Filtering Sample filtering (detecting problematic slides) Compute correlation matrix of the samples: 1. Arrays of replicates should have high correlation. (m, n, o, p are replicates and q, r, s, t are another set of replicates) 2. A problematic array is often found to have low correlation with all the other arrays. 3. Heatmap is usually plotted for better visualization. 103
3. 2. Filtering Diagnostic plot by correlation matrix White: high correlation Dark gray: low correlati m, n, o, p q, r, s, t 104
3. 3. Missing Value Imputation Reasons of missing values in microarray: § § § § spotting problems (c. DNA) dust finger prints poor hybridization inadequate resolution fabrication errors (e. g. scratches) image corruption Many down-stream analysis require a complete data. “Imputation” is usually helpful. 105
3. 3. Missing Value Imputation Array 1 Array 2 Array S Gene 1 342. 061 267. 247 NA Gene 2 72. 2798 54. 2583 49. 4225 Gene 3 69. 6987 73. 8338 58. 7938 Gene 4 163. 73 197. 419 196. 236 Gene 5 136. 412 140. 536 146. 344 Gene 6 131. 405 96. 128 93. 5549 : : Gene G-2 763. 445 936. 445 768. 63 Gene G-1 NA 34. 7477 30. 3535 12. 5406 13. 648 15. 9003 Gene G It is common to have ~5% MVs in a study. 5000(genes) 50(arrays) 5%=12, 500 106
3. 3. Missing Value Imputation Existing methods • Naïve approaches – Missing values = 0 or 1 (arbitrary signal) – missing values = row (gene) average • Smarter approaches have been proposed: – K-nearest neighbors (KNN) – Regression-based methods (OLS) – Singular value decomposition (SVD) – Local SVD (LSVD) – Partial least square (PLS) – More (Bayesian Principal Component Analysis, Least Square Adaptive, Local Lease Square) Assumption behind: Genes work cooperatively in groups. Genes with similar pattern will provide information in MV imputation. 107

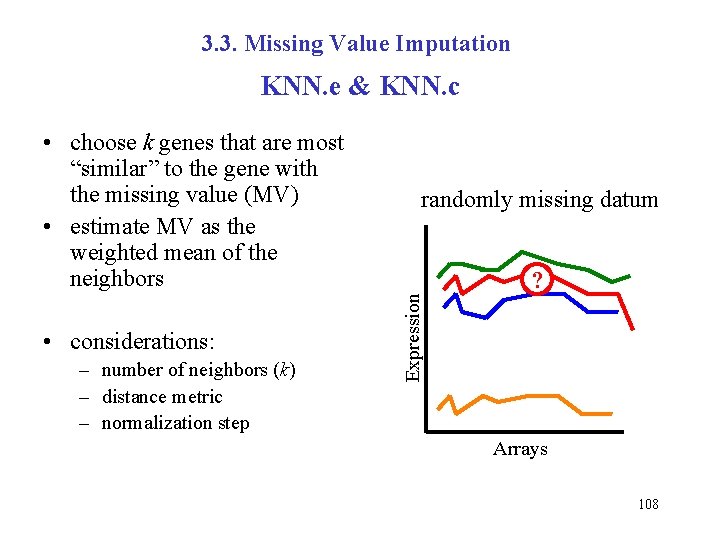

3. 3. Missing Value Imputation KNN. e & KNN. c • considerations: – number of neighbors (k) – distance metric – normalization step randomly missing datum ? Expression • choose k genes that are most “similar” to the gene with the missing value (MV) • estimate MV as the weighted mean of the neighbors Arrays 108

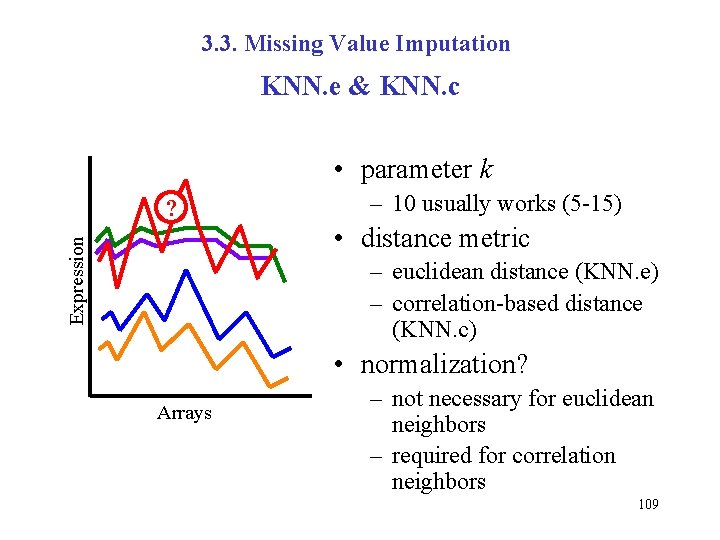

3. 3. Missing Value Imputation KNN. e & KNN. c • parameter k ? – 10 usually works (5 -15) Expression • distance metric – euclidean distance (KNN. e) – correlation-based distance (KNN. c) • normalization? Arrays – not necessary for euclidean neighbors – required for correlation neighbors 109

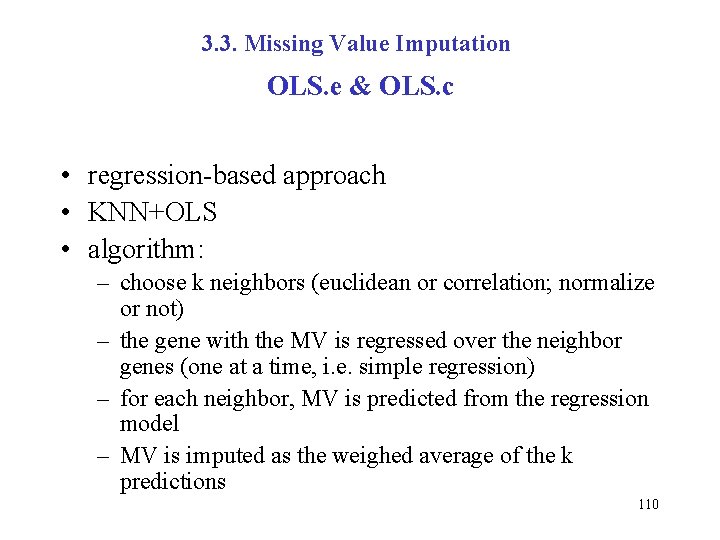

3. 3. Missing Value Imputation OLS. e & OLS. c • regression-based approach • KNN+OLS • algorithm: – choose k neighbors (euclidean or correlation; normalize or not) – the gene with the MV is regressed over the neighbor genes (one at a time, i. e. simple regression) – for each neighbor, MV is predicted from the regression model – MV is imputed as the weighed average of the k predictions 110
3. 3. Missing Value Imputation OLS. e & OLS. c y 1 = a 1 + b 1 x 1 ? y 2 = a 2 + b 2 x 2 Expression randomly missing datum Arrays y = w 1 y 1 + w 2 y 2 111

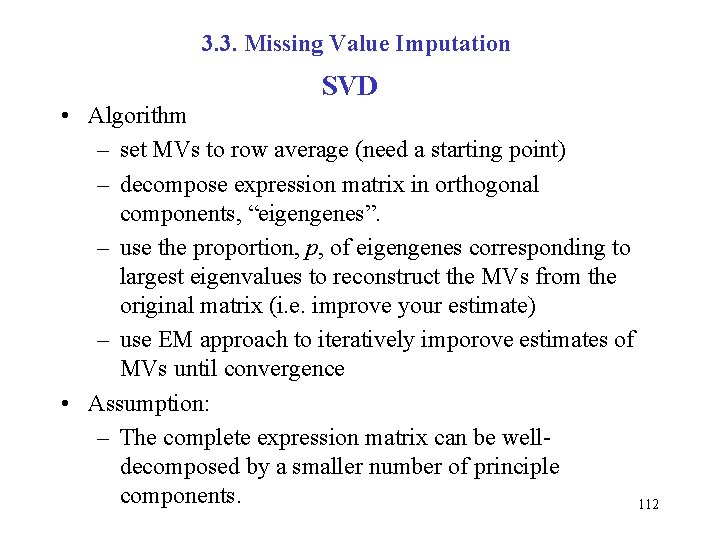

3. 3. Missing Value Imputation SVD • Algorithm – set MVs to row average (need a starting point) – decompose expression matrix in orthogonal components, “eigengenes”. – use the proportion, p, of eigengenes corresponding to largest eigenvalues to reconstruct the MVs from the original matrix (i. e. improve your estimate) – use EM approach to iteratively imporove estimates of MVs until convergence • Assumption: – The complete expression matrix can be welldecomposed by a smaller number of principle components. 112

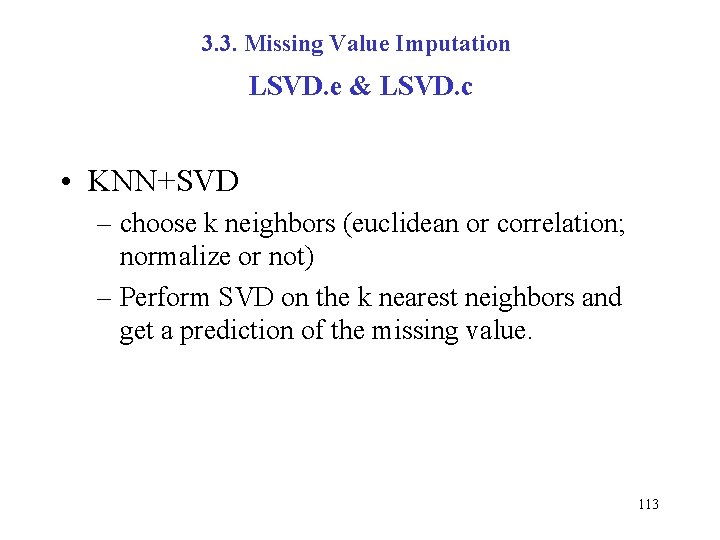

3. 3. Missing Value Imputation LSVD. e & LSVD. c • KNN+SVD – choose k neighbors (euclidean or correlation; normalize or not) – Perform SVD on the k nearest neighbors and get a prediction of the missing value. 113
3. 3. Missing Value Imputation PLS • PLS: Select linear combinations of genes (PLS components) exhibiting high covariance with the gene having the MV. – The first linear combination of genes has the highest correlation with the target gene. – The second linear combination of genes had the greatest correlation with the target gene in the orthogonal space of the first linear combination. • MVs are then imputed by regressing the target gene onto the PLS components 114
3. 3. Missing Value Imputation Types of missing mechanism: 1. Missing completely at random (MCAR) Missingness is independent of the observed values and their own unobserved values. 1. Spot missing due to mis-printing or dust particle. 2. Spot missing due to scratches. 2. Missing at random (MAR) Missingness is independent of the unobserved data but depend on the observed data. • Missing not at random (MNAR) MIssingness is dependent on the unobserved data 1. Spots missing due to saturation or low expression. 115 Currently imputation methods only work for MCAR, not MNAR.

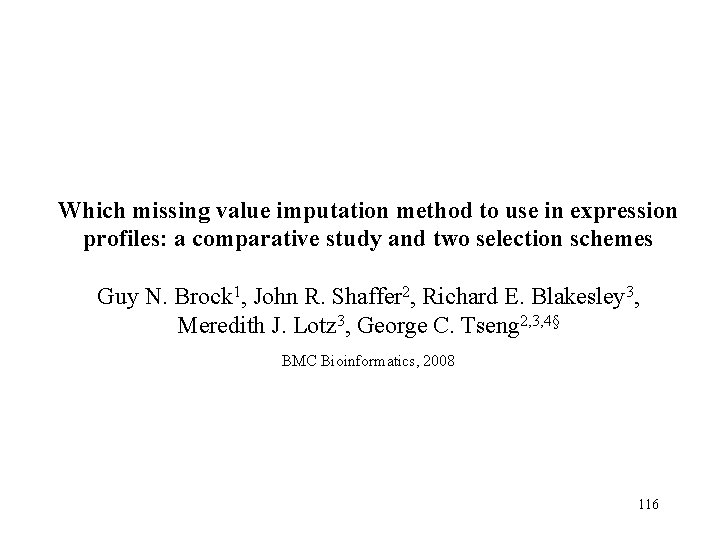

Which missing value imputation method to use in expression profiles: a comparative study and two selection schemes Guy N. Brock 1, John R. Shaffer 2, Richard E. Blakesley 3, Meredith J. Lotz 3, George C. Tseng 2, 3, 4§ BMC Bioinformatics, 2008 116
3. 3. MV imputation comparative study Data set Full Dim. Used Dim. Category Organism Expression Profiles 13412 x 40 5635 x 40 multiple exposure H. sapiens diffuse large B-cell lymphoma 2000 x 62 multiple exposure H. sapiens colon cancer and normal colon tissue Baldwin (BAL) 16814 x 39 6838 x 39 time series, non-cyclic H. sapiens epithelial cellular response to L. monocytogenes Causton (CAU) 4682 x 45 4616 x 45 multiple exposure x time series S. cerevisiae response to changes in extracellular environment 2986 x 155 multiple exposure x time series S. cerevisiae cellular response to DNA-damaging adgents Alizadeh (ALI) Alon (ALO) Gasch (GAS) 6152 x 174 Golub (GOL) 7129 x 72 1994 x 72 multiple exposure H. sapiens acute lymphoblastic leukemia Ross (ROS) 9706 x 60 2266 x 60 multiple exposure H. sapiens NCI 60 cancer cell lines Spellman, AFA (SP. AFA) Spellman, ELU (SP. ELU) 7681 x 18 4480 x 18 time series, cyclic S. cerevisiae cell-cycle genes 7681 x 14 5766 x 14 time series, cyclic S. cerevisiae cell-cycle genes 9 data sets: multiple exposure, time series or both 7 methods were compared: KNN, OLS, LSA, LLS, PLS, SVD, 117 BPCA
3. 3. MV imputation comparative study. Global-based methods (PLS, SVD, BPCA): Estimate the global structure of the data to impute MV. Neighbor-based methods (KNN, OLS, LSA, LLS): Borrow information from correlated genes (neighbors). Intuitively global-based methods require that dimension reduction of the data can be effectively performed. We define an entropy measure for a given data D to determine how well the dimension reduction of the data can be done: ( i are the eigenvalues) Entropy low: the first few eigenvalues dominate and the data can be 118 reduced to low-dimension effectively.
3. 3. MV imputation comparative study LRMSE is the performance measure, the lower the better. KNN, OLS, LSA, LLS are neighbor-based methods and work better in low-entropy data sets. PLS and SVD are global-based methods and work better in high-entropy data sets. 119
3. 3. MV imputation comparative study Data set BAL CAU ALO GOL SP. EL U GAS SP. AF A ROS ALI Simulation II Entro Optimal py 0. 819 LSA (38), LLS (12) 0. 838 LLS (45), LSA (5) 0. 872 LSA (50) 0. 876 LSA (50) 0. 909 LLS (41), BPCA (9) 0. 911 LSA (50) 0. 94 LLS (40), BPCA (10) 0. 944 LSA (50) 0. 947 LSA (50) Simulation III EBS Accura Optimal STS cy LSA (50) 76% LSA (9), LLS LSA (10) (1) LSA (50) 10% LLS (10) LSA (10) Accurac y 90% 0% LSA (50) 100% LSA (50) 0% LSA (10) LLS (10) LSA (10) BPCA (10) 100% 0% LSA (50) 100% LSA (50) 0% LSA (10) LLS (9), BPCA (1) LSA (10) BPCA (10) 100% 10% LSA (10) Overall 100% 67% LSA (50) 100% Overall 65% Three methods (LSA, LLS, BPCA) performed best but none dominated. Performed two selection schemes (entropy-based scheme and self-training 120 scheme) to select the best imputation method.
