Probability & Tree Diagrams

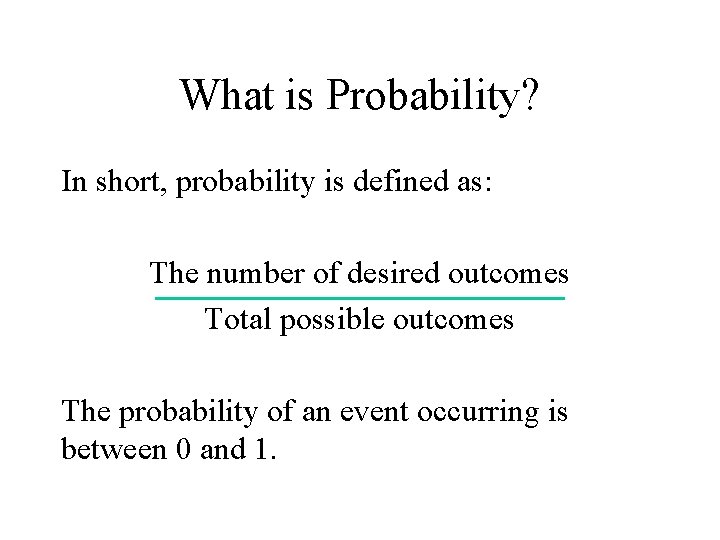

What is Probability? In short, probability is defined as: The number of desired outcomes Total possible outcomes The probability of an event occurring is between 0 and 1.

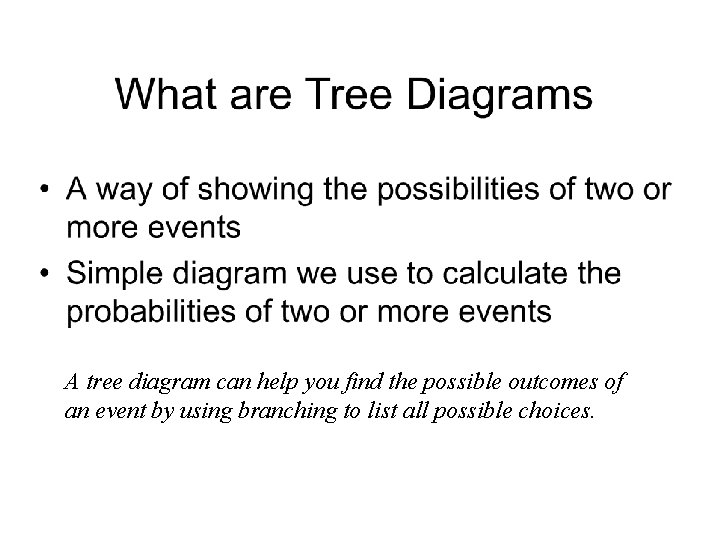

A tree diagram can help you find the possible outcomes of an event by using branching to list all possible choices.

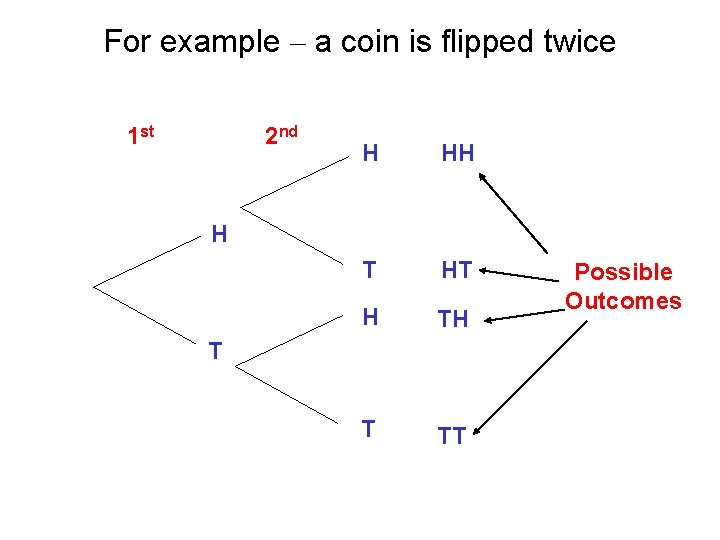

For example – a coin is flipped twice 1 st 2 nd H HH T HT H TH T TT H T Possible Outcomes

Attach probabilities 1 st ½ (50%) 2 nd ½ H H HH P(H, H)=½x½=¼ T HT P(H, T)=½x½=¼ ½ H TH P(T, H)=½x½=¼ ½ T TT P(T, T)=½x½=¼ ½ T INDEPENDENT EVENTS – 1 st spin has no effect on the 2 nd spin

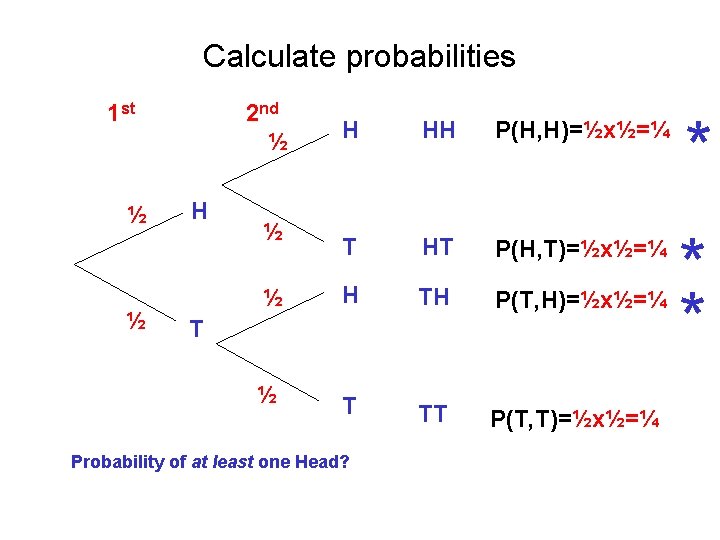

Calculate probabilities 1 st ½ ½ 2 nd ½ H H HH P(H, H)=½x½=¼ * T HT P(H, T)=½x½=¼ ½ H TH P(T, H)=½x½=¼ * * ½ T TT P(T, T)=½x½=¼ ½ T Probability of at least one Head?

For example – 10 marbles are in a bag – 3 Red, 2 Blue, 5 Green. One taken, color noted, returned to bag, then a second taken. 1 st 2 nd R B G R RR B RB G R RG BR B BB G R BG GR B GB G GG INDEPENDENT EVENTS

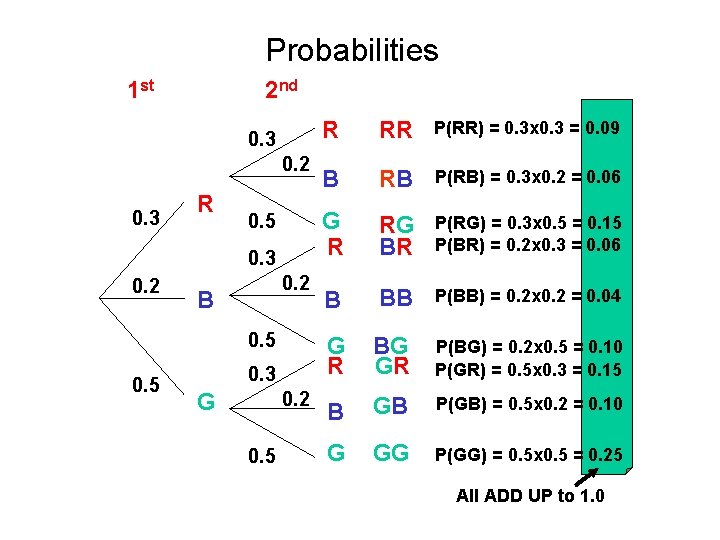

Probabilities 1 st 2 nd 0. 3 0. 2 0. 3 R 0. 5 0. 3 0. 2 B 0. 5 0. 3 0. 2 G 0. 5 R RR P(RR) = 0. 3 x 0. 3 = 0. 09 B RB P(RB) = 0. 3 x 0. 2 = 0. 06 G R RG BR P(RG) = 0. 3 x 0. 5 = 0. 15 P(BR) = 0. 2 x 0. 3 = 0. 06 B BB P(BB) = 0. 2 x 0. 2 = 0. 04 G R BG GR P(BG) = 0. 2 x 0. 5 = 0. 10 P(GR) = 0. 5 x 0. 3 = 0. 15 B GB P(GB) = 0. 5 x 0. 2 = 0. 10 G GG P(GG) = 0. 5 x 0. 5 = 0. 25 All ADD UP to 1. 0

Your Assignment Construct a tree diagram to show the possible outcomes if you flip a coin one time and roll a die one time. Both are independent events.

Discuss the Probabilities

Choose a meal Main course Salad 0. 2 Egg & Chips 0. 5 Pizza 0. 3 S 0. 2 0. 5 0. 45 IC Pudding Ice Cream 0. 45 Apple Pie 0. 55 P(S, IC) = 0. 2 x 0. 45 = 0. 09 0. 55 0. 45 AP P(S, AP) = 0. 2 x 0. 55 = 0. 110 IC P(E, IC) = 0. 5 x 0. 45 = 0. 225 0. 55 AP P(E, AP) = 0. 5 x 0. 55 = 0. 275 0. 45 IC P(P, IC) = 0. 3 x 0. 45 = 0. 135 0. 55 AP P(P, AP) = 0. 3 x 0. 55 = 0. 165 E 0. 3 P
