Probabilistic Scenario Analysis PSA 1 PSA History In

Probabilistic Scenario Analysis (PSA) 1

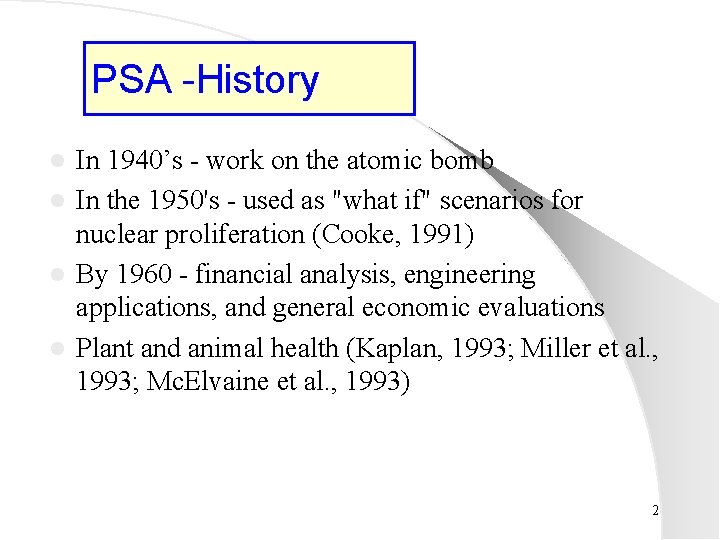

PSA -History In 1940’s - work on the atomic bomb l In the 1950's - used as "what if" scenarios for nuclear proliferation (Cooke, 1991) l By 1960 - financial analysis, engineering applications, and general economic evaluations l Plant and animal health (Kaplan, 1993; Miller et al. , 1993; Mc. Elvaine et al. , 1993) l 2

PSA – Risk Triplet 1. What can go wrong? 2. How likely is that to happen? 3. If it does happen, what are the consequences? 3

9 Points PSA Methodology l State the question l Identify the hazard of interest l Develop a scenario tree that outlines the pathway of expected events and all the failure which could occur, culminating the occurrence of the identified hazard 4

9 Points PSA Methodology l Label the scenario tree and assign units l Gather and document evidence l Assign values to the branches of the scenario tree l Perform the calculations to summarize the likelihood of the hazard occurring l Consider risk management options l Prepare a written report 5

Linking PSA to Risk Assessment 6

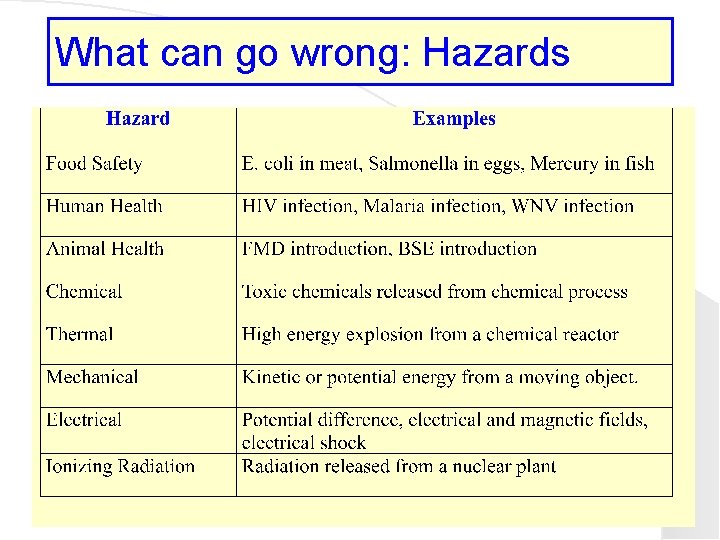

What can go wrong: Hazards 7

What can go wrong - an outcome of hazard exposure? l Given a system or process with defined goals and methodologies: failures of components, procedures, safeguards, and mitigations can occur leading to hazards l To determine what can go wrong: State the question to be investigated l Identify the hazard of interest l Develop a scenario tree l 8

What can go wrong - an outcome of hazard exposure? The process of defining a possible scenarios that lead to outcomes or events of interest, is called Scenario Analysis l The graphic depiction of all events, successes and failures of safeguards, procedures, and components that lead to outcomes of hazard exposure is called an Event Tree, Scenario Tree, or Risk Pathway Tree l 9

What can go wrong - example Semen used in artificial insemination can be a means of exporting disease l You are importing semen from Europe l Is the semen that you receive infected? l In Europe: – Herds are selected – Boars are selected from the herds – Semen is collected from the boars – The semen is then sent to you 10

Scenario Tree, Event Tree Infected Semen Collected ? Is infected semen collected? Yes Semen Infected ? Yes Boar Infected ? No Yes Semen Infected ? No Herd Infected ? Yes No Yes Semen Infected ? Boar Infected ? No Yes No Semen Infected ? No 11

Simplified Scenario Tree/Event Tree Infected Semen Collected ? Is infected semen collected? Yes Semen Infected ? Yes No Boar Infected ? No Yes Semen Infected ? Herd Infected ? No No Boar Infected ? No Semen Infected ? No 12

Risk Triplet What can go wrong ? 2. How likely is that to happen? 3. If it does happen, what are the consequences? 1. 13

2. How likely is that to happen? l A scenario tree has been developed to depict what can go wrong or right l The next step is to quantify how likely it is for the hazard depicted in the scenario/event tree to occur 14

2. How likely is that to happen? Identify the specific question to be answered: What is the probability of imported sperm from one animal being infected? l What is the probability of imported sperm from at least 1 animal being infected? l l In order to answer these questions, we need to assign probabilities to the branches of each node in the tree 15

Pictorial representation of probability: Event Tree A = Herd infected B = Boar infected, given herd infected C = Semen infected, given herd and boar infected p = P(C) Semen Infected ? p = P(B) Boar Infected ? p = P(A) Y N N Y Semen Infected ? p = P(A)*[1 -P(B)]*0 = 0 Y N p = 1 p = 0 Boar Infected ? p = 1 - [1 - P(A)*P(B)*P(C)]n p = P(A)*P(B)*[1 -P(C)] p = 0 p = 1 -P(B) N Y p = 1 -P(C) Herd Infected ? p = 1 -P(A) p = P(A)*P(B)*P(C) Y Semen Infected ? N Semen Infected ? p = P(A)*[1 -P(B)] p = [1 -P(A)]*0*0 = 0 Y N p = 0 p = [1 -P(A)]*0*0 = 0 p = [1 -P(A)]*1*0 = 0 Y N p = 1 p = [1 -P(A)]*1*116 = 1 -P(A)

Pictorial representation of probability: Risk Pathway Tree-no Mitigations A = Herd infected B = Boar infected, given herd infected C = Semen infected, given herd and boar infected Initiating Event: Decision to collect Sperm from boars for Export Boars Per Year from which Sperm is collected for Export F N Is the Herd the boar is picked from Infected ? Y p = P(A) N Is the Boar Infected ? Y Y No Risk p = P(B) N Is the Semen Infected ? No Risk p = P(C) Infected Semen Exported to the USA Prob. Imported semen from a boar is infected: Prob. Imported Semen from at least 1 boar is infected: Frequency of importing infected semen: p = P(A)*P(B)*P(C) p = 1 - [1 - P(A)*P(B)*P(C)]n f = F*P(A)*P(B)*P(C) 17

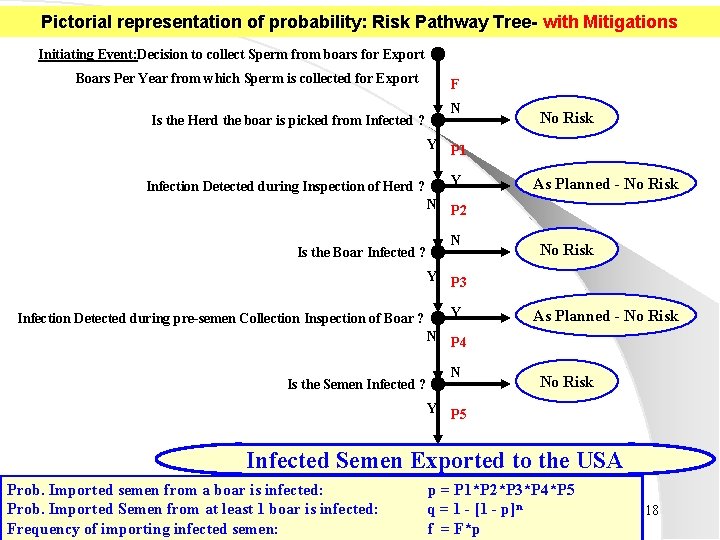

Pictorial representation of probability: Risk Pathway Tree- with Mitigations Initiating Event: Decision to collect Sperm from boars for Export Boars Per Year from which Sperm is collected for Export F N Is the Herd the boar is picked from Infected ? Y P 1 Y Infection Detected during Inspection of Herd ? N Y As Planned - No Risk P 4 N Is the Semen Infected ? No Risk P 3 Y Infection Detected during pre-semen Collection Inspection of Boar ? As Planned - No Risk P 2 N Is the Boar Infected ? No Risk P 5 Infected Semen Exported to the USA Prob. Imported semen from a boar is infected: Prob. Imported Semen from at least 1 boar is infected: Frequency of importing infected semen: p = P 1*P 2*P 3*P 4*P 5 q = 1 - [1 - p]n f = F*p 18

Evidence Gathering – – Label & Identify each parameter of the tree F, Number of boars per year from which sperm is collected for export P 1, Probability that the herd the boar is picked from is infected P 2, Probability that infection is detected during inspection of the infected herd from which the boar is picked P 3, Probability that a boar is infected, given that it is from an infected herd that was not detected at inspection 19

Evidence Gathering – P 4, Probability that Infection is detected in an infected boar prior to semen collection, given that it is from an infected herd that was not detected at inspection – P 5, Probability that the semen of an infected boar is infected, given that infection was not detected in the boar prior to semen collection, and given that it is from an infected herd that was not detected at inspection 20

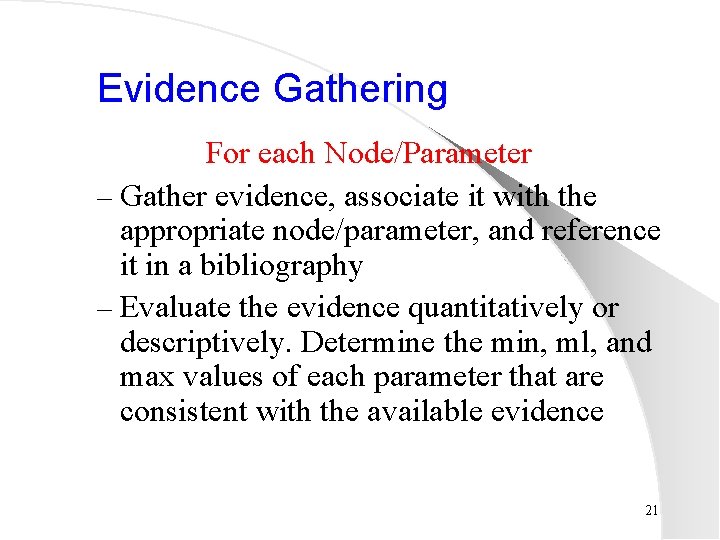

Evidence Gathering For each Node/Parameter – Gather evidence, associate it with the appropriate node/parameter, and reference it in a bibliography – Evaluate the evidence quantitatively or descriptively. Determine the min, ml, and max values of each parameter that are consistent with the available evidence 21

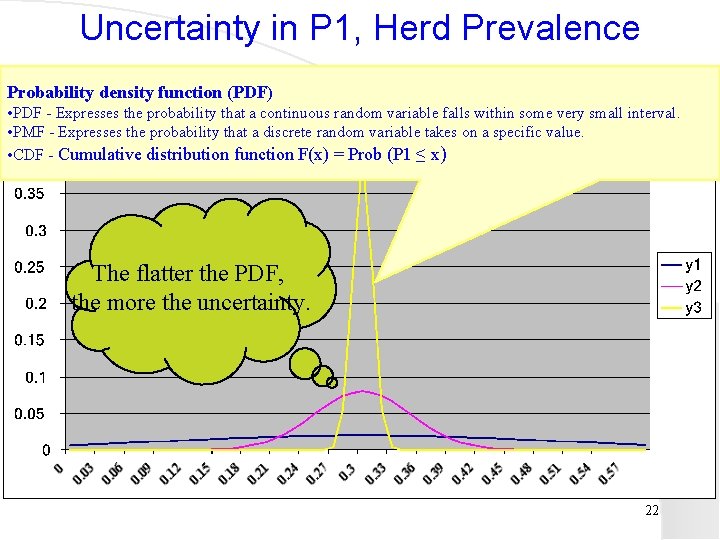

Uncertainty in P 1, Herd Prevalence Probability density function (PDF) • PDF - Expresses the probability that a continuous random variable falls within some very small interval. • PMF - Expresses the probability that a discrete random variable takes on a specific value. • CDF - Cumulative distribution function F(x) = Prob (P 1 ≤ x) The flatter the PDF, the more the uncertainty. 22

Monte Carlo Simulation • A computer based methodology that uses statistical sampling techniques in obtaining a probabilistic approximation to the solution of a mathematical equation or model Symbol MIN ML MAX PDF P 1 P 2 P 3 P 4 Result p=P 1*P 2*P 3*P 4*P 5 or q = 1 - (1 -p)n 23

Risk Triplet 1. What can go wrong that? 2. How likely is that to happen? 3. If it does happen, what are the consequences? 24

Pictorial representation of probability: Risk Pathway Tree-with Mitigations Initiating Event: Decision to collect Sperm from boars for Export Boars Per Year from which Sperm is collected for Export F N Is the Herd the boar is picked from Infected ? Y P 1 Y Infection Detected during Inspection of Herd ? N Y As Planned - No Risk P 4 N Is the Semen Infected ? No Risk P 3 Y Infection Detected during pre-semen Collection Inspection of Boar ? As Planned - No Risk P 2 N Is the Boar Infected ? No Risk P 5 Infected Semen Exported to the USA Prob. Imported semen from a boar is infected: Prob. Imported Semen from at least 1 boar is infected: Frequency of importing infected semen: p = P 1*P 2*P 3*P 4*P 5 q = 1 - [1 - p] n f = F*p 25

Consequences: Risk Pathway Tree Initiating Event: Use of infected imported sperm Infected units of semen Per Year F 1 N Does Sow get infected ? Y No Risk P 6 Infection Caused in Sows Initiating Event: Infected Sows give birth Infected sows giving birth Per Year F 3 N Does newborn get infected ? Y No Risk P 7 Infection Caused in Newborns Frequency of Infection caused in sows, or in newborns: k = F 2*P 6 + F 3*P 7 26

Conclusion l Risk Assessment Model: – allow the quantification of risk and uncertainty – help to identify gaps in knowledge, thereby defining data needs – help to standardize approaches l Risk Assessment: should be transparent, flexible, documented, and consistent l The assessment should effectively communicate the insights that it reveals 27
