Pro SAFE S 3300 Gigabit Stackable Smart Switch
Pro. SAFE S 3300 Gigabit Stackable Smart Switch Delivering advanced, resilient smart managed access connectivity for Series SMBs Speaker name 5 th Oct 2014
IT should enhance, not disrupt organisations MORE LAN traffic Video, Vo. IP, Virtualisation Mobility Cloud Convergence Headaches Devices Io. T 10/100 Capex / Opex Costs 24 x 7 Private Gb. E Management Security Hybrid 10 GBE…… Support Public 2
Technology: A key SMB growth enabler ‘Must be…… Reliable 3 $$ ABC Affordable Easy to use
Gigabit Stackable Smart Switch Series New Affordable, value based ‘virtual’ smart stacking solution Pro. SAFE Smart Stacking GS 7 xx. TS/TPS Affordable, performance based ‘virtual’ smart stacking solution Pro. SAFE S 3300 Series 4
Range Diversity / Customer Choice Stackable Smart Switch Feature L 2+ Smart Advanced switch 1 True Stacking Standalone Smart Switch Standard Smart Switch Pro. SAFE Plus Switch Entry Level, Basic Features 1 Very Cost-effective 1 Advanced L 2+ Features 2 Static Routing, Security 3 IPv 6 Support 2 Static Routing 3 Advanced L 2+ Features 4 IPv 6 Support If you need: - Static Route, Stacking, More port counts Then DGS-1500 is the right choice for you 2 VLAN and Qo. S 3 IGMP, LAG and etc. 4 Web Management P r i c e * Support in Q 1/2012 5
Pro. SAFE S 3300 Stackable Smart series Addresses growing SMBs’ Needs Cost-Efficient 10 G connection to Servers, Storages a Stackable for improved up-time, high resiliency, expandability and ease-of-m Po. E+ on every port on Po. E mo 6
“You back up your storage, what about your switched network? ” 7
Pro. SAFE S 3300 Gigabit Stackable Smart Switch Series + Stackable Smart series designed to provide SMBs with an advanced scalable, high performance and resilient networking solution without the complexity of Big IT Pro. SAFE S 3300 Smart Gigabit Stackable Series 8 + Upgrade path from standalone Smart Managed switching + Browser based L 2+ management + Virtually stack up to 6 units + Choice of 4 models • 24 or 48 port Po. E+ • 24 or 48 port Non Po. E + Dedicated 10 Gb. E as standard • 2 x dedicated 10 GBase-T for uplinks / stacking • 2 x dedicated SFP+ for uplinks / stacking

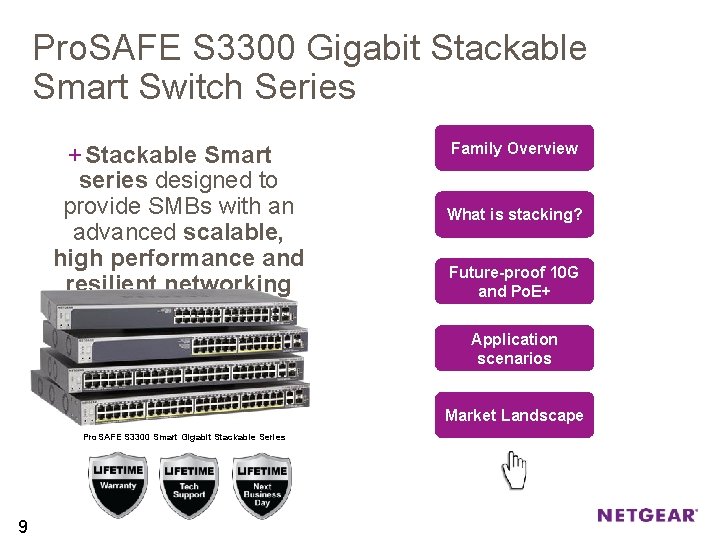

Pro. SAFE S 3300 Gigabit Stackable Smart Switch Series + Stackable Smart series designed to provide SMBs with an advanced scalable, high performance and resilient networking solution without the complexity of Big IT Family Overview What is stacking? Future-proof 10 G and Po. E+ Application scenarios Market Landscape Pro. SAFE S 3300 Smart Gigabit Stackable Series 9

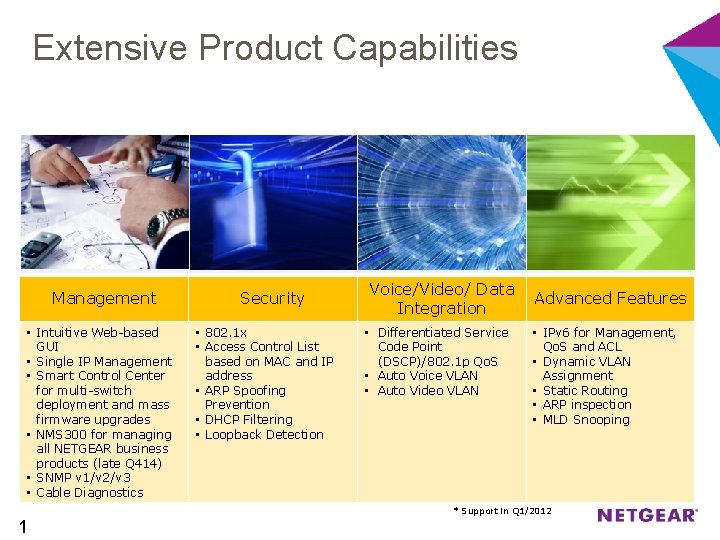

Extensive Product Capabilities Management • Intuitive Web-based GUI • Single IP Management • Smart Control Center for multi-switch deployment and mass firmware upgrades • NMS 300 for managing all NETGEAR business products (late Q 414) • SNMP v 1/v 2/v 3 • Cable Diagnostics Security • 802. 1 x • Access Control List based on MAC and IP address • ARP Spoofing Prevention • DHCP Filtering • Loopback Detection Voice/Video/ Data Integration • Differentiated Service Code Point (DSCP)/802. 1 p Qo. S • Auto Voice VLAN • Auto Video VLAN Advanced Features • IPv 6 for Management, Qo. S and ACL • Dynamic VLAN Assignment • Static Routing • ARP inspection • MLD Snooping * Support in Q 1/2012 1
Pro. SAFE S 3300 models Series Model L 2+ IPv 6 S 3300 -28 X ACL/Qo. S: Yes S 3300 -28 X-Po. E+ S 3300 Po. E+ Ports SKU - 24 x 1 G RJ 45 2 dedicated SFP+ 2 dedicated 10 GBase-T GS 728 TX-100 NES AJS PRS 24 24 x 1 G RJ 45 2 dedicated SFP+ 2 dedicated 10 GBase-T GS 728 TXP-100 NES AJS PRS - 48 x 1 G RJ 45 2 dedicated SFP+ 2 dedicated 10 GBase-T GS 752 TX-100 NES AJS PRS 48 48 x 1 G RJ 45 2 dedicated SFP+ 2 dedicated 10 GBase-T GS 752 TXP-100 NES AJS PRS Yes S 3300 -52 X-Po. E+ Routing: No Feature and Benefit Detail 1 Warranty LIFETIME
What is Stacking? + Nominally a feature on Fully Managed Switches + A stacked system supports MANY units per stack + Whole stack acts like a single unit + 1 configuration / Multiple power supplies 1 + Stack continues to operate even if one Ring Topology Chain Topology
Isn’t Link Aggregation enough? (LAG 802. 3 ad) + Several physical ports are joined together to be one logical port with a higher bandwidth – defined by IEEE 802. 3 ad industry standard + Many terms: Trunks, Aggregated Links, Link Aggregation Groups - LAG, Channel-group and Port-channeling + Capacity – Increased link capacity by parallel connection of several links between two end points + Redundancy – should one cable fail the link 1 is still up LAG 1
Stacking benefits Switches Hot Dedicated Support swappable distance can ports besolution for ‘stacked’ / remote stacking with connectivity; high-speed needs don’t across shared waste multi-sites bandwidth valuable user ports Intelligent and Easy Highly Management: Redundant: Highly Scalable: Stack-master maintains In Ring configuration Stack-master configuration, automatically Single for stack IP all. Address members synchronizes stays Failover alive management in case software mechanism of for failure forentire all inof case members any stack master switch fa
Why 10 Gb. E connectivity makes sense “Network expansion costs are a major impediment to the growth of small-to-medium size businesses. Sometimes companies are forced to throw away equipment to accommodate growth” said Tim Zimmerman, Research Director at Gartner. “Growing businesses welcome a solution that easily and quickly expands network capacity without any interruption in business operations. ”
10 Gb. E as standard + Flexible deployment 1 • 2 x dedicated 10 G SFP+ for uplink / stacking • 2 x dedicated 10 G Base-T for uplink / stacking
Why Po. E+ makes sense TODAY Po. E/Po. E+ FUTURE? IP Camera Laptop PC/Mac Printer Easier deployments NAS Smartphone Tablet Cost Savings IP Phone Access Point Switch Flexibility Door Controller
Expandable Po. E+ + S 3300 -28 X-Po. E+ and S 3300 -52 X-Po. E+ + Full Po. E+ on every port with RPS 4000 1 • 24 port expandable: 195 W to 740 W • 48 port expandable: 390 W to 1, 440 W
Target Customer Applications + Use at center of SMB / Aggregation + Edge Switch for Medium-size Business One Single Network via Remote Stacking Voice/Camera/WLAN AP Ready Network Surveillance Gb. E Servers GS 108 PE Internet Pro. SAFE S 330028 X-Po. E+ Firewall (SRX 5308) Off-site Continuous Data Protection Ready. NAS 500 Series Printers Tablet 1 11 n Dual band Wireless Access Point (WNDAP 360) Sales Call Centre 10 G Uplink Po. E Gb. E VLAN 2 Gb. E Customer Services Call Centre
Hardware Feature and Benefit Hardware Features Benefits Dedicated SFP+ / 10 GBase-T ports provides uplinks without Dedicated 10 G uplinks with flexibility sacrificing any downlinks. These ports provide not only to choose either Copper or Fiber redundant uplinks, but can also build dual redundancy by a trunked uplink with link aggregation and failover All ports Po. E+ capable, supporting up to 30 w per port with Po. E+ Support on all ports RPS. Future-proof, can add Po. E+ PD devices at a pace and (Po. E models only) time to suit customer needs Energy Efficient Ethernet Maximum power reduction for ongoing operational cost (IEEE 802. 3 az) savings Improved network reliability and resiliency. Easy Stacking with up to 6 switches and management and great Solution for virtualized 40 G bi-directional bandwidth environments. For quick and convenient firmware updates USB port 2
Software Feature and Benefit Software Features Benefits IP phones and PCs can authenticate on the same port but under different VLAN assignment Dynamic VLAN Assignment policies. Users are free to move around and enjoy the same level of network access regardless of their physical location in the network A simple way to provide segmentation of the network with internal routing through the switch Static Routing – reserving the router for external traffic routing only, making the entire network more efficient. Comprehensive IPv 6 Support for Build current network with future in mind. Ensure investment protection and a smooth management, ACL and Qo. S migration to IPv 6 -based network without switch replacement Facilitate fast receiver joins and leaves for multicast streams. Save cost and improve network IGMP Snooping and MLD Snooping efficiency by ensuring multicast traffic only reaches designated receivers without the need of an extra Multicast router. Ensure IP address allocation integrity by allowing only clients with specific IP/MAC addresses DHCP Snooping to have access to the network. Dual firmware image and dual configuration file for transparent firmware updates / Dual firmware Images and configuration files configuration changes with minimum service interruption Prevents a class of man-in-the-middle attacks, where an unfriendly station intercepts traffic Dynamic ARP Inspection for other stations by poisoning the ARP caches of its unsuspecting neighbors. Eliminates the replication of the same multicast traffic for every VLAN by sending multicast Multicast VLAN Registration traffic only on to the dedicated multicast/source VLAN, resulting in more efficient utilization of network bandwidth. Extends Ethernet usage to support multimedia streaming. The Ethernet AVB standard adds EAV (Ethernet Audio/Video Bridging) Qo. S (Quality of Service) features like time-synchronized low latency streaming services and bandwidth reservation to make it possible to carry professional quality audio and video signals support* on a standard Ethernet line. 2
Key Feature-1: Static Routing + Now Available on All Smart Switches with more than 10 Ports. • When would you use static routing instead of dynamic routing? ü When there are very few routes ü When you want to conserve bandwidth ü When you don’t anticipate to change routes so often • When would you prefer dynamic routing? 2 ü When you have many routes ü When you need to have the best “route” automatically decided for you ü When you need your network to adapt to logical network topology
Key Feature-2: Dynamic VLAN Assignment + Dynamic VLANs are used to provide membership based on the MAC address of an end user device. + Dynamic VLAN will help to keep consistent access policy across network. + Users are mobile and can get consistent access right regardless of his/her physical location. 2
Key Feature-3: EAV (Ethernet Audio/Video) + The Ethernet Audio/Video Bridging standard makes it possible to carry audio and video signals on a standard Ethernet line. + EAV is available via software license on GS 716 Tv 3/GS 724 Tv 4/GS 748 Tv 5 and Pro. SAFE S 3300 series • What does EAV Provide? 2 • ü Inherent time-synchronization of endpoints: ü Reservation-based bandwidth management ensures Qo. S for media traffic ü Supports a heterogeneous network for media, control, and legacy traffic ü Future extensibility for any isochronous data: audio, video, telemetry, etc. Primary markets
Competitive Landscape and Pricing Value for money leadership Street Price (24 -port non-Po. E) 2 Netgear S 3300 HP 1920 -24 G $619 $426 Zyxel XGS 1910 D-Link DGS-1510 $549. 99 $775. 99
Pro. SAFE S 3300 Smart Stackable Series Comparisons NETGEAR Zy. XEL HP CISCO D-LINK S 3300 Series XGS Series 1920 Series 220 SG Series DGS-1510 Smart Pro Series Port density 24/48 8/16/24/48 Stacking Yes, True Stacking Single IP management only No Yes IPv 6 ACL/Qo. S Yes Yes Yes 10 G SFP+ 10 GBASE-T SFP+ No No SFP+ Po. E / Po. E+ Versions Yes / Yes No Yes / Yes (not on every port) L 2+ Yes No Yes Yes Warranty LIFETIME Limited Lifetime 2
Pro. SAFE: Diversity and flexibility Pro. SAFE S 3300 Pro. SAFE M 4100 Series Rackmount L 2+ 2 nd gen Smart Web Management Desktop and Rackmount Smart Standalone Rackmount and Desktop Po. E / Po. E+ on all ports (RPS 4000 Weboption) Management Rackmount and Desktop CLI + Web Management Po. E / Po. E+ options Web Management Qo. S, VLAN, Bandwidth managem Po. E/ Po. E+ options Stacking up to 6 units Qo. S, VLAN, Bandwidth management 1 G Uplinks Qo. S, VLAN, Bandwidth management LIFETIME Warranty 10 Gbpsstandard stacking 10 Gb. E Uplink / stacking connectivity LIFETIME NBD / Technical Chat RPS/EPS options LIFETIME Warranty 40 Gbps stacking backplane LIFETIME NBD / Technical Chat LIFETIME Warranty LIFETIME NBD / Technical Chat 2
Pro. SAFE Stackable “Step up” path Pro. SAFE M 5300 Rack-mount L 2+ L 3 License upgrade path Rack-mount CLI + Web Management Po. E+ EPS/ RPS 4000 options Qo. S, VLAN, Bandwidth management Stacking up to 8 units 10 Gb. E Uplink connectivity options 80 Gbps stacking backplane LIFETIME Warranty LIFETIME NBD / Technical Chat 2 Pro. SAFE S 3300 Rack-mount Web Management Po. E / Po. E+ on all ports (RPS 4000 option) Qo. S, VLAN, Bandwidth management Stacking up to 6 units 10 Gb. E Uplink / stacking connectivity standard 40 Gbps stacking backplane LIFETIME Warranty LIFETIME NBD / Technical Chat
Pro. SAFE S 3300 Series: In conclusion + ‘Advanced, resilient Gigabit access’ solution + Virtually manage up to 6 switches as one logical entity to support up to 288 Gigabit access ports + 2 x 10 GBase-T and 2 x SFP+ dedicated ports – included as standard and unrivalled + 40 Gbps stacking backplane + Only smart switch platform to offer truly affordable Gigabit with 10 G Copper, 10 G fiber and full Po. E+ capability on 24 and 48 port configurations + Lifetime warranty, Lifetime NBD and industry leading Lifetime online 24/7 technical chat. 2
Smarter products for today's business. Today’s business climate consists of real-time communications, cloud-based applications, and a dynamic mobile workforce. Organisations must stay connected to remain one step ahead. From reliable switches, to secure Wi. Fi, to application aware firewalls, to network storage that continuously protects data, NETGEAR business products are purposely designed to meet the needs of this ever changing environment and keep organisations connected and moving at full speed. 3
