PRO 700 Intercom System An overview of the

PRO 700 Intercom System An overview of the PRO 700 Intercom System Brought to you by:

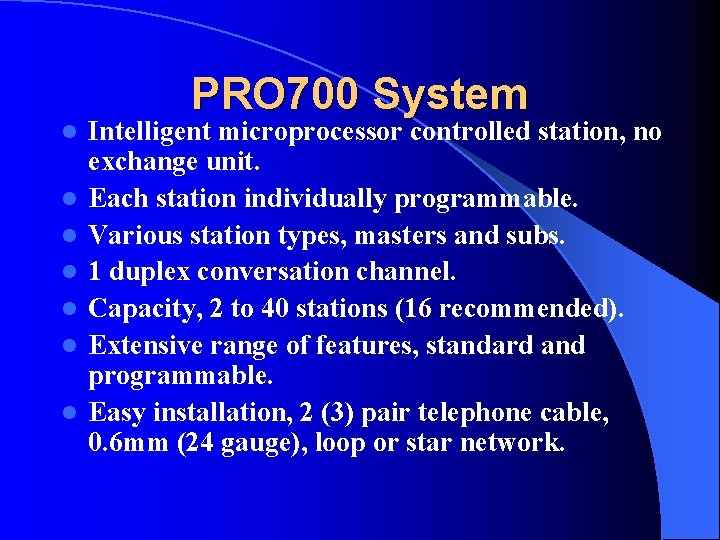

l l l l PRO 700 System Intelligent microprocessor controlled station, no exchange unit. Each station individually programmable. Various station types, masters and subs. 1 duplex conversation channel. Capacity, 2 to 40 stations (16 recommended). Extensive range of features, standard and programmable. Easy installation, 2 (3) pair telephone cable, 0. 6 mm (24 gauge), loop or star network.

PRO 700 System The perfect Intercom for a small business system, private homes, labs, clinics, auto dealers, factories, etc. “The Great Little System”

PRO 700 System Layout

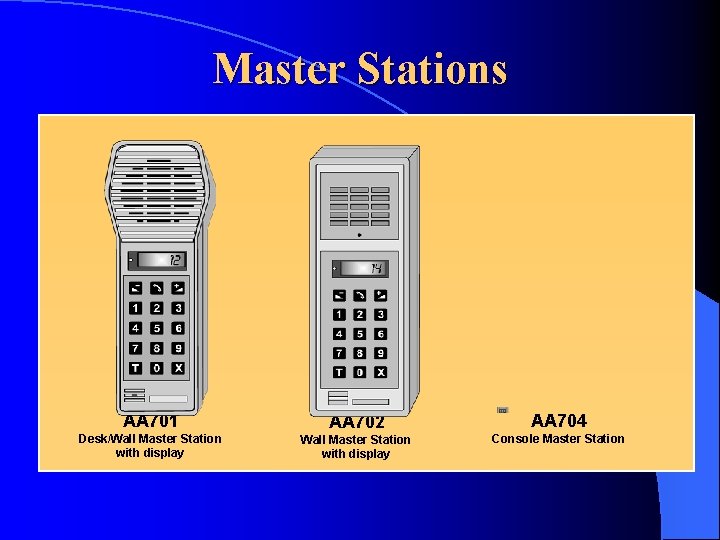

Master Stations AA 701 AA 702 AA 704 Desk/Wall Master Station with display Console Master Station

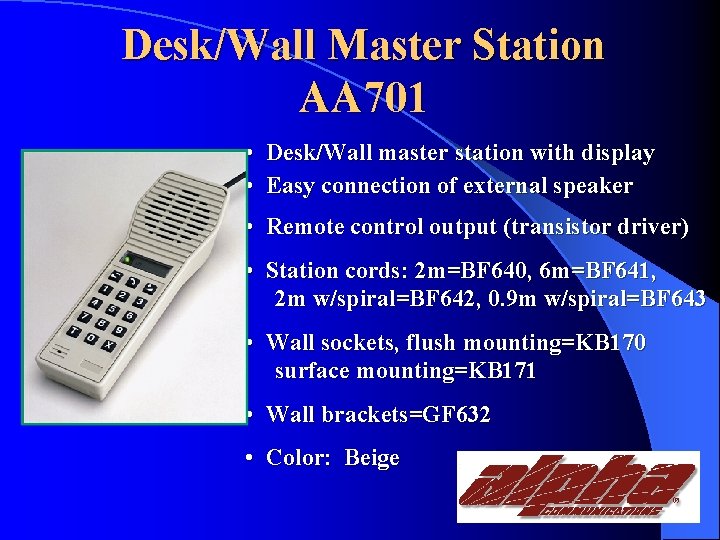

Desk/Wall Master Station AA 701 • Desk/Wall master station with display • Easy connection of external speaker • Remote control output (transistor driver) • Station cords: 2 m=BF 640, 6 m=BF 641, 2 m w/spiral=BF 642, 0. 9 m w/spiral=BF 643 • Wall sockets, flush mounting=KB 170 surface mounting=KB 171 • Wall brackets=GF 632 • Color: Beige

Wall Master Station AA 702 • Surface mounting station with display • Easy connection of external speaker • Remote control output (transistor driver) • Frame for flush mounting: BF 636 • Back box for flush mounting: BF 635 • Color: Beige

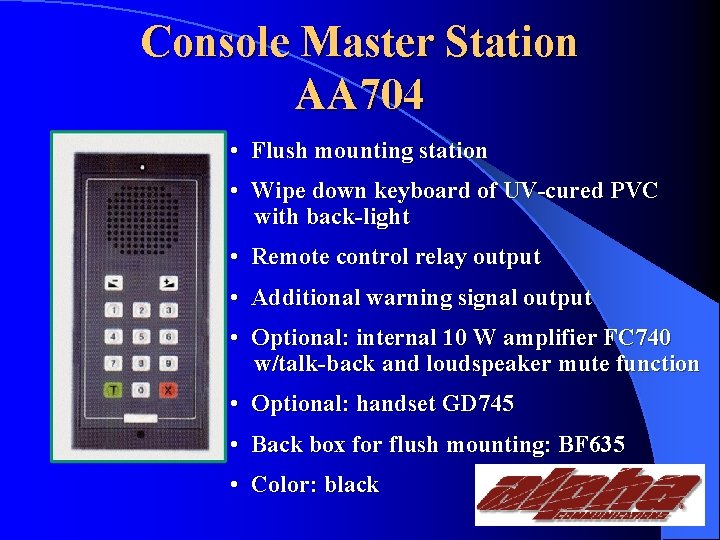

Console Master Station AA 704 • Flush mounting station • Wipe down keyboard of UV-cured PVC with back-light • Remote control relay output • Additional warning signal output • Optional: internal 10 W amplifier FC 740 w/talk-back and loudspeaker mute function • Optional: handset GD 745 • Back box for flush mounting: BF 635 • Color: black

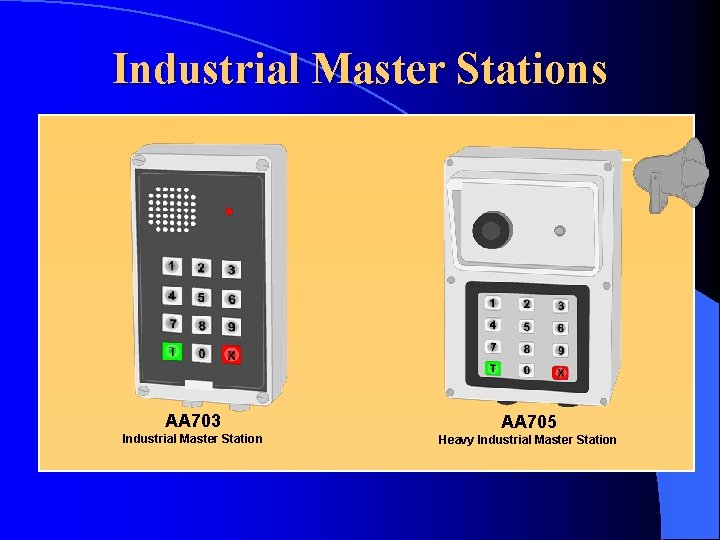

Industrial Master Stations AA 703 AA 705 Industrial Master Station Heavy Industrial Master Station

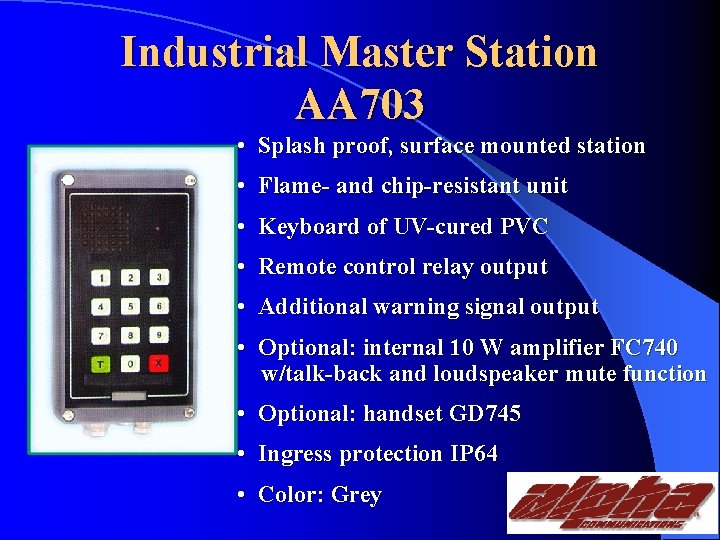

Industrial Master Station AA 703 • Splash proof, surface mounted station • Flame- and chip-resistant unit • Keyboard of UV-cured PVC • Remote control relay output • Additional warning signal output • Optional: internal 10 W amplifier FC 740 w/talk-back and loudspeaker mute function • Optional: handset GD 745 • Ingress protection IP 64 • Color: Grey

Heavy Industrial Master Station AA 705 • Splash proof, surface mounted station • Noise canceling microphone, requires external loudspeaker • Flame- and chip-resistant unit • Remote control relay output • Additional warning signal output • Optional: internal 10 W amplifier FC 740 w/talk-back and loudspeaker mute function • Optional: handset GD 745 • Ingress protection IP 64 • Color: Orange

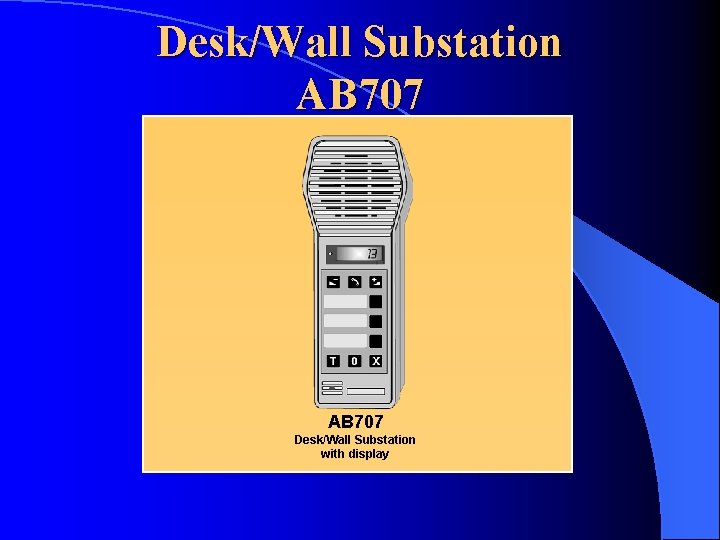

Desk/Wall Substation AB 707 Desk/Wall Substation with display

Desk/Wall Substation AB 707 • Desk/Wall substation with display • Direct dialing numbers: 11, 12, 13 and 21, program distribution (96), 23 • Easy connection of external speaker • Remote control output (transistor) • Station cords: 2 m=BF 640, 6 m=BF 641, 2 m w/spiral=BF 642, 0. 9 m w/spiral=BF 643 • Wall sockets, flush mounting=KB 170 surface mounting=KB 171 • Wall bracket =GF 632 • Color: Beige

Wall Substations AB 709 AB 708 BC 735 Wall Substation w/direct dialing Wall Substation w/Doorbell function Multipurpose Unit

Wall Substation AB 709 • Surface mounting station • Direct dialing numbers: 11, 12, 13 and 21, program distribution (96), 23 • Easy connection of external speaker • Remote control output (transistor driver) • Frame for flush mounting: BF 636 • Back box for flush mounting: BF 635 • Color: Beige

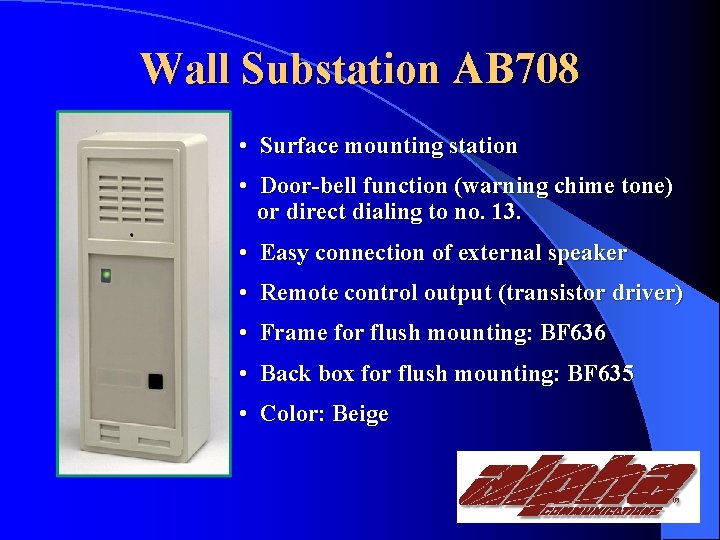

Wall Substation AB 708 • Surface mounting station • Door-bell function (warning chime tone) or direct dialing to no. 13. • Easy connection of external speaker • Remote control output (transistor driver) • Frame for flush mounting: BF 636 • Back box for flush mounting: BF 635 • Color: Beige

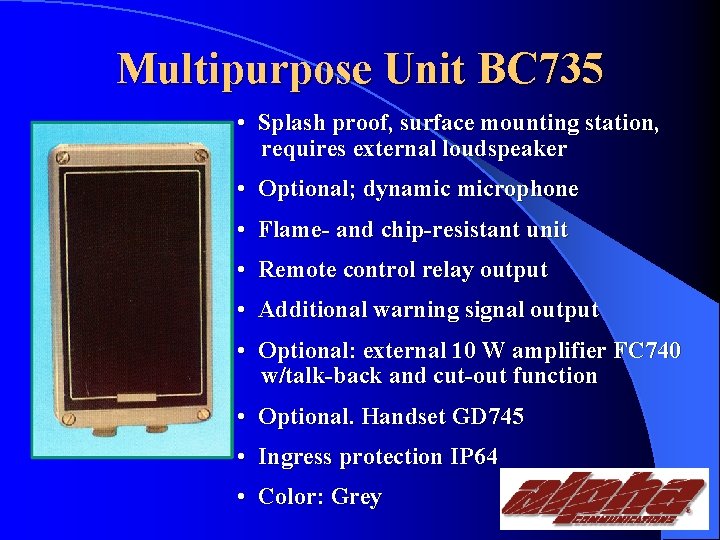

Multipurpose Unit BC 735 • Splash proof, surface mounting station, requires external loudspeaker • Optional; dynamic microphone • Flame- and chip-resistant unit • Remote control relay output • Additional warning signal output • Optional: external 10 W amplifier FC 740 w/talk-back and cut-out function • Optional. Handset GD 745 • Ingress protection IP 64 • Color: Grey

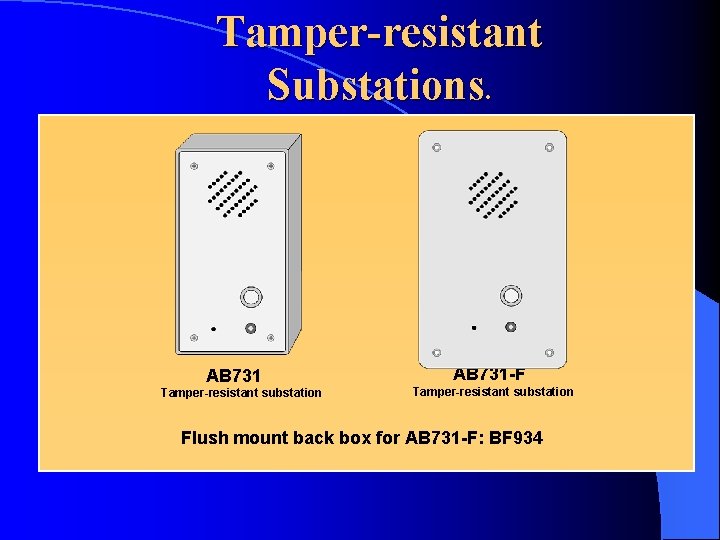

Tamper-resistant Substations. AB 731 Tamper-resistant substation AB 731 -F Tamper-resistant substation Flush mount back box for AB 731 -F: BF 934

Tamper-resistant Substation AB 731 • Stainless steel, 2 mm front plate • One call button for direct dialing • Remote output function (relay output) • External alarm input • Output for external lamp • Local reset function • Programmable for CAS function • Optional Sound Detection Module DP 996

Tamper-resistant Substation AB 731 -F • Stainless steel, 3 mm front plate • One call button for direct dialing • Remote output function (relay output) • External alarm input • Output for external lamp • Local reset function • Programmable for CAS function • Back box for flush mounting: BF 934 • Optional Sound Detection Module DP 996

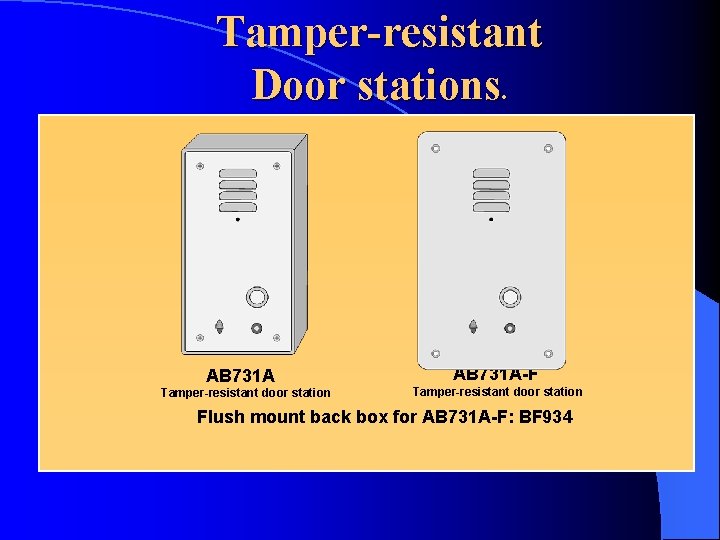

Tamper-resistant Door stations. AB 731 A Tamper-resistant door station AB 731 A-F Tamper-resistant door station Flush mount back box for AB 731 A-F: BF 934

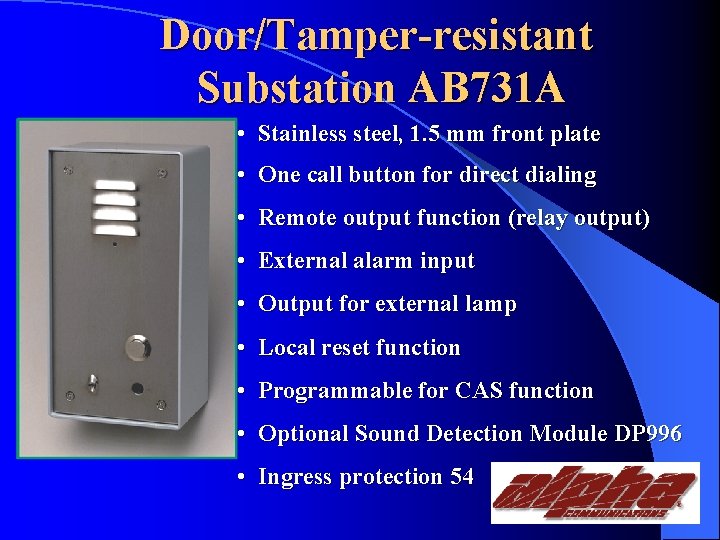

Door/Tamper-resistant Substation AB 731 A • Stainless steel, 1. 5 mm front plate • One call button for direct dialing • Remote output function (relay output) • External alarm input • Output for external lamp • Local reset function • Programmable for CAS function • Optional Sound Detection Module DP 996 • Ingress protection 54

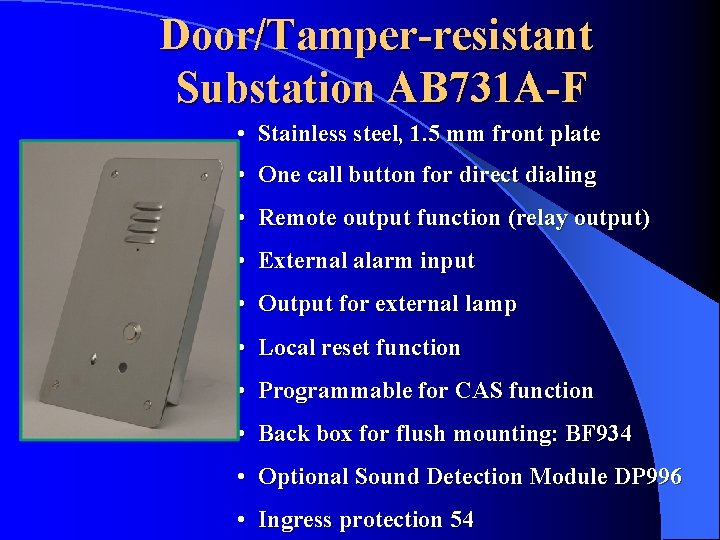

Door/Tamper-resistant Substation AB 731 A-F • Stainless steel, 1. 5 mm front plate • One call button for direct dialing • Remote output function (relay output) • External alarm input • Output for external lamp • Local reset function • Programmable for CAS function • Back box for flush mounting: BF 934 • Optional Sound Detection Module DP 996 • Ingress protection 54

Optional Equipment Handset GH 745 • Handset for the following stations: AA 703, AA 704, AA 705 and BC 735. • Cradle switch with Accept and Cancellation function • T-button, press-to-talk

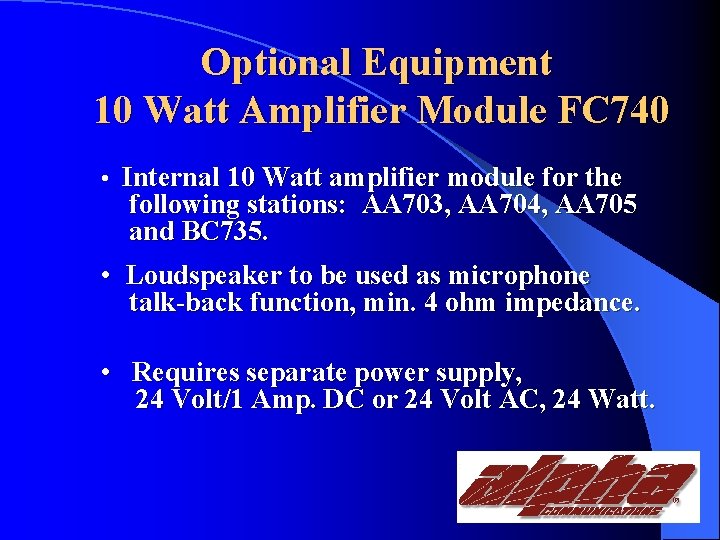

Optional Equipment 10 Watt Amplifier Module FC 740 • Internal 10 Watt amplifier module for the following stations: AA 703, AA 704, AA 705 and BC 735. • Loudspeaker to be used as microphone talk-back function, min. 4 ohm impedance. • Requires separate power supply, 24 Volt/1 Amp. DC or 24 Volt AC, 24 Watt.

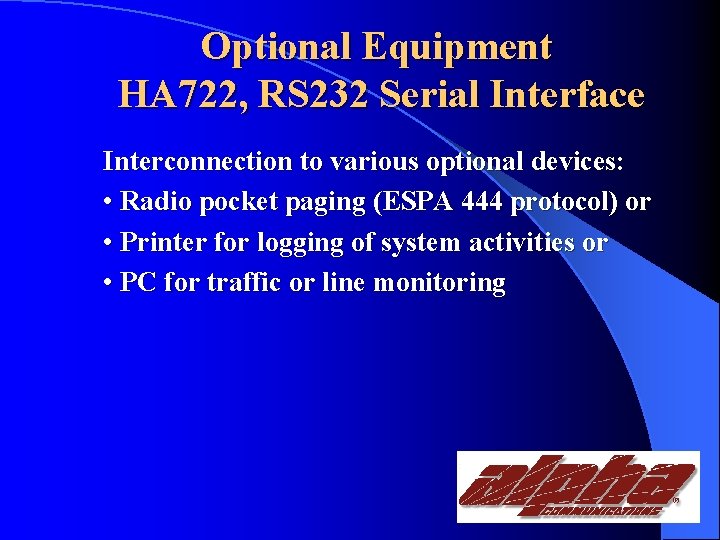

Optional Equipment HA 722, RS 232 Serial Interface Interconnection to various optional devices: • Radio pocket paging (ESPA 444 protocol) or • Printer for logging of system activities or • PC for traffic or line monitoring

Optional Equipment GH 750, Multipurpose Relay Unit with 8 relays for control of various devices: • Camera switch • Remote control • Audio recording

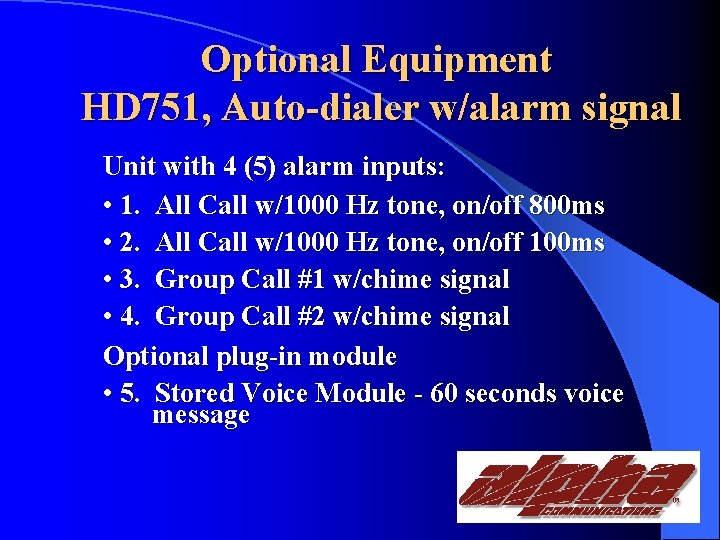

Optional Equipment HD 751, Auto-dialer w/alarm signal Unit with 4 (5) alarm inputs: • 1. All Call w/1000 Hz tone, on/off 800 ms • 2. All Call w/1000 Hz tone, on/off 100 ms • 3. Group Call #1 w/chime signal • 4. Group Call #2 w/chime signal Optional plug-in module • 5. Stored Voice Module - 60 seconds voice message

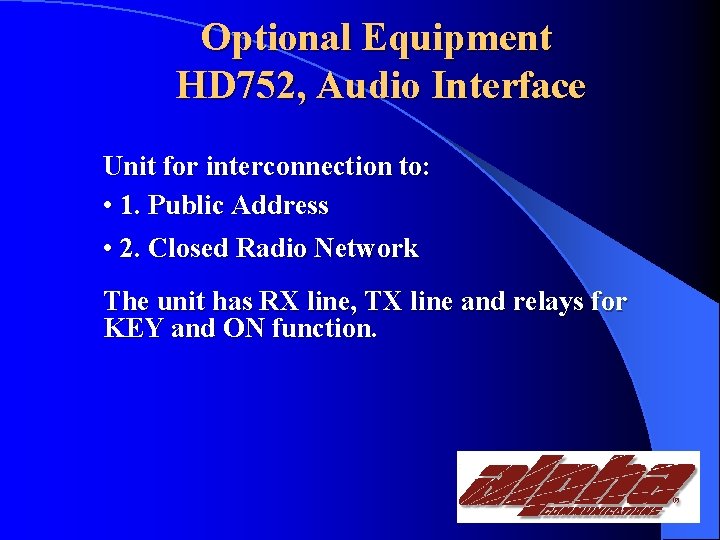

Optional Equipment HD 752, Audio Interface Unit for interconnection to: • 1. Public Address • 2. Closed Radio Network The unit has RX line, TX line and relays for KEY and ON function.

PRO 700 System Features Excellent sound reproduction LED indicator 1. Blank: link free 2. Red: busy link 3. Green: station in conversation 4. Green flashing: call reply 5. Orange: privacy or absence LCD display, 8 digits Key for soft-speaking confidential use Volume control, volume up/down Standard international keypad for digit dialing X-key for canceling calls Microphone cutout T-key for manual control of speech direction (simplex) Sensitive microphone

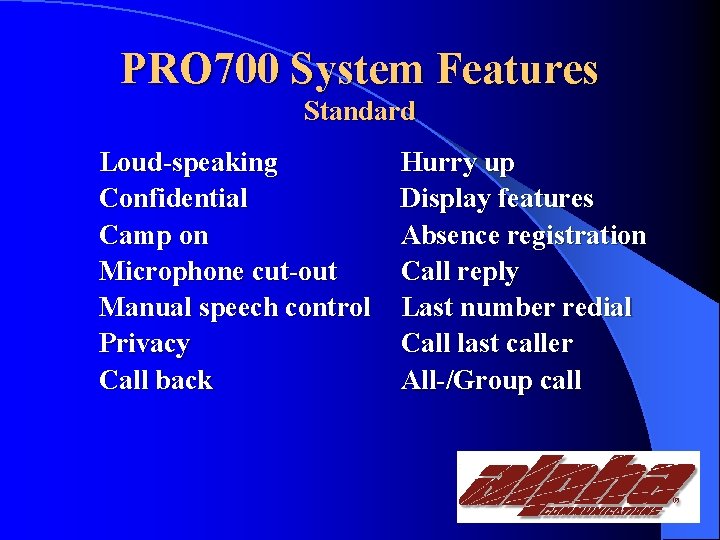

PRO 700 System Features Standard Loud-speaking Confidential Camp on Microphone cut-out Manual speech control Privacy Call back Hurry up Display features Absence registration Call reply Last number redial Call last caller All-/Group call

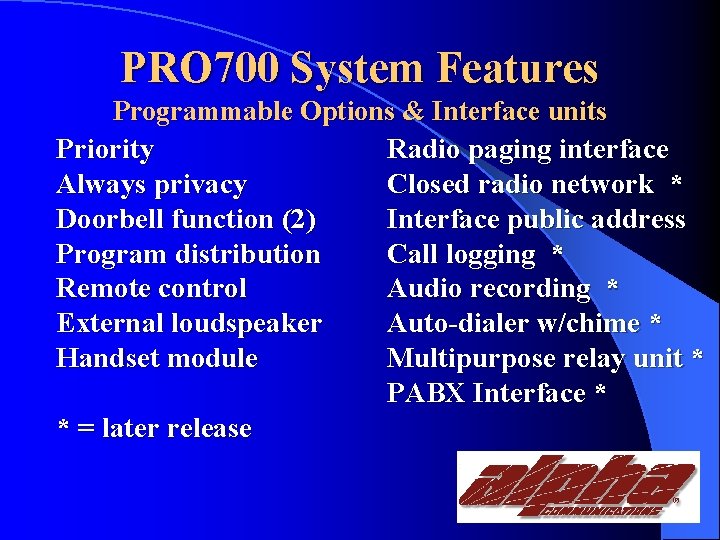

PRO 700 System Features Programmable Options & Interface units Priority Radio paging interface Always privacy Closed radio network * Doorbell function (2) Interface public address Program distribution Call logging * Remote control Audio recording * External loudspeaker Auto-dialer w/chime * Handset module Multipurpose relay unit * PABX Interface * * = later release

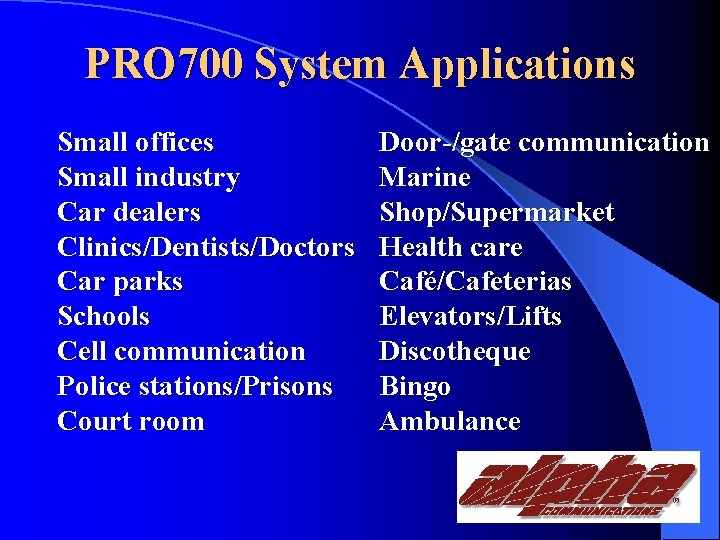

PRO 700 System Applications Small offices Small industry Car dealers Clinics/Dentists/Doctors Car parks Schools Cell communication Police stations/Prisons Court room Door-/gate communication Marine Shop/Supermarket Health care Café/Cafeterias Elevators/Lifts Discotheque Bingo Ambulance

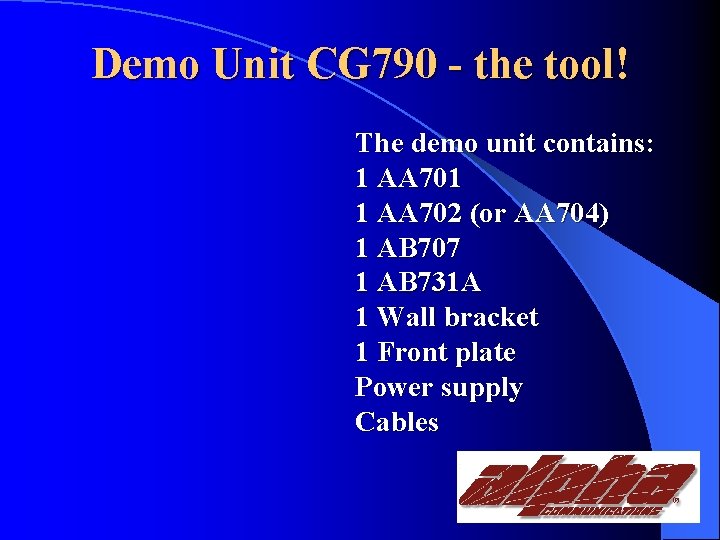

Demo Unit CG 790 - the tool! The demo unit contains: 1 AA 701 1 AA 702 (or AA 704) 1 AB 707 1 AB 731 A 1 Wall bracket 1 Front plate Power supply Cables

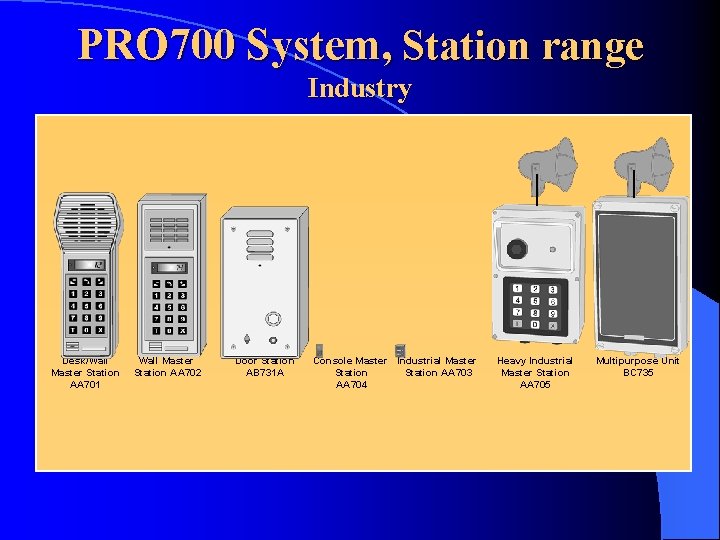

PRO 700 System, Station range Industry Desk/Wall Master Station AA 701 Wall Master Station AA 702 Door Station AB 731 A Console Master Industrial Master Station AA 703 AA 704 Heavy Industrial Master Station AA 705 Multipurpose Unit BC 735

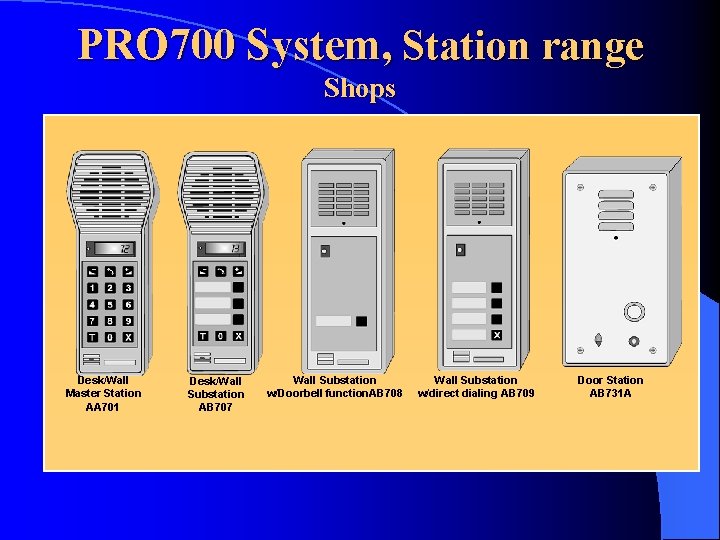

PRO 700 System, Station range Shops Desk/Wall Master Station AA 701 Desk/Wall Substation AB 707 Wall Substation w/Doorbell function. AB 708 Wall Substation w/direct dialing AB 709 Door Station AB 731 A

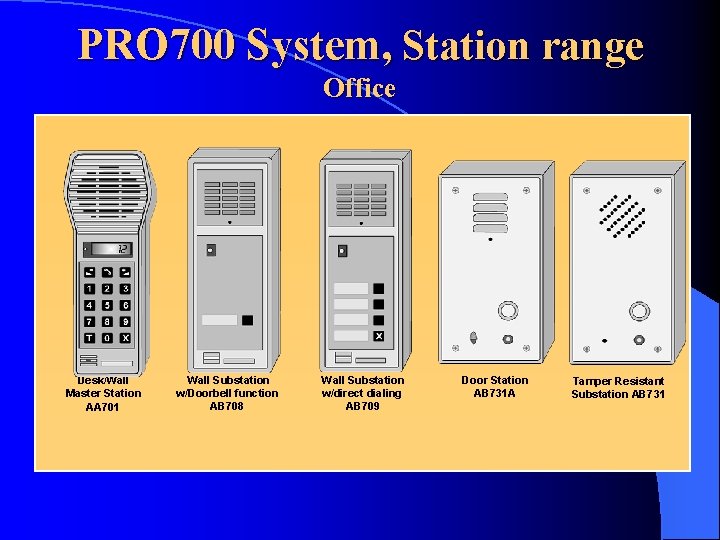

PRO 700 System, Station range Office Desk/Wall Master Station AA 701 Wall Substation w/Doorbell function AB 708 Wall Substation w/direct dialing AB 709 Door Station AB 731 A Tamper Resistant Substation AB 731

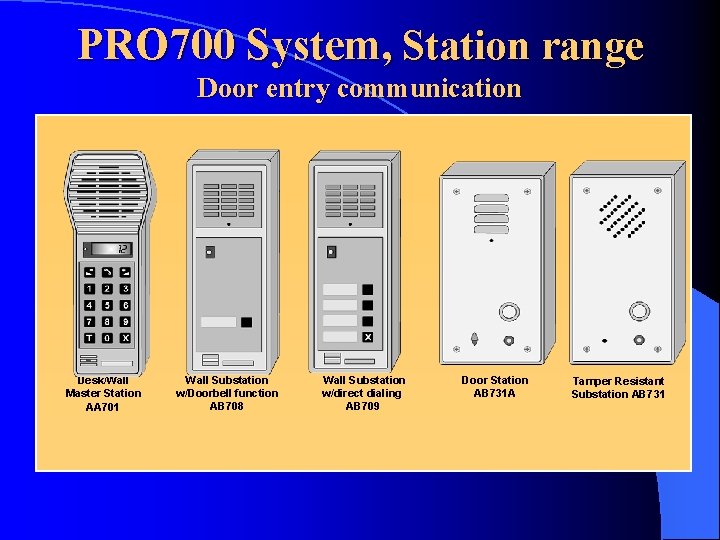

PRO 700 System, Station range Door entry communication Desk/Wall Master Station AA 701 Wall Substation w/Doorbell function AB 708 Wall Substation w/direct dialing AB 709 Door Station AB 731 A Tamper Resistant Substation AB 731

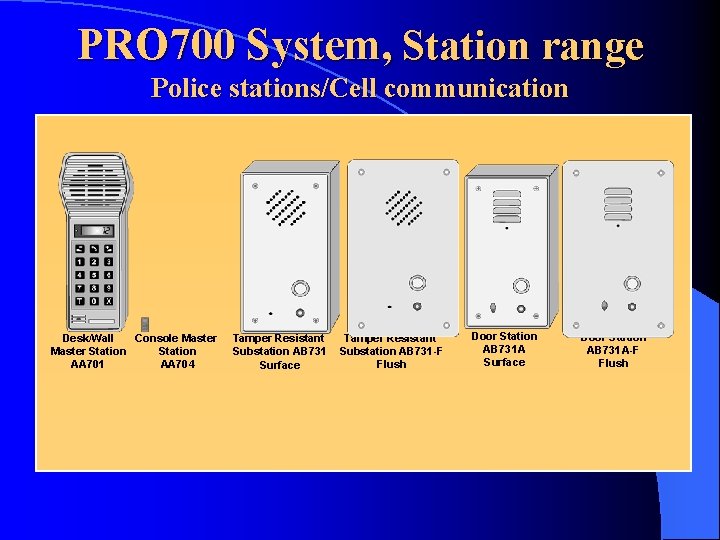

PRO 700 System, Station range Police stations/Cell communication Desk/Wall Console Master Station AA 701 AA 704 Tamper Resistant Substation AB 731 Surface Tamper Resistant Substation AB 731 -F Flush Door Station AB 731 A Surface Door Station AB 731 A-F Flush

PRO 700 System, Station range Marine Desk/Wall Master Station AA 701 Console Master Station AA 704 Industrial Master Station AA 703 Multipurpose Unit BC 735

Call Annunciation System • Up to 39 CAS call-in stations can queue up • Up to 3 CAS operator stations with display info. • Remote output (door opener)/remote input (alarm) • Silent call/Audio monitoring • Remote dial • Remote program distribution • Optional Sound Detection Module DP 996 • Local output (lamp function)/Local reset • Printer logging/Audio recording/Radio paging interface (later release)

Call Annunciation System

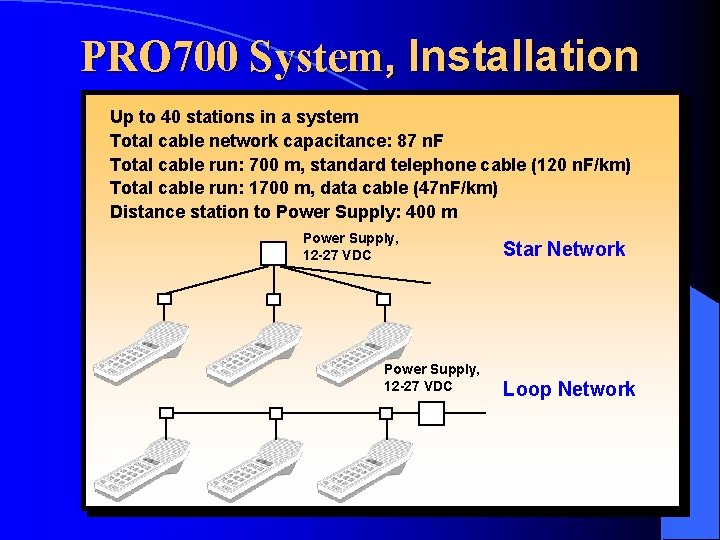

PRO 700 System, Installation Up to 40 stations in a system Total cable network capacitance: 87 n. F Total cable run: 700 m, standard telephone cable (120 n. F/km) Total cable run: 1700 m, data cable (47 n. F/km) Distance station to Power Supply: 400 m Power Supply, 12 -27 VDC Star Network Loop Network

PRO 700 System, Installation of various Pro 700 stations

PRO 700 System, Programming Call numbers and individual features are easily programmed by use of switches and jumpers in the various stations and interface units.

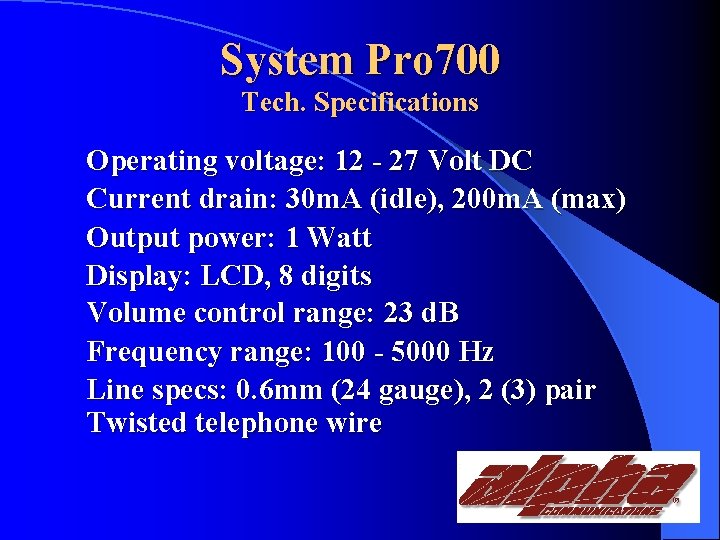

System Pro 700 Tech. Specifications Operating voltage: 12 - 27 Volt DC Current drain: 30 m. A (idle), 200 m. A (max) Output power: 1 Watt Display: LCD, 8 digits Volume control range: 23 d. B Frequency range: 100 - 5000 Hz Line specs: 0. 6 mm (24 gauge), 2 (3) pair Twisted telephone wire

At Alpha Communications® we are here for your communication needs. Please feel free to contact us anytime with any questions or system requirements you may have. We can be reached TOLL-FREE at 1 -800 -666 -4800. We are also on-line at www. intercoms. com and info@alpha-comm. com. We look forward to hearing from you and helping you with your next system. Copyright© 2000 Alpha Communications® All Rights Reserved
