Priority Queues And the amazing binary heap Chapter
Priority Queues And the amazing binary heap Chapter 20 in DS&PS Chapter 6 in DS&AA
Definition • Priority queue has interface: – insert, find. Min, and delete. Min – or: insert, find. Max, delete. Max • Priority queue is not a search tree • Implementation: Binary heap • Heap property: – every node is smaller than its sons. • Note: X is larger than Y means key of X is larger than key for Y.
Representation • array A of objects: start at A[1]. – Growable, if necessary. – Better: bound on number of elements • Recall: – root is at A[1] – father of A[i] is A[i/2] (integer division) – Left son of A[i] is A[2*i] – Right son of A[i] is A[2*i+1] • Efficient in storage and manipulation • Machines like to multiple and divide by 2. – Just a shift.
Insertion Example • Data: 8, 5, 12, 7, 4 • Algorithm: (see example in text) – 1. Insert at end – 2. bubble up I. e. repeat: if father larger, swap • Easier if you draw the tree 8 -> [8] 5 -> [8, 5] whoops: swap: [5, 8] 12 -> [5, 8, 12] fine 7 -> [5, 8, 12, 7] swap with father: [5, 7, 12, 8] 4 --> [5, 7, 12, 8, 4] --> [5, 4, 12, 8, 7] -->[4, 5, 12, 8, 7]
Insert • Insert(object) … bubble up A[first. Free] = object int i = first. Free while ( A[i] < A[i/2] & i>0) swap A[i] and A[i/2] i = i/2 … recall i/2 holds father node end while • O(d) = O(log n) • Why is heap property maintained?
Deletion Example • Heap = [4, 5, 12, 7, 11, 15, 18, 10] • Idea: 1. put last element into first position 2. fix by swapping downwards (percolate) • Easier with picture • delete min: [-, 5, 12, 7, 11, 15, 18, 10] [10, 5, 12, 7, 11, 15, 18] … not a heap [5, 10, 12, 7, 11, 15, 18] … again [5, 7, 12, 10, 11, 15, 18] … done • You should be able to do this.
Delete. Min • Idea: put last element at root and swap down as needed • int i = 1 • repeat // Percolate left = 2*i right = 2*i+1 if ( A[left] < A[i]) swap A[left] and A[i]; i = left else if (A[right] < A[i]) swap A[right] and A[i]; i = right • until i > size/2 why? • O(log n) • Why is heap property maintained?
Heap. Sort • Simple verions 1. Put the n elements in Heap – time: log n per element, or O(n log n) 2. Pull out min element n times – time: log n per element or O(nlogn) • Yields O(n log n) algorithm • But – faster to use a build. Heap routine • Some authors use heap for best elements • Bounded heap to keep track of top n – top 100 applicants from a pool of 10000+ – here better to use min. Heap. Why?
Example of Buildheap • Idea: for each non-leaf in deepest to shallowest order percolate (swap down) • Data: [5, 4, 7, 3, 8, 2, 1] -> [5, 4, 1, 3, 8, 2, 7] -> [5, 3, 1, 4, 8, 2, 7] -> [1, 3, 5, 4, 8, 2, 7] -> [1, 3, 2, 4, 8, 5, 7] Done. (easier to see with trees) Easier to do than to analyze
Build. Heap (Fix. Heap) • • Faster Heap. Sort: replace step 1. O(N) algorithm for making a heap Starts with all elements. Algorithm: for (int i = size/2; i>0; i--) percolate. Down(i) • That’s it! • When done, a heap. Why? • How much work? – Bounded by sum of heights of all nodes

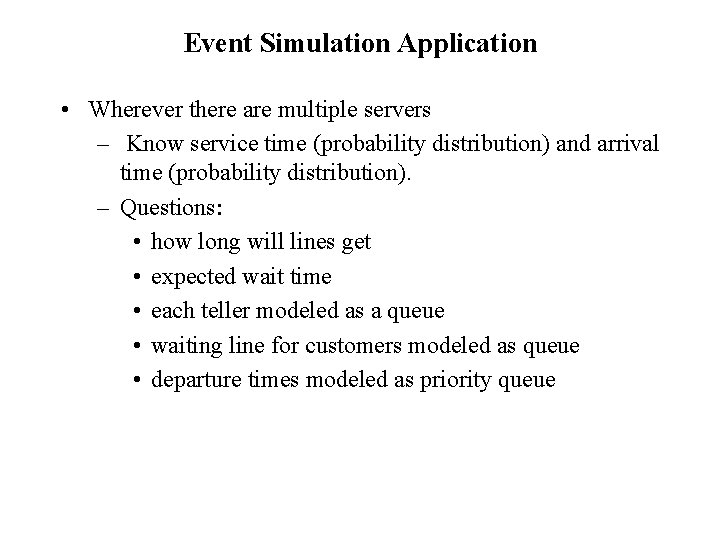

Event Simulation Application • Wherever there are multiple servers – Know service time (probability distribution) and arrival time (probability distribution). – Questions: • how long will lines get • expected wait time • each teller modeled as a queue • waiting line for customers modeled as queue • departure times modeled as priority queue
Analysis I • Theorem: A perfect binary tree of height H has 2^(H+1)-1 nodes and the sum of heights of all nodes is N-H-1, i. e. O(N). • Proof: use induction on H – recall: 1+2+4+…+2^k = 2^(k+1)-1 if H=0 then N = 1 and height sum = 0. Check. • Assume for H = k, ie. – Binary tree of height k has sum = 2^(K+1)-1 -k -1. – Consider Binary tree of height k+1. • Heights of all non-leafs is 1 more than Binary tree of height k. • Number of non-leafs = number of nodes in binary tree of size k, ie. 2^(k+1) -1.
Induction continued Height. Sum(k+1) = Height. Sum(k) +2^(k+1)-1 = 2^(k+1) -k-1 -1 +2^(k+1)-1 = 2^(k+2) - k-2 -1 = N - (k+2) - 1 And that’s the inductive hypothesis. Still not sure: write a (recursive) program to compute Note: height(node) = 1+max(height(node. left), height(node. right))
Analysis II: tree marking • N is size (number of nodes) of tree • for each node n of height h • Darken edges as follows: – go down left one edge, then go right to leaf – darken all edges traversed – darkened edges “counts” height of node • Note: – N-1 edges in tree (all nodes have a father except root) – no edge darkened twice – rightmost path from root to leaf is not darkened (H edges) – sum of darkened = N-1 -H = sum of heights!
D-heaps • • Generalization of 2 -heap or binary heap, but d-arity tree same representation trick works e. g. 3 -arity tree can be stored in locations: 0: root 1, 2, 3 first level 4, 5, 6 for sons of 1; 7, 8 , 9 for sons of 2 etc. Access time is now: O(d *log( d *N)) Representation trick useful for storing trees of fixed arity.
Leftist Heaps • Merge is expensive in ordinary Heaps • Define null path length (npl) of a node as the length of the shortest path from the node to a descendent without 2 children. • A node has the null path length property if the nlp of its left son is greater than or equal to the nlp of its right son. • If every node has the null path length property, then it is a leftist heap. • Leftist heaps tend to be left leaning. • Value? A step toward Skew Heaps.
Skew Heaps • • Splaying again. What is the goal? Skew heaps are self-adjusting leftist heaps. Merge easier to implement. Worst case run time is O(N) Worse case run time for M operations is O(M log N) Amortized time complexity is O( log N). Merge algo: see text
