Principles of the MRI Signal Contrast Mechanisms MR
- Slides: 21
ﻣﺤﺎﺿﺮﺍﺕ ﺍﻟﻔﻴﺰﻳﺎﺀ ﺍﻟﻄﺒﻴﺔ Principles of the MRI Signal Contrast Mechanisms MR Image Formation
Contrast Principles of the MRI Signal MR Image Formation Mechanisms ﺍﻟﻤﺤﺎﺿﺮﺓ ﺍﻟﺘﺎﺳﻌﺔ ﺳﻌﻴﺪ ﺳﻠﻤﺎﻥ ﻛﻤﻮﻥ. ﺍﻋﺪﺍﺩ ﺩ ﻛﻠﻴﺔ ﻣﺪﻳﻨﺔ ﺍﻟﻌﻠﻢ ﺍﻟﺠﺎﻣﻌﺔ ﻗﺴﻢ ﺍﻟﻔﻴﺰﻳﺎﺀ ﺍﻟﻄﺒﻴﺔ– ﺍﻟﻤﺮﺣﻠﺔ ﺍﻟﺮﺍﺑﻌﺔ John Van. Meter, Ph. D. Center for Functional and Molecular Imaging Georgetown University Medical Center

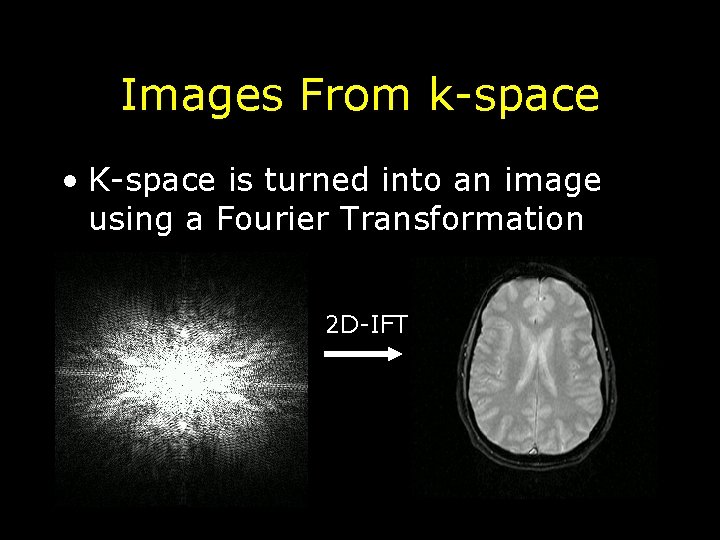

Images From k-space • K-space is turned into an image using a Fourier Transformation 2 D-IFT
Center of k-space 2 D-IFT
Everything Else 2 D-IFT
Full Frequency – Half Phase 2 D-IFT
Selecting a Slice • Again use gradient to modify frequency of the proton’s spin • Slice select gradient is positive on one side of the slice and negative on the other side • At the desired slice location the slice select gradient is zero • Thus, protons in this slice and only this slice will be spinning at the center frequency of the scanner! • If this gradient is on when we apply RF pulse only protons in the slice will be tipped into x-y plane and thus measurable
Slice Select Gradient
Slice Thickness vs Gradient Strength
Slice Orientation
Putting it All Together • Basic Pulse Sequence Diagram
EPI pulse sequence and kspace trajectory
Signal loss due to susceptibility artifacts in GRE EPI images
Magnetic Susceptibility Greater on T 2* than T 2 Images Spin Gradient Echo (T 2)Echo (T 2*) Oxygenated Hemoglobin Deoxygenated Hemoglobin
Effects of field variation upon EPI images
Effects of field variation upon EPI images
Spiral imaging
Susceptibility artifacts in spiral images

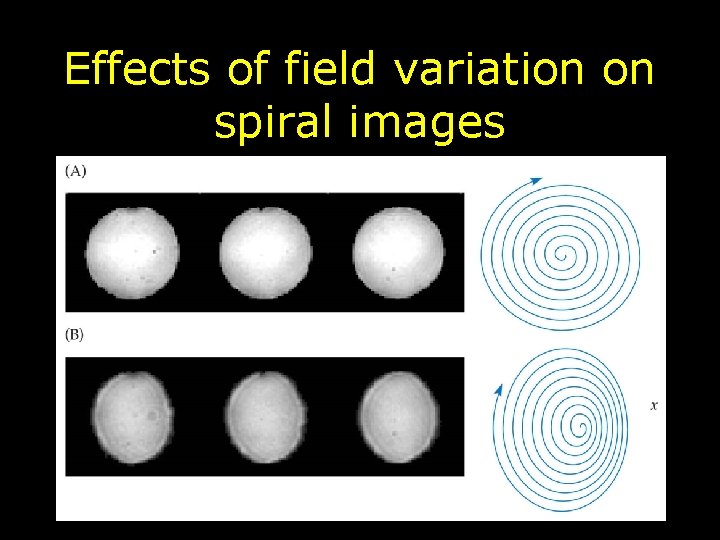

Effects of field variation on spiral images
Effects of field variation on spiral images
Acquisition Matrix Size 64 x 64 Matrix 64 x 128 Matrix Isotropic (square) Anisotropic (oblong) Isotropic (square) Relative SNR = 1 Relative SNR = 0. 5 Relative SNR = 0. 25
