Principles of testing TESTING BASICS Basic principles of

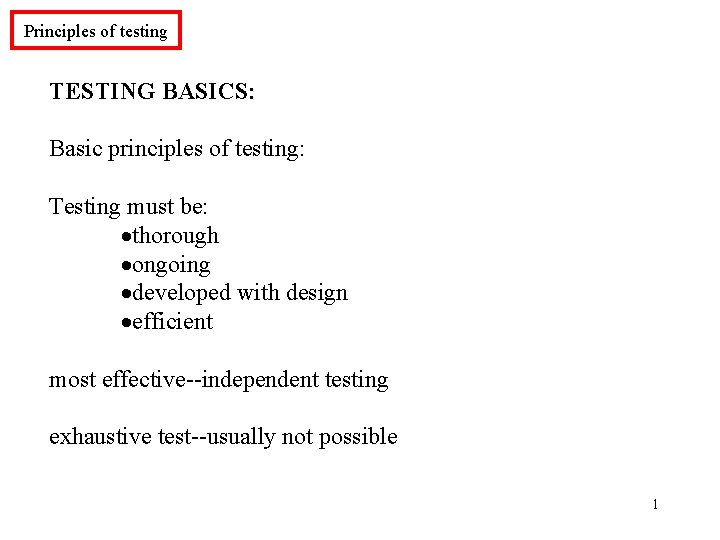

Principles of testing TESTING BASICS: Basic principles of testing: Testing must be: ·thorough ·ongoing ·developed with design ·efficient most effective--independent testing exhaustive test--usually not possible 1

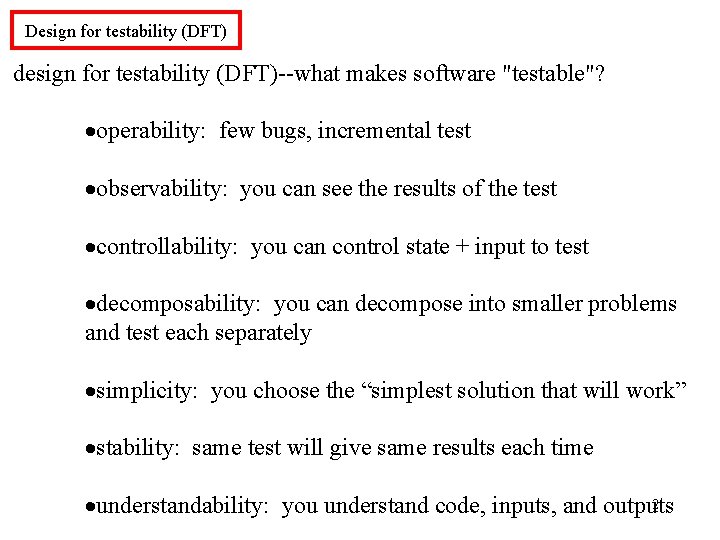

Design for testability (DFT) design for testability (DFT)--what makes software "testable"? ·operability: few bugs, incremental test ·observability: you can see the results of the test ·controllability: you can control state + input to test ·decomposability: you can decompose into smaller problems and test each separately ·simplicity: you choose the “simplest solution that will work” ·stability: same test will give same results each time 2 ·understandability: you understand code, inputs, and outputs

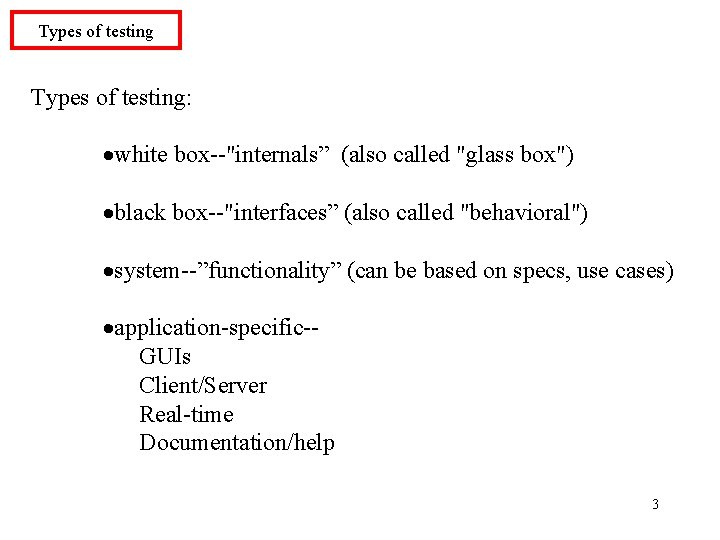

Types of testing: ·white box--"internals” (also called "glass box") ·black box--"interfaces” (also called "behavioral") ·system--”functionality” (can be based on specs, use cases) ·application-specific-GUIs Client/Server Real-time Documentation/help 3

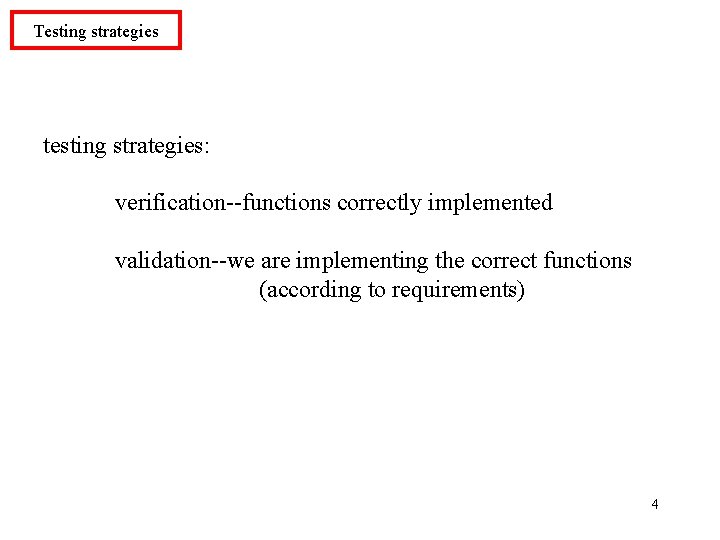

Testing strategies testing strategies: verification--functions correctly implemented validation--we are implementing the correct functions (according to requirements) 4

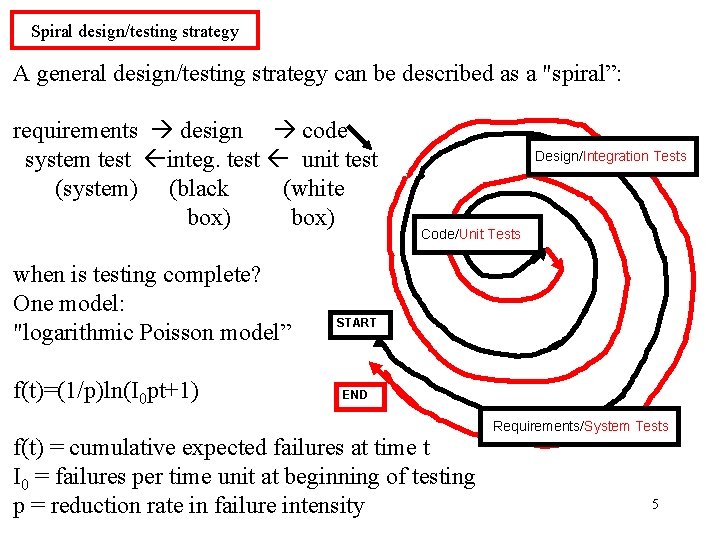

Spiral design/testing strategy A general design/testing strategy can be described as a "spiral”: requirements design code system test integ. test unit test (system) (black (white box) when is testing complete? One model: "logarithmic Poisson model” f(t)=(1/p)ln(I 0 pt+1) Design/Integration Tests Code/Unit Tests START END f(t) = cumulative expected failures at time t I 0 = failures per time unit at beginning of testing p = reduction rate in failure intensity Requirements/System Tests 5
OO testing strategy OO testing: • emphasis is on interfaces • use UML tools to support testing strategies and development of test cases --system tests: use cases; quality measurements --black box tests: ER diagrams, object message diagrams, dataflow and state diagrams --white box tests: class and state diagrams, CRC cards 6

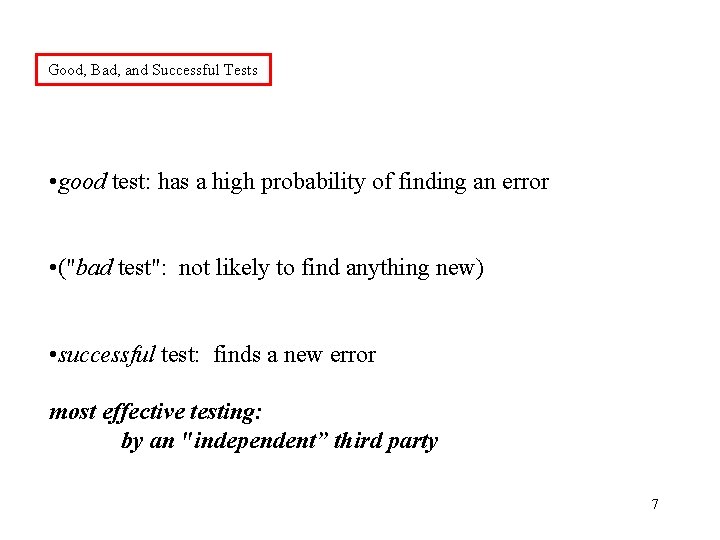

Good, Bad, and Successful Tests • good test: has a high probability of finding an error • ("bad test": not likely to find anything new) • successful test: finds a new error most effective testing: by an "independent” third party 7

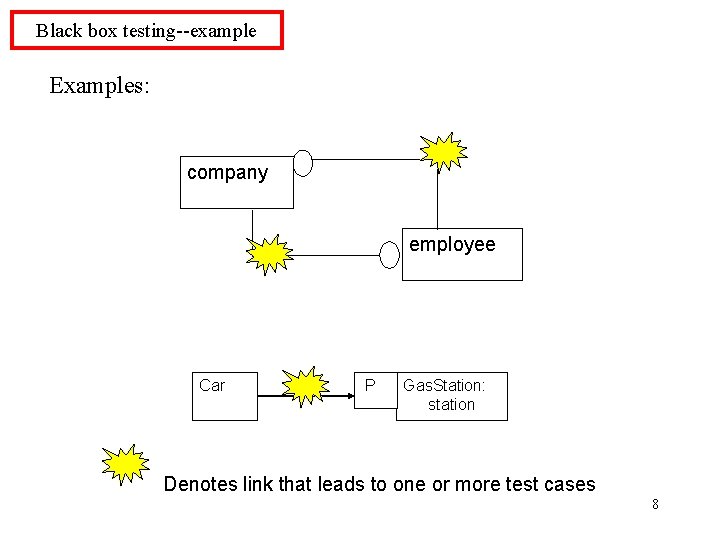

Black box testing--example Examples: company employee Car P Gas. Station: station Denotes link that leads to one or more test cases 8
Black box testing guidelines General guidelines: test BOUNDARIES test output also choose "orthogonal” cases if possible 9

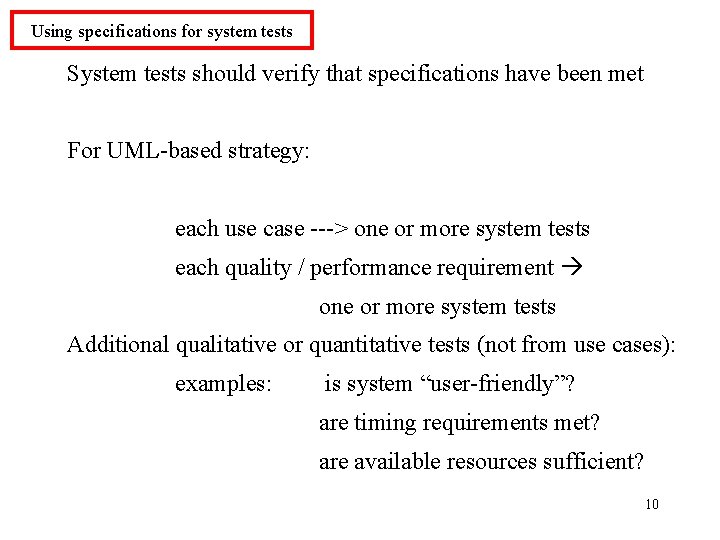

Using specifications for system tests System tests should verify that specifications have been met For UML-based strategy: each use case ---> one or more system tests each quality / performance requirement one or more system tests Additional qualitative or quantitative tests (not from use cases): examples: is system “user-friendly”? are timing requirements met? are available resources sufficient? 10

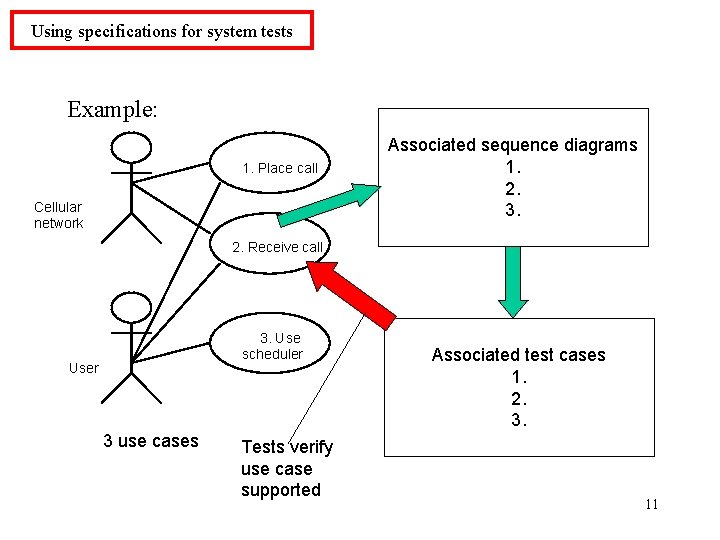

Using specifications for system tests Example: 1. Place call Cellular network Associated sequence diagrams 1. 2. 3. 2. Receive call 3. Use scheduler User 3 use cases Tests verify use case supported Associated test cases 1. 2. 3. 11
