Principles of Programming Languages Lecture 1 Slides by

Principles of Programming Languages Lecture 1 Slides by Daniel Deutch, based on lecture notes by Prof. Mira Balaban

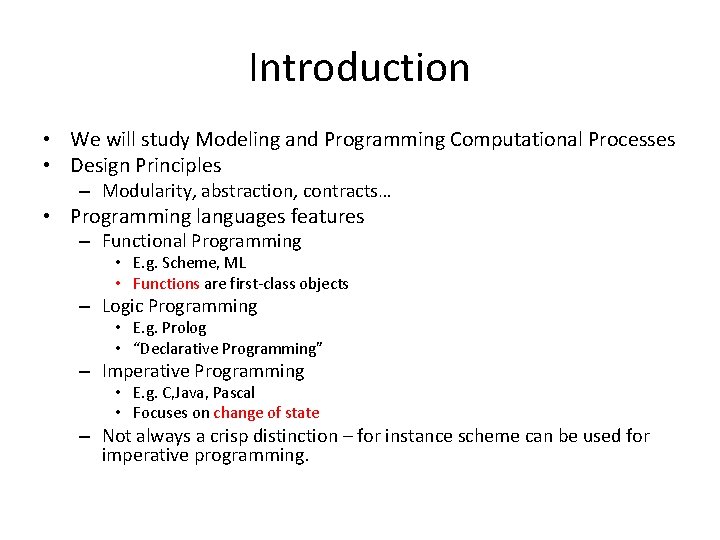

Introduction • We will study Modeling and Programming Computational Processes • Design Principles – Modularity, abstraction, contracts… • Programming languages features – Functional Programming • E. g. Scheme, ML • Functions are first-class objects – Logic Programming • E. g. Prolog • “Declarative Programming” – Imperative Programming • E. g. C, Java, Pascal • Focuses on change of state – Not always a crisp distinction – for instance scheme can be used for imperative programming.

Declarative Knowledge “What is true” 3

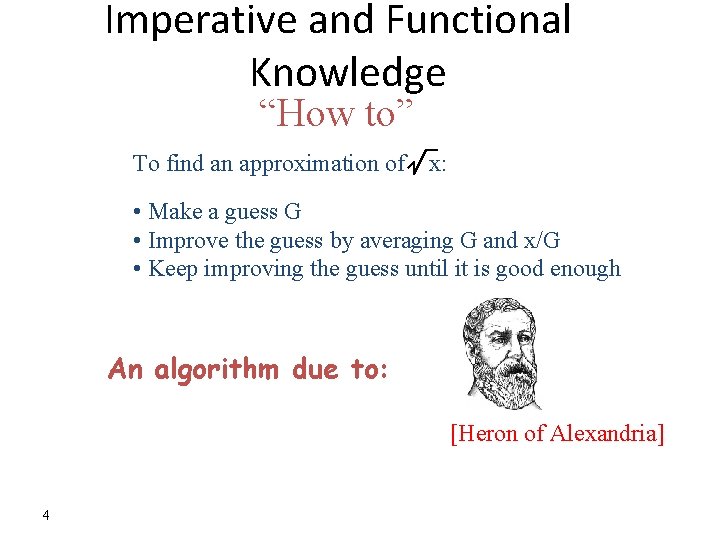

Imperative and Functional Knowledge “How to” To find an approximation of x: • Make a guess G • Improve the guess by averaging G and x/G • Keep improving the guess until it is good enough An algorithm due to: [Heron of Alexandria] 4

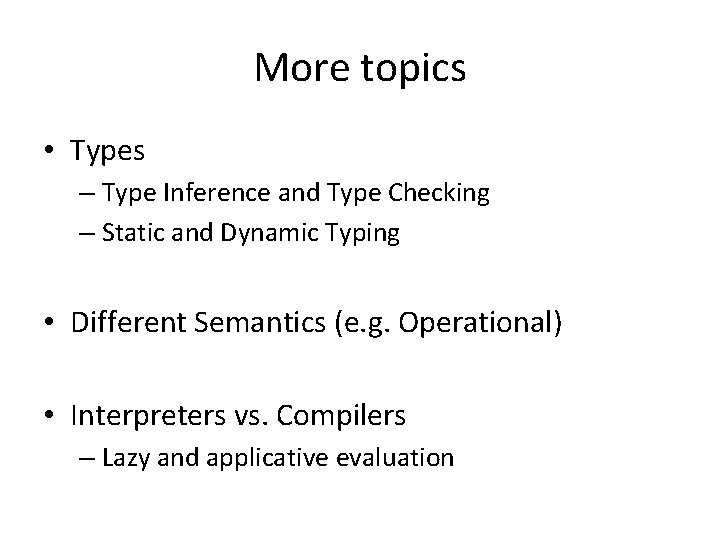

More topics • Types – Type Inference and Type Checking – Static and Dynamic Typing • Different Semantics (e. g. Operational) • Interpreters vs. Compilers – Lazy and applicative evaluation

Languages that will be studied • Scheme – Dynamically Typed – Functions are first-class citizens – Simple (though lots of parenthesis ) and allows to show different programming styles • ML – Statically typed language – Polymorphic types • Prolog – Declarative, Logic programming language • Languages are important, but we will focus on the principles

Administrative Issues • • • Web-site Exercises Mid-term Exam Grade

Use of Slides • Slides are teaching-aids, i. e. by nature incomplete • Compulsory material include everything taught in class, practical sessions as well as compulsory reading if mentioned

Today • Scheme basics – Syntax and Semantics – The interpreter – Expressions, values, types. .

Scheme • LISP = LISt Processing – Invented in 1959 by John Mc. Carthy – Scheme is a dialect of LISP – invented by Gerry Sussman and Guy Steele 10

The Scheme Interpreter • The Read/Evaluate/Print Loop – Read an expression – Compute its value – Print the result – Repeat the above • The (Global) Environment – Mapping of names to values 11 Name score Value 23 total 25 percentage 92

Language Elements Primitives Means of Combination (composites) Means of Abstraction 12 Syntax 23 + * #t, #f (+ 3 17 5) (define score 23) Semantics 23 Primitive Proc (add) Primitive Proc (mult) Boolean Application of proc to arguments Result = 25 Associates score with 23 in environment table

Computing in Scheme ==> 23 Expression whose value is a procedure 23 ==> (+ 3 17 5) Closing parenthesis Environment Table Other expressions Name Opening parenthesis ==> (+ 3 (* 5 6) 8 2) 25 43 ==> (define score 23) 13 Value score 23

Computing in Scheme Atomic (can’t decompose) but not primitive ==> score Environment 23 Name Value ==> (define total 25) score 23 ==> (* 100 (/ score total)) total 25 percentage 92 92 ==> (define percentage (* 100 (/ score total)) ==> A name-value pair in the env. is called binding 14

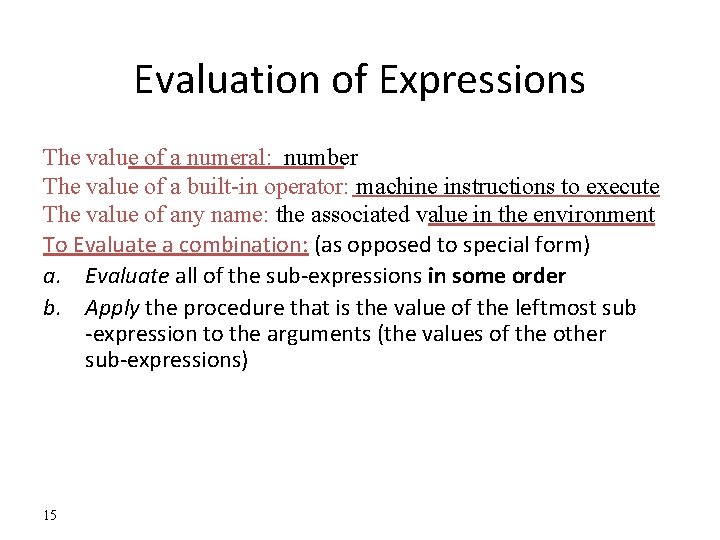

Evaluation of Expressions The value of a numeral: number The value of a built-in operator: machine instructions to execute The value of any name: the associated value in the environment To Evaluate a combination: (as opposed to special form) a. Evaluate all of the sub-expressions in some order b. Apply the procedure that is the value of the leftmost sub -expression to the arguments (the values of the other sub-expressions) 15

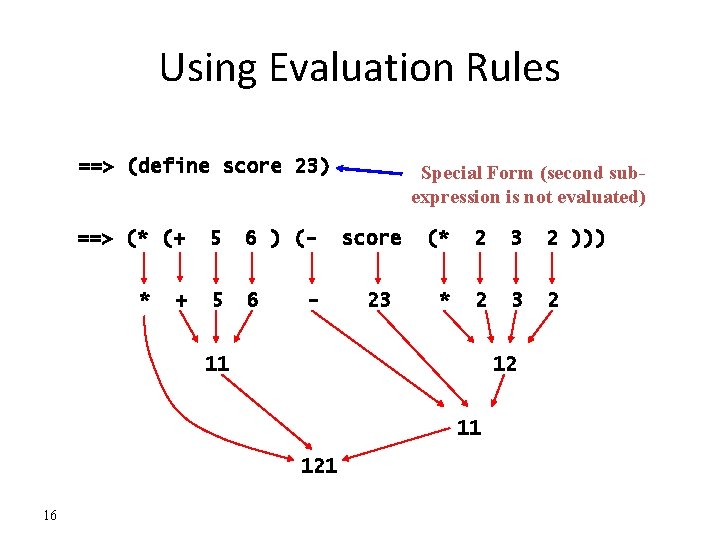

Using Evaluation Rules ==> (define score 23) ==> (* (+ * + 5 6 ) (- 5 6 - Special Form (second subexpression is not evaluated) score 23 (* 2 3 2 ))) * 2 3 2 11 121 16

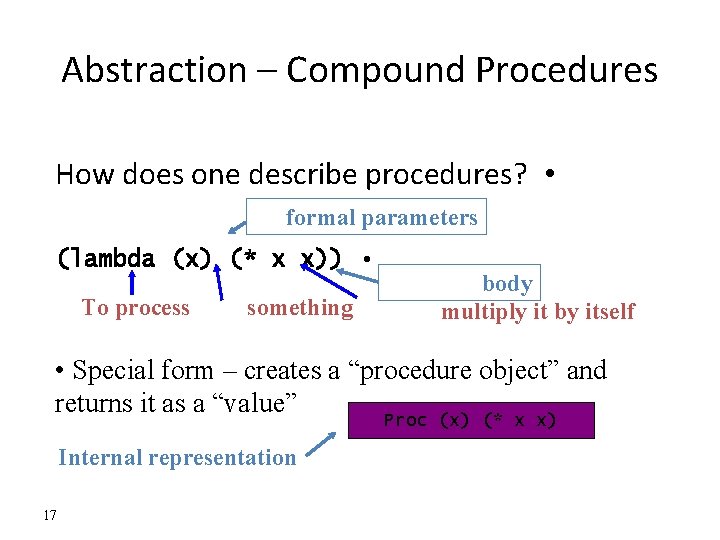

Abstraction – Compound Procedures How does one describe procedures? • formal parameters (lambda (x) (* x x)) • To process something body multiply it by itself • Special form – creates a “procedure object” and returns it as a “value” Proc (x) (* x x) Internal representation 17

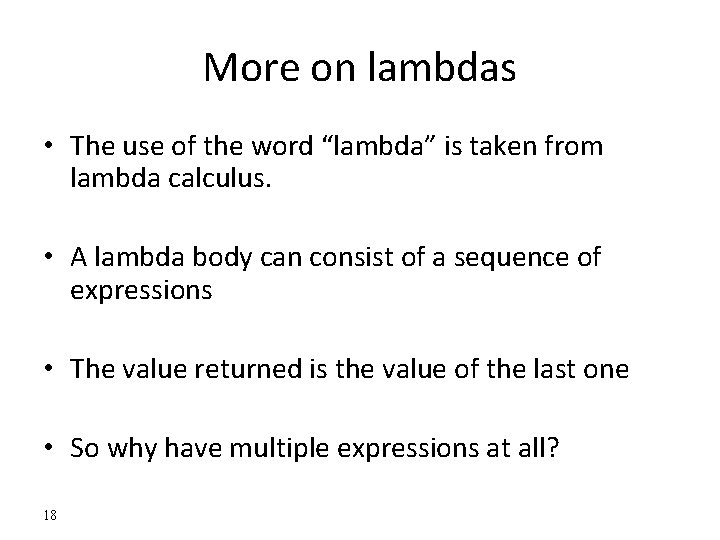

More on lambdas • The use of the word “lambda” is taken from lambda calculus. • A lambda body can consist of a sequence of expressions • The value returned is the value of the last one • So why have multiple expressions at all? 18

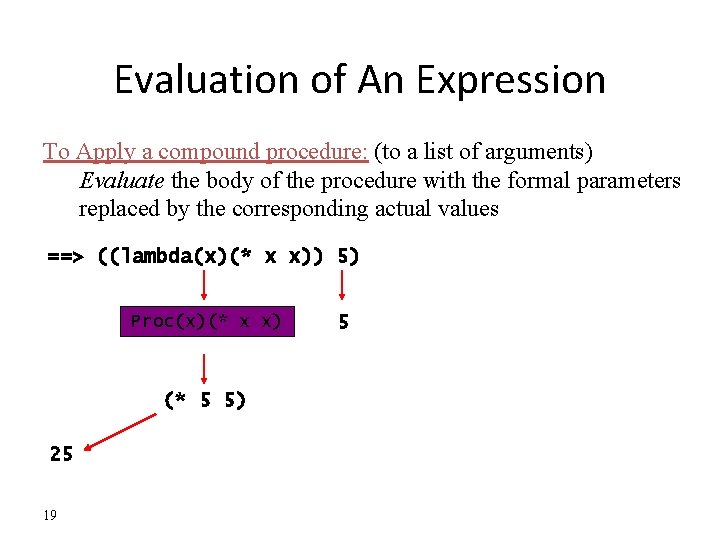

Evaluation of An Expression To Apply a compound procedure: (to a list of arguments) Evaluate the body of the procedure with the formal parameters replaced by the corresponding actual values ==> ((lambda(x)(* x x)) 5) Proc(x)(* x x) (* 5 5) 25 19 5

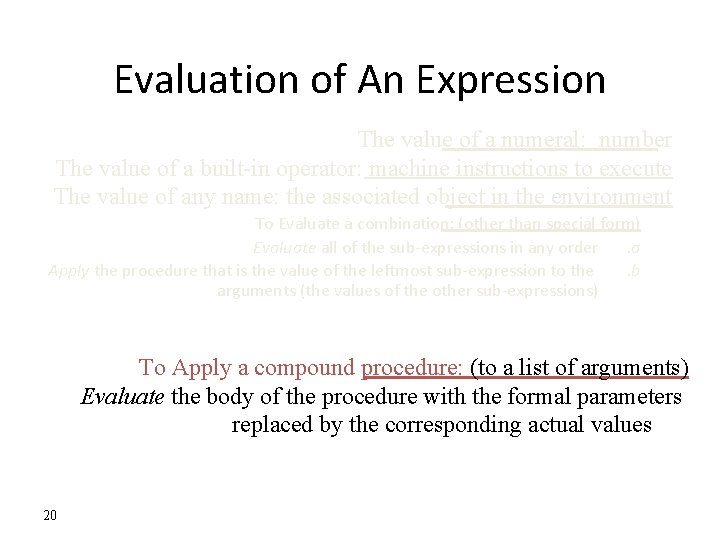

Evaluation of An Expression The value of a numeral: number The value of a built-in operator: machine instructions to execute The value of any name: the associated object in the environment To Evaluate a combination: (other than special form) Evaluate all of the sub-expressions in any order. a Apply the procedure that is the value of the leftmost sub-expression to the. b arguments (the values of the other sub-expressions) To Apply a compound procedure: (to a list of arguments) Evaluate the body of the procedure with the formal parameters replaced by the corresponding actual values 20

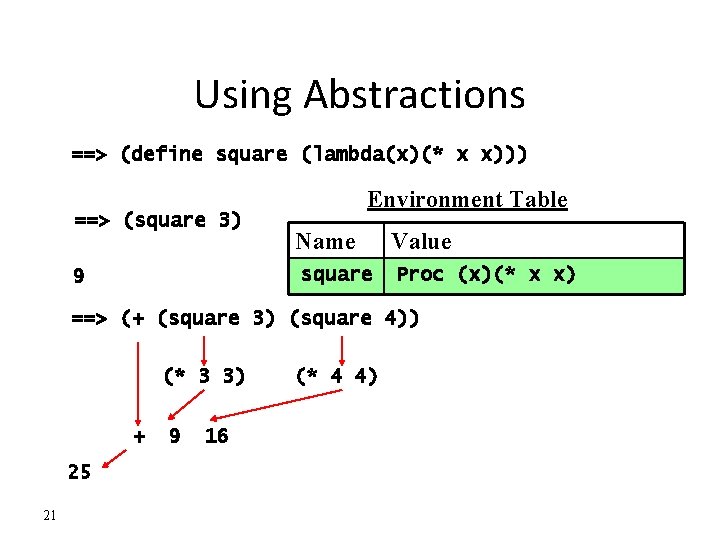

Using Abstractions ==> (define square (lambda(x)(* x x))) ==> (square 3) 9 Environment Table Name Value square Proc (x)(* x x) ==> (+ (square 3) (square 4)) (* 3 3) + 25 21 9 16 (* 4 4)

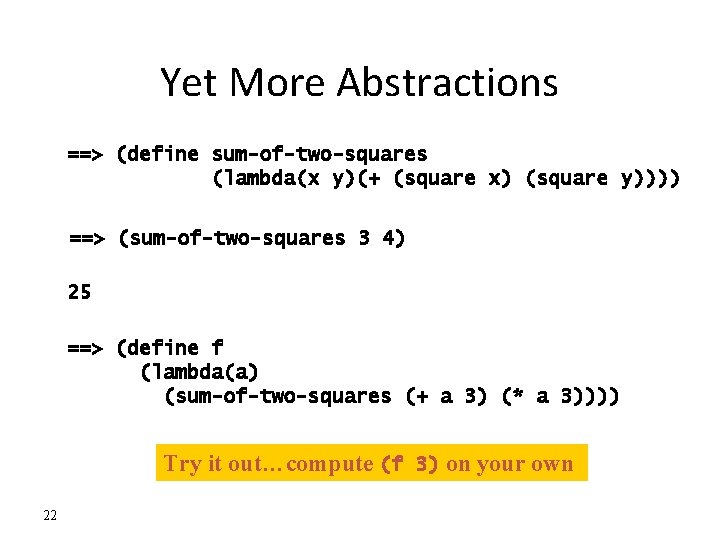

Yet More Abstractions ==> (define sum-of-two-squares (lambda(x y)(+ (square x) (square y)))) ==> (sum-of-two-squares 3 4) 25 ==> (define f (lambda(a) (sum-of-two-squares (+ a 3) (* a 3)))) Try it out…compute (f 3) on your own 22

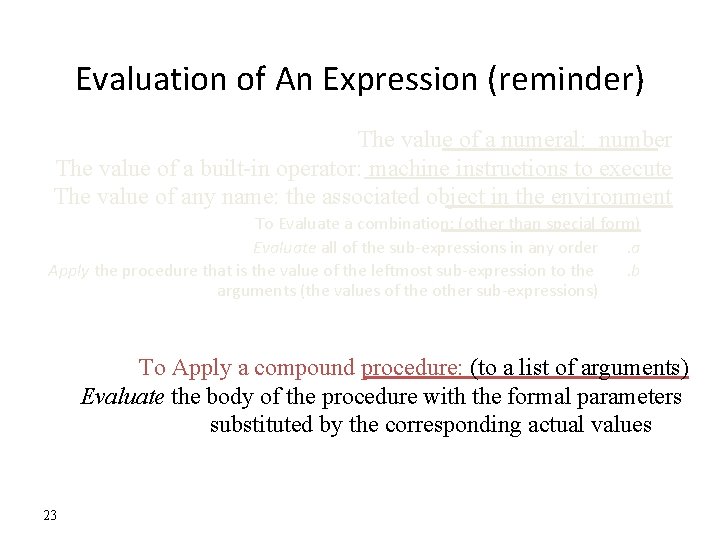

Evaluation of An Expression (reminder) The value of a numeral: number The value of a built-in operator: machine instructions to execute The value of any name: the associated object in the environment To Evaluate a combination: (other than special form) Evaluate all of the sub-expressions in any order. a Apply the procedure that is the value of the leftmost sub-expression to the. b arguments (the values of the other sub-expressions) To Apply a compound procedure: (to a list of arguments) Evaluate the body of the procedure with the formal parameters substituted by the corresponding actual values 23

Lets not forget The Environment ==> (define x 8) ==> (+ x 1) 9 ==> (define x 5) ==> (+ x 1) 6 24 The value of (+ x 1) depends on the environment!

Using the substitution model (define square (lambda (x) (* x x))) (define average (lambda (x y) (/ (+ x y) 2))) (average 5 (square 3)) (average 5 (* 3 3)) (average 5 9)first evaluate operands, then substitute (/ (+ 5 9) 2) (/ 14 2)if operator is a primitive procedure, 7 replace by result of operation 25

Booleans Two distinguished values denoted by the constants #t and #f The type of these values is boolean ==> (< 2 3) #t ==> (< 4 3) #f 26

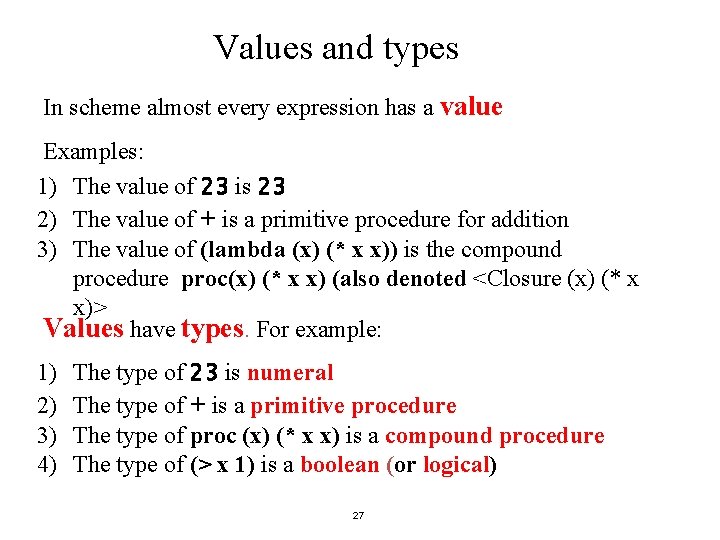

Values and types In scheme almost every expression has a value Examples: 1) The value of 23 is 23 2) The value of + is a primitive procedure for addition 3) The value of (lambda (x) (* x x)) is the compound procedure proc(x) (* x x) (also denoted <Closure (x) (* x x)> Values have types. For example: 1) 2) 3) 4) The type of 23 is numeral The type of + is a primitive procedure The type of proc (x) (* x x) is a compound procedure The type of (> x 1) is a boolean (or logical) 27

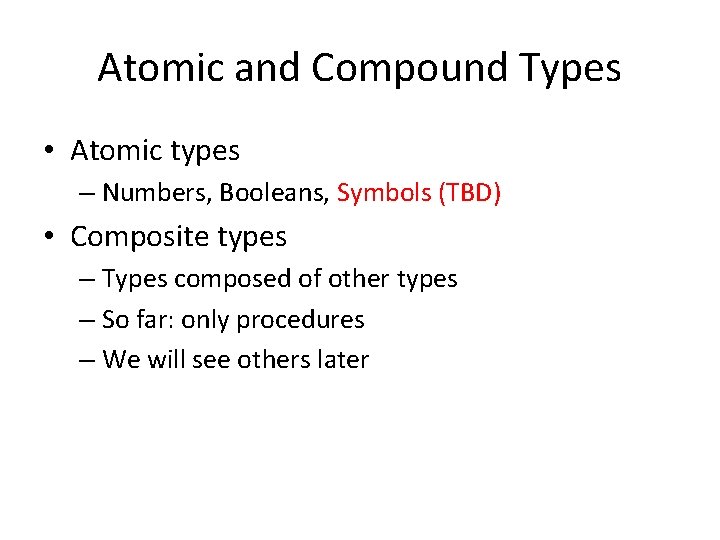

Atomic and Compound Types • Atomic types – Numbers, Booleans, Symbols (TBD) • Composite types – Types composed of other types – So far: only procedures – We will see others later

No Value? • In scheme most expressions have values • Not all! Those that don’t usually have side effects Example : what is the value of the expression (define x 8) And of (display x) [display is a primitive func. , prints the value of its argument to the screen] • In scheme, the value of a define, display expression is “undefined”. This means “implementation-dependent” 29 • Never write code that relies on such value!

Dynamic Typing • Note that we never specify explicitly types of variables • However primitive functions expect values of a certain type! – E. g. “+” expects numeral values • So will our procedures (To be discussed soon) • The Scheme interpreter checks type correctness at run-time: dynamic typing – [As opposed to static typing verified by a compiler ]

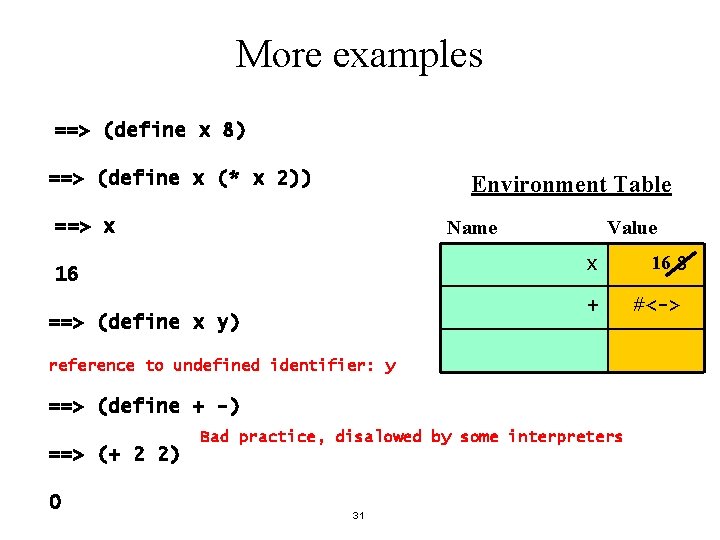

More examples ==> (define x 8) ==> (define x (* x 2)) Environment Table Name ==> x Value x 16 + ==> (define x y) reference to undefined identifier: y ==> (define + -) ==> (+ 2 2) 0 Bad practice, disalowed by some interpreters 31 16 8 #<->

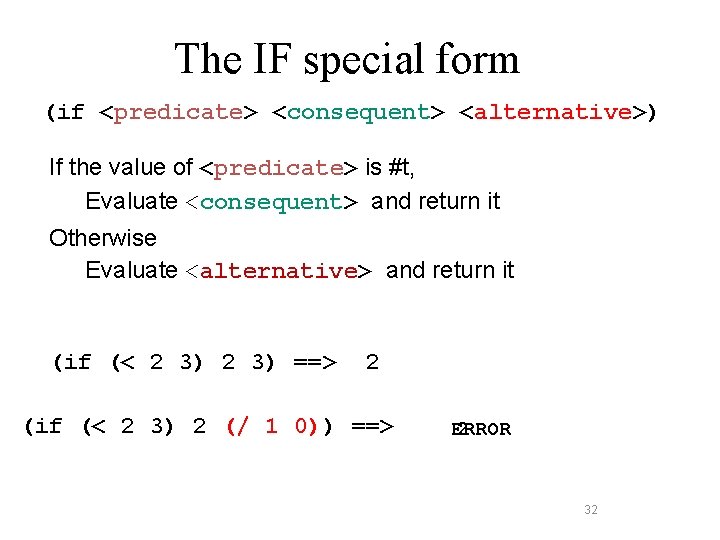

The IF special form (if <predicate> <consequent> <alternative>) If the value of <predicate> is #t, Evaluate <consequent> and return it Otherwise Evaluate <alternative> and return it (if (< 2 3) ==> 2 (if (< 2 3) 2 (/ 1 0)) ==> ERROR 2 32

IF is a special form • In a general form, we first evaluate all arguments and then apply the function • (if <predicate> <consequent> <alternative>) is different: <predicate> determines whether we evaluate <consequent> or <alternative>. We evaluate only one of them ! 33

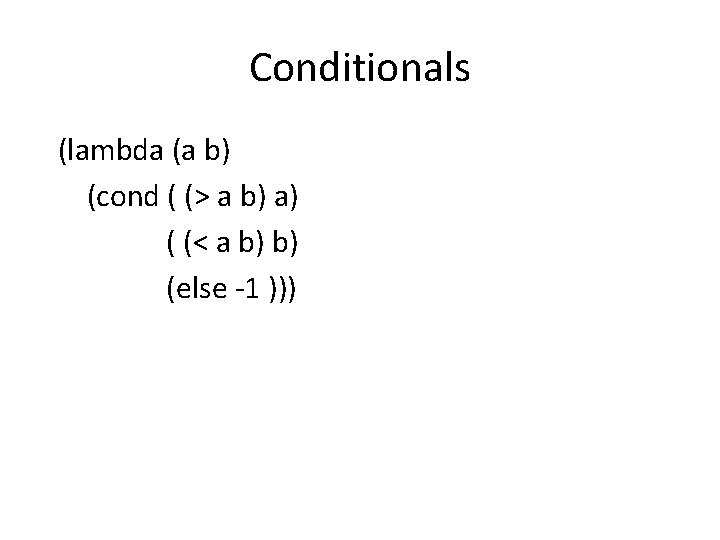

Conditionals (lambda (a b) (cond ( (> a b) a) ( (< a b) b) (else -1 )))

Syntactic Sugar for naming procedures Instead of writing: (define square (lambda (x) (* x x)) We can write: (define (square x) (* x x)) 35

Some examples: (define twice ) (lambda (x) (* 2 x)) (twice 2) ==> 4 (twice 3) ==> 6 Using “syntactic sugar”: (define (twice x) (* 2 x)) (define second (lambda (x y z) y) (second 2 15 3) ==> 15 (second 34 -5 16) ==> -5 Using “syntactic sugar”: (define (second x y z) y) 36 )

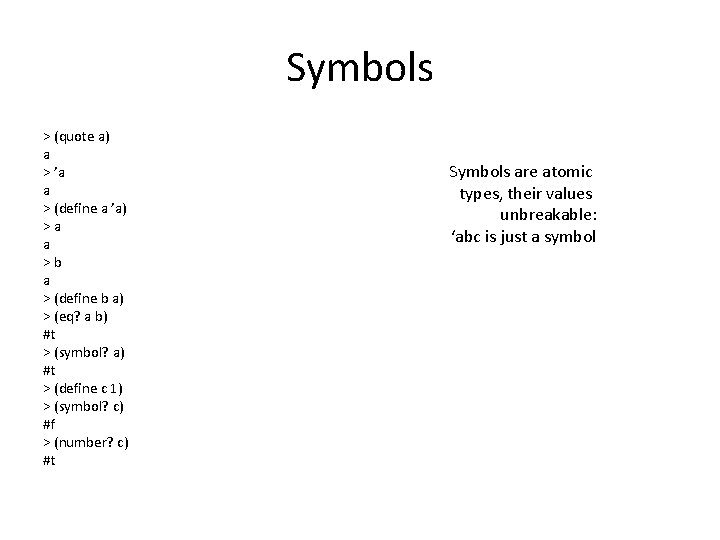

Symbols > (quote a) a > ’a a > (define a ’a) >a a >b a > (define b a) > (eq? a b) #t > (symbol? a) #t > (define c 1) > (symbol? c) #f > (number? c) #t Symbols are atomic types, their values unbreakable: ‘abc is just a symbol

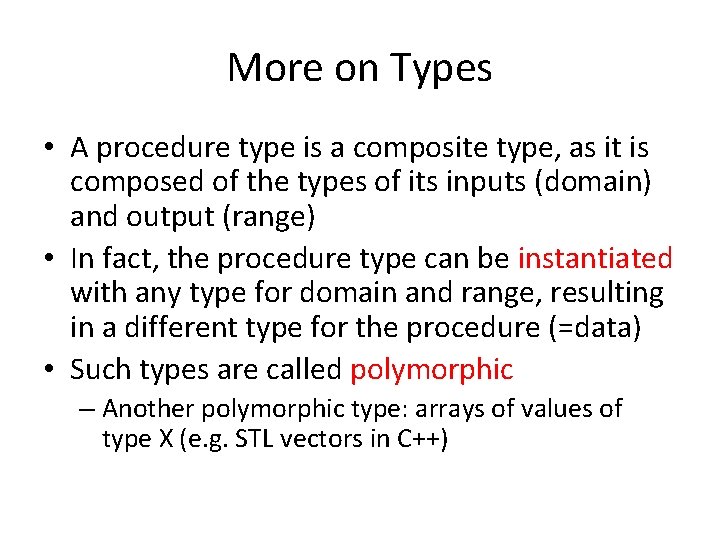

More on Types • A procedure type is a composite type, as it is composed of the types of its inputs (domain) and output (range) • In fact, the procedure type can be instantiated with any type for domain and range, resulting in a different type for the procedure (=data) • Such types are called polymorphic – Another polymorphic type: arrays of values of type X (e. g. STL vectors in C++)

Type constructor • Defines a composite type out of other types • The type constructor functions is denoted “->” • Example: [Number X Number –> Number] is the type of all procedures that get as input two numbers, and return a number • If all types are allowed we use a type variable: – [T –> T] is the type of all procs. That return the same type as they get as input • Note: there is nothing in the syntax for defining types! This is a convention we manually enforce (for now. . ).

Value constructor • Means of defining an instance of a particular type. • The value constructors for procedures is lambda – Each lambda expression generates a new procedure
