Principle of disinfection

Principle of disinfection

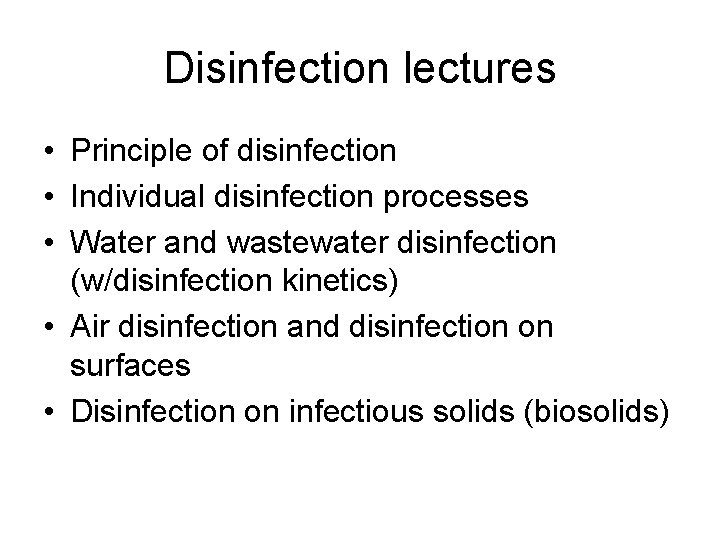

Disinfection lectures • Principle of disinfection • Individual disinfection processes • Water and wastewater

Disinfection lectures • Principle of disinfection • Individual disinfection processes • Water and wastewater disinfection (w/disinfection kinetics) • Air disinfection and disinfection on surfaces • Disinfection on infectious solids (biosolids)

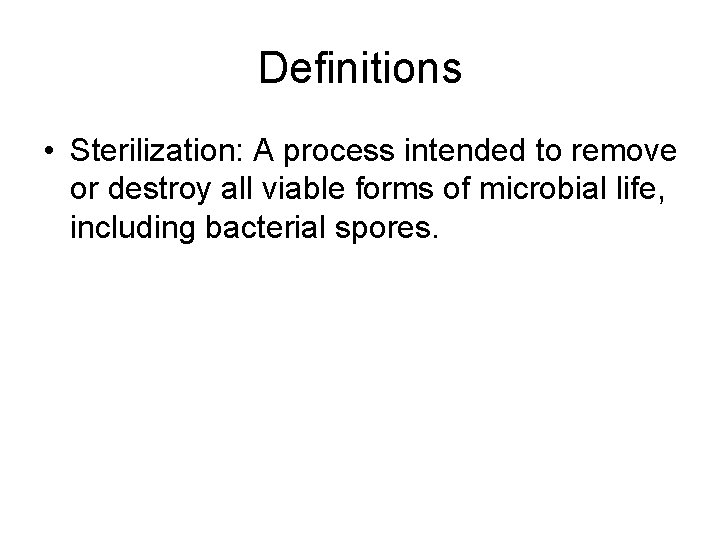

Definitions • Sterilization: A process intended to remove or destroy all viable forms of

Definitions • Sterilization: A process intended to remove or destroy all viable forms of microbial life, including bacterial spores.

Definitions • Disinfection: The destruction of pathogenic and other kinds of microorganisms by physical

Definitions • Disinfection: The destruction of pathogenic and other kinds of microorganisms by physical and chemical means. • Disinfection is less lethal process than sterilization because it destroys most recognized pathogenic microorganisms, but not necessarily all microbial forms such as bacterial spores.

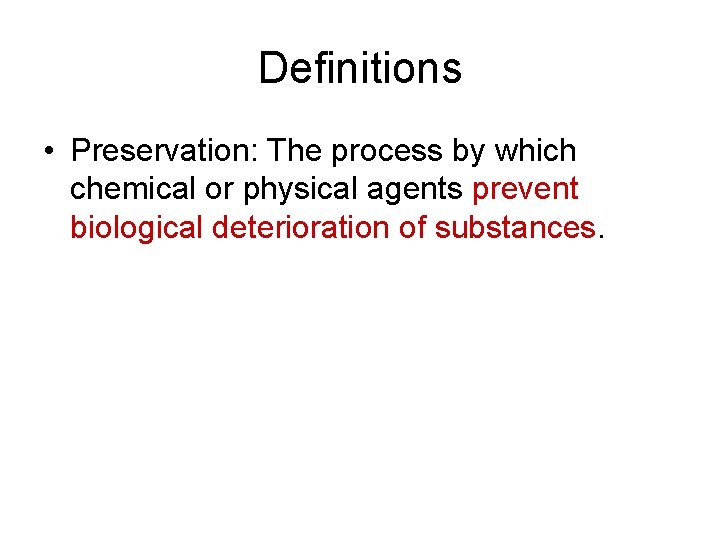

Definitions • Preservation: The process by which chemical or physical agents prevent biological deterioration

Definitions • Preservation: The process by which chemical or physical agents prevent biological deterioration of substances.

Definitions • Sterilizer: An agent that destroys or eliminates all forms of microbial life

Definitions • Sterilizer: An agent that destroys or eliminates all forms of microbial life in the inanimate environment, including all forms of vegetative bacteria, bacterial spores, fungi, fungal spores, and viruses.

Definitions • Disinfectant: An agent that frees from infection, usually a chemical agents but

Definitions • Disinfectant: An agent that frees from infection, usually a chemical agents but sometimes a physical one, such as x-rays or ultraviolet light, that destroy disease or other harmful microorganisms but may not kill bacterial spores. It refers to substances applied to inanimate objects.

Definitions • Sanitizer: An agent that reduces contaminants in the inanimate environment to level

Definitions • Sanitizer: An agent that reduces contaminants in the inanimate environment to level considered safe as determined by Public Health Ordinance, or that reduces the bacterial population by significant numbers where public health requirements have not been established.

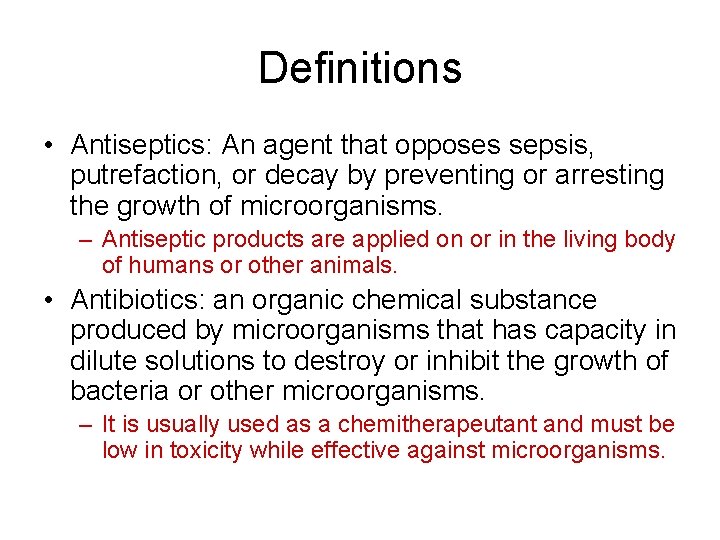

Definitions • Antiseptics: An agent that opposes sepsis, putrefaction, or decay by preventing or

Definitions • Antiseptics: An agent that opposes sepsis, putrefaction, or decay by preventing or arresting the growth of microorganisms. – Antiseptic products are applied on or in the living body of humans or other animals. • Antibiotics: an organic chemical substance produced by microorganisms that has capacity in dilute solutions to destroy or inhibit the growth of bacteria or other microorganisms. – It is usually used as a chemitherapeutant and must be low in toxicity while effective against microorganisms.

The target sites of antibiotics

The target sites of antibiotics

The target sites of drugs against helminths

The target sites of drugs against helminths

Common sterilizers and disinfectants • Sterilizer – Most heat (>121 o. C) – Dry

Common sterilizers and disinfectants • Sterilizer – Most heat (>121 o. C) – Dry heat (> 160 o. C) – Ionizing radiation • Disinfectant – Physical • Ultraviolet radiation • Hydrostatic pressure – Chemical • • Alcohols Phenols Quaternary ammonium compounds Glutaraldehyde Iodine and iodine compounds Chlorine species (free chlorine, chloramines, and chlorine dioxide) Ozone

Mechanisms of sterilizers and disinfectants • Sterilizer – Moist and dry heat: protein denaturation,

Mechanisms of sterilizers and disinfectants • Sterilizer – Moist and dry heat: protein denaturation, enzyme inhibition, RNA and DNA breakdown – Ionizing radiations: single or double-strand breakage in DNA • Disinfectants – Ultraviolet radiation: thymine dimers, various photoproducts (5, 6 -dihydroxy-dihydrothymine, TDHT, pyrimine-(6 -4)-pyrimidone, …) – Chemical disinfectants: protein denaturation, enzyme inhibition, breakdown of nucleic acids

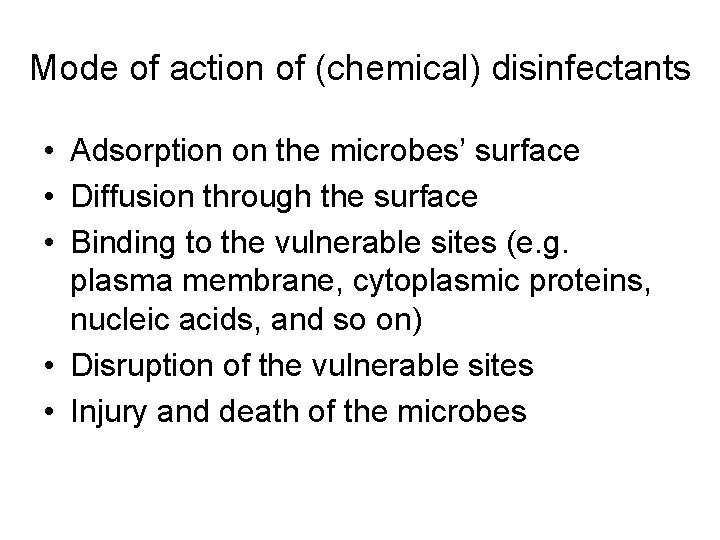

Mode of action of (chemical) disinfectants • Adsorption on the microbes’ surface • Diffusion

Mode of action of (chemical) disinfectants • Adsorption on the microbes’ surface • Diffusion through the surface • Binding to the vulnerable sites (e. g. plasma membrane, cytoplasmic proteins, nucleic acids, and so on) • Disruption of the vulnerable sites • Injury and death of the microbes

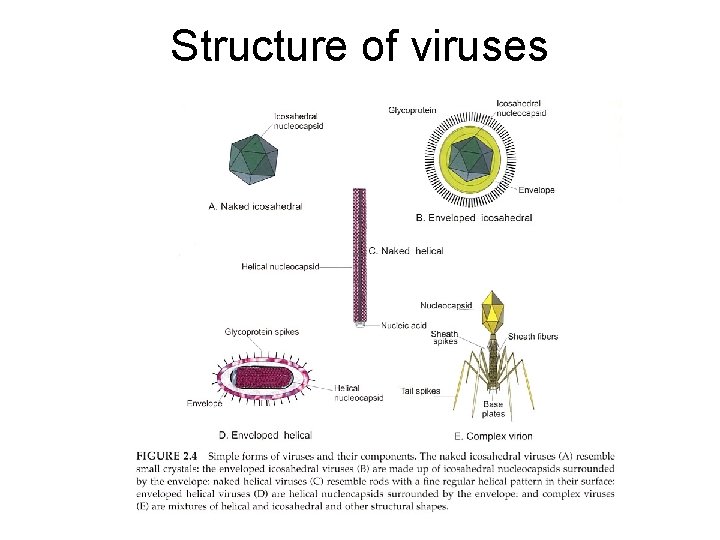

Structure of viruses

Structure of viruses

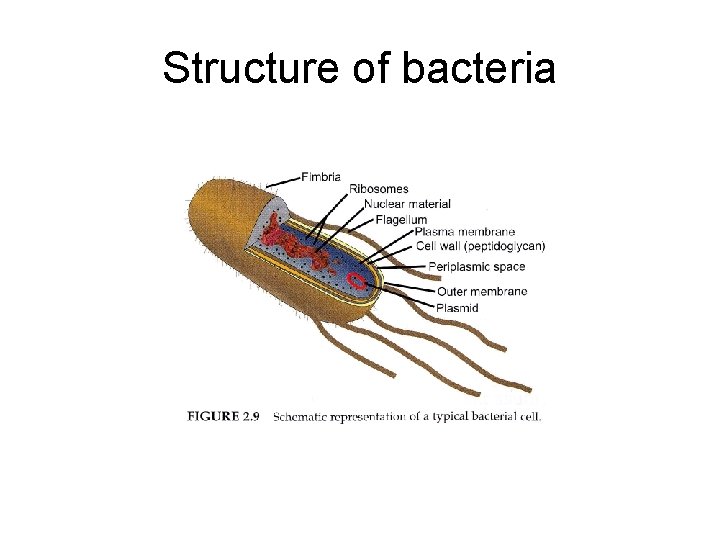

Structure of bacteria

Structure of bacteria

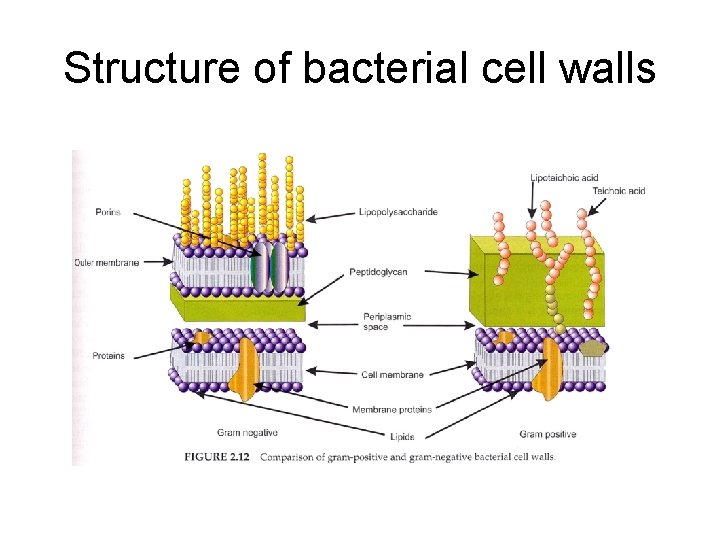

Structure of bacterial cell walls

Structure of bacterial cell walls

Structure of fungi

Structure of fungi

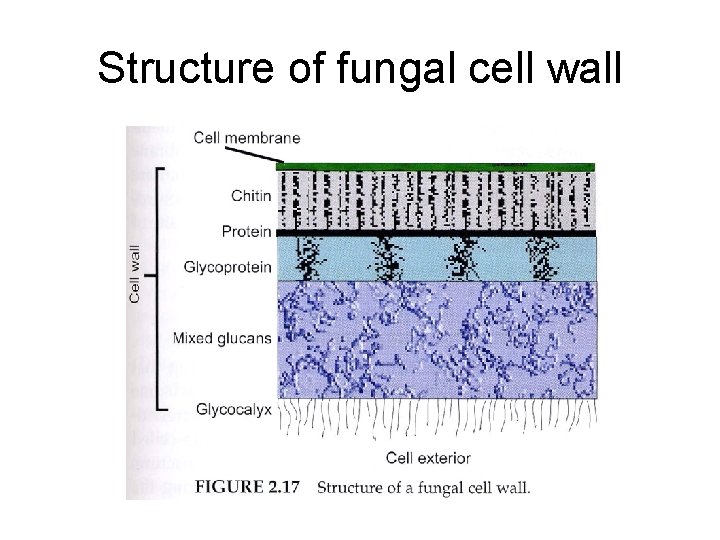

Structure of fungal cell wall

Structure of fungal cell wall

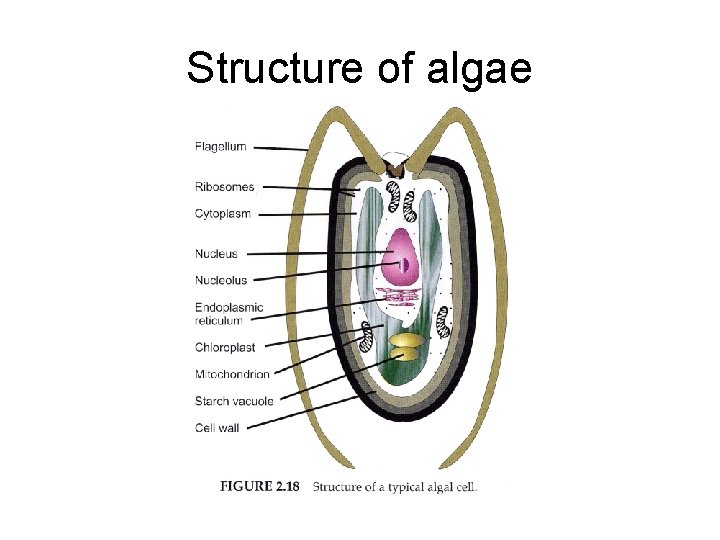

Structure of algae

Structure of algae

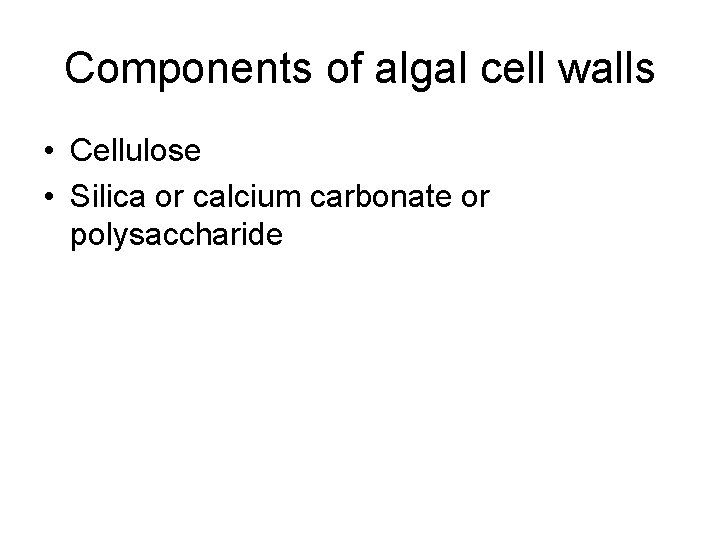

Components of algal cell walls • Cellulose • Silica or calcium carbonate or polysaccharide

Components of algal cell walls • Cellulose • Silica or calcium carbonate or polysaccharide

Structure of bacterial spores

Structure of bacterial spores

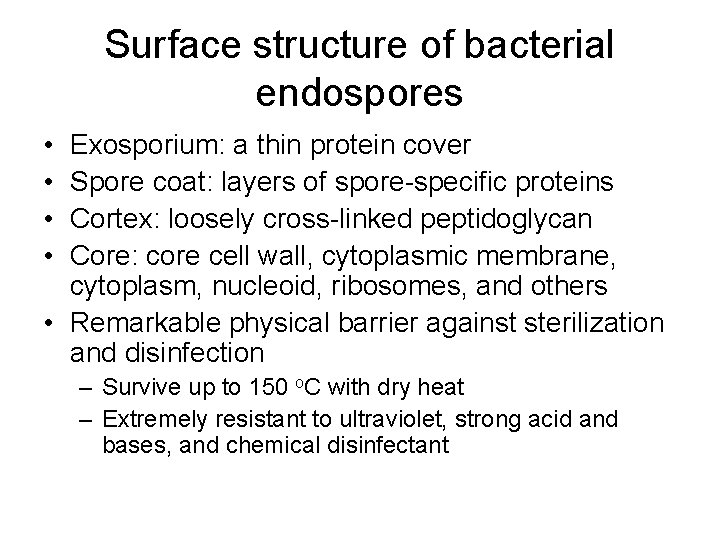

Surface structure of bacterial endospores • • Exosporium: a thin protein cover Spore coat:

Surface structure of bacterial endospores • • Exosporium: a thin protein cover Spore coat: layers of spore-specific proteins Cortex: loosely cross-linked peptidoglycan Core: core cell wall, cytoplasmic membrane, cytoplasm, nucleoid, ribosomes, and others • Remarkable physical barrier against sterilization and disinfection – Survive up to 150 o. C with dry heat – Extremely resistant to ultraviolet, strong acid and bases, and chemical disinfectant

Structure of Giardia cysts

Structure of Giardia cysts

Surface structure of Giardia cysts • An inner membrane • A thick (0. 3

Surface structure of Giardia cysts • An inner membrane • A thick (0. 3 µm) outer filamentous portion • Filaments – 7 -20 nm in diameter – Protein and a unique carbohydrate (ß(1 -3)-N-acetyl-Dgalactopyranosamine) – Strong interchain interaction and tightly packed meshwork • Remarkable physical barrier against most chemical disinfectants

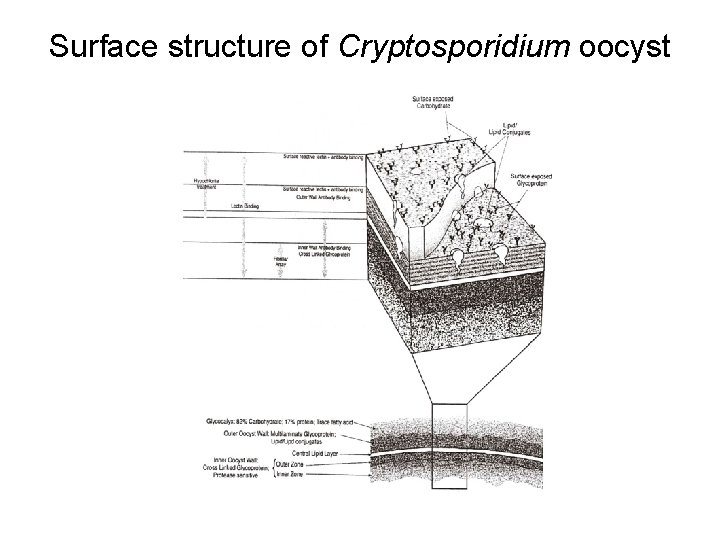

Surface structure of Cryptosporidium oocyst

Surface structure of Cryptosporidium oocyst

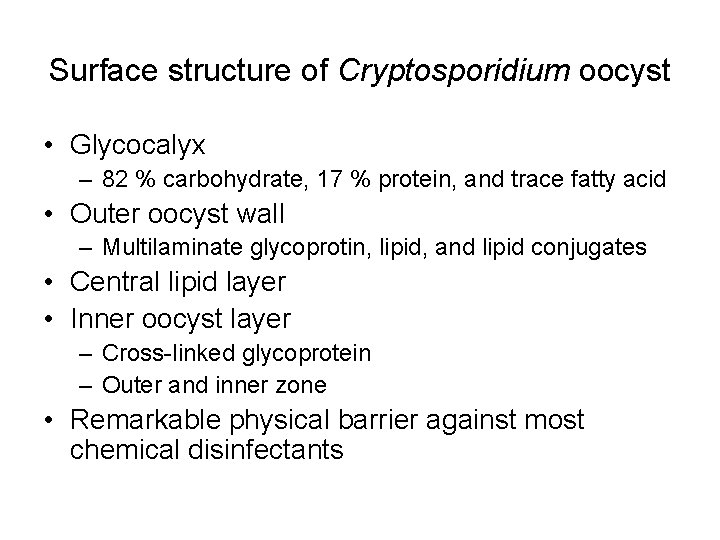

Surface structure of Cryptosporidium oocyst • Glycocalyx – 82 % carbohydrate, 17 % protein,

Surface structure of Cryptosporidium oocyst • Glycocalyx – 82 % carbohydrate, 17 % protein, and trace fatty acid • Outer oocyst wall – Multilaminate glycoprotin, lipid, and lipid conjugates • Central lipid layer • Inner oocyst layer – Cross-linked glycoprotein – Outer and inner zone • Remarkable physical barrier against most chemical disinfectants

Structure of Helminth eggs (Ascaris)

Structure of Helminth eggs (Ascaris)

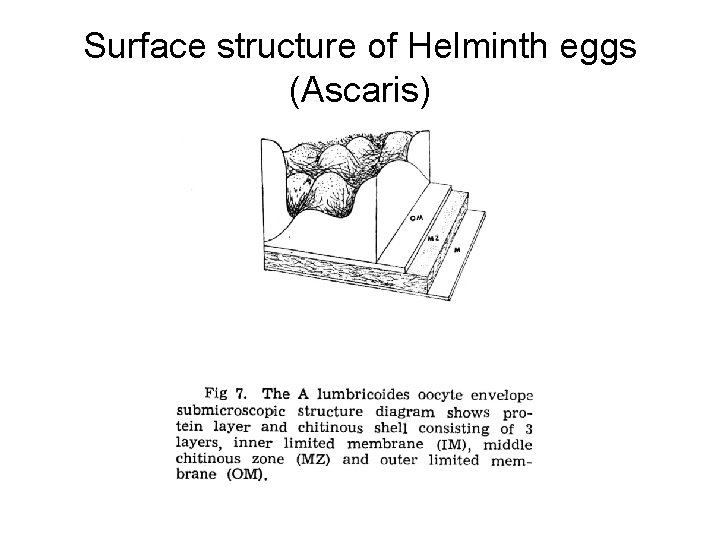

Surface structure of Helminth eggs (Ascaris)

Surface structure of Helminth eggs (Ascaris)

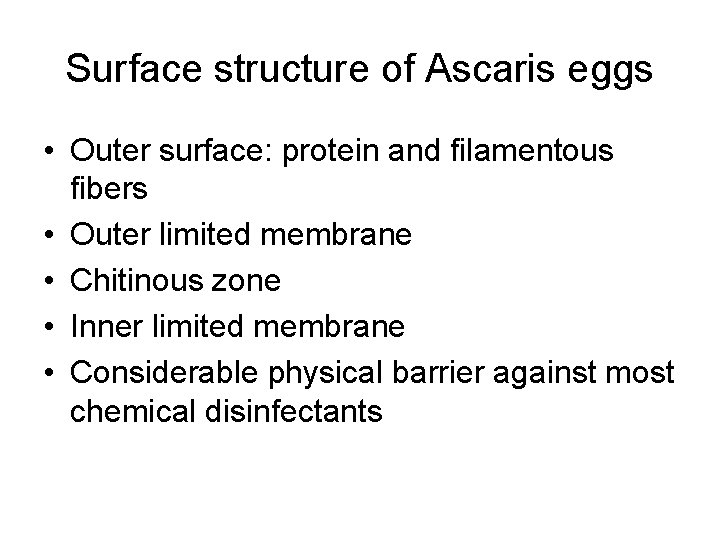

Surface structure of Ascaris eggs • Outer surface: protein and filamentous fibers • Outer

Surface structure of Ascaris eggs • Outer surface: protein and filamentous fibers • Outer limited membrane • Chitinous zone • Inner limited membrane • Considerable physical barrier against most chemical disinfectants

Factors in antimicrobial processes • • Target microorganisms The media to be treated The

Factors in antimicrobial processes • • Target microorganisms The media to be treated The intended use of the media Presence of interfering materials in the media

Antimicrobial products • Regulated by EPA • 5000 antimicrobial products (1997) with 256 antimicrobially

Antimicrobial products • Regulated by EPA • 5000 antimicrobial products (1997) with 256 antimicrobially active ingredient – 19 % sanitizers – 80 % disinfectants – 1% sterilizers

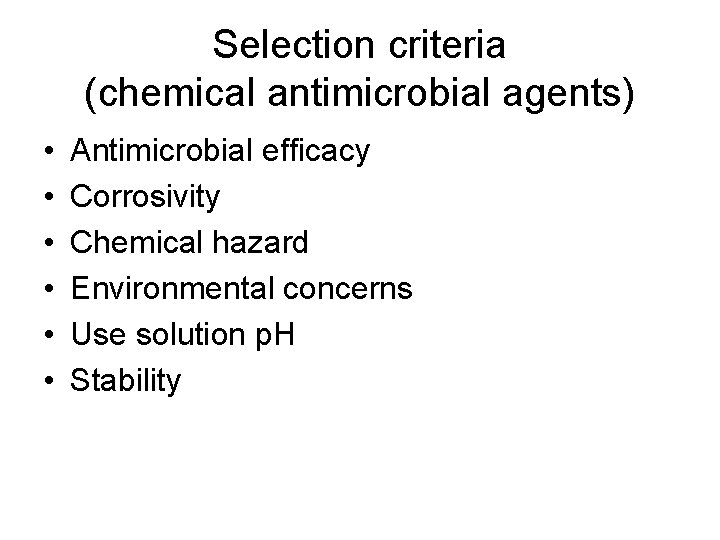

Selection criteria (chemical antimicrobial agents) • • • Antimicrobial efficacy Corrosivity Chemical hazard Environmental

Selection criteria (chemical antimicrobial agents) • • • Antimicrobial efficacy Corrosivity Chemical hazard Environmental concerns Use solution p. H Stability

Biocidal spectrum

Biocidal spectrum

Corrosivity

Corrosivity

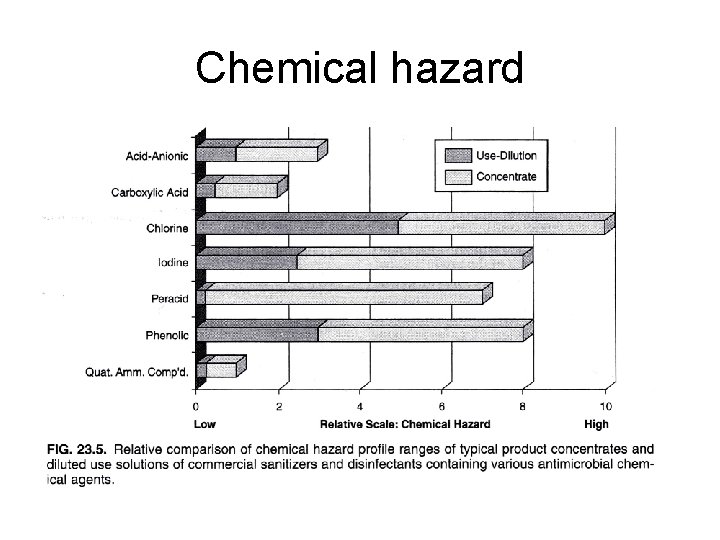

Chemical hazard

Chemical hazard

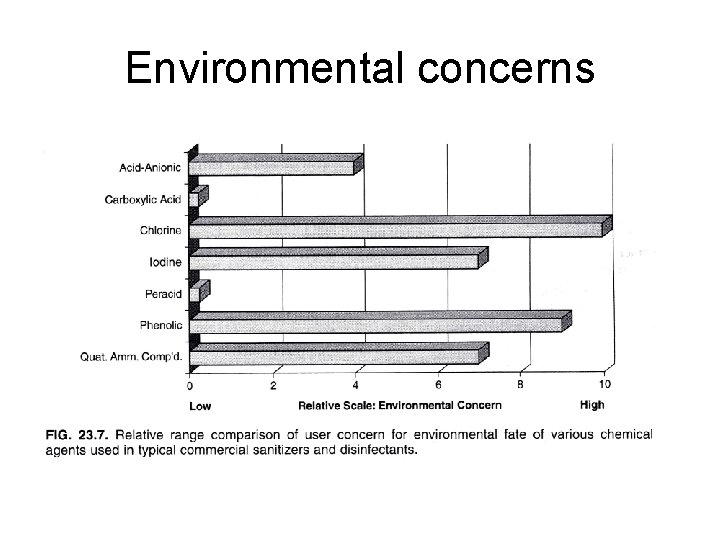

Environmental concerns

Environmental concerns

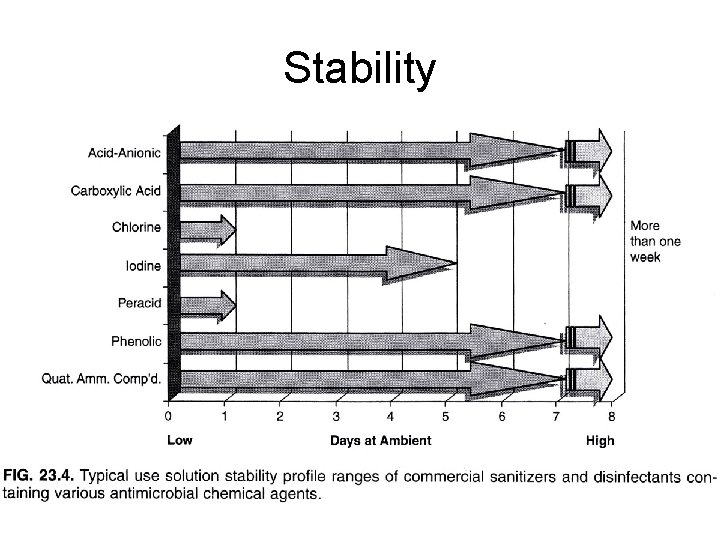

Stability

Stability
