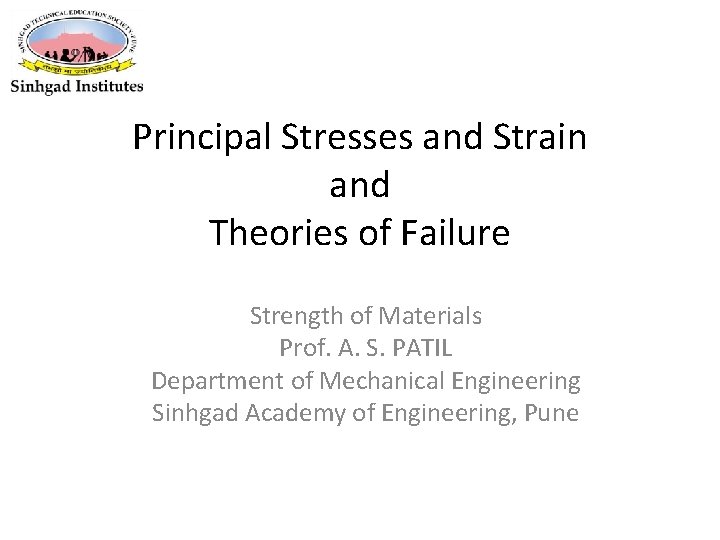

Principal Stresses and Strain and Theories of Failure Strength of Materials Prof. A. S. PATIL Department of Mechanical Engineering Sinhgad Academy of Engineering, Pune

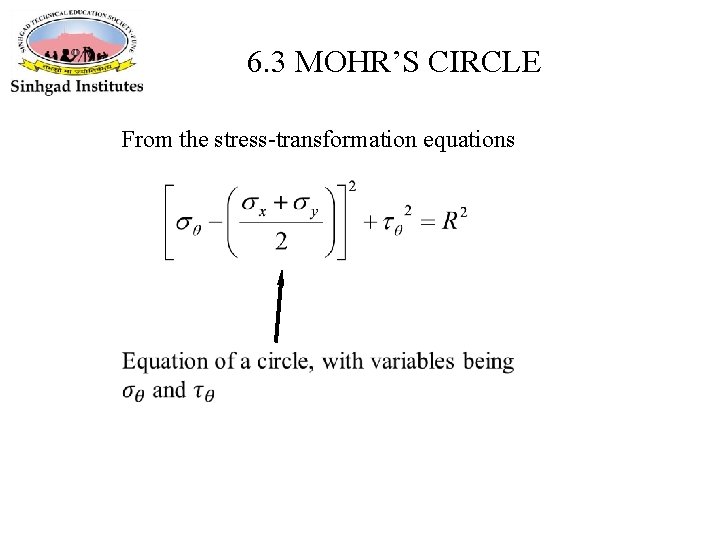

6. 3 MOHR’S CIRCLE From the stress-transformation equations

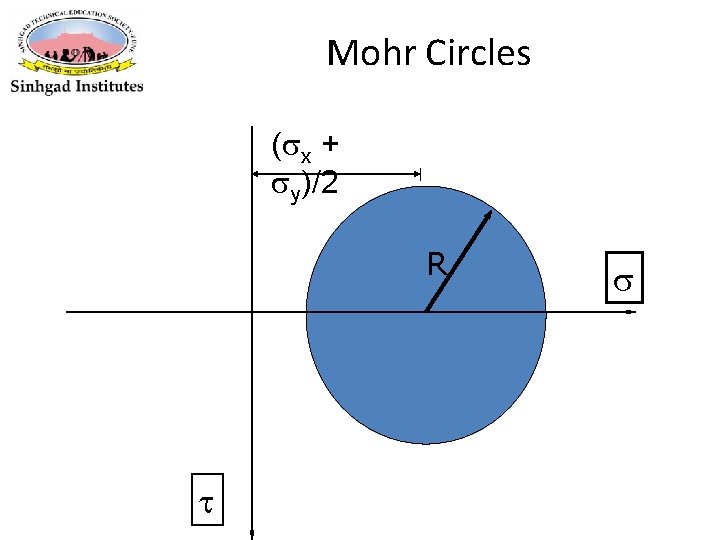

Mohr Circles ( x + y)/2 R

Mohr Circles u. A point on the Mohr circle represents the x’ and xy’ values on a specific plane. u is measured counterclockwise from the original x-axis. u. Same sign convention for stresses as before. i. e. , on positive planes, pointing positive directions positive, and ….

Mohr Circles 2 …. . when we rotate the plane by °, we go 2 ° on the Mohr circle. x’ xy’

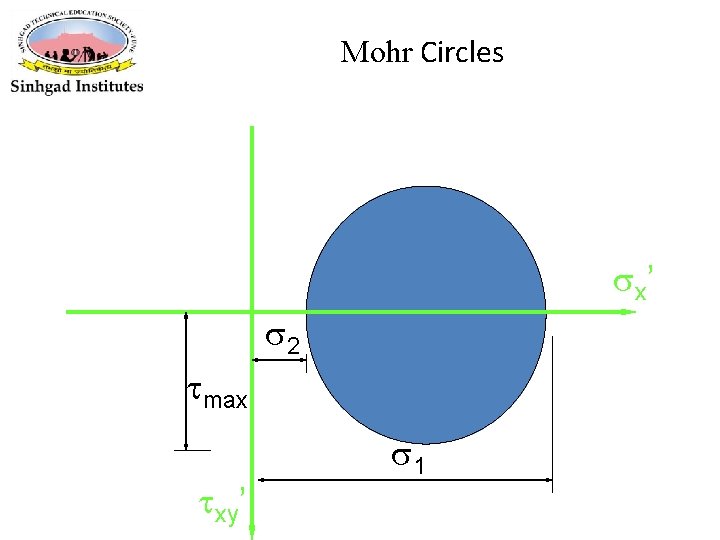

Mohr Circles x’ 2 max xy’ 1

A Mohr Circle Problem 200 k. Pa 1. The stresses at a point A are shown on right. 60 k. Pa A Find the following: 40 k. Pa Ø major and minor principal stresses, Ø orientations of principal planes, Ø maximum shear stress, and Ø orientations of maximum shear stress planes. 06 -12 -2014 Strength of Materials 7

200 k. Pa Drawing Mohr Circle 60 k. Pa A 40 k. Pa F 120 O D B C R = 100 E (k. Pa) G (k. Pa) 06 -12 -2014 Strength of Materials 8

Principal Stresses 1= 220 2= 20 (k. Pa) 06 -12 -2014 (k. Pa) R = 100 Strength of Materials 9

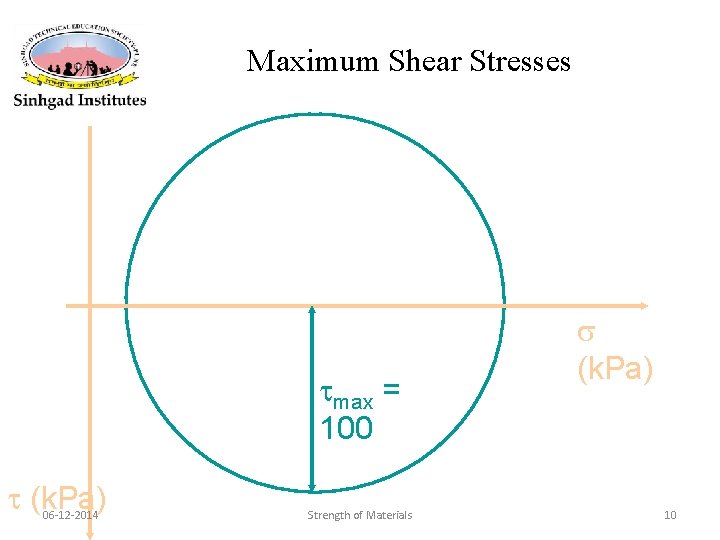

Maximum Shear Stresses max = 100 (k. Pa) 06 -12 -2014 Strength of Materials (k. Pa) 10

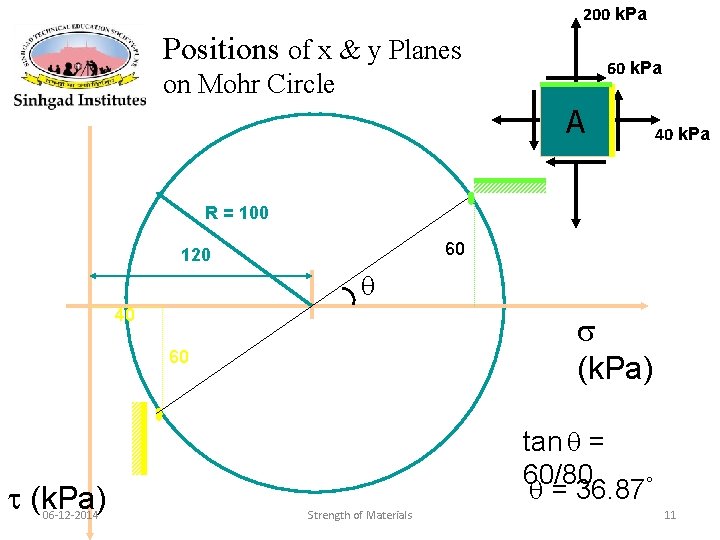

200 k. Pa Positions of x & y Planes 60 k. Pa on Mohr Circle A 40 k. Pa R = 100 60 120 40 (k. Pa) 60 (k. Pa) 06 -12 -2014 tan = 60/80 = 36. 87° Strength of Materials 11

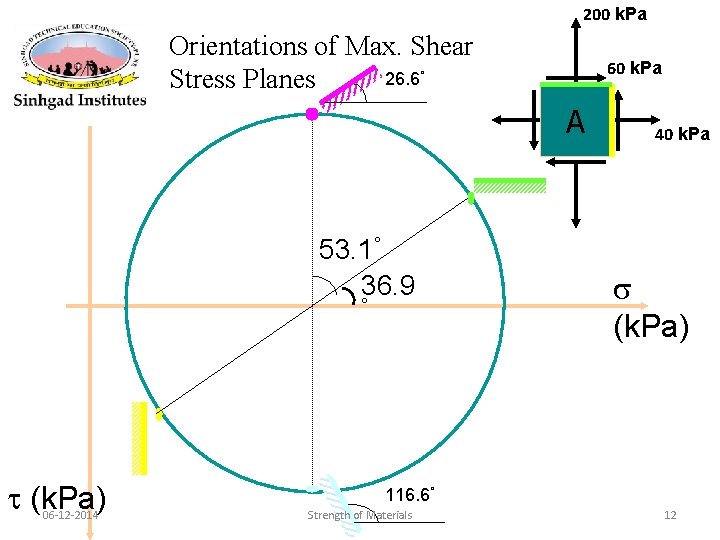

200 k. Pa Orientations of Max. Shear 26. 6° Stress Planes 60 k. Pa A 53. 1° 36. 9 ° (k. Pa) 06 -12 -2014 40 k. Pa (k. Pa) 116. 6° Strength of Materials 12
