Principal Components Karl Pearson Principal Components PC Objective

Principal Components

• Karl Pearson

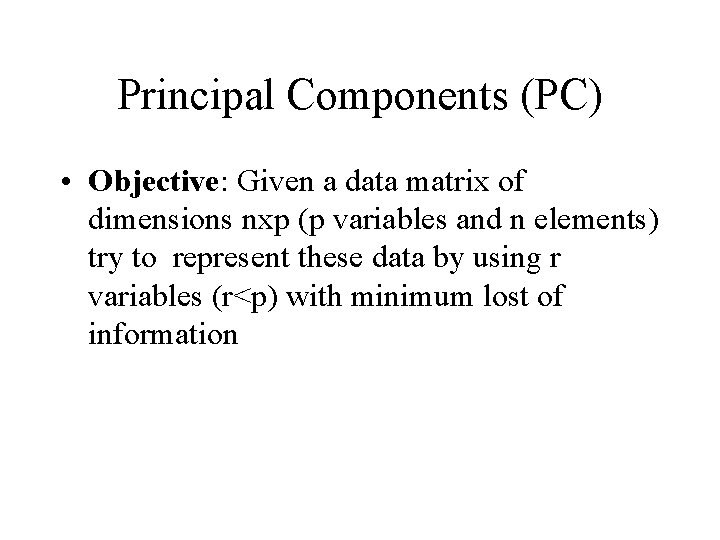

Principal Components (PC) • Objective: Given a data matrix of dimensions nxp (p variables and n elements) try to represent these data by using r variables (r<p) with minimum lost of information

We want to find a new set of p variables, Z, which are linear combinations of the original X variable such that : • r of them contains all the information • The remaining p-r variables are noise

First interpretation of principal components Optimal Data Representation

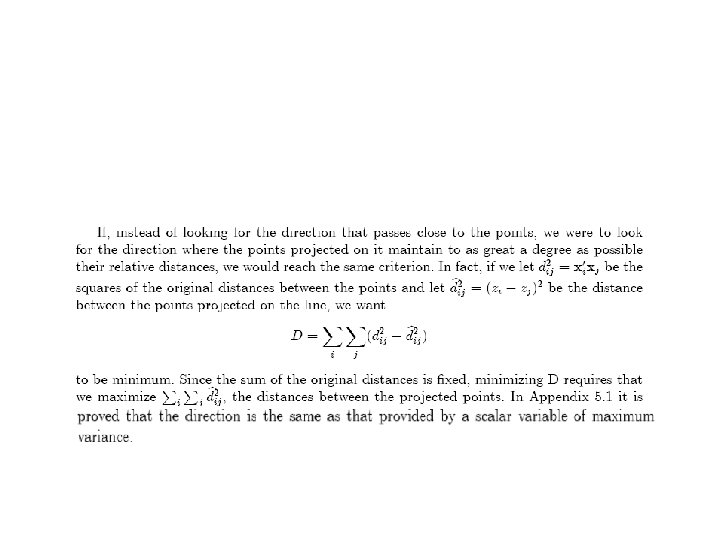

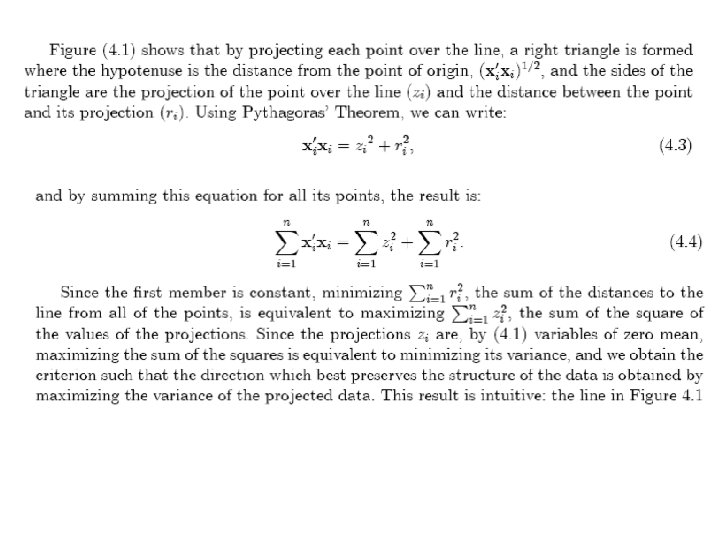

Proyection of a point in direction a: minimize the squared distance Implies maximizing the variance (assuming zero mean variables) ri xi zi a xi. T xi = ri. T ri+ z. Ti zi

Second interpretation of PC: Optimal Prediction Find a new variable zi =a’Xi which is optimal to predict The value of Xi in each element. In general, find r variables, zi =Ar Xi , which are optimal to forecast All Xi with the least squared error criterion It is easy to see that the solution is that zi =a’Xi must have maximum variance

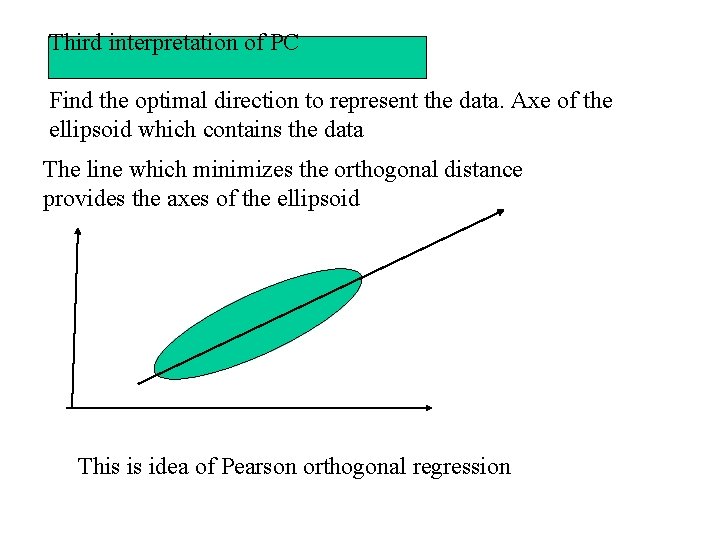

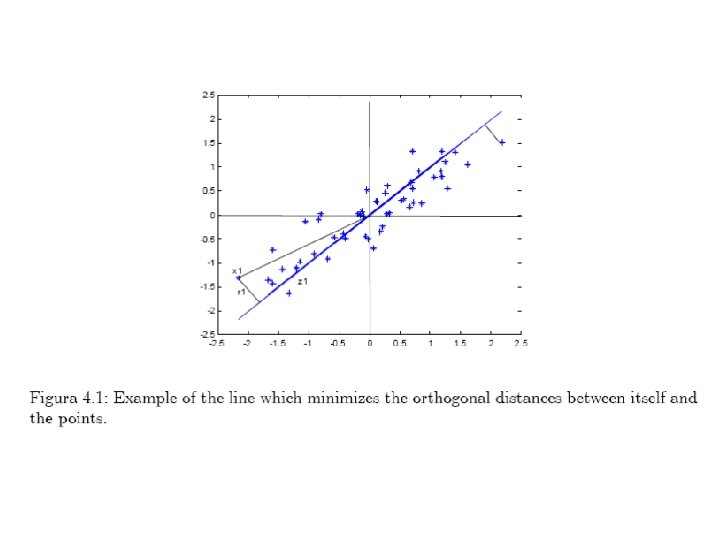

Third interpretation of PC Find the optimal direction to represent the data. Axe of the ellipsoid which contains the data The line which minimizes the orthogonal distance provides the axes of the ellipsoid This is idea of Pearson orthogonal regression

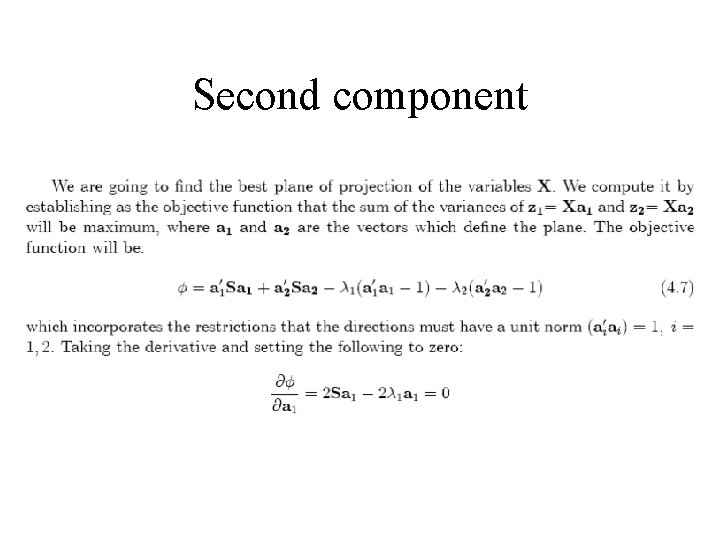

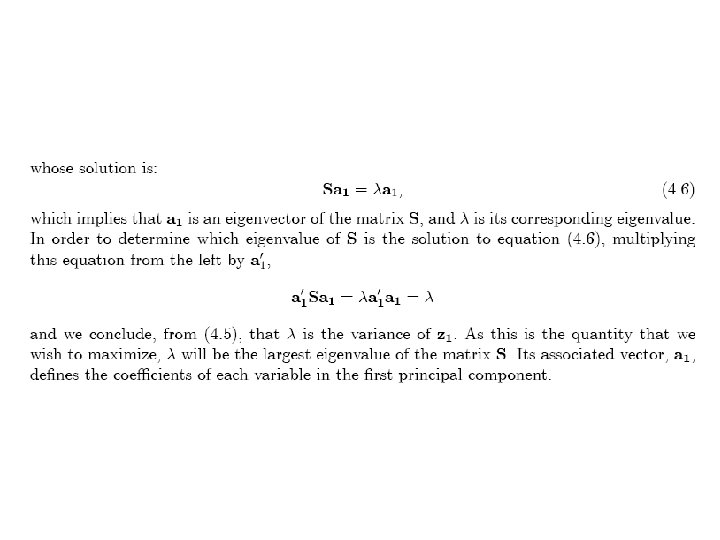

Second component

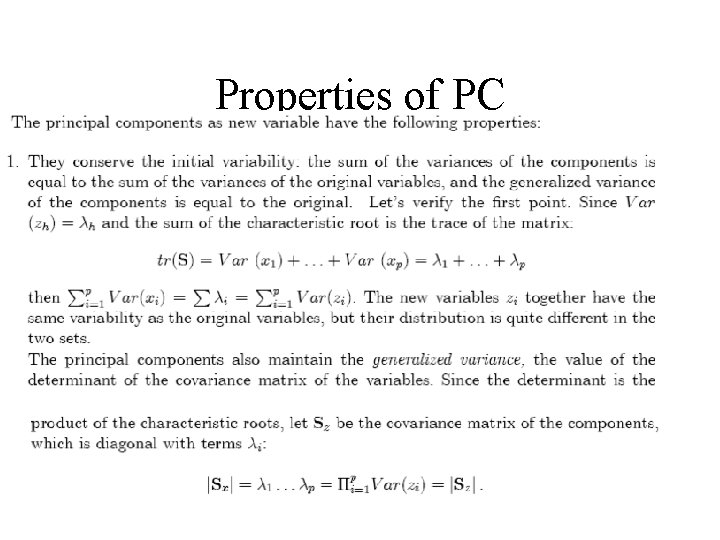

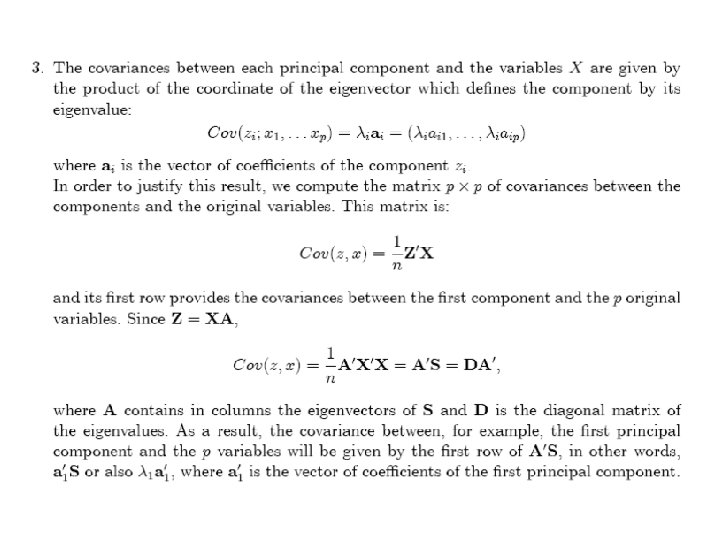

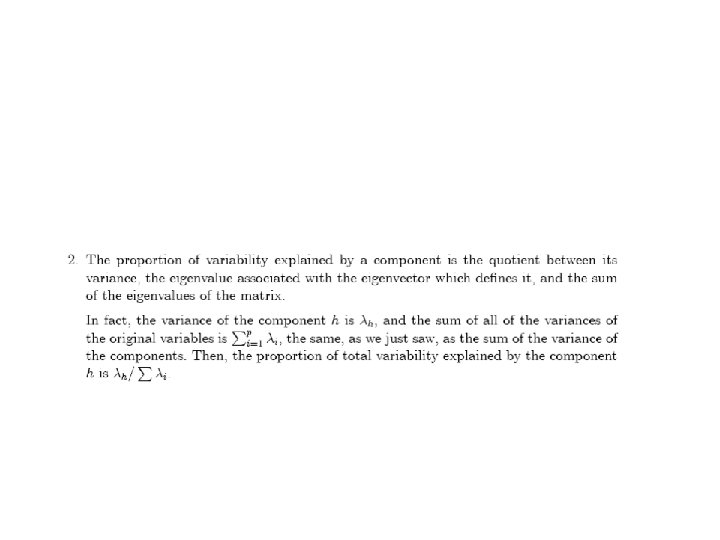

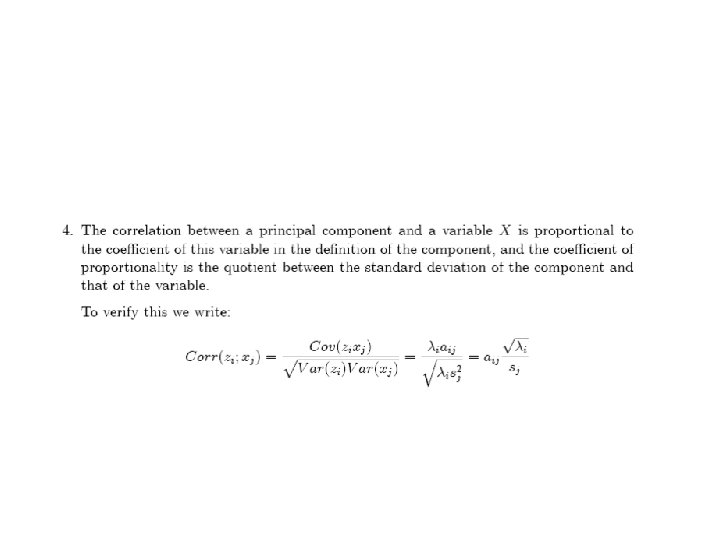

Properties of PC

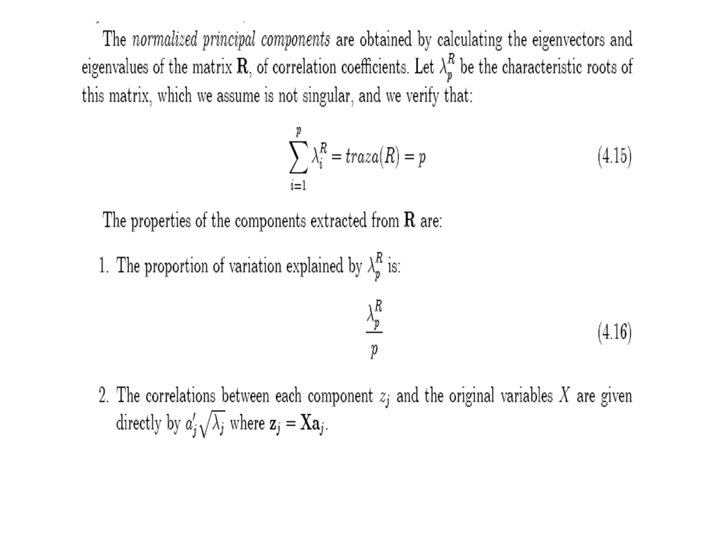

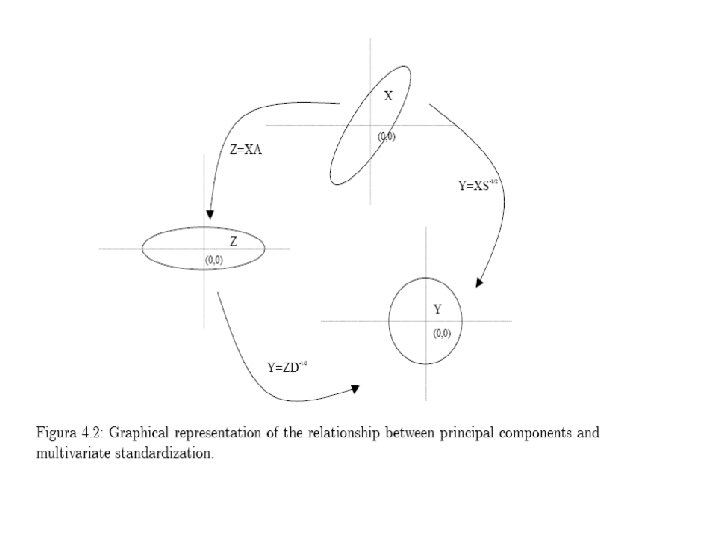

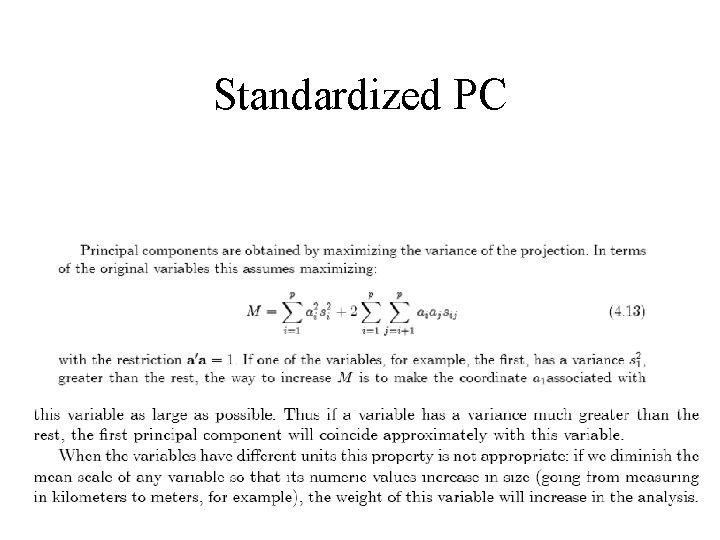

Standardized PC

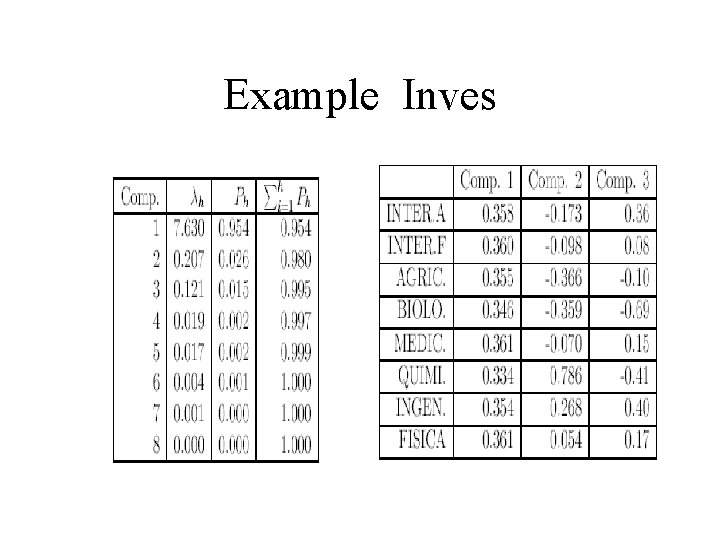

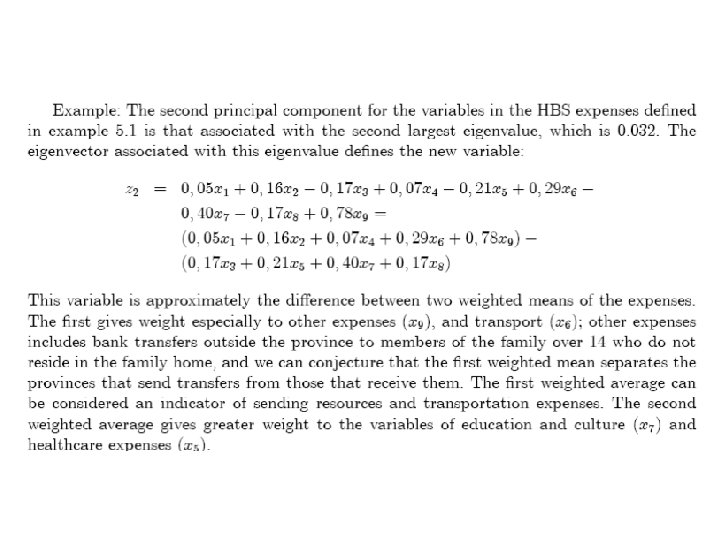

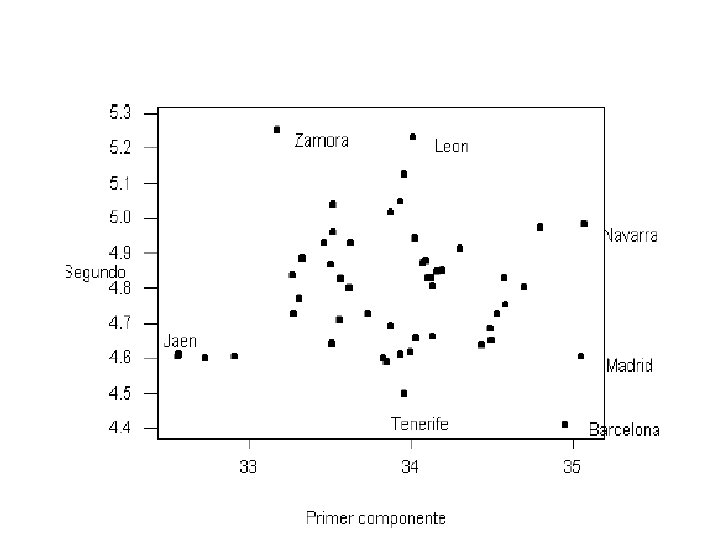

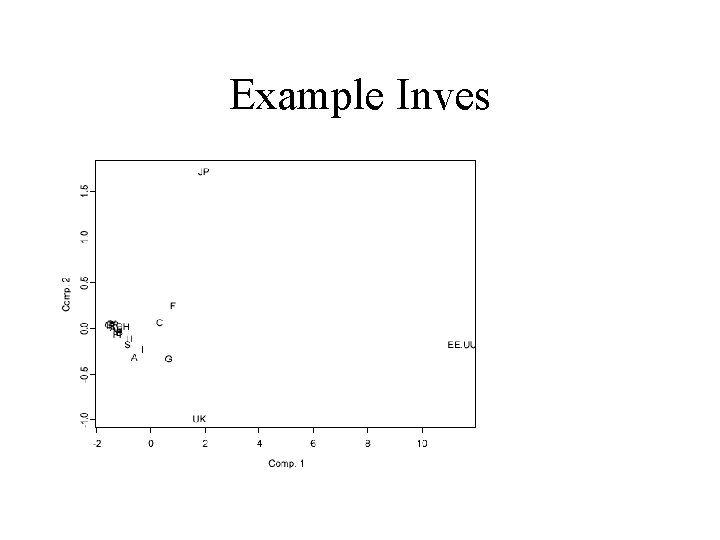

Example Inves

Example Inves

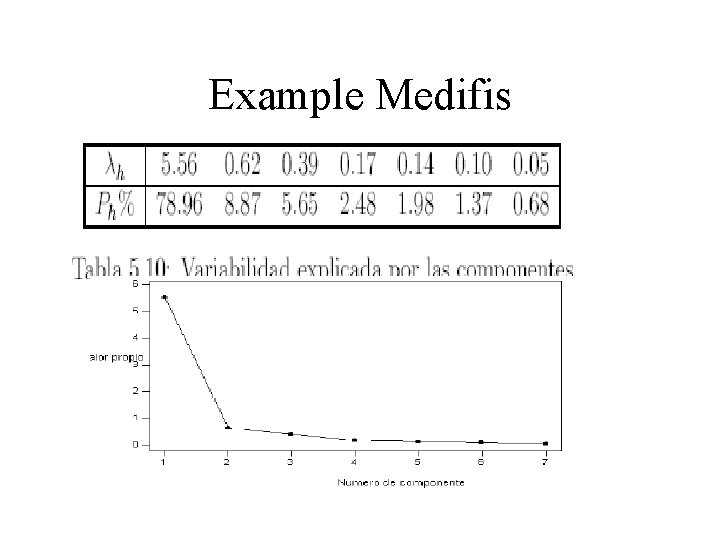

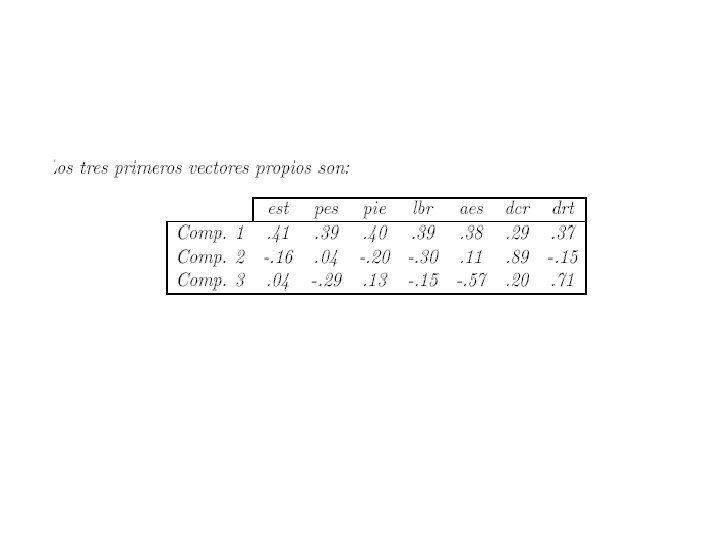

Example Medifis

Example mundodes

Example Mundodes

Example for image analysis

The analysis have been done with 16 images. PC allows that Instead of sending 16 matrices of N 2 pixels we send a vector 16 x 3 with the values of the components and a matrix 3 x. N 2 with the values of the new variables. We save If instead of 16 images we have 100 images we save 95%
