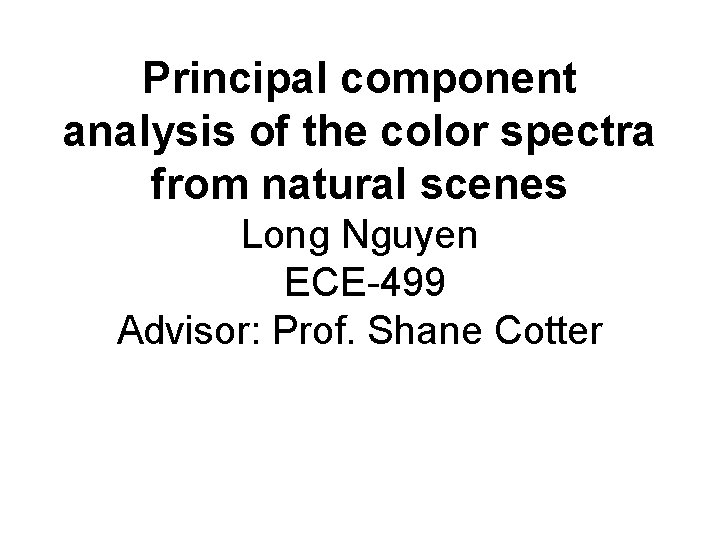

Principal component analysis of the color spectra from natural scenes Long Nguyen ECE-499 Advisor: Prof. Shane Cotter

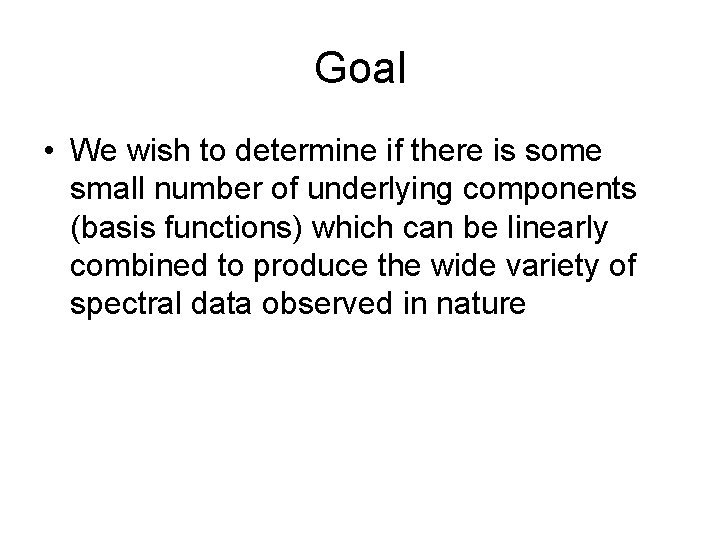

Goal • We wish to determine if there is some small number of underlying components (basis functions) which can be linearly combined to produce the wide variety of spectral data observed in nature

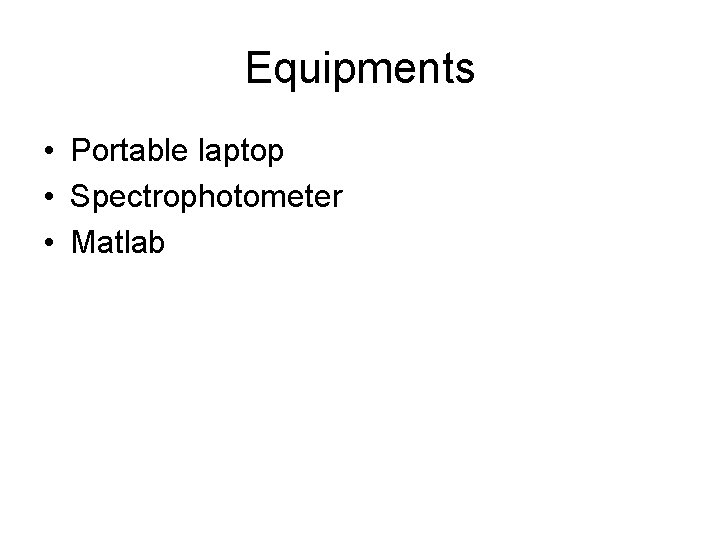

Equipments • Portable laptop • Spectrophotometer • Matlab

Collection of Spectral data • Summer in Jackson Gardens

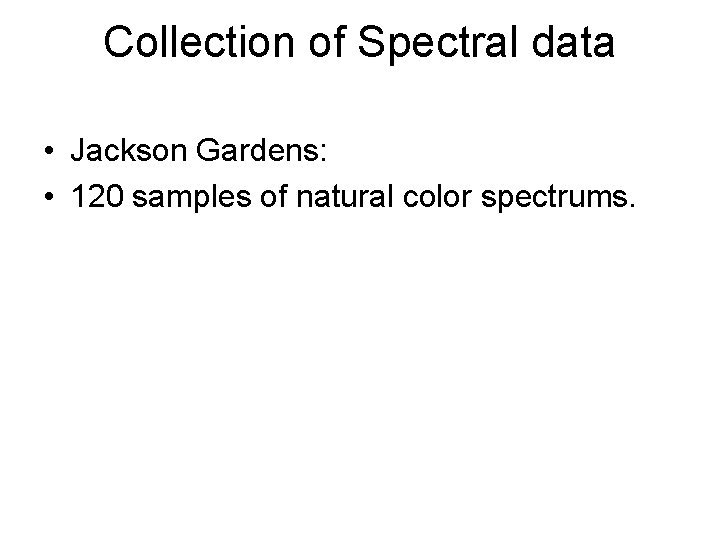

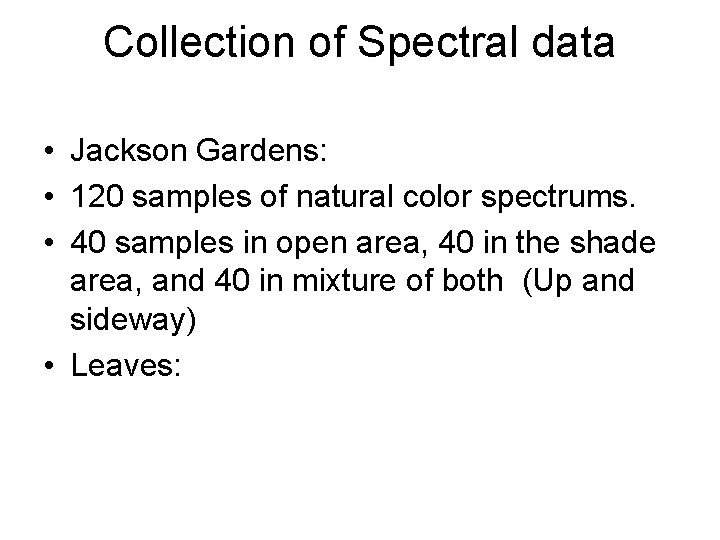

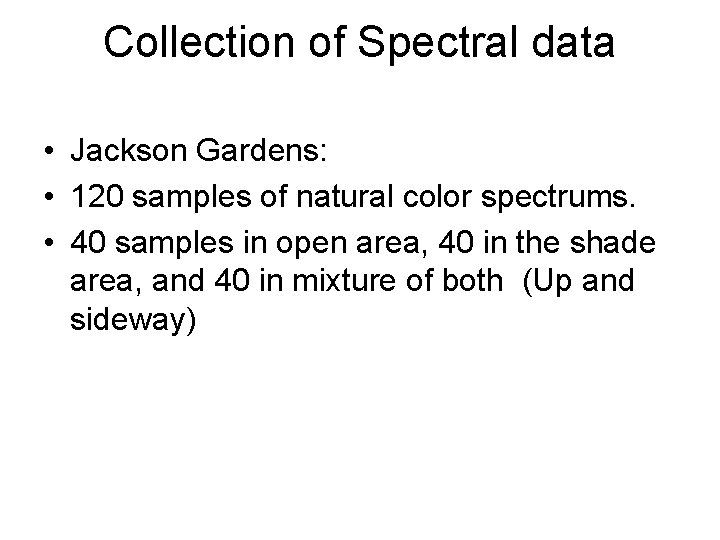

Collection of Spectral data • Jackson Gardens: • 120 samples of natural color spectrums.

Collection of Spectral data • Jackson Gardens: • 120 samples of natural color spectrums. • 40 samples in open area, 40 in the shade area, and 40 in mixture of both (Up and sideway)

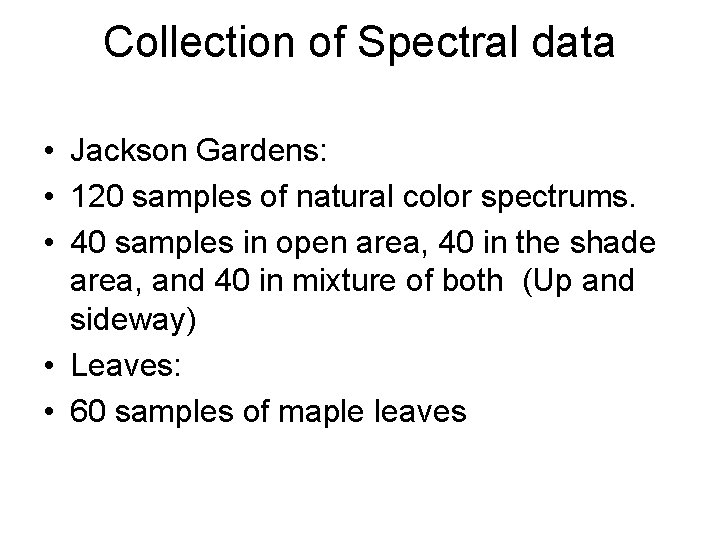

Collection of Spectral data • Jackson Gardens: • 120 samples of natural color spectrums. • 40 samples in open area, 40 in the shade area, and 40 in mixture of both (Up and sideway) • Leaves:

Collection of Spectral data • Jackson Gardens: • 120 samples of natural color spectrums. • 40 samples in open area, 40 in the shade area, and 40 in mixture of both (Up and sideway) • Leaves: • 60 samples of maple leaves

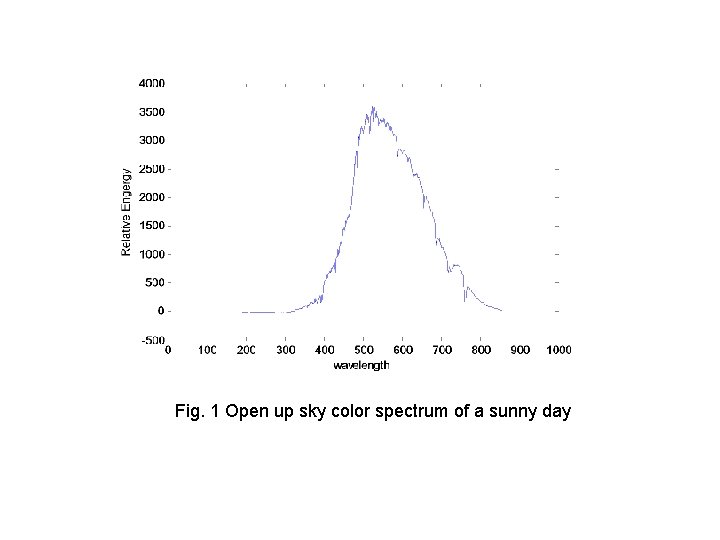

Fig. 1 Open up sky color spectrum of a sunny day

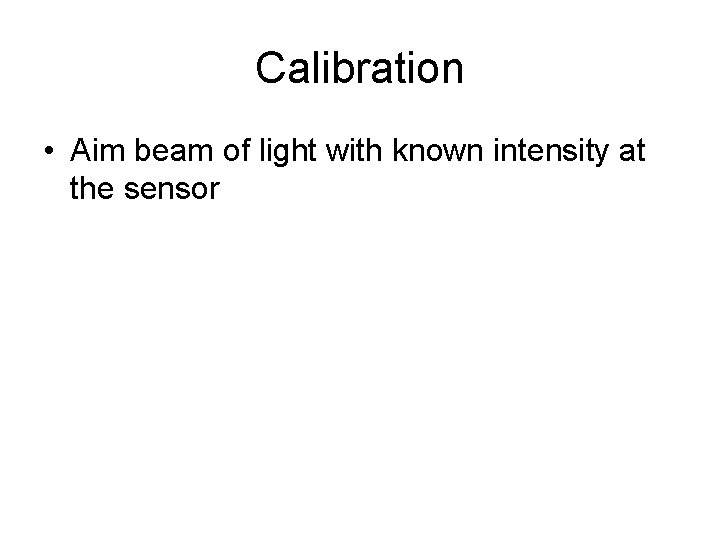

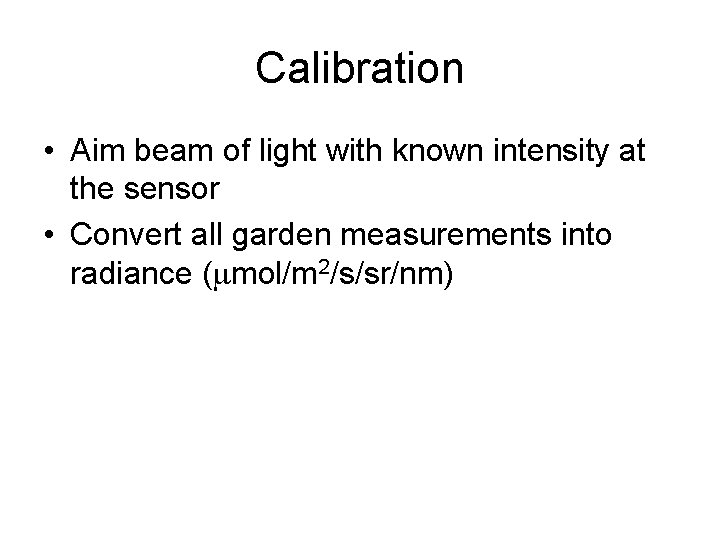

Calibration • Aim beam of light with known intensity at the sensor

Calibration • Aim beam of light with known intensity at the sensor • Convert all garden measurements into radiance ( mol/m 2/s/sr/nm)

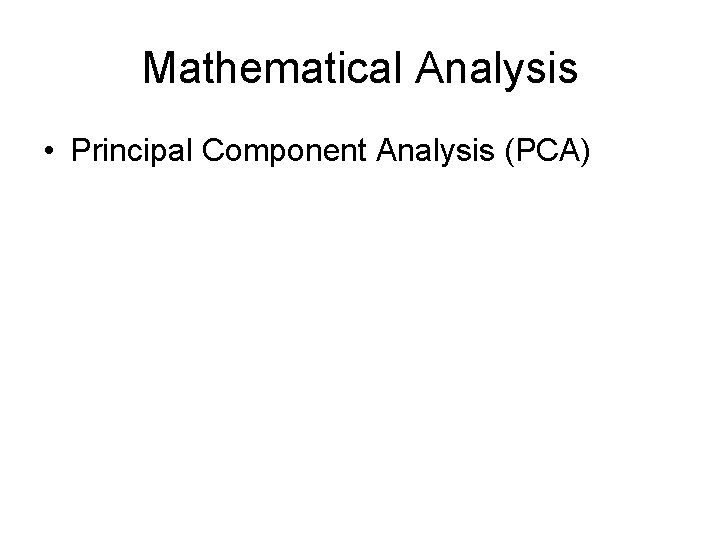

Mathematical Analysis • Principal Component Analysis (PCA)

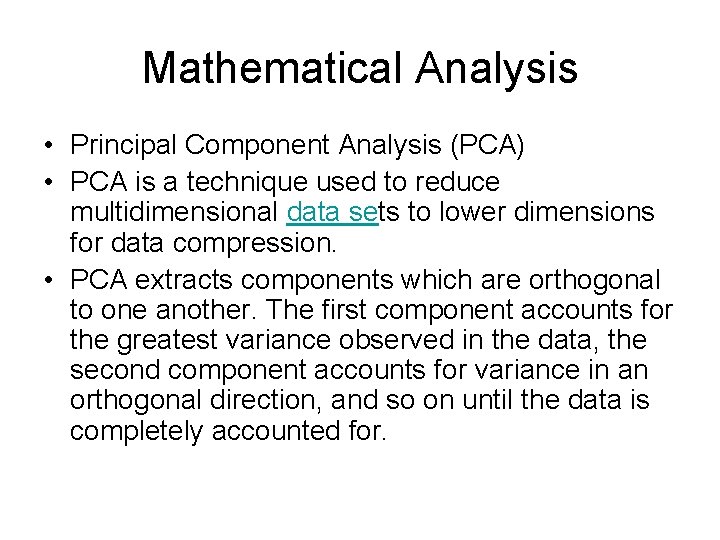

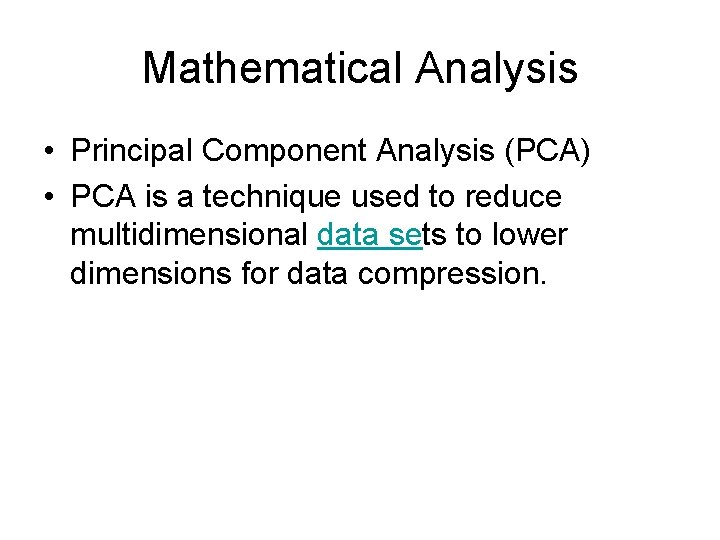

Mathematical Analysis • Principal Component Analysis (PCA) • PCA is a technique used to reduce multidimensional data sets to lower dimensions for data compression.

Mathematical Analysis • Principal Component Analysis (PCA) • PCA is a technique used to reduce multidimensional data sets to lower dimensions for data compression. • PCA extracts components which are orthogonal to one another. The first component accounts for the greatest variance observed in the data, the second component accounts for variance in an orthogonal direction, and so on until the data is completely accounted for.

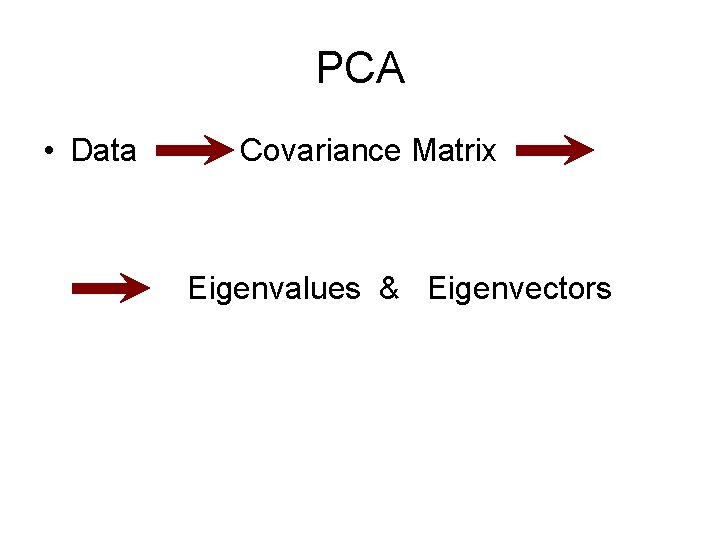

PCA • Data Covariance Matrix Eigenvalues & Eigenvectors

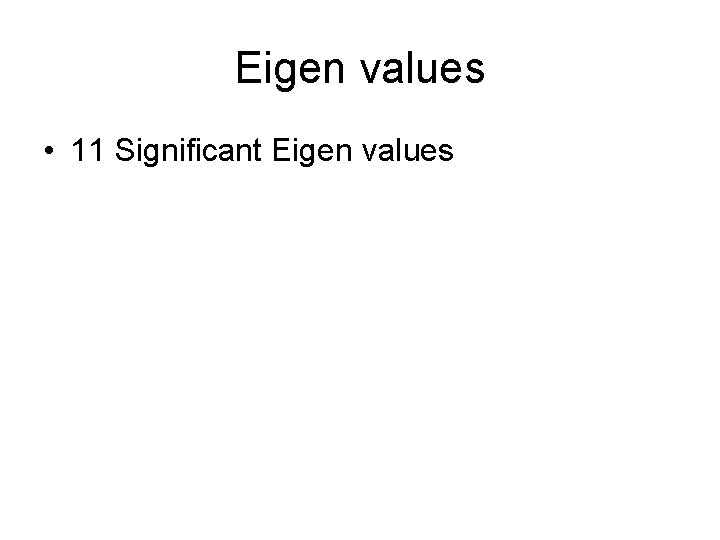

Eigen values • 11 Significant Eigen values

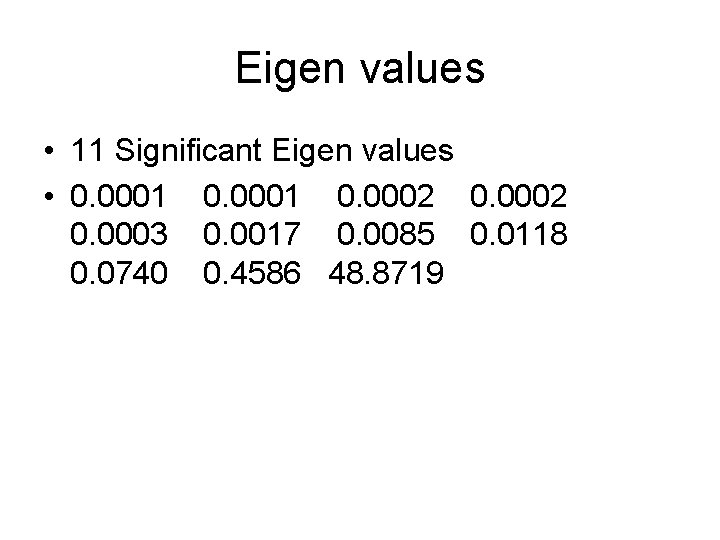

Eigen values • 11 Significant Eigen values • 0. 0001 0. 0002 0. 0003 0. 0017 0. 0085 0. 0118 0. 0740 0. 4586 48. 8719

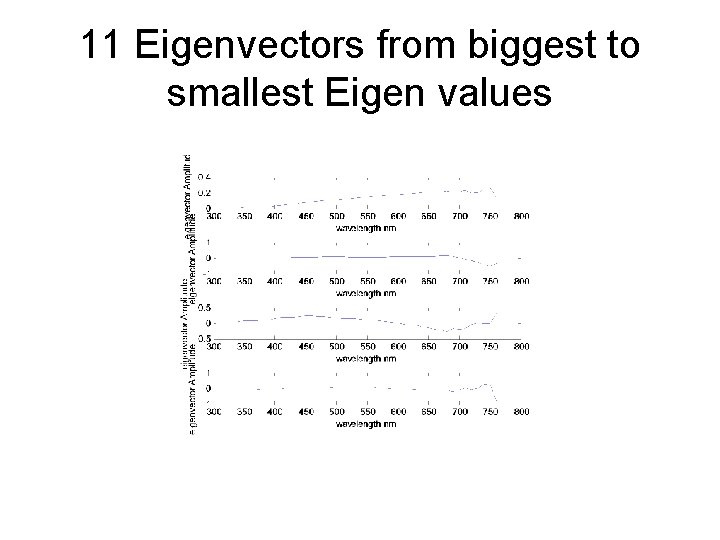

11 Eigenvectors from biggest to smallest Eigen values

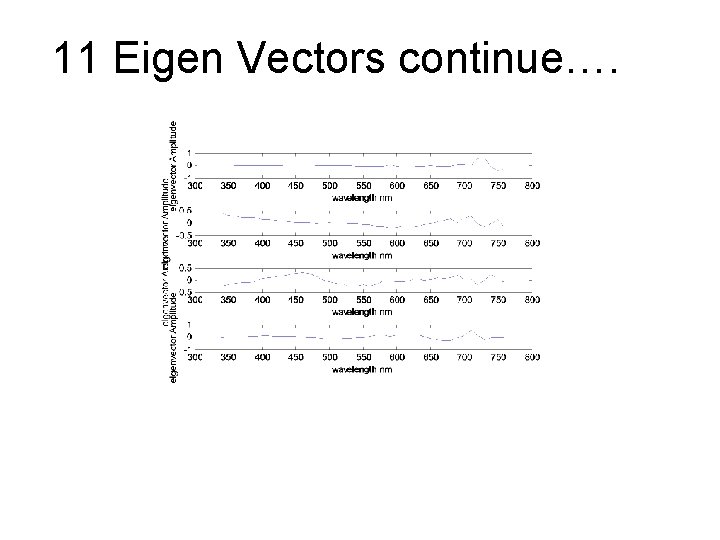

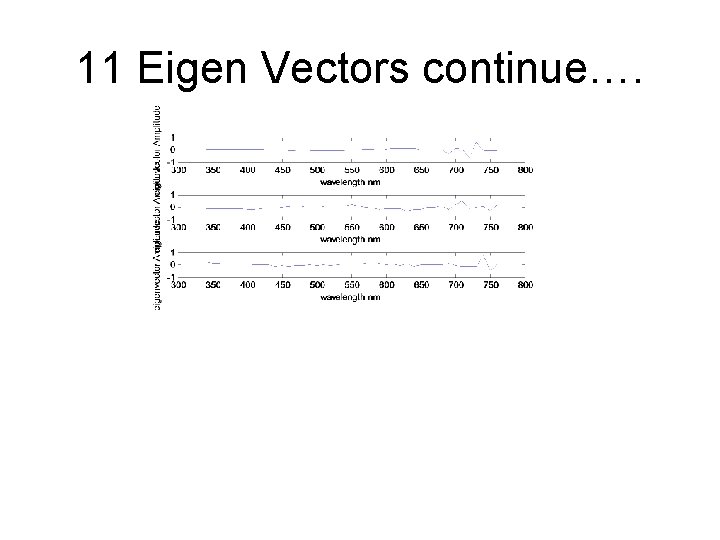

11 Eigen Vectors continue….

11 Eigen Vectors continue….

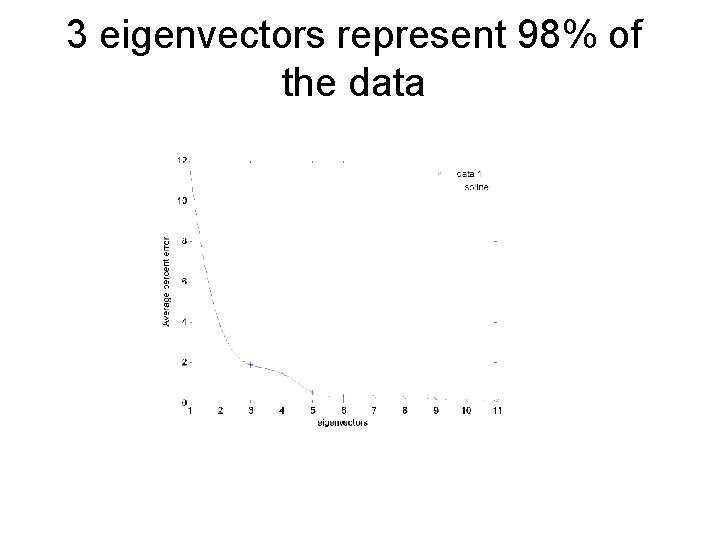

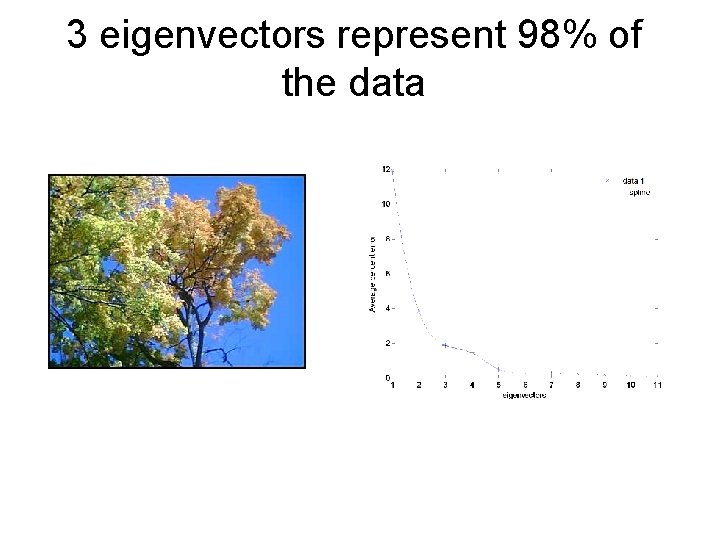

3 eigenvectors represent 98% of the data

3 eigenvectors represent 98% of the data

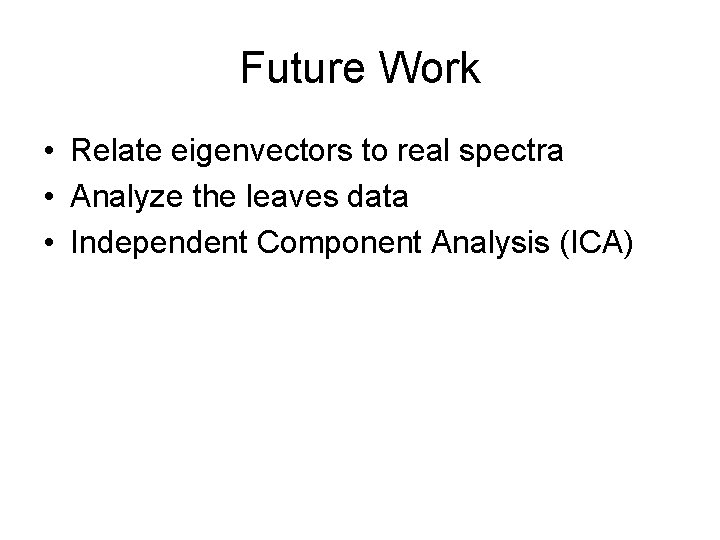

Future Work • Relate eigenvectors to real spectra • Analyze the leaves data • Independent Component Analysis (ICA)

Acknowledgements • Prof. Shane Cotter • Prof. Fleishman
