Primary Data Carrier RFID or 2 D Barcode

Primary Data Carrier RFID or 2 D Barcode? JDW 09/2007

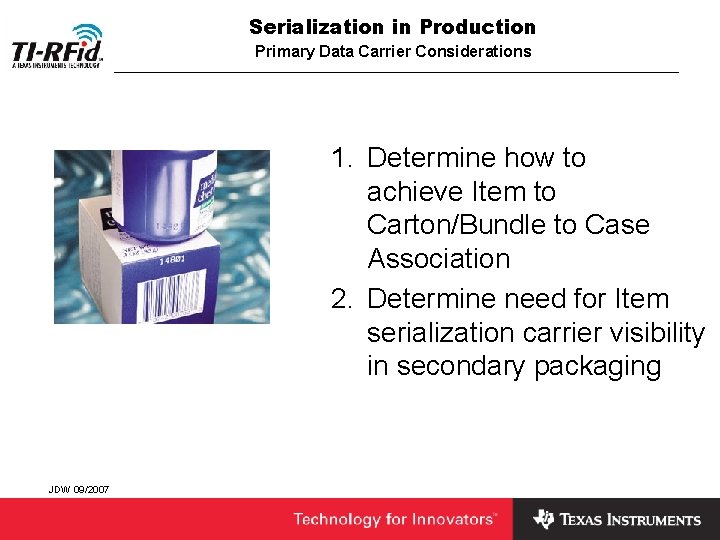

Serialization in Production Primary Data Carrier Considerations 1. Determine how to achieve Item to Carton/Bundle to Case Association 2. Determine need for Item serialization carrier visibility in secondary packaging JDW 09/2007

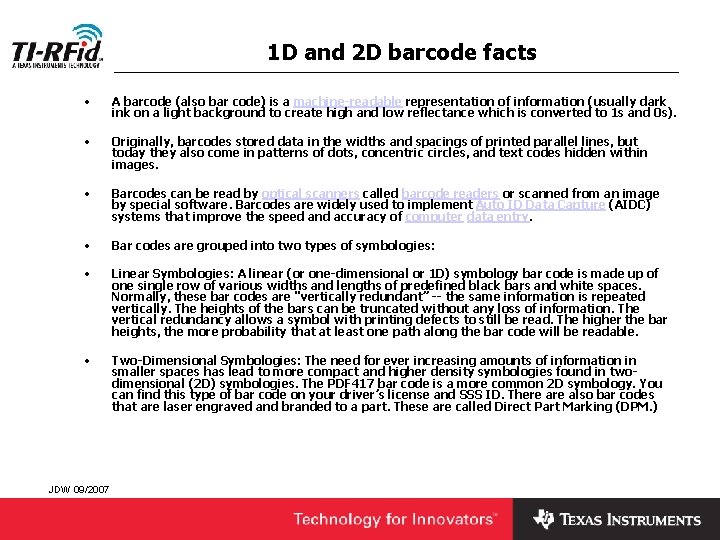

1 D and 2 D barcode facts • A barcode (also bar code) is a machine-readable representation of information (usually dark ink on a light background to create high and low reflectance which is converted to 1 s and 0 s). • Originally, barcodes stored data in the widths and spacings of printed parallel lines, but today they also come in patterns of dots, concentric circles, and text codes hidden within images. • Barcodes can be read by optical scanners called barcode readers or scanned from an image by special software. Barcodes are widely used to implement Auto ID Data Capture (AIDC) systems that improve the speed and accuracy of computer data entry. • Bar codes are grouped into two types of symbologies: • Linear Symbologies: A linear (or one-dimensional or 1 D) symbology bar code is made up of one single row of various widths and lengths of predefined black bars and white spaces. Normally, these bar codes are "vertically redundant” -- the same information is repeated vertically. The heights of the bars can be truncated without any loss of information. The vertical redundancy allows a symbol with printing defects to still be read. The higher the bar heights, the more probability that at least one path along the bar code will be readable. • Two-Dimensional Symbologies: The need for ever increasing amounts of information in smaller spaces has lead to more compact and higher density symbologies found in twodimensional (2 D) symbologies. The PDF 417 bar code is a more common 2 D symbology. You can find this type of bar code on your driver’s license and SSS ID. There also bar codes that are laser engraved and branded to a part. These are called Direct Part Marking (DPM. ) JDW 09/2007

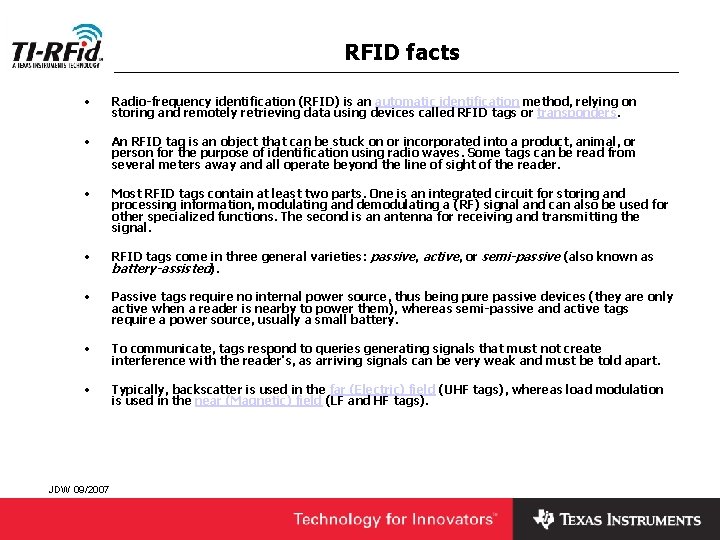

RFID facts • Radio-frequency identification (RFID) is an automatic identification method, relying on storing and remotely retrieving data using devices called RFID tags or transponders. • An RFID tag is an object that can be stuck on or incorporated into a product, animal, or person for the purpose of identification using radio waves. Some tags can be read from several meters away and all operate beyond the line of sight of the reader. • Most RFID tags contain at least two parts. One is an integrated circuit for storing and processing information, modulating and demodulating a (RF) signal and can also be used for other specialized functions. The second is an antenna for receiving and transmitting the signal. • RFID tags come in three general varieties: passive, active, or semi-passive (also known as battery-assisted). • Passive tags require no internal power source, thus being pure passive devices (they are only active when a reader is nearby to power them), whereas semi-passive and active tags require a power source, usually a small battery. • To communicate, tags respond to queries generating signals that must not create interference with the reader's, as arriving signals can be very weak and must be told apart. • Typically, backscatter is used in the far (Electric) field (UHF tags), whereas load modulation is used in the near (Magnetic) field (LF and HF tags). JDW 09/2007

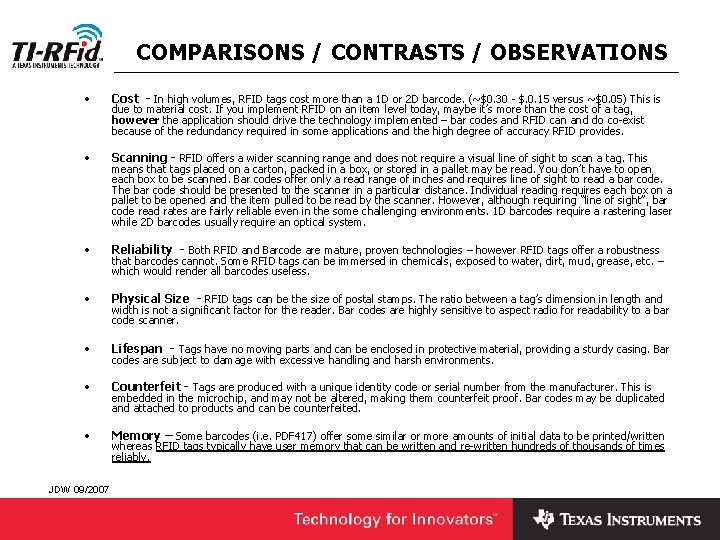

COMPARISONS / CONTRASTS / OBSERVATIONS • Cost - In high volumes, RFID tags cost more than a 1 D or 2 D barcode. (~$0. 30 - $. 0. 15 versus ~$0. 05) This is • Scanning - RFID offers a wider scanning range and does not require a visual line of sight to scan a tag. This • Reliability - Both RFID and Barcode are mature, proven technologies – however RFID tags offer a robustness • Physical Size - RFID tags can be the size of postal stamps. The ratio between a tag’s dimension in length and • Lifespan - Tags have no moving parts and can be enclosed in protective material, providing a sturdy casing. Bar • Counterfeit - Tags are produced with a unique identity code or serial number from the manufacturer. This is • Memory – Some barcodes (i. e. PDF 417) offer some similar or more amounts of initial data to be printed/written JDW 09/2007 due to material cost. If you implement RFID on an item level today, maybe it’s more than the cost of a tag, however the application should drive the technology implemented – bar codes and RFID can and do co-exist because of the redundancy required in some applications and the high degree of accuracy RFID provides. means that tags placed on a carton, packed in a box, or stored in a pallet may be read. You don’t have to open each box to be scanned. Bar codes offer only a read range of inches and requires line of sight to read a bar code. The bar code should be presented to the scanner in a particular distance. Individual reading requires each box on a pallet to be opened and the item pulled to be read by the scanner. However, although requiring “line of sight”, bar code read rates are fairly reliable even in the some challenging environments. 1 D barcodes require a rastering laser while 2 D barcodes usually require an optical system. that barcodes cannot. Some RFID tags can be immersed in chemicals, exposed to water, dirt, mud, grease, etc. – which would render all barcodes useless. width is not a significant factor for the reader. Bar codes are highly sensitive to aspect radio for readability to a bar code scanner. codes are subject to damage with excessive handling and harsh environments. embedded in the microchip, and may not be altered, making them counterfeit proof. Bar codes may be duplicated and attached to products and can be counterfeited. whereas RFID tags typically have user memory that can be written and re-written hundreds of thousands of times reliably.

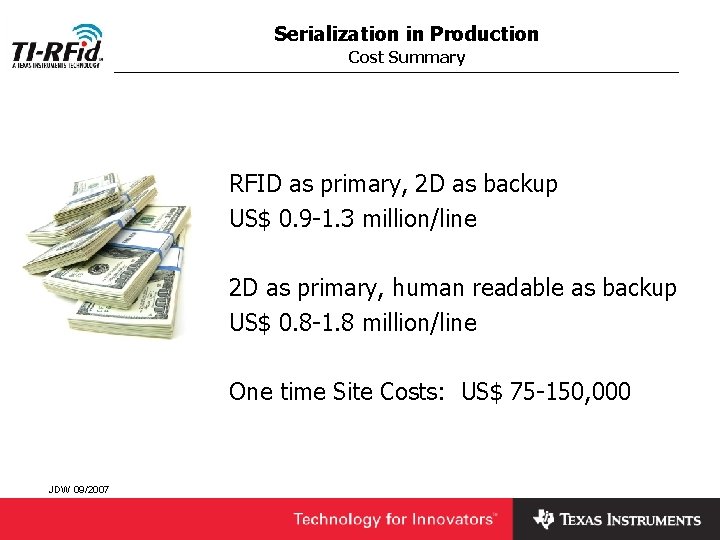

Serialization in Production Cost Summary RFID as primary, 2 D as backup US$ 0. 9 -1. 3 million/line 2 D as primary, human readable as backup US$ 0. 8 -1. 8 million/line One time Site Costs: US$ 75 -150, 000 JDW 09/2007

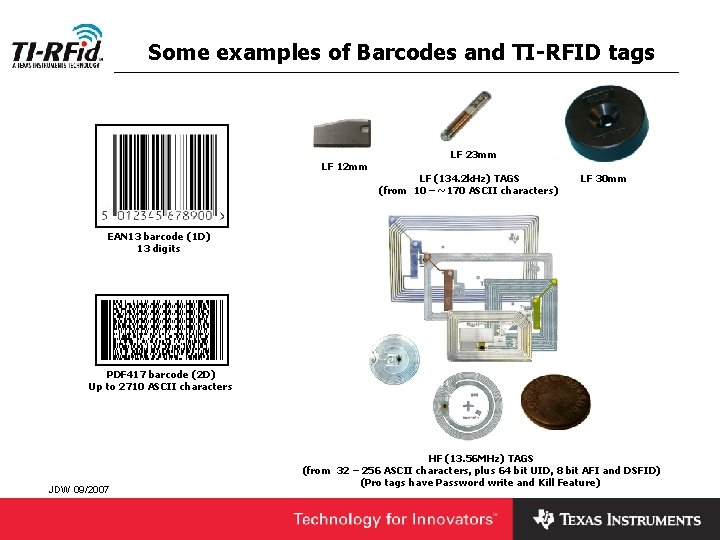

Some examples of Barcodes and TI-RFID tags LF 12 mm LF 23 mm LF (134. 2 k. Hz) TAGS (from 10 – ~170 ASCII characters) LF 30 mm EAN 13 barcode (1 D) 13 digits PDF 417 barcode (2 D) Up to 2710 ASCII characters JDW 09/2007 HF (13. 56 MHz) TAGS (from 32 – 256 ASCII characters, plus 64 bit UID, 8 bit AFI and DSFID) (Pro tags have Password write and Kill Feature)
