Networks • • • Primary water – 25 -27 deg Cooling towers Chillers Chilled water – 5 deg Heat exchangers Mixed water – 13 deg Tap water Demineralized water 2/18/2021 P 2 cooling distribution - A. Tauro 3

Primary water distribution (Ta=25. 4°C) SD 2: cryo SH 2: cryo SU 2: chillers UW 25: L 3 and Dipole cooling + S 12 -23 -TI 2 and US 25 cooling SEQ 2: compensators 2/18/2021 SF 2: production of primary water P 2 cooling distribution - A. Tauro 4

Chilled water distribution (5°C) SUX 2: L 3 injection SX 2: ACR, CR 1 -4 racks + L 3 safety tank SU 2: UX 25 injection + CRs ventilation + tunnel ventilation PM circuit UW 25: L 3/Dipole heat exchangers + mixed water (racks + cooling plants) + chilled water (cooling plants) SR 2: cooling 2/18/2021 P 2 cooling distribution - A. Tauro 5

CV work – chilled water upgrade • LS 1: +60% cooling power • Three new, more powerful, chillers installed in SU 2. Two more will be installed in 2014 -15. • New heat-exchangers Installation new chillers in SU 2 2/18/2021 Old chillers P 2 cooling distribution - A. Tauro New heat-exchangers 6 SU 2

L 3 ventilation upgrade Done • Scaffolding – 27 m tower inside the PX 24 shaft – 3 weeks for installation – 13 t total weight • Ductwork – Work in SUX 2 and SX 2 started – 80 m pipe to be exchanged – Connection to N 2 system Finished February 2104 2/18/2021 LS 1 reference slides - A. Tauro 7

Chilled water production (SU 2) 2013 Chiller 1 To PM 2013 Chiller 2 2013 Chiller 3 2014 Chiller 4 Pump 1 To SR Pump 2 To SU Pump 3 2015 2/18/2021 Chiller 5 P 2 cooling distribution - A. Tauro 8

Chilled water circuits • PM circuit: – – – – L 3 and Dipole cooling L 3 ventilation UX 25 and CR racks Detector cooling MTK, MTG, PMD and ITS ventilation ACR ventilation UA ventilation (not ALICE) • SR circuit: – SR 2 cooling (not ALICE) • SU circuit: – CR ventilation – UX 25 ventilation – All surface buildings ventilation (not all ALICE) 2/18/2021 P 2 cooling distribution - A. Tauro 9

Detector cooling • 7 cooling plants – TPC, TRD, TOF-PHOS-EMC-DCA-CPV, SSD-SDD, SPD, HMPID, PHOS (crystals) • Leakless • Major works in LS 1 – PLC relocation, TPC and TRD tanks, SSD-SDD heaters removal + UPS • PHOS (crystals) will be replaced – New insulation PHOS pipes 2/18/2021 P 2 cooling distribution - A. Tauro 10

Mixed water CR Chilled water T Eau perdue P Activated if power cut T P Racks CR 1 T P Racks CR 2 T P Racks CR 3 T Racks CR 4 ITS dehumidifier CR 5 Flowmeter Control of valves in each CR UX 25 122. 4 k. W Racks C-O Racks L 4 -O Dipole L 3 Racks C-I Racks A-I 4. 9 k. W SPD SSD SDD HMPID RR 0. 7 k. W PHOS TPC FMD 27 k. W Racks L 4 -I Flowmeter P T T P Control of all valves in CR 4 T P Chilled water Mixed water Remote reading Muon and PMD ventilation Racks A-O TOF PHOS EMC SPD (HE) TRD HS 55 k. W

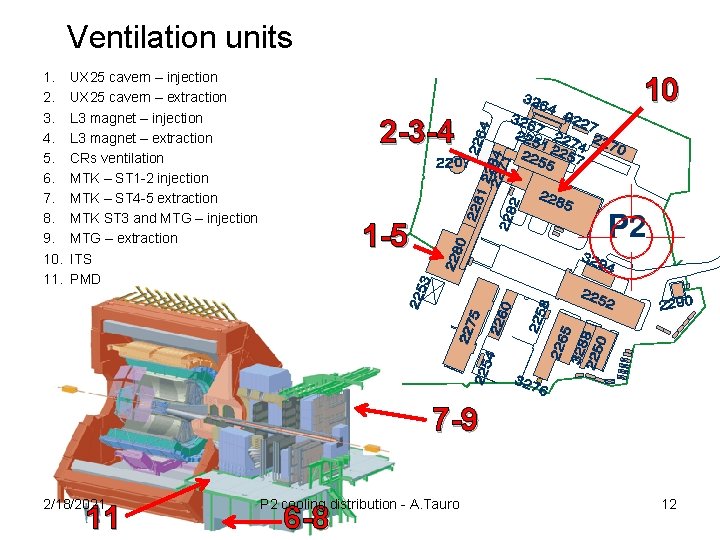

Ventilation units 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. UX 25 cavern – injection UX 25 cavern – extraction L 3 magnet – injection L 3 magnet – extraction CRs ventilation MTK – ST 1 -2 injection MTK – ST 4 -5 extraction MTK ST 3 and MTG – injection MTG – extraction ITS PMD 10 2 -3 -4 1 -5 7 -9 2/18/2021 11 P 2 cooling distribution - A. Tauro 6 -8 12

Backup

1. UX 25 cavern - injection • • Location: SU 2 (2280) CV name: UAPE-201 and UARP-202 Output flow: 45’ 000 m 3/h Output temperature: 17 C Output dew point: 10 C Chilled water consumption: 75 m 3/h Primary water consumption: Power consumption: 2 motors (45 kw each), 4 electrical coils 152. 42 kw • Remarks: 2 emergency units run 90’ 000 m 3/h 2/18/2021 P 2 cooling distribution - A. Tauro 14

2. UX 25 cavern - extraction • • Location: SUX (2282) CV name: UAIE-231 and UAIF-232 Output flow: 45’ 000 m 3/h (emergency: 90’ 000 m 3/h) Output temperature: Output dew point: Chilled water consumption: Primary water consumption: Power consumption: UAIE: 2 motors (26. 5 kw each); UAIF: 2 motors (26. 5 kw each) • Remarks: in normal mode only UAIE runs 2/18/2021 P 2 cooling distribution - A. Tauro 15

3. L 3 magnet - injection • • Location: SUX (2282) CV name: UAPX-237 Output flow: 6’ 000 m 3/h Output temperature: 17 C Output dew point: 10 C Chilled water consumption: 16 m 3/h Primary water consumption: Power consumption: motor 18. 5 kw, two electrical coils (75 kw and 30 kw) • Remarks: – New ventilator in LS 1 – 10’ 000 m 3/h 2/18/2021 P 2 cooling distribution - A. Tauro 16

4. L 3 magnet - extraction • • Location: SUX (2282) CV name: UAEG-239 and UAEH-240 Output flow: 10’ 000 m 3/h Output temperature: Output dew point: Chilled water consumption: Primary water consumption: Power consumption: ? • Remarks: 2/18/2021 P 2 cooling distribution - A. Tauro 17

5. CRs ventilation • • Location: SU 2 (2280) CV name: UAPH-208 Output flow: 14’ 000 m 3/h Output temperature: 17 C Output dew point: 10 C Chilled water consumption: 21. 9 m 3/h Primary water consumption: Power consumption: motor 11 kw, 2 electrical coils (97 kw each) • Remarks: – Feeds also the (old) ITS unit in CR 5 2/18/2021 P 2 cooling distribution - A. Tauro 18

6. MTK – ST 1 -2 injection • • Location: UX 25 (2228) CV name: UAPX-281 Output flow: 2’ 500 m 3/h Output temperature: 17 C Output dew point: 10 C Chilled water consumption: 2. 22 m 3/h Primary water consumption: Power consumption: motor 3 kw, electrical coil 6. 5 kw • Remarks: 2/18/2021 P 2 cooling distribution - A. Tauro 19

7. MTK – ST 4 -5 extraction • • Location: UX 25 (2228) CV name: UUDC-0001 Output flow: 4’ 000 m 3/h Output temperature: Output dew point: Chilled water consumption: Primary water consumption: Power consumption: motor 2. 2 kw • Remarks: 2/18/2021 P 2 cooling distribution - A. Tauro 20

8. MTK ST 3 and MTG – injection • • Location: UX 25 (2228) CV name: UAPX-282 Output flow: MTK ST 3 3’ 000 m 3/h and MTG 2’ 000 m 3/h Output temperature: 17 C Output dew point: 10 C Chilled water consumption: 5. 04 m 3/h Primary water consumption: Power consumption: motor 4 kw, electrical coil 12 kw • Remarks: 2/18/2021 P 2 cooling distribution - A. Tauro 21

9. MTG – extraction • • Location: UX 25 (2228) CV name: UUDC-0002 Output flow: 2’ 000 m 3/h Output temperature: Output dew point: Chilled water consumption: Primary water consumption: Power consumption: 1. 1 kw • Remarks: 2/18/2021 P 2 cooling distribution - A. Tauro 22

10. New ITS dehumidifier • • Location: SX 2 (2285) CV name: UAPX-00283 Output flow: 250 m 3/h Output temperature: 20 C Output dew point: -10 C to 10 C Chilled water consumption: ? Primary water consumption: Power consumption: ? • Remarks: 2/18/2021 P 2 cooling distribution - A. Tauro 23

11. PMD • • Location: UX 25 (2228) CV name: UAPX-280 Output flow: 1’ 000 m 3/h Output temperature: 17 C Output dew point: 10 C Chilled water consumption: 0. 89 m 3/h Primary water consumption: Power consumption: 5. 5 kw (old unit) • Remarks: new unit being assembled in wk 9 -10 2/18/2021 P 2 cooling distribution - A. Tauro 24

PM circuit Case 1: Ta=25. 4 C PM chilled water consumption Values for Ta (primary water) = 25. 4 C; T_L 3=22 C; T_Dipole=23 C Chilled water consumption Circuit [m 3/h] L 3 jacket UA ventilation L 3 injection ACR ventilation 5. 3 99. 54 16 4. 28 CR 1 -3 racks Old ITS ventilator PMD ventilation MTK ST 1 -2 ventilation MTK ST 3 and MTG ventilation Detector cooling 55 2 0. 89 2. 22 5. 04 40 L 3 Dipole 20 15 UX 25 racks 31 PM 296. 27 Used in ventilation stations Used in cooling stations 2/18/2021 P 2 cooling distribution - A. Tauro 25

PM circuit Case 2: Ta=27 C (few days/year) PM chilled water consumption Values for Ta (primary water) = 27 C; T_L 3=22 C; T_Dipole=23 C Chilled water consumption Circuit [m 3/h] L 3 jacket UA ventilation L 3 injection ACR ventilation 5. 3 99. 54 16 4. 28 CR 1 -3 racks Old ITS ventilator PMD ventilation MTK ST 1 -2 ventilation MTK ST 3 and MTG ventilation Detector cooling 55 2 0. 89 2. 22 L 3 Dipole UX 25 racks 168 99 31 PM 5. 04 40 528. 27 Used in ventilation stations Used in cooling stations 2/18/2021 P 2 cooling distribution - A. Tauro 26

SU circuit SU 2 (*) Q [m 3/h] CRs ventilation 21. 9 UX 25 injection 75 Rest (not all ALICE) Total 312. 4 409. 3 * see backup slides 2/18/2021 P 2 cooling distribution - A. Tauro 27

Total consumption (PM+SR+SU) Case 1: Ta=25. 4 C P 2 chilled water consumption Circuit SU SR PM Chilled water consumption [m 3/h] 409 100 296. 27 805 m 3/h Case 2: Ta=27 C P 2 chilled water consumption Circuit SU SR PM Chilled water consumption [m 3/h] 409 100 528. 27 1’ 037 m 3/h 2/18/2021 P 2 cooling distribution - A. Tauro 28

SUX 2: UX 25 extraction + L 3 ventilation SX 2: ACR ventilation, New ITS dehumidifier SU 2: chillers + UX 25 injection + CRs ventilation + tunnel ventilation SR 2: ventilation 2/18/2021 SF 2: primary water + cooling towers UW 25: heat exchangers + pumps for L 3/Dipole/racks/cooling plants + S 12 -23 -TI 2 and. P 2 US 25 coolingdistribution cooling - A. Tauro 29

Conclusion générale T°C Solénoïde Ta Débit PM (m 3/h) Débit SU (m 3/h) Débit SR (m 3/h) Total débit (m 3/h) Total Puissance (MW) 22°C 23°C 25. 4°C 296 409 100 805 5. 6 22°C 23°C 27°C 528 409 100 1037 7. 2 20°C 27°C 665 409 100 1174 8. 2 20°C 25. 4°C 569 409 100 1078 7. 5 Delta par rapport à la production (m 3/h) Production 600 m 3/h soit 200 m 3/h par GF -205 -437 -574 -478 Delta par rapport à la production (MW) Production 4, 2 MW soit 1, 4 MW par GF -1. 4 -3. 0 -4. 0 -3. 3 Travaux: Ajout de 1 GF +1 GF de secours Ajout de 2 GF +1 GF de secours Ajout de 3 GF +1 GF de secours Ajout de 2 GF +1 GF de secours Changement pompes PM Remplacement tuyauterie 2/18/2021 P 2 cooling distribution - A. Tauro 30

Rappel: Débits unités de traitement d’air circuit SU 2 Unité UAPA 205 UAPA 206 UAPE 201 UAPT 203 debit air P Q(*) Q total m 3/h k. W m 3/h calculé 1ère bat 2 ième bat * 45000 En mode LHC une seule UAPA est en service sur 2 veines. VH 146 20. 8 111 16. 7 37. 5 VB 146 20. 8 111 16. 7 37. 5 45000 Unité considérée à l'arrêt pour la définition des débits VH 146 20. 8 111 16. 7 0. 0 VB 146 20. 8 111 16. 7 0. 0 45000 En mode LHC débit total = 2 x 22 500 m 3/h VH 146 20. 8 111 16. 7 37. 5 VB 146 20. 8 111 16. 7 37. 5 36000 Débit d'eau correspondant au débit d'air de 2 x 18 000 m 3/h VH UAPT 204 2/18/2021 157 22. 5 110 15. 7 (38. 20) 47. 75 (38. 20) Débit max de 45 000 m 3/h VB 157 22. 5 110 15. 7 47. 75 36000 Débit d'eau correspondant au débit d'air de 2 x 18 000 m 3/h (38. 20) Débit max de 45 000 m 3/h VH 157 22. 5 110 15. 7 47. 75 (38. 20) Débit max de 45 000 m 3/h VB 157 22. 5 110 15. 7 47. 75 UAPH 208 15000 153 21. 9 UAVD 207 31 000 150 21. 0 UAPS 212 UAPL 210 8 000 12000 31 48 6. 1 7. 1 UAPS 215 UAPL 213 8 000 31 31 6. 1 TOTAL 409. 30 * Débit calculé sur l'unité en mode LHC à pleine charge P 2 cooling distribution - A. Tauro 31

Batiment UW 25 UA 27 UJ 23 UJ 27 UJ 26 UJ 24 US 25 UA 23 SUX SX 2 PX 24 UX 25 2/18/2021 Circuit L 3 Jacket uauw 291 uauk-01202 uauk-01203 uauk-01204 uauk-01205 uauk-01206 uauk-01207 uauk-01208 uaut-01209 uaut-01210 uauk-01211 uauk-01212 uaup-01235 uaup-01214 uaup-01201 uaup-01221 uauq-01251 uauk-01222 uauk-01223 uauk-01224 uauk-01225 uauk-01226 uauk-01227 uauk-01228 uauk-01229 uauk-01230 uaut-01231 uaut-01232 uauk-01233 uauk-01234 uapu 237 alice room sx 2 eau mixte Ventil ITS uapx 280 uapx 281 uapx 282 Débit m 3/h 5. 3 18 2. 31 2. 31 3. 24 2. 31 4. 13 4. 2 5. 72 2. 31 2. 31 3. 24 2. 31 16 4. 28 55 2 0. 89 2. 22 5. 04 relevé relevé relevé relevé relevé relevé relevé relevé relevé estimé relevé estimé pour 3 eau glacee detecteur échangeurs en P 2 cooling 40 distribution - A. Tauro parallèle total 230. 27 Débit Total m 3/h 23. 3 27. 27 4. 13 4. 2 5. 72 31. 89 16 4. 28 55 2 PDC k. Pa 25 18. 09 12. 2 12. 4 12. 2 10. 9 12. 2 10. 4 20 12. 4 12. 2 10. 9 12. 2 50 32 13 12. 4 48. 15 50 230. 27 32
