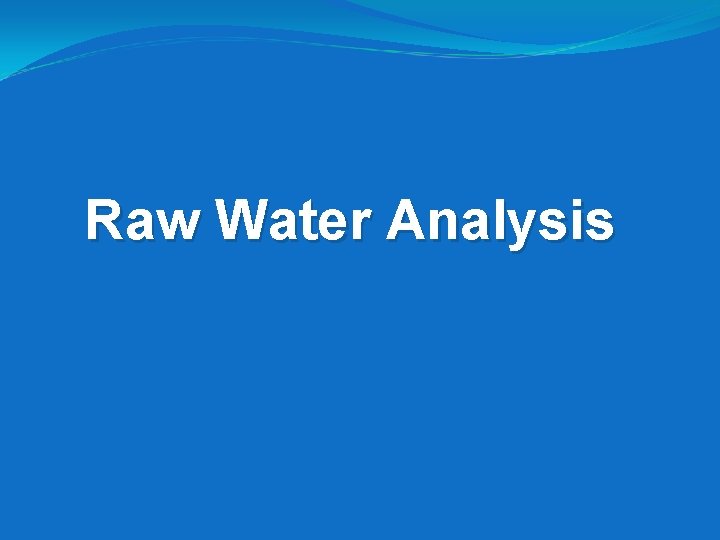

Raw Water Analysis

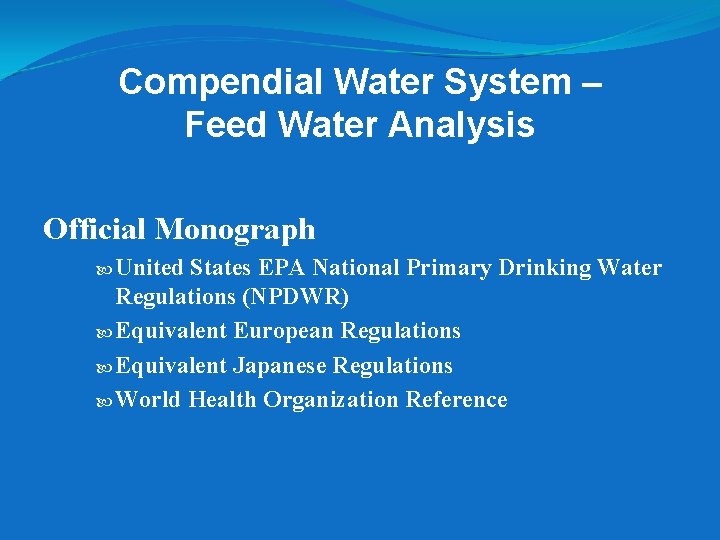

Compendial Water System – Feed Water Analysis Official Monograph United States EPA National Primary Drinking Water Regulations (NPDWR) Equivalent European Regulations Equivalent Japanese Regulations World Health Organization Reference

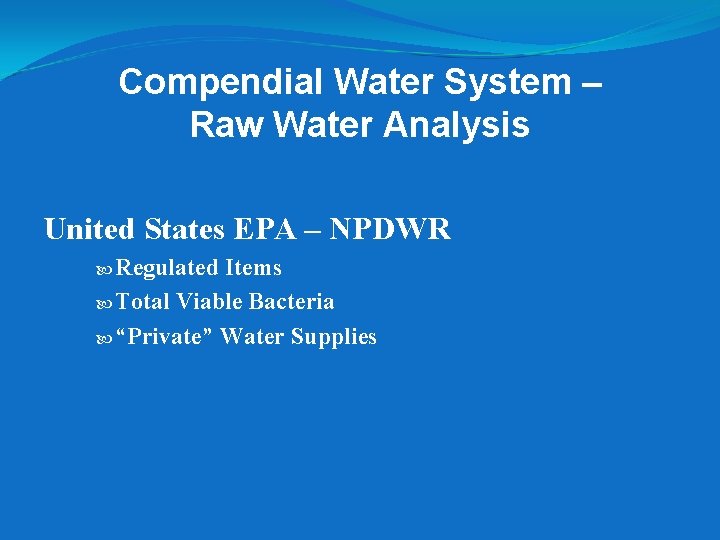

Compendial Water System – Raw Water Analysis United States EPA – NPDWR Regulated Items Total Viable Bacteria “Private” Water Supplies

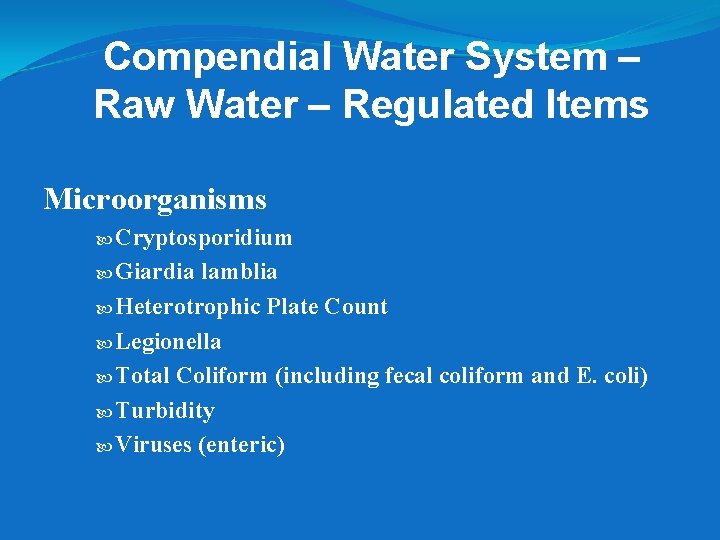

Compendial Water System – Raw Water – Regulated Items Microorganisms Cryptosporidium Giardia lamblia Heterotrophic Plate Count Legionella Total Coliform (including fecal coliform and E. coli) Turbidity Viruses (enteric)

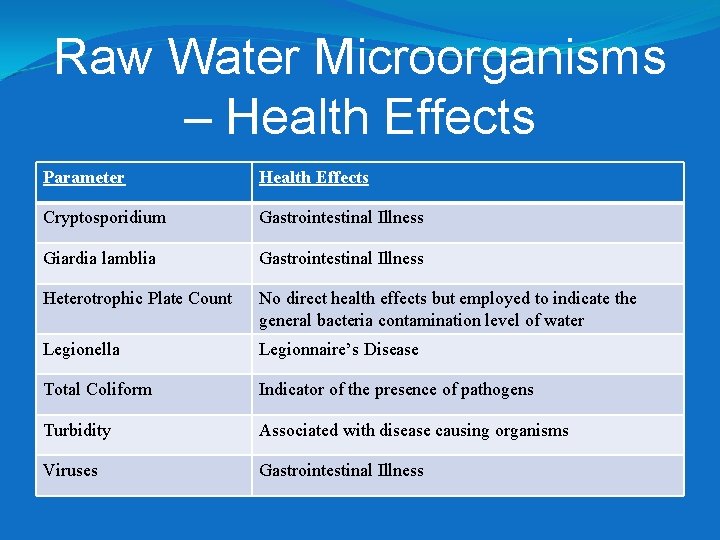

Raw Water Microorganisms – Health Effects Parameter Health Effects Cryptosporidium Gastrointestinal Illness Giardia lamblia Gastrointestinal Illness Heterotrophic Plate Count No direct health effects but employed to indicate the general bacteria contamination level of water Legionella Legionnaire’s Disease Total Coliform Indicator of the presence of pathogens Turbidity Associated with disease causing organisms Viruses Gastrointestinal Illness

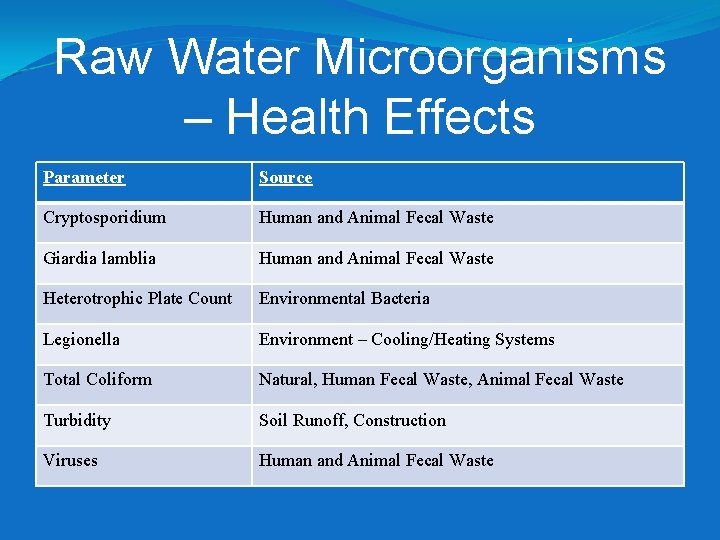

Raw Water Microorganisms – Health Effects Parameter Source Cryptosporidium Human and Animal Fecal Waste Giardia lamblia Human and Animal Fecal Waste Heterotrophic Plate Count Environmental Bacteria Legionella Environment – Cooling/Heating Systems Total Coliform Natural, Human Fecal Waste, Animal Fecal Waste Turbidity Soil Runoff, Construction Viruses Human and Animal Fecal Waste

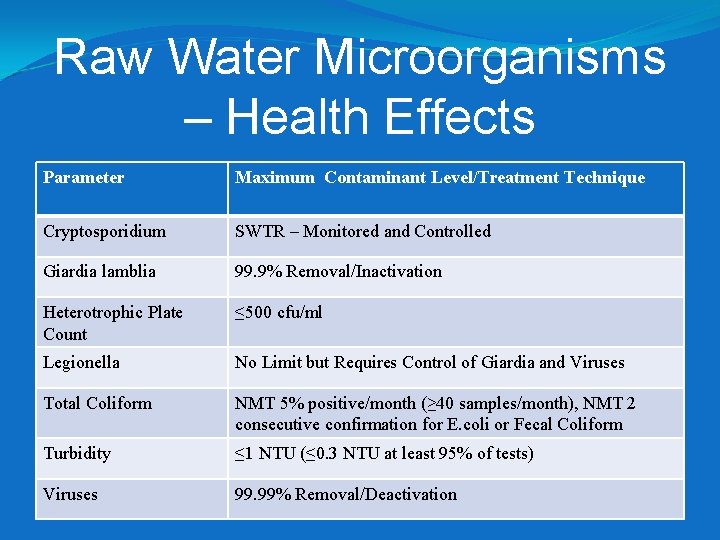

Raw Water Microorganisms – Health Effects Parameter Maximum Contaminant Level/Treatment Technique Cryptosporidium SWTR – Monitored and Controlled Giardia lamblia 99. 9% Removal/Inactivation Heterotrophic Plate Count ≤ 500 cfu/ml Legionella No Limit but Requires Control of Giardia and Viruses Total Coliform NMT 5% positive/month (≥ 40 samples/month), NMT 2 consecutive confirmation for E. coli or Fecal Coliform Turbidity ≤ 1 NTU (≤ 0. 3 NTU at least 95% of tests) Viruses 99. 99% Removal/Deactivation

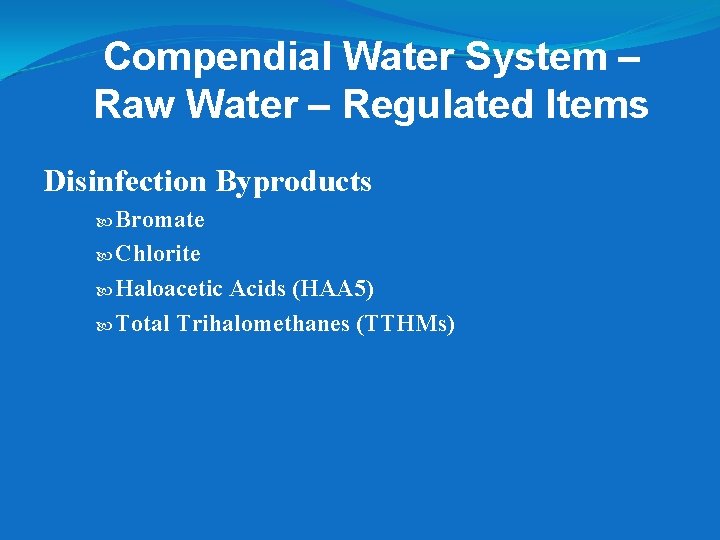

Compendial Water System – Raw Water – Regulated Items Disinfection Byproducts Bromate Chlorite Haloacetic Acids (HAA 5) Total Trihalomethanes (TTHMs)

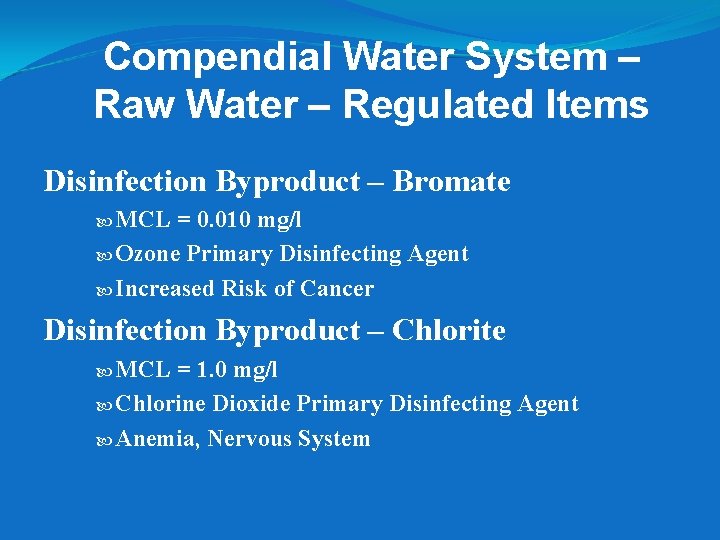

Compendial Water System – Raw Water – Regulated Items Disinfection Byproduct – Bromate MCL = 0. 010 mg/l Ozone Primary Disinfecting Agent Increased Risk of Cancer Disinfection Byproduct – Chlorite MCL = 1. 0 mg/l Chlorine Dioxide Primary Disinfecting Agent Anemia, Nervous System

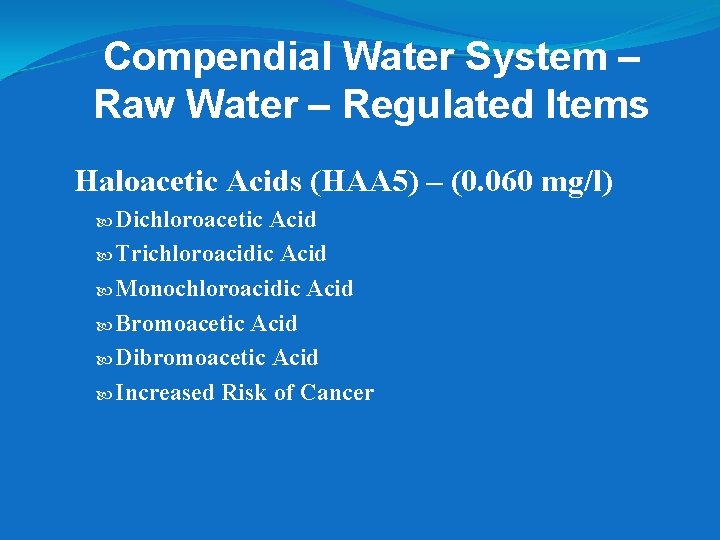

Compendial Water System – Raw Water – Regulated Items Haloacetic Acids (HAA 5) – (0. 060 mg/l) Dichloroacetic Acid Trichloroacidic Acid Monochloroacidic Acid Bromoacetic Acid Dibromoacetic Acid Increased Risk of Cancer

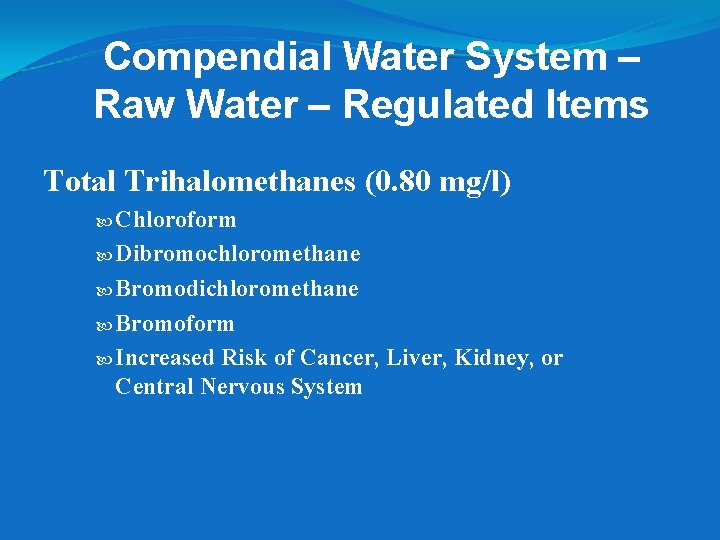

Compendial Water System – Raw Water – Regulated Items Total Trihalomethanes (0. 80 mg/l) Chloroform Dibromochloromethane Bromodichloromethane Bromoform Increased Risk of Cancer, Liver, Kidney, or Central Nervous System

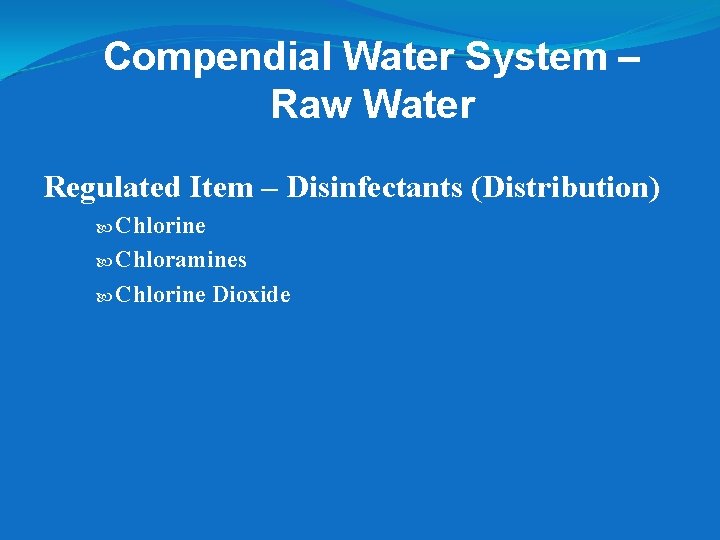

Compendial Water System – Raw Water Regulated Item – Disinfectants (Distribution) Chlorine Chloramines Chlorine Dioxide

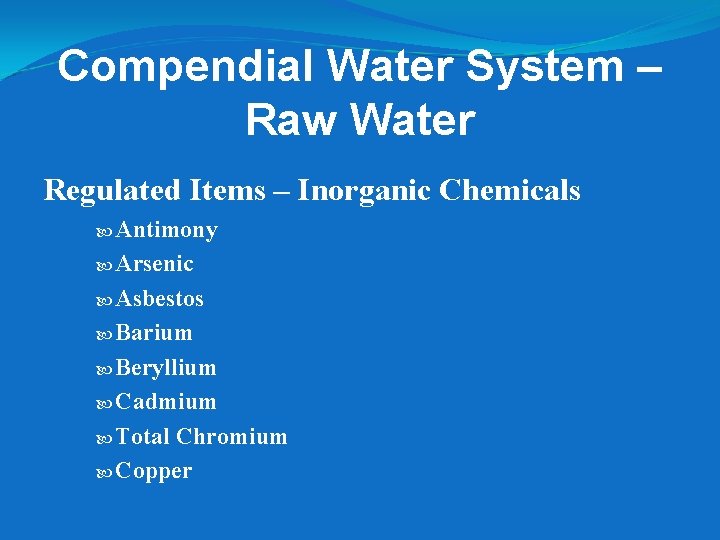

Compendial Water System – Raw Water Regulated Items – Inorganic Chemicals Antimony Arsenic Asbestos Barium Beryllium Cadmium Total Chromium Copper

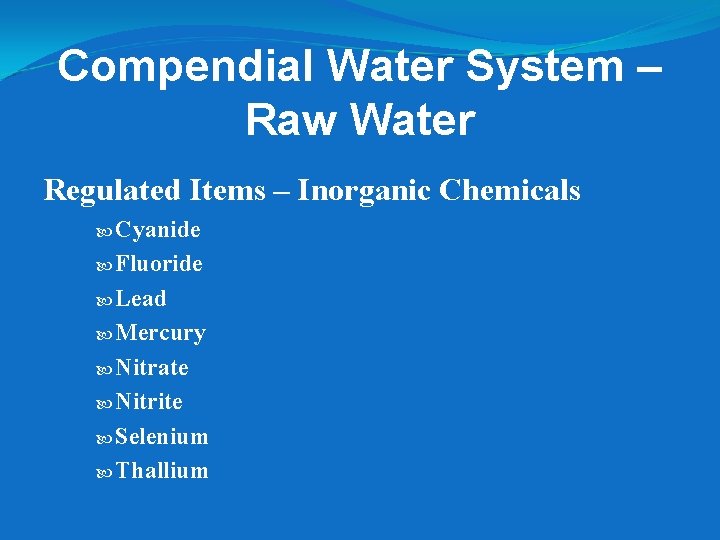

Compendial Water System – Raw Water Regulated Items – Inorganic Chemicals Cyanide Fluoride Lead Mercury Nitrate Nitrite Selenium Thallium

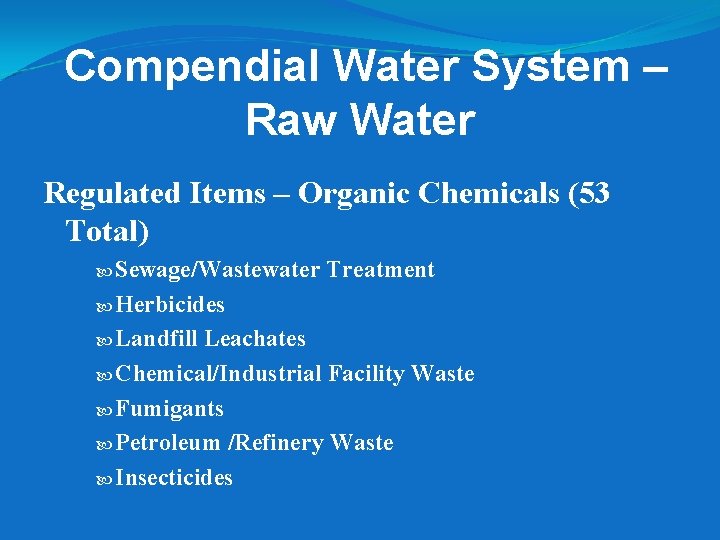

Compendial Water System – Raw Water Regulated Items – Organic Chemicals (53 Total) Sewage/Wastewater Treatment Herbicides Landfill Leachates Chemical/Industrial Facility Waste Fumigants Petroleum /Refinery Waste Insecticides

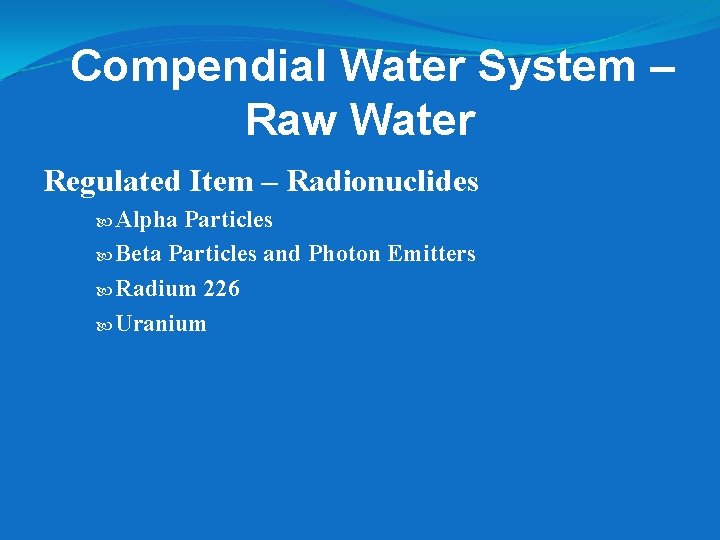

Compendial Water System – Raw Water Regulated Item – Radionuclides Alpha Particles Beta Particles and Photon Emitters Radium 226 Uranium

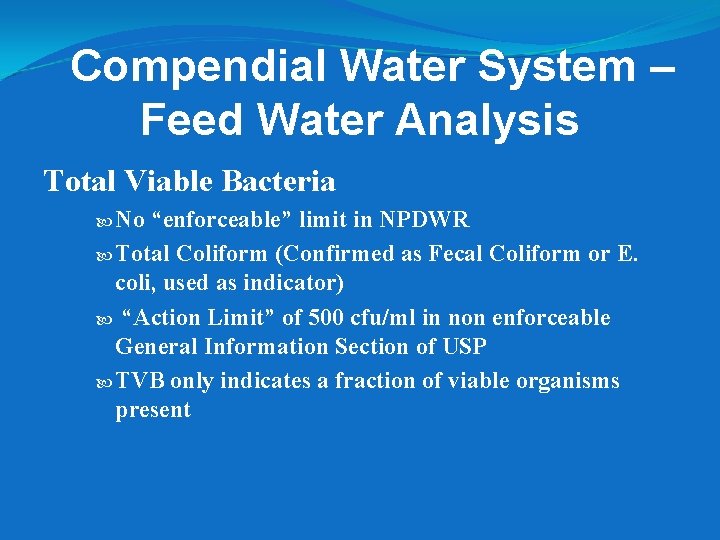

Compendial Water System – Feed Water Analysis Total Viable Bacteria No “enforceable” limit in NPDWR Total Coliform (Confirmed as Fecal Coliform or E. coli, used as indicator) “Action Limit” of 500 cfu/ml in non enforceable General Information Section of USP TVB only indicates a fraction of viable organisms present

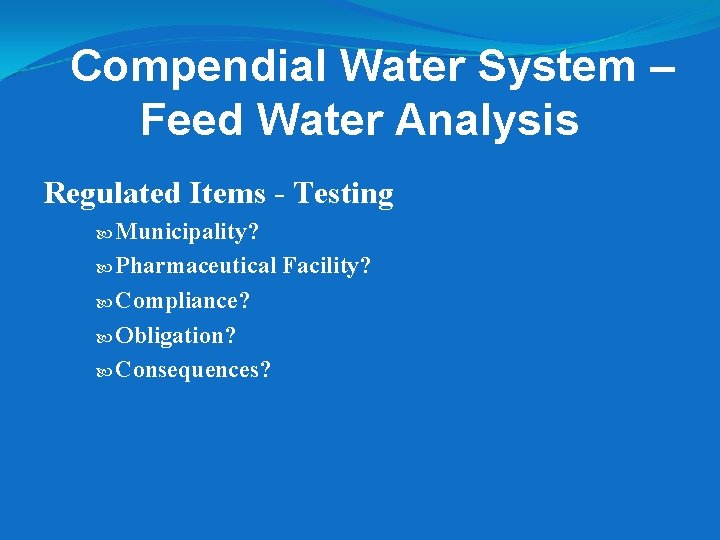

Compendial Water System – Feed Water Analysis Regulated Items - Testing Municipality? Pharmaceutical Compliance? Obligation? Consequences? Facility?

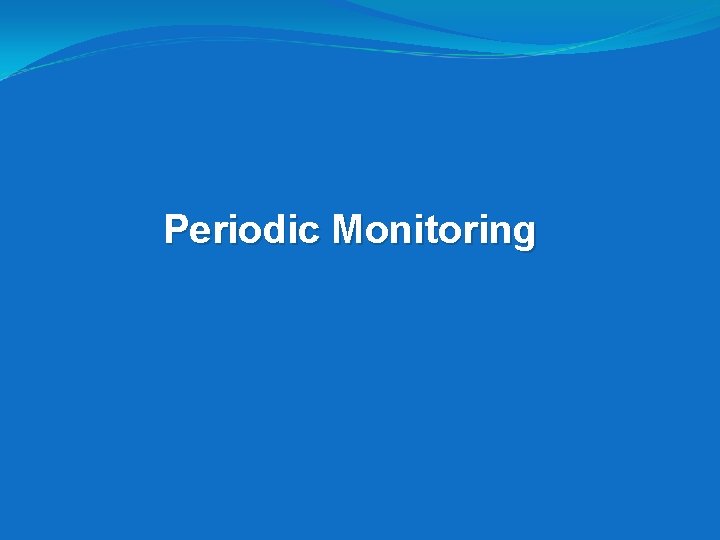

Periodic Monitoring

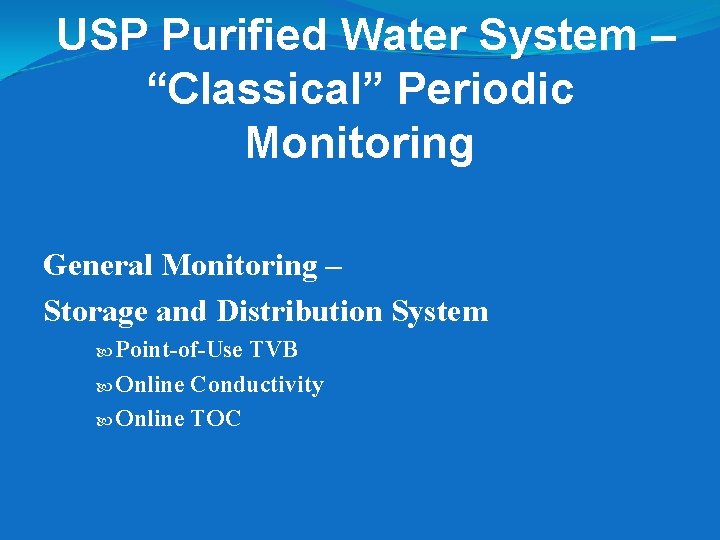

USP Purified Water System – “Classical” Periodic Monitoring General Monitoring – Storage and Distribution System Point-of-Use TVB Online Conductivity Online TOC

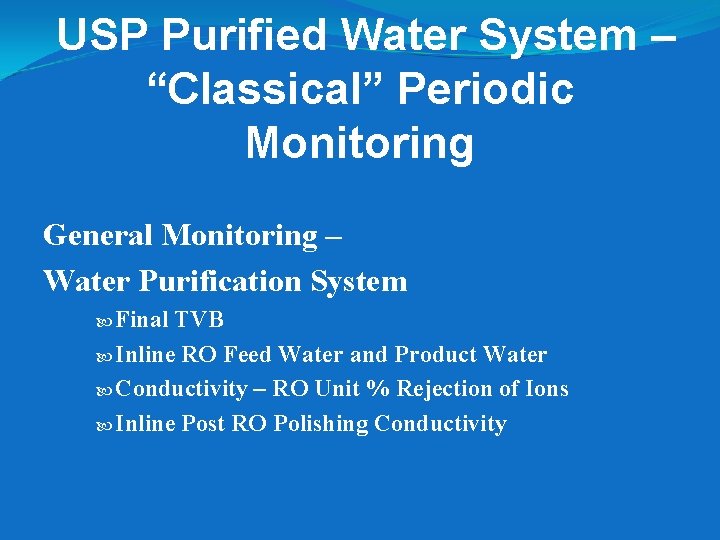

USP Purified Water System – “Classical” Periodic Monitoring General Monitoring – Water Purification System Final TVB Inline RO Feed Water and Product Water Conductivity – RO Unit % Rejection of Ions Inline Post RO Polishing Conductivity

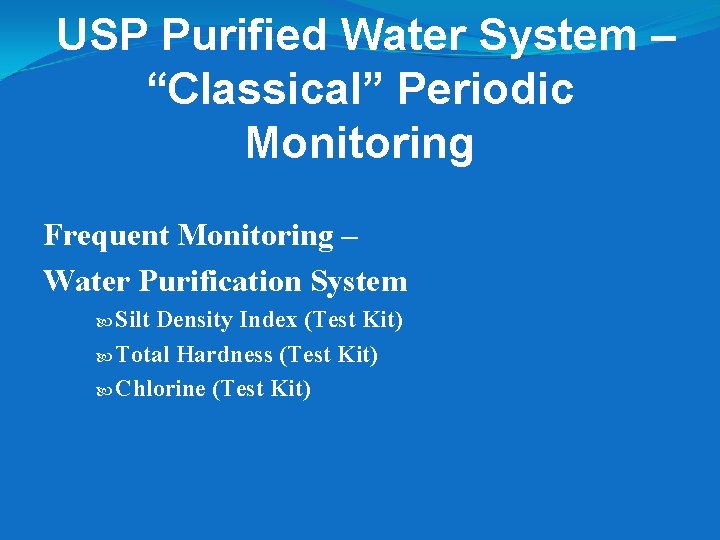

USP Purified Water System – “Classical” Periodic Monitoring Frequent Monitoring – Water Purification System Silt Density Index (Test Kit) Total Hardness (Test Kit) Chlorine (Test Kit)

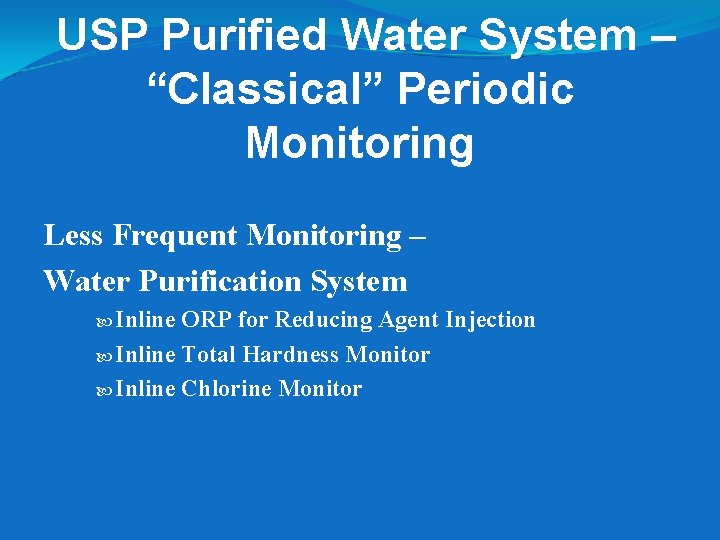

USP Purified Water System – “Classical” Periodic Monitoring Less Frequent Monitoring – Water Purification System Inline ORP for Reducing Agent Injection Inline Total Hardness Monitor Inline Chlorine Monitor

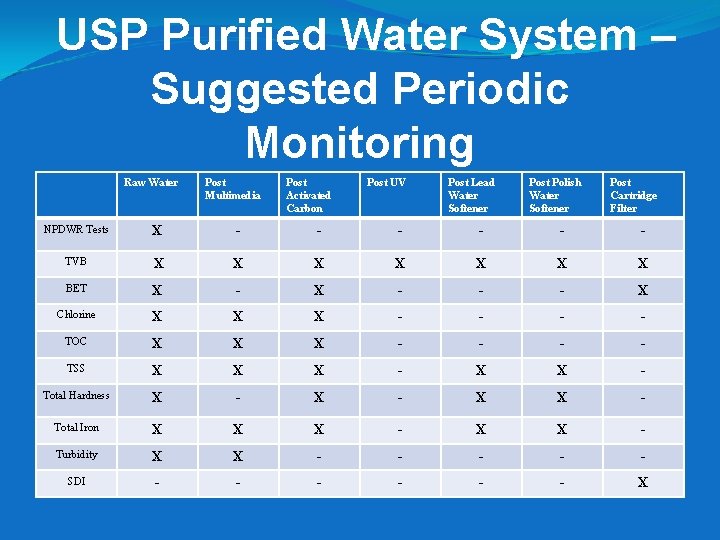

USP Purified Water System – Suggested Periodic Monitoring Raw Water Post Multimedia Post Activated Carbon Post UV Post Lead Water Softener Post Polish Water Softener Post Cartridge Filter NPDWR Tests X - - - TVB X X X X BET X - - - X Chlorine X X X - - TOC X X X - - TSS X X X - Total Hardness X - X X - Total Iron X X X - Turbidity X X - - - SDI - - - X

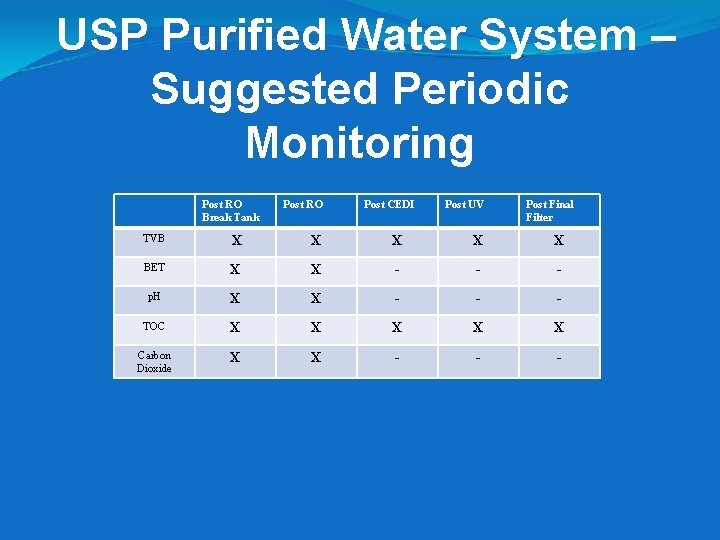

USP Purified Water System – Suggested Periodic Monitoring Post RO Break Tank Post RO Post CEDI Post UV Post Final Filter TVB X X X BET X X - - - p. H X X - - - TOC X X X Carbon Dioxide X X - - -

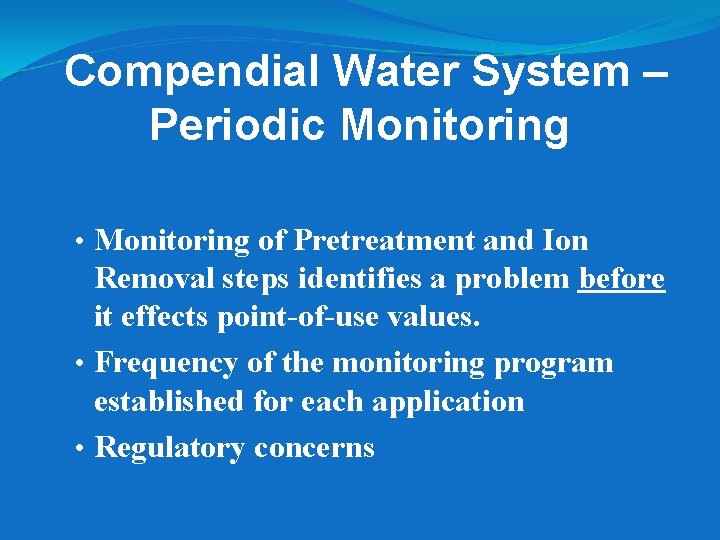

Compendial Water System – Periodic Monitoring • Monitoring of Pretreatment and Ion Removal steps identifies a problem before it effects point-of-use values. • Frequency of the monitoring program established for each application • Regulatory concerns

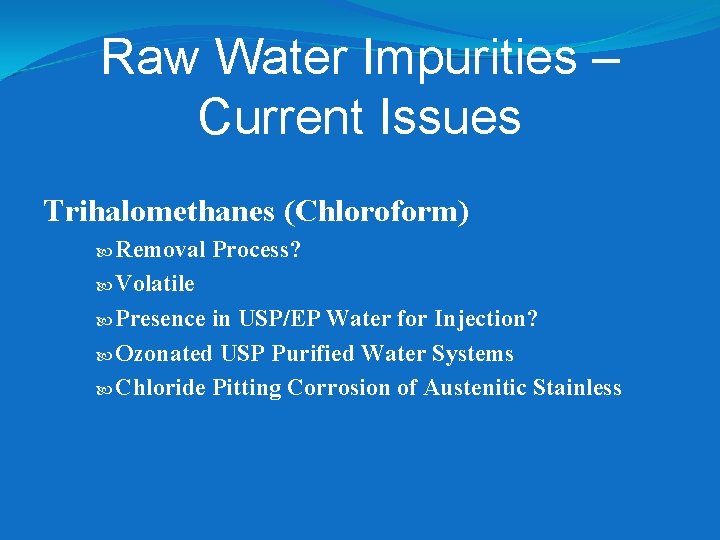

Raw Water Impurities – Current Issues Trihalomethanes (Chloroform) Removal Process? Volatile Presence in USP/EP Water for Injection? Ozonated USP Purified Water Systems Chloride Pitting Corrosion of Austenitic Stainless

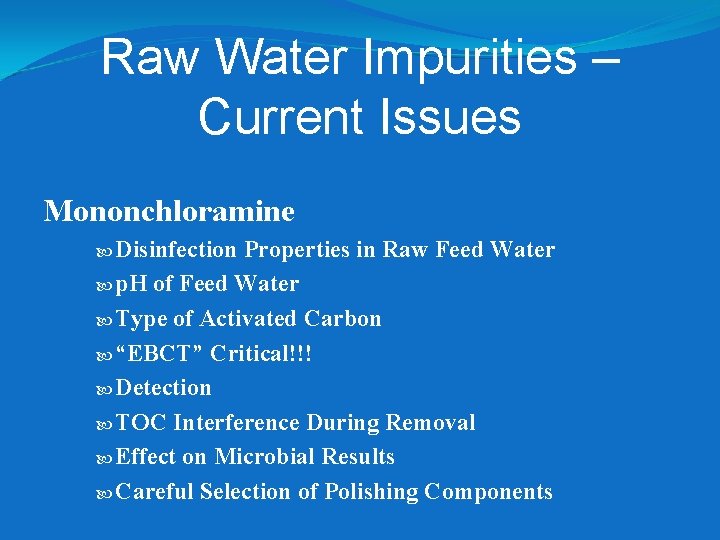

Raw Water Impurities – Current Issues Mononchloramine Disinfection Properties in Raw Feed Water p. H of Feed Water Type of Activated Carbon “EBCT” Critical!!! Detection TOC Interference During Removal Effect on Microbial Results Careful Selection of Polishing Components

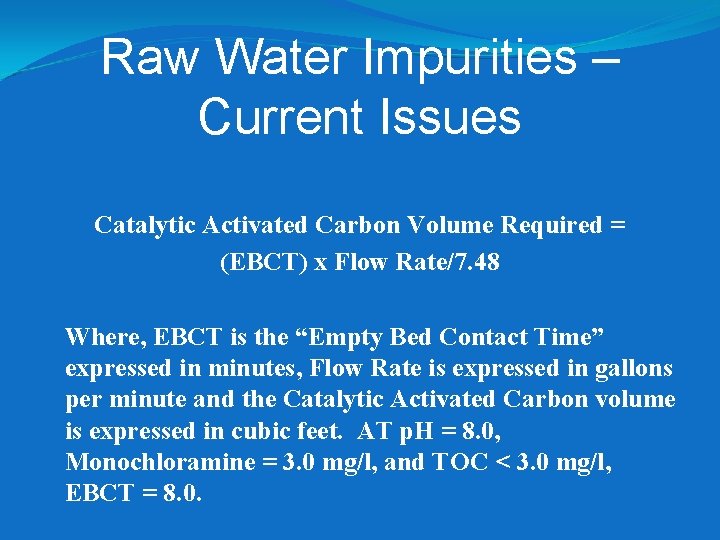

Raw Water Impurities – Current Issues Catalytic Activated Carbon Volume Required = (EBCT) x Flow Rate/7. 48 Where, EBCT is the “Empty Bed Contact Time” expressed in minutes, Flow Rate is expressed in gallons per minute and the Catalytic Activated Carbon volume is expressed in cubic feet. AT p. H = 8. 0, Monochloramine = 3. 0 mg/l, and TOC < 3. 0 mg/l, EBCT = 8. 0.

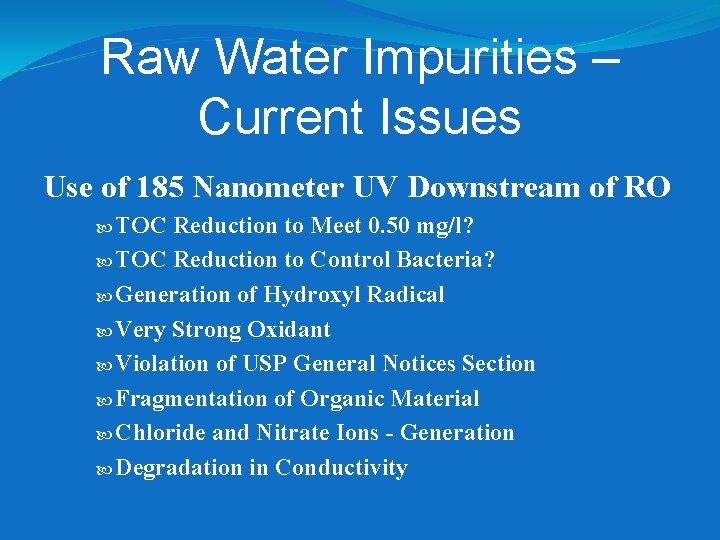

Raw Water Impurities – Current Issues Use of 185 Nanometer UV Downstream of RO TOC Reduction to Meet 0. 50 mg/l? TOC Reduction to Control Bacteria? Generation of Hydroxyl Radical Very Strong Oxidant Violation of USP General Notices Section Fragmentation of Organic Material Chloride and Nitrate Ions - Generation Degradation in Conductivity

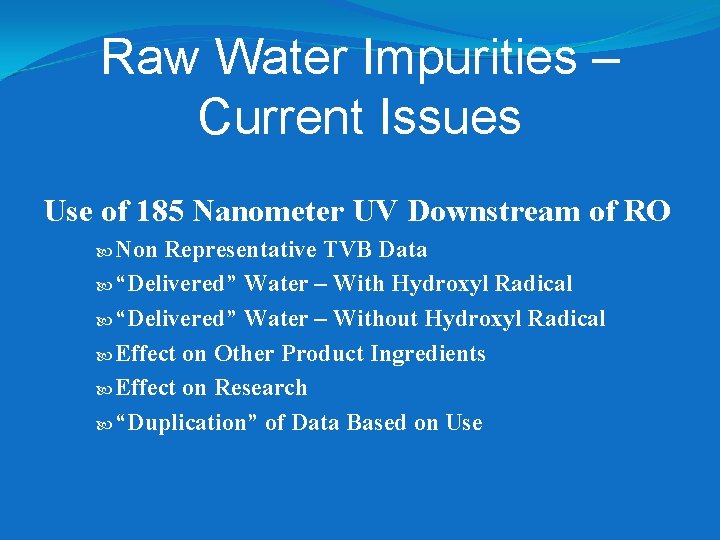

Raw Water Impurities – Current Issues Use of 185 Nanometer UV Downstream of RO Non Representative TVB Data “Delivered” Water – With Hydroxyl Radical “Delivered” Water – Without Hydroxyl Radical Effect on Other Product Ingredients Effect on Research “Duplication” of Data Based on Use

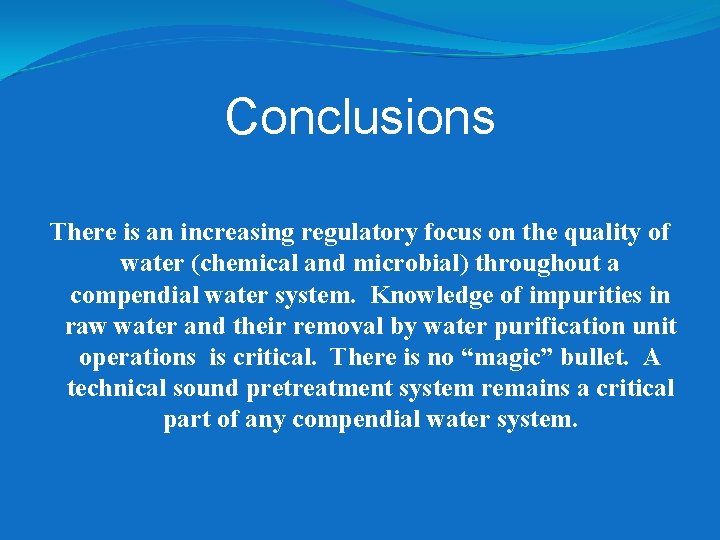

Conclusions There is an increasing regulatory focus on the quality of water (chemical and microbial) throughout a compendial water system. Knowledge of impurities in raw water and their removal by water purification unit operations is critical. There is no “magic” bullet. A technical sound pretreatment system remains a critical part of any compendial water system.

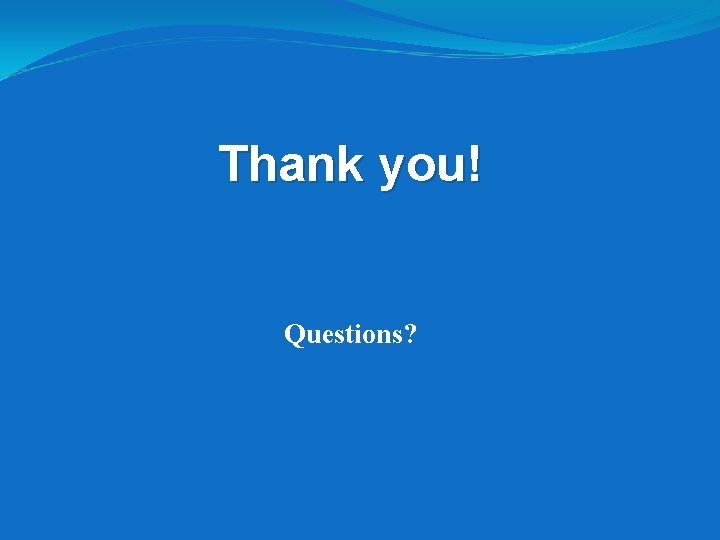

Thank you! Questions?
