Defining a P-T-loop Use bulk composition for TN 205 In THERIN: 600 4000 0 SI(50. 36)AL(30. 54)FE(6. 23)MG(2. 46)CA(1. 07)NA(4. 62)K(4. 73)O(160. 965) H(60)O(30) * TN 205 fin
Defining a P-T-loop
Defining a P-T-loop 620/17000 520/4500
Defining a P-T-loop Write a text-file, e. g. “looptest” TP TP 520 620 4500 17000 100 Run theriak ---------database definition ---------Enter [ "? " | CR | "files" | database filename ] <JUN 92. bs>? -------------define type of calculations -------------Enter [ "? " | CR | "no" | "bin" | "loop" | filename ] <loop>? looptest
Defining a P-T-loop Output is “loop_table” loop , Temperature , Pressure , G_system 1. 0000000 E+00, 5. 2000000 E+02, 4. 5000000 E+03, -9. 3514922 E+07, 1. 2403876 E+04, 2. 4006830 E+02, 1. 909650 2. 0000000 E+00, 5. 2100000 E+02, 4. 6250000 E+03, -9. 3497335 E+07, 1. 2409763 E+04, 2. 3980093 E+02, 1. 909650 3. 0000000 E+00, 5. 2200000 E+02, 4. 7500000 E+03, -9. 3479787 E+07, 1. 2415575 E+04, 2. 3954090 E+02, 1. 909650 4. 0000000 E+00, 5. 2300000 E+02, 4. 8750000 E+03, -9. 3462277 E+07, 1. 2421613 E+04, 2. 3928795 E+02, 1. 909650 5. 0000000 E+00, 5. 2400000 E+02, 5. 0000000 E+03, -9. 3444804 E+07, 1. 2427720 E+04, 2. 3904151 E+02, 1. 909650 6. 0000000 E+00, 5. 2500000 E+02, 5. 1250000 E+03, -9. 3427367 E+07, 1. 2433890 E+04, 2. 3880118 E+02, 1. 909650 7. 0000000 E+00, 5. 2600000 E+02, 5. 2500000 E+03, -9. 3409967 E+07, 1. 2439976 E+04, 2. 3856647 E+02, 1. 909650 8. 0000000 E+00, 5. 2700000 E+02, 5. 3750000 E+03, -9. 3392601 E+07, 1. 2446266 E+04, 2. 3833726 E+02, 1. 909650 9. 0000000 E+00, 5. 2800000 E+02, 5. 5000000 E+03, -9. 3375282 E+07, 1. 2463633 E+04, 2. 3793475 E+02, 1. 909650 1. 0000000 E+01, 5. 2900000 E+02, 5. 6250000 E+03, -9. 3358061 E+07, 1. 2486437 E+04, 2. 3716651 E+02, 1. 909650 1. 1000000 E+01, 5. 3000000 E+02, 5. 7500000 E+03, -9. 3340954 E+07, 1. 2503177 E+04, 2. 3654637 E+02, 1. 909650 1. 2000000 E+01, 5. 3100000 E+02, 5. 8750000 E+03, -9. 3323915 E+07, 1. 2514202 E+04, 2. 3618715 E+02, 1. 909650 1. 3000000 E+01, 5. 3200000 E+02, 6. 0000000 E+03, -9. 3306932 E+07, 1. 2524617 E+04, 2. 3583155 E+02, 1. 909650 1. 4000000 E+01, 5. 3300000 E+02, 6. 1250000 E+03, -9. 3290004 E+07, 1. 2534650 E+04, 2. 3547996 E+02, 1. 909650 1. 5000000 E+01, 5. 3400000 E+02, 6. 2500000 E+03, -9. 3273128 E+07, 1. 2544263 E+04, 2. 3513281 E+02, 1. 909650 1. 6000000 E+01, 5. 3500000 E+02, 6. 3750000 E+03, -9. 3256306 E+07, 1. 2553503 E+04, 2. 3479046 E+02, 1. 909650 1. 7000000 E+01, 5. 3600000 E+02, 6. 5000000 E+03, -9. 3239534 E+07, 1. 2562418 E+04, 2. 3445321 E+02, 1. 909650 1. 8000000 E+01, 5. 3700000 E+02, 6. 6250000 E+03, -9. 3222814 E+07, 1. 2571050 E+04, 2. 3412128 E+02, 1. 909650 1. 9000000 E+01, 5. 3800000 E+02, 6. 7500000 E+03, -9. 3206143 E+07, 1. 2579440 E+04, 2. 3379485 E+02, 1. 909650 2. 0000000 E+01, 5. 3900000 E+02, 6. 8750000 E+03, -9. 3189520 E+07, 1. 2587626 E+04, 2. 3347400 E+02, 1. 909650 2. 1000000 E+01, 5. 4000000 E+02, 7. 0000000 E+03, -9. 3172946 E+07, 1. 2595640 E+04, 2. 3315877 E+02, 1. 909650 2. 2000000 E+01, 5. 4100000 E+02, 7. 1250000 E+03, -9. 3156419 E+07, 1. 2603514 E+04, 2. 3284916 E+02, 1. 909650 2. 3000000 E+01, 5. 4200000 E+02, 7. 2500000 E+03, -9. 3139938 E+07, 1. 2611274 E+04, 2. 3254511 E+02, 1. 909650 2. 4000000 E+01, 5. 4300000 E+02, 7. 3750000 E+03, -9. 3123502 E+07, 1. 2618945 E+04, 2. 3224652 E+02, 1. 909650 2. 5000000 E+01, 5. 4400000 E+02, 7. 5000000 E+03, -9. 3107111 E+07, 1. 2626547 E+04, 2. 3195326 E+02, 1. 909650 2. 6000000 E+01, 5. 4500000 E+02, 7. 6250000 E+03, -9. 3090764 E+07, 1. 2634100 E+04, 2. 3166517 E+02, 1. 909650 2. 7000000 E+01, 5. 4600000 E+02, 7. 7500000 E+03, -9. 3074460 E+07, 1. 2641618 E+04, 2. 3138210 E+02, 1. 909650 2. 8000000 E+01, 5. 4700000 E+02, 7. 8750000 E+03, -9. 3058199 E+07, 1. 2649116 E+04, 2. 3110386 E+02, 1. 909650 2. 9000000 E+01, 5. 4800000 E+02, 8. 0000000 E+03, -9. 3041983 E+07, 1. 2658434 E+04, 2. 3065941 E+02, 1. 909650 3. 0000000 E+01, 5. 4900000 E+02, 8. 1250000 E+03, -9. 3025872 E+07, 1. 2670259 E+04, 2. 2973611 E+02, 1. 909650 3. 1000000 E+01, 5. 5000000 E+02, 8. 2500000 E+03, -9. 3009845 E+07, 1. 2679251 E+04, 2. 2952111 E+02, 1. 909650 3. 2000000 E+01, 5. 5100000 E+02, 8. 3750000 E+03, -9. 2993850 E+07, 1. 2688243 E+04, 2. 2933799 E+02, 1. 909650 3. 3000000 E+01, 5. 5200000 E+02, 8. 5000000 E+03, -9. 2977887 E+07, 1. 2697268 E+04, 2. 2915643 E+02, 1. 909650 3. 4000000 E+01, 5. 5300000 E+02, 8. 6250000 E+03, -9. 2961956 E+07, 1. 2706323 E+04, 2. 2897636 E+02, 1. 909650 etc.
Defining a P-T-loop plotxy Input file X-axis Y-axis X-min X-max Y-min Y-max loop_table 3 163, 181, 196 <CR> 0 1 7 163: x_Alm_[Alm] 181: x_Gr_[Alm] 196: x_Py_[Alm] guzzler File name Size of labels option xyplot <CR> explot File name 3: Temperature clean
Defining a P-T-loop Alm Gr Py
Defining a P-T-loop plotxy Input file X-axis Y-axis X-min X-max Y-min Y-max loop_table 3 123, 124, 125+126+128, 127, 129, 130, 131 <CR> 0 7 7 3: Temperature guzzler File name Size of labels option xyplot <CR> explot File name clean 123: n_[Ab] 124: n_[Alm] 125: n_[Fe. Am] 126: n_[Fe. P] 127: n_[Ms] 128: n_[Pen] 129: n_[Pg] 130: n_[Phl] 131: n_[fctd] 132: n_a. Qz
Defining a P-T-loop Ms Pl Pg Grt Chl Ctd Bi
Defining a P-T-loop Alm Gr Py Ms Pl Pg Grt Chl Ctd Bi

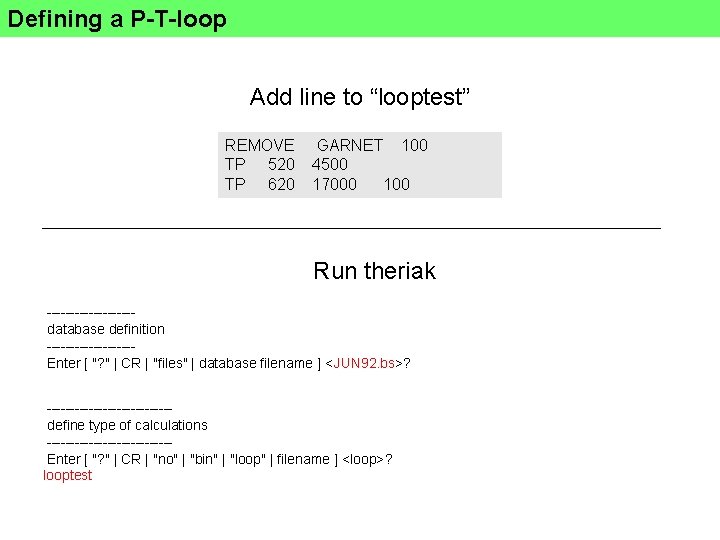

Defining a P-T-loop Add line to “looptest” REMOVE TP 520 TP 620 GARNET 100 4500 17000 100 Run theriak ---------database definition ---------Enter [ "? " | CR | "files" | database filename ] <JUN 92. bs>? -------------define type of calculations -------------Enter [ "? " | CR | "no" | "bin" | "loop" | filename ] <loop>? looptest
Defining a P-T-loop plotxy Input file X-axis Y-axis X-min X-max Y-min Y-max loop_table 3 194, 214, 234 <CR> 0 1 7 194: x_Alm_[Alm] 214: x_Gr_[Alm] 234: x_Py_[Alm] guzzler File name Size of labels option xyplot <CR> explot File name clean 3: Temperature
Defining a P-T-loop Alm Py Gr
Defining a P-T-loop plotxy Input file X-axis Y-axis X-min X-max Y-min Y-max loop_table 3 129, 145, 147, 148+149+152, 150, 151, 153, 154, 155, 159 <CR> 3: Temperature 0 7 7 guzzler File name Size of labels option xyplot <CR> explot File name clean 129: n_Ky 145: n_[Ab] 146: n_[Alm] 147: n_[FSt] 148: n_[Fe. Am] 149: n_[Fe. P] 150: n_[Ms] 151: n_[Parg] 152: n_[Pen] 153: n_[Pg] 154: n_[Phl] 155: n_[fctd] 156: n_a. Qz 159: nsum_GARNET
Defining a P-T-loop Ms Pl Pg Grt Chl Ctd Bi Parg Ky St
Defining a P-T-loop Alm Py Gr Ms Pl Pg Grt Chl Ctd Bi Parg Ky St
Defining a P-T-loop Ms Pl Pg TP TP Grt 520 620 4500 17000 100 Chl Bi Ctd Ms Pl Pg Grt Chl Ctd Bi Parg REMOVE TP 520 TP 620 Ky St GARNET 100 4500 17000 100
Defining a P-T-loop Alm TP TP 520 620 4500 17000 100 Gr Py Alm REMOVE TP 520 TP 620 Py Gr GARNET 100 4500 17000 100
