Presents Sustainable efficiency HIGH PERFORMANCE LED HPL SUPERIOR
Presents: Sustainable efficiency HIGH PERFORMANCE LED (HPL) SUPERIOR LIGHT OUTPUT LONGER LIFECYCLE LOWER COST CUSTOMIZABLE POC: CDF – Energy Solutions and Developer Past Performances Available Preferences: Tribal 8(a), SDVOSDB, WOEDSB, NAOSDB, VA Verified and other certifications - CCR & ORCA 403 -389 -3133 (CND) www. globalocean. org information@globalocean. org V 16_120815
Why buy LED lamps? 1. Lower cost of ownership a) b) c) Longer lifetime (15 x) Less replacement costs 80% savings on energy 2. Environmentally friendly a) Less heat b) No mercury 3. Pure perfect light a) No UV or IR radiation Global Savings if we all switched to LED technology 1. $67 billion Dollars in electricity costs/year 2. 273 million tons of CO 2 emissions/year 3. More than 1080 million barrels of oil/year 4. Power output of more than 255 power plants Compare HPL Tech LED’s HPL Tech LED Fluorescent (CFL) Incandescent Light Bulb projected lifespan 50, 000 Hours 1, 200 Hours Watts (energy) per bulb required (100 w) 13 26 100 KWh of Electricity used over 50, 000 hours 650 2, 800 5, 000 1 5 42 $130 $560 $1, 000 Bulbs needed for 50, 000 hours of light Cost of Electricity (@ 0. 20 per KWh) Energy Savings per 100 watts Additional Savings when using LED’s $870 Savings $440 Savings $0 No Savings Total cost of the bulbs and the labor to change them is saved! 403 -389 -3133 (CND) www. globalocean. org information@globalocean. org V 16_120815
LED Street Lamps? 1. Lower cost of ownership a) b) c) Longer lifetime (10 x) Less replacement costs 70% savings on energy 2. Environmentally friendly a) Less heat b) No mercury 3. Pure perfect light a) No UV or IR radiation Calgary Savings if we switched Street Lights to our LED technology 91 Watt vs. 250 Watt High Pressure Sodium Lights *EEMCSC Page 5 example 1. $26 Million Dollars in electricity & costs/year 2. 25 thousand tons of CO 2 emissions/year 3. 50, 000 barrels of oil/year Compare HPL Tech LED’s HPL Tech LED Fluorescent (CFL) Incandescent Light Bulb projected lifespan 50, 000 Hours 1, 200 Hours Watts (energy) per bulb required (100 w) 13 26 100 KWh of Electricity used over 50, 000 hours 650 2, 800 5, 000 1 5 42 $65 $280 $500 $435 Savings $220 Savings $0 No Savings Bulbs needed for 50, 000 hours of light Cost of Electricity (@ 0. 10 per KWh) Energy Savings per 100 watts Additional Savings when using LED’s Total cost of the bulbs and the labor to change them is saved! 403 -389 -3133 (CND) www. globalocean. org information@globalocean. org V 16_120815
APPLICATIONS Retail Supermarkets Cooler/Freezer Cases Offices Airports Factories Retail Warehouse High Bays Parking Garages Gas Stations Industrial Tunnels TUBE LIGHTING Gas Stations Shopping Malls Schools Warehouse Parking Garages Restaurants Soffits Flood Lights Sports Courts Supermarkets Offices Airports Factories HIGHBAY LIGHTING STREET LIGHTING Streets Airports Parking Lots Gas Stations Pathways Shopping Centers Parks Warehouse Schools Sports Courts PAR LIGHTING Offices Airports Retail Stores Gas Stations Shopping Malls Museums Galleries Hospitals Homes Restaurants 403 -389 -3133 (CND) www. globalocean. org information@globalocean. org V 16_120815
Estimated Energy and Maintenance Cost Savings Calculations HPL TECHNOLOGIES Street Light vs. Conventional Street Light 91 Watt HPL TECHNOLOGIES Street Light 91 Watts x 10 hrs. = 910 WH per day 910 WH x 365 days = 332, 150 WH or 332. 2 KWH per year Cost/yr: 332. 2 KWH x $0. 10/KWH = $33. 22 per 91 watt LED street light Electrical energy cost of one 91 watt LED street light over 50, 000 hours (13. 7 years) = $455. 11 Energy Cost Savings over the life span of one HPL Technologies Street Light vs. conventional HPS street light = $985. 03 (68% energy savings). 250* Watt HPS Street Light 288 Watts x 10 hrs. = 2880 WH per day 2880 WH x 365 days = 1, 051, 200 WH or 1, 051. 2 KWH per year Cost/yr: 1, 051. 2 KWH x $0. 10/KWH = $105. 12 per 288 watt HPS street light Electrical energy cost of one 288 watt HPS street light over 50, 000 hours (13. 7 years) = $1440. 14 • 250 watt High Pressure Sodium (HPS) streetlight lamp consists of a 250 watt bulb plus the ballast which consumes greater than 38 watts of energy = 238 watts energy consumption. Average maintenance and replacement costs of one street light: The Street light lamp bulb is replaced every three years (3. 0 years) = $200 (labor) +$50 (bulb) + $5 (waste mgt. ) = $255 every 3 years or $85 / yr. The ballast is replaced every 5 years at a cost of $350 (ballast + labor + waste mgt. ) or $70/yr. The fixture/aluminum head is replaced every 18 years at a cost of $425 or $23. 61 per year. Therefore, the average maintenance and replacement cost per year is $178. 61. Over the lifespan equivalent of a LED street light of 50, 000 (13. 7 years), the cost savings of maintenance / replacement of one current HPS street light is: 13. 7 x $178. 61/yr. = $2446. 96 Maintenance & Energy Cost Savings by converting to One HPL Technologies Street Light: Maintenance Cost Savings ($2, 446. 96) and Energy Cost Savings ($985. 03): $3, 431. 99 or 250. 51 cost savings per year per HPL Technologies Street Light. Return on Investment (R. O. I. ): 3. 6 years $739 (Additional cost of LED street light fixture vs. conventional) + Installation $200 = $939 expense divided by $260. 51 / yr. savings = 3. 6 years A city/town with an average of 100, 000 street lights will save $356. 899 Million over the lifespan of the LED Street Lights. Applicable Savings from Energy Rebates and CO 2 tax credits approx $10. 00 per year per post to further reduce the ROI. Note: energy and maintenance costs continue to escalate. 403 -389 -3133 (CND) www. globalocean. org information@globalocean. org V 16_120815
Estimated Energy and Maintenance Cost Savings Calculations HPL 36 Watt Linear LED Luminaires vs. 72 Watt Fluorescent Tubes 36 Watt HPL Linear Luminaire 36 Watts x 10 hrs. = 360 WH per day 360 WH x 365 days = 131, 400 WH or 131. 4 KWH per year Cost/yr: 131. 4 KWH x $0. 10/KWH = $13. 14 per 36 watt LED Linear Energy Cost Savings/yr (66. 6%): $26. 28 (LED vs. fluorescent) Electrical energy cost of one 36 watt LED Linear over 50, 000 hours (13. 7 years) = $360. 04 Energy Cost Savings over the life span of one HPL Linear Light vs. conventional Fluorescent Light = $180. 01 (68% energy savings). 72* Watt Fluorescent Light 108 Watts x 10 hrs. = 1080 WH per day 1080 WH x 365 days = 394, 200 WH or 394. 2 KWH per year Cost/yr: 394. 2 KWH x $0. 10/KWH = $39. 42 per 108 watt fluorescent light Electrical energy cost of one 108 watt fluorescent light over 50, 000 hours (13. 7 years) = $540. 05 Note: Fluorescent tubes would have to be replaced approx. 7 times during the life span of one LED Linear Luminaire * 72 Watt Fluorescent light consists of a 2 x 32 watt mercury tubes, and a ballast which consumes 36 watts of energy = 108 watts. Average maintenance and replacement costs of fluorescent tubes and ballast: Maintenance cost to replace florescent tubes: $25. 00. Fluorescent tubes have to be replaced every two years (2. 0 years) and Ballast every 5 years; therefore, maintenance $12. 50 per year + cost of tubes $2. 5 + cost of ballast and labor replacement $25 + $5. 0(waste mgt. ) = $45. 00 maintenance and replacement cost per year. Over the lifespan equivalent of a LED Linear Luminaire of 13. 7 years the cost of maintenance / replacement of one fluorescent is: 13. 7 x $45/yr. = $616. 50 ROI: Savings per year (Energy, air conditioning and maintenance): $26. 28 + $9. 86 + $45. 00 = $81. 14 / yr. savings $150 (LED Linear Selling Price) divided by $81. 14 / yr. savings = 1. 8 years R. O. I. Note: Energy Saving Rebates have to be added to the ROI plus carbon credits plus escalating cost of energy. $3, 000 in carbon tax credits would be generated annually for every 1 million fluorescent lighting fixtures replaced with Remco’s linear LED luminaires, approximately $12 million in carbon tax credits generated annually to replace 4 million fluorescent lighting fixtures. Note: energy and maintenance costs continue to escalate with conventional lighting. 403 -389 -3133 (CND) www. globalocean. org information@globalocean. org V 16_120815
LED T 8 EX 4 ft Tube External Driver Series Catalog Number FEATURES & SPECIFICATIONS Lighting Angle: 120° + Color Rendering: 83 Notes Power Factor: 0. 95 Lamp Life: 50, 000 Hours Replaces: Fluorescent Tubes Warranty: 5 Years APPLICATIONS Retail Warehouse Schools Parking Garages Gas Stations Industrial Tunnels Soffits Hospitals Sports Courts Supermarkets Offices Airports Factories Ordering Information Lead times will vary depending on options selected. Consult with your sales representative. Example: T 8 EXR 4 MT NW 192 CL BI MT T 8 EXR Series T 8 EX Quantity System 2 3 4 6 2 Tubes 3 Tubes 4 Tubes 6 Tubes Voltage MT AC 100 -277 V Color Correlated Temperature WW NW DW CW 2700 -3500 K 4100 -4500 K 5000 -6000 K 6500 -7500 K Lens Type End Type (2) CL Clear FS Frosted BI Bi Pin G 13 HO High Output Notes: 1. When ordering HO ends, consult your representative for proper fit. # of Tubes Wattage Lumens 2 35 3366 3 53 5049 4 69 6732 6 10098 POC: CDF – Energy Solutions and Developer Past Performances Available Preferences: Tribal 8(a), SDVOSDB, WOEDSB, NAOSDB, VA Verified and other certifications - CCR & ORCA 403 -389 -3133 (CND) www. globalocean. org information@globalocean. org V 16_120815
LED T 8 EX 4 ft Tube External Driver Series System Advantages Driver Technology HPL Technologies uses an external driver for their tubes systems. This provides a system designed for maximum life and consistent performance. With an external driver you separate the heat produced by both the LED chips and driver and greatly reduce the accelerated wear on both components. Each tube is driven on its own channel and is not affected by the other tubes in the system. LED Chip Technology HPL Technologies uses current production top of the line LED Chips. Not all chips are the same and this is evident in CRI, lumen output and depreciation. Our chip boards are designed and configured to dissipate maximum heat while providing a seamless distribution of light. We also under drive our chips from the recommended m. A current provided by the chip manufacturer to control the amount of heat produced by the chips. With HPL Technologies engineering and design you can be assured you are using the most advanced LED tube system on the market. And with a proven track record and constant improvement in our products, HPL Technologies will be your only source for LED products. 403 -389 -3133 (CND) www. globalocean. org information@globalocean. org V 16_120815
LED T 8 EX Refrigeration Series Catalog Number FEATURES & SPECIFICATIONS Lighting Angle: 120° + Color Rendering: 83 Notes Power Factor: 0. 95 Lamp Life: 50, 000 Hours Replaces: Fluorescent Tubes Warranty: 5 Years APPLICATIONS Retail Warehouse Schools Parking Garages Gas Stations Industrial Tunnels Quantity Soffits Hospitals Sports Courts Supermarkets Offices Airports Factories Ordering Information Lead times will vary depending on options selected. Consult with your sales representative. Example: T 8 EXR 4 MT NW CL BI MT T 8 EXR Series (1) Tube Length Voltage T 8 EXR 4 4 Feet 5 5 Feet 6 6 Feet MT AC 100 -277 V Color Correlated Temperature WW NW DW CW 2700 -3500 K 4100 -4500 K 5000 -6000 K 6500 -7500 K Lens Type End Type (2) CL Clear FS Frosted BI Bi Pin G 13 HO High Output Notes: 1. This series assumes there is only one tube per ballast on the existing installation. If more than one tube per driver is required please consult with your representative. 2. When ordering HO ends, consult your representative for proper fit. Tube Length Wattage Lumens 4 18 1683 5 23 2103 6 26 2524 POC: CDF – Energy Solutions and Developer Past Performances Available Preferences: Tribal 8(a), SDVOSDB, WOEDSB, NAOSDB, VA Verified and other certifications - CCR & ORCA 403 -389 -3133 (CND) www. globalocean. org information@globalocean. org V 16_120815
LED T 8 EX 4 ft Wraparound Series Catalog Number FEATURES & SPECIFICATIONS Lighting Angle: 120° + Color Rendering: 83 Notes Power Factor: 0. 95 Lamp Life: 50, 000 Hours Replaces: Fluorescent Tubes Warranty: 5 Years APPLICATIONS Retail Warehouse Schools Parking Garages Gas Stations Industrial Tunnels Quantity Soffits Hospitals Sports Courts Supermarkets Offices Airports Factories Ordering Information Lead times will vary depending on options selected. Consult with your sales representative. Example: T 8 EXW 3 MT NW CL BI MT T 8 EXW Series System Voltage T 8 EXW 2 2 Tubes 3 3 Tubes MT AC 100 -277 V BI Color Correlated Temperature WW NW DW CW 2700 -3500 K 4100 -4500 K 5000 -6000 K 6500 -7500 K Lens Type End Type CL Clear FS Frosted BI Bi Pin G 13 Notes: # of Tubes Wattage Lumens 2 35 3366 3 53 5049 POC: CDF – Energy Solutions and Developer Past Performances Available Preferences: Tribal 8(a), SDVOSDB, WOEDSB, NAOSDB, VA Verified and other certifications - CCR & ORCA 403 -389 -3133 (CND) www. globalocean. org information@globalocean. org V 16_120815
LED T 8 EX 4 ft High Bay Series Catalog Number FEATURES & SPECIFICATIONS Lighting Angle: 120° + Color Rendering: 83 Notes Power Factor: 0. 95 Lamp Life: 50, 000 Hours Replaces: Fluorescent Tubes Warranty: 5 Years APPLICATIONS Retail Warehouse Schools Parking Garages Gas Stations Industrial Tunnels Quantity Soffits Hospitals Sports Courts Supermarkets Offices Airports Factories Ordering Information Lead times will vary depending on options selected. Consult with your sales representative. Example: T 8 EXH 6 MT NW CL BI MT T 8 EXH Series System Voltage T 8 EXH 4 4 Tubes 6 6 Tubes MT AC 100 -277 V BI Color Correlated Temperature WW NW DW CW 2700 -3500 K 4100 -4500 K 5000 -6000 K 6500 -7500 K Lens Type End Type CL Clear FS Frosted BI Bi Pin G 13 Notes: # of Tubes Wattage Lumens 4 69 6732 6 10098 POC: CDF – Energy Solutions and Developer Past Performances Available Preferences: Tribal 8(a), SDVOSDB, WOEDSB, NAOSDB, VA Verified and other certifications - CCR & ORCA 403 -389 -3133 (CND) www. globalocean. org information@globalocean. org V 16_120815
LED T 8 EX Troffer Series Catalog Number FEATURES & SPECIFICATIONS Lighting Angle: 120° + Color Rendering: 83 Notes Power Factor: 0. 95 Lamp Life: 50, 000 Hours Replaces: Fluorescent Tubes Warranty: 5 Years APPLICATIONS Retail Warehouse Schools Parking Garages Gas Stations Industrial Tunnels Quantity Soffits Hospitals Sports Courts Supermarkets Offices Airports Factories Ordering Information Lead times will vary depending on options selected. Consult with your sales representative. Example: T 8 EXT 24 T MT NW CL BI MT T 8 EXT Series Fixture Type Voltage T 8 EXT 23 2 x 2 3 Lamp 24 2 x 4 3 Lamp MT AC 100 -277 V Color Correlated Temperature WW NW DW CW 2700 -3500 K 4100 -4500 K 5000 -6000 K 6500 -7500 K Lens Type CL Clear FS Frosted BI Notes: End Type BI Bi Pin G 13 Fixture Wattage Lumens 22 T 19 1692 24 T 53 5049 POC: CDF – Energy Solutions and Developer Past Performances Available Preferences: Tribal 8(a), SDVOSDB, WOEDSB, NAOSDB, VA Verified and other certifications - CCR & ORCA 403 -389 -3133 (CND) www. globalocean. org information@globalocean. org V 16_120815
LED T 8 EX Parabolic Series Catalog Number FEATURES & SPECIFICATIONS Lighting Angle: 120° + Color Rendering: 83 Notes Power Factor: 0. 95 Lamp Life: 50, 000 Hours Replaces: Fluorescent Tubes Warranty: 5 Years APPLICATIONS Retail Warehouse Schools Parking Garages Gas Stations Industrial Tunnels Quantity Soffits Hospitals Sports Courts Supermarkets Offices Airports Factories Ordering Information Lead times will vary depending on options selected. Consult with your sales representative. Example: T 8 EXP 24 T MT NW CL BI MT T 8 EXP Series Fixture Type Voltage T 8 EXP 22 2 x 2 2 Lamp 24 2 x 4 3 Lamp MT AC 100 -277 V Color Correlated Temperature WW NW DW CW 2700 -3500 K 4100 -4500 K 5000 -6000 K 6500 -7500 K Lens Type CL Clear FS Frosted BI Notes: End Type BI Bi Pin G 13 Fixture Wattage Lumens 22 P 19 1692 24 P 53 5049 POC: CDF – Energy Solutions and Developer Past Performances Available Preferences: Tribal 8(a), SDVOSDB, WOEDSB, NAOSDB, VA Verified and other certifications - CCR & ORCA 403 -389 -3133 (CND) www. globalocean. org information@globalocean. org V 16_120815
LED High Bay/Canopy/Tunnel/Garage Series FEATURES & SPECIFICATIONS Color Rendering: 82 Power Factor: 0. 98 Lamp Life: 50, 000 Hours IP Rating: 67 Housing: Aluminum APPLICATIONS Retail Warehouse High Bays Parking Garages Gas Stations Industrial Tunnels Catalog Number Notes Quantity Soffits Flood Lights Sports Courts Supermarkets Offices Airports Factories Ordering Information Lead times will vary depending on options selected. Consult with your sales representative. Example: CTG 70 MT DW 5 SM Yes BL HCTG Series Wattage Voltage HCTG 61 91 124 152 181 216 254 278 MT AC 120 -277 V 480 AC 480 Wattage Chip Count Lumens 61 28 5512 91 42 8446 124 56 11206 152 70 13878 181 84 16733 216 98 18861 254 112 21211 278 126 24248 Color Correlated Temperature WW NW DW CW 2700 -3500 K 4100 -4500 K 5000 -6000 K 6500 -7500 K Light Angle (1) Mounting See Optics Chart For Options SM Surface PE Pendant HO Hook Dimmable (2) Color No Yes Pre-programmed GR Grey BL Black BZ Bronze CU Custom 403 -389 -3133 (CND) www. globalocean. org information@globalocean. org V 16_120815
LED High Bay/Canopy/Tunnel/Garage Series mounting options OD TU PW FL CH RE This versatile LED fixture was designed for direct replacement of HID lighting in any industrial or commercial application. This fixture is available with multiple optic options and can be customized to provide equal illumination for any application. HPL Technologies Highbay series is the only fixture on the market specifically designed for high mast lighting. It is engineered with open lighting modules to reduce the effect of air currents that are present at extreme heights on its EPA. Its also has a mounting that balances its weight inward thereby reducing the leverage exerted on the mounting pole. Along with its high lumen output and Remco and Philips Advance drivers, the HPL Highbay will replace any HID high mast lighting. Whether you require 24 hour operation or full DALI controls for maximum energy savings, HPL Technologies can design a lighting system to fit your specific needs. Total cost of the bulbs and the labor to change them is saved! 403 -389 -3133 (CND) www. globalocean. org information@globalocean. org V 16_120815
LED Street Series Catalog Number FEATURES & SPECIFICATIONS Color Rendering: Power Factor: 82 Notes Lamp Life: 0. 98 IP Rating: 50, 000 Hours Housing: 67 Tilt Angle: Aluminum Operating Temp: -30° to 90° Surge Protection: -40°F to 149°F 4 KV APPLICATIONS Streets Airports Parking Lots Gas Stations Pathways Shopping Centers Parks Warehouse Ordering Information Lead times will vary depending on options selected. Consult with your sales representative. Example: ST 70 MT DW 3 Yes OD Yes GR MT ST Series Quantity Wattage Voltage Color Correlated Temperature MT AC 120 -277 V 61 480 AC 480 V 91 WW 2700 -3500 K 124 NW 4100 -4500 K 152 DW 5000 -6000 K 181 CW 6500 -7500 K 216 254 Notes: 278 1. Consult your representative for information about different angles. ST 2. 3. Lights will fit onto a pole with an outer diameter up to 2 3/8 inch. Consult your sales representative for the pre-programmed option. Light Angle (1) Photocell See Optics Chart For Options Yes No Mounting (2) Dimmable (3) OD 2 3/8 Pole WA Wall No Yes Pre-programmed Wattage Chip Count Lumens Weight/lb Dimensions/in 61 28 5512 13. 53 21. 77 x 13. 62 x 4. 01 91 42 8446 14. 76 24. 21 x 13. 62 x 4. 01 124 56 11206 15. 90 26. 65 x 13. 62 x 4. 01 Color 152 70 13878 17. 40 29. 09 x 13. 62 x 4. 01 181 84 16733 18. 81 31. 53 x 13. 62 x 4. 01 216 98 18861 22. 77 33. 85 x 13. 62 x 4. 01 GR Grey BL Black BZ Bronze CU Custom 254 112 21211 29. 70 36. 22 x 13. 62 x 4. 01 278 126 24248 33. 44 38. 38 x 13. 62 x 4. 01 403 -389 -3133 (CND) www. globalocean. org information@globalocean. org V 16_120815
LED Street Series Additional Specifications and Performance Information Wattage BUG Rating L 70 Hours @ 25˚ C Dimensions/in 61 B 1–U 1–G 1 > 105, 000 21. 77 x 13. 62 x 4. 01 91 B 2 -U 2 -G 2 > 105, 000 24. 21 x 13. 62 x 4. 01 124 Pending > 105, 000 26. 65 x 13. 62 x 4. 01 152 Pending > 105, 000 29. 09 x 13. 62 x 4. 01 181 Pending > 105, 000 31. 53 x 13. 62 x 4. 01 216 Pending > 105, 000 33. 85 x 13. 62 x 4. 01 254 Pending 21211 36. 22 x 13. 62 x 4. 01 278 Pending 24248 38. 38 x 13. 62 x 4. 01 Testing Certifications: LM 70 and LM 80 information is provided by Cree LM 79 testing files are provided by a third-party POC: CDF – Energy Solutions and Developer Past Performances Available Preferences: Tribal 8(a), SDVOSDB, WOEDSB, NAOSDB, VA Verified and other certifications - CCR & ORCA 403 -389 -3133 (CND) www. globalocean. org information@globalocean. org V 16_120815
High Bay & Street Optic Codes Place these codes on order form. 1 12 13 2 22 Type 1 Type 2 Symmetric Medium Symmetric Short Symmetric Large Asymmetric Medium Asymmetric Small 3 Type 3 Asymmetric Large 4 Type 4 Asymmetric Short 5 Type 5 Symmetric Medium POC: CDF – Energy Solutions and Developer Past Performances Available Preferences: Tribal 8(a), SDVOSDB, WOEDSB, NAOSDB, VA Verified and other certifications - CCR & ORCA 403 -389 -3133 (CND) www. globalocean. org information@globalocean. org V 16_120815

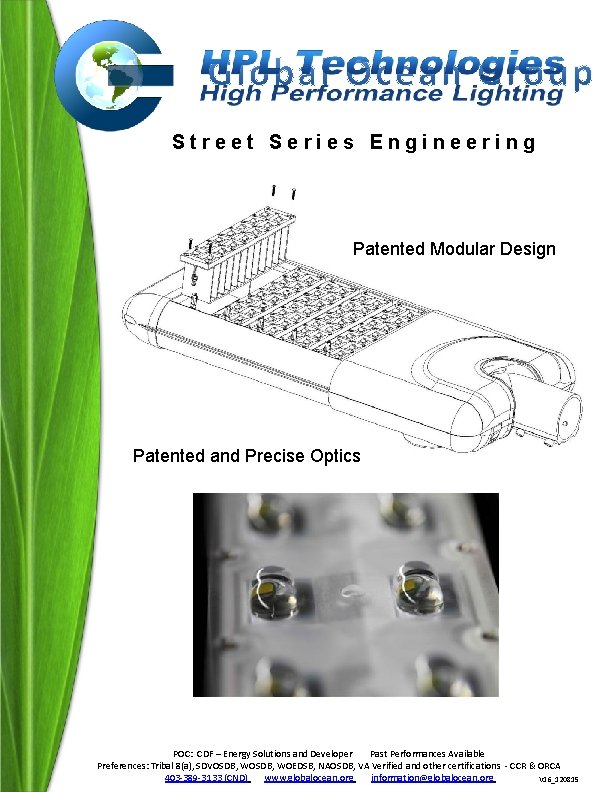

Street Series Engineering Patented Modular Design Patented and Precise Optics POC: CDF – Energy Solutions and Developer Past Performances Available Preferences: Tribal 8(a), SDVOSDB, WOEDSB, NAOSDB, VA Verified and other certifications - CCR & ORCA 403 -389 -3133 (CND) www. globalocean. org information@globalocean. org V 16_120815
Street Series Engineering -30 to 90 Degree Mounting Rotation Tool-Free Locking Design POC: CDF – Energy Solutions and Developer Past Performances Available Preferences: Tribal 8(a), SDVOSDB, WOEDSB, NAOSDB, VA Verified and other certifications - CCR & ORCA 403 -389 -3133 (CND) www. globalocean. org information@globalocean. org V 16_120815
LED Par Series FEATURES & SPECIFICATIONS Color Rendering: 80 Power Factor: 0. 9 Lamp Life: 50, 000 Hours Replaces: Par 20 25 -50 W Par 30 50 -75 W Par 38 75 -100 W APPLICATIONS Offices Retail Stores Schools Shopping Malls Galleries Homes Catalog Number Notes Quantity Supermarkets Hospitals Airports Museums Restaurants Gas Stations Ordering Information Lead times will vary depending on options selected. Consult with your sales representative. Example: Par 307 120 CR NW E 26 345 No PAR Series Size/LED Count Voltage Chip Type (1) PAR 2012 Par 20/12 LED 204 Par 20/4 LED 305 Par 30/5 LED 307 Par 30/7 LED 389 Par 38/9 LED 3812 Par 38/12 LED 120 AC 120 V CR Cree XPE DE Double End 277 AC 277 V Color Correlated Temperature WW NW DW CW 2700 -3500 K 4100 -4500 K 5000 -6000 K 6500 -7500 K Base E 26 E 27 Notes: 1. Custom chip types and bin sorts are available for larger orders. 2. Custom light angle available for larger orders. 3. If ordering lamps that will never be dimmed, order non-dimmable. Size Wattage Lumens 2012 8 340 -368 204 10 440 -480 305 12 520 -760 307 12 600 -775 389 17 825 -1122 3812 17 920 -1201 Light Angle (2) Dimmable (3) Par 20 215 15 degree 230 30 degree 245 45 degree Yes No Par 30 30 degree 345 45 degree 360 60 degree Par 38 3830 30 degree 3845 45 degree 403 -389 -3133 (CND) www. globalocean. org information@globalocean. org V 16_120815
COMPLETED LED PROJECTS Location: DFAS, Limestone, Maine Product: 1200 LED T 8 Tubes Location: Luke AFB, Arizona Product: High Mast LED Flood Lights Location: Utah Transportation Authority Product: LED Parking Lot Lights for Multiple Locations Location: Steed Military Training Center, Reno, Nevada Product: 1100 LED T 8 Tubes, 400 A 19 LED Bulbs Location: Utah Valley University Product: LED Parking Lot Lights Location: University of Utah Product: 400 Par Lamps for the Museum of Fine Arts More project references are available if needed. Actual contact information is available upon request. HPL Technologies is a Food Safety and Plant Resources company. TUBE CANOPY STREET PAR POC: CDF – Energy Solutions and Developer Past Performances Available Preferences: Tribal 8(a), SDVOSDB, WOEDSB, NAOSDB, VA Verified and other certifications - CCR & ORCA 403 -389 -3133 (CND) www. globalocean. org information@globalocean. org V 16_120815
