Presents OSHA Hazard Communication Standard 2012 HCS Global
Presents OSHA Hazard Communication Standard 2012 (HCS) Global Harmonized System (GHS)
OSHA Hazard Communication Standard (HCS) and GHS The United States officially adopted the Global Harmonized System of Classification and Labeling of Chemicals (GHS) on March 26, 2012. OSHA Hazard Communication Standard (HCS) is actually a revision of the original Hazard Communication Standard to align with the GHS.
OSHA HCS Training Compliance • Adopting GHS brings major changes to OSHA HCS in 2 major areas. 1. Label Elements 2. Safety Data Sheets
OSHA HCS Training Compliance • Label Elements • Product Identifier • Supplier Identifier • Signal Word • Hazard Pictograms • Hazard Statement • Precautionary Statements
OSHA HCS Training Compliance • Label Elements • Product Identifier
OSHA HCS Training Compliance • Label Elements • Product Identifier • Supplier Identifier
OSHA HCS Training Compliance • Label Elements • Product Identifier • Supplier Identifier • Signal Word
OSHA HCS Training Compliance • Label Elements • Product Identifier • Supplier Identifier • Signal Word • Hazard Pictograms
OSHA HCS Training Compliance • Hazard Pictograms 1. 2. 3. 4. 5. 6. 7. 8. Exploding Bomb Gas Cylinder Health Hazard Flame Skull and Crossbones Exclamation Mark Flame Over Circle Corrosion
OSHA HCS Training Compliance • Hazard Pictograms 1. Exploding Bomb Explosives Self-Reactives Organic Peroxides
OSHA HCS Training Compliance • Hazard Pictograms 1. Exploding Bomb 2. Gas Cylinder Gases under pressure Compressed gases Liquefied Gases Refrigerated liquefied gases Dissolved gases

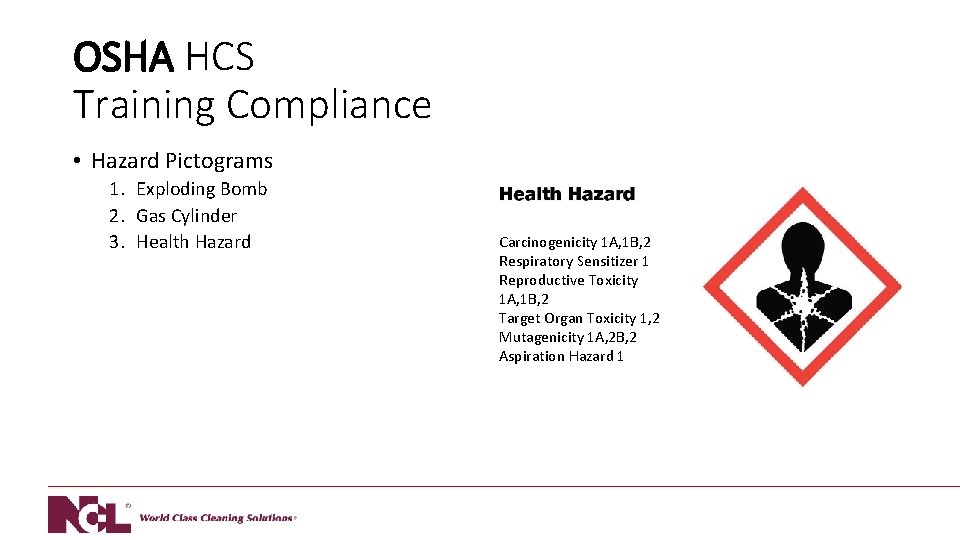

OSHA HCS Training Compliance • Hazard Pictograms 1. Exploding Bomb 2. Gas Cylinder 3. Health Hazard Carcinogenicity 1 A, 1 B, 2 Respiratory Sensitizer 1 Reproductive Toxicity 1 A, 1 B, 2 Target Organ Toxicity 1, 2 Mutagenicity 1 A, 2 B, 2 Aspiration Hazard 1
OSHA HCS Training Compliance • Hazard Pictograms 1. 2. 3. 4. Exploding Bomb Gas Cylinder Health Hazard Flame Flammable gases 1 Flammable aerosols 1, 2 Flammable liquids 1, 2, 3 Pyrophoric Liquids and Solids Self-Heating substances and mixtures 1, 2 Emits Flammable Gas 1, 2, 3 Organic Peroxides B, C, D, E, F
OSHA HCS Training Compliance • Hazard Pictograms 1. 2. 3. 4. 5. Exploding Bomb Gas Cylinder Health Hazard Flame Skull and Crossbones Acute Toxicity (Fatal or Toxic) Categories 1, 2, 3 Oral Dermal Inhalation
OSHA HCS Training Compliance • Hazard Pictograms 1. 2. 3. 4. 5. 6. Exploding Bomb Gas Cylinder Health Hazard Flame Skull and Crossbones Exclamation Mark Skin & Eye Irritant 2 Skin Sensitizer 1 Acute Toxicity (harmful) cat 4 oral, dermal, inhalation Respiratory Tract Irritation Narcotic Effects Harmful to Ozone Layer (Not mandatory)
OSHA HCS Training Compliance • Hazard Pictograms 1. 2. 3. 4. 5. 6. 7. Exploding Bomb Gas Cylinder Health Hazard Flame Skull and Crossbones Exclamation Mark Flame Over Circle Oxidizing Gases 1 Oxidizing Liquids 1, 2, 3 Oxidizing Solids 1, 2, 3
OSHA HCS Training Compliance • Hazard Pictograms 1. 2. 3. 4. 5. 6. 7. 8. Exploding Bomb Gas Cylinder Health Hazard Flame Skull and Crossbones Exclamation Mark Flame Over Circle Corrosion Skin Corrosion / Burns 1 A, 1 B, 1 C Corrosive to Metals 1 Serious Damage to Eye
OSHA HCS Training Compliance • Label Elements • Product Identifier • Supplier Identifier • Signal Word • Hazard Pictograms • Hazard Statement
OSHA HCS Training Compliance • Label Elements • Product Identifier • Supplier Identifier • Signal Word • Hazard Pictograms • Hazard Statement • Precautionary Statements
OSHA HCS Training Compliance • Using Labels in the workplace • Ensure proper storage of hazardous chemicals • Quickly locate first aid information when needed by employees or emergency personnel • Chemicals with multiple hazards, multiple pictograms are used to identify various hazards. • When there are similar precautionary statements, the one providing the most protective information will be included on the label.
OSHA HCS Training Compliance • Safety Data Sheets 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. 16. Identification Hazard(s) Identification Composition/Ingredient Information First Aid Measures Fire-Fighting Measures Accidental Release Measures Handling and Storage Exposure Control/Personal Protection Physical & Chemical Properties Stability & Reactivity Toxicological Information Ecological Information Disposal Considerations Transport Information Regulatory Information Other Information
OSHA HCS Training Compliance • Safety Data Sheets 1. Identification
OSHA HCS Training Compliance • Safety Data Sheets 1. Identification 2. Hazard(s) Identification
OSHA HCS Training Compliance • Safety Data Sheets 1. Identification 2. Hazard(s) Identification 3. Composition/Ingredient Information
OSHA HCS Training Compliance • Safety Data Sheets 1. 2. 3. 4. Identification Hazard(s) Identification Composition/Ingredient Information First Aid Measures
OSHA HCS Training Compliance • Safety Data Sheets 1. 2. 3. 4. 5. Identification Hazard(s) Identification Composition/Ingredient Information First Aid Measures Fire-Fighting Measures
OSHA HCS Training Compliance • Safety Data Sheets 1. 2. 3. 4. 5. 6. Identification Hazard(s) Identification Composition/Ingredient Information First Aid Measures Fire-Fighting Measures Accidental Release Measures
OSHA HCS Training Compliance • Safety Data Sheets 1. 2. 3. 4. 5. 6. 7. Identification Hazard(s) Identification Composition/Ingredient Information First Aid Measures Fire-Fighting Measures Accidental Release Measures Handling and Storage

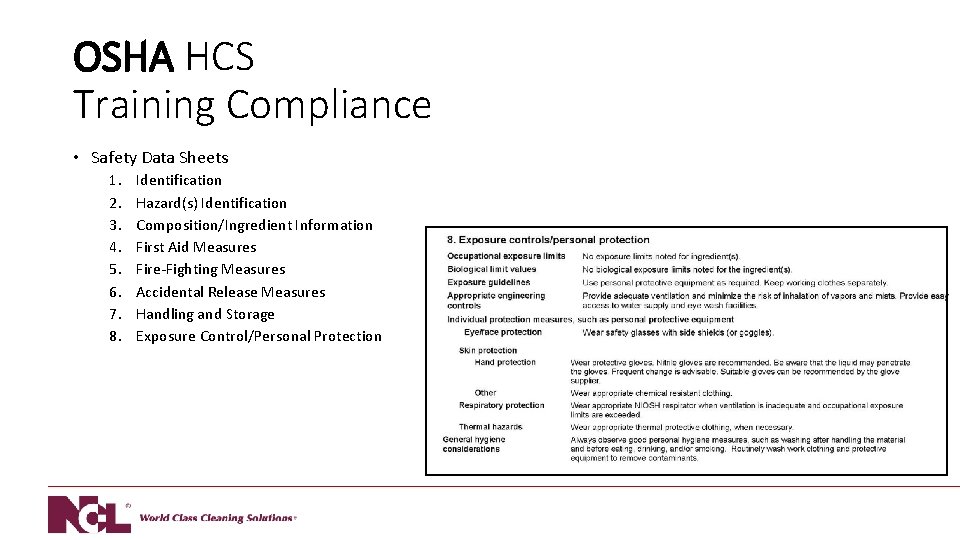

OSHA HCS Training Compliance • Safety Data Sheets 1. 2. 3. 4. 5. 6. 7. 8. Identification Hazard(s) Identification Composition/Ingredient Information First Aid Measures Fire-Fighting Measures Accidental Release Measures Handling and Storage Exposure Control/Personal Protection

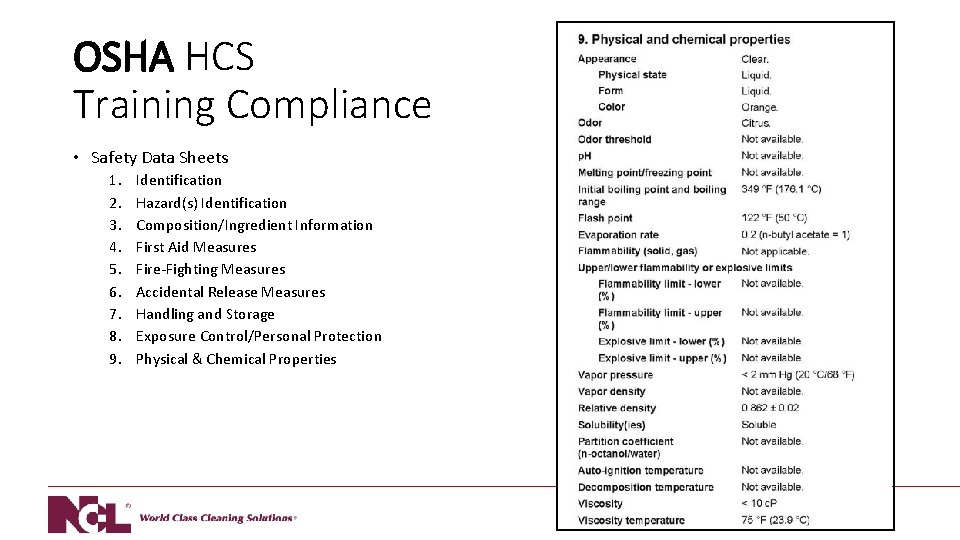

OSHA HCS Training Compliance • Safety Data Sheets 1. 2. 3. 4. 5. 6. 7. 8. 9. Identification Hazard(s) Identification Composition/Ingredient Information First Aid Measures Fire-Fighting Measures Accidental Release Measures Handling and Storage Exposure Control/Personal Protection Physical & Chemical Properties
OSHA HCS Training Compliance • Safety Data Sheets 1. Identification 2. Hazard(s) Identification 3. Composition/Ingredient Information 4. First Aid Measures 5. Fire-Fighting Measures 6. Accidental Release Measures 7. Handling and Storage 8. Exposure Control/Personal Protection 9. Physical & Chemical Properties 10. Stability & Reactivity

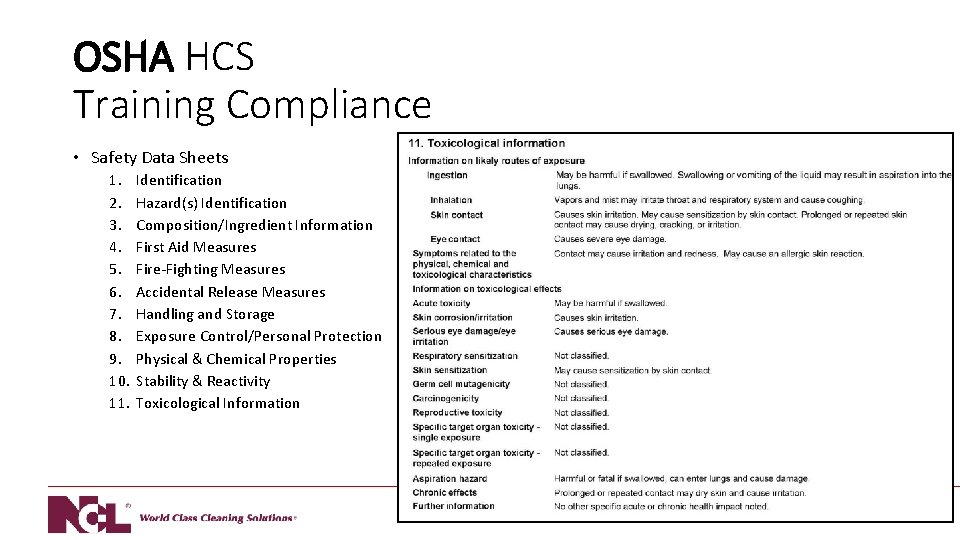

OSHA HCS Training Compliance • Safety Data Sheets 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. Identification Hazard(s) Identification Composition/Ingredient Information First Aid Measures Fire-Fighting Measures Accidental Release Measures Handling and Storage Exposure Control/Personal Protection Physical & Chemical Properties Stability & Reactivity Toxicological Information
OSHA HCS Training Compliance • Safety Data Sheets 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. Identification Hazard(s) Identification Composition/Ingredient Information First Aid Measures Fire-Fighting Measures Accidental Release Measures Handling and Storage Exposure Control/Personal Protection Physical & Chemical Properties Stability & Reactivity Toxicological Information Ecological Information
OSHA HCS Training Compliance • Safety Data Sheets 1. Identification 2. Hazard(s) Identification 3. Composition/Ingredient Information 4. First Aid Measures 5. Fire-Fighting Measures 6. Accidental Release Measures 7. Handling and Storage 8. Exposure Control/Personal Protection 9. Physical & Chemical Properties 10. Stability & Reactivity 11. Toxicological Information 12. Ecological Information 13. Disposal Considerations
OSHA HCS Training Compliance • Safety Data Sheets 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. Identification Hazard(s) Identification Composition/Ingredient Information First Aid Measures Fire-Fighting Measures Accidental Release Measures Handling and Storage Exposure Control/Personal Protection Physical & Chemical Properties Stability & Reactivity Toxicological Information Ecological Information Disposal Considerations Transport Information

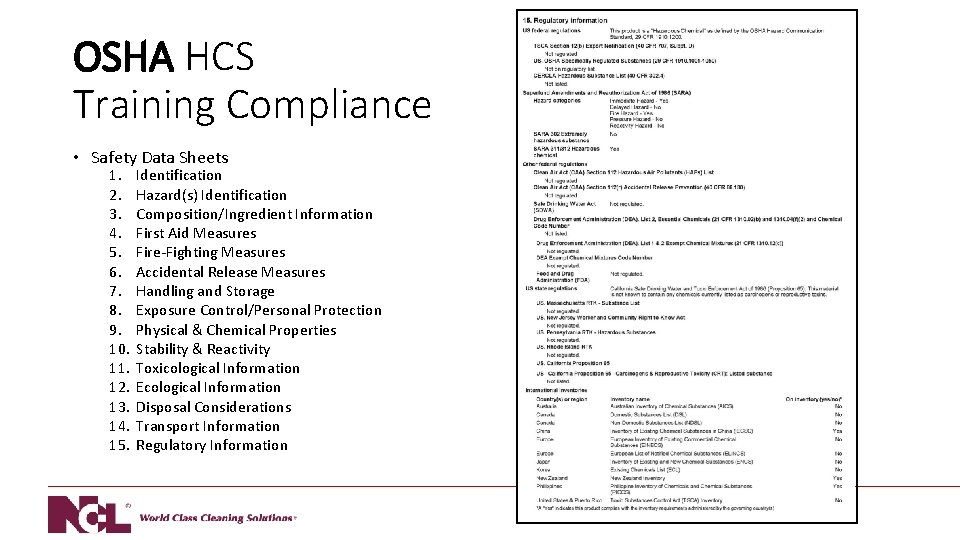

OSHA HCS Training Compliance • Safety Data Sheets 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. Identification Hazard(s) Identification Composition/Ingredient Information First Aid Measures Fire-Fighting Measures Accidental Release Measures Handling and Storage Exposure Control/Personal Protection Physical & Chemical Properties Stability & Reactivity Toxicological Information Ecological Information Disposal Considerations Transport Information Regulatory Information
OSHA HCS Training Compliance • Safety Data Sheets 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. 16. Identification Hazard(s) Identification Composition/Ingredient Information First Aid Measures Fire-Fighting Measures Accidental Release Measures Handling and Storage Exposure Control/Personal Protection Physical & Chemical Properties Stability & Reactivity Toxicological Information Ecological Information Disposal Considerations Transport Information Regulatory Information Other Information

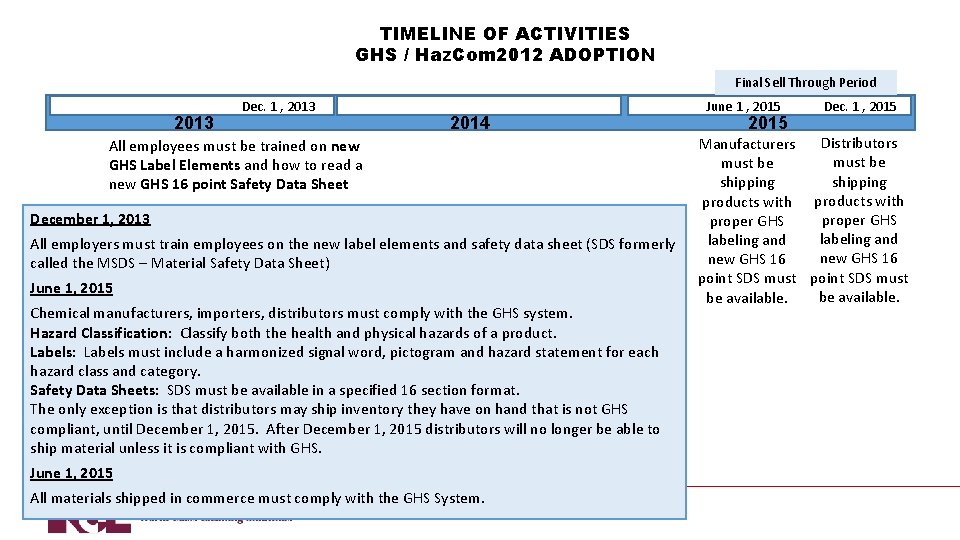

TIMELINE OF ACTIVITIES GHS / Haz. Com 2012 ADOPTION Final Sell Through Period 2013 Dec. 1 , 2013 2014 All employees must be trained on new GHS Label Elements and how to read a new GHS 16 point Safety Data Sheet December 1, 2013 All employers must train employees on the new label elements and safety data sheet (SDS formerly called the MSDS – Material Safety Data Sheet) June 1, 2015 Chemical manufacturers, importers, distributors must comply with the GHS system. Hazard Classification: Classify both the health and physical hazards of a product. Labels: Labels must include a harmonized signal word, pictogram and hazard statement for each hazard class and category. Safety Data Sheets: SDS must be available in a specified 16 section format. The only exception is that distributors may ship inventory they have on hand that is not GHS compliant, until December 1, 2015. After December 1, 2015 distributors will no longer be able to ship material unless it is compliant with GHS. June 1, 2015 All materials shipped in commerce must comply with the GHS System. June 1 , 2015 Dec. 1 , 2015 Distributors Manufacturers must be shipping products with proper GHS labeling and new GHS 16 point SDS must be available.
