The Domain Name System Patrik Fältström paf@cisco. com Session Number Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. 2

Names & Numbers • For communication on the Internet, we use a number of different identifiers URI’s Domain Names IP-Addresses MAC-Addresses • The powerful thing is that the addressing is layered IP-address can change, while domain name is the same Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. 3

Goal of this session • The session will as a whole cover Design and functionality of DNS as we know it Tips and tricks regarding operations Future issues, good and bad • You will after today better understand how DNS works, and why your DNS servers behave the way they do, and finally, you will be able to control it Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. 4

Agenda • Definitions • Firewalls • Delegation on non-octet boundaries • Resolver • Master and slave • Configuration examples Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. • Dynamic update • DNSSEC 5

Agenda • Definitions • Firewalls • Delegation on non-octet boundaries • Resolver • Master and slave • Configuration examples Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. • Dynamic update • DNSSEC 6

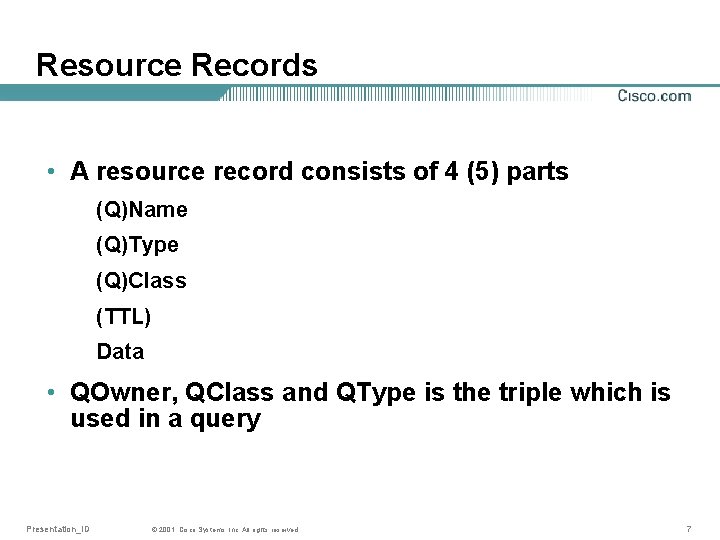

Resource Records • A resource record consists of 4 (5) parts (Q)Name (Q)Type (Q)Class (TTL) Data • QOwner, QClass and QType is the triple which is used in a query Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. 7

Name (a domain name, variable length) • The owner of a record is “the domain name” Also called “Owner, “name” or “label” • If foo. example. com have IP address 192. 168. 1. 2 foo. example. com. IN A 192. 168. 1. 2 • Then foo. example. com is the owner Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. 8

Name (a domain name, variable length) • A name consists of a series of labels A series of labels ending with NULL A pointer A series of labels ending with a pointer • Label is one of +--+--+--+--+--+--+. . . . +--+--+ | 0 0| LENGTH | DATA | +--+--+--+--+--+--+. . . . +--+--+--+--+ | 0 0 0 0| +--+--+--+--+--+--+--+--+--+--+--+--+ | 1 1| OFFSET | +--+--+--+--+--+--+--+--+ Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. 9

Type (16 bits) • Many different types exists A, MX, PTR, SRV, NAPTR, NS, SOA, NXT, SIG, KEY, TXT, CNAME, DNAME, A 6, … • Each type specify how the data is to be interpreted • QType used in a query QType is a superset of Type used in a query Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. 10

Class (16 bits) • The class is for the Internet “IN” • Other classes exists, but is not in widespread use One example: HS For realms in the Hesiod system (part of project Athena at MIT) • Each class has it’s own root • QClass used in a query QClass is a superset of Class Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. 11

TTL - Time To Live (32 bits) • In a response, the server sending the data set a minimum time to live on each record • This indicates how long a server is allowed to cache the response • We will look more closely at how TTL is calculated later on Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. 12

Data (16 bit length field + data) • The field which is the actual result of a query • “The meat” • Is to be interpreted differently for different Types • Can be of different length for different Types Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. 13

Resource Record Set • A resource record set (or RR-set), is a group of records which have the same owner, same class and same type • When we later look at DNSSEC, this is a very important definition to remember Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. 14

Agenda • Definitions • Firewalls • Delegation on non-octet boundaries • Resolver • Master and slave • Configuration examples Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. • Dynamic update • DNSSEC 15

Delegation, distributed administration • DNS is a protocol, but also a database with distributed administration • In one server, one can delegate administration of sub-namespaces to other servers • Delegation is done with an NS record which for a subdomain tell what nameservers are authoritative Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. 16

Type NS • An NS record hold the domain name for one nameserver for the domain given in the owner example. com. IN NS ns 1. example. com. • The nameservers pointed out must be authoritative for the domain • If not, the delegation is said to be “Lame” More about authoritative servers later Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. 17

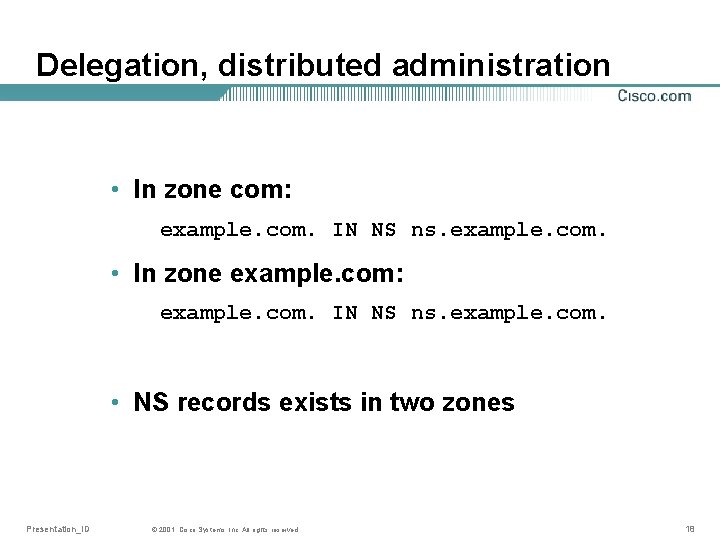

Delegation, distributed administration • In zone com: example. com. IN NS ns. example. com. • In zone example. com: example. com. IN NS ns. example. com. • NS records exists in two zones Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. 18

Glue records • A delegation is made with NS records in the parent zone example. com. IN NS ns. example. net. • For the first of these two delegations, the host ns. example. com. is inside the delegated zone • For this server, we need the A record in the parent zone • This A record is called “glue” Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. 19

Glue records • In zone com: example. com. IN NS ns. example. com. IN A 192. 168. 1. 1 example. com. IN NS ns. example. net. • In zone example. com: example. com. IN NS ns. example. com. IN A 192. 168. 1. 1 example. com. IN NS ns. example. net. Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. 20

Type SOA • Keeps administrative information Name of master nameserver Email address to contact person Serial (version) number of zone Refresh interval* Retry interval* Timeout* TTL for Negative answers** * Only interesting for Slave servers ** Previously this was “default TTL” Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. 21

Type SOA example. com. IN SOA ns. example. com. admin. example. com. ( 20020315 3600 1800 604800 900 ) Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. 22

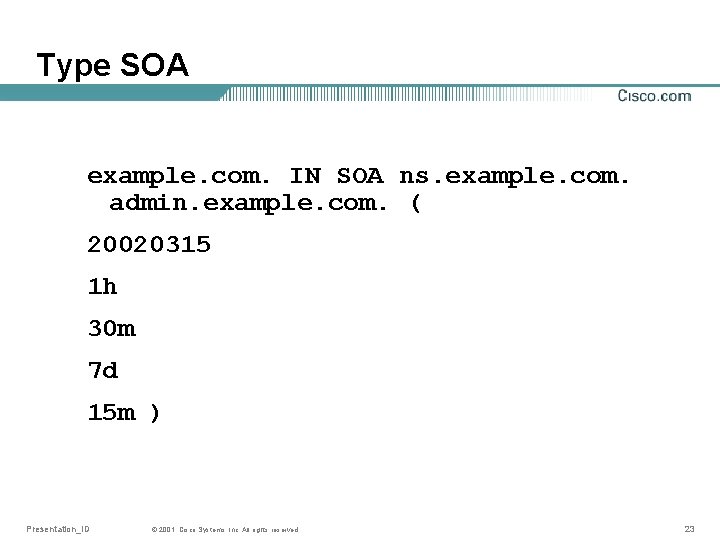

Type SOA example. com. IN SOA ns. example. com. admin. example. com. ( 20020315 1 h 30 m 7 d 15 m ) Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. 23

Type CNAME • Canonical name is an “alias” to a hostname • Example: www. example. com. IN CNAME server. example. com. • CNAME is given back independent on what Type the query was for • This imply that if one have a CNAME, one is not allowed to have any other record with the same owner Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. 24

Domain and Zone • All records with the same suffix are in the same domain se a • A zone is a domain without the records which are part of delegated domains b ns ns Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. 25

Agenda • Definitions • Firewalls • Delegation on non-octet boundaries • Resolver • Master and slave • Configuration examples Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. • Dynamic update • DNSSEC 26

Difference between client and server • Client and Server are relations • A Client queries a Server • A piece of software can both act as server and client, but not all do • All Internet Software have some sort of client functionality built in, and that is called “the resolver” In some cases, the resolver is a special daemon, and not something which is linked with the main program. In this discussion, this distinction is though not relevant. Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. 27

Difference between client and server Application DNS Server Resolver (Client) Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. 28

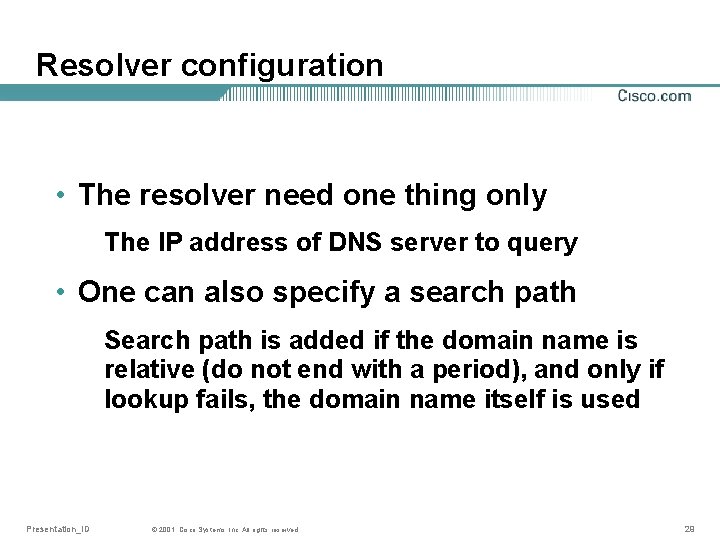

Resolver configuration • The resolver need one thing only The IP address of DNS server to query • One can also specify a search path Search path is added if the domain name is relative (do not end with a period), and only if lookup fails, the domain name itself is used Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. 29

Recursion • When a resolver send a query to a DNS server, it can (but doesn’t have to) ask for recursion The server can deny fulfilling the request • Recursion means that the server queried will try to get the result by asking more than one DNS server if needed • If recursion is not requested, the queried server only returns whatever he already knows Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. 30

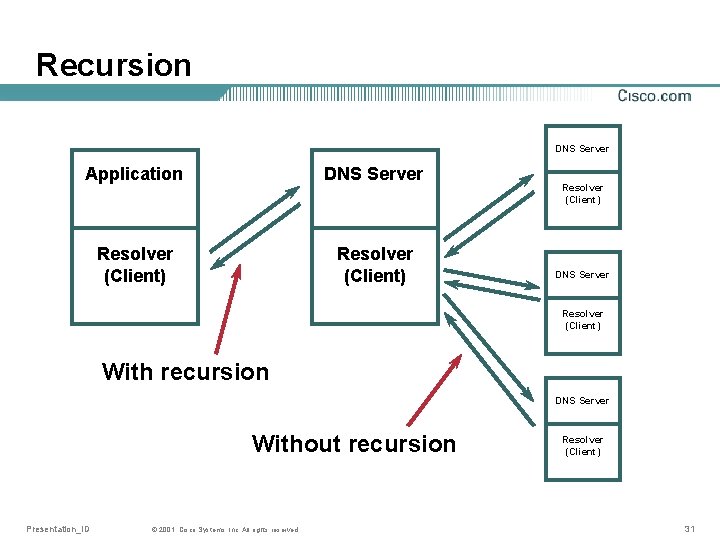

Recursion DNS Server Application DNS Server Resolver (Client) DNS Server Resolver (Client) With recursion DNS Server Without recursion Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. Resolver (Client) 31

Caching • A resolver is allowed to cache the data given back from a DNS server, and the TTL is included in the response • If the resolver get back a record with TTL 58 seconds, and it give away the record after 16 seconds, the TTL in the response must be 42 seconds • This imply that TTL of 0 (zero) is not recommended, the record has timed out before it is used Whether this create problems or not is implementation dependent Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. 32

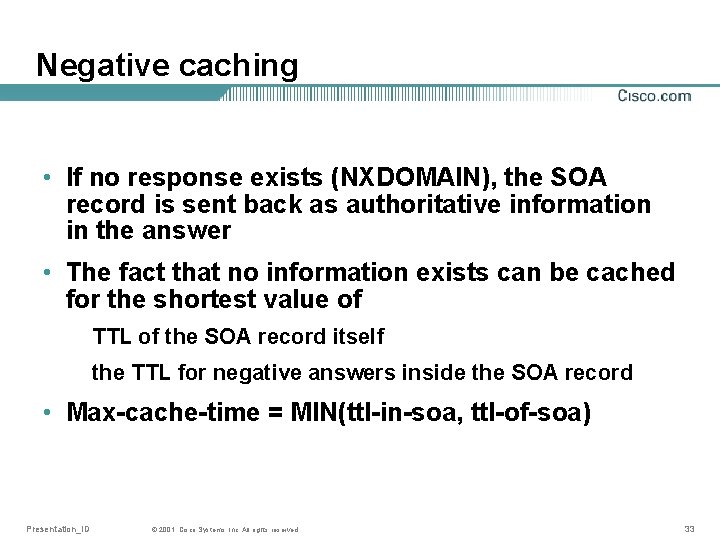

Negative caching • If no response exists (NXDOMAIN), the SOA record is sent back as authoritative information in the answer • The fact that no information exists can be cached for the shortest value of TTL of the SOA record itself the TTL for negative answers inside the SOA record • Max-cache-time = MIN(ttl-in-soa, ttl-of-soa) Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. 33

Authoritative responses • When a response is coming back from a server, the answer can come from two different sources A master or slave server A caching server (as cached result) • In the first case, the answer has a flag set which says that the answer is authoritative Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. 34

Example: using the command DIG • The following example show the output from the command “dig” which is normally installed on UNIX computers • One good thing with “dig” is that the output is very much structured like the DNS packet itself. Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. 35

dig www. cisco. com. A - Page 1(2) ; <<>> Di. G 9. 3. 0 s 20020317 <<>> www. cisco. com a ; ; global options: printcmd ; ; Got answer: ; ; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 37547 ; ; flags: qr rd ra; QUERY: 1, ANSWER: 1, ; ; AUTHORITY: 2, ADDITIONAL: 2 ; ; QUESTION SECTION: ; www. cisco. com. IN A ; ; ANSWER SECTION: www. cisco. com. Presentation_ID 17433 © 2001, Cisco Systems, Inc. All rights reserved. 198. 133. 219. 25 36

dig www. cisco. com. A - Page 2(2) ; ; AUTHORITY SECTION: cisco. com. 163351 IN NS NS 1. cisco. com. 163351 IN NS NS 2. cisco. com. ; ; ADDITIONAL SECTION: NS 1. cisco. com. 128. 107. 241. 185 163351 IN A NS 2. cisco. com. 69881 IN A 192. 135. 250. 69 ; ; Query time: 382 msec ; ; SERVER: 130. 244. 127. 169#53(10. 0. 1. 1) ; ; WHEN: Mon Mar 25 15: 12: 30 2002 ; ; MSG SIZE Presentation_ID rcvd: 115 © 2001, Cisco Systems, Inc. All rights reserved. 37

Agenda • Definitions • Firewalls • Delegation on non-octet boundaries • Resolver • Master and slave • Configuration examples Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. • Dynamic update • DNSSEC 38

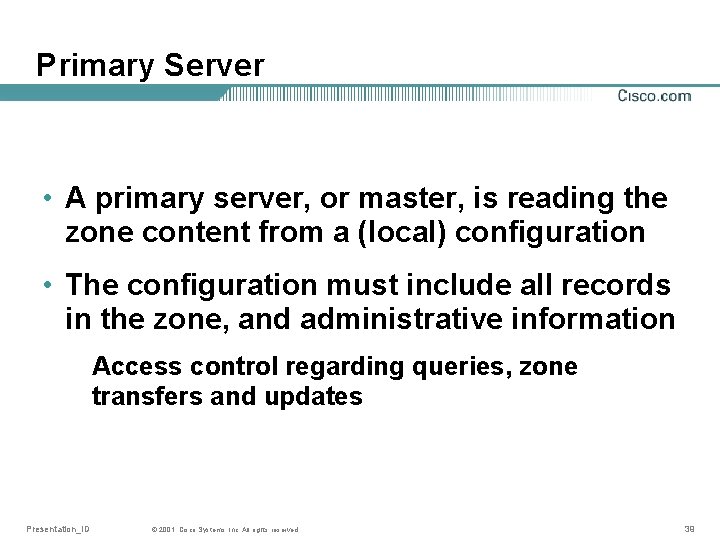

Primary Server • A primary server, or master, is reading the zone content from a (local) configuration • The configuration must include all records in the zone, and administrative information Access control regarding queries, zone transfers and updates Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. 39

Secondary Server • A secondary server get the zone content by copying it from an authoritative server (master or slave) • It looks in the SOA record to know how often it should check if the zone has changed (refresh) • A zone “has changed” if serial number in SOA has increased Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. 40

Stealth • A stealth server is an authoritative server which is not announced via NS records in the zone itself • Very normal to have the primary server being stealth This so noone query the primary server for data Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. 41

Zone transfer • A secondary server check the serial number in the SOA when timer “refresh” is zero • If refresh fails, retry according to “retry” • If failed for “timeout” period of time, stop responding to queries • Zone transfer is over TCP, i. e. one example where DNS protocol is using TCP and not only UDP Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. 42

Notify • If a primary server is updated, it can send a NOTIFY message to secondary server(s) • When a secondary server receive a NOTIFY message, the “refresh” timer is to be set to zero (so normal verification of serial number happens) • Important to set how often Notify is to be sent in an environment where zone is updated often Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. 43

Quite normal setup ns. example. com. 192. 168. 1. 2 example. com. IN SOA … example. com. IN NS ns 1. example. net. Primary/Stealth Secondary ns 1. example. com. 192. 168. 1. 1 Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. Secondary ns 1. example. net. 10. 0. 0. 1 44

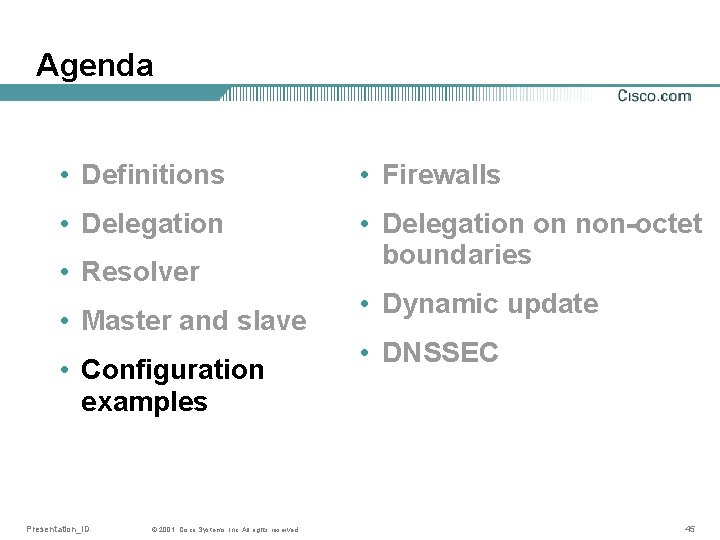

Agenda • Definitions • Firewalls • Delegation on non-octet boundaries • Resolver • Master and slave • Configuration examples Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. • Dynamic update • DNSSEC 45

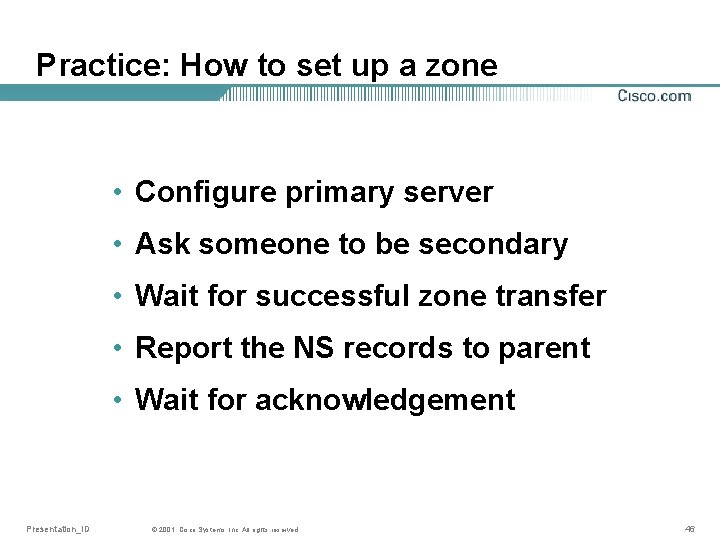

Practice: How to set up a zone • Configure primary server • Ask someone to be secondary • Wait for successful zone transfer • Report the NS records to parent • Wait for acknowledgement Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. 46

Configure primary server ns 1. example. com. 192. 168. 1. 1 example. com. IN SOA … example. com. IN NS ns 1. example. net. Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. 47

Ask someone to be secondary ns 1. example. net. 10. 0. 0. 1 ns 1. example. com. 192. 168. 1. 1 example. com. IN NS ns 1. example. com. IN A 192. 168. 1. 1 example. com. IN SOA … example. com. IN NS ns 1. example. net. Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. 48

Wait for successful zone transfer ns 1. example. com. 192. 168. 1. 1 example. com. zone AXFR ns 1. example. net. 10. 0. 0. 1 Zonetransfer ok! example. com. IN SOA … example. com. IN NS ns 1. example. net. Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. example. com. { type slave; master 192. 168. 1. 1; } 49

Report the NS records to parent example. com. IN NS ns 1. example. net. ns 1. example. com. IN A 192. 168. 1. 1 ns 1. example. com. 192. 168. 1. 1 example. com. IN SOA … example. com. IN NS ns 1. example. net. Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. ns 1. verisign. com. 10. 1 ns 1. example. net. 10. 0. 0. 1 example. com. { type slave; master 192. 168. 1. 1; } 50

Wait for acknowledgement Ok! example. com. IN NS ns 1. example. net. ns 1. example. com. IN A 192. 168. 1. 1 ns 1. verisign. com. 10. 1 ns 1. example. com. 192. 168. 1. 1 example. com. IN SOA … example. com. IN NS ns 1. example. net. Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. ns 1. example. net. 10. 0. 0. 1 example. com. { type slave; master 192. 168. 1. 1; } 51

Practice: Moving master server • Set up new master • Change old master to slave • Ask secondaries to copy from new master • Wait for successful zone transfer • Talk with parent • Wait for acknowledgement Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. 52

Set up new master ns 2. example. com. 192. 168. 1. 2 example. com. IN SOA … example. com. IN NS ns 1. example. net. ns 1. example. com. 192. 168. 1. 1 example. com. IN SOA … example. com. IN NS ns 1. example. net. Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. example. com. IN NS ns 1. example. net. ns 1. example. com. IN A 192. 168. 1. 1 ns 1. verisign. com. 10. 1 ns 1. example. net. 10. 0. 0. 1 example. com. { type slave; master 192. 168. 1. 1; } 53

Change old master to slave ns 2. example. com. 192. 168. 1. 2 example. com. IN SOA … example. com. IN NS ns 2. example. com. ns 1. example. com. IN NS ns 1. example. net. ns 1. example. com. 192. 168. 1. 1 example. com. { example. com. IN SOA … type slave; example. com. IN NS ns 1. example. com. master 192. 168. 1. 2; example. com. IN NS ns 1. example. net. } Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. example. com. IN NS ns 1. example. net. ns 1. example. com. IN A 192. 168. 1. 1 ns 1. verisign. com. 10. 1 ns 1. example. net. 10. 0. 0. 1 example. com. { type slave; master 192. 168. 1. 1; } 54

Ask secondaries to copy from new master example. com. IN NS ns 1. example. net. ns 1. example. com. IN A 192. 168. 1. 1 ns 2. example. com. 192. 168. 1. 2 example. com. IN SOA … example. com. IN NS ns 2. example. com. IN NS ns 1. example. net. ns 1. verisign. com. 10. 1 ns 1. example. net. 10. 0. 0. 1 ns 1. example. com. 192. 168. 1. 1 example. com. IN NS ns 2. example. com. IN A 192. 168. 1. 2 example. com. { type slave; master 192. 168. 1. 2; } Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. example. com. { type slave; master 192. 168. 1. 1; } 55

Wait for successful zone transfer ns 2. example. com. 192. 168. 1. 2 example. com. IN NS ns 1. example. net. ns 1. example. com. IN A 192. 168. 1. 1 ns 1. verisign. com. 10. 1 example. com. IN SOA … example. com. IN NS ns 2. example. com. IN NS ns 1. example. net. 10. 0. 0. 1 ns 1. example. com. 192. 168. 1. 1 Ok! example. com. { type slave; master 192. 168. 1. 2; } Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. example. com. { type slave; master 192. 168. 1. 2; 192. 168. 1. 1; } 56

Talk with parent ns 2. example. com. 192. 168. 1. 2 example. com. IN NS ns 1. example. net. ns 1. example. com. IN A 192. 168. 1. 1 example. com. IN NS ns 2. example. com. IN NS ns 1. example. net. ns 1. example. com. IN A 192. 168. 1. 2 example. com. IN SOA … example. com. IN NS ns 2. example. com. IN NS ns 1. example. net. ns 1. example. com. 192. 168. 1. 1 example. com. { type slave; master 192. 168. 1. 2; } Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. ns 1. verisign. com. 10. 1 ns 1. example. net. 10. 0. 0. 1 example. com. { type slave; master 192. 168. 1. 2; } 57

Wait for acknowledgement ns 2. example. com. 192. 168. 1. 2 example. com. IN NS ns 2. example. com. ns 1. example. com. IN NS ns 1. example. net. ns 1. example. com. IN A 192. 168. 1. 2 ns 2. example. com. 192. 168. 1. 1 Ok! example. com. IN SOA … example. com. IN NS ns 2. example. com. IN NS ns 1. example. net. ns 1. example. com. 192. 168. 1. 1 example. com. { type slave; master 192. 168. 1. 2; } Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. ns 1. verisign. com. 10. 1 ns 1. example. net. 10. 0. 0. 1 example. com. { type slave; master 192. 168. 1. 2; } 58

Practice: Moving slave server • Set up new slave • Mention this to master server admin • Wait for acknowledgement • Verify successful zone transfer • Mention this to master server admin Master admin must change zone content Master admin must talk with parent • Wait for an acknowledgement Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. 59

Set up new slave ns 2. example. com. 192. 168. 1. 2 example. com. IN SOA … example. com. IN NS ns 2. example. com. IN NS ns 1. example. net. ns 2. example. net. 10. 0. 0. 2 example. com. { type slave; master 192. 168. 1. 2; } Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. example. com. IN NS ns 2. example. com. IN NS ns 1. example. net. ns 2. example. com. IN A 192. 168. 1. 2 ns 1. verisign. com. 10. 1 ns 1. example. net. 10. 0. 0. 1 example. com. { type slave; master 192. 168. 1. 2; } 60

Mention this to master server admin ns 2. example. com. 192. 168. 1. 2 example. com. IN SOA … example. com. IN NS ns 2. example. com. IN NS ns 1. example. net. ns 2. example. com. IN A 192. 168. 1. 2 ns 1. verisign. com. 10. 1 ns 1. example. net. 10. 0. 0. 1 replaced by ns 2. example. net. 10. 0. 0. 2 example. com. { type slave; master 192. 168. 1. 2; } Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. ns 1. example. net. 10. 0. 0. 1 example. com. { type slave; master 192. 168. 1. 2; } 61

Wait for acknowledgement ns 2. example. com. 192. 168. 1. 2 example. com. IN SOA … example. com. IN NS ns 2. example. com. IN NS ns 1. example. net. ns 2. example. com. IN A 192. 168. 1. 2 ns 1. verisign. com. 10. 1 Ok! ns 2. example. net. 10. 0. 0. 2 example. com. { type slave; master 192. 168. 1. 2; } Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. ns 1. example. net. 10. 0. 0. 1 example. com. { type slave; master 192. 168. 1. 2; } 62

Verify zonetransfer ok example. com. IN NS ns 2. example. com. IN NS ns 1. example. net. ns 2. example. com. IN A 192. 168. 1. 2 ns 2. example. com. 192. 168. 1. 2 ns 1. verisign. com. 10. 1 example. com. IN SOA … example. com. IN NS ns 2. example. com. IN NS ns 1. example. net. 10. 0. 0. 1 ns 2. example. net. 10. 0. 0. 2 Let’s see if. Ok! this works… example. com. { type slave; master 192. 168. 1. 2; } Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. example. com. { type slave; master 192. 168. 1. 2; } 63

Mention this to master server admin example. com. IN NS ns 2. example. net. ns 1. example. net. ns 2. example. com. IN A 192. 168. 1. 2 ns 2. example. com. 192. 168. 1. 2 example. com. IN NS ns 2. example. com. IN Ok! NS ns 2. example. net. ns 2. example. com. IN A 192. 168. 1. 2 example. com. IN SOA … example. com. IN NS ns 2. example. com. IN NS ns 1. example. net. ns 2. example. net. ns 1. verisign. com. 10. 1 Zonetransfer ok! ns 2. example. net. 10. 0. 0. 2 example. com. { type slave; master 192. 168. 1. 2; } Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. ns 1. example. net. 10. 0. 0. 1 example. com. { type slave; master 192. 168. 1. 2; } 64

Wait for an acknowledgement ns 2. example. com. 192. 168. 1. 2 example. com. IN SOA … example. com. IN NS ns 2. example. net. ns 2. example. com. IN A 192. 168. 1. 2 ns 1. verisign. com. 10. 1 Ok! ns 2. example. net. 10. 0. 0. 2 example. com. { type slave; master 192. 168. 1. 2; } Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. ns 1. example. net. 10. 0. 0. 1 example. com. { type slave; master 192. 168. 1. 2; } 65

Agenda • Definitions • Firewalls • Delegation on non-octet boundaries • Resolver • Master and slave • Configuration examples Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. • Dynamic update • DNSSEC 66

Firewalls • A few different problems: No ability to send DNS queries from inside to world Must use “Forwarder” or internal root server Some names should not be visible in the world Different responses depending on where the query comes from Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. 67

Forwarder • A DNS server which receives a query normally query root servers, and query recursively until response is gathered • If the server do not have access to Internet, but a second server do, the second can act as a forwarder for the first The first server query the second with “Recursion Desired” flag turned on • In many cases, this can be combined with using root servers, and is called “forward-first” or “forward-last” Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. 68

Internal forwarding server External DNS Server With recursion OFF ON Internal DNS Server Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. 69

Different responses • In some software, one can have different versions of a zone which are used depending on things like What interface the query is arriving to What IP-address the query is sent from • This is called “split-DNS” Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. 70

Different responses Query from outside DNS Server for zone Query from inside Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. Server 71

Root Nameserver • A DNS server need to be primed • It has a list of nameservers for “. ”, the root • Or rather, it has a list of servers which knows the list of nameservers for “. ” • First thing that happens is that a DNS server query the list of servers for nameservers for root • After that, the new list is used • Because of this, IP-address of root server(s) is not changed, if possible Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. 72

Internal root server • In some cases, no access to Internet is allowed (or possible) • For DNS to work, internal root servers are needed • Configure as normal, with a primary server for “. ” (the root zone) • Set up at least 2 slave servers for this primary • Use the 3 IP-addresses in a hint file for internal forwarding servers Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. 73

Internal root Query from outside Query from inside Internal forwarder DNS Server for zone Server Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. 74

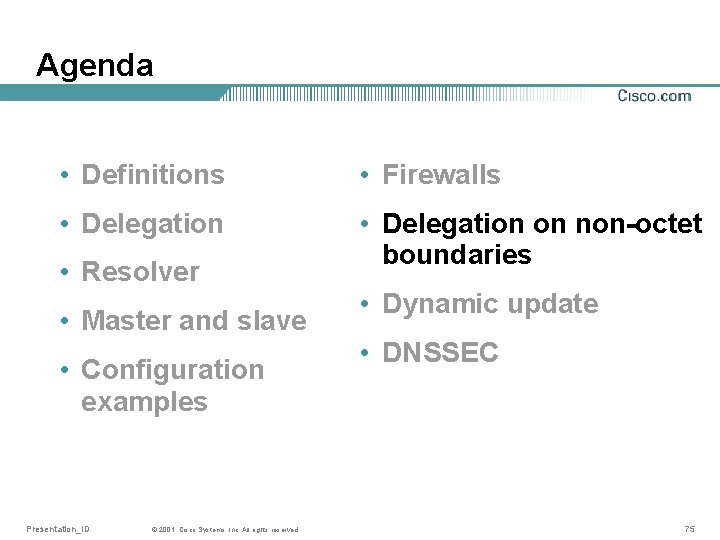

Agenda • Definitions • Firewalls • Delegation on non-octet boundaries • Resolver • Master and slave • Configuration examples Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. • Dynamic update • DNSSEC 75

Delegation in in-addr. arpa on no-octet boundaries - 1(2) • Say one have 192. 168. 1. 16/28 192. 168. 1. 16 -192. 168. 1. 31 • Parent set up NS for delegation and CNAME at locations of PTR owner(s) some-domain. IN NS ns. example. com. 16. 1. 168. 192. in-addr. arpa. IN CNAME 16. some-domain. 17. 1. 168. 192. in-addr. arpa. IN CNAME 17. some-domain. : 31. 1. 168. 192. in-addr. arpa. IN CNAME 31. some-domain. Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. 76

Delegation in in-addr. arpa on no-octet boundaries - 2(2) • Child set up zone according to parent instructions some-domain. IN SOA … some-domain. IN NS ns. example. com. 16. some-domain. IN PTR what 1. example. com. 17. some-domain. IN PTR what 2. example. com. : 31. some-domain. IN PTR what 31. example. com. Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. 77

Agenda • Definitions • Firewalls • Delegation on non-octet boundaries • Resolver • Master and slave • Configuration examples Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. • Dynamic update • DNSSEC 78

Why is DHCP and DNS problematic together? • DHCP imply hostname to IP-address mapping (and inverse) change over time • When that mapping changes, DNS is to be updated • Even if primary server is updated asap, there is delay Slave servers need to be updated Caching servers might cache records • Note that TTL of zero is not recommended Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. 79

Dynamic update • A command (query type) in the DNS protocol which makes it possible to update the data in a primary server • DNS Client (DHCP client and/or server) send a Dynamic Update to Primary Server(s) for zone(s) when the IP-address is changed for a host Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. 80

Secure dynamic update • Two different ways, TSIG and SIG(0) TSIG - Symmetric Encryption, Shared Secret Used by DHCP servers SIG(0) - Assymetric Encryption, public key in DNS itself as KEY record, and temporary SIG record in update Used by DHCP clients • Interoperability test January 2002 and used during IETF in Minneapolis March 2002 show this is possible to deploy now http: //ops. ietf. org/dns/dynupd/secure-ddns-howto. html Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. 81

TSIG - Transaction Signatures • TSIG is a new RR type, which is not to be cached • Shared Secret and HMAC-MD 5 hash used, and requires secure storage of shared secret • Used between two parties which trust each other DHCP-server and DNS server Resolver and forwarding server Zone transfers Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. 82

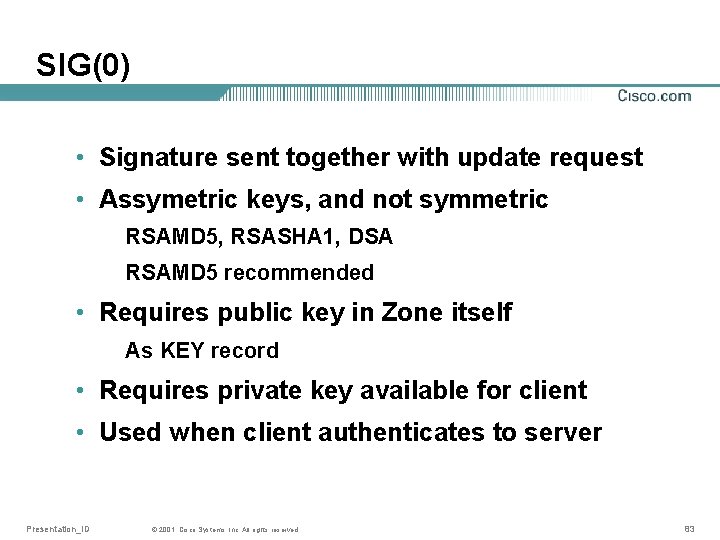

SIG(0) • Signature sent together with update request • Assymetric keys, and not symmetric RSAMD 5, RSASHA 1, DSA RSAMD 5 recommended • Requires public key in Zone itself As KEY record • Requires private key available for client • Used when client authenticates to server Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. 83

Agenda • Definitions • Firewalls • Delegation on non-octet boundaries • Resolver • Master and slave • Configuration examples Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. • Dynamic update • DNSSEC 84

DNSSEC, what does it do? • Secure record sets so Resolver can verify that data is not changed during transfer Resolver can know the data comes from someone having access to private key for zone • Note that it doesn’t matter where the records come from (including non-trusted caching servers) Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. 85

DNSSEC, what does it not do? • Secure transfer between two parties • Encrypt data between two parties • Authenticate resolver to server • Explicitly allow “inheritance” to other PKI’s (for example IPSEC based transport security) Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. 86

DNSSEC records • SIG - Holds signature of one RR-Set • KEY - Holds public part of key used to sign records • NXT - Indicate for one owner what the next owner in the zone is, in alphabetical order • DS - Indicates in Parent Zone what key is used to sign child zone Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. 87

Chain of trust Key se. you trust se Signed by key se. a Key a. se. b Signed by key a. se. ns ns Key b. a. se. Signed by key b. a. se. Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. 88

EDNS 0 • A mechanism for sending pseudo records between client and server • Client can announce to server for example maximum packet size accepted • Extensible mechanism, not yet deployed, but possibly needed when DNSSEC and other mechanisms are used which require larger packet size Presentation_ID © 2001, Cisco Systems, Inc. All rights reserved. 89
