Presentation of Drilling Rigs GBU-5 M “Wasp” and GBU 7 M “Colibri” property of

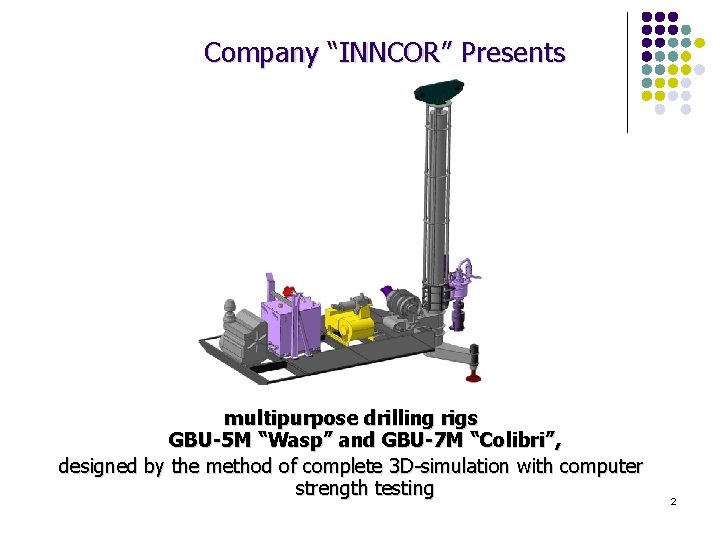

Company “INNCOR” Presents multipurpose drilling rigs GBU-5 M “Wasp” and GBU-7 M “Colibri”, designed by the method of complete 3 D-simulation with computer strength testing 2

l l LLC “INNCOR” (innovative constructor developments) is the team of experts – industrial engineers who gained broad experience from Russian military-industrial complexes, and young constructors, well-informed about all the advanced technologies in the sphere of complex equipment developments as well as creating machine building factories. The project of multipurpose drilling rigs GBU-5 M “Wasp” and GBU-7 M “Colibri” is realized jointly with “GOTEK” Group. 3

Basic ideas put in the concept of the drilling rigs “Wasp” and “Colibri”: l Multipurpose; l Production Efficiency; l Reliability; 4

Comparative characteristics of Russian drilling rigs and “Wasp” and “Colibri”: GBU-5 M GBU-7 M URB-5 AG URB-2 M URB-2 A-2 PBU-2 T. max(kg*m) 500 700 400/200 430 500 Q(rpm) 5 -550 0 -360 34 -300 0 -65/0 -130 85 -325 25 -430 Winch G(kg) 3000 - - 1600 F(kg) 10000 7800 2000 6000 10000 D(mm) 600 360 300 190, 5 “Wasp” and “Colibri” have no analogues in the set of characteristics in the Russian Federation. 5

Structural peculiarities and advantages of the drilling rigs “Wasp” and “Colibri” Mast: l For the fist time designed by the method of complete 3 Dsimulation with computer strength, stiffness, hardness testing. Result: strong and light design 6

Structural peculiarities and advantages of the drilling rigs “Wasp” and “Colibri” Rotator Wasp U 4, 53 Colibri 14, 71 V(rpm) 0… 450 0… 140 T(kg*m) 152 500 P(kg) 4, 53 14, 71 0… 360 217 0… 110 700 Pull-up/Pull-down 10000 The range of operating turns of the output shaft rotator allows to drill with different tools, from auger (d=600 mm) to diamond tool depending on chosen type of drilling 7 tool (max rotary speed 450 rpm).

Structural peculiarities and advantages of the drilling rigs “Wasp” and “Colibri” Winch Hydromotor 310. . . 160 310. . . 112 3000 2000 V(m/sec) 0, 07… 1, 7 Free Fall yes P(kg) Hydromotor is by choice Hydraulic, planetary winch with free fall: the use of planetary reduction unit in the winch drive mechanism increases its durability and control accuracy. 8

Structural peculiarities and advantages of the drilling rigs “Wasp” and “Colibri” Load capacity (max) 10000 kg Movable with hydraulic drive, three hydraulic transmissions and static probing mode Rotary carriage speed 0 -0, 6 m/sec 9

Multipurpose Drilling Rigs “Wasp” and “Colibri” Water Well Drilling l l High speed of the carriage – 0, 1… 0, 6 m/sec; Ease and high speed of makeup and breakout operations Mast height up to 6, 5 m; Winch with free fall– pull force 3 тс. Highly efficient drilling of water wells with depth up to 250 m – it’s an easy task for drilling rigs “Wasp” and “Colibri”! 10

Multipurpose Drilling Rigs “Wasp” and “Colibri” Site investigations l l l Torque – “Wasp” 500 kg/m, “Colibri” 700 kg/m; Drilling diameter – up to 600 mm; Possibility of directional drilling – mast fixation from 0° to 45°; Static probing – bottom hole pressure – 10 tf; Regular carriage movement with min. speed 1 m/min; Drilling rigs “Wasp” and “Colibri” provide highly efficient and safe site investigations. 11

Our service: 24 month guarantee; l Operating instruction, logbook, complete electronic catalogue of details and units; l After-sales service according to contract; l Emergency repairs – delivery of repair parts and maintenance team support during 72 hours on terms of after-sales contract; l Parts depot. l 12

Status l l Finished design documentation of the prototype; Signed contracts with suppliers; Scheduled prototype manufacturing; Signed contracts with the outsourcing companies. 13

Thank you for attention! LLC “INNCOR”
