Presentation Guard Tour Presentation Rosslare Security Products Guard
- Slides: 8
Presentation Guard Tour Presentation Rosslare Security Products – Guard Tour Presentation – Dec. 7 th 2012 www. ascendo. com. sg Page 1
System Overview Guard Tour – Basic System Overview LOCATIONS READER COMMAND CENTRE BASE Rosslare Security Products – Guard Tour Presentation – Dec. 7 th 2012 www. ascendo. com. sg Page 2

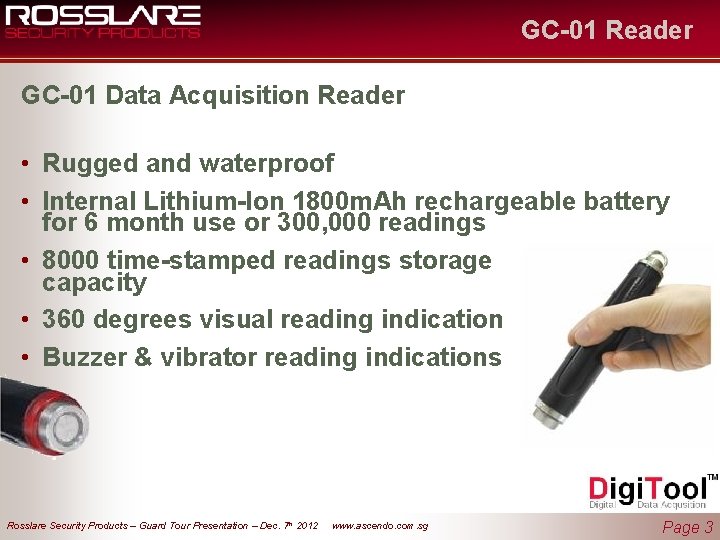

GC-01 Reader GC-01 Data Acquisition Reader • Rugged and waterproof • Internal Lithium-Ion 1800 m. Ah rechargeable battery for 6 month use or 300, 000 readings • 8000 time-stamped readings storage capacity • 360 degrees visual reading indication • Buzzer & vibrator reading indications Rosslare Security Products – Guard Tour Presentation – Dec. 7 th 2012 www. ascendo. com. sg Page 3
Base GC-02 Data Acquisition Base • Reader docking station for reader data discharge to PC and reader battery charger • RS-232 port for PC connection @ 9600 baud, full duplex • Rotating communications & power ports for desktop or wall mount installation • Local i. Button reader for enrolling location, events and user tags to PC • 12 VDC, max 500 m. A power adaptor • 3 -color LED and buzzer indications RS-232 PLUG POWER PLUG • Water & dust resistant design • Also available – GS-03 charger only base Rosslare Security Products – Guard Tour Presentation – Dec. 7 th 2012 www. ascendo. com. sg Page 4
GA-01 Location Tag • • Rugged and waterproof Low weight (10 grams) 16 byte ID with open or custom facility code Randomly coded with 12 Hex digits (over 300 billion ID options) • 2 -screw wall mounting base, and latching cover make the tag irremovable once installed • Available in different colors: black, red, yellow, purple and orange Rosslare Security Products – Guard Tour Presentation – Dec. 7 th 2012 www. ascendo. com. sg Page 5
Event Wallet GA-02 Event Wallet • Portable wallet for special event reporting during tour • 10 event i. Buttons • Rugged design GA-12 Numeric Event Wallet • Numeric wallet for special event reporting during tour • i. Buttons for digits 0 – 9, with START and END buttons to input any numeric sequence Rosslare Security Products – Guard Tour Presentation – Dec. 7 th 2012 www. ascendo. com. sg Page 6
Software GS-01: Digi. Tool Light Software Rosslare Security Products – Guard Tour Presentation – Dec. 7 th 2012 www. ascendo. com. sg Page 7
Software GS-01: Digi. Tool Light Software • Master and regular user access levels • Programmable features: users, sites, readers and scheduled tours • Integrated database • Various reporting options – tours, events, exceptions and others • Full reader upload/download and configuration Rosslare Security Products – Guard Tour Presentation – Dec. 7 th 2012 www. ascendo. com. sg Page 8
