Presentation Greg Brown Technical Manager Maxi TRANS Maxi

Presentation Greg Brown, Technical Manager Maxi. TRANS

Maxi. TRANS Brands Flat top, skel, curtain sided trailers & road trains Refrigerated & dry freight vans Steel & aluminum tippers, side tippers (semi’s, truck & dog) & road trains

4 AXLE A DOUBLE

Customer Confusion • Routes • Loads • Different States • Process very time consuming

Approval Process Some $1, 000 s MINIMUM 60 VEHICLE ASSESSMENT PREPARE 50 PAGE NHVR APPLICATION WORKING DAYS TOTAL Approx. 10 NHVR APPLICATION REVIEW • 120 WORKING DAYS • Many$1, 000 s • FRUSTRATION !!!!!! WORKING DAYS Approx. 5 WORKING DAYS AFTER BUILT VEHICLE BUILT AND CERTIFIED NHVR FINAL APPROVAL Up to $4, 500 Approx 10 WORKING DAYS ROAD AUTHORITY APPROVAL AND OBTAIN PERMIT Approx 15 WORKING DAYS

Hamelex White - Pre Approved Process VEHICLE ASSESSMENT PREPARE NHVR APPLICATION PRE APPROVED TOTAL • 5 WORKING DAYS • $3500 MAXIMUM • COMPLETED BY HXW PRE APPROVED NHVR APPLICATION REVIEW Approx. 5 WORKING DAYS AFTER BUILT VEHICLE BUILT AND CERTIFIED NHVR FINAL APPROVAL $3, 500 Approx. 10 WORKING DAYS ROAD AUTHORITY APPROVAL AND OBTAIN PERMIT Approx. 15 WORKING DAYS

Hamelex White - Victoria 3 AXLE 20 M MAX OVERALL LENGTH 48. 5 T GENERAL ACCESS (level 1) 49. 5 T ‘B’ DOUBLE ROUTE (level 2 -HML) 33. 8 T LEVEL 2 PAYLOAD 4 AXLE 19 M OVERALL LENGTH 50. 5 T GENERAL ACCESS (level 1) 56. 5 T ‘B’ DOUBLE ROUTE (level 2 -HML) 39. 6 T LEVEL 2 PAYLOAD 4 AXLE 20 M OVERALL LENGTH 50. 5 T GENERAL ACCESS (level 1) 57. 5 T ‘B’ DOUBLE ROUTE (level 2 -HML) 40. 5 T LEVEL 2 PAYLOAD

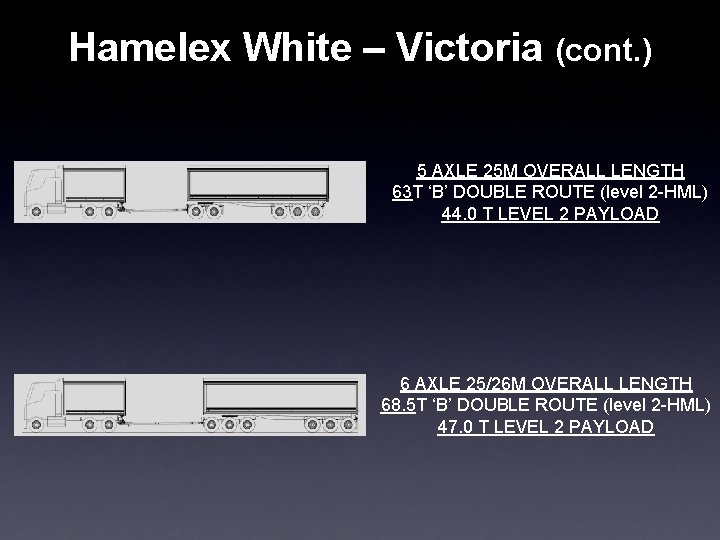

Hamelex White – Victoria (cont. ) 5 AXLE 25 M OVERALL LENGTH 63 T ‘B’ DOUBLE ROUTE (level 2 -HML) 44. 0 T LEVEL 2 PAYLOAD 6 AXLE 25/26 M OVERALL LENGTH 68. 5 T ‘B’ DOUBLE ROUTE (level 2 -HML) 47. 0 T LEVEL 2 PAYLOAD

Hamelex White – Queensland 3 AXLE 20 M MAX OVERALL LENGTH 45. 0 T General Access 48. 5 T GML 49. 5 T CML & HML 33. 8 T CML & HML PAYLOAD 4 AXLE 19 M OVERALL LENGTH 50 T General Access 54. 5 T GML 56. 0 T CML & HML 39. 0 T CML & HML PAYLOAD 4 AXLE 20 M OVERALL LENGTH 50 T General Access 56 T GML 57. 5 T CML & HML 40. 5 T CML & HML PAYLOAD

Hamelex White – Queensland (cont. ) 5 AXLE 25 M OVERALL LENGTH 59. 5 T GML 61. 5 T CML 63. 0 T HML 44. 0 T HML PAYLOAD 6 AXLE 25/26 M OVERALL LENGTH 62. 5 T GML 64. 5 T CML 68. 5 T HML 47. 0 T HML PAYLOAD

Different rules • Operators must make themselves aware of & comply with all operating conditions & restrictions imposed by Federal, State & Local authorities

Improvements • Self certification • Manufacturer complies with all other ADRS • If a combination is level 2 it should be allowed level 2 access • Process for repeat units or similar needs to be streamlined • Too many steps each adds time

THANK YOU Whilst every effort is made to ensure information contained in this presentation is correct, Maxi. TRANS accepts no liability
