Presence Data Model Jonathan Rosenberg Cisco Systems Changes

Presence Data Model Jonathan Rosenberg Cisco Systems

Changes • Schema alignment with RPID 07 • Schema rules – MUST create valid – No expectation of validation on receipt – SHOULD be prepared to receive invalid ones • IANA registrations • <status> removed from <device> and <person> – Status still discussed • Lack of information follows RFC 3840 rules • Terminology change; instance -> ocurrence • Additional occurrence ID construction discussion – UUID URN – Properties • Devices with no services • Example updated and validated • Namespaces and extensibility – Can reuse a namespace if its parent is a leaf

Issue 1: UUID for Phones • How does a device without a MAC address construct a UUID? – Do we care, actually? • UUID has several versions – Version 1: time based • Uses MAC – Version 3/5: name based • Uses namespace ID – Version 4: Randomly generated • Based on random number • Proposal: recommend version 4 for now

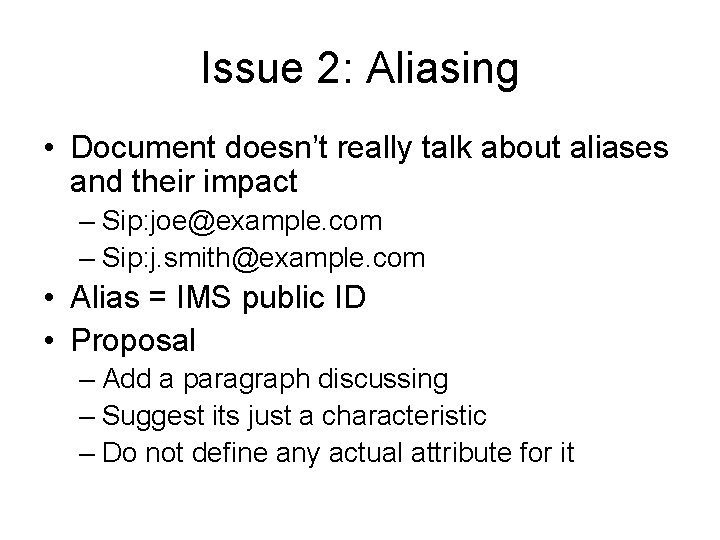

Issue 2: Aliasing • Document doesn’t really talk about aliases and their impact – Sip: joe@example. com – Sip: j. smith@example. com • Alias = IMS public ID • Proposal – Add a paragraph discussing – Suggest its just a characteristic – Do not define any actual attribute for it

Issue 3: Schema design issues • from. Until vs. since. Until – RPID defined type as “from. Until” – But value of the attributes are “since” and “until” – Proposal: align schema name with actual name • device. ID – Currently a global type in common schema – But defined as an element twice • Data model • RPID – Proposal: global element instead

Issue 4: PIDF-LO Integration • Need spec somewhere that describes how pidf-lo gets used • Data model discusses location generally • Proposed to keep formal definition of PIDF -LO encapsulation out of data model

Next steps • Minor revision • Proceed to WGLC
