PREPRINT TECHNOLOGY LTD PrePrint Technology Linerflex PREPRINT TECHNOLOGY

PRE-PRINT TECHNOLOGY LTD

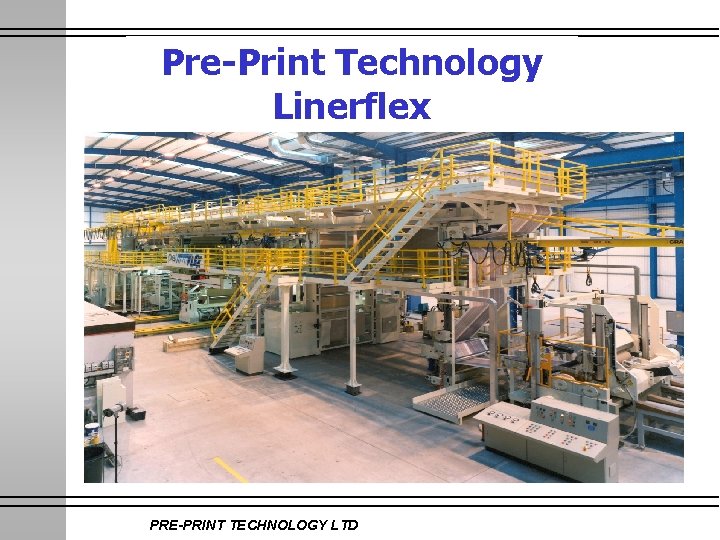

Pre-Print Technology Linerflex PRE-PRINT TECHNOLOGY LTD

Pre-Print Machine Specifications Standard Features • 6 or 8 Colour CI assemblies • Maximum Web Widths from 1600 mm (65”) To 2850 mm (110”) • Print Length Repeat Range From 700 mm (28”) To 2000 mm (78”) • 250 mpm (820 fpm) Print Speed (Optional 300 - 365 mpm) • Automatic Print Unit Positioning with Closed Loop Deck Positioning • Hot Air Drying System (Optional Infra Red & UV Curing Systems) • Twin Shaftless Unwind with Optional Overlap or Butt Splicing Unit • Twin Drum Surface Rewind Stand or Automatic Splicing Unit PRE-PRINT TECHNOLOGY LTD

CI SECTION PRE-PRINT TECHNOLOGY LTD

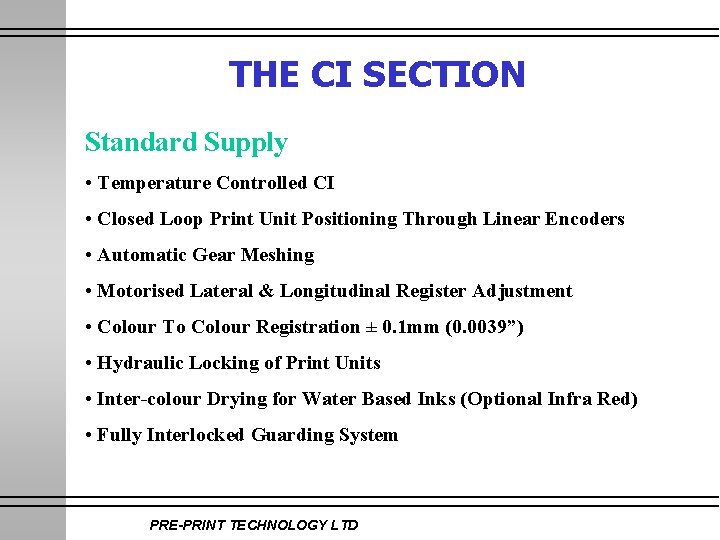

THE CI SECTION Standard Supply • Temperature Controlled CI • Closed Loop Print Unit Positioning Through Linear Encoders • Automatic Gear Meshing • Motorised Lateral & Longitudinal Register Adjustment • Colour To Colour Registration ± 0. 1 mm (0. 0039”) • Hydraulic Locking of Print Units • Inter-colour Drying for Water Based Inks (Optional Infra Red) • Fully Interlocked Guarding System PRE-PRINT TECHNOLOGY LTD

CI SECTION PRE-PRINT TECHNOLOGY LTD

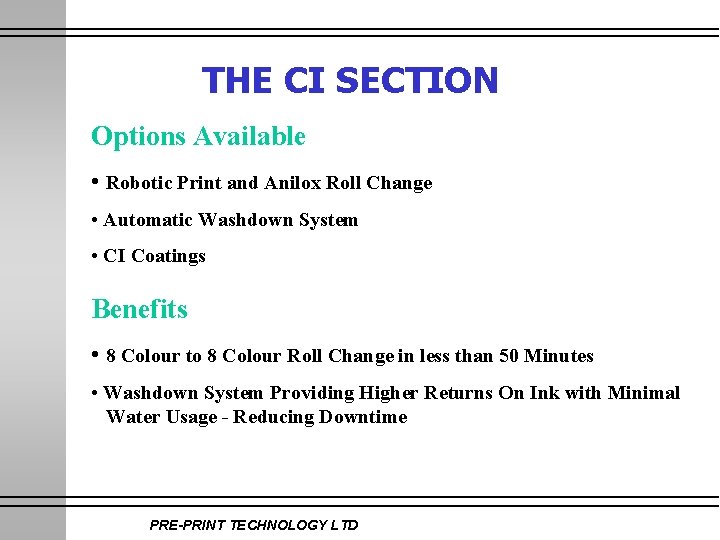

THE CI SECTION Options Available • Robotic Print and Anilox Roll Change • Automatic Washdown System • CI Coatings Benefits • 8 Colour to 8 Colour Roll Change in less than 50 Minutes • Washdown System Providing Higher Returns On Ink with Minimal Water Usage - Reducing Downtime PRE-PRINT TECHNOLOGY LTD

Side View of Ink Unit PRE-PRINT TECHNOLOGY LTD

Automatic Locking Print / Anilox Locking Caps PRE-PRINT TECHNOLOGY LTD

Print / Anilox Roll Manipulator • In to Out in under 60 seconds • Full Changeover with Automatic washdown in less than 50 minutes • Change Non-Printing units whilst machine is in production • Motorised Roller Trolley • Changeover Initiated through touchscreen control screen PRE-PRINT TECHNOLOGY LTD

Motorised Print/Anilox Roller Trolley PRE-PRINT TECHNOLOGY LTD

Roller Racking Systems PRE-PRINT TECHNOLOGY LTD

Peristaltic Ink Pumping System • AC Motor Control • Two Pumps per Print Unit for Positive Feed AND Return • No Height Limitation • Less Foaming PRE-PRINT TECHNOLOGY LTD

THE UNWIND SECTION Standard Supply • Twin Shaftless Unwind • Maximum Diameter of Reels 1500 mm (60”) PRE-PRINT TECHNOLOGY LTD

Twin Shaftless Unwind Stand with Auto Splicing Unit PRE-PRINT TECHNOLOGY LTD

THE UNWIND SECTION Options Available • Max Diameter of Reels 1800 mm (70”) • Automatic Lap or Butt Splicing Unit • Electronic Tension Control • Infeed Web Conditioning Unit • Auto Roll Loading Option Benefits • Reduced Downtime Less Waste • Reduced Damage to Printing Plates • Improved Productivity • Improved Tension Control PRE-PRINT TECHNOLOGY LTD

IN-LINE PRINT / VARNISH UNITS Options Available • Single or 2 Stack Arrangement • In Register With CI ± (1 mm) • Water Based Inks/Varnishes • Automatic Washdown as CI section • UV Varnishes • Cantilevered Print Sleeve Change • Additional Register controls with Video Web Inspection Systems PRE-PRINT TECHNOLOGY LTD

DRYING SYSTEMS Standard Supply • Hot Air Supplied From Your Preferred Heating Source Gas, Electric or Steam • 2 Zones for Controllability • Re-Circulation for Extra Efficiency Options Available • Steam / Electric Heating Sources • Infra-Red Drying • In-Line, Individually Zoned Drying • In-Line UV Curing for Varnish Applications PRE-PRINT TECHNOLOGY LTD

PRE-PRINT TECHNOLOGY LTD

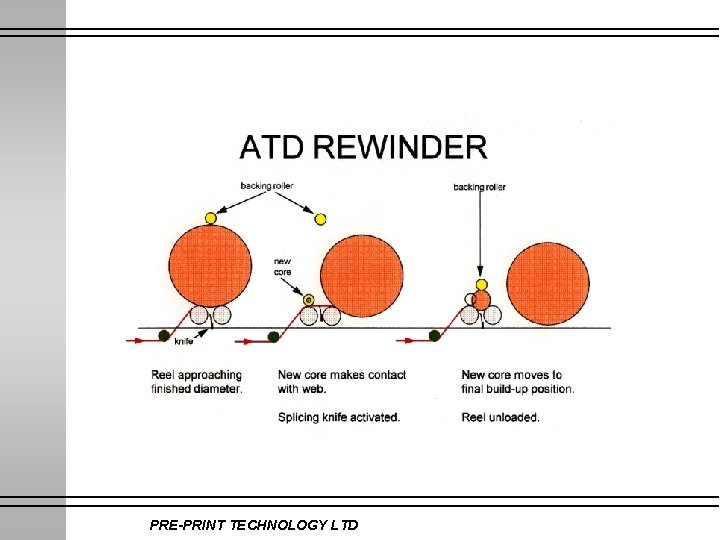

Automatic Twin Drum Rewind Unit PRE-PRINT TECHNOLOGY LTD

ATD REWIND Standard Supply • Twin Drum Surface Rewind • Maximum Diameter of Reels 1500 mm (60”) Options Available • Automatic Twin Drum Splicing Rewind • Maximum Diameter of Reels 1800 mm (70”) PRE-PRINT TECHNOLOGY LTD

Optional Additions • Video Web Inspection • CI Coatings • Web Pre-Conditioning • Web Cleaning Systems • Motorised Unwind Reel Trolleys • Rewind Web Slitting Units PRE-PRINT TECHNOLOGY LTD

In-Line Editing PRE-PRINT TECHNOLOGY LTD

Pre-Print Technology Advantages · Full Turnkey Operation · Total Engineered Solution · Integrated Technology · Greater Experience in Wide Web Press Design · More On-Press Options to Minimise Waste / Downtime PRE-PRINT TECHNOLOGY LTD

PPT Engineering Advantages · Engineering Features Available · In-Line Editing (Zero Waste Reels) · Twin Drum Continuous Rewinder · Closed Loop Register System · Choice of Drying Source · UV Applications available without Re-Engineering PRE-PRINT TECHNOLOGY LTD

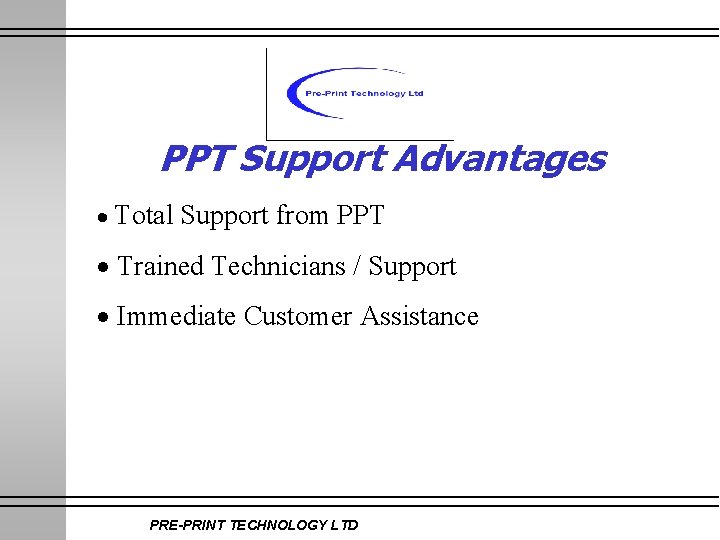

PPT Support Advantages · Total Support from PPT · Trained Technicians / Support · Immediate Customer Assistance PRE-PRINT TECHNOLOGY LTD

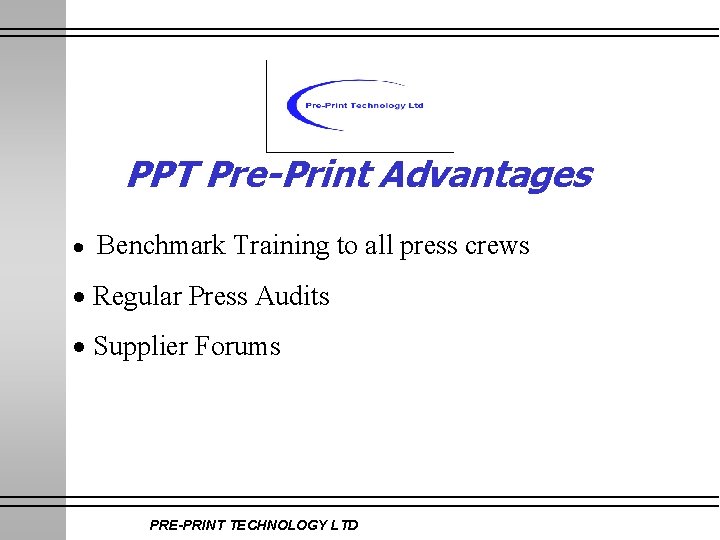

PPT Pre-Print Advantages · Benchmark Training to all press crews · Regular Press Audits · Supplier Forums PRE-PRINT TECHNOLOGY LTD

PPT Engineering Considerations · Central Impression Cylinder Tolerances · Impression Cylinder Gear Tolerances · CI Thermal Stability During Production · Accessibility Between Colour Units · Rigid Framework ·To Produce Quality Print PRE-PRINT TECHNOLOGY LTD
