Simulation of Smoke based on Vortex Filament Primitives Alexis Angelidis Graphics & Vision Research Lab Otago - New Zealand Fabrice Neyret GRAVIR / IMAG - INRIA Grenoble - France

Tangled-Spaghettis Alexis Angelidis Graphics & Vision Research Lab Otago - New Zealand Fabrice Neyret GRAVIR / IMAG - INRIA Grenoble - France

Background Fluid animation approaches: Lagrangian vs Eulerian

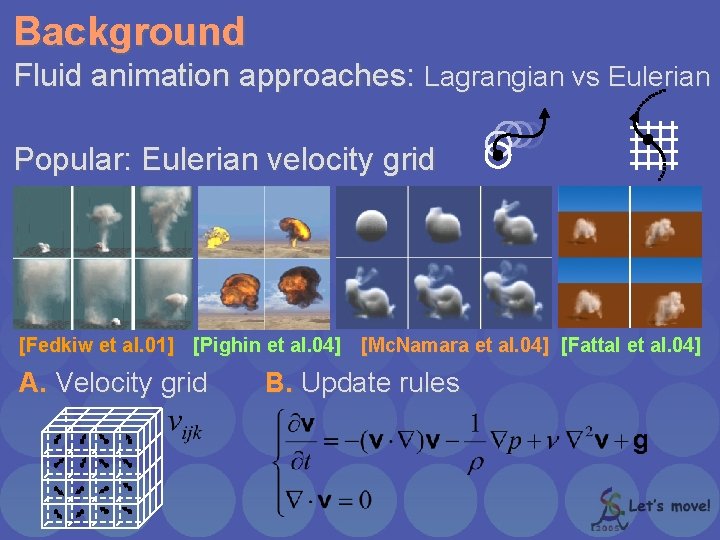

Background Fluid animation approaches: Lagrangian vs Eulerian Popular: Eulerian velocity grid [Fedkiw et al. 01] [Pighin et al. 04] [Mc. Namara et al. 04] [Fattal et al. 04]

Background Fluid animation approaches: Lagrangian vs Eulerian Popular: Eulerian velocity grid [Fedkiw et al. 01] [Pighin et al. 04] [Mc. Namara et al. 04] [Fattal et al. 04] A. Velocity grid B. Update rules

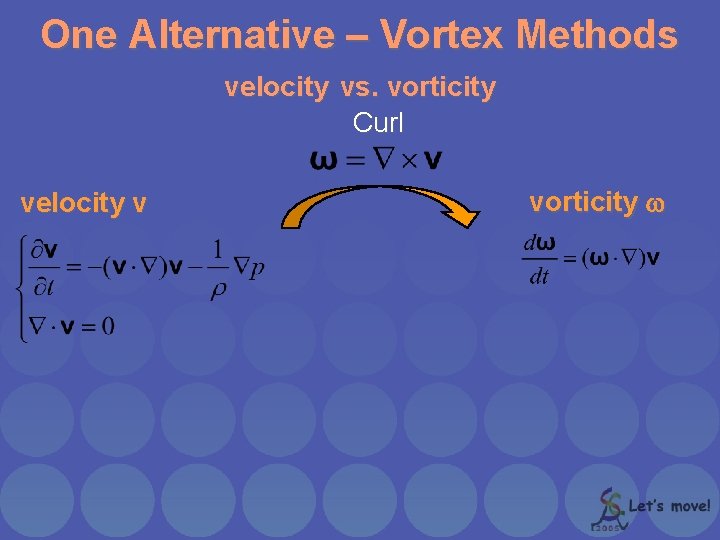

One Alternative – Vortex Methods velocity vs. vorticity Curl velocity v vorticity w

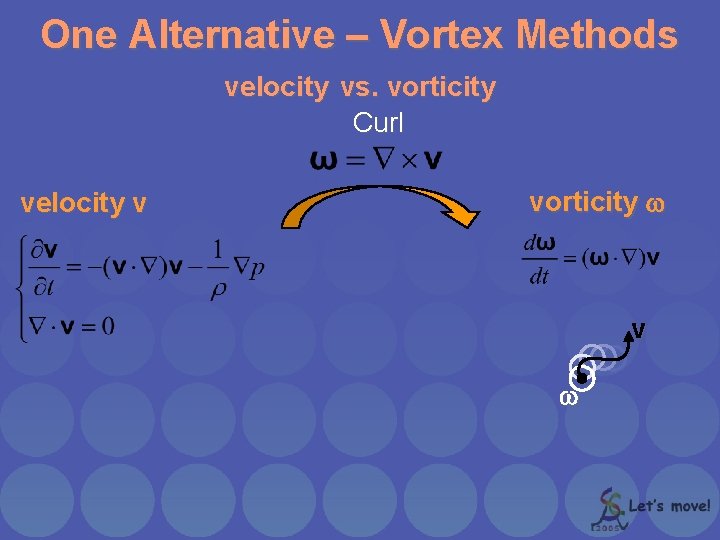

One Alternative – Vortex Methods velocity vs. vorticity Curl velocity v vorticity w v w

One Alternative – Vortex Methods velocity vs. vorticity Curl vorticity w velocity v BIOT-SAVART

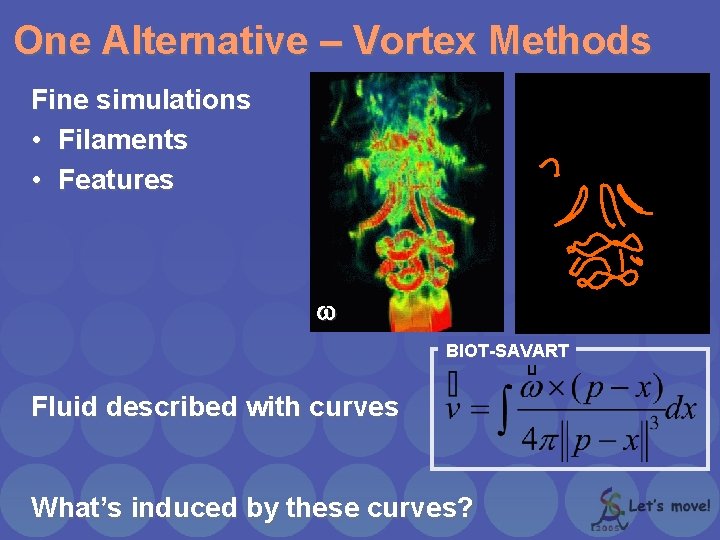

One Alternative – Vortex Methods Fine simulations • Filaments • Features w BIOT-SAVART Fluid described with curves What’s induced by these curves?

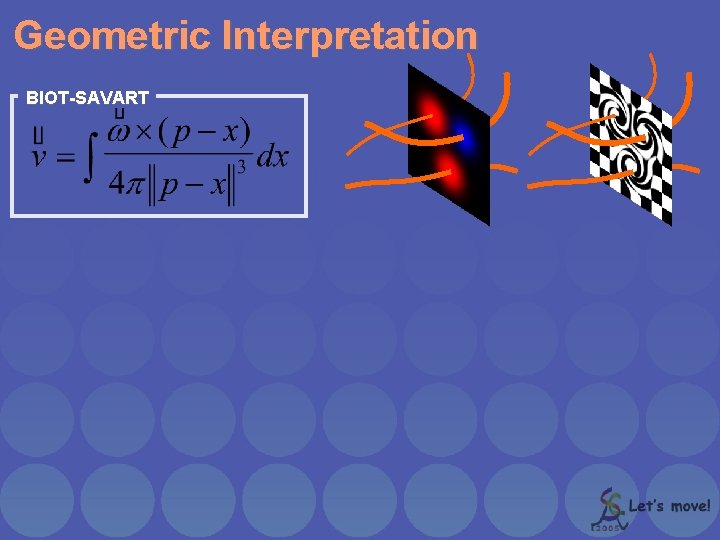

Geometric Interpretation BIOT-SAVART

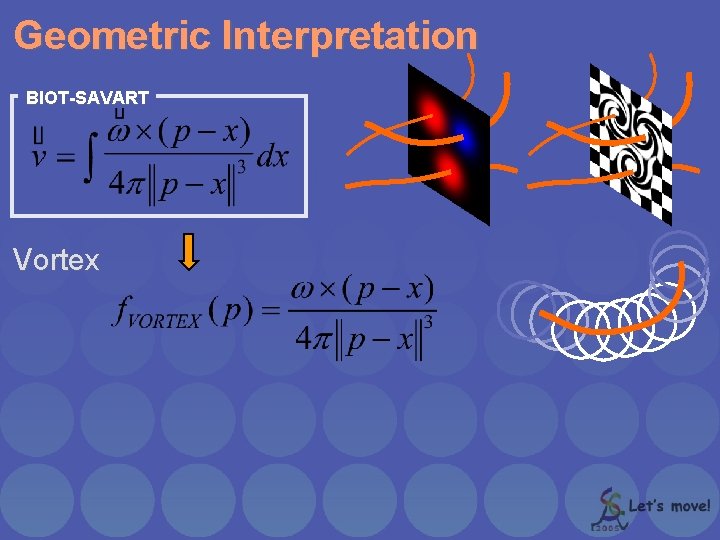

Geometric Interpretation BIOT-SAVART Vortex

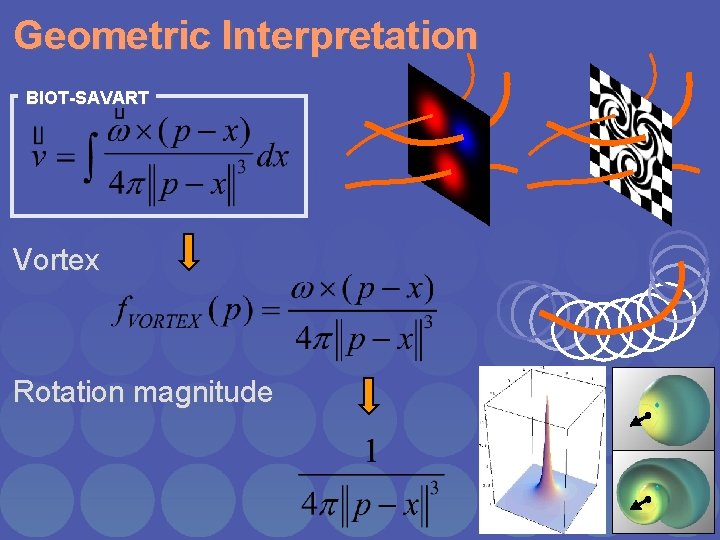

Geometric Interpretation BIOT-SAVART Vortex Rotation magnitude

Lagrangian Vortex Methods • Entire fluid = curves of vortices ! C 3 Dynamics C 2 • Curves induce movement • Curves are animated with this movement Consequence • Cheap storage • Dynamic-keyframed curve C 0 C 1

Video #2 -5

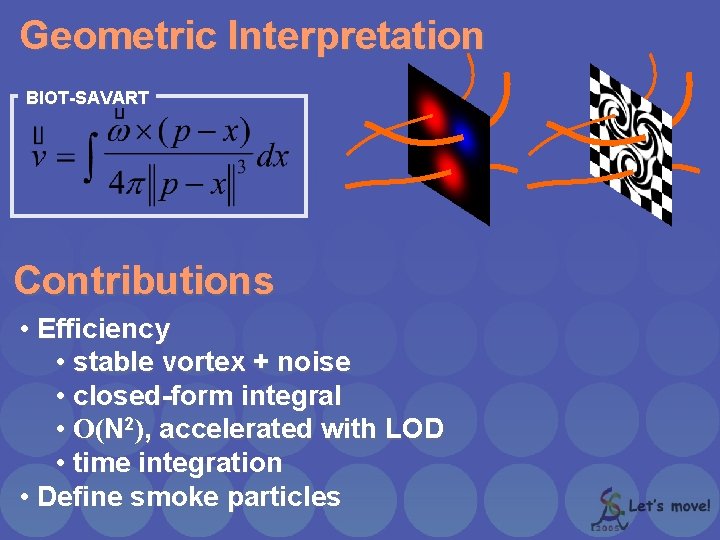

Geometric Interpretation BIOT-SAVART Contributions • Efficiency • stable vortex + noise • closed-form integral • O(N 2), accelerated with LOD • time integration • Define smoke particles

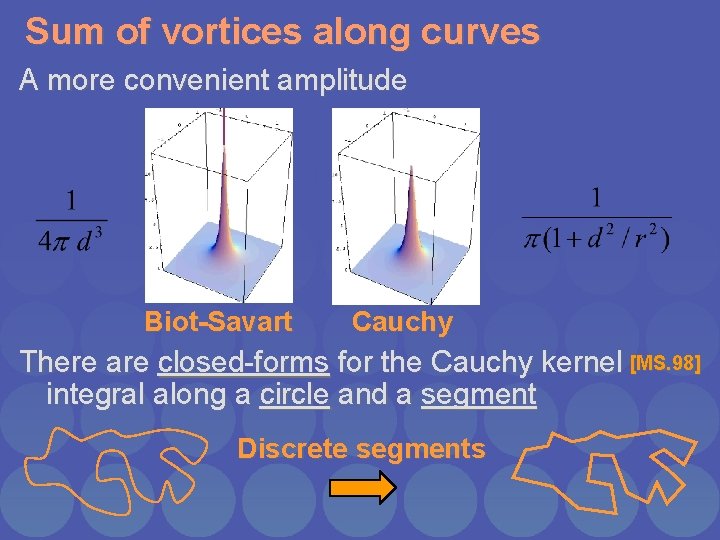

Sum of vortices along curves A more convenient amplitude Biot-Savart Cauchy There are closed-forms for the Cauchy kernel [MS. 98] integral along a circle and a segment Discrete segments

Large time steps: high order scheme • Biot-Savart tells more than velocity • Traditional forward Euler , BS trajectory = sum of velocities of rotation • Our scheme trajectory = sum of Rotation

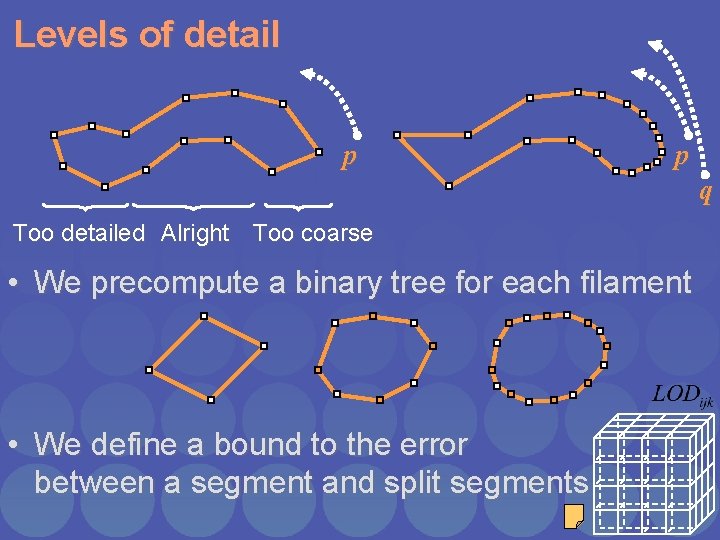

Levels of detail p p q Too detailed Alright Too coarse • We precompute a binary tree for each filament • We define a bound to the error between a segment and split segments

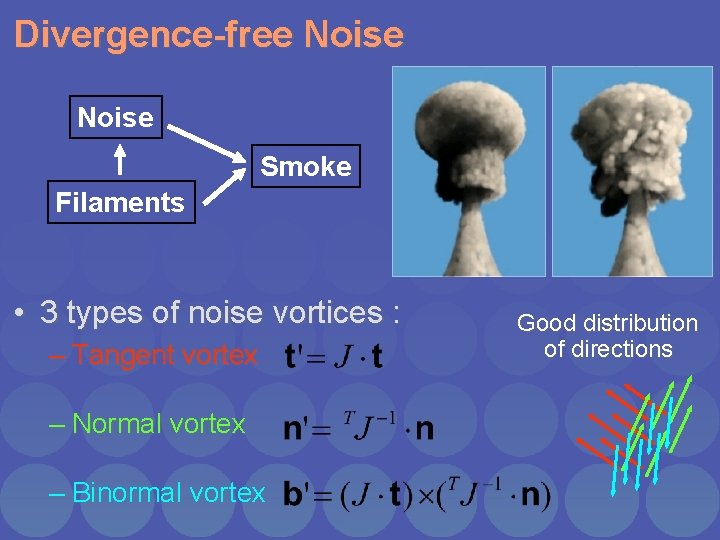

Divergence-free Noise Smoke Filaments • 3 types of noise vortices : – Tangent vortex – Normal vortex – Binormal vortex Good distribution of directions

Smoke • Particles – accumulate deformation – split when accumulated deformation too big • Rendering – 2 D ellipses – Self-shadowing

Video

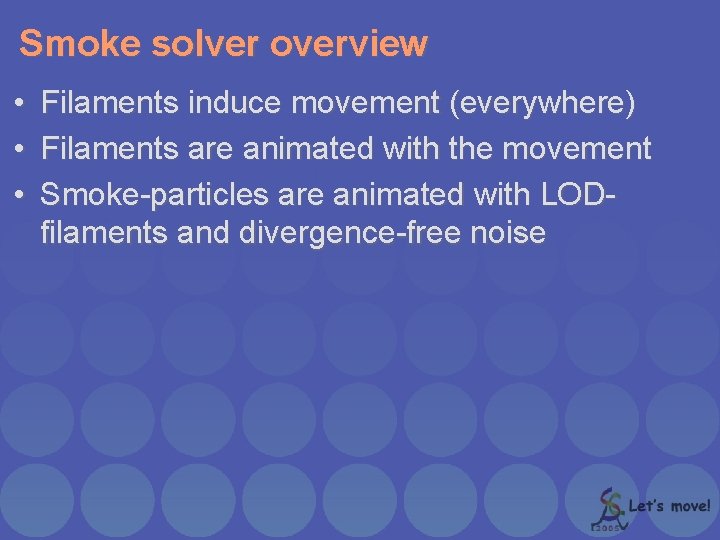

Smoke solver overview • • • Filaments induce movement (everywhere) Filaments are animated with the movement Smoke-particles are animated with LODfilaments and divergence-free noise

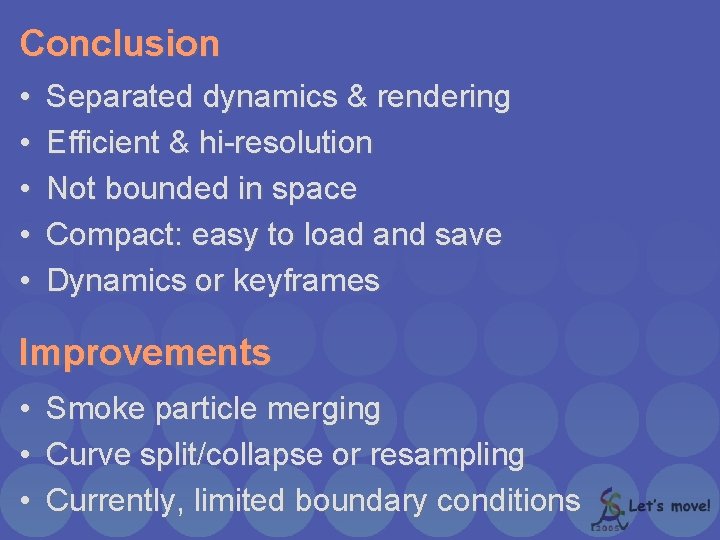

Conclusion • • • Separated dynamics & rendering Efficient & hi-resolution Not bounded in space Compact: easy to load and save Dynamics or keyframes Improvements • • • Smoke particle merging Curve split/collapse or resampling Currently, limited boundary conditions

THANK YOU Questions ?

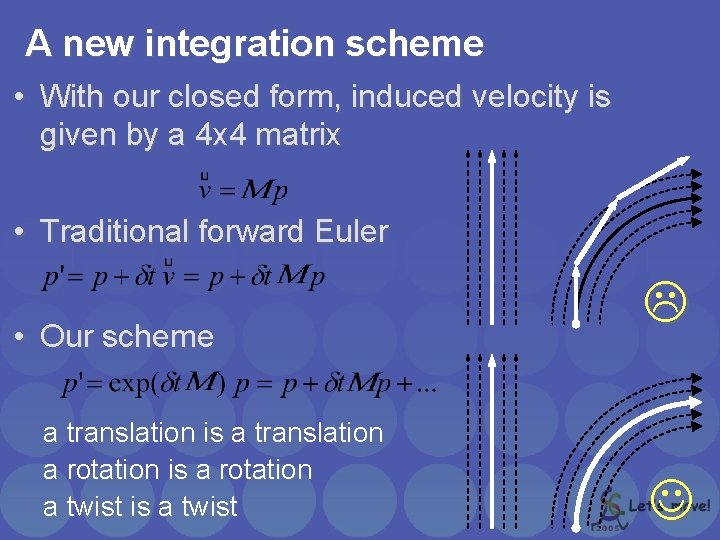

A new integration scheme • With our closed form, induced velocity is given by a 4 x 4 matrix • Traditional forward Euler • Our scheme a translation is a translation a rotation is a rotation a twist is a twist

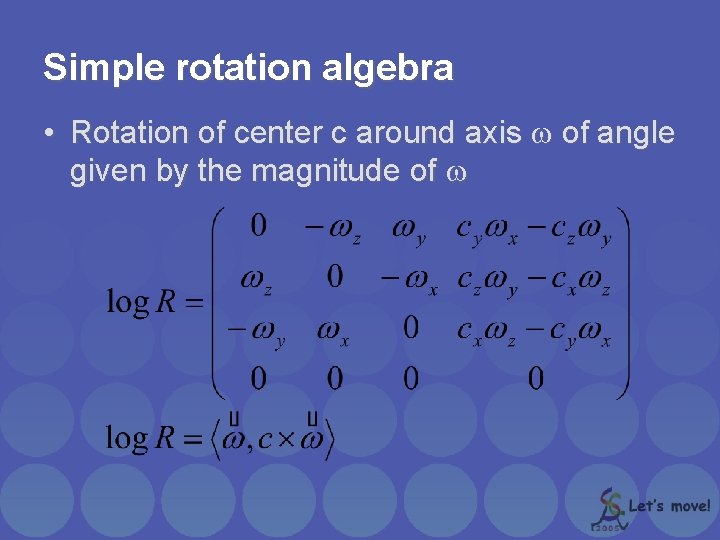

Simple rotation algebra • Rotation of center c around axis of angle given by the magnitude of

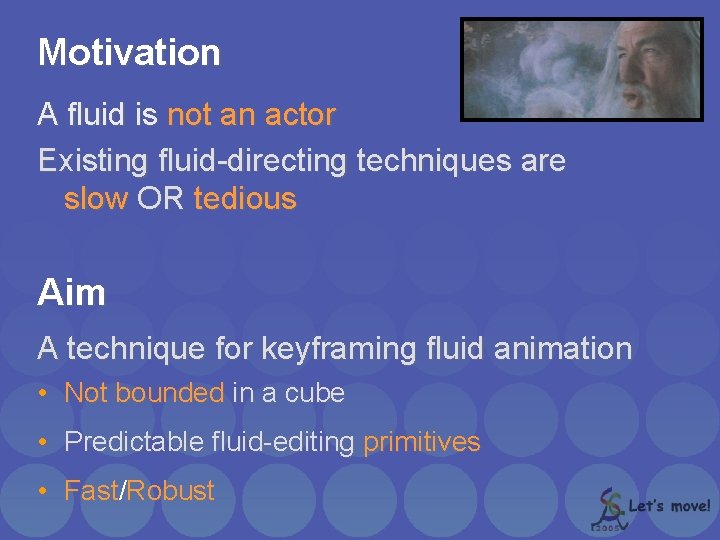

Motivation A fluid is not an actor Existing fluid-directing techniques are slow OR tedious Aim A technique for keyframing fluid animation • Not bounded in a cube • Predictable fluid-editing primitives • Fast/Robust

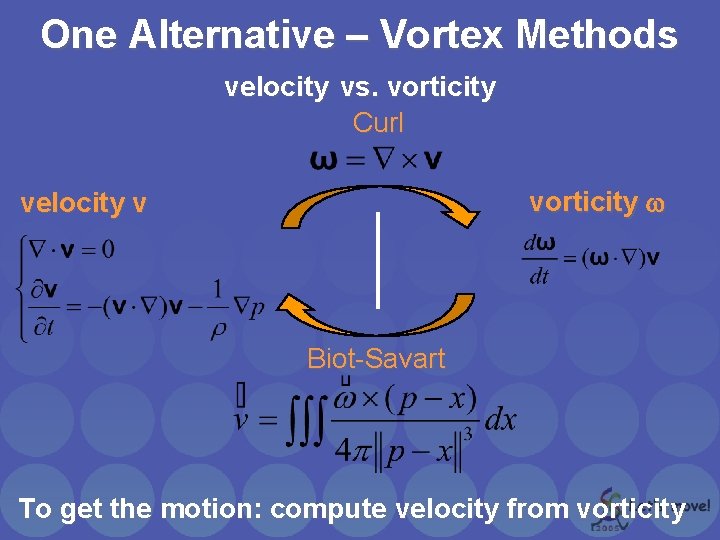

One Alternative – Vortex Methods velocity vs. vorticity Curl vorticity w velocity v Biot-Savart To get the motion: compute velocity from vorticity

What does the Biot-Savart Law mean? BIOT-SAVART Vortex Rotation magnitude vortices vortex

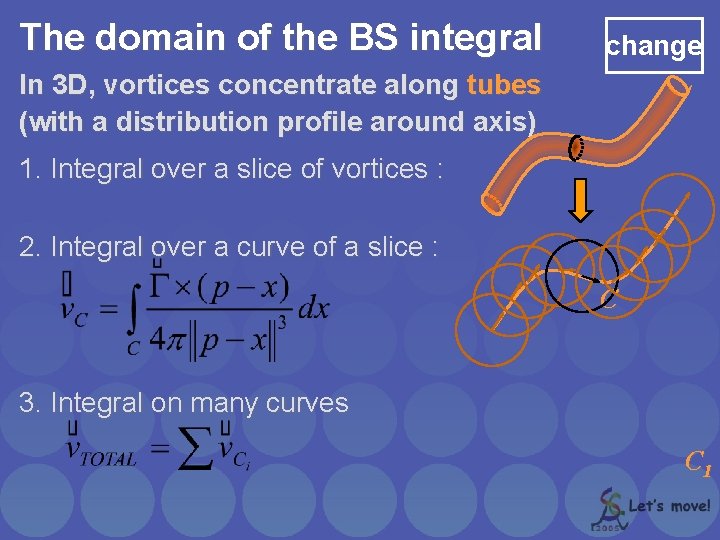

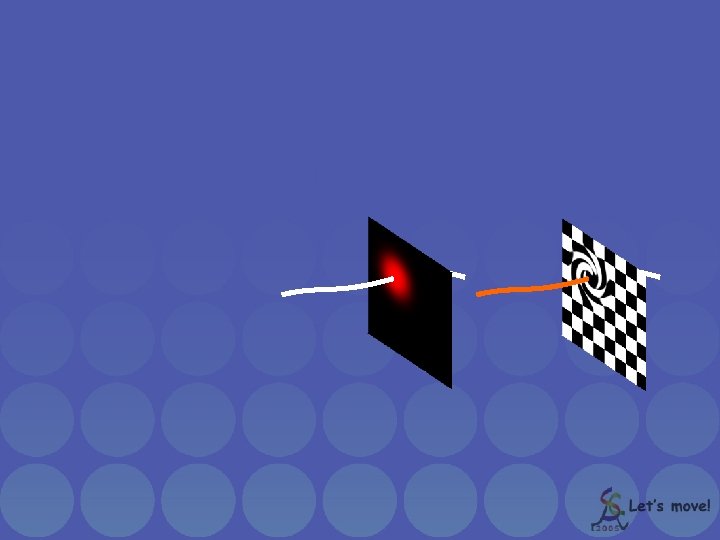

The domain of the BS integral change In 3 D, vortices concentrate along tubes (with a distribution profile around axis) 1. Integral over a slice of vortices : 2. Integral over a curve of a slice : C 3. Integral on many curves C 1
