현미경 조직관찰용 시편 준비 �Preparation of Specimen Cutting (Sampling) → Mounting → Grinding →

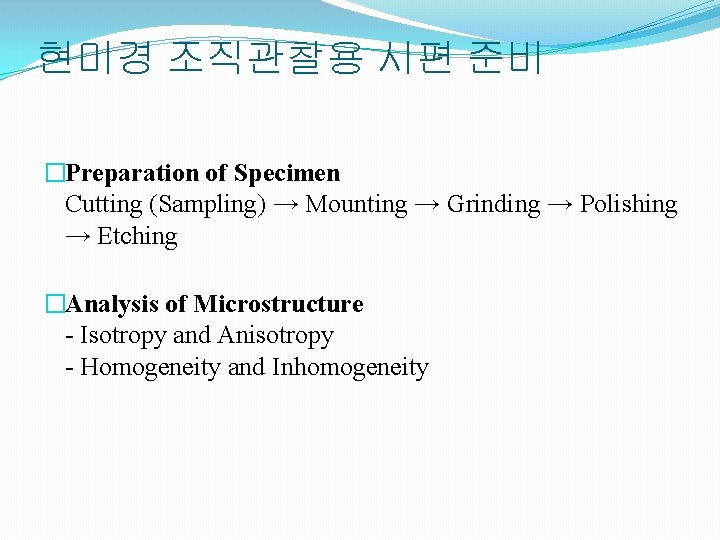

현미경 조직관찰용 시편 준비 �Preparation of Specimen Cutting (Sampling) → Mounting → Grinding → Polishing → Etching �Analysis of Microstructure - Isotropy and Anisotropy - Homogeneity and Inhomogeneity

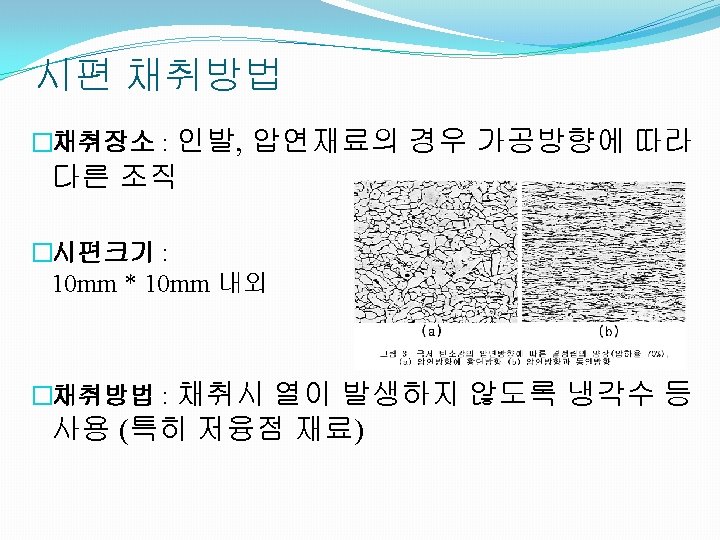

Precision Cutter

Precision Cutter

Mounting �Mounting : 채취한 시편을 수지 등에 고정 �Cold Mounting �Hot Mounting

Mounting �Mounting : 채취한 시편을 수지 등에 고정 �Cold Mounting �Hot Mounting

Cold Mounting (I)

Cold Mounting (I)

Cold Mounting (II)

Cold Mounting (II)

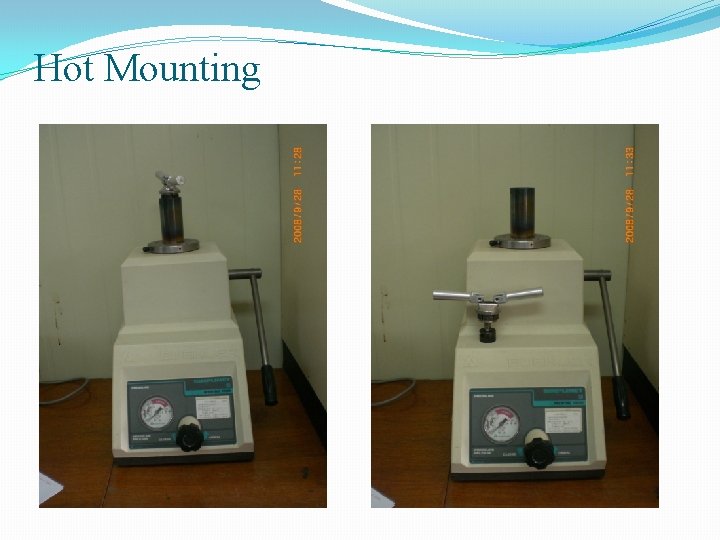

Hot Mounting

Hot Mounting

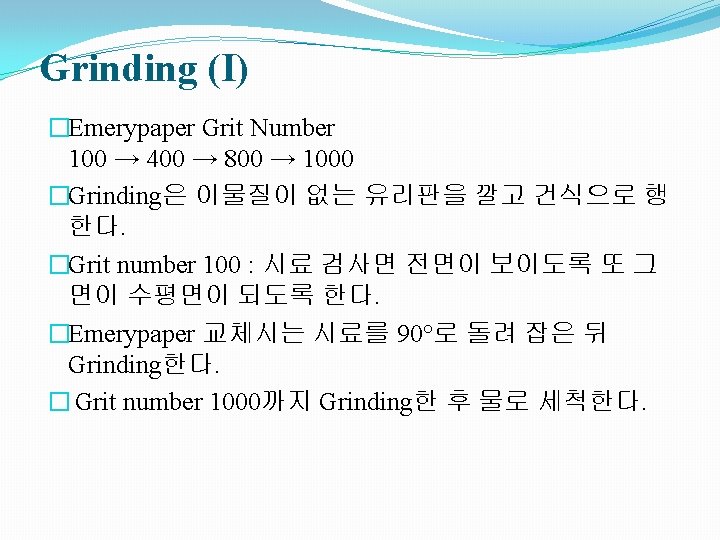

Grinding (II)

Grinding (II)

Polishing (1)

Polishing (1)

Polishing (III)

Polishing (III)

Etching (부식)

Etching (부식)

Etching

Etching
