Preparation for Geo KOMPSAT2 A Operation using himawari8
- Slides: 15
Preparation for Geo. KOMPSAT-2 A Operation using himawari-8 data Taehyun KIM NMSC/KMA 2018. 10. 09
Contents CONTENTS 1 Geo-KOMPSAT-2 A 2 Comparison to Himawari-8/AHI 3 Usage Himawari-8 4 Summary
Geo-KOMPSAT-2 A Overview launch: Dec. 2018 Orbit: geostationary, 128. 25ºE Meteorological payload: AMI 16 channels Agency: KMA Ground System Configuration Reception And Processing Meteorological Data Analysis Data Management and Service Management And control Support And Test Satellite Ground Control 3

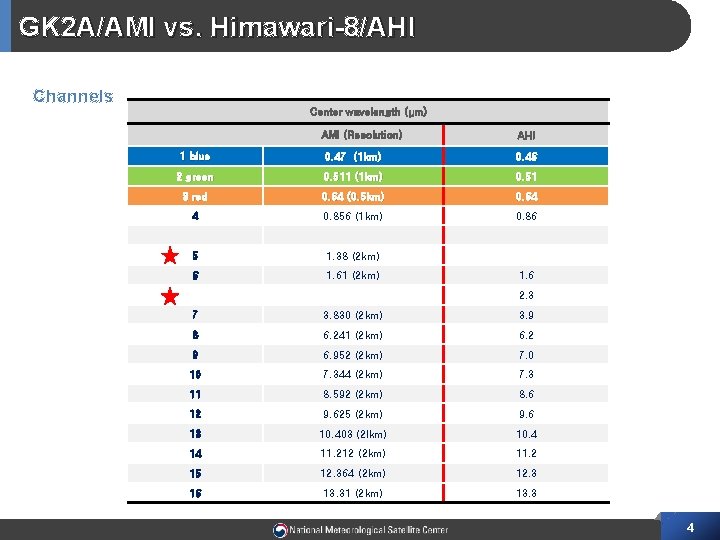

GK 2 A/AMI vs. Himawari-8/AHI Channels Center wavelength (μm) AMI (Resolution) AHI 1 blue 0. 47 (1 km) 0. 46 2 green 0. 511 (1 km) 0. 51 3 red 0. 64 (0. 5 km) 0. 64 4 0. 856 (1 km) 0. 86 5 1. 38 (2 km) 6 1. 61 (2 km) 1. 6 2. 3 7 3. 830 (2 km) 3. 9 8 6. 241 (2 km) 6. 2 9 6. 952 (2 km) 7. 0 10 7. 344 (2 km) 7. 3 11 8. 592 (2 km) 8. 6 12 9. 625 (2 km) 9. 6 13 10. 403 (2 lkm) 10. 4 14 11. 212 (2 km) 11. 2 15 12. 364 (2 km) 12. 3 16 13. 31 (2 km) 13. 3 4
GK 2 A/AMI vs. Himawari-8/AHI Observation Area 5
Himawari-8 Data in NMSC(KMA) Data Collect - KMA collects full disk observation of 16 channels of himawari 8/AHI through 'Cloud(0. 5, 1, 2 km)' and 'Cast(1, 4 km)‘ Himawari-8 data process Display web, transfer other site IMG BIN Each areas HSD files (16 bands, FLDK, JP, R) 6
Data Processing Sub. System Application of Functional Scale-out HPC (High Performance Computing) 7
Data Processing Sub. System Dependency Network 8
GK-2 A/AMI Geophysical Products Primary Products Vertical Moisture Profile Instability Index Cloud Detection Vertical Temperature Profile Atmospheric Motion Vector Total Ozone Convective Initiation Fog Rainfall Rate Sea Surface Temperature Cloud Phase Land Surface Temperature Cloud Top Height Cloud Top Pressure Snow Cover Sea Ice Cover • • • Fire Detection Vegetation Index Vegetation Green Fraction • Surface Emissivity • • • Surface Albedo Snow Depth • Ocean Current • • • Aerosol Detection • Volcanic Ash Detection, Height & Mass • • Cloud Liquid Water Path Cloud Optical Depth Cloud Effective Radius • Cloud Type Cloud Amount Asian Dust Detection Cloud Ice Water Cloud Layer/Height Probability of Rainfall Potential • • Asian Dust Optical Depth • Aerosol Particle Size Path • • Aerosol Optical Depth Downward SW Reflected SW Radiation Downward LW Radiation (SFC) • Cloud Top Temperature Secondary Products (TOA) • Visibility Absorbed SW Radiance Upward LW Radiation (SFC) • Radiation (SFC) Upward LW Radiation • • Overshooting Top Detection SO 2 Detection Total Precipitable Water Clear Sky Turbulence (TOA) • Aircraft Icing 9
Data Service Sub. System GK 2 A/AMI Himawari-8/AHI 10
Data Service Sub. System Domestic and overseas Regular institution 11

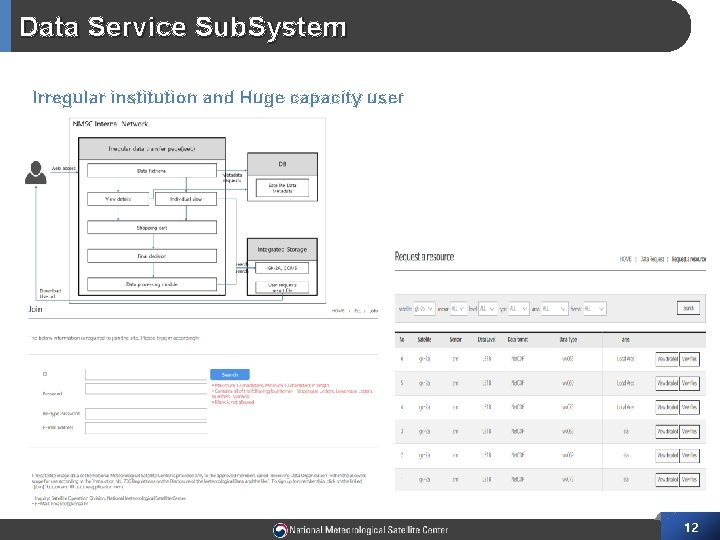

Data Service Sub. System Irregular institution and Huge capacity user 12

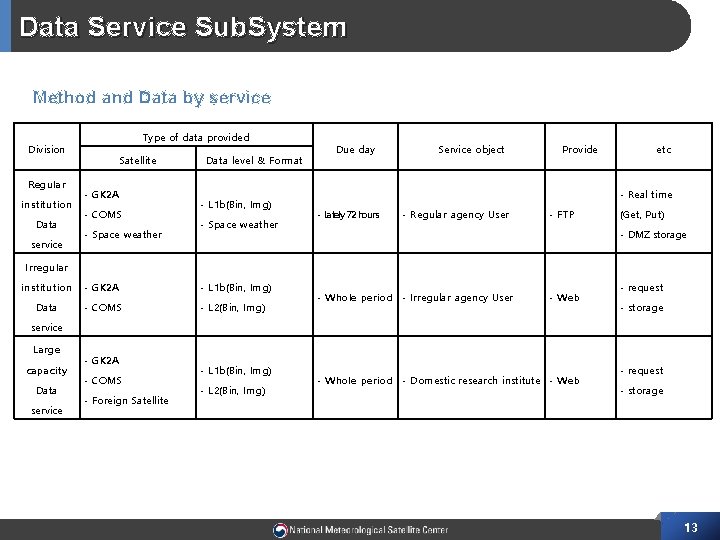

Data Service Sub. System Method and Data by service Division Regular institution Data service Type of data provided Satellite - GK 2 A - COMS - Space weather Data level & Format - L 1 b(Bin, Img) - Space weather Due day Service object Provide etc - Real time - Lately 72 hours - Regular agency User - FTP (Get, Put) - DMZ storage Irregular institution - GK 2 A - L 1 b(Bin, Img) Data - COMS - L 2(Bin, Img) - Whole period - Irregular agency User - Web - request - storage service Large capacity Data service - GK 2 A - COMS - Foreign Satellite - L 1 b(Bin, Img) - L 2(Bin, Img) - Whole period - Domestic research institute - Web - request - storage 13
Summary GK-2 A Broadcast all 16 channels data (UHRIT, full resolution) of meteorological observations Real-time cloud service similar to Himawari Cloud will be implemented (< 5 min data latency) Himawari-8 in NMSC – Received all 16 channels data(Cloud) of whole area – Received all 14 channels data(cast) of full disk – create into binary and image files according to predefined each areas Data processing subsystem – Processing begins before the next data comes in – message delivery method and consists of an operation management engine and a work flow engine – generating 52 kinds of meteorological product and utilization Data service subsystem – Use satellite broadcasting, landline – Plan to provide image generation tool Future work – Greater accuracy of weather forecasts based on operation of subsequent ground segments for meteorological satellites 14
