Preparation, Authoring and Presentation for Distance Education with Tango Interactive Nancy Mc. Cracken David Bernholdt Northeast Parallel Architectures Center at Syracuse University 111 College Place, Syracuse, NY 13244 http: //www. npac. syr. edu/ 8/12/99 1

Abstract • Requirements to set up Distance Education – Focus on labs, but direct desktop is possible – Hardware requirements – Network Considerations – Software requirements • Authoring – Preparation of materials – Preparation for interactive tools • Presentation – Guides for lecturers 8/12/99 2

Acknowledgments • The experience in using Tango Interactive for distance education comes from two sources: • Teaching a semester course from Syracuse University to Jackson State University for four semesters, starting in the fall of 1997. – This work was funded (in part) by the Do. D High Performance Computing Modernization Program at the U. S. Army Corps of Engineers Waterways Experiment Station (CEWES) Major Shared Resource Center through Programming Environment Training (PET) through contract DAHC 94 -96 -C-002 with Nichols Research Corporation. – Curriculum development was largely funded by the College of Engineering and Computer Science at Syracuse University. • Training courses from Syracuse University and Ohio State University. – This work was also funded (in part) by the Do. D High Performance Computing Modernization Program. 8/12/99 3

Hardware Requirements • Lecturer’s workstation(s): Can be either one or two machines. With two machines, one can handle course materials and the other can handle audio/video. • At the recipient site, – students can have each have their own workstation receiving course materials and handling audio/video streams. (requires the most network bandwidth) – there can be one workstation receiving course materials and displaying them on a large screen and handling the audio/video. – Recommended for each student to have course materials and audio, with only one video per lab. – Issues about microphones at workstations are quite tricky and will be covered in more detail elsewhere. • A good well-tested audio system is crucial! 8/12/99 4

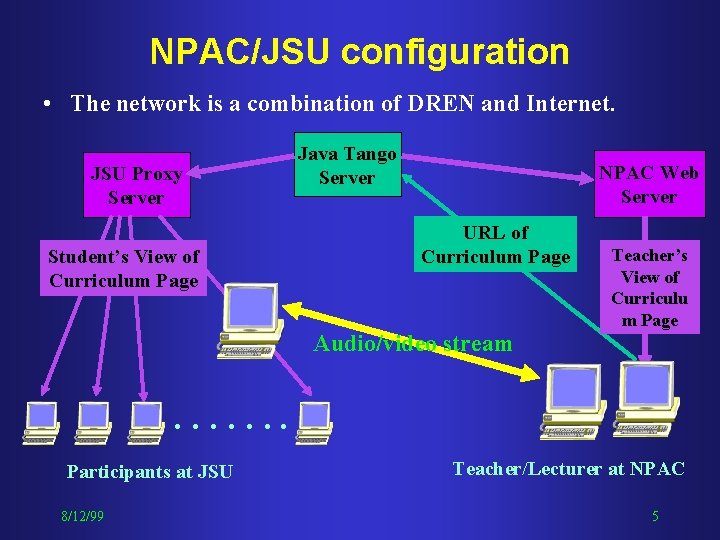

NPAC/JSU configuration • The network is a combination of DREN and Internet. JSU Proxy Server Student’s View of Curriculum Page Java Tango Server NPAC Web Server URL of Curriculum Page Audio/video stream Teacher’s View of Curriculu m Page ……. Participants at JSU 8/12/99 Teacher/Lecturer at NPAC 5

• Network Considerations I Network requirements should be considered carefully. – Minimal bandwidth requirements per stream for TANGO: Audio 13 kb/s, Video 15 kb/s, Courseware 120 kb/s. • Audio: instructor’s workstation sends one stream to each BV audio client. If students use headsets, this is one client per student. • Video: transmitted point-to-point like audio. • Courseware: the web server delivering slides/pages to student browsers. This will be point-to-point, unless the lab has a proxy web server. • Check network configuration to see how sites are connected. Be prepared to call network provider companies if routers are not behaving properly. 8/12/99 6

Network Considerations II • Calculate bandwidth requirements. E. g. a T 1 line (1. 5 Mb/s) can carry 100 a/v streams or 10 simultaneous course pages in the absence of any other traffic. – But this is quite misleading as critical issue is quality of service – A few missed audio packets and the lecture is a write-off – So in unclear (to us) fashion “buy” quality of service with bandwidth • Best to have one person responsible for monitoring these issues – Are clients alive – Is A/V correct – What fraction of packets are dropped – Is routing strange …. • Limited System Support 8/12/99 7

Software Requirements • We recommend that all recipient sites set up a proxy web server with caching capability, such as Netscape Proxy server. • If possible, all sites should use the same version of Netscape Navigator. This helps to minimize Tango interactions with browser-specific bugs. • Use a robust HTTP server to provide the course materials. Our experience suggests that some servers (Netscape Fast Track and Microsoft Peer Web Server) will hang during a typical class. The free HTTP server from Apache has been robust. 8/12/99 8

Testing - 1, 2, 3! • The most important thing about your configuration is to thoroughly test it with each Tango tool that you are going to use before class. • Agree in advance which Tango server and interface you are going to use. Be sure to mention which time zone the test will take place in. • Best to have dedicated support staff always on-line 8/12/99 9

Authoring Lecture Materials • Almost any materials on the web can be shown through the Tango Shared Browser. – Documents prepared in an authoring tool such as Microsoft Word or Power. Point can be saved as HTML and placed on a web server. – Any other web pages that contain information with the following limitations: • Shared Browser cannot show pages with nested frames or new browser windows. • Other pages that are not designed for this kind of viewing may have images that take too long to download, or type fonts that are too small, or other characteristics not suited for classroom use. • Web. Wisdom is another set of tools (database and DHTML rendering) to enhance documents prepared for the web. 8/12/99 10

Lecture Slides (such as Power. Point) • The same rules apply as for regular classroom use as far as making slides clear and visually appealing. – Type font sizes in the range of 20 to 24 pts. – Diagrams and images are nice. • But there are other restrictions due to the fact that each slide must download to both the instructor and students over the network. – Although dense slides are not good in general, try to put enough information on each slide so that you don’t have to change slides too often! (Avoid slide backgrounds that take up 1/3 of each slide with the background image!) – Slides with large images will take longer to download. 8/12/99 11

Showing Diagrams • Tango Interactive has two drawing tools: – Paintbrush - this is a very simple drawing tool, but is fairly fast. Nancy uses it to draw diagrams on-the-fly during class. She can even draw equations with symbols like “capital sigma”. – Whiteboard - this is a fully functional drawing tool with an arcane interface. It is slower because it allows you to change all sorts of drawing properties with popup boxes. I use it if I need to prepare a diagram ahead of time. Unlike Paintbrush, when the students connect, what is already drawn will show. • In the future, you will be able to load previously drawn pictures. – Both drawing tools allow all participants to draw, so you must warn students not to draw on your diagram! 8/12/99 12

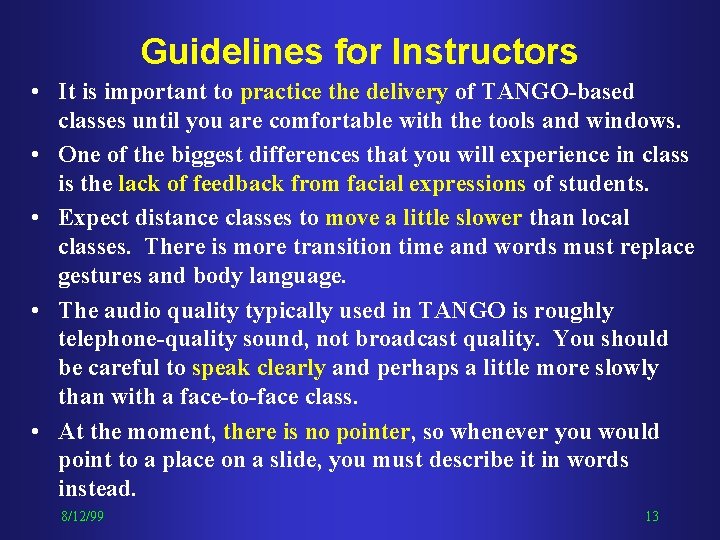

Guidelines for Instructors • It is important to practice the delivery of TANGO-based classes until you are comfortable with the tools and windows. • One of the biggest differences that you will experience in class is the lack of feedback from facial expressions of students. • Expect distance classes to move a little slower than local classes. There is more transition time and words must replace gestures and body language. • The audio quality typically used in TANGO is roughly telephone-quality sound, not broadcast quality. You should be careful to speak clearly and perhaps a little more slowly than with a face-to-face class. • At the moment, there is no pointer, so whenever you would point to a place on a slide, you must describe it in words instead. 8/12/99 13

More Guidelines • Try preparing a script for the class with the URL’s that you are going to use, descriptions of diagrams, etc. Ahead of time, you can put URL’s in the Shared Browser and draw diagrams in Whiteboard. • Try to keep to a straightforward logical flow. Don’t try to back up slides (time consuming) or make verbal digressions (confusing). 8/12/99 14

Attention Factors • Our experience is that the attention of remote students wanders more easily than in face-to-face classes. Probably because there is less stimulus and sense of connection with the instructor – Make course materials colorful and visually interesting – Try to make things more interactive: switch tools, have web pages that students interact with. – If possible, ask questions with audio. Without that, you could give opinion polls and quizzes. Nancy prepares ahead of time a web page with a form with the questions. • It is helpful to have a mentor/support person at the delivery site. This person can help monitor student questions, assist with the chat, and so on. Talk to them before class to plan roles. 8/12/99 15

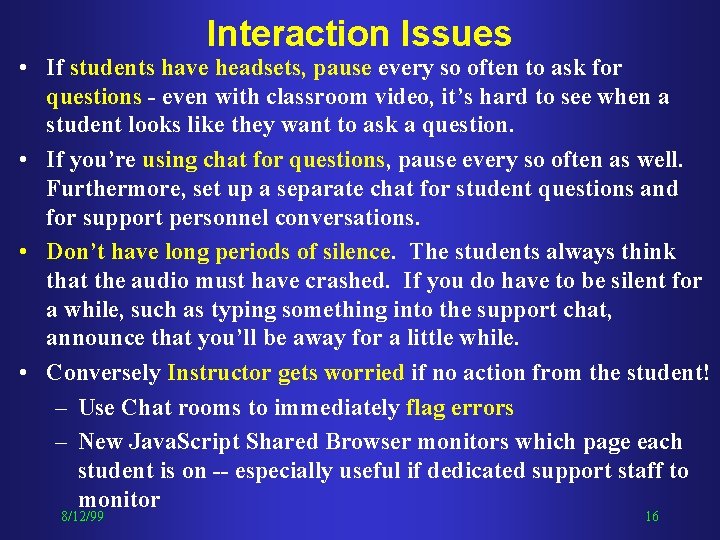

Interaction Issues • If students have headsets, pause every so often to ask for questions - even with classroom video, it’s hard to see when a student looks like they want to ask a question. • If you’re using chat for questions, pause every so often as well. Furthermore, set up a separate chat for student questions and for support personnel conversations. • Don’t have long periods of silence. The students always think that the audio must have crashed. If you do have to be silent for a while, such as typing something into the support chat, announce that you’ll be away for a little while. • Conversely Instructor gets worried if no action from the student! – Use Chat rooms to immediately flag errors – New Java. Script Shared Browser monitors which page each student is on -- especially useful if dedicated support staff to monitor 8/12/99 16

Some Futures • We also use a tool called Web. Wisdom to that enhances documents from tools such as Power. Point to HTML and that has special properties in use with Tango. – There is a pointer hand that the instructor can use to point with. – This tool should be publicly available in the near future to prepare documents. • Tango 2 has a clearer user interface which should lead to fewer errors • There will be multicast versions of Buena. Vista to be able to set up improved audio/video streams to multiple sites. • There will be on-line quizzes and interactions. 8/12/99 17
