Pre-Operational Testing and DIAMON I. Romera et al. 0 v 1 7 th September

Pre-Operational Testing and DIAMON I. Romera et al. 0 v 1 7 th September 2009

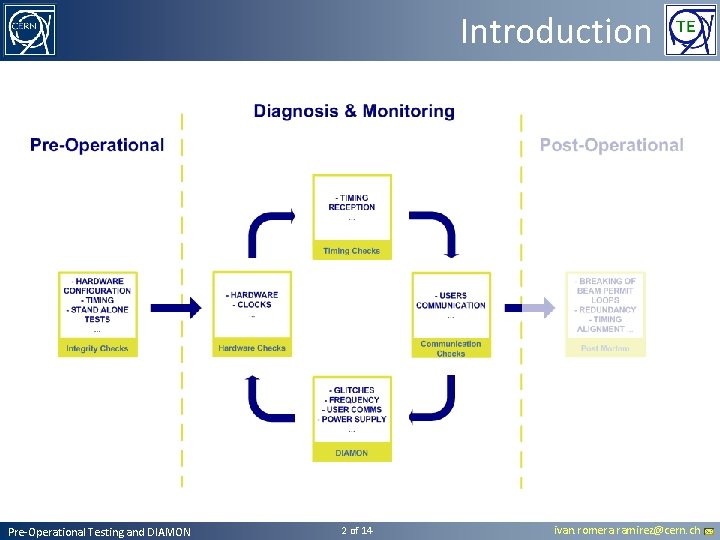

Introduction Pre-Operational Testing and DIAMON 2 of 14 ivan. romera. ramirez@cern. ch

Introduction Pre-Operational Testing and DIAMON 2 of 14 ivan. romera. ramirez@cern. ch

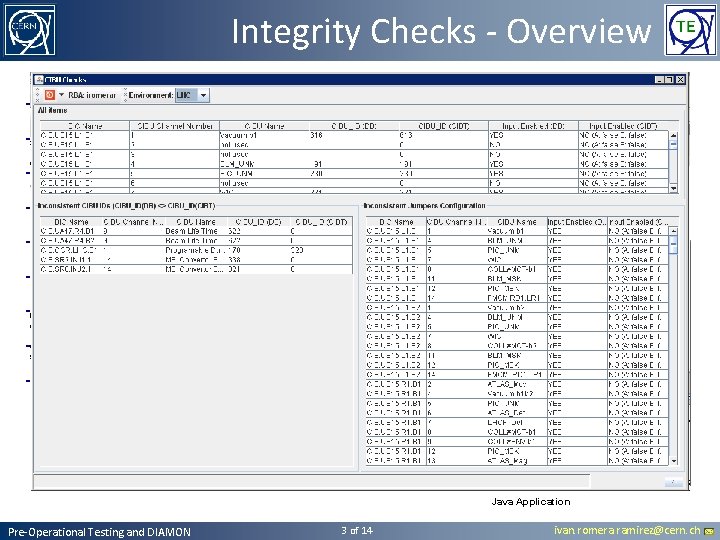

Integrity Checks - Overview - Set of tests to be done before operation Verify

Integrity Checks - Overview - Set of tests to be done before operation Verify that no critical internal faults are present Hardware configuration (physical system vs configuration DB) Timing alignment (all timing receivers are working correctly) LHC Safe Beam Flags CIBU_ID configuration JUMPER configuration TEST MODE of CIBUs BEAM PERMIT INFO Java Application Pre-Operational Testing and DIAMON 3 of 14 ivan. romera. ramirez@cern. ch

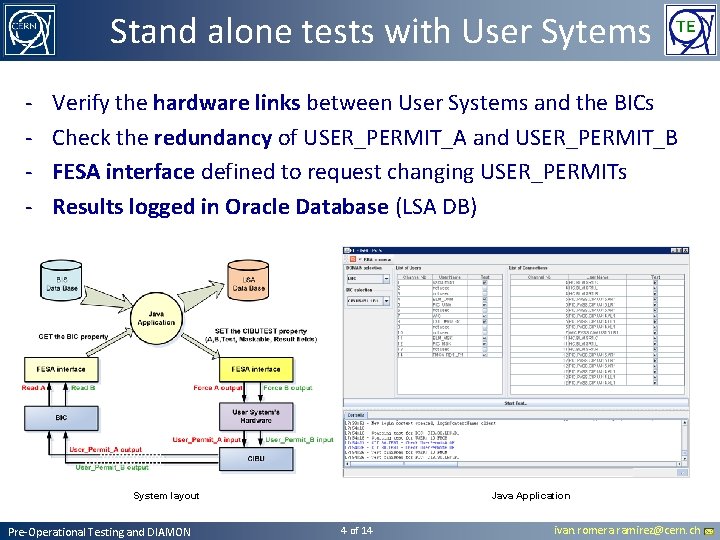

Stand alone tests with User Sytems - Verify the hardware links between User Systems

Stand alone tests with User Sytems - Verify the hardware links between User Systems and the BICs Check the redundancy of USER_PERMIT_A and USER_PERMIT_B FESA interface defined to request changing USER_PERMITs Results logged in Oracle Database (LSA DB) System layout Pre-Operational Testing and DIAMON Java Application 4 of 14 ivan. romera. ramirez@cern. ch

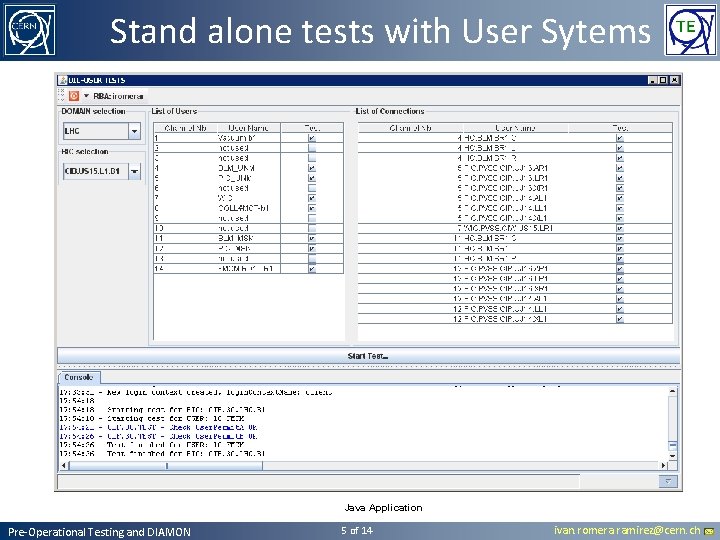

Stand alone tests with User Sytems Java Application Pre-Operational Testing and DIAMON 5 of

Stand alone tests with User Sytems Java Application Pre-Operational Testing and DIAMON 5 of 14 ivan. romera. ramirez@cern. ch

DIAMON – Overview - DIAgnostic and MONitoring tool for Controls Infrastructure - Allows monitoring

DIAMON – Overview - DIAgnostic and MONitoring tool for Controls Infrastructure - Allows monitoring of PLC, VME, PCs, Servers… - Main goal is to provide information about problems and help to solve eventual issues - Notifications every 30 seconds Pre-Operational Testing and DIAMON 6 of 14 ivan. romera. ramirez@cern. ch

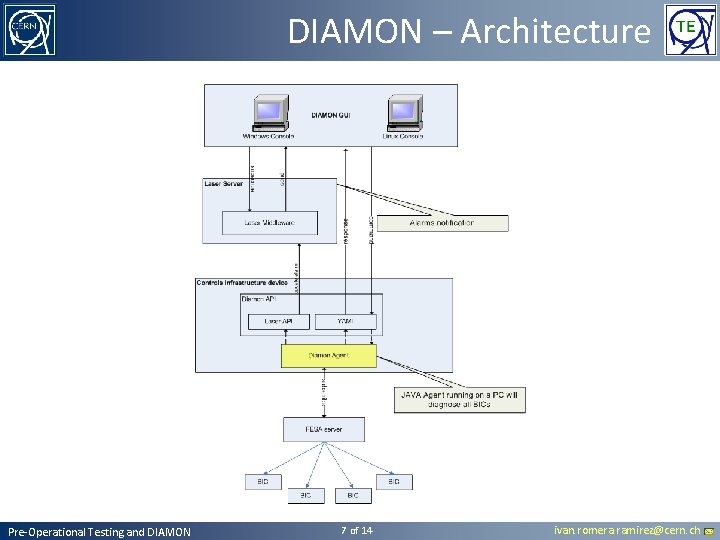

DIAMON – Architecture Pre-Operational Testing and DIAMON 7 of 14 ivan. romera. ramirez@cern. ch

DIAMON – Architecture Pre-Operational Testing and DIAMON 7 of 14 ivan. romera. ramirez@cern. ch

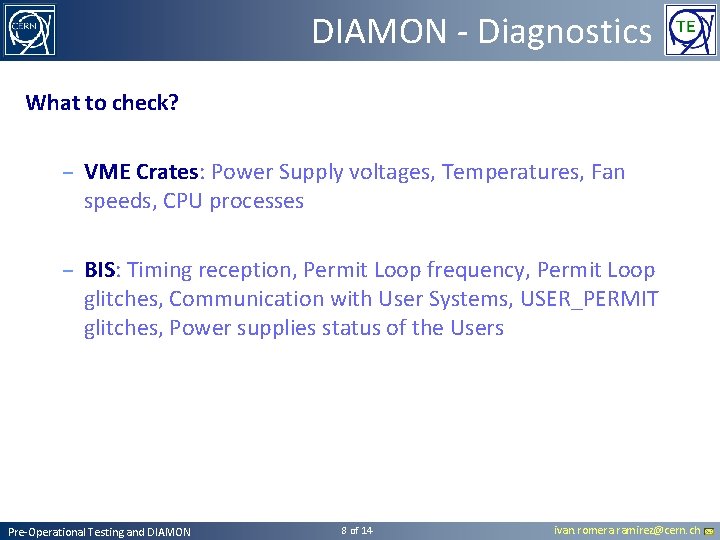

DIAMON - Diagnostics What to check? – VME Crates: Power Supply voltages, Temperatures, Fan

DIAMON - Diagnostics What to check? – VME Crates: Power Supply voltages, Temperatures, Fan speeds, CPU processes – BIS: Timing reception, Permit Loop frequency, Permit Loop glitches, Communication with User Systems, USER_PERMIT glitches, Power supplies status of the Users Pre-Operational Testing and DIAMON 8 of 14 ivan. romera. ramirez@cern. ch

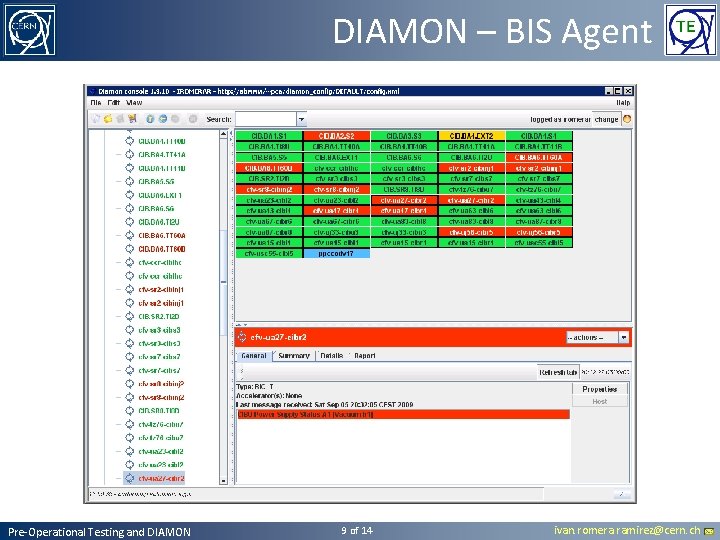

DIAMON – BIS Agent Pre-Operational Testing and DIAMON 9 of 14 ivan. romera. ramirez@cern.

DIAMON – BIS Agent Pre-Operational Testing and DIAMON 9 of 14 ivan. romera. ramirez@cern. ch

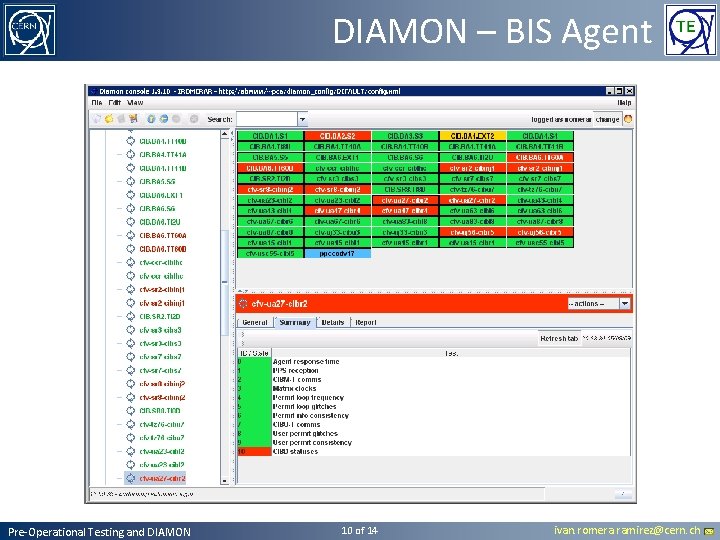

DIAMON – BIS Agent Pre-Operational Testing and DIAMON 10 of 14 ivan. romera. ramirez@cern.

DIAMON – BIS Agent Pre-Operational Testing and DIAMON 10 of 14 ivan. romera. ramirez@cern. ch

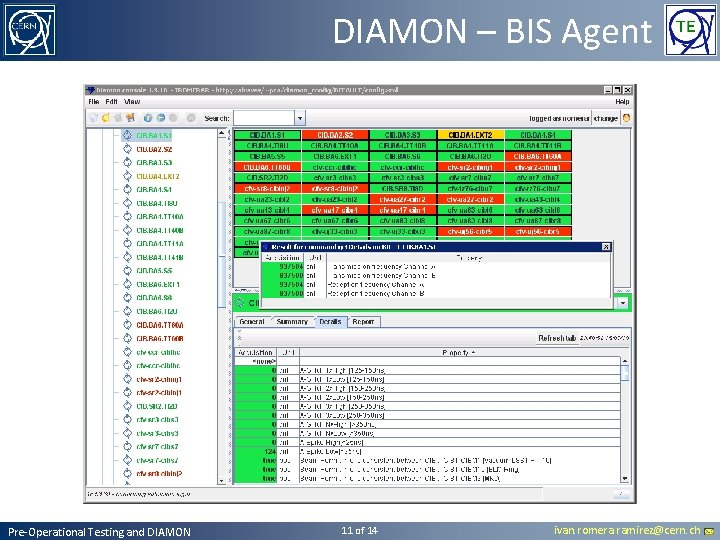

DIAMON – BIS Agent Pre-Operational Testing and DIAMON 11 of 14 ivan. romera. ramirez@cern.

DIAMON – BIS Agent Pre-Operational Testing and DIAMON 11 of 14 ivan. romera. ramirez@cern. ch

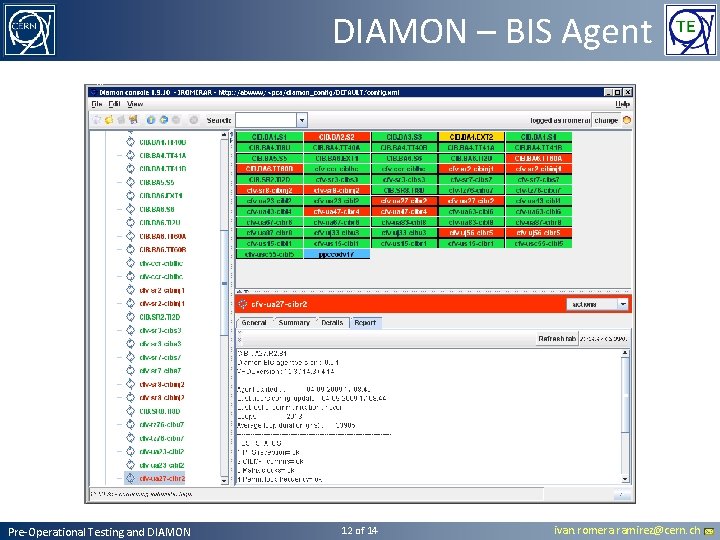

DIAMON – BIS Agent Pre-Operational Testing and DIAMON 12 of 14 ivan. romera. ramirez@cern.

DIAMON – BIS Agent Pre-Operational Testing and DIAMON 12 of 14 ivan. romera. ramirez@cern. ch

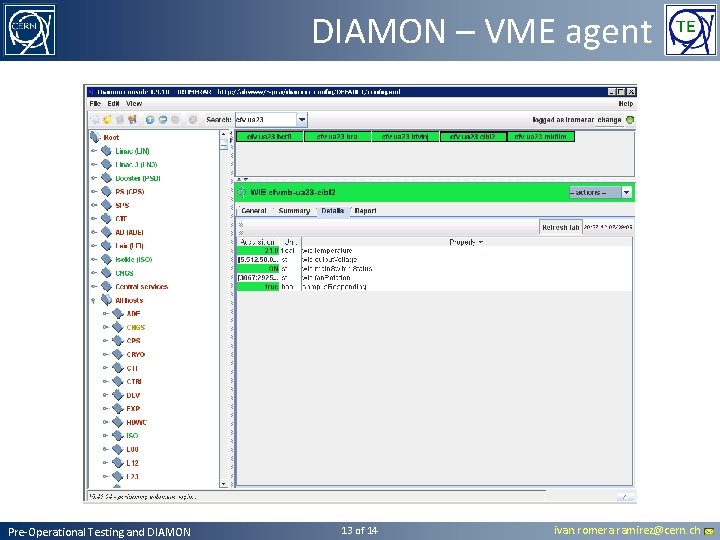

DIAMON – VME agent Pre-Operational Testing and DIAMON 13 of 14 ivan. romera. ramirez@cern.

DIAMON – VME agent Pre-Operational Testing and DIAMON 13 of 14 ivan. romera. ramirez@cern. ch

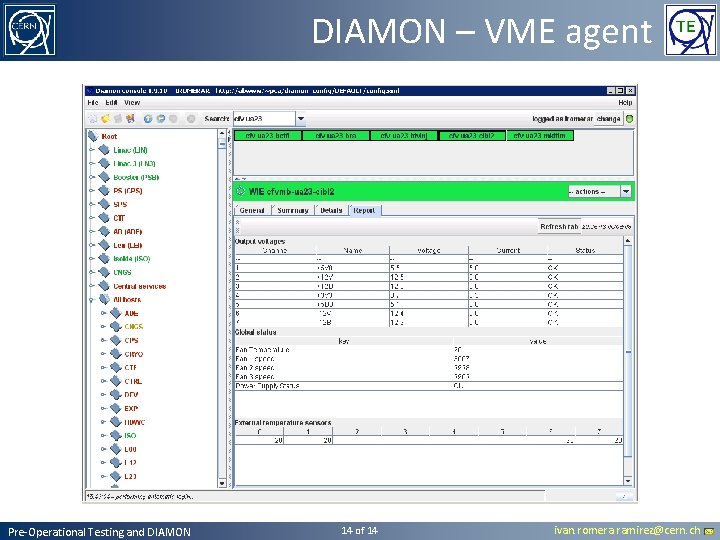

DIAMON – VME agent Pre-Operational Testing and DIAMON 14 of 14 ivan. romera. ramirez@cern.

DIAMON – VME agent Pre-Operational Testing and DIAMON 14 of 14 ivan. romera. ramirez@cern. ch
